NVA00008Electronic POS Terminal

Equinox Payments 8901 E. Raintree Dr., Suite 400, Scottsdale, AZ 85260, USA | Tel: +1.877.497.3726 | Fax: +1.480.551.7811 | www.EquinoxPayments.com © 2013 Equinox Payments, LLC., all rights reserved. Equinox Payments and the Equinox Payments logo are registered trade- marks of Equinox Payments, LLC. 940648-001E Rev. X 0x/13 INSTALLATION GUIDE APOLLO AiO The Apollo All-in-One (AiO) is ideal for merchants requiring a single device for both merchant and consumer input. The AiO comes standard with a full-color touchscreen, 384MB of total memory, a powerful 400MHz ARM11 32-bit processor for fast transactions and the ability to support multiple applications. INSTALLATION GUIDE APOLLO AiO 940648-001E Rev A 940648-001E Rev. x Easy access to paper roll for fast replacement in seconds Full-color touchscreen Prints logos, barcodes and QR codes on receipts and reports Card reader features “intelligent illumination” Standard EMV card reader Backlit, ADA- style keypad layout with integrated PCI PTS-approved PIN Pad + + + + + + WARNING  Only use the provided Equinox Payments A/C Power Adapt- er. Non-compliant power adapters may damage the device.  Do not use if visibly damaged.  Do not expose to temperatures above 140 °F or 60 °C.  Do not disassemble.  Do not incinerate or crush.  Do not power ON terminal in a flammable atmosphere (e.g., petrol station, chemical depot, etc.).  Keep out of reach of children or pets. CAUTION To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord. SAFETY INFORMATION The Apollo family of devices must be used within the operating conditions, electrical supply requirements, environmental conditions and connection requirements as specified below:  Power Supply: These devices must be connected to the correct electrical supply. Connection to an inappropriate supply may damage or destroy this device(s), thereby invalidating its warranty(s).  Only operate these devices within the temperature range of 0 °C - 45 °C.  Hazardous Environments: These devices must NOT be installed in locations where there is danger of explosion.  Usage: Under normal operating conditions, the distance to use the device safely is approximately >=20 cm from the body. COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  FCC Part 15 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference when the equipment is operated in a commercial environment. This equipment gen- erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference in which case the user will be required to correct the interference at his own expense. The user is cautioned that changes or modifications not ex- pressly approved by the party responsible for compliance could void the user’s authority to operate this device.  UL/cUL Listed  RoHS Compliant  CB  PCI PED  FCC ID: NVA00008  FCC Part 68 This device complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the underside of this device is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. A plug and jack used to connect this device to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this device. It is designed to be connected to a compatible modular jack that is also compliant. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a tele- phone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENS, contact the local telephone company. The REN for this device is part of the product identifier that has the format US:AAAEQ##-TXXXX, where the digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). If this device causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinu- ance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of this device. If this happens, the telephone compa- ny will provide advance notice in order for you to make neces- sary modifications to maintain uninterrupted service. If trouble is experienced with this device, please contact Equinox Payments at 1.877.497.3726 for repair or warran- ty information. If this device is causing harm to the tele- phone network, the telephone company may request that you disconnect this device until the problem is resolved. The user is not authorized to perform any service of this device. Connection to party-line service is subject to state tariffs. Contact the state public utility commission, public service commission, or corporation commission for information. DRAFT SHIPPING CONTENTS APOLLO AiO INSTALLATION GUIDE A/C Power Adapter (870082-001E) Paper Roll (710015-003) RJ11 Cable (Pho…

Text truncated - open the document above for the full version.

Equinox Payments 8901 E. Raintree Dr., Suite 400, Scottsdale, AZ 85260, USA | Tel: +1.877.497.3726 | Fax: +1.480.551.7811 | www.EquinoxPayments.com © 2013 Equinox Payments, LLC., all rights reserved. Equinox Payments and the Equinox Payments logo are registered trade- marks of Equinox Payments, LLC. 940649-001E Rev. X 0x/13 INSTALLATION GUIDE APOLLO CFD The Apollo Consumer-Facing Device (CFD) has an intuitive user interface, with an array of connectivity options and a brilliant full-color touchscreen display. Highly configurable, this payment device can be paired with legacy devices, third-party ECRs and ultimately, with wireless mobile devices. When paired with the Apollo Merchant Facing Device (MFD), this CFD offers a two-piece solution that supports the upcoming migration of EMV to the U.S. markets. INSTALLATION GUIDE APOLLO CFD 940649-001E Rev A 940649-001E Rev. x Full-color touchscreen Card reader features “intelligent illumination” Standard EMV card reader Check imagers, barcode scanners and other devices can be connected to multiple peripheral ports + + + + Backlit, ADA- style keypad layout with integrated PCI PTS-approved PIN Pad + WARNING  Only use the provided Equinox Payments A/C Power Adapt- er. Non-compliant power adapters may damage the device.  Do not use if visibly damaged.  Do not expose to temperatures above 140 °F or 60 °C.  Do not disassemble.  Do not incinerate or crush.  Do not power ON terminal in a flammable atmosphere (e.g., petrol station, chemical depot, etc.).  Keep out of reach of children or pets. CAUTION To reduce the risk of fire, use only No. 26 AWG or larger (e.g., 24 AWG) UL Listed or CSA Certified Telecommunication Line Cord. SAFETY INFORMATION The Apollo family of devices must be used within the operating conditions, electrical supply requirements, environmental conditions and connection requirements as specified below:  Power Supply: These devices must be connected to the correct electrical supply. Connection to an inappropriate supply may damage or destroy this device(s), thereby invalidating its warranty(s).  Only operate these devices within the temperature range of 0 °C - 45 °C.  Hazardous Environments: These devices must NOT be installed in locations where there is danger of explosion.  Usage: Under normal operating conditions, the distance to use the device safely is approximately >=20 cm from the body. COMPLIANCE Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.  FCC Part 15 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference when the equipment is operated in a commercial environment. This equipment gen- erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference in which case the user will be required to correct the interference at his own expense. The user is cautioned that changes or modifications not ex- pressly approved by the party responsible for compliance could void the user’s authority to operate this device.  UL/cUL Listed  RoHS Compliant  CB  PCI PED  FCC ID: NVA00008  FCC Part 68 This device complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the underside of this device is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. A plug and jack used to connect this device to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this device. It is designed to be connected to a compatible modular jack that is also compliant. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a tele- phone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENS, contact the local telephone company. The REN for this device is part of the product identifier that has the format US:AAAEQ##-TXXXX, where the digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). If this device causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinu- ance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of this device. If this happens, the telephone compa- ny will provide advance notice in order for you to make neces- sary modifications to maintain uninterrupted service. If trouble is experienced with this device, please contact Equinox Payments at 1.877.497.3726 for repair or warran- ty information. If this device is causing harm to the tele- phone network, the telephone company may request that you disconnect this device until the problem is resolved. The user is not authorized to perform any service of this device. Connection to party-line service is subject to state tariffs. Contact the state public utility commission, public service commission, or corporation commission for informati…

Text truncated - open the document above for the full version.

8888 E Raintree Dr., Suite 300, Scottsdale, AZ 85260 equinoxpayments.com | 1 877 497 3726 Date: August 13, 2013 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Re: Project and Product Certification Representative Authorization Letter Dear Sir/Madam, We, Equinox Payments LLC, hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Electronic POS Terminal, Models: AIO, CFD We affirm that between SIEMIC and Equinox Payments LLC, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Chris Henry / Sr. VP, Hardware Engineering Equinox Payments LLC 8901 E. Raintree Dr., Suite 400, Scottsdale, AZ 85260 480-551-7874 / [email protected]

8888 E Raintree Dr., Suite 300, Scottsdale, AZ 85260 equinoxpayments.com | 1 877 497 3726 Date: August 13, 2013 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: NVA00008 We hereby request confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operational Description • Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Chris Henry / Sr. VP, Hardware Engineering Equinox Payments LLC 8901 E. Raintree Dr., Suite 400, Scottsdale, AZ 85260 480-551-7874 / [email protected]

Date: 8/30/2013 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: NVA00008 To Whom It May Concern: This letter is to ascertain that Equinox Payments LLC Product Electronic POS Terminal NVA00008, has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Chris Henry / VP, Hardware Engineering 8901 E. Raintree Dr., Suite 400, Scottsdale, AZ 85260 480-551-7874 / [email protected]

Date: 9/4/2013 RE: Models Declaration Letter To whom it may concern, This letter is to declare that that models AIO and CFD are similar. The similarities and differences are outlined as below: 1) Similarities between models: • Same BT module and antenna • Same RFID module and antenna • Same printed circuit boards • Same external power supply • Same color display 2) Differences between models: • Slightly different dimensions for AIO to accommodate integral printer • AIO has printing capability and CFD does not have printing capability Sincerely, Chris Henry / VP, Hardware Engineering 8901 E. Raintree Dr., Suite 400, Scottsdale, AZ 85260 480-551-7845 / [email protected]

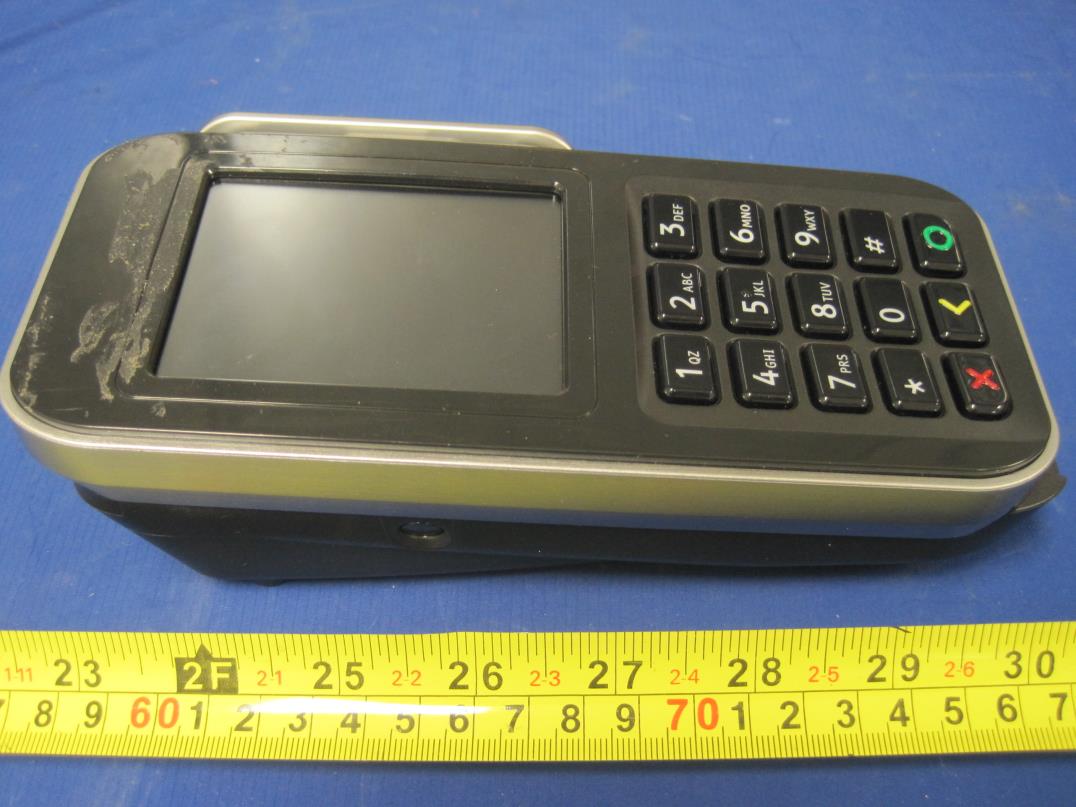

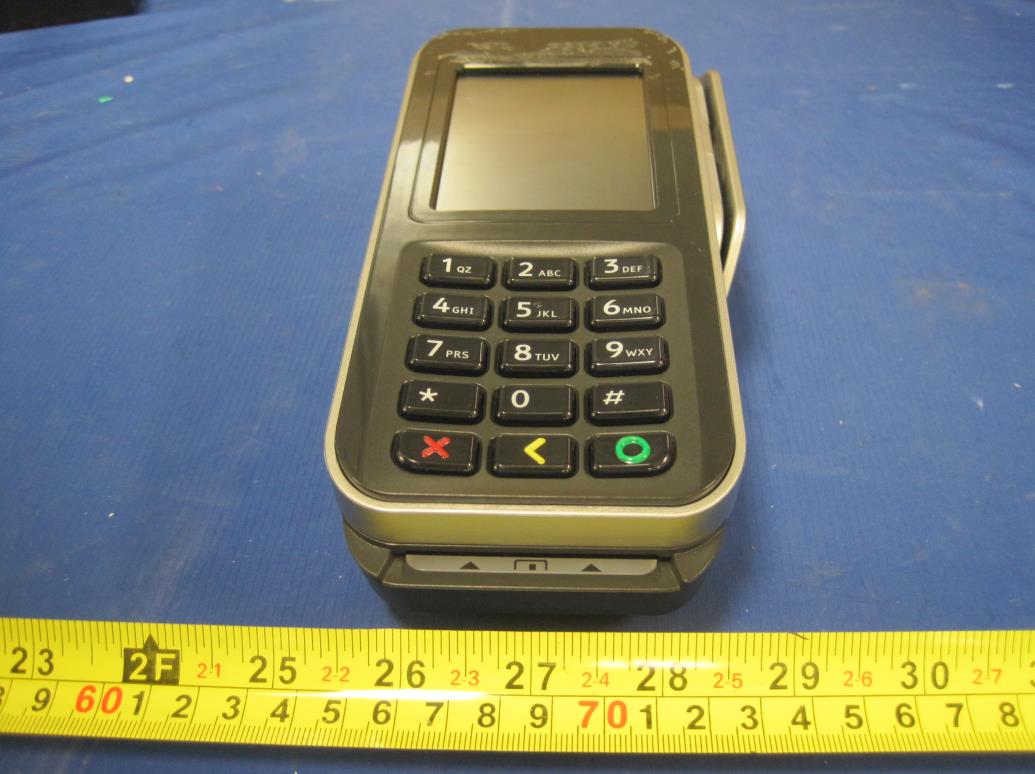

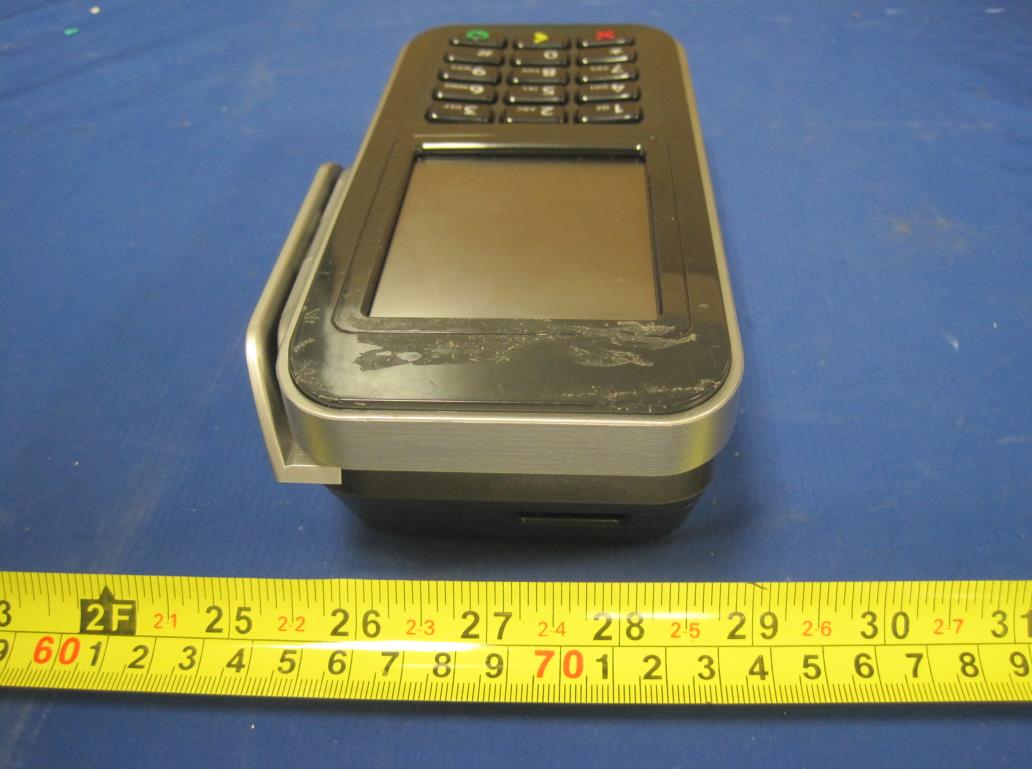

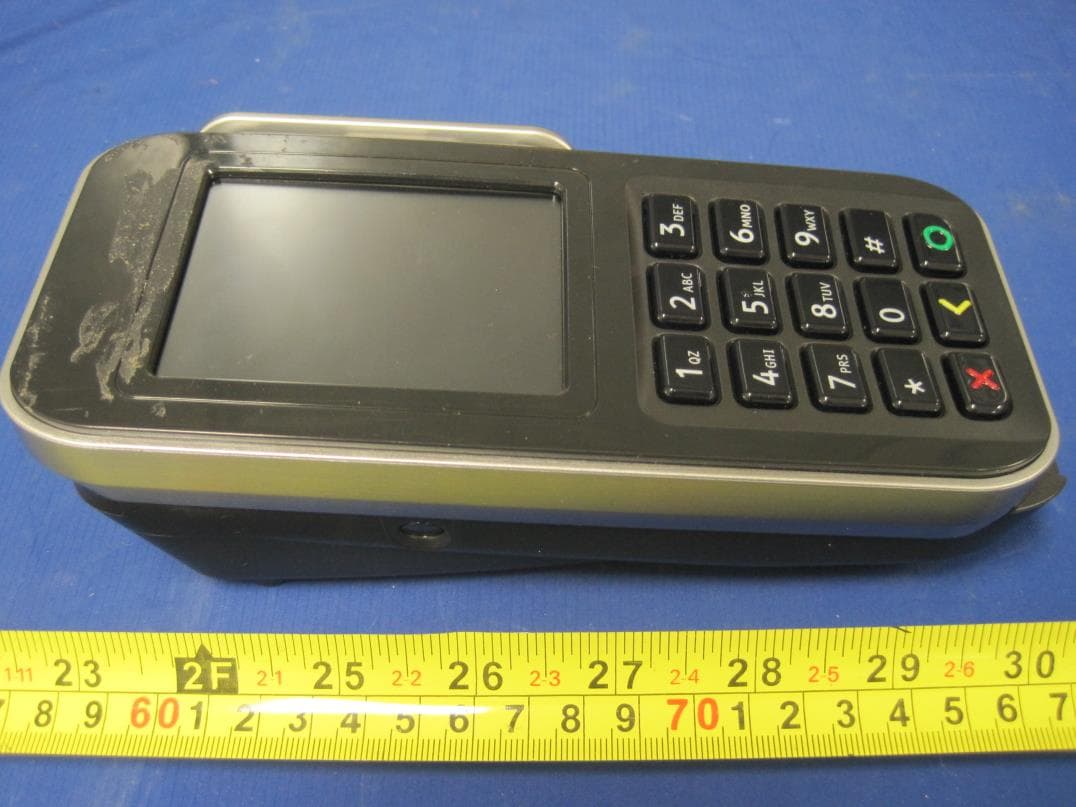

EUT Top View EUT Bottom View EUT Rear View EUT Front View EUT Right Side View EUT Left Side View

EUT Top View EUT Bottom View EUT Rear View EUT Front View EUT Right Side View EUT Left Side View

Label Location

Label Location

EUT Cover off EUT Main Board Radio Module-Top View Radio Module-Bottom View PCB 1-Top View PCB 1-Top View PCB 2-Top View PCB 2-Bottom View Keypad Board-Top View Keypad Board-Bottom View

EUT Cover off EUT Main Board Radio Module-Top View Radio Module-Bottom View PCB 1-Top View PCB 1-Top View PCB 2-Top View PCB 2-Bottom View Keypad Board-Top View Keypad Board-Bottom View

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: SL13070201-EQU-001-RF Exposure Report No.: NONESupersede Report No.: Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF Exposure TEST REPORT This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. This Test Report is Issued Under the Authority of: Nima Molaei David Zhang Test Engineer Engineer Reviewer Applicant : Equinox Payments LLC Product Name : Electronic POS Terminal Model No. : CFD, AIO Test Standard : FCC 47 CFR §1.1307(b) FCC 47 CFR §1.1310 Test Method : FCC 47 CFR §1.1310 FCC OST/OET Bulletin Number 65 FCC ID : NVA00008 IC ID : N/A Dates of test : Agust 6th - August 10th , 2013 Issue Date : 9/5/2013 Test Result : ☒ ☐ Pass Fail Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] Test report No. SL13070201-EQU-001-RF Exposure Page 1 of 8 FCC ID NVA00008 IC ID N/A 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Test report No. SL13070201-EQU-001-RF Exposure Page 2 of 8 FCC ID NVA00008 IC ID N/A 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 3 2 EXECUTIVE SUMMARY ................................................................................................................................................. 4 3 CUSTOMER INFORMATION .......................................................................................................................................... 4 4 TEST SITE INFORMATION ............................................................................................................................................ 4 5 MODIFICATION ............................................................................................................................................................. 4 6 EUT INFORMATION ...................................................................................................................................................... 5 6.1 EUT Description ........................................................................................................................................................ 5 6.2 Radio Description ...................................................................................................................................................... 5 7 MPE CALCULATION ..................................................................................................................................................... 6 Test report No. SL13070201-EQU-001-RF Exposure Page 3 of 8 FCC ID NVA00008 IC ID N/A 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: 1 Report Revision History Report No. Report Version Description Issue Date SL13070201-EQU-001-RF Exposure Original - 09/05/2013 Test report No. SL13070201-EQU-001-RF Exposure Page 4 of 8 FCC ID NVA00008 IC ID N/A 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: 2 Executive Summary The purpose of this test programme was to demonstrate compliance of the FCC, IC certified radio module, Electronic POS Terminal (FCC ID: NVA00008, IC ID: N/A), from Equinox Payments LLC, and Model: CFD, AIO, to be installed inside portable host unit of Abbott POC DragonFly Hand-held Blood Analyzer, against the current Stipulated Standards. 3 Customer information Applicant Name : Equinox Payments LLC Applicant Address : 8901 E Raintree Dr., Suit 400, Scottsdale, AZ 85260 Manufacturer Name : Equinox Payments LLC Manufacturer Address : 8901 E Raintree Dr., Suit 400, Scottsdale, AZ 85260 4 Test site information Lab performing tests : SIEMIC Laboratories Lab Address : 775 Montague Expressway, Milpitas, CA 95035 FCC Test Site No. : 881796 IC Test Site No. : 4842D-2 VCCI Test Site No. : A0133 5 Modification Index Item Description Note - - - - Test report No. SL13070201-EQU-001-RF Exposure Page 5 of 8 FCC ID NVA00008…

Text truncated - open the document above for the full version.

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: SL13070201-EQU-001-BT_Rev1.0 Report No.: SL13070201-EQU-001-BTSupersede Report No.: Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. This Test Report is Issued Under the Authority of: Nima Molaei David Zhang Test Engineer Engineer Reviewer Applicant : Equinox Payments LLC Product Name : Electronic POS Terminal Model No. : CFD, AIO Test Standard : FCC 15.247: 2012 RSS 210 Issue8: 2010 Test Method : ANSI C63.4:2009 FCC Public Notice DA 00-705 FCC ID : NVA00008 IC ID : N/A Dates of test : Agust 6th - August 10th , 2013 Issue Date : 9/11/2013 Test Result : ☒ ☐ Pass Fail Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] Test report No. SL13070201-EQU-001-BT_Rev1.0 Page 1 of 51 FCC ID NVA00008 IC ID N/A 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom Test report No. SL13070201-EQU-001-BT_Rev1.0 Page 2 of 51 FCC ID NVA00008 IC ID N/A 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 3 2 EXECUTIVE SUMMARY ................................................................................................................................................. 4 3 CUSTOMER INFORMATION .......................................................................................................................................... 4 4 TEST SITE INFORMATION ............................................................................................................................................ 4 5 MODIFICATION ............................................................................................................................................................. 4 6 EUT INFORMATION ...................................................................................................................................................... 5 6.1 EUT Description ........................................................................................................................................................ 5 6.2 Radio Description ...................................................................................................................................................... 5 6.3 EUT test modes/configuration Description.................................................................................................................... 6 6.4 EUT Photos – External for CFD model........................................................................................................................ 7 6.5 EUT Photos – External for AIO model ......................................................................................................................... 8 6.6 EUT Photos – Internal for CFD model ......................................................................................................................... 9 6.7 EUT Photos – Internal for AIO model ......................................................................................................................... 11 6.8 EUT Test Setup Photos for CFD model ..................................................................................................................... 13 6.9 EUT Test Setup Photos for AIO model ...................................................................................................................... 14 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 15 7.1 Supporting Equipment ............................................................................................................................................. 15 7.2 Cabling Description ................................................................................................................................................. 15 7.3 Test Software Description ...................................................................…

Text truncated - open the document above for the full version.

Radiated Emission (<1GHz) – Front View Radiated Emission (<1GHz) – Rear View Radiated Emission (>1GHz) – Front View Radiated Emission (>1GHz) – Rear View

Radiated Emission (<1GHz) – Front View Radiated Emission (<1GHz) – Rear View Radiated Emission (>1GHz) – Front View Radiated Emission (>1GHz) – Rear View AC Line Conducted Emission – Front View AC Line Conducted Emission – Rear View
