The duty cycle is calculated as below. There are 1000 bit intervals in a .1 second period. A 40% duty cycle (500 high bits) was assumed to insure worst case scenario as the testing was done before the actual duty cycle was calculated. Sounds to me that the part recommended by RFM to help the receiver sensitivity may be a viable solution. I look forward to seeing if there is any improvement. Here are some snap shots from my data scope (real world). Looking at the short message lengths being used...73 bytes. Almost 30% of the .1 second interval we are quiet (nice for an emission average). Rough calculation ~1000 bit intervals in .1 second period (9600 baud) 73 Start bits (high) 4 STX (high) ~210 (high) Data typ.. ~300 high bits ~%30 of the .1 interval Longest message: 73 BYTES 55 5E 04 06 01 3C 01 01 0B 57 09 45 52 43 4F 4D 20 20 58 10 89 FF 03 30 01 58 10 89 FF 03 30 01 58 10 89 FF 03 30 01 58 10 89 FF 01 30 01 85 00 04 01 35 37 30 38 82 30 0A 31 31 32 33 34 35 36 37 38 39 30 84 20 00 19 A7 Message format 55 = STX 5E = MESSAGE SEQ NUMBER 04 = PACKET SEQ NUMBER 06 = CONTROL (ACK REQ...ETC) 01 = PACKET TYPE (01 = DATA, 02 = ACK, ETC) 3C = MESSAGE LENGTH 01 = MESSAGE ID 01 0B = DESTINATION ADDRESS 57 09 = SOURCE ADDRESS 09 52 43 ............>>>>>DATA<<<<<< LAST TWO BYTES 19 A7 -- CRC16 Shortest message (ACK) 13 BYTES 55 5E 04 00 02 00 00 57 09 01 0B 83 4F Message format 55 = STX 5E = MESSAGE SEQ NUMBER 04 = PACKET SEQ NUMBER 00 = CONTROL (ACK REQ...ETC) 02 = PACKET TYPE (01 = DATA, 02 = ACK, ETC) 00 = MESSAGE LENGTH 00 = MESSAGE ID 57 09 = DESTINATION ADDRESS 01 0B = SOURCE ADDRESS 19 A7 = CRC16

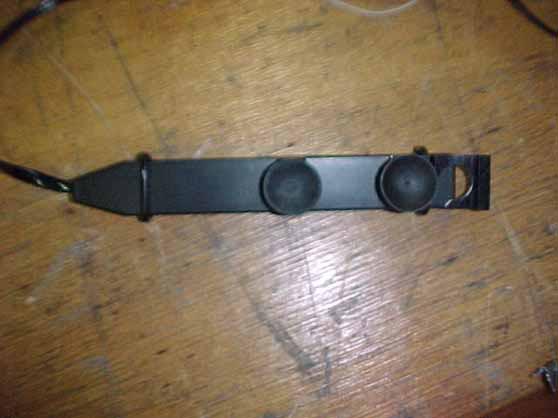

FCC ID: NVA020123-002 Report Number: B81221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 2 of 16 TABLE OF CONTENTS Section / TitlePAGE GENERAL REPORT SUMMARY4 SUMMARY OF TEST RESULTS4 1. PURPOSE5 2. ADMINISTRATIVE DATA6 2.1 Location of Testing6 2.2 Traceability Statement6 2.3 Cognizant Personnel6 2.4 Date Test Sample was Received6 2.5 Disposition of the Test Sample6 2.6 Abbreviations and Acronyms6 3. APPLICABLE DOCUMENTS7 4. Description of Test Configuration8 4.1 Description of Test Configuration - EMI8 4.1.1 Cable Construction and Terminaton9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT10 5.1EUT and Accessory List10 5.2 EMI Test Equipment11 6. TEST SITE DESCRIPTION12 6.1 Test Facility Description12 6.2 EUT Mounting, Bonding and Grounding12 7. Test Procedures13 7.1 RF Emissions13 7.1.1 Conducted Emissions Test13 7.1.2 Radiated Emissions (Spurious and Harmonics) Test14 7.2 Bandwidth of the Transmitted Signal15 8. CONCLUSIONS16 FCC ID: NVA020123-002 Report Number: B81221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 3 of 16 LIST OF APPENDICES APPENDIXTITLE AModifications to the EUT BAdditional Models Covered Under This Report CDiagrams, Charts and Photos • Test Setup Diagrams • Radiated and Conducted Emissions Photos • Antenna and Effective Gain Factors DData Sheets LIST OF TABLES TABLETITLE 1 Conducted Emissions Test Results 2 Radiated Emissions Test Results LIST OF FIGURES FIGURETITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Test Site FCC ID: NVA020123-002 Report Number: B81221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product endorsement by NVLAP or any other agency of the U.S. Government. Device Tested:Terminal Transceiver Model: FXV-01 S/N: N/A Product Description:The EUT is a radio transceiver operating in the FCC, ISM band. Modifications:The EUT was not modified during the testing. Manufacturer:Hypercom Corporation 2851 West Kathleen Road Phoenix, Arizona 85053 Test Date:December 21, 1998 File # for Canada: IC 2154-D Test Specifications : EMI requirements FCC Title 47, Part 15 Subpart B and C, Sections 15.205, 15.207 and 15.249 RSS-210 Issue 2 Test Procedure :ANSI C63.4: 1992 Test Deviations:The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TESTDESCRIPTIONRESULTS 1Conducted RF Emissions, 450 kHz - 30 MHzComplies with the of FCC Title 47, Part 15 Subpart B and C, sections 15.207 and 15.249 2Radiated RF Emissions, 10 kHz - 9300 MHzComplies with the limits of FCC Title 47, Part 15 Subpart C, sections 15.205, and 15.249; and RSS-210 section 6.2.2. (m), 6.6, and table 3 (general field strength limits) FCC ID: NVA020123-002 Report Number: B81221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 5 of 16 1.PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Terminal Transceiver Model: FXV-01. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4: 1992 . The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the specification limits defined by FCC Title 47, Part 15, Subpart C, sections 15.205, 15.207 and 15.249; and RSS-210 Issue 2, section 6.2.2 (m), 6.6, and table 3 (general field strength limits). FCC ID: NVA020123-002 Report Number: B81221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 6 of 16 2.ADMINISTRATIVE DATA 2.1Location of Testing The EMI tests described herein were performed at the test facility of Compatible Electronics, 114 Olinda Drive, Brea, California 92823. 2.2Traceability Statement The calibration certificates of all test equipment used during the test are on file at the location of the test. The calibration is traceable to the National Institute of Standards and Technology (NIST) . 2.3Cognizant Personnel Hypercom Corporation Robert “Bob” LindyElectronic Engineer, Hypercom POS Development Compatible Electronics Inc. Kyle FujimotoTest Engineer Scott McCutchanLab Manager 2.4Date Test Sample was Received The test sample was received on December 16, 1998 2.5Disposition of the Test Sample The test sample was returned to Hypercom Corporation on December 21, 1998. 2.6Abbreviations and Acronyms The following abbreviations and acronyms may be used in this document. RFRadio Frequency EMIElectromagnetic Interference EUTEquipment Under Test P/NPart Number S/NSerial Number HPHewlett Packard ITEInformation Technology Equipment CMLCorrected Meter Limit LISNLine Impedance Stabilization Network POSPoint of Sale FCC ID: NVA020123-002 Report Number: B81221D1 114 OLINDA DRIVE, BREA, CALIFORNIA 92823 PHONE: (714) 579-0500 FAX: (714) 579-1850 Page 7 of 16 3.APPLICABLE DOCUMENTS The following documents are referenced or used in the preparation of this EMI Test Report. SPECTITLE FCC Title 47, Subpart C. FCC Rules - Radio frequency devices (including digital devices) – Intentional Radiators. FCC Title 47, Subpart B FCC Rules - Radio frequency devices (including digital devices) – Unintentional Radiators. ANSI C63.4 1992 Methods of measurement of radio-noise emissions from low-v…
