NVRCSI-DSP85-U7C

Westell, Inc.

DSP85 DIGITAL REPEATER LTEC 700 MHz UPPER C BAND

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Mar 31, 2010
Application Purpose: Original Equipment
Date of Application: Mar 31, 2010
Equipment Note: DSP85 DIGITAL REPEATER LTEC 700 MHz UPPER C BAND
Frequency Range: 776.00000000 - 787.00000000
Company: Westell, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

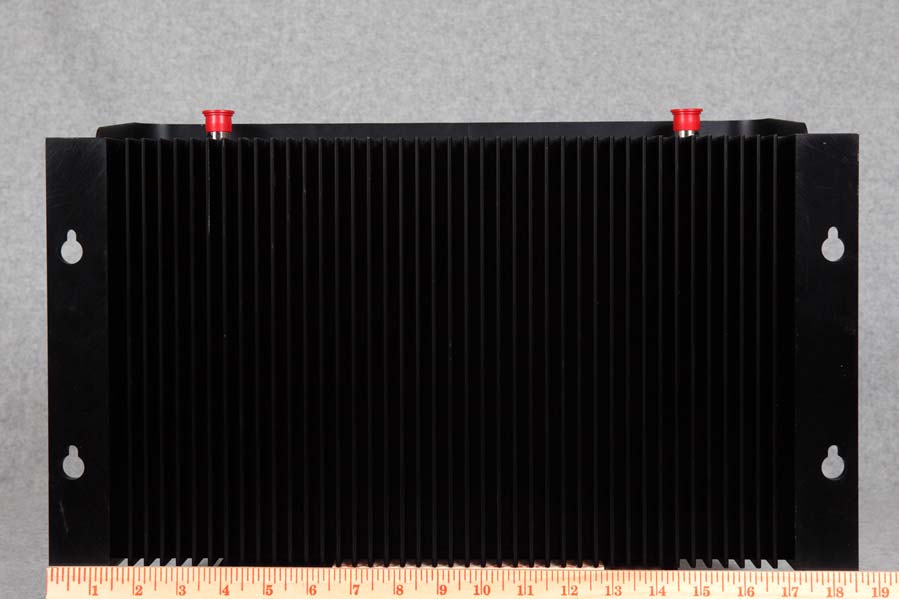

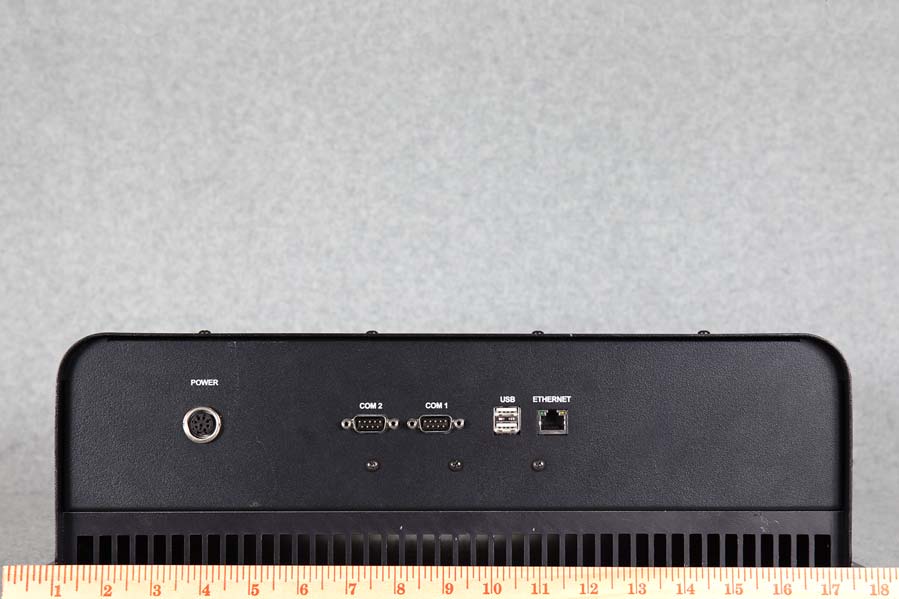

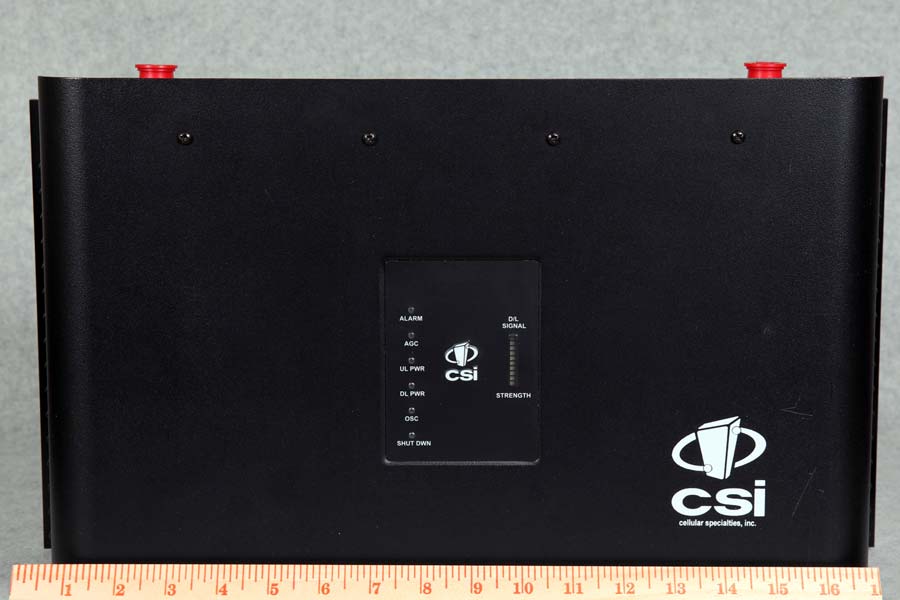

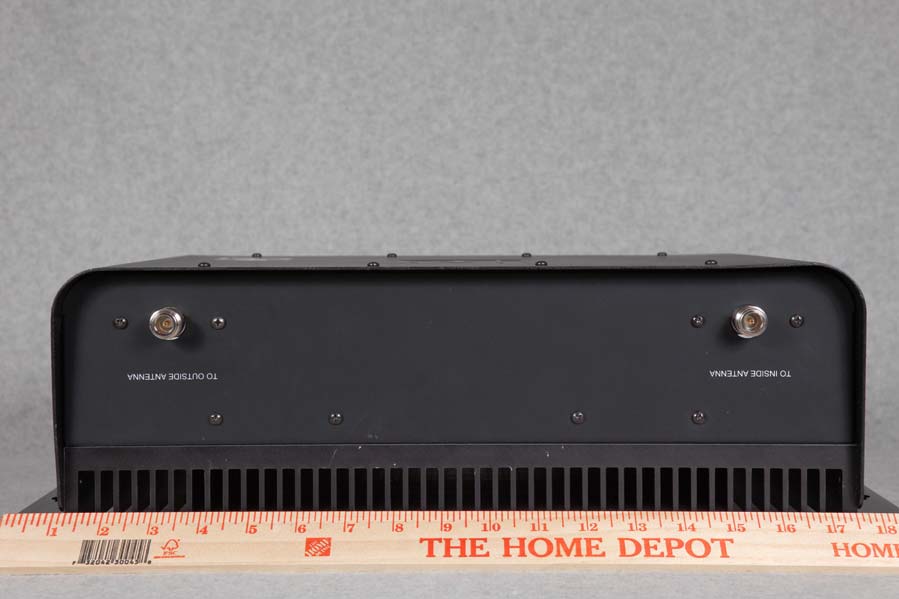

External Photos

ID Label/Location Info

Internal Photos

Parts List/Tune Up Info

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	27	776 MHz - 787 MHz	620.00 mW	F9W	Amp

Confidentiality

Long Term

Grant Notes

The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of 2.1091. The indoor antenna used for this transmitter must not exceed 3dBi gain and must be installed to provide a separation distance of 20cm or more from persons to satisfy MPE categorical exclusion requirements of 2.1091. The outdoor antenna used for this transmitter must not exceed 14dBi and must be installed to provide a separation distance of 100cm or more from persons to satisfy MPE categorical exclusion requirements of 2.1091. This device is a repeater.
