Model 310 Model 310Model 310 Model 310Plus In-Building Amplifier In-Building Amplifier In-Building Amplifier In-Building Amplifier Installation and Users Manual Cellular Specialties, Inc. DISCLAIMER All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties, but Cellular Specialties makes no warranty with respect thereto, including without limitation any results which may be obtained from the products described herein or the infringement by such products of any proprietary rights of any persons. Use or application of such information or statements is at the user's sole risk, without any liability on the part of Cellular Specialties, Inc. Nothing herein shall be construed as license or of recommendation for use, which infringes upon any proprietary rights of any person. Product material and specifications are subject to change without notice. All sales of the product or products described herein are subject to Cellular Specialties' standard terms of sale and the specific terms of any particular sale. The serial number may be found on the label on the rear panel of the unit. For your convenience, note this number below, and retain this manual, along with proof of purchase , to serve as a permanent record of your purchase in the event of a theft, or for future reference. MODEL NUMBER NAME OF COMPANY DATE OF PURCHASE 310 SERIAL NUMBER FCC ID NVRCSI310-03 This device complies with part 90 and part 2 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and this device must accept any interference that may cause undesired operation. MANUAL110+ REV A 2 TABLE OF CONTENTS 1.0 SAFETY GUIDELINES 3 2.0 PRODUCT DESCRIPTION 4 MECHANICAL OUTLINE DRAWING5 3.0 GENERAL SPECIFICATIONS 6 4.0 INSTALLATION 7 5.0 AMPLIFIER ADJUSTMENT 9 6.0 TROUBLESHOOTING 10 MANUAL110+ REV A 3 SAFETY GUIDELINES
GROUNDING This amplifier system is designed to operate from single-phase 120VAC power and should always be operated with both the neutral and ground wires properly connected. Do not remove or otherwise alter the grounding lug on the power cord.
EXPLOSIVE ATMOSPHERES This product has an integral circuit breaker, which may cause an electrical flash if the breaker should reset. To avoid explosion or fire, do not operate this product in the presence of flammable gases or fumes.
LIGHTNING DANGER Do not install or make adjustments to this unit during an electrical storm.
NO USER SERVICEABLE PARTS INSIDE HAZARDOUS VOLTAGES ARE PRESENT WHEN THE COVER IS REMOVED. Opening the chassis will void your warranty. If you suspect a malfunction with this product, call your dealer or the Cellular Specialties Support Line at (603) 626-6677. The general safety information in this guideline applies to both operating and service personnel. Specific warnings and cautions will be found in other parts of this manual where they apply, but may not appear in this summary. Failure to comply with these precautions or specific warnings elsewhere in the manual violates safety standards of design, manufacture, and intended use of equipment. Cellular Specialties, Inc. assumes no liability for the customer's failure to comply with these requirements. 1.0 MANUAL110+ REV A 4 PRODUCT DESCRIPTION Cellular Specialties, Inc. developed the Model 310 Plus In-Building Amplifier (IBA) for use in enclosed structures where sufficient signal from local cell sites to operate cell phones was unavailable within the building. It is, of course, necessary that sufficient signal be available on the roof of the structure. The IBA is connected to an external antenna, usually on the roof, and to one or more internal antennas placed strategically throughout the area where phone service is desired. The external antenna is usually a directional type such as a "yagi" however an omni-directional antenna may be used when the building is located in close proximity to one or more cell sites. Internal antennas are usually omni-directional although various other types may be used for certain installations. The IBA amplifies both the "uplink" (phone to tower) and "downlink" (tower to phone) signals thus facilitating communications to and from the local cell site There are four amplification stages on the downlink and four on the uplink for a total of +57dB nominal gain for each link. (see Figure 2.1) Both links have manual gain control settings accessed through DIP switches on the back panel plus an AGC control for both the uplink and downlink. There are LED indicators on the front panel for power on, transmitter on, uplink overload and downlink overload. An automatic amplifier safety shutdown circuit is also present which will disable the transmitters for ten seconds should the uplink and downlink overloads be reached simultaneously to prevent excessive intermodulation and oscillation. FIGURE 2.1 Functional Block Diagram 2.0 MANUAL110+ REV A 5 2.675 3.0 0 11.875 11.50 I 0 8.50 .75 TYPE-N CONNECTOR (2 - PLACES) MOUNTING HOLE (6 - PLACES) POWER CORD (6 FOOT) DOWNLINK ATTENUATOR AND AGC SWITCHES POWER ON SWITCH DOWNLINK OVERLOAD INDICATOR UPLINK OVERLOAD INDICATOR POWER INDICATOR TRANSMITTER ON INDICATOR ALL DIMENSIONS ARE IN INCHES SCALE: 1/2 TO 1 FIGURE 2.2 Model 310 Mechanical Outline Drawing UPLINK ATTENUATOR AND AGC SWITCHES FCC ID LABEL 10.25 MANUAL110+ REV A 6 GENERAL SPECIFICATIONS All specifications stated as typical unless otherwise noted. Cellular Specialties, Inc. reserves the right to change these specifications at any time without notice. 3.0 Uplink (Phone to Tower)Downlink (Tower to Phone) Frequency 806-821MHz851-866MHz Pass Band Ripple ± 1.5dB ± 1.5dB Gain @ Zero Attenuation +57dB+3dB +57dB+3dB Gain Adjustment Range 0-28dB0-28dB Power Output, (max). 1dB Compression +27 dBm+27 dBm Linear +25 dBm+25 dBm Noise Figure, Typ. +6dB+6dB 3 rd Order Intercept Point, IP3 +43dBm+43dBm Maximum Input Power -10dBm-10dBm VSWR 2.0:1 Max Propagation Delay <1.0 micro…

Text truncated - open the document above for the full version.

Model 310 Model 310Model 310 Model 310 Plus In-Building Amplifier In-Building Amplifier In-Building Amplifier In-Building Amplifier Installation and Users Manual Cellular Specialties, Inc. DISCLAIMER All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties, but Cellular Specialties makes no warranty wi th respect thereto, i ncludi ng wi thout li mi tation any results which may be obtai ned from the products described herei n or the infringement by such products of any proprietary rights of any persons. Use or application of such information or statements is at the user's sole risk, without any liability on the part of Cellular Specialties, Inc. Nothi ng herei n shall be construed as li cense or of recommendati on for use, which i nfri nges upon any propri etary rights of any person. Product material and specifications are subject to change without notice. All sales of the product or products described herein are subject to C ellular Specialties' standard terms of sale and the specific terms of any particular sale. The serial number may be found on the label on the rear panel of the unit. For your convenience, note this number below, and retain this manual, along with proof of purchase , to serve as a permanent record of your purchase in the event of a theft, or for future reference. MODEL NUMBER NAME OF COMPANY DATE OF PURCHASE 310 SERIAL NUMBER FCC ID NVRCSI310-03 This device complies with part 90 and part 2 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and this device must accept any interference that may cause undesired operation. MANUAL110+ REV B 2 TABLE OF CONTENTS 1.0 SAFETY GUIDELINES 3 2.0 PRODUCT DESCRIPTION 4 MECHANICAL OUTLINE DRAWING5 3.0 GENERAL SPECIFICATIONS 6 4.0 INSTALLATION 7 5.0 AMPLIFIER ADJUSTMENT 9 6.0 TROUBLESHOOTING 10 MANUAL110+ REV B 3 SAFETY GUIDELINES ! GROUNDING This amplifier system is designed to operate from single-phase 120VAC power and should always be operated with both the neutral and ground w ires properly connected. Do not remove or otherw ise alter the grounding lug on the pow er cord. ! EXPLOSIVE ATMOSPHERES This product has an integral circuit breaker, w hich may cause an electrical flash if the breaker should reset. To avoid explosion or fire, do not operate this product in the presence of flammable gases or fumes. ! LIGHTNING DANGER Do not install or make adjustments to this unit during an electrical storm. ! NO USER SERVICEABLE PARTS INSIDE HAZARDOUS VOLTAGES ARE PRESENT WHEN THE COVER IS REMOVED. Opening the chassis will void your warranty. If you suspect a malfunction with this product, call your dealer or the Cellular Specialties Support Line at (603) 626-6677. ! !! ! The general safety information in this guideline applies to both operating and service personnel. Specific warnings and cautions will be found in other parts of this manual w here they apply, but may not appear in this summary. Failure to comply with these precautions or specific warnings elsewhere in the manual violates safety standards of design, manufacture, and intended use of equipment. Cellular Specialties, Inc. assumes no liability for the customer's failure to comply with these requirements. 1.0 MANUAL110+ REV B 4 PRODUCT DESCRIPTION Cellular Specialties, Inc. developed the Model 310 Plus In-Building Amplifier (IBA) for use in enclosed structures w here sufficient signal from local cell sites to operate cell phones was unavailable w ithi n the building. It is, of course, necessary that sufficient signal be available on the roof of the structure. The IBA is connected to an external antenna, usually on the roof, and to one or more internal antennas placed strategically throughout the area w here phone service is desired. The external antenna is usually a directional type such as a "yagi" how ever an omni-directional antenna may be used w hen the building is located in close proximity to one or more cell sites. Internal antennas are usually omni-directional although various other types may be used for certain installations. The IBA amplifies both the "uplink" (phone to tow er) and "dow nlink" (tower to phone) signals thus facilitating communications to and from the local cell site There are four amplification stages on the dow nlink and four on the uplink for a total of +57dB nominal gain for each link. (see Figure 2.1) Both links have manual gain control settings accessed through DIP switches on the back panel plus an AGC control for both the uplink and dow nli nk. There are LED indicators on the front panel for power on, transmitter on, uplink overload and dow nlink overload. An automatic amplifier safety shutdow n circuit is also present w hich w ill disable the transmitters for ten seconds should the uplink and dow nlink overloads be reached simultaneously to prevent excessive intermodulation and oscillation. FIGURE 2.1 Functional Block Diagram 2.0 MANUAL110+ REV B 5 2.675 3.0 0 11.875 11.50 I 0 8.50 .75 TYPE-N CONNECTOR (2 - PLACES) MOUNTING HOLE (6 - PLACES) POWER CORD (6 FOOT) DOWNLINK ATTENUATOR AND AGC SWITCHES POWER ON SWITCH DOWNLINK OVERLOAD INDICATOR UPLINK OVERLOAD INDICATOR POWER INDICATOR TRANSMITTER ON INDICATOR ALL DIMENSIONS ARE IN INCHES SCALE: 1/2 TO 1 FIGURE 2.2 Model 310 Mechanical Outline Drawing UPLINK ATTENUATOR AND AGC SWITCHES FCC ID LABEL 10.25 MANUAL110+ REV B 6 GENERAL SPECIFICATIONS All specifications stated as typical unless otherwise noted. Cellular Specialties, Inc. reserves the right to change these specifications at any time without notice. 3.0 Uplink (Phone to Tower) Downlink (Tower to Phone) Frequency 806-821MHz 851-866MHz Pass Band Ripple ± 1.5dB ± 1.5dB Gain @ Zero Attenuation +57dB+3dB +57dB+3dB Gain Adjustment Range -28dB -28dB Power Output, (max). 1dB Compression +27 dBm +27 dBm *Linear +22 dBm +22 dBm Noise Figure, Typ. +6dB +6dB 3 rd Order Intercept Point, IP3 +43dBm +43dBm **Maximum Input Power -10…

Text truncated - open the document above for the full version.

NVRCSI310-03Block DiagramCellular Specialties

Cellular Specialties NVRCSI310-03 Additional Information for 731 Form When completing the 731 Form, I entered only one of the two frequency ranges applicable to the amplifier. Please modify Item 12 of the 731 Form to read as follows: Frequency Range in MHzRated RF power output in watts Uplink 806-821.378 Downlink 851-866.300 Thank you, Terra Tarango, Publications Retlif Testing Laboratories 603-497-4600

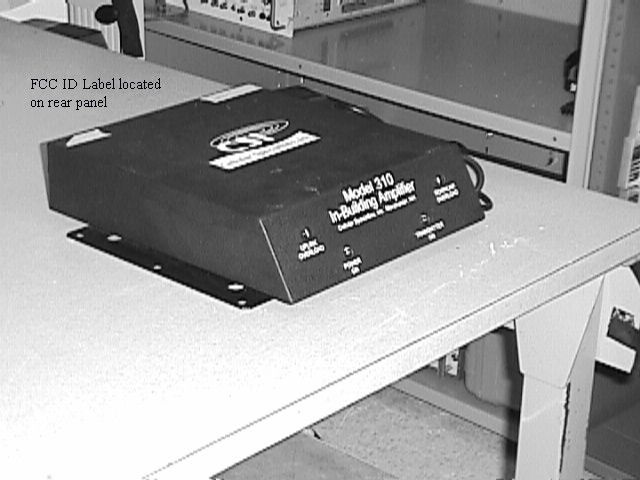

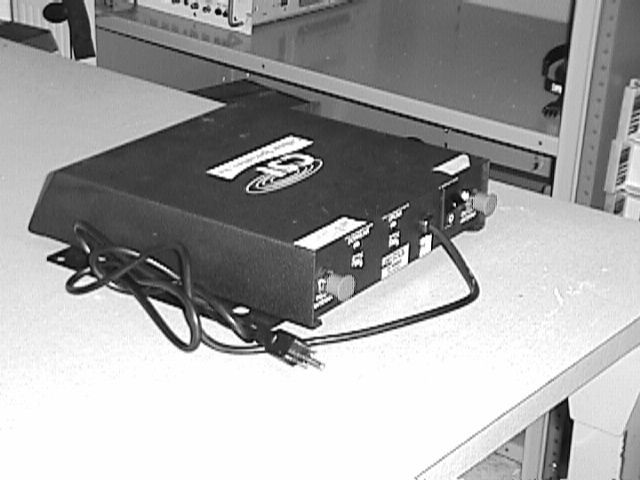

NVRCSI310-03 FCC ID Label Cellular Specialties (FCC ID Label located on rear panel) FCC ID NVRCSI310-03 This device complies with part 90 and part 2 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and this device must acce pt any interference that may cause undesired operation.

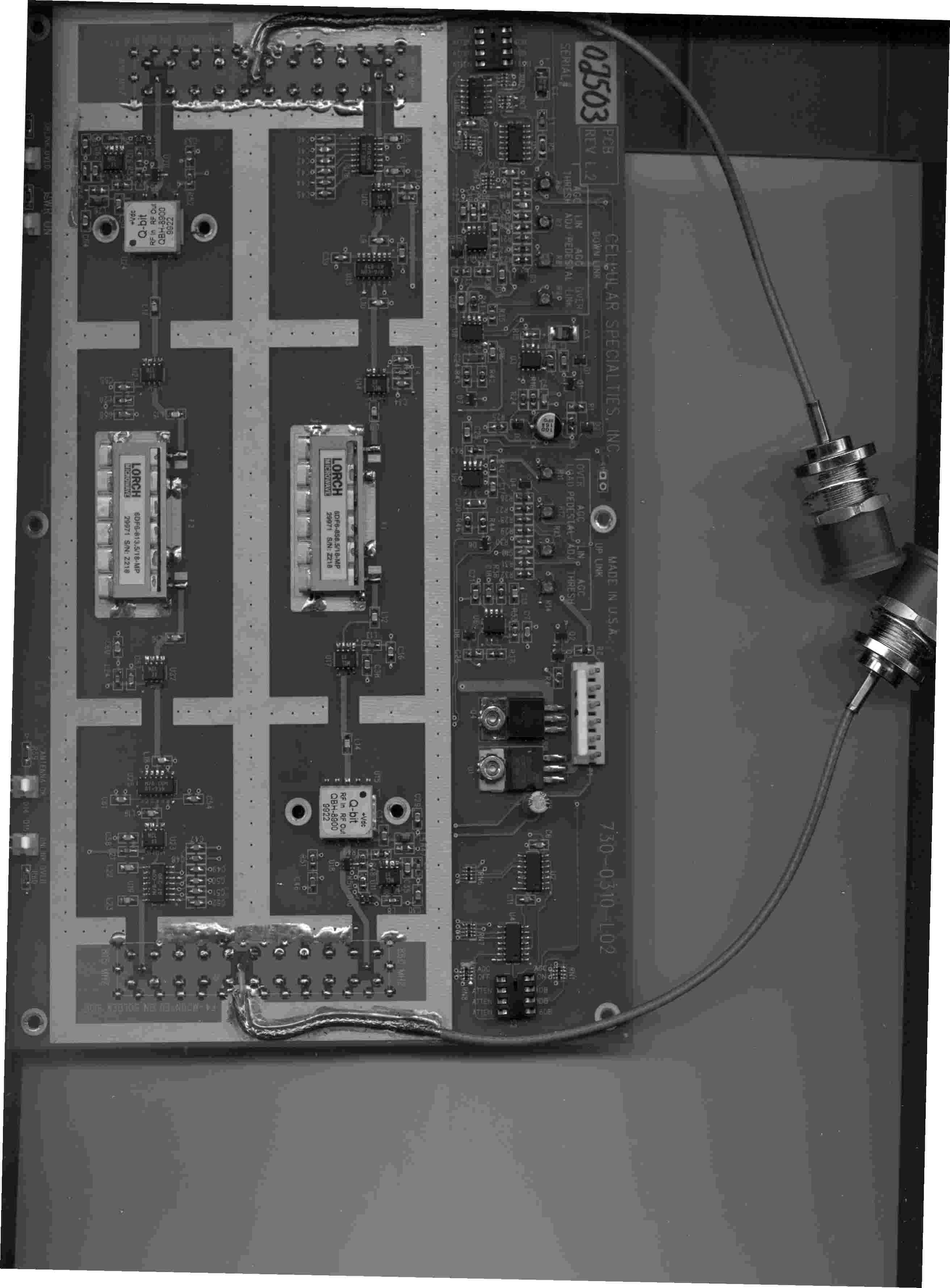

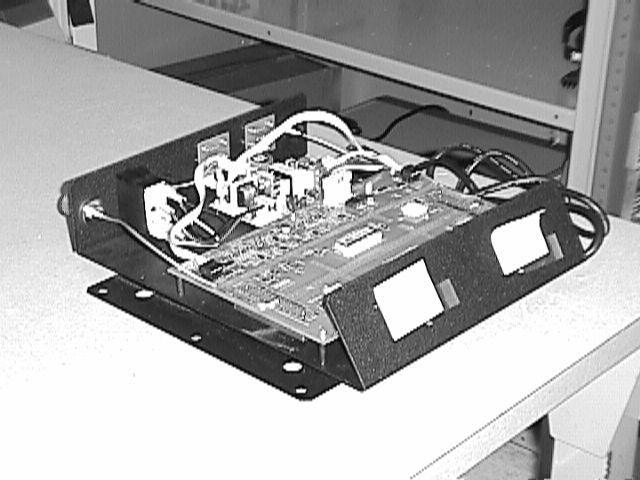

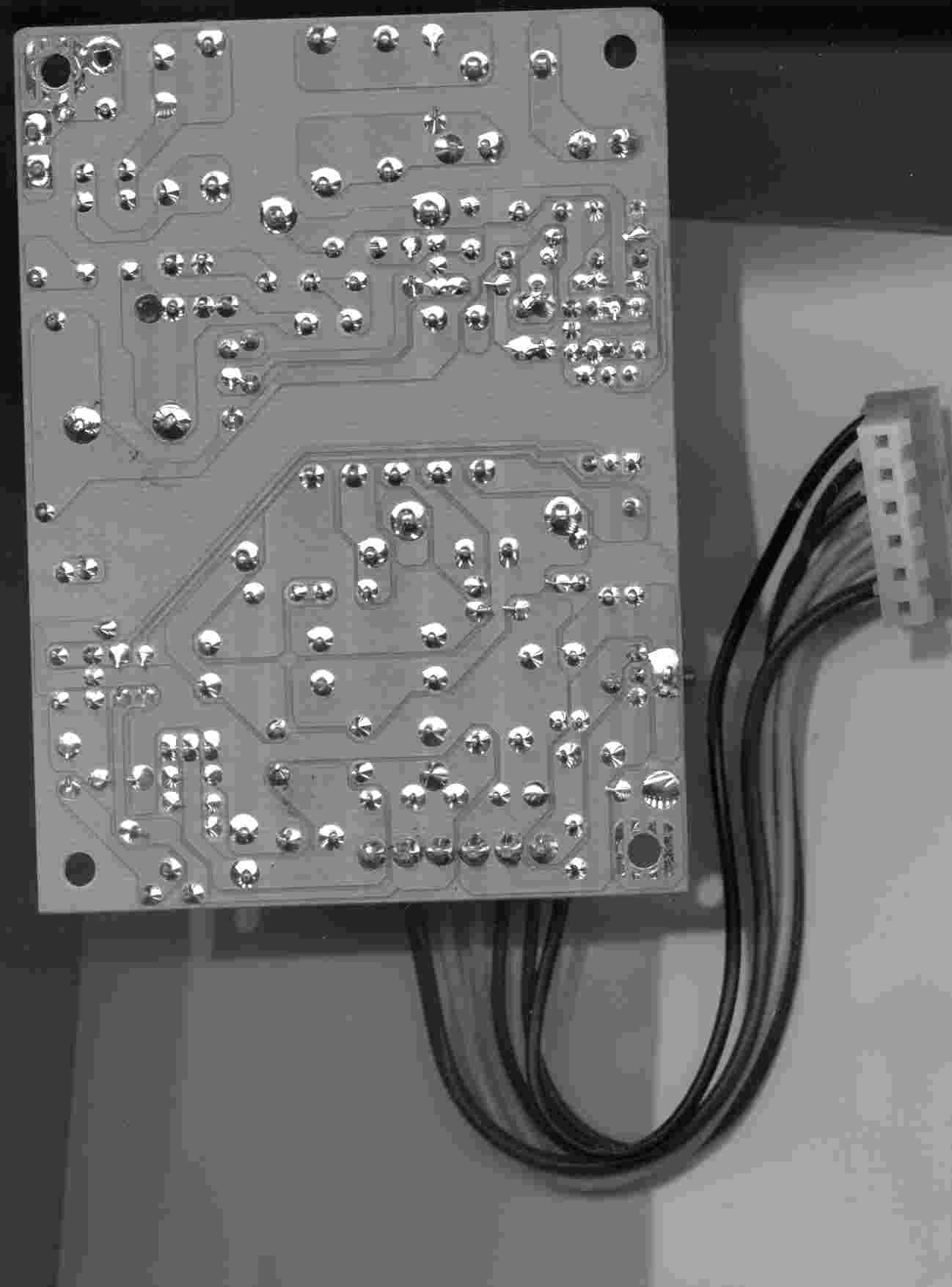

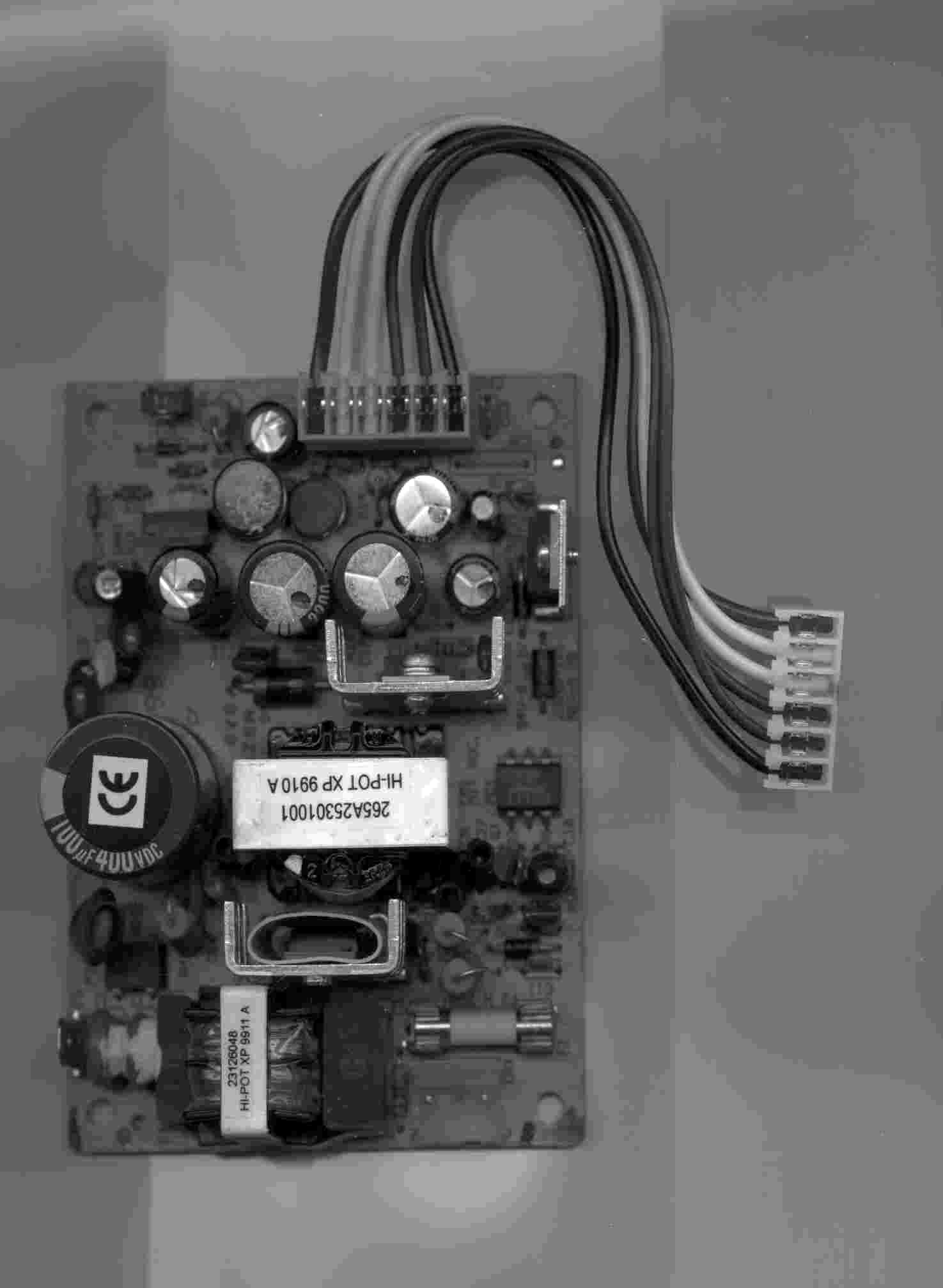

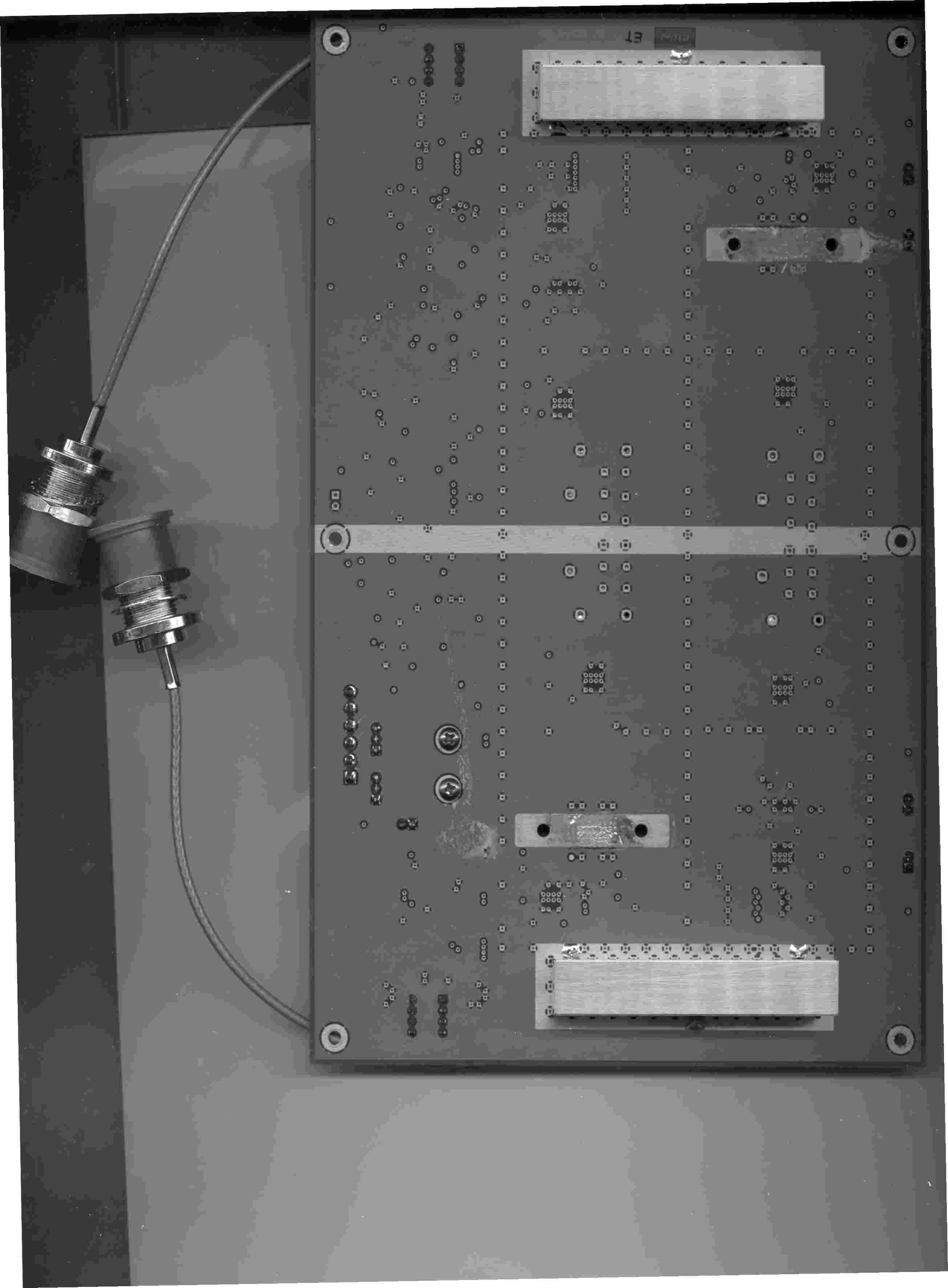

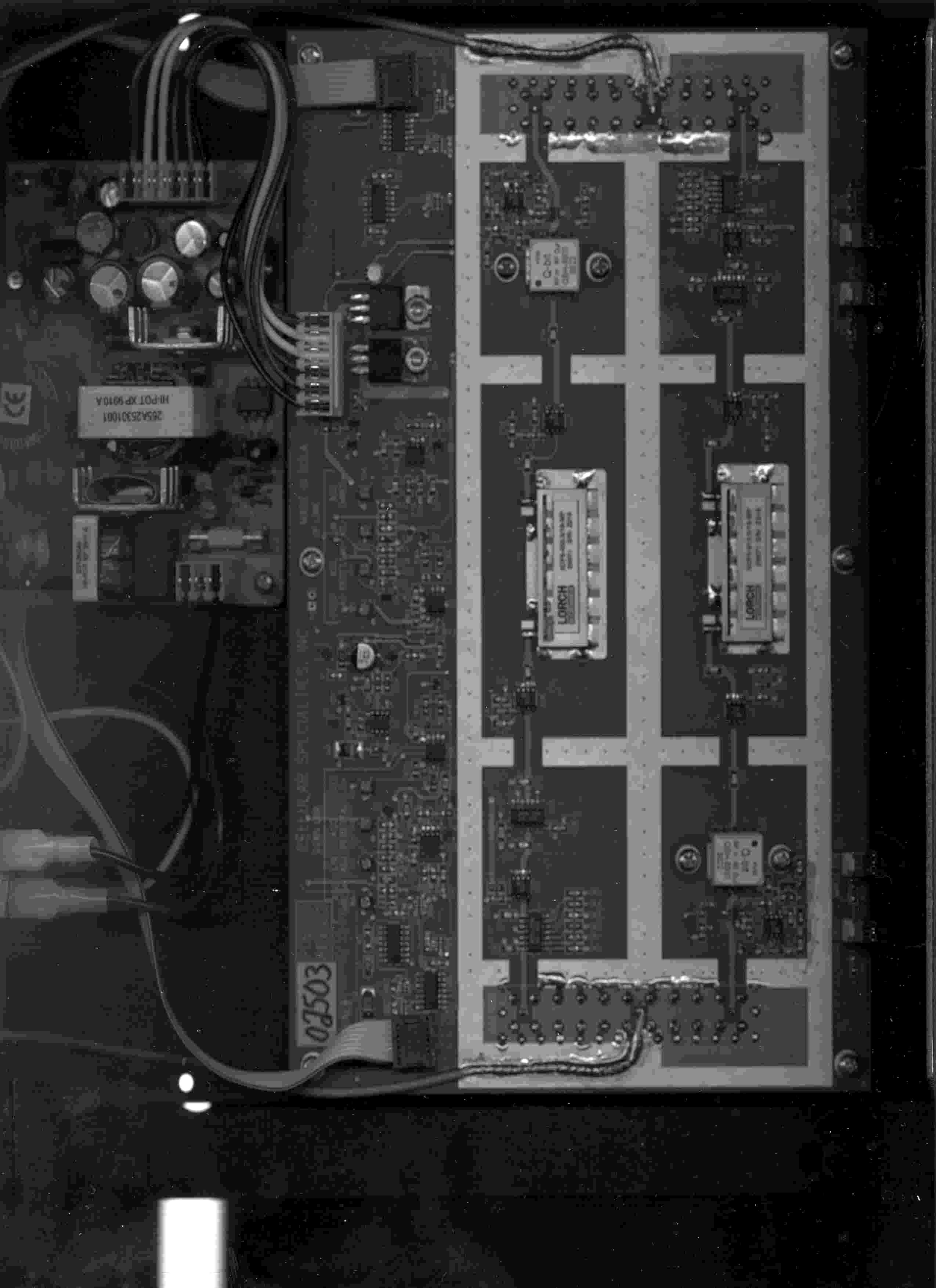

Cellular Specialties FCC ID: NVRCSI310-03 Model 310 plus Functional Description The Model 310 In-Building Amplifier is intended for use in enclosed structures where sufficient signal from local cell sites to operate cell phones is unavailable within the building. The amplifier is connected to an external antenna, usually on the roof, and to one or more internal antennas placed strategically throughout the area where phone service is desired. The external antenna is usually a directional type such as a “Yagi” however, an Omni-directional antenna may be used when the building is located in close proximity to one or more cell sites. Internal antennas are usually Omni- directional although various other types may be used for certain installations. The IBA amplifies both the “uplink” and “downlink” signals thus facilitating communications to and from the local cell site There are four amplification stages on the downlink and four on the uplink for a total +55 dB gain for each link. Both links have manual gain control settings accessed through DIP switches on the back panel plus an AGC control for both the uplink and downlink. There are LED indicators on the front panel for power on, transmitter on, uplink overload and downlink overload. An automatic amplifier safety shutdown circuit is also present, which will disable the transmitters for ten seconds should the uplink and downlink overloads be reached simultaneously, to prevent excessive intermodulation and oscillation.

Evaluation of the CSI Model 310 Plus BDA For Compliance with FCC Guidelines For Human Exposure to Radio Frequency Electromagnetic Fields 13 December 1999 General The CSI Model 310 plus Bi-directional amplifier is considered to be a “mobile” device operating in the Specialized Mobile Radio Service authorized under subpart H of part 22 and part 90. As such, the equipment is required to be evaluated for RF exposure if operated below 1.5 GHz with an effective radiated power (ERP) of 1.5 watts or more, as defined in 2.1091 of FCC rules. Downlink For the downlink portion of the Model 310 plus BDA, the maximum rated output power is +27dBm (500 mW). As stated in the Model 310 plus Manual, the maximum authorized antenna gain is 3 dBi, corresponding to a typical Omni-Directional antenna. Neglecting cable losses, the worst-case EIRP will be 1.00 watts or an ERP of 0.61 watts, (ERP=EIRP/1.64). This is well below the 1.5 watts and therefore excludes the downlink from routine evaluation. The Cautions in the Model 310 plus manual clearly define the antenna selection and installation criteria in order to maintain a minimum 20-centimeter separation. Uplink For the uplink portion of the BDA the maximum rated output power is +27 dBm (500 mW). With an authorized maximum antenna gain of 11 dBd, the worst-case ERP is 6.3 watts, neglecting cable losses between the antenna and BDA. Under these conditions the unit must be evaluated for minimum separation distances in order to comply with the Exposure limits of 1.1310 of the FCC rules. Using the guidelines in FCC OET Bulletin 65 and Supplement C, the power density at a reasonable distance from the maximum gain antenna was calculated. The minimum safe distance was also determined based on the uncontrolled exposure limits defined in Table 1B of FCC rules 1.1311. The following assumptions are made concerning these calculations:Po = 500 mW average Cable Loss = 0 dB Ant Gain = 11 dBd (13.2 dBi) Frequency = 815 MHz + 10 MHz Main Beam (worst-case) Rooftop 100% reflection Reasonable Distance = 4 feet (120 cm) Therefore, from OET Bulletin 65, S = (PG)/4πR 2 or S = EIRP/4πR 2 For 100% reflection, a doubling of the field strength can be expected. The above equation can be modified to, S = (2) 2 PG/4πR 2 = EIRP/πR 2 Solving for S at a distance of 4 feet (120 cm) gives, S = (500) (20.9)/ π (120) 2 = 0.23 mw/cm 2 From FCC rules 1.1311, Table 1B, the allowable limit for uncontrolled exposure is f(MHz) / 1500. At 815 MHz this corresponds to a level of 0.54 mw/cm 2 . The calculated value of 0.23 is below the limit of 0.54 thereby showing compliance under worst-case operating conditions. When the above equation is solved for minimum separation at the exposure limit, R = √(500) (20.9)/ π (0.54) = 78 cm (2.6 feet). As in the case of the downlink, the Cautions in the Model 310 plus manual clearly define the antenna selection and installation criteria in order to maintain a conservative 4-foot separation.

NVRCSI310-03SchematicCellular Specialties

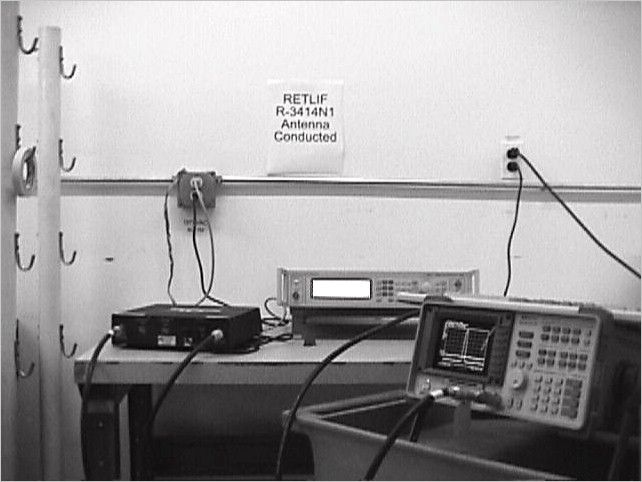

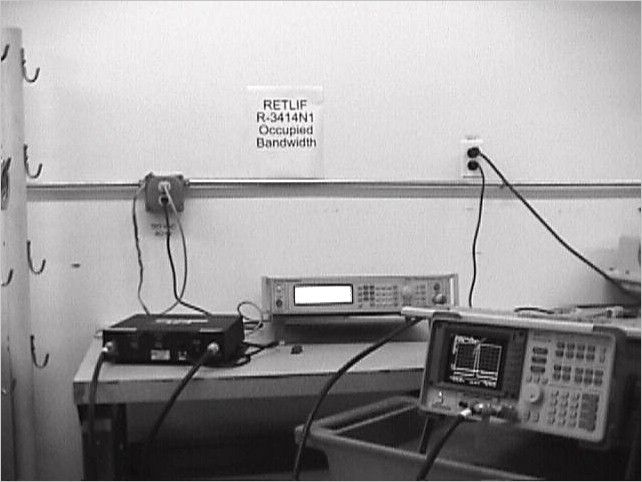

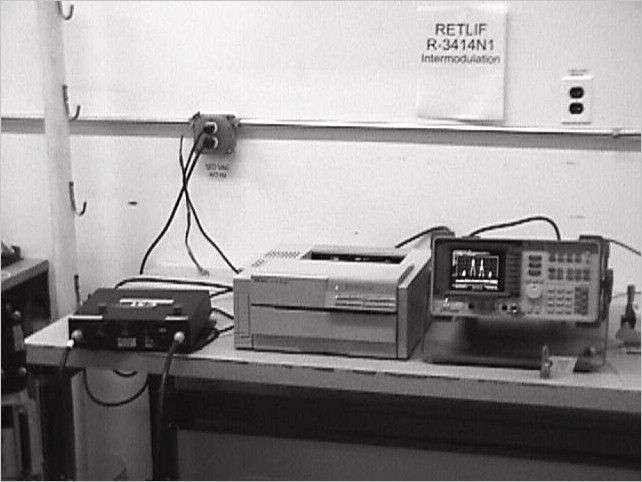

RETLIF TESTING LABORATORIES TABULAR DATA SHEET TEST METHOD: Spurious Emissions at the Antenna Terminals - 30MHz to 9GHz CUSTOMER: Cellular SpecialtiesJOB NO: R-3414N1 TEST SAMPLE: Bidirectional Amplifier MODEL NO: 310SERIAL NO: 02503 TEST SPECIFICATION: FCC Parts 2 and 90 (Special Mobile Radio) OPERATING MODE: Continuously amplifying an input signal TECHNICIAN: T. CriccoDATE: 11/1/99 NOTES: Measurements taken using a -31dBm input signal UplinkTest Frequencies Harmonic Frequencies ReadingDownlinkTest Frequencies Harmonic Frequencies Reading MHzGHzdBmMHzGHzdBm 806.0 l l l l l l l l 806.0 0.806 1.612 2.418 3.224 4.030 4.836 5.642 6.448 7.254 8.060 25.2 -33.0 -9.40 -28.7 -51.0 -57.0 -55.7 -61.3 -61.2 >-66.0 851.0 l l l l l l l l 851.0 0.851 1.702 2.553 3.404 4.255 5.106 5.957 6.808 7.659 8.510 23.7 -38.0 -13.5 -41.9 -57.5 -62.7 >-73.0 -64.8 >-66.0 >-66.0 813.5 l l l l l l l l 813.5 0.8135 1.627 2.4405 3.254 4.0675 4.881 5.6945 6.508 7.3215 8.135 24.7 -33.7 -11.6 -26.2 -49.8 -56.2 -67.9 -66.0 -63.9 >-66.0 858.5 l l l l l l l l 858.5 0.8585 1.717 2.5755 3.434 4.2925 5.151 6.0095 6.868 7.7265 8.585 25.2 -35.2 -9.70 -43.1 -58.9 -59.8 -70.0 -62.7 -64.5 >-65.0 821.0 l l l l l l l l 821.0 0.821 1.642 2.463 3.284 4.105 4.926 5.747 6.568 7.389 8.210 25.3 -33.2 -7.80 -29.1 -37.6 -53.5 -50.4 -60.5 >-65.0 >-65.0 866.0 l l l l l l l l 866.0 0.866 1.732 2.598 3.464 4.330 5.196 6.062 6.928 7.794 8.660 24.1 -35.7 -16.1 -53.1 -54.9 -61.1 >-70.0 -66.3 -62.1 >-66.0 EUT emissions observed throughout the given frequency spectrum were recorded and evaluated. DATA SHEET 1 of 1 R-3414N1

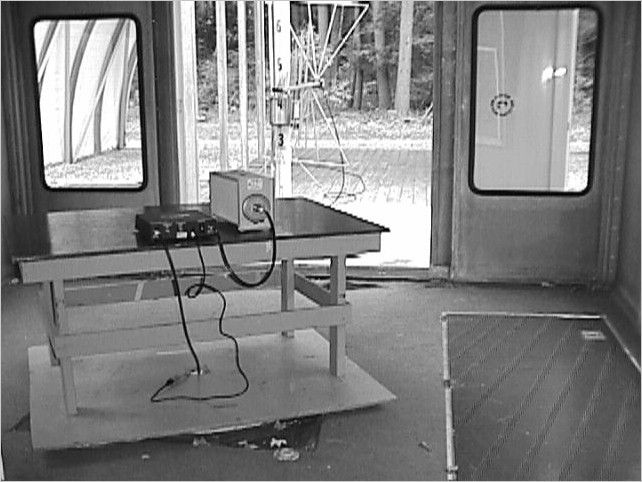

RETLIF TESTING LABORATORIES TEST METHOD: Spurious Radiated Emissions 30MHz to 9GHz CUSTOMER: Cellular SpecialitiesJOB NO: R-3414N1 TEST SAMPLE: Bidirectional Amplifier MODEL NO: 310SERIAL NO: 02503 TEST SPECIFICATION: FCC Part 2 and 90 (Special Mobile Radio) OPERATING MODE: Continuously amplifying an input signal. TECHNICIAN: T. HannemannDATE: 10/27/1999 NOTES: Test Distance = 3 meters UPLINKTEST FREQUENCY HARMONIC FREQUENCIES READINGDOWNLINKTEST FREQUENCY HARMONIC FREQUENCIES READING MHzGHzdBuV/mMHzGHzdBuV/m 806.00.80663.0851.00.85158.8 |1.612-|1.702- |2.418-|2.553- |3.224-|3.404- |4.030-|4.255- |4.836-|5.106- |5.642-|5.957- |6.448-|6.808- |7.254-|7.659- 806.08.060-851.08.510- 813.50.813570.6858.50.858555.1 |1.627-|1.717- |2.4405-|2.5755- |3.254-|3.434- |4.0675-|4.2925- |4.881-|5.151- |5.6945-|6.0095- |6.508-|6.868- |7.3215-|7.7265- 813.58.135-858.58.585- 821.00.82169.2866.00.86652.8 |1.642-|1.732- |2.463-|2.598- |3.284-|3.464- |4.105-|4.330- |4.926-|5.196- |5.747-|6.062- |6.568-|6.928- |7.389-|7.794- 821.08.210-866.08.660- EUT emissions observed throughout the given frequency spectrum were recorded and evaluated. DATA SHEET 1 of 1R - 3414N1

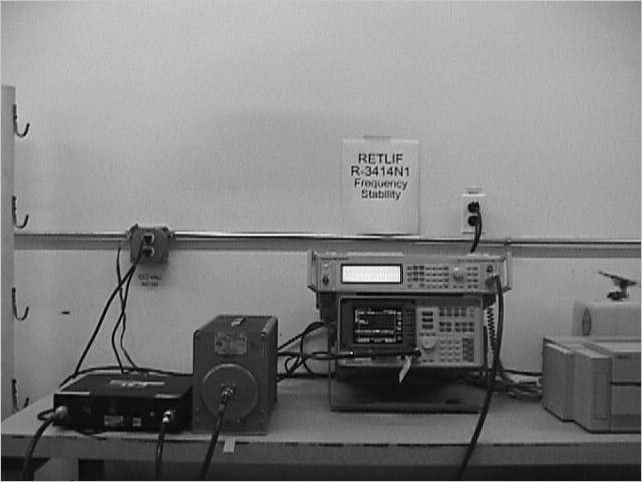

RETLIF TESTING LABORATORIES TABULAR DATA SHEET TEST METHOD: Frequency Stability CUSTOMER: Cellular SpecialitiesJOB NO: R-3414N1 TEST SAMPLE: Bidirectional Amplifier MODEL NO: 310SERIAL NO: 02503 TEST SPECIFICATION: FCC Part 2 and 90 (Special Mobile Radio) OPERATING MODE: Continuously amplifying an input signal. TECHNICIAN: T. HannemannDATE: 10/11/1999 NOTES: TEST FREQUENCY Output Frequency @ 1 dB Compression Output Frequency @ -46 dB Input Output Frequency @ -61 dB Input Output Frequency @ -91 dB Input MHzMHzMHzMHzMHz 806.0806.00806.00806.00806.00 813.5813.50813.50813.50813.50 821.0821.00821.00821.00821.00 851.0851.00851.00851.00851.00 858.5858.50858.50858.50858.50 866.0866.00866.00866.00866.00 DATA SHEET 1 of 1 R - 3414N1

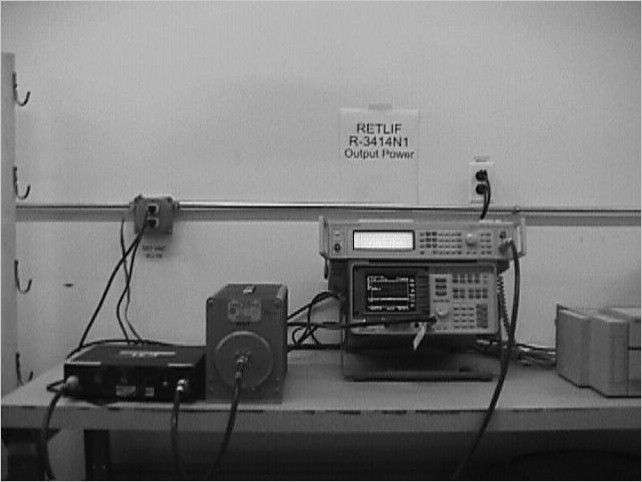

RETLIF TESTING LABORATORIES TABULAR DATA SHEET TEST METHOD: Output Power CUSTOMER: Cellular SpecialitiesJOB NO: R-3414N1 TEST SAMPLE: Bidirectional Amplifier MODEL NO: 310SERIAL NO: 02503 TEST SPECIFICATION: FCC Part 2 and 90 (Special Mobile Radio) OPERATING MODE: Continuously amplifying an input signal. TECHNICIAN: T. HannemannDATE: 10/11/1999 NOTES: Input signal -31dBm TEST FREQUENCY Maximum Output @ 1 dB Compression MHzdBm 806.027.0 813.525.7 821.025.9 851.024.6 858.525.9 866.025.2 DATA SHEET 1 of 1 R - 3414N1

RETLIF TESTING LABORATORIES TABULAR DATA SHEET TEST METHOD : Spurious Emissions at the Antenna Terminals - 30MHz to 9GHz CUSTOMER : Cellular Specialties JOB NO : R-3414N1 TEST SAMPLE : Bidirectional Amplifier MODEL NO : 310 SERIAL NO : 02503 TEST SPECIFICATION : FCC Parts 2 and 90 (Special Mobile Radio) OPERATING MODE : Continuously amplifying an input signal TECHNICIAN : T. Cricco DATE : 11/1/99 NOTES : Measurements taken using a -31dBm input signal Up linkT est Frequencies Harmonic Frequencies ReadingDownlinkT est Frequencies Harmonic Frequencies Reading M HzGHzdBmM HzGHzdBm 806.0 l l l l l l l l 806.0 0.806 1.612 2.418 3.224 4.030 4.836 5.642 6.448 7.254 8.060 25.2 -48.0 -48.0 -24.0 -49.0 >-50.0 >-50.0 >-50.0 >-50.0 >-50.0 851.0 l l l l l l l l 851.0 0.851 1.702 2.553 3.404 4.255 5.106 5.957 6.808 7.659 8.510 23.7 -49.0 -15.0 -32.0 -35.0 -44.0 >-50.0 >-50.0 >-50.0 >-50.0 813.5 l l l l l l l l 813.5 0.8135 1.627 2.4405 3.254 4.0675 4.881 5.6945 6.508 7.3215 8.135 24.7 -46.0 -39.0 -19.0 -41.0 -47.0 >-50.0 >-50.0 >-50.0 >-50.0 858.5 l l l l l l l l 858.5 0.8585 1.717 2.5755 3.434 4.2925 5.151 6.0095 6.868 7.7265 8.585 25.2 -46.0 -33.0 -30.0 -41.0 -45.0 >-50.0 >-50.0 >-50.0 >-50.0 821.0 l l l l l l l l 821.0 0.821 1.642 2.463 3.284 4.105 4.926 5.747 6.568 7.389 8.210 25.3 -47.0 -38.0 -26.0 -29.0 -38.0 -45.0 >-50.0 >-50.0 >-50.0 866.0 l l l l l l l l 866.0 0.866 1.732 2.598 3.464 4.330 5.196 6.062 6.928 7.794 8.660 24.1 -49.0 -27.0 -49.0 -44.0 >-50.0 >-50.0 >-50.0 >-50.0 >-50.0 EUT emissions observed throughout the given frequency sp ectrum were recorded and evaluated. DATA SHEET 1 of 1 R- 3414N1
