Model 610AMPSIn-Building Amplifier Installation and Users Manual Cellular Specialties, Inc. MANUAL 610 AMPS-OMNI 1 DISCLAIMER All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties, but Cellular Specialties makes no warranty with respect thereto, including without limitation any results which may be obtained from the products described herein or the infringement by such products of any proprietary rights of any persons. Use or application of such information or statements is at the user's sole risk, without any liability on the part of Cellular Specialties, Inc. Nothing herein shall be construed as license or of recommendation for use, which infringes upon any proprietary rights of any person. Product material and specifications are subject to change without notice. All sales of the product or products described herein are subject to Cellular Specialties' standard terms of sale and the specific terms of any particular sale. FCC ID NVRCSI610-02 This device complies with parts 22 and 2 of the FCC rules MANUAL610AMPS OMNI 2 TABLE OF CONTENTS 1.0 SAFETY GUIDELINES 3 2.0 PRODUCT DESCRIPTION 4 MECHANICAL OUTLINE DRAWING 5 3.0 GENERAL SPECIFICATIONS 6 4.0 INSTALLATION 7 5.0 AMPLIFIER ADJUSTMENT 9 6.0 TROUBLESHOOTING 10 MANUAL610AMPS OMNI 3 SAFETY GUIDELINES ¾ GROUNDING This amplifier system is designed to operate from single-phase 120VAC power and should always be operated with both the neutral and ground wires properly connected. Do not remove or otherwise alter the grounding lug on the power cord. ¾ EXPLOSIVE ATMOSPHERES This product has an integral circuit breaker, which may cause an electrical flash if the breaker should reset. To avoid explosion or fire, do not operate this product in the presence of flammable gases or fumes. ¾ LIGHTNING DANGER Do not install or make adjustments to this unit during an electrical storm. ¾ NO USER SERVICEABLE PARTS INSIDE HAZARDOUS VOLTAGES ARE PRESENT WHEN THE COVER IS REMOVED. Opening the chassis will void your warranty. If you suspect a malfunction with this product, call your dealer or the Cellular Specialties Support Line at (603) 626-6677. ! The general safety information in this guideline applies to both operating and service personnel. Specific warnings and cautions will be found in other parts of this manual where they apply, but may not appear in this summary. Failure to comply with these precautions or specific warnings elsewhere in the manual violates safety standards of design, manufacture, and intended use of equipment. Cellular Specialties, Inc. assumes no liability for the customer's failure to comply with these requirements. 1.0 MANUAL610AMPS OMNI 4 PRODUCT DESCRIPTION Cellular Specialties, Inc. developed the Model 610 amps In-Building Amplifier (IBA) for use in enclosed structures where sufficient signal from local cell sites to operate cell phones was unavailable within the building. It is, of course, necessary that sufficient signal be available on the roof of the structure. The IBA is connected to an external antenna, usually on the roof, and to one or more internal antennas placed strategically throughout the area where phone service is desired. The external antenna is an omni-directional antenna, used when the building is located in close proximity to one or more cell sites. Internal antennas are usually omni-directional although various other types may be used for certain installations. The IBA amplifies both the "uplink" (phone to tower) and "downlink" (tower to phone) signals thus facilitating communications to and from the local cell site There are seven amplification stages on the downlink and seven on the uplink for a total of +85dB nominal gain for each link. (see Figure 2.1) Both links have manual gain control settings accessed through DIP switches on the top cover plus an AGC control for both the uplink and downlink. There are also LED indicators on the top cover for power on, transmitter on, uplink overload and downlink overload. An automatic amplifier safety shutdown circuit is also present that will disable the transmitters for ten seconds should the uplink or downlink overloads be reached to prevent excessive intermodulation and oscillation. 2.0 MANUAL610AMPS OMNI 5 I O INSIDE ANTENNA OUTSIDE ANTENNA AC INPUT MONITOR FCC / IC LABEL SERIAL NUMBER MANUAL610AMPS OMNI 6 GENERAL SPECIFICATIONS All specifications stated as typical unless otherwise noted. Cellular Specialties, Inc. reserves the right to change these specifications at any time without notice. 3.0 Uplink (Phone to Tower) Downlink (Tower to Phone) Frequency 824-849 MHz 869-894 MHz Pass Band Ripple ± 1.5db ± 1.5db Gain @ Zero Attenuation +85dB+ 3db +85dB+3db Gain Adjustment Range -28db -28db Power Output, (max). 1dB Compression +34 dBm +39 dBm *Linear +28.8 dBm +30.6 dBm Noise Figure, Typ. +4.5db +4.5db 3 rd Order Intercept Point, IP3 +50dbm +54dbm **Maximum Input Power -10dbm -10dbm VSWR 2.0:1 Max Propagation Delay <1.0 microsecond Impedance 50 Ohms Connectors ‘N’ Female Power Requirements 120 VAC @ 1500mA Size 15” x 13.5” x 4” Weight 6¾ Lbs., 3 kg Operating Temperature -22 to +118 ° F, -30 to +48 ° C Indicator LEDs Power, Transmitter On, Uplink Overload, Downlink Overload Controls Power switch with fuse, AGC override switch, switches for Uplink and Downlink attenuation from 0-28dB in four dB steps. NOTES *Maximum total output power without exceeding the FCC allowable emissions of –13 dBm. ** Maximum safe input power at maximum gain with no damage. MANUAL610AMPS OMNI 7 INSTALLATION Pre-installation Survey Note: The Installer should refer to the Safety Precautions, in the following section, for proper antenna selection and installation A pre-installation survey should be performed prior to commitment to installation. Measurement of Received Signal Strength Indication (RSSI) should be recorded throughout the building in all areas where cell phone coverage is desired. RSSI levels around the exterior of the buil…

Text truncated - open the document above for the full version.

September 24, 2002 Federal Communications Commission Office of Engineering and Technology 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality Dear Sir or Madam: Cellular Specialties, Inc. respectfully requests that the schematic diagrams, block diagram, and circuit descriptions submitted with the application for certification under FCC ID NVRCSI610-02 be withheld from public disclosure. This request is made under the provisions of Section 0.457 (d) of the Commission’s rules and Section 0.552 (b) (4) of the Freedom of Information Act. This product has been developed at considerable expense, and disclosure of this information would place Cellular Specialties, Inc. at a competitive disadvantage. Thank you for your attention to this matter. Sincerely yours, Donald C. Mills Vice President, System Products

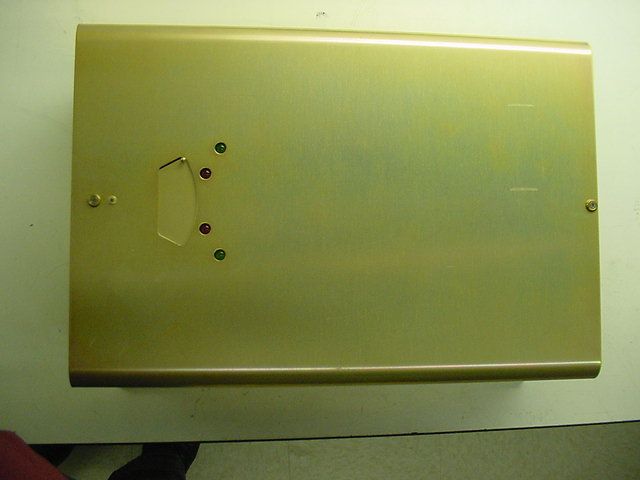

MODEL 610 AMPS Bi-DIRECTIONAL AMPLIFIER FCC ID LABEL FCC ID NVRCSI610-02 IC: 4307A-610BDA This device complies with parts 22 and 2 of the FCC rules and with Industry Canada specification RSS-131

Evaluation of the CSI Model 610 amps BDA For Compliance with FCC Guidelines For Human Exposure to Radio Frequency Electromagnetic Fields 14 September, 2002 General The CSI Model 610 amps Bi-directional amplifier is considered to be a “mobile” device operating in the Cellular Service authorized under subpart H of part 22. As such, the equipment is required to be evaluated for RF exposure if operated below 1.5 GHz with an effective radiated power (ERP) of 1.5 watts or more, as defined in 2.1091 of FCC rules. Downlink For the downlink portion of the Model 610 amps BDA, the maximum rated output power is +30.6dbm (1.15 W). As stated in the Model 610 amps Manual, the maximum authorized antenna gain is 3 dBi, corresponding to a typical Omni-Directional antenna. Neglecting cable losses, the worst-case EIRP will be 2.30 watts or an ERP of 1.40 watts, (ERP=EIRP/1.64). This is below 1.5 watts and therefore excludes the downlink from routine evaluation. The Cautions in the Model 610 amps manual clearly define the antenna selection and installation criteria in order to maintain a minimum 20-centimeter separation. Uplink For the uplink portion of the Model 610 amps BDA, the maximum rated output power is +28.8dbm (750 mW). As stated in the Model 610 amps Manual, the maximum authorized antenna gain is 3 dBi, corresponding to a typical Omni-Directional antenna. Neglecting cable losses, the worst-case EIRP will be 1.50 watts or an ERP of 0.92 watts, (ERP=EIRP/1.64). This is well below the 1.5 watts and therefore excludes the uplink from routine evaluation. The Cautions in the Model 610 amps manual clearly define the antenna selection and installation criteria in order to maintain a minimum 20-centimeter separation.
