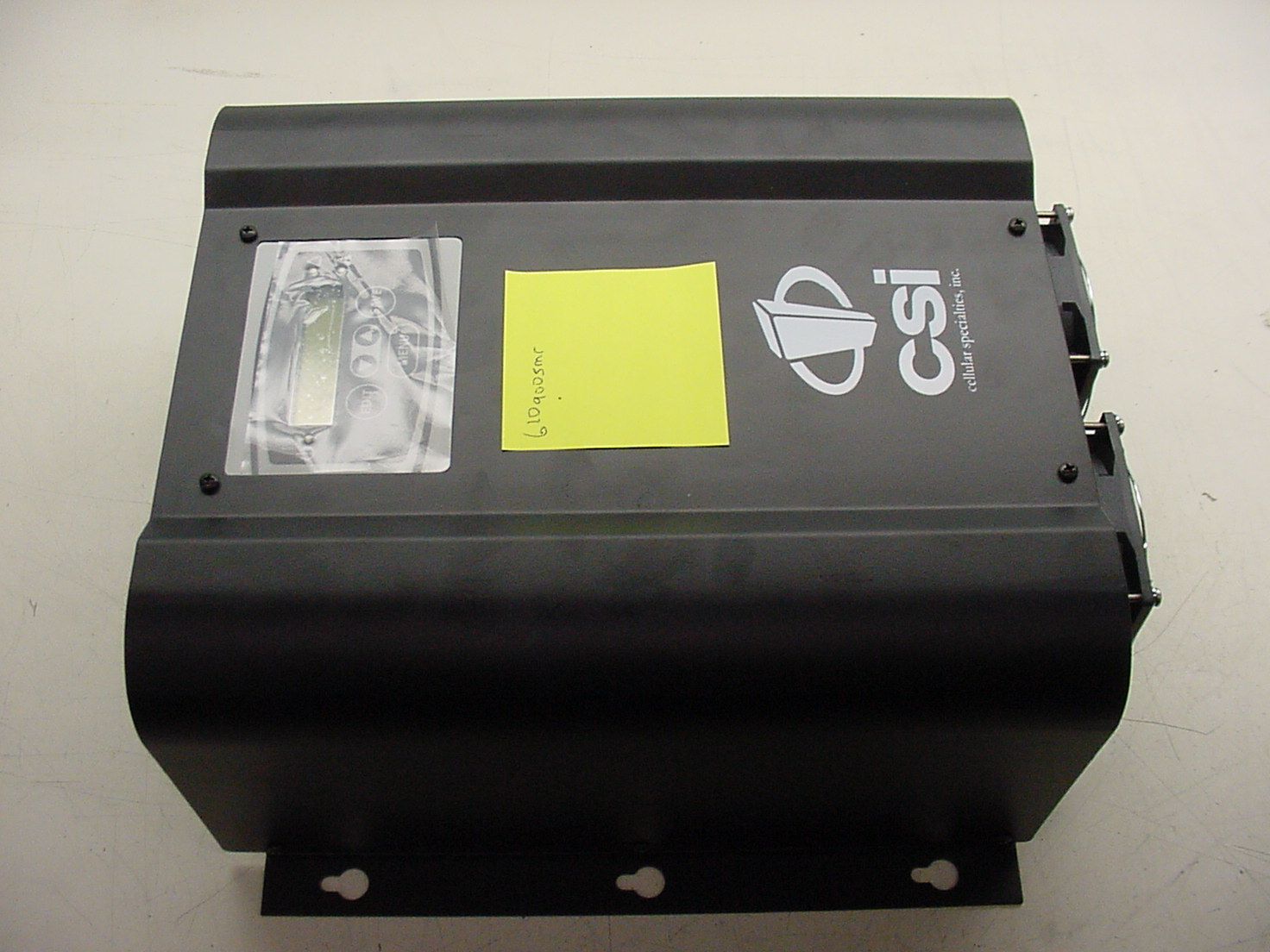

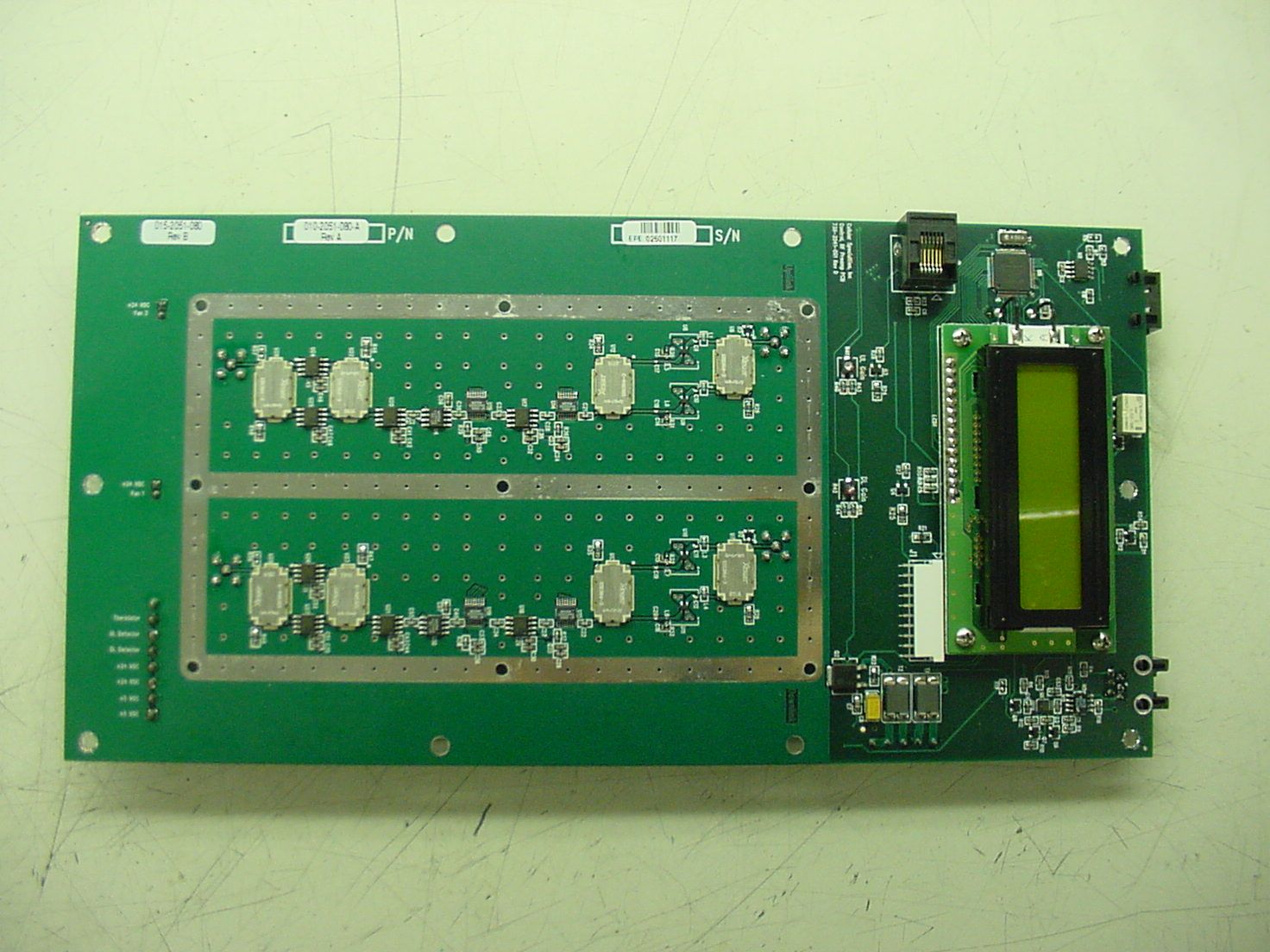

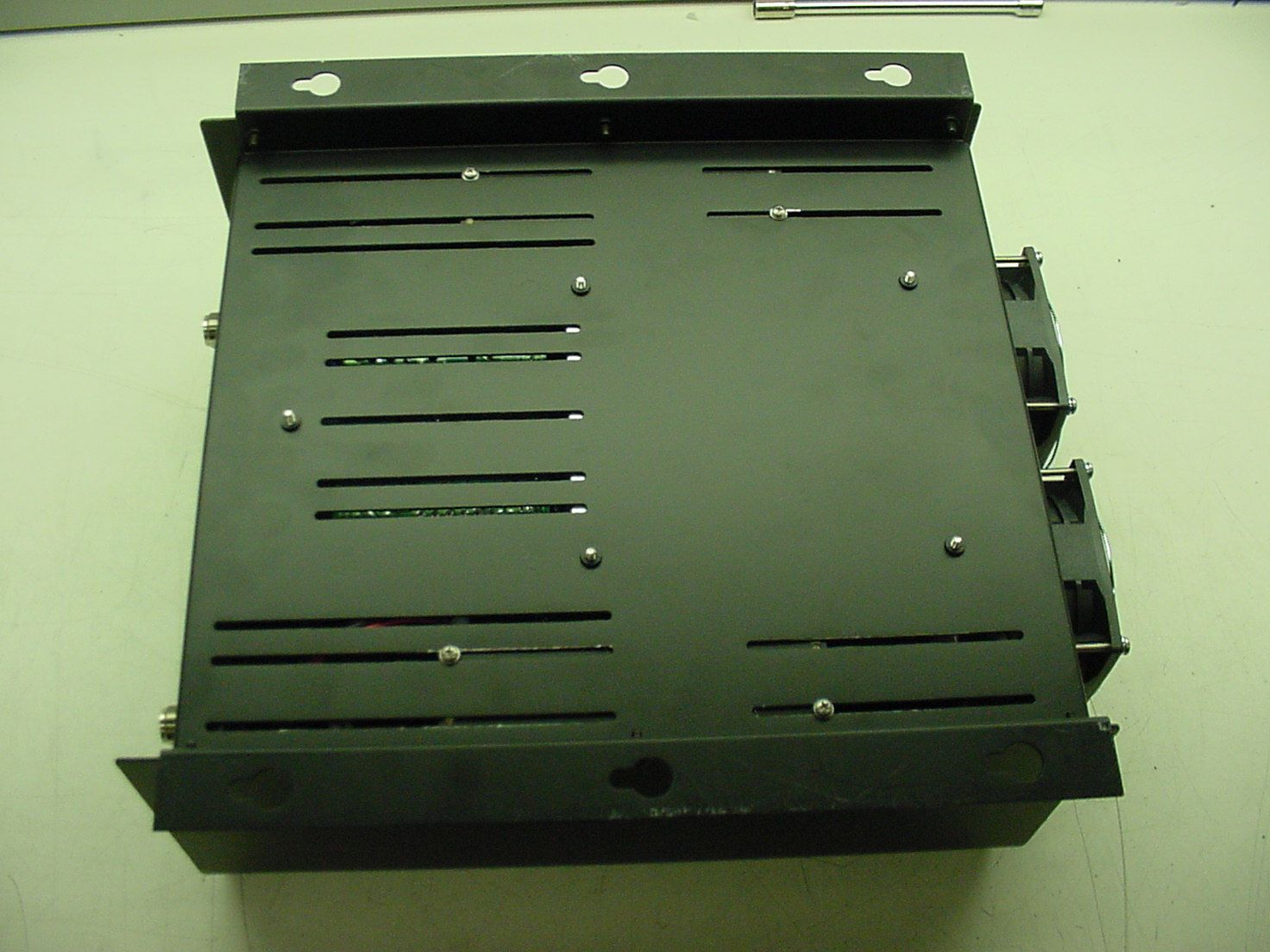

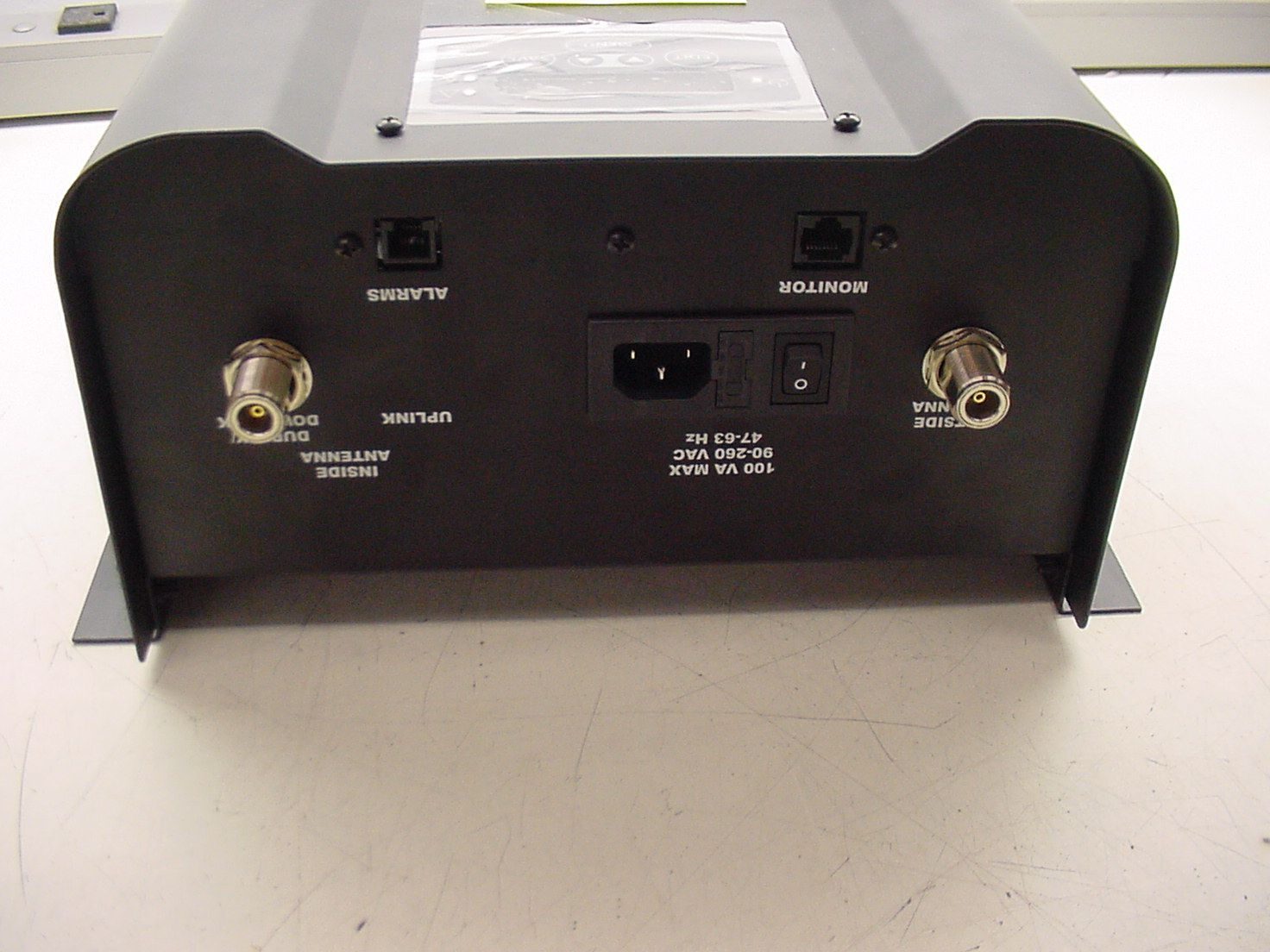

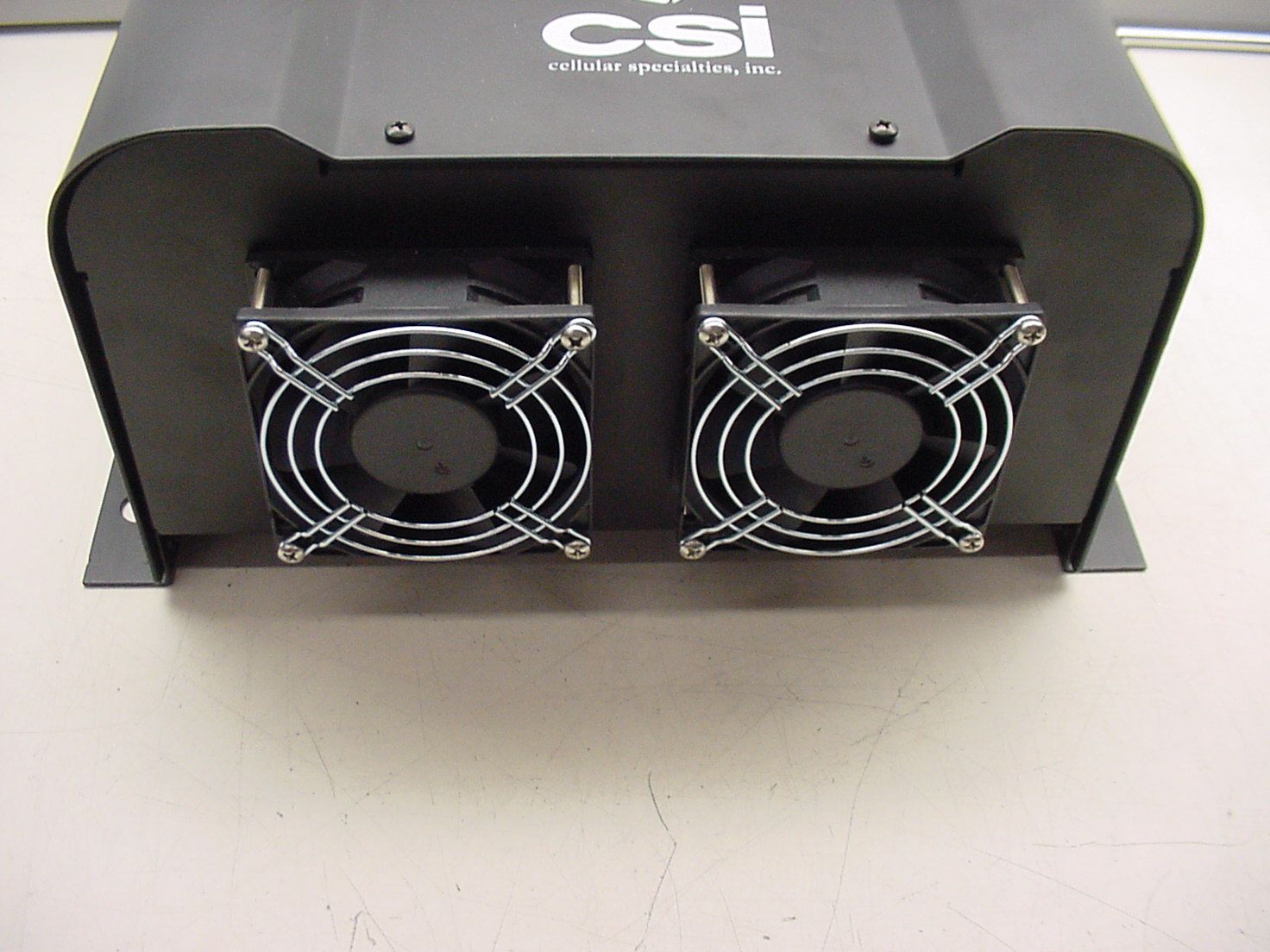

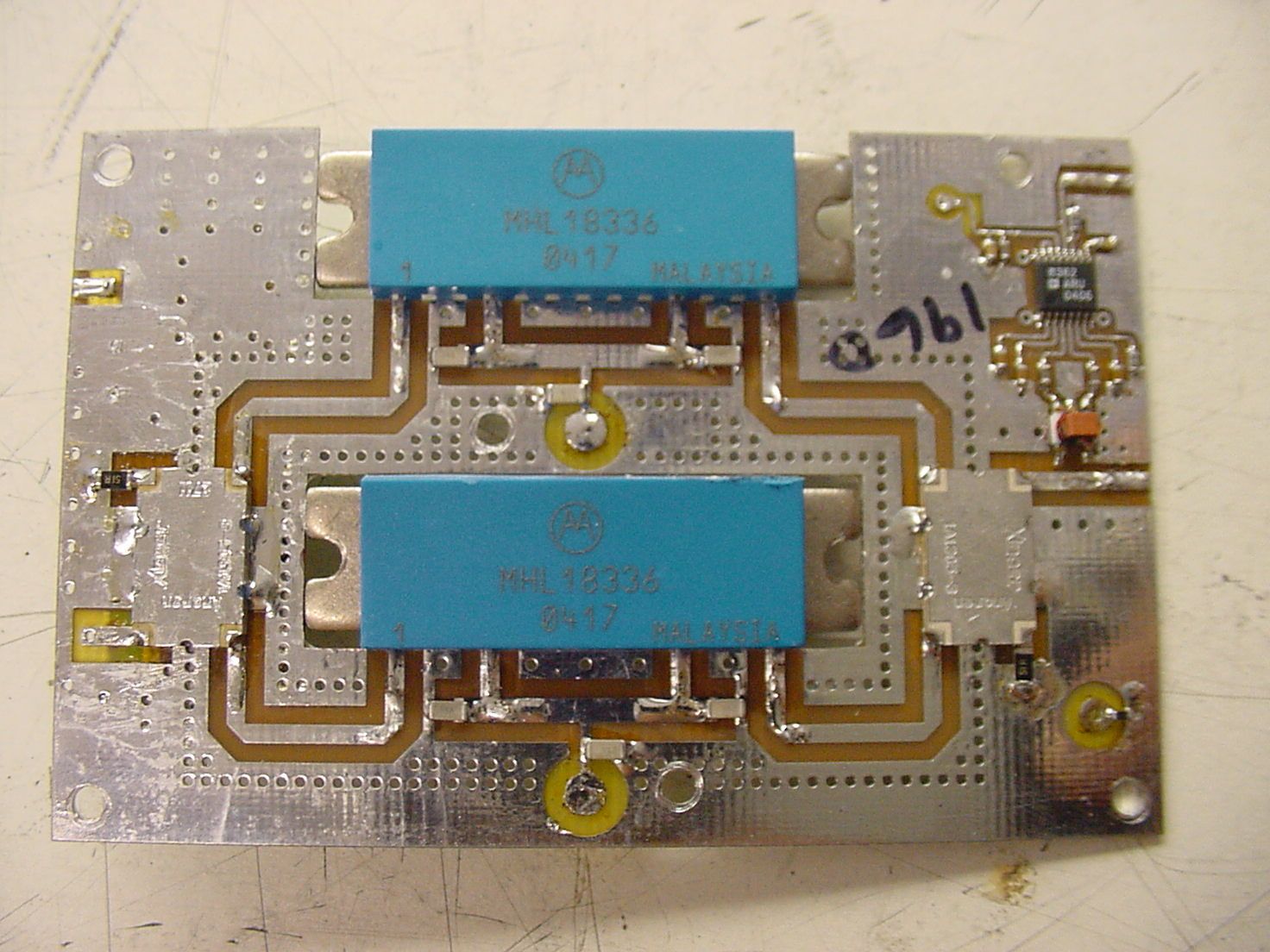

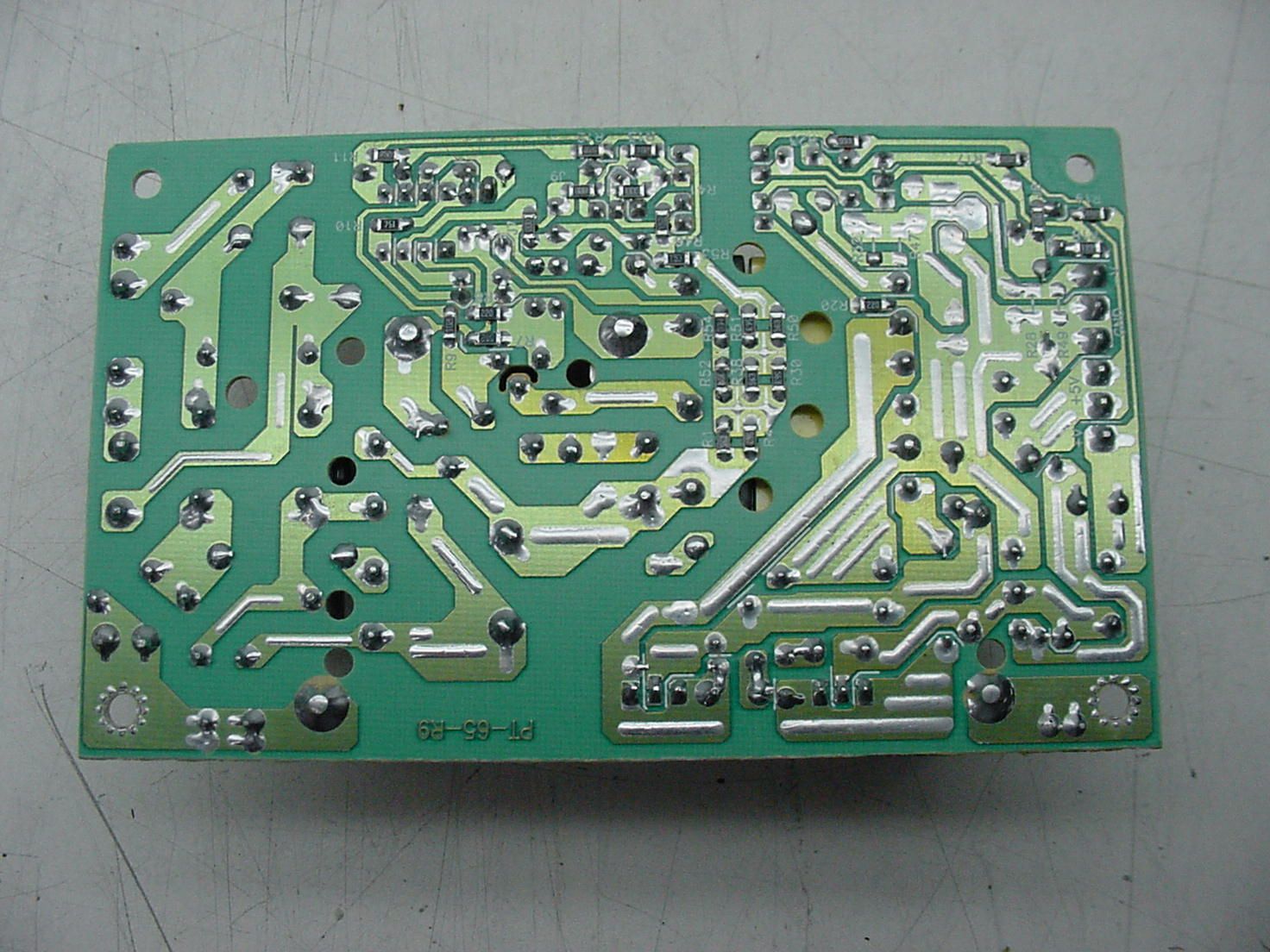

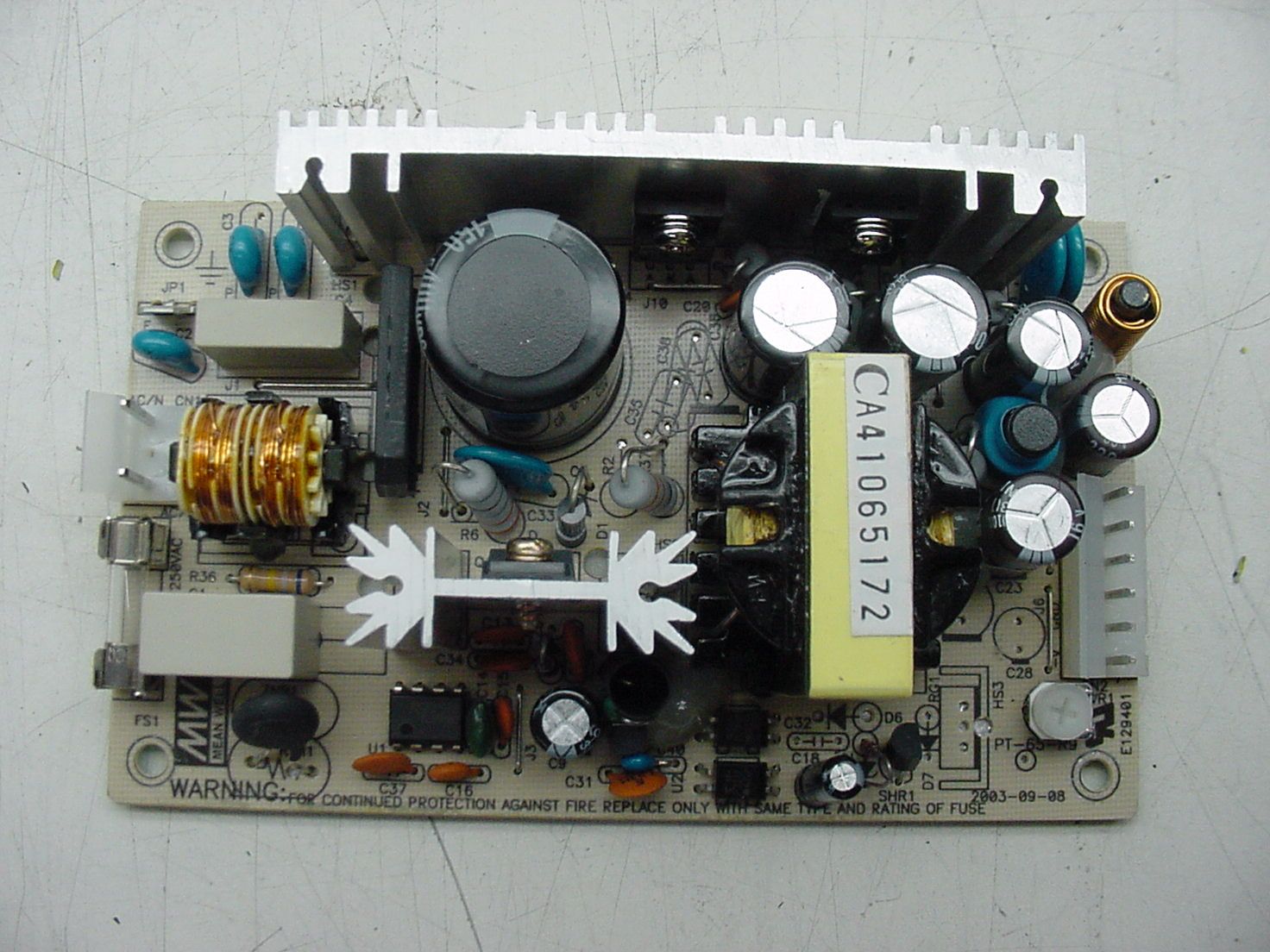

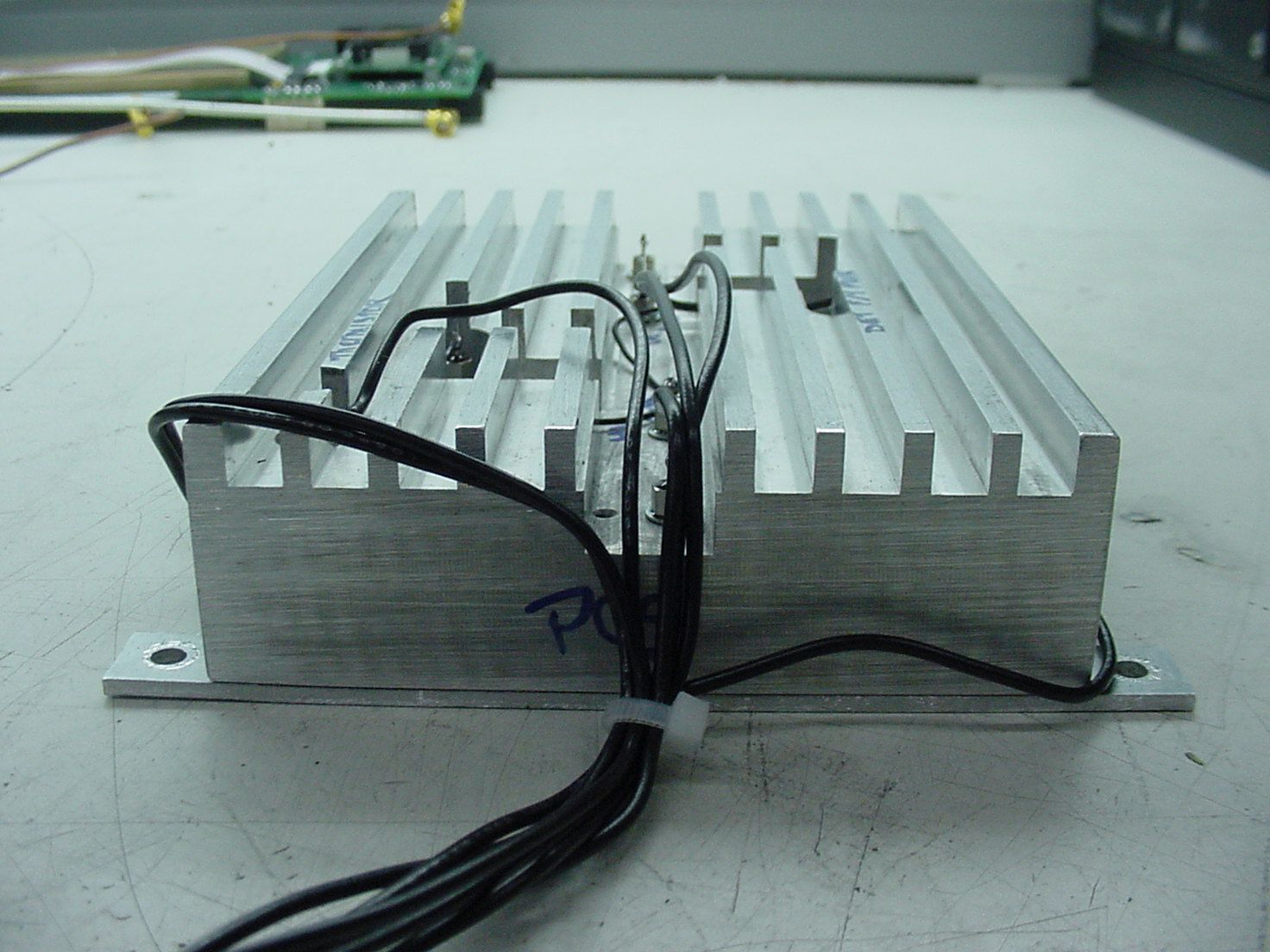

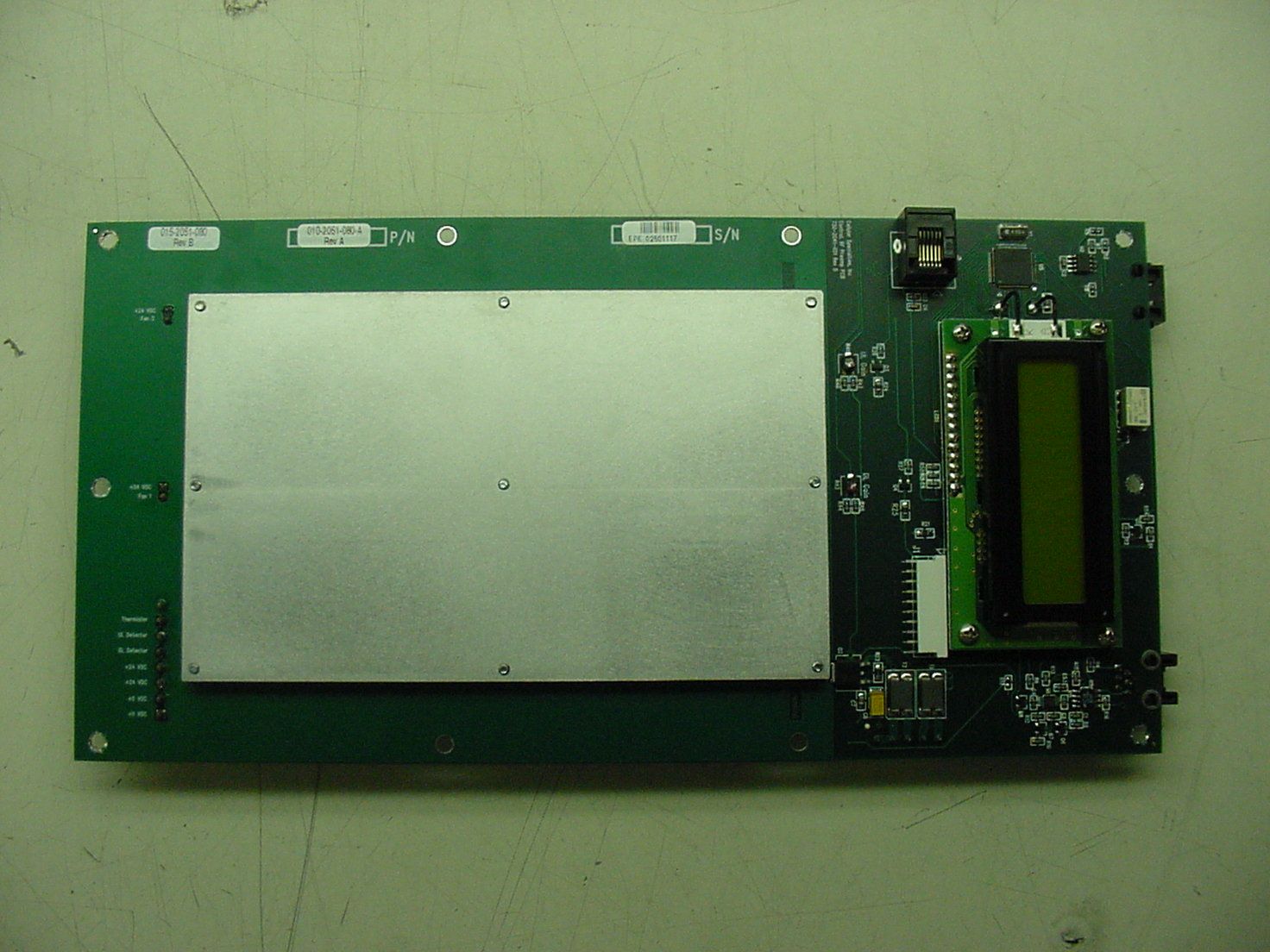

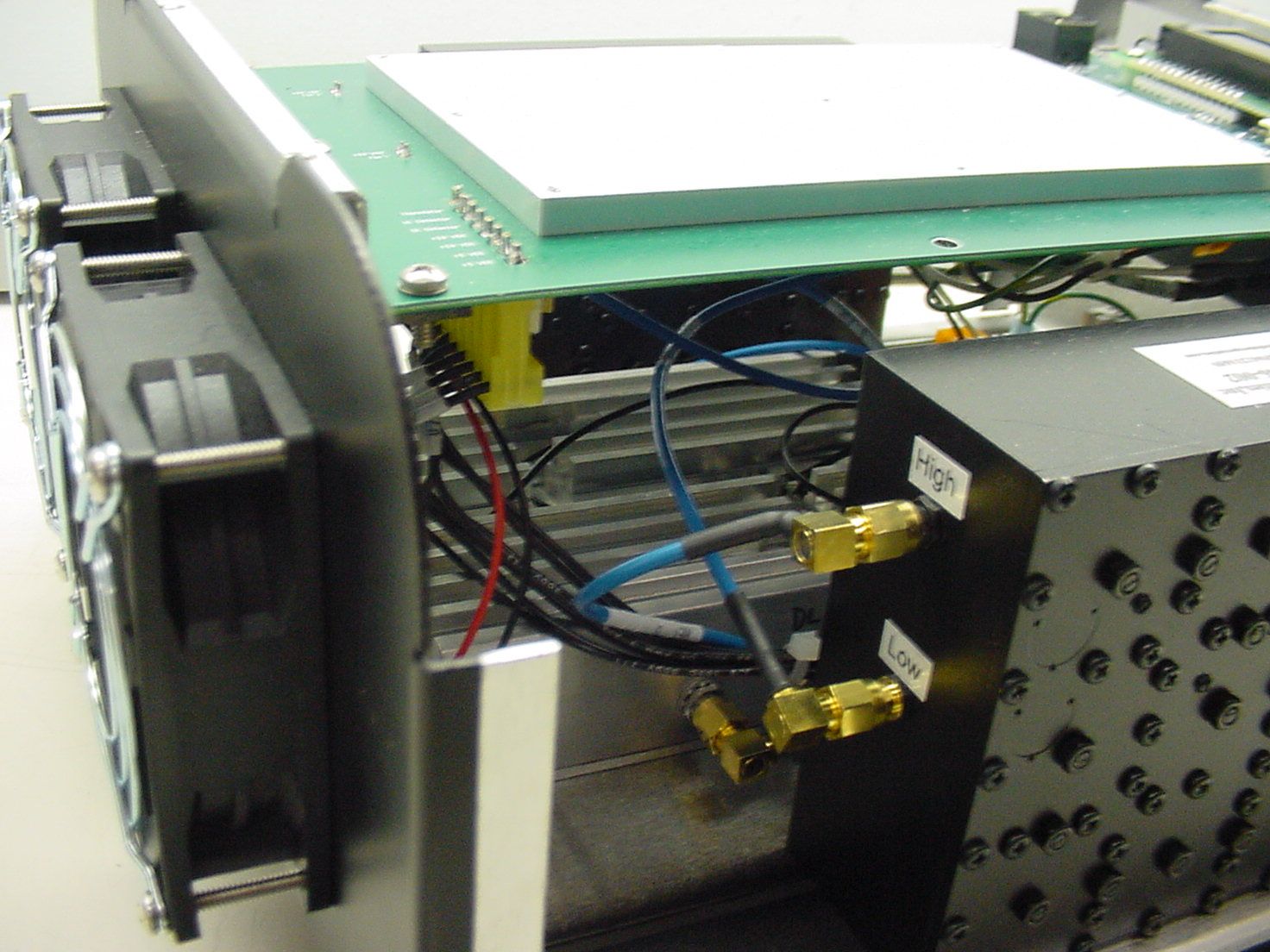

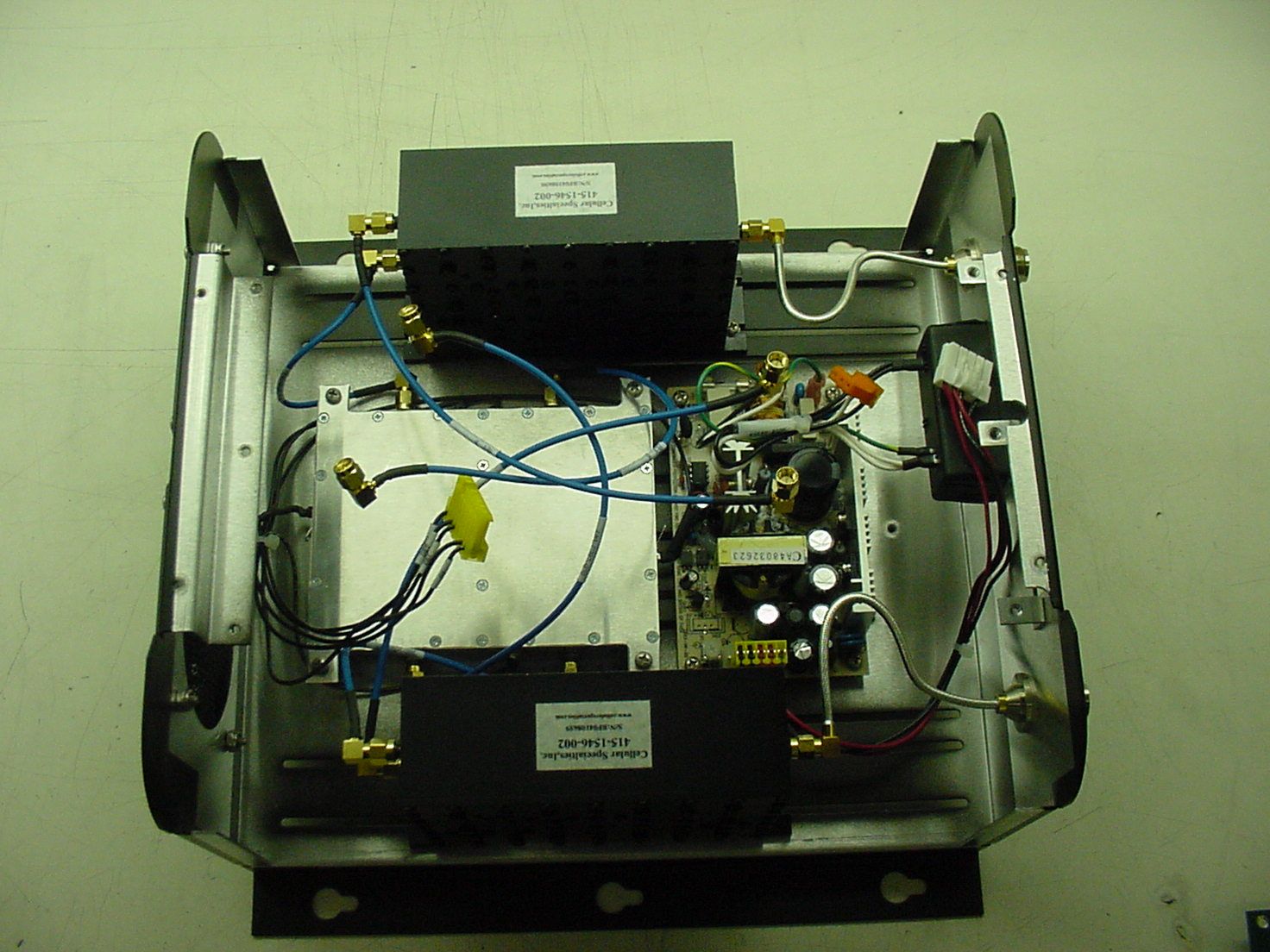

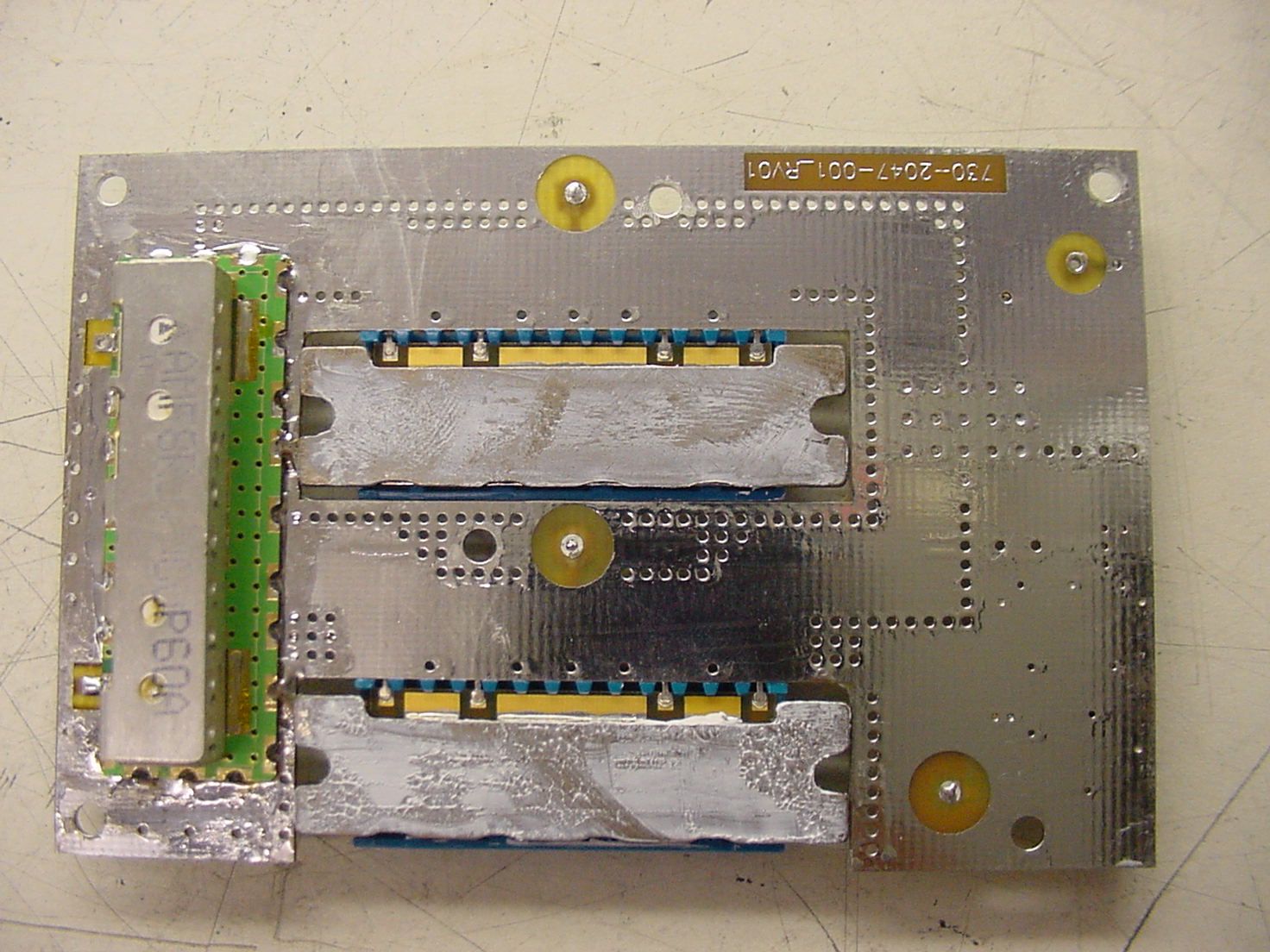

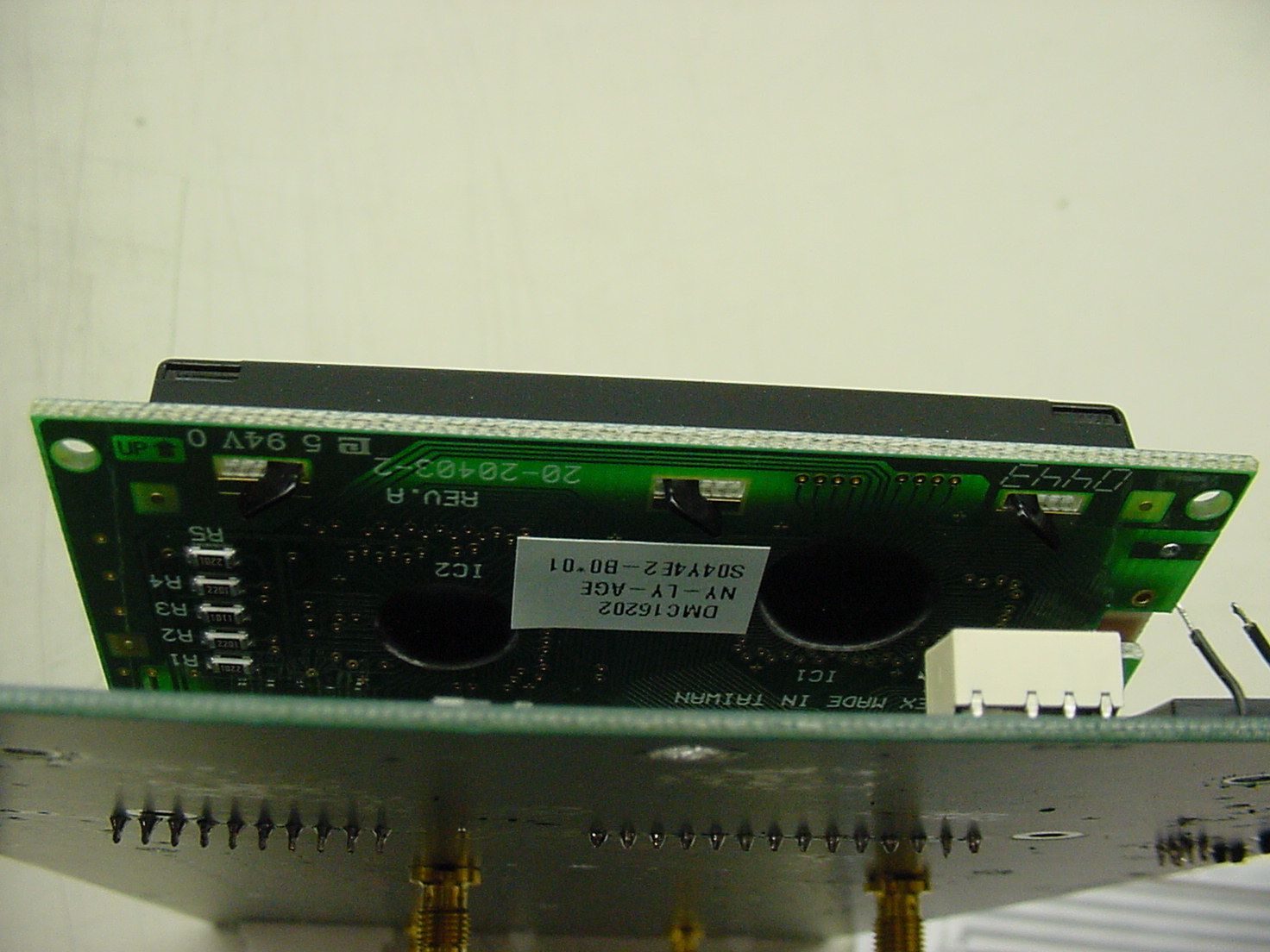

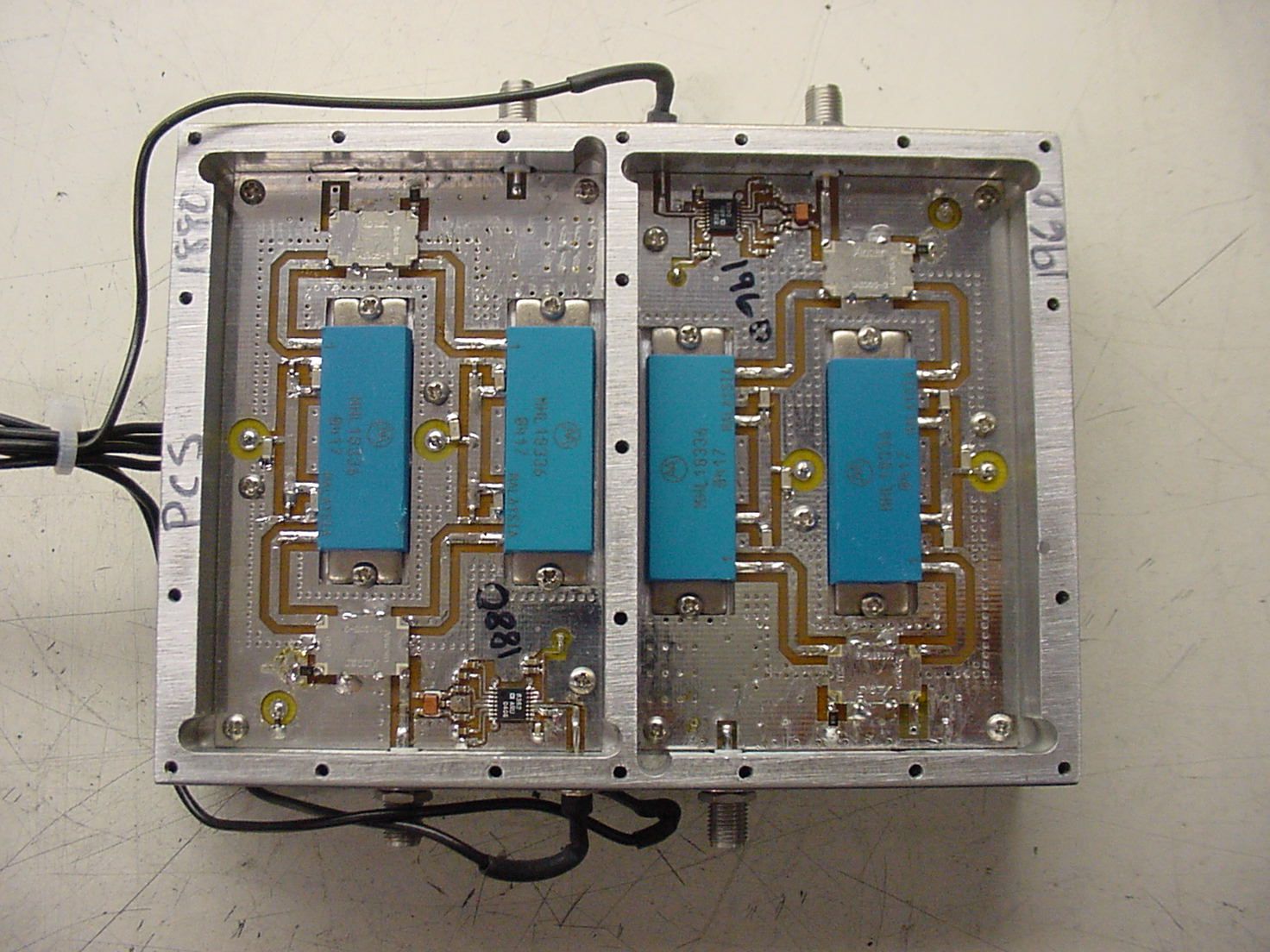

NVRCSI610-S9Single Band Bidirectional Amplifier

MORPH MANUAL WORD FORMAT Table of Contents Product Registration/Certification Information................1 Safety Guidelines..........................................................1 Product Information.......................................................2 Pin-Out Chart...................................................2 LED Indicators..................................................2 Mechanical Outline Drawing.............................3 Installation.....................................................................4 Important Safety Information.........................................5 Amplifier Adjustment.....................................................6-9 Troubleshooting............................................................10 Product Warranty..........................................................11 Product Certification/Registration Information The serial number may be found on the label on the rear panel of the unit. For your convenience, note this number below. Retain this manual, along with proof of purchase, to serve as a permanent record of your purchase for future reference or in the event of theft. Safety Guidelines The general safety information in this guideline applies to both operating and service personnel. Specific warnings and cautions will be found in other parts of this manual where they apply, but may not appear in this summary. Failure to comply with these precautions or specific warnings elsewhere in the manual violates safety standards of design, manufacture, and intended use of equipment. Cellular Specialties, Inc. assumes no liability for the customer’s failure to comply with these requirements. Grounding This amplifier system is designed to operate from 120 Vac @ 1.3A maxpower and should always be operated with the ground wire properly connected. Do not remove or otherwise alter the grounding lug on the power cord. Explosive Atmospheres This product has an integral circuit breaker, which may cause an electrical flash if the breaker should reset. To avoid explosion or fire, do not operate this product in the presence of flammable gases or fumes. Lightning Danger Do not install or make adjustments to this unit during an electrical storm. No User Serviceable Parts Inside HAZARDOUS VOLTAGES ARE PRESENT WHEN THE COVER IS REMOVED. Opening the chassis will void your warranty. If you suspect a malfunction with this product, call your dealer or the Cellular Specialties Support Line at (603) 626-6677. DISCLAIMER: All information and statements contained herein are accurate to the best of the knowledge of Cellular Specialties, Inc. (CSI), but Cellular Specialties makes no warranty with respect there to, including without limitation any results which may be obtained from the products described herein or the infringement by such products of any proprietary rights of any persons. Use or application of such information or statements is at the users sole risk, without any liability on the part of Cellular Specialties, Inc. Nothing herein shall be construed as license or of recommendation for use, which infringes upon any proprietary rights of any person. Product material and specifications are subject to change without notice. Specialties’ standard terms of sale and the specific terms of any particular sale. Product Description Cellular Specialties, Inc. (CSI) developed the LCD Model Bi-Directional Amplifier (BDA) for use in enclosed structures where sufficient signal from local cell sites to operate cell phones was unavailable within the building. It is necessary that sufficient signal be available on the roof of the structure. The BDA is connected to an external antenna, usually on the roof, and to one or more internal antennas placed strategically throughout the area where phone service is desired. The external antenna is usually a directional type such as a “Yagi”. Internal antennas are usually omni directional, although various other types may be used for certain installations. The BDA amplifies both the “uplink” (phone to tower) and “downlink” (tower to phone) signals thus facilitating communications to and from the local cell site. There are seven amplification stages on the downlink and seven on the uplink for a total of +80dB nominal gain for each link. Gain can be set using the LCD display and select/up/down switches. There are also LED indicators on the top cover for power overload and gain reduction to prevent oscillation. LED Indicators Warning: The unit has sensed instability due to insufficient isolation between the inside antenna and the outside antenna, and has reduced the gain of the amplifier. This is done to prevent oscillation, which can interfere with the handsets in the covered area and/or the wireless service provider’s base station. Fault: The gain of the unit has been reduced to a minimum in order (Red) to prevent very strong input signals from overloading the amplifier. The amplifier will attempt to recover from this condition, initially at fifteen-second intervals and then at four-minute intervals. An automatic amplifier safety shutdown circuit is also incorporated that will disable the transmitters should the uplink or downlink overloads be reached to prevent excessive intermodulation and oscillation. The amplifier will periodically attempt to recover from this condition. The BDA is also equipped with an interface connector (RJ-15) designed for use with an optional remote monitor. A second Connector (RJ-11) is used for remote monitoring and shutdown. The RJ-11 pin-out is listed below. Pin-Out Chart Pin Description 1 Alarm Relay - Common 2 N/C 3 Shutdown (Input TTL) 4 Uplink Power 5 Alarm Relay – Active Open 6 N/C LCD Model Mechanical Drawing I O DISPLAY Installation CSI recommends that all BDA installations be coordinated through the local wireless provider. Example: Standard Single Internal Antenna System Design Optional Accessories Accessories are available directly from Cellular Specialties, Inc. or any of CSI’s distributors…

Text truncated - open the document above for the full version.

30 March 2005 Federal Communications Commission Office of Engineering and Technology 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality Dear Sir or Madam: Cellular Specialties, Inc. respectfully requests that the schematic diagrams, block diagram, and circuit descriptions submitted with the application for certification under FCC ID NVRCSI610-S9 be withheld from public disclosure. This request is made under the provisions of Section 0.457 (d) of the Commission’s rules and Section 0.552 (b) (4) of the Freedom of Information Act. This product has been developed at considerable expense, and disclosure of this information would place Cellular Specialties, Inc. at a competitive disadvantage. Thank you for your attention to this matter. Sincerely yours, Burt Salkins Burt Salkins Director of Engineering

MODEL 610-S9 Bi-DIRECTIONAL AMPLIFIER FCC ID LABEL FCC ID NVRCSI610-S9 This device complies with parts 90 and 2 of the FCC rules

March 30, 2005 Mr. Scott Wentworth Retlif Laboratories 101 New Boston Rd. Goffstown, NH 03045 Re: Adjustment of the Model 610-S9 In-building Amplifier in the Field The CSI Model 610-S9 In-Building Amplifier offers only adjustment of gain (below its factory-set maximum gain level) to the technician during installation and maintenance activities. This adjustment is dependent on the physical environment in which the amplifier is to be installed and is described in the Installation and Users Manual. This is the only adjustment accessible without opening the amplifier. Frequency response and gain thresholds are factory set and in no circumstance are they to be adjusted in the field. Regards, Burt Salkins Burt Salkins Director of Engineering

Evaluation of the CSI Model 610-S9 BDA For Compliance with FCC Guidelines For Human Exposure to Radio Frequency Electromagnetic Fields 13 April 2005 General The CSI Model 610-S9 Bi-directional amplifier is considered to be a “mobile” device operating in the Cellular Service authorized under part 90. As such, the equipment is required to be evaluated for RF exposure if operated below 1.5 GHz with an effective radiated power (ERP) of 1.5 watts or more, as defined in 2.1091 of FCC rules. Downlink For the downlink portion of the Model 61-S9 BDA, the maximum rated output power is +30.7dbm (1.17 W). As stated in the Model 610-S9 Manual, the maximum authorized antenna gain is 3 dBi, corresponding to a typical Omni-Directional antenna. Neglecting cable losses, the worst-case EIRP will be 2.30 watts or an ERP of 1.40 watts, (ERP=EIRP/1.64). This is below 1.5 watts and therefore excludes the downlink from routine evaluation. The Cautions in the Model 610-S9 manual clearly define the antenna selection and installation criteria in order to maintain a minimum 20-centimeter separation. Uplink For the uplink portion of the Model 610-S9 BDA, the maximum rated output power is +30.7dbm (1.17 W). As stated in the Model 61-S9 Manual, the maximum authorized antenna gain is 3 dBi, corresponding to a typical Omni-Directional antenna. Neglecting cable losses, the worst-case EIRP will be 2.34 watts or an ERP of 1.42 watts, (ERP=EIRP/1.64). This is below the 1.5 watts and therefore excludes the uplink from routine evaluation. The Cautions in the Model 610-S9 manual clearly define the antenna selection and installation criteria in order to maintain a minimum 20-centimeter separation.

Test Report No. R-4412N3 FCC ID: NVRCSI610-S9 REPORT OF MEASUREMENTS FOR CELLULAR SPECIALTIES, INC. BI-DIRECTIONAL AMPLIFIER MODEL: CSI610-S9 FCC ID: NVRCSI610-S9 Test Report No. R-4412N3 FCC ID: NVRCSI610-S9 CERTIFICATION APPLICATION Applicant/Manufacturer: Cellular Specialties 670 North Commercial Street Manchester, NH 03101 Equipment under Test (EUT): The EUT is a Bidirectional Amplifier used to amplify cellular signals in the smr band. Model: CSI610-S9 FCC ID Number: FCC ID: NVRCSI610-S9 Applicable Test Standard: FCC Parts 2 & 90 Device Classification: Mobile EUT Frequency Range: Uplink: 896MHz TO 901MHz Downlink: 935MHz TO 940MHz EUT Gain: Uplink: 85dB Downlink: 85dB Power Output Rating Based Uplink: +30.79Bm=1200mW on Two-Tone Intermodulation Data Downlink: +30.55dBm=1136mW (For Certification Grant): Modulation Type: TDMA RF Exposure + Antenna Installation: See Attached Installation/Users Manual and MPE Evaluation Power Ratings Per Channel: See Power Per Channel Test Data Measurements Required by FCC: See Report Section 1 (Summary of Test Program) and the following Test Report Data Attachments: -RF Power Output -Intermodulation Characteristics (Two-Tone) -Occupied Bandwidth -Spurious Emissions at Antenna Terminals -Effective Radiated Power of Spurious Radiation Test Report No. R-4412N3 FCC ID: NVRCSI610-S9 SECTION 1 SUMMARY OF TEST PROGRAM INTERMODULATION CHARACTERISTICS (TWO TONE)/RF POWER OUTPUT Measurement Procedure: Two TDMA signals were injected, in turn, to each uplink and downlink frequency band via a two way power combiner. Testing was performed at both the low band edge and high band edge of each pass band. The output of each signal generator was adjusted so that the two output fundamental frequencies were equal in magnitude. At the maximum specified input power levels all intermodulation products were at -13dBm or below. The RF Power Output Rating of the device for the certification grant is derived by summing the levels of the two input signals for each uplink and downlink frequency band. For complete test data, including actual X/Y plots of intermodulation signals, see electronic Test Report Attachments, Intermodulation Characteristics (Two-Tone) Data & RF Power Output Data. OCCUPIED BANDWIDTH Measurement Procedure: The test sample does not have any frequency generating circuits therefore measurements were made to compare the input signal to the output signal. The signal generator output was connected to the spectrum analyzer. A TDMA modulation signal was then applied to the carrier. Waveforms were then noted on an X-Y plot. Next, the signal generator was connected to the EUT and the output of the EUT was connected to the spectrum analyzer. The output waveform after amplification was then compared to the emission mask requirement for TDMA signals (46dB down at plus and minus one channel spacing, 30kHz). Testing was performed at one frequency within each passband (uplink and downlink). For complete test data, see electronic Test Report Attachment, Occupied Bandwidth Data. An explanation of the data is as follows: There are two signals superimposed on each plot, one signal is the waveform before modulation, the other is the modulated carrier. In each case the center of the grid shows a narrowband signal projecting out from the center of the modulation envelope. This signal is actually the stored unmodulated signal. Test Report No. R-4412N3 FCC ID: NVRCSI610-S9 SPURIOUS EMISSIONS AT ANTENNA TERMINALS Measurement Procedure: The signal generator output was connected in turn to the uplink and downlink input ports of the EUT. The input power level was at the maximum level which was ascertained during the Power Output test. A spectrum analyzer was connected to the output of the EUT. The input test frequencies used were three frequencies within each passband (uplink and downlink). The level of any spurious emission was recorded. Testing was performed in the frequency range of 30MHz to 9.5GHz. The spurious emissions limit is -13dBm as specified in FCC Part 90. For complete test data, including harmonic and spurious emissions measured at antenna terminal, see electronic Test Report Attachment, Spurious Emissions At Antenna Terminals Data. EFFECTIVE RADIATED POWER OF SPURIOUS RADIATION Measurement Procedure: The test sample was placed on a 80cm high wooden test stand which was located 3 meters from the test antenna on an FCC listed test site. A signal generator was connected to the input of the amplifier. The signal generator output was set to provide the input power level necessary to achieve maximum output power of the amplifier at 3 frequencies5 within each passband (uplink and downlink). The effective radiated power of each out of band spurious emission was measured using the substitution method specified in TIA/EIA-603. The frequency range of the test was 30MHz – 9.5GHz. The limit for out of band spurious emissions is -13dBm as specified in Part 90. For complete test data, see electronic Test Report Attachment, Radiated Emissions Data. FREQUENCY STABILITY MEASUREMENTS The test sample does not have any frequency determining circuits therefore testing was not required/performed. Test Report No. R-4412N3 FCC ID: NVRCSI610-S9 SECTION 2 EQUIPMENT LIST Occupied Bandwidth EN Type Manufacturer Description Model No. Cal Date Due 713 EMI Test Receiver Rohde & Schwarz 20 Hz - 26.5 GHz ESI26 3/22/2005 3/22/2006 5030D 10 DB Atten. (50 ohm) Narda DC - 12.4 GHz 757C-10 2/8/2005 2/8/2006 5038 10 DB Atten. (50 ohm) Fluke DC - 12.4 GHz Y9304 2/7/2005 2/7/2006 Signal Generator Hewlett Packard 250 kHz – 2 GHz E4431B 2/15/2005 2/15/2006 Spurious Emissions at Antenna Terminals EN Type Manufacturer Description Model No. Cal Date Due 4895 Spectrum Analyzer Hewlett Packard 9kHz - 22GHz 8593EM 4/22/2004 4/22/2005 5030A 10 DB Atten. (50 ohm) Narda DC - 12.4 GHz 757C-10 2/7/2005 2/7/2006 5030D 10 DB Atten. (50 ohm) Narda DC - 12.4 GHz 757C-10 2/8/2005 2/8/2006 5046 AM/FM Signal Generator Marconi Instru. …

Text truncated - open the document above for the full version.

MODEL CSI-BDA610-S9 POWER PER CHANNEL ChannelsUpLinkDownLink dBmdBm 130.030.0 226.026.0 323.723.7 422.022.0 520.720.7 619.719.7 718.818.8 818.018.0 917.317.3 1016.716.7 1116.216.2 1215.715.7 1315.215.2 1414.814.8 1514.414.4 1614.014.0 Power per Channel-610-s9.xls3/30/2005
