NYC-PM24202.4 GHz Analog Cordless Telephone

PhoneMate and the PhoneMate Logo are registered trademarks of PhoneMate Corporation and are used under license from PhoneMate Corporation. Thank you for purchasing this PhoneMate Telephone. Please read this manual carefully prior to using. IMPORTANT SAFETY INSTRUCTIONS ........................................................................1 FCC REGULATIONS ...................................................................................................3 IC REGULATIONS ......................................................................................................5 BATTERY CAUTIONARY INSTRUCTIONS ....................................................................6 PM2420 PARTS CHECKLIST .......................................................................................7 CONTROLS AND FEATURES ......................................................................................8 CHOOSING A LOCATION .......................................................................................12 TELEPHONE SET-UP.................................................................................................13 BATTERY INSTALLATION .........................................................................................15 HEADSET AND BELT CLIP ........................................................................................16 BASIC OPERATION ..................................................................................................17 SETTINGS................................................................................................................18 SPEED DIALING .......................................................................................................24 CALLER ID ...............................................................................................................29 OTHER FEATURES ....................................................................................................33 CARE AND MAINTENANCE .....................................................................................34 TROUBLE SHOOTING..............................................................................................35 GLOSSARY...............................................................................................................37 WARRANTY STATEMENT .........................................................................................38 PM2420 TABLE OF CONTENTS 1 !! Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electrical shock. When using this product, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.Read and understand all instructions 2.Follow all warnings and instructions marked on the product. 3.Use only with class 2 power source DC 9V 300mA. 4.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 5.Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink, or laundry tub, in a wet basement or near a swimming pool. 6.Do not place this product on an unstable cart, stand, or table. The product may fall causing serious damage to the product. 7.Slots and openings in the cabinet back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in an enclosed environment unless proper ventilation is provided. 8.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by animals or persons walking on it. 9.Do not overload wall outlets and extension cords as this can result in risk of fire or electrical shock. 10.Never push objects of any kind into this product through cabinets slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product. 11.To reduce the risk of electrical shock, do not disassemble this product. Instead take it to a qualified service person when service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect re- assembly can cause electrical shock when the appliance is subsequently used. 12.Unplug all cords and refer servicing to qualified service personnel under the following conditions: iWhen the power supply cord or plug is damaged or frayed iiIf liquid has been spilled into the product. iiiIf the product has been exposed to rain or water. ivIf the product does not operate normally by following the operating instructions, adjust only those controls covered in the operating instructions. Improper Model PM2420 IMPORTANT SAFETY INSTRUCTIONS !! PM2420Manual_En 2005.2.5 1:21 PM ̆ ` 1 AGFA SelectSet Avantra 25 2 adjustment of other controls may result in damage and require work by a qualified technician to restore the product to normal operation. 13.Avoid using a telephone (other than a cordless type) during an electrical storm. There maybe a remote risk of electric shock from lightning. 14.Do not use a telephone to report a gas leak in the vicinity of the leak. IF YOUR PRODUCT UTILIZES BATTERIES, THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED: 1.Use only the type and size of batteries specified in the users manual. 2.Do not dispose of batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions. 3.Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It maybe toxic if swallowed. 4.Exercise care in handling batteries in order not to short the battery with conducting materials such a…

Text truncated - open the document above for the full version.

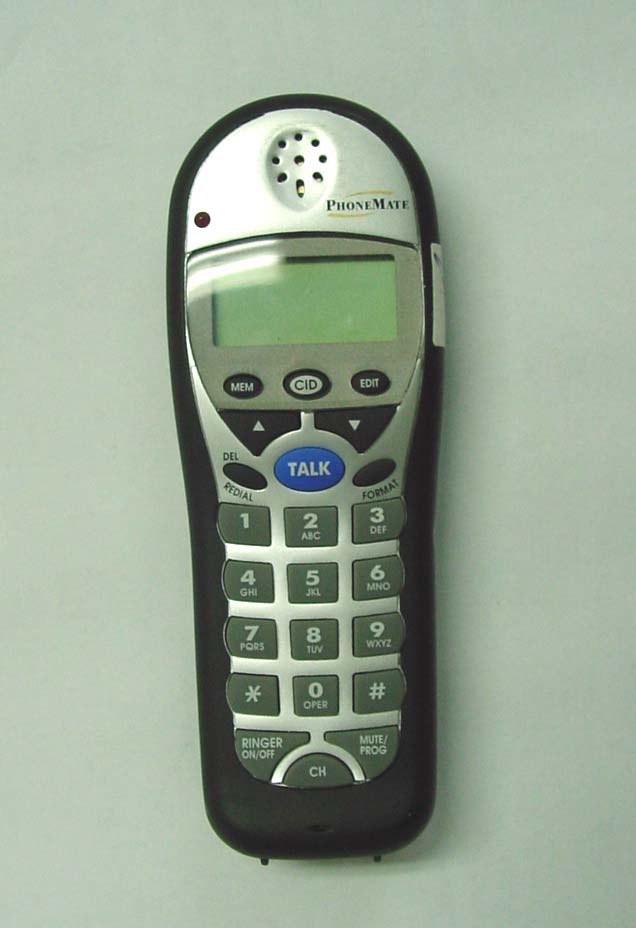

[External Photos]

[Internal Photos]

Ref. Report No. This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Name and address of the applicant Belco International Co., Ltd. 212, Yeokgok-dong, Wonmi-ku, Bucheon-shi, Kyungki-do, 420-100, Korea Standard / Test regulation FCC Part 15, Subpart C Test result Pass Incoming date : February 15, 2004 Test item(s) ; Cordless Telephone System (Base and Handy) Model/type ref. ; PM2420 Manufacturer ; Belco Electronics(Tianjin) Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : NYC-PM2420 Test date : March 24, 2004 Issue date : March 25, 2005 Jeong-Min Kim, Senior Engineer Won-Seo Cho , Telecommunication Team Manager FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 05 - 1341 – 006 Page 2 of 20 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Applicant’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Place of Measurement 7. Date of Measurement . GENERAL REQUIREMENTS OF THE EUT 4 1. Labeling Requirement (Section 15.19 and Section 15.214) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) 4. Digital Security Code (Section 15.214) . CONDUCTED EMISSION MEASUREMENT (Section 15.207) 5 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data . RADIATED EMISSION MEASUREMENT (Section 15.249) 9 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data . OCCUPIED BANDWIDTH MEASUREMENT (Section 15.215) 18 . TEST EQUIPMENTS USED FOR FCC COMPLIANCE TESTING 20 Ref. Report No. 05 - 1341 – 006 Page 3 of 20 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL INFORMATION 1. Applicant’s Name and : Belco International Co., Ltd. Mailing Address 212, Yeokgok-dong, Wonmi-ku, Bucheon-shi, Kyungki-do, 420-100, Korea 2. Manufacturer's Name and : Belco Electronics (Tianjin) Co., Ltd. Mailing Address Gongye-Qu, Beizha-Kou, Jinnan-zone, Tianjin, China 3. Equipment Descriptions 3.1 Operating Frequency : Base : 2400.25 MHz ~ 2410.00 MHz (40 Channel 250 kHz Spacing) Handy : 2470.00 MHz ~ 2479.75 MHz (40 Channel 250 kHz Spacing) 3.2 Type of Emission : Frequency Modulation 3.3 Power Supply : Base : DC 5V (Adapter), Handy : DC 3.3~3.8V (Battery) 4. Rules and Regulations : FCC Part 15, Subpart C 5. Measuring Procedure : ANSI C63.4-2003 6. Place of Measurement : Absorber-lined room(3-Meter) of KTL 7. Date of Measurement 7.1 Conducted Emission : March 20, 2005 7.2 Radiated Emission : March 24, 2005 Ref. Report No. 05 - 1341 – 006 Page 4 of 20 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . GENERAL REQUIREMENTS OF THE EUT 1. Labelling Requirement (Section 15.19 and Section 15.214) This device complies with Part 15 of the FCC Rules. Operation is subject to following two condition : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communication may not be ensured when using this phone. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printed 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 3 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no 4. Digital Security Code (Section 15.214) Was a circuitry for digital security code provided in the cordless telephone system ? [ x ] yes, [ ] no Ref. Report No. 05 - 1341 – 006 Page 5 of 20 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 . CONDUCTED EMISSION MEASUREMENT (Section 15.207) 1. Test Procedure The base station(EUT) is designed to transmit on one of 40 channels in the band 2400.55 to 2410.00 MHz. Therefore measurements were performed with the equipment operating on three frequencies, which were the top(CH40), middle(CH21), and bottom(CH1) in the band, as per Section 15.31(m). Test mode was transmitting mode and charging mode. Conducted emission measurements on the EUT were performed by "AC Power Line Conducted Emissions Testing" procedure as per ANSI C63.4. The EUT was set up on a wooden table 0.8 meters height, 1.0 by 1.5 meters in size, placed in the shielded enclosed with a side of wall of which constituted a vertical conducting surface of 2.2 m X 3.1 m in size to maintain 40 cm from the rear of EUT LISN (Line Impedance Stabilization Network, R & S, ESH3-Z5, 50 ohm/50 uH) was installed and electrically boned to the conducting ground plane. The EUT was connected to the LISN. The frequency range from 150 kHz to 30 MHz was examined and the peak values that are within 6 dB of the limit would be compared to quasi-peak values using the Quasi-Peak mode and average value using the average mode. The position of connecting cables of the EUT was chang…

Text truncated - open the document above for the full version.

Ref. Report No. 05 - 1341 – 006 Page6 of 20 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph for the test configuration 3. Sample Calculation The emission level measured in decibels was shown in following sample calculation. For example : Measured Value at 7.50 MHz 30.9 dB @ Average mode + Cable Loss * 0.0 dB = Conducted Emission 30.9 dB * In case of RG214/ RF cable 15Ft, the loss is about 0.17dB at the frequency of 30 MHz which is negligible. Ref. Report No. 05 - 1341 – 006 Page10 of 20 Korea Testing Laboratory Telecommunication Team 222-13, Guro3-dong, Guro-gu, Seoul Korea 152-848 2. Photograph of the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB ) was calculated as shown in following sample calculation. For example : Measured Value at 2400.25 MHz 88.0 dB + AntennaFactor 28.5dB/m + CableLoss 2.9dB ˤ Preamplifier˗ -35.0dB˗ ˤ Distance Correction Factor *˗ 0.0 dB˗ = Radiated Emission 84.4 dB /m * Extrapolated from the measured distance to the specified distance by an inverse linear distance extrapolation.
