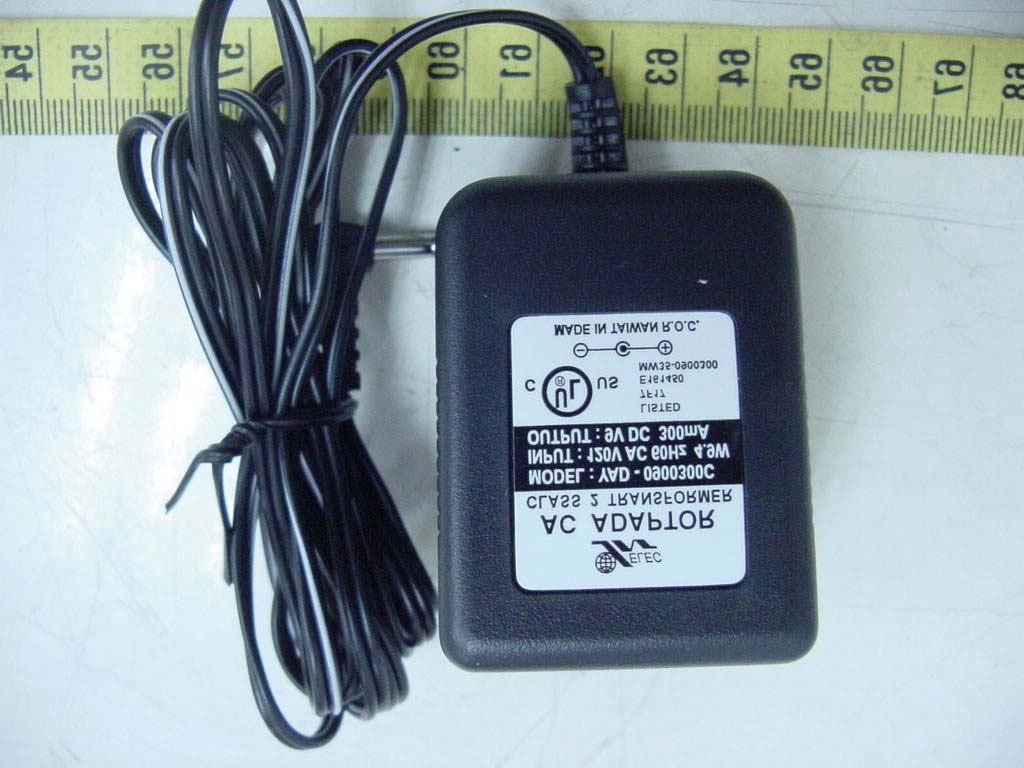

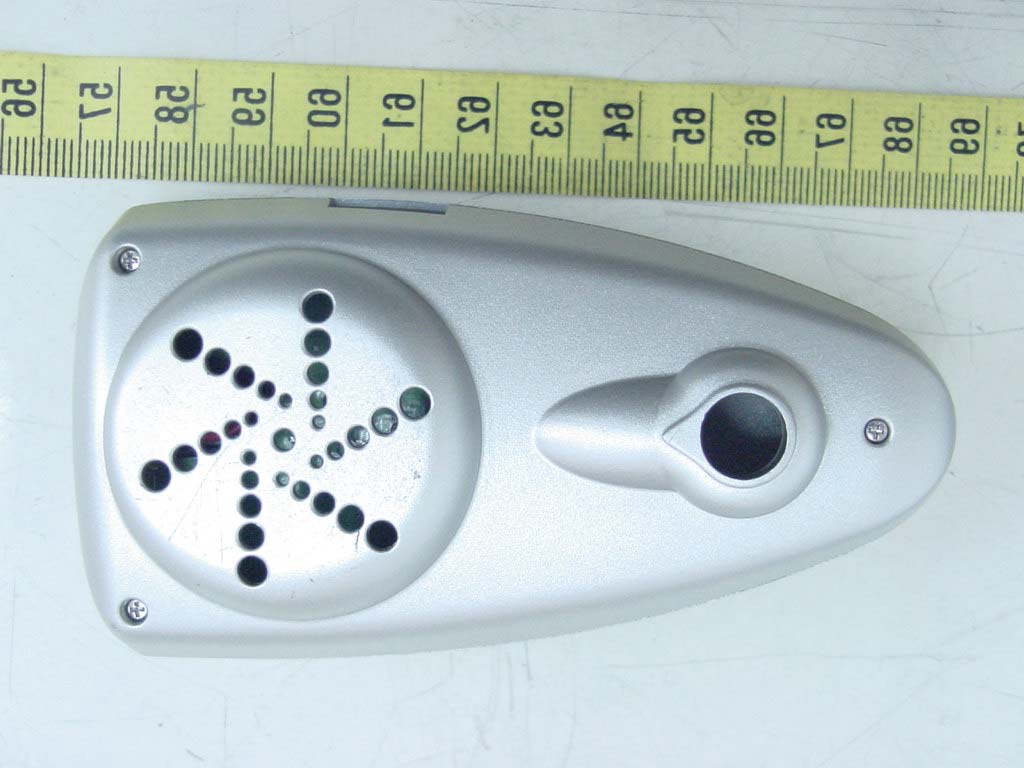

ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Top View of EUT Bottom View of EUT ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Charger Bottom View of Charger ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Adaptor Rear View of Adaptor

BLUETOOTH WIRELESS HEADFREE KIT LABEL POSITION Label Size: 17.5mm(L)*6.5mm(W) This statement will be placed in User Manual. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Model: BTH-2101 FCC ID.: NYLBTH-2101 Label

ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of Main PCB ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Solder View of Main PCB Internal View of Charger ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB (Charger) Solder View of Main PCB (Charger) ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Front View of Battery Rear View of Battery ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor Component View of Adaptor’s PCB ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 CONSTRUCTED PHOTOS of EUT Solder View of Adaptor’s PCB

The headset profile defines the facilities required to make and receive hands-free voice call fro a headset to cellular phone handset. Of course, it can also be used to transfer voice calls between other Bluetooth devices. Bluetooth headsets can be drived via buttons on the headset, but voice-activated command and control provides a more elegant interface, and should be popular for consumer headset. The specification only assumes that there is some way for the user to initiate an action, and doesn’t specify how that will be done. The Bluetooth headset profile defines two roles: >>Audio Gateway(AG): This is the device that is the gateway of the audio, both for input and output(e.g., cellular phone, personal computer). >>Headset(HS): This is the device acting as the remote audio input and output mechanism. Figure 1. show the protocol stack used by the Bluetooth headset profile. The audio port emulation layer is the entity emulating the audio port. This layer could reside on a cellular phone or PC. The audio driver is the driver software in the headset. Establishing a Call to a Bluetooth Headset Figure 2 shows how an Audio Gateway establishes a call to Bluetooth headset. Usually, the Aduio Gateway will initiate the connection to the headset because it has received and incoming call. For example, the Audio Gateway could be in a cellular phone handset. When the phone receives a phone call, it activates a Bluetooth connection and passes the call the headset. It is possible the some internal event could also cause the gateway to call the headset: for example, an application running on a PDA might send an alarm call with a pre-recorded message, warning the headset’s wearer of an appointment. The first step of the Audio Gateway establishing a call is to set up an ACL connection.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth Wireless Hand Free Kit MODEL : BTH-2101 FCC ID. : NYLBTH-2101 for APPLICANT : RACEWOOD TECHNOLOGY CO., LTD. ADDRESS : 5F-2, No. 6, Chung-Hsing Rd., Sec. 1, Wu-Gu, Taipei, Taiwan 248, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, (02)26023052 Fax:(02)26010910 Report Number : ET91R-08-043-02 ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : RACEWOOD TECHNOLOGY CO., LTD. 5F-2, No. 6, Chung-Hsing Rd., Sec. 1, Wu-Gu, Taipei, Taiwan 248, R.O.C. Manufacturer : RACEWOOD TECHNOLOGY CO., LTD. 5F-2, No. 6, Chung-Hsing Rd., Sec. 1, Wu-Gu, Taipei, Taiwan 248, R.O.C. Description of EUT : a) Type of EUT : Bluetooth Wireless Hand Free Kit b) Trade Name : Racewood c) Model No. : BTH-2101 d) Power Supply : DC 3.7V Battery e) Working Frequency : 2400MHz~2483.5MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Oct. 03, 2002 Test Engineer : ( S. S. Liou ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-08-043-02 FCC ID. : NYLBTH-2101 Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition...................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information........................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION........................................................................................... 7 3.1 Justification................................................................................................................................... 7 3.2 Devices for Tested System ........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT............................................................................... 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument................................................................................................................. 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation .......................................................................................................... 17 4.6 Photos of Radiation Measuring Setup ........................................................................................ 18 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 19 5.1 Standard Applicable ................................................................................................................... 19 5.2 Measurement Procedure............................................................................................................. 19 5.3 Conducted Emission Data .......................................................................................................... 20 5.4 Result Data Calculation.............................................................................................................. 20 5.5 Conducted Measurement Equipment ......................................................................................... 20 5.6 Photos of Conduction Measuring Setup ..................................................................................... 21 6 ANTENNA REQUIREMENT.................................................................................................... 22 6.1 Standard Applicable ................................................................................................................... 22 6.2 Antenna Construction................................................................................................................. 22 7 BAN…
