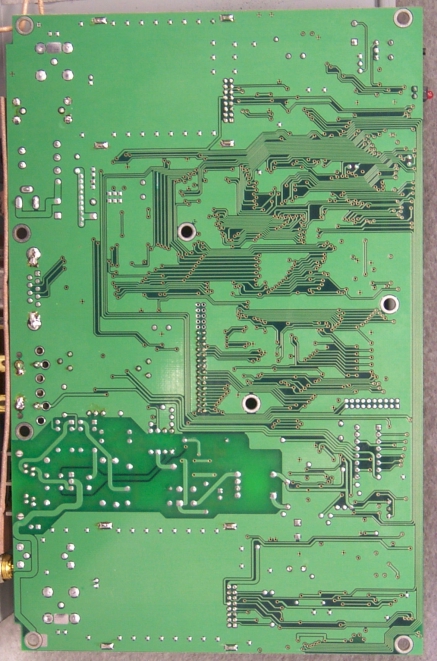

FCC ID: NYM-PLB-01 SECTION 5 PHOTOGRAPHS FCC ID: NYM-PLB-01 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1.EUT, Front View Photo 2.EUT, Rear View Photo 3.EUT, Top View of Main Board Photo 4.EUT, Bottom View of Main Board Photo 5.EUT, View Showing Added Gasketing Photo 6.EUT, Top View of Transceiver Board Photo 7.EUT, Bottom View of Transceiver Board FCC ID: NYM-PLB-01 Photo 1.EUT, Front View FCC ID: NYM-PLB-01 Photo 2.EUT, Rear View FCC ID: NYM-PLB-01 Photo 3.EUT, Top View of Main Board FCC ID: NYM-PLB-01 Photo 4.EUT, Bottom View of Main Board FCC ID: NYM-PLB-01 Photo 5.EUT, View Showing Added Gasketing FCC ID: NYM-PLB-01 Photo 6.EUT, Top View of Transceiver Board FCC ID: NYM-PLB-01 Photo 7.EUT, Bottom View of Transceiver Board FCC ID: NYM-PLM-01

ADC-420A FCC Type Acceptance Report ID Label/Location Info January 20001-1 1. ID LABEL/LOCATION INFO 1.1 Front Panel FCC Label 1.2 Rear Panel Manufacturer’s Label ADC-420A FCC Type Acceptance Report ID Label/Location Info January 20001-2 1.3 Front view, complete ADC-420A Transmitter with FCC ID Label 1.4 Rear view, complete ADC-420A Transmitter with Manufacturer’s Label

FCC ID: NYM-PLB-01 SECTION 4 BLOCK DIAGRAM / SCHEMATIC FCC ID: NYM-PLB-01 FCC ID: NYM-PLB-01

FCC ID: NYM-PLB-01 FCC ID: NYM-PLB-01

FCC ID: NYM-PLB-01 FCC ID: NYM-PLB-01

Axlon Electronics Corp. FCC Part 15, Certification Application PLB-01 April 25, 2001 MEASUREMENT/TECHNICAL REPORT COMPANY NAME:Axlon Electronics Corp. MODEL:PLB-01 FCC ID:NYM-PLB-01 DATE:April 25, 2001 This report concerns (check one): Original grant X Class II change_____ Equipment type: Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: NYM-PLB-01 TABLE OF CONTENTS AGENCY AGREEMENT SECTION 1 GENERAL INFORMATION 1.1 Product Description 1.2 Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1 Configuration of Tested EUT 2.2 Test Facility 2.3 Test Equipment 2.4 Modifications 2.5 Test Procedure and Results 2.6 Antenna Description 2.7 Peak Power (Antenna Conducted at Antenna Terminal) 2.8 Antenna Conducted Spurious Emissions 2.9 Peak Radiated Spurious Emissions 2.10 Average Radiated Spurious Emissions 2.11 Minimum 6 dB Bandwidth 2.12 Power Spectral Density 2.13 Processing Gain 2.14 Power Line Conducted Emissions for Transmitter SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/ SCHEMATIC(S) SECTION 5 PHOTOGRAPHS SECTION 6 USER'S MANUAL FCC ID: NYM-PLB-01 LIST OF FIGURES AND TABLES )Test Configuration 2) Photograph(s) for Spurious and Digital Device Emissions 3) Peak Power Output 4) Antenna Conducted Spurious Emissions 5) Peak Radiated Spurious Emissions 6) Average Radiated Spurious Emissions 7) Minimum 6 dB Bandwidth 8) Power Spectral Density TABLES 1)EUT and Peripherals 2) Test Instruments 3) Peak Power Output 4) Peak Radiated Spurious Emissions 5) Average Radiated Spurious Emissions 6) Power Spectral Density 7) Conducted Emissions Data (Transmitter) 8) Radiated Emissions Data (Digital Device) Conducted Emissions Data (Digital Device) FCC ID: NYM-PLB-01 SECTION 1 GENERAL INFORMATION FCC ID: NYM-PLB-01 GENERAL INFORMATION 1.1Product Description The Equipment Under Test (EUT) is a Axlon Electronics Corp., Model PLB-01. The EUT is a 900 MHz Direct Sequence Spread Spectrum base unit and is part of the Palm Pal-lite home automation system. The system, with all of its resources provides a powerful and convenient control interface between the user and a wide range of automated systems such as security, lighting, HVAC, or personal computer. The EUT is a used in this system as the central control unit used to deliver or exchange information, control, and voice communication among all the devices and provides connection to the telephone line. The EUT has two built in transceivers, one of which is used strictly for voice, the other for data applications. The transceivers are designed to operate on the following frequencies: Data Transceiver Channel Frequency (MHz) 1905.728 2907.776 3909.824 Voice Transceiver Channel Frequency (MHz) 1905.728 2907.776 3909.824 4911.872 5913.920 6915.968 7918.016 8920.064 9922.112 10924.160 FCC ID: NYM-PLB-01 1.2Related Submittal(s)/Grant(s) The EUT will be used with part of a system to send/receive data. The transceiver presented in this report will be used with another transceiver which has been submitted under FCC ID: NYM-PLM-01. The EUT is subject to the following authorizations: a) Certification as a transmitter b) Certification or DoC as a computer interface device and digital device b) Verification as a receiver The information contained in this report is presented for the certification portion of the EUT as a transmitter. A separate report has been generated for the DoC and verification authorizations for the EUT as a computer interface device and receiver. FCC ID: NYM-PLB-01 SECTION 2 TESTS AND MEASUREMENTS FCC ID: NYM-PLB-01 TEST AND MEASUREMENTS 2.1 Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2. The sample used for testing was received by U.S. Technologies on October 29, 1999 in good condition. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. 2.3 Test Equipment Table 2 describes test equipment used to evaluate this product. 2.4 Modifications No modifications were made by US Tech, to bring the EUT into compliance with FCC Part 15 limits for the transmitter portion of the EUT. FCC ID: NYM-PLB-01 FIGURE 1 TEST CONFIGURATION 6’ U 120 VAC/ 60 Hz 120 VAC/ 60 Hz Ant 2Ant 1 8’ s 3’ U Telco 3’ U Audio Cable X2 120 VAC/ 60 Hz Direct 6’U 6’s 120 VAC 60 Hz PrinterLaptop PC Line Simulator EUT AC/DC Power Brick AC/DC Power Brick 6’u 6’u 6’u FCC ID: NYM-PLB-01 Test Date:December 4, 1999 UST Project:99-769 Customer:Axlon Electronics Corp. Model:PLB-01 FIGURE 2a Photograph(s) for Spurious and Fundamental Emissions (Front) FCC ID: NYM-PLB-01 Test Date:December 4, 1999 UST Project:99-769 Customer:Axlon Electronics Corp. Model:PLB-01 FIGURE 2b Photograph(s) for Sp…

Text truncated - open the document above for the full version.

FCC ID: NYM-PLB-01 2.8 Antenna Conducted Spurious Emission in the Frequency Range 30 - 10000 MHz (FCC Section 15.247(c)) Antenna conducted spurious emissions in the frequency range 30 – 10000 MHz have been measured with a spectrum analyzer by connecting the spectrum analyzer directly via a short cable to the antenna output terminals or across the antenna leads on the PCB as specified by the manufacturer. The spectrum analyzer was set for a 50 Ω impedance with the RBW = 100 kHz & VBW > RBW. All spurious emissions were measured to be greater than 20 dB down from the fundamental. The results of conducted spurious emissions are given in Figure 4a through Figure 4x. FCC ID: NYM-PLB-01 Figure 4a. Antenna Conducted Spurious Emissions 15.247(c) (Data) Low FCC ID: NYM-PLB-01 Figure 4b. Antenna Conducted Spurious Emissions 5.247(c) (Data) Low FCC ID: NYM-PLB-01 Figure 4c. Antenna Conducted Spurious Emissions 15.247(c) (Data) Low FCC ID: NYM-PLB-01 Figure 4d. Antenna Conducted Spurious Emissions 15.247(c) (Data) Low FCC ID: NYM-PLB-01 Figure 4e. Antenna Conducted Spurious Emissions 15.247(c) (Data) Mid FCC ID: NYM-PLB-01 Figure 4f. Antenna Conducted Spurious Emissions 15.247(c) (Data) Mid FCC ID: NYM-PLB-01 Figure 4g. Antenna Conducted Spurious Emissions 15.247(c) (Data) Mid FCC ID: NYM-PLB-01 Figure 4h. Antenna Conducted Spurious Emissions 15.247(c) (Data) Mid FCC ID: NYM-PLB-01 Figure 4i. Antenna Conducted Spurious Emissions 15.247(c) (Data) High FCC ID: NYM-PLB-01 Figure 4j. Antenna Conducted Spurious Emissions 15.247(c) (Data) High FCC ID: NYM-PLB-01 Figure 4k. Antenna Conducted Spurious Emissions 15.247(c) (Data) High FCC ID: NYM-PLB-01 Figure 4l. Antenna Conducted Spurious Emissions 15.247(c) (Data) High FCC ID: NYM-PLB-01 Figure 4m. Antenna Conducted Spurious Emissions 15.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 4n. Antenna Conducted Spurious Emissions 5.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 4o. Antenna Conducted Spurious Emissions 15.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 4p. Antenna Conducted Spurious Emissions 15.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 4q. Antenna Conducted Spurious Emissions 15.247(c) (Voice) Mid FCC ID: NYM-PLB-01 Figure 4r. Antenna Conducted Spurious Emissions 15.247(c) (Voice) Mid FCC ID: NYM-PLB-01 Figure 4s. Antenna Conducted Spurious Emissions 15.247(c) (Voice) Mid FCC ID: NYM-PLB-01 Figure 4t. Antenna Conducted Spurious Emissions 15.247(c) (Voice) Mid FCC ID: NYM-PLB-01 Figure 4u. Antenna Conducted Spurious Emissions 15.247(c) (Voice) High FCC ID: NYM-PLB-01 Figure 4v. Antenna Conducted Spurious Emissions 15.247(c) (Voice) High FCC ID: NYM-PLB-01 Figure 4w. Antenna Conducted Spurious Emissions 15.247(c) (Voice) High FCC ID: NYM-PLB-01 Figure 4x. Antenna Conducted Spurious Emissions 15.247(c) (Voice) High FCC ID: NYM-PLB-01 2.9 Peak Radiated Spurious Emission in the Frequency Range 30 -10000 MHz (FCC Section 15.247(c)) A preliminary scan was performed on the EUT to determine frequencies that were caused by the transmitter portion of the product. Significant emissions that fell within restricted bands were then measured on an OAT’s site. Radiated measurements below 1 GHz were tested with a RBW = 120 kHz. Radiated measurements above 1 GHz were measured using a RBW = VBW = 1 MHz. The results of peak radiated spurious emissions falling within restricted bands are given in Table 4a & 4d (low), Table 4b & 4e, (mid), Table 4c & 4f (high) and Figures 5a-5o. FCC ID: NYM-PLB-01 Figure 5a Peak Radiated Spurious Emission 15.247(c) (Data) Low FCC ID: NYM-PLB-01 Figure 5b Peak Radiated Spurious Emission 15.247(c) (Data) Low FCC ID: NYM-PLB-01 Figure 5c Peak Radiated Spurious Emission 15.247(c) (Data) Mid FCC ID: NYM-PLB-01 Figure 5d Peak Radiated Spurious Emission 15.247(c) (Data) Mid FCC ID: NYM-PLB-01 Figure 5e Peak Radiated Spurious Emission 15.247(c) (Data) Mid FCC ID: NYM-PLB-01 Figure 5f Peak Radiated Spurious Emission 15.247(c) (Data) High FCC ID: NYM-PLB-01 Figure 5g Peak Radiated Spurious Emission 15.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 5h Peak Radiated Spurious Emission 15.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 5i Peak Radiated Spurious Emission 15.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 5j Peak Radiated Spurious Emission 15.247(c) (Voice) Low FCC ID: NYM-PLB-01 Figure 5k Peak Radiated Spurious Emission 15.247(c) (Voice) Mid FCC ID: NYM-PLB-01 Figure 5l Peak Radiated Spurious Emission 15.247(c) (Voice) Mid FCC ID: NYM-PLB-01 Figure 5m Peak Radiated Spurious Emission 15.247(c) (Voice) Mid FCC ID: NYM-PLB-01 Figure 5n Peak Radiated Spurious Emission 15.247(c) (Voice) High FCC ID: NYM-PLB-01 Figure 5o Peak Radiated Spurious Emission 15.247(c) (Voice) High FCC ID: NYM-PLB-01 TABLE 4a PEAK RADIATED SPURIOUS EMISSIONS (Data - Low) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 1.590-59.935.327.43.1129.85000 2.717-48.034.931.24.2949.45000 TABLE 4b PEAK RADIATED SPURIOUS EMISSIONS (Data - Mid) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 1.595-59.935.227.43.1130.45000 2.723-58.534.931.34.2283.95000 3.631-53.634.633.95.2787.85000 TABLE 4c PEAK RADIATED SPURIOUS EMISSIONS (Data - High) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 1.598-59.735.227.43.1133.75000 * = Data adjusted by + 1 dB for high pass filter ** = Instrumentation ground floor SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-59.9 - 35.3 + 27.4 + 3.1 + 107)/20) = 129.8 CONVERSION FROM dBm TO dBuV = 107 dB Tester Results Reviewed By Signature: Name: Tim R. Johnson FCC ID: NYM-PLB-01 TABLE 4d PEAK RADIATED SPURIOUS EMISSIONS (Voice - Low) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 1.590-60.735.327.43.1118.45000 2.718-51.934.931.24.2606.15000 3.625-65.334.633.…
