NYM-PLD-01Wireless I/O

FCC ID: NYM-PLD-01 SECTION 7 USER'S MANUAL FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01

FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01

FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01

SECTION 5 PHOTOGRAPHS FCC ID: NYM-PLM-01 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1.EUT, Front View Photo 2.EUT, Rear View Photo 3.EUT, Top View with Case Opened Photo 4.EUT, Top View of I/O Board Photo 5.EUT, Bottom View of I/O Board Photo 6.EUT, Top View of Main Board Photo 7.EUT, Bottom View of Main Board Photo 8.EUT, Top View of Transceiver Board (Shield Removed) Photo 9.EUT, Bottom View of Transceiver Board (Shield Removed) Photo 10.EUT, View Showing Added Wire Jumper FCC ID: NYM-PLM-01 Photo 1.EUT, Front View FCC ID: NYM-PLM-01 Photo 2.EUT, Rear View

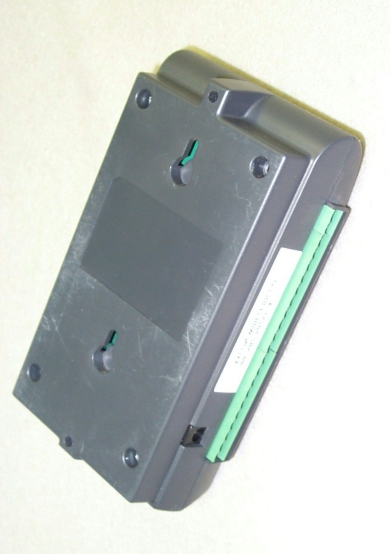

SECTION 5 PHOTOGRAPHS FCC ID: NYM-PLD-01 PHOTOS OF THE TESTED EUT The following photos are attached: Photo 1.EUT, Front View Photo 2.EUT, Rear View Photo 3.EUT, Top View with Case Opened Photo 4.EUT, Top View of I/O Board Photo 5.EUT, Bottom View of I/O Board Photo 6.EUT, Top View of Main Board Photo 7.EUT, Bottom View of Main Board Photo 8.EUT, Top View of Transceiver Board (Shield Removed) Photo 9.EUT, Bottom View of Transceiver Board (Shield Removed) Photo 10.EUT, View Showing Added Wire Jumper FCC ID: NYM-PLD-01 Photo 1.EUT, Front View FCC ID: NYM-PLD-01 Photo 2.EUT, Rear View

SECTION 3 LABELING INFORMATION FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 Photo Showing Placement of Label FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01

FCC ID: NYM-PLD-01 Photo 3.EUT, Top View with Case Opened FCC ID: NYM-PLD-01 Photo 4.EUT, Top View of I/O Board FCC ID: NYM-PLD-01 Photo 5.EUT, Bottom View of I/O Board FCC ID: NYM-PLD-01 Photo 6.EUT, Top View of Main Board

FCC ID: NYM-PLM-01 Photo 3.EUT, Top View with Case Opened FCC ID: NYM-PLM-01 Photo 4.EUT, Top View of I/O Board FCC ID: NYM-PLM-01 Photo 5.EUT, Bottom View of I/O Board FCC ID: NYM-PLM-01 Photo 6.EUT, Top View of Main Board

FCC ID: NYM-PLM-01 Photo 7.EUT, Bottom View of Main Board FCC ID: NYM-PLM-01 Photo 8.EUT, Top View of Transceiver Board (Shield Removed) FCC ID: NYM-PLM-01 Photo 9.EUT, Bottom View of Transceiver Board (Shield Removed) FCC ID: NYM-PLM-01 Photo 10.EUT, View Showing Added Wire Jumper

FCC ID: NYM-PLD-01 Photo 7.EUT, Bottom View of Main Board FCC ID: NYM-PLD-01 Photo 8.EUT, Top View of Transceiver Board (Shield Removed) FCC ID: NYM-PLD-01 Photo 9.EUT, Bottom View of Transceiver Board (Shield Removed) FCC ID: NYM-PLD-01 Photo 10.EUT, View Showing Added Wire Jumper

FCC ID: NYM-PLD-01 SECTION 6 RF EXPOSURE INFO FCC ID: NYM-PLD-01 6.1 RF Safety Requirements to 2.1091 According to Section 3 of Supplement C to OET Bulletin 65, Part 15 Transmitters are categorically excluded from Routine Environmental Evaluation by measurement or precise computations unless otherwise required by the Commissions The unit under evaluation has an external antenna of 0 dBi gain with a measured output power output of 0.020 Watts at the antenna terminals. Due to the low power of the EUT, environmental evaluation should be deemed unnecessary since the EUT’s operational frequency range is 902-928 MHz and the ERP is considerably less than 1.5 Watts.

FCC ID: NYM-PLD-01 SECTION 4 BLOCK DIAGRAM / SCHEMATIC FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01

FCC ID: NYM-PLD-01 SECTION 4 BLOCK DIAGRAM / SCHEMATIC FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01

Axlon Electronics Corp. FCC Part 15, Certification Application PLD-01 UST Project No: 99-774 March 21, 2000 MEASUREMENT/TECHNICAL REPORT COMPANY NAME: Axlon Electronics Corp. MODEL: PLD-01 FCC ID: NYM-PLD-01 DATE: March 21, 2000 This report concerns (check one): Original grant X Class II change_____ Equipment type: Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 FCC ID: NYM-PLD-01 TABLE OF CONTENTS AGENCY AGREEMENT SECTION 1 GENERAL INFORMATION 1.1 Product Description 1.2 Related Submittal(s) SECTION 2 TESTS AND MEASUREMENTS 2.1 Configuration of Tested EUT 2.2 Test Facility 2.3 Test Equipment 2.4 Modifications 2.5 Test Procedure and Results 2.6 Antenna Description 2.7 Peak Power (Antenna Conducted at Antenna Terminal) 2.8 Antenna Conducted Spurious Emissions 2.9 Peak Radiated Spurious Emissions 2.10 Average Radiated Spurious Emissions 2.11 Minimum 6 dB Bandwidth 2.12 Power Spectral Density 2.13 Processing Gain 2.14 Power Line Conducted Emissions for Transmitter 2.15 Radiated Emissions for Digital Device & Receiver (if Applicable) 2.16 Power Line Conducted for Digital Device & Receiver (if Applicable) SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S)/ SCHEMATIC(S) SECTION 5 PHOTOGRAPHS SECTION 6 RF EXPOSURE INFO SECTION 7 USER'S MANUAL FCC ID: NYM-PLD-01 LIST OF FIGURES AND TABLES FIGURES 1)Test Configuration 2) Photograph(s) for Spurious and Digital Device Emissions 3) Peak Power Output 4) Antenna Conducted Spurious Emissions 5) Peak Radiated Spurious Emissions 6) Average Radiated Spurious Emissions 7) Minimum 6 dB Bandwidth 8) Power Spectral Density TABLES 1)EUT and Peripherals 2) Test Instruments 3) Peak Power Output 4) Peak Radiated Spurious Emissions 5) Average Radiated Spurious Emissions 6) Power Spectral Density 7) Conducted Emissions Data (Transmitter) 8) Radiated Emissions Data (Digital Device) 9) Conducted Emissions Data (Digital Device) FCC ID: NYM-PLD-01 SECTION 1 GENERAL INFORMATION FCC ID: NYM-PLD-01 GENERAL INFORMATION 1.1Product Description The Equipment Under Test (EUT) is a Axlon Electronics Corp., Model PLD-01. The EUT is a 900 MHz Direct Sequence Spread Spectrum I/O unit and is part of the Palm Pal-lite home automation system. The system, with all of its resources provides a powerful and convenient control interface between the user and a wide range of automated systems such as security, lighting, HVAC, or personal computer. The EUT is a used in this system as a I/O Module for two way inter-operable control operation which can send commands out to activate one single or a series of jobs and also receive signal detected from the connected external devices such as windows break sensor, etc. The transceiver is designed to operate on the following frequencies: Channel Frequency (MHz) 1905.728 2907.776 3909.824 4911.872 5913.920 6915.968 7918.016 8920.064 9922.112 10924.160 FCC ID: NYM-PLD-01 1.2Related Submittal(s)/Grant(s) The EUT will be used with part of a system to send/receive data. The transceiver presented in this report will be used with another transceiver which has been submitted under FCC ID: NYM-PLB-01 The EUT is subject to the following authorizations: a) Certification as a transmitter b) Verification as a receiver and digital device The information contained in this report is presented for the Certification & Verification authorization(s) for the EUT. FCC ID: NYM-PLD-01 SECTION 2 TESTS AND MEASUREMENTS FCC ID: NYM-PLD-01 TEST AND MEASUREMENTS 2.1 Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2. The sample used for testing was received by U.S. Technologies on October 29, 1999 in good condition. 2.2 Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. 2.3 Test Equipment Table 2 describes test equipment used to evaluate this product. 2.4 Modifications The following modifications were made to bring the EUT into compliance with FCC Part 15 limits for the transmitter portion of the EUT: 1) A two turn* ferrite (Steward #25A2025) was added on the power input cable near the I/O module. 2) A ground strap was added from the negative conductor of the AC input behind the connector to the ground terminal of I5 on the daughter board. These modifications will be included in the end product as given by Axlon’s letter as shown on the following page. FCC ID: NYM-PLD-01 FCC ID: NYM-PLD-01 FIGURE 1 TEST CONFIGURATION I/O Module 110 VAC/60 Hz Direct Plug In 16@ 1 m U Unterm. (x2) switch to short inputs to control TX AC Adapter 6’U FCC ID: NYM-PLD-01 Test Date:February 1 & 22, 2000 UST Project:99-774 Customer:Axlon Electronics Corp. Model:PLD-01 FIGURE 2a Photograph(s) for Spurious Emissions (Front) FCC ID: NYM-PLD-01 Test Date:February 1 & 22, 2000 UST Project…

Text truncated - open the document above for the full version.

FCC ID: NYM-PLD-01 2.8 Antenna Conducted Spurious Emission in the Frequency Range 30 - 10000 MHz (FCC Section 15.247(c)) Antenna conducted spurious emissions in the frequency range 30 – 10000 MHz are normally measured with a spectrum analyzer by connecting the spectrum analyzer directly via a short cable to the antenna output terminals or across the antenna leads on the PCB as specified by the manufacturer. Since the EUT has an integrated non-removable antenna, this test has been deemed unnecessary. FCC ID: NYM-PLD-01 2.9 Peak Radiated Spurious Emission in the Frequency Range 30 -10000 MHz (FCC Section 15.247(c)) A preliminary scan was performed on the EUT to determine frequencies that were caused by the transmitter portion of the product. Significant emissions that fell within restricted bands were then measured on an OAT’s site. Radiated measurements below 1 GHz were tested with a RBW = 120 kHz. Radiated measurements above 1 GHz were measured using a RBW = VBW = 1 MHz. The results of peak radiated spurious emissions falling within restricted bands are given in Table 4a (low), Table 4b, (mid), Table 4c (high) and Figure 5a-5c (low), Figure 5e-5f (mid) and Figure 5g-5k (high). FCC ID: NYM-PLD-01 Figure 5a Peak Radiated Spurious Emission 15.247(c) Low FCC ID: NYM-PLD-01 Figure 5b Peak Radiated Spurious Emission 15.247(c) Low FCC ID: NYM-PLD-01 Figure 5c Peak Radiated Spurious Emission 15.247(c) Low FCC ID: NYM-PLD-01 Figure 5d Peak Radiated Spurious Emission 15.247(c) Mid FCC ID: NYM-PLD-01 Figure 5e Peak Radiated Spurious Emission 15.247(c) Mid FCC ID: NYM-PLD-01 Figure 5f Peak Radiated Spurious Emission 15.247(c) Mid FCC ID: NYM-PLD-01 Figure 5g Peak Radiated Spurious Emission 15.247(c) High FCC ID: NYM-PLD-01 Figure 5h Peak Radiated Spurious Emission 15.247(c) High FCC ID: NYM-PLD-01 Figure 5i Peak Radiated Spurious Emission 15.247(c) High FCC ID: NYM-PLD-01 Figure 5j Peak Radiated Spurious Emission 15.247(c) High FCC ID: NYM-PLD-01 Figure 5k Peak Radiated Spurious Emission 15.247(c) High FCC ID: NYM-PLD-01 Test Date:February 1 & 22, 2000 UST Project:99-774 Customer:Axlon Electronics Corp. Model:PLD-01 TABLE 4a PEAK RADIATED SPURIOUS EMISSIONS (Low) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 0.073-82.0-9.71.667.4100 2.714-44.434.931.24.21435.95000 3.620-44.834.633.95.22156.85000 4.523-54.534.234.07.1925.15000 * = Data adjusted by + 1 dB for high pass filter SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-44.4 – 34.9 + 31.2 + 4.2 + 107)/20) = 1435.9 CONVERSION FROM dBm TO dBuV = 107 dB Test Results Reviewed By Signature: Name: Tim R. Johnson FCC ID: NYM-PLD-01 Test Date:February 1 & 22, 2000 UST Project:99-774 Customer:Axlon Electronics Corp. Model:PLD-01 TABLE 4b PEAK RADIATED SPURIOUS EMISSIONS (Mid) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 0.073-82.0-9.71.667.4100 2.743-55.634.931.34.2398.55000 3.657-55.334.634.05.3657.25000 4.567-64.634.234.17.2297.25000 * = Data adjusted by + 1 dB for high pass filter SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-55.6 - 34.9 + 31.3 + 4.2 + 107)/20) = 398.5 CONVERSION FROM dBm TO dBuV = 107 dB Test Results Reviewed By Signature: Name: Tim R. Johnson FCC ID: NYM-PLD-01 Test Date:February 1 & 22, 2000 UST Project:99-774 Customer:Axlon Electronics Corp. Model:PLD-01 TABLE 4c PEAK RADIATED SPURIOUS EMISSIONS (High) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 0.278-82.0-13.73.8133.1200 2.772-38.134.931.34.23011.55000 3.696-49.034.634.15.31386.95000 4.607-52.934.234.27.31171.95000 5.528-53.634.036.07.81432.65000 6.460-52.833.936.37.51614.75000 * = Data adjusted by + 1 dB for high pass filter SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-38.1.0 - 34.9 + 31.3 + 4.2 + 107)/20) = 3011.5 CONVERSION FROM dBm TO dBuV = 107 dB Test Results Reviewed By Signature: Name: Tim R. Johnson FCC ID: NYM-PLD-01 2.10 Average Spurious Emission in the Frequency Range 30 - 10000 MHz (FCC Section 15.247(c)) The results of average radiated spurious emissions falling within restricted bands are given in Table 5a (low), Table 5b, (mid), Table 5c (high) and Figure 6. Since the EUT was not capable of continuous mode of transmit, average measurements were not possible. Therefore only duty cycle corrections were applied to the peak measurements. Duty cycle corrections were based upon the following information as supplied by Axlon Electronics Corp. Worse Case duty cycle per 100 msec = 12ms/100 ms = 12% Duty Cycle Correction = 20 log (0.12) = -18.4 dB FCC ID: NYM-PLD-01 Figure 6 Average Radiated Spurious Emission 15.247(c) Since the EUT was not capable of continuous mode of transmit, average measurements were not possible. Therefore only duty cycle corrections were applied to the peak measurements. FCC ID: NYM-PLD-01 Test Date:February 1 & 22, 2000 UST Project:99-774 Customer:Axlon Electronics Corp. Model:PLD-01 TABLE 5a AVERAGE RADIATED SPURIOUS EMISSIONS (Low) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 0.073-82.0-9.71.667.4100 2.714-62.834.931.24.2172.6500 3.620-63.234.633.95.2259.3500 4.523-72.934.234.07.1111.2500 * = Data adjusted by + 1dB for high pass filter and 18.4 dB for duty cycle. SAMPLE CALCULATION: RESULTS (uV/m @ 3m) = Antilog ((-62.8 – 34.9 + 31.3 + 4.2 + 107)/20) = 172.6 CONVERSION FROM dBm TO dBuV = 107 dB Test Results Reviewed By Signature: Name: Tim R. Johnson FCC ID: NYM-PLD-01 Test Date:February 1 & 22, 2000 Project:99-774 Customer:Axlon Electronics Corp. Model:PLD-01 TABLE 5b AVERAGE RADIATED SPURIOUS EMISSIONS (Mid) Freq. (GHz) Test Data* (dBm) @3m Amp. Gain (dB) Antenna Factor (dB) Cable Loss (dB) Results (uV/m) @3m FCC Limits (uV/m) @3m 0.073-82.0-9.71.667.4100 2.743-74.034.931.34.247.9500 3.657-73.734.634.05.379.0500 4.…
