NZLACHL3Universal Garage Door Opener in Mirror

Recommended Owners Manual for Automatic-Dimming NVS Mirror with Homelink® series Universal Garage Door Opener and Electronic Compass Display. Automatic-Dimming NVS Mirror with Homelink® and Electronic Compass Display Suggested Owner’s Manual Text May 2004 Automatic-Dimming Night Vision Safety  (NVS) Mirror The NVS Mirror in your vehicle is the most advanced way to eliminate dangerous and annoying glare in the rearview mirror during any driving situation. For more information regarding NVS mirrors and other applications, please refer to the Gentex website – www.gentex.com . Precautions The NVS Mirror automatically reduces glare during driving conditions based upon light levels monitored in front of the vehicle and from the rear of the vehicle. These light sensors are visible through openings in the front and rear of the mirror case. Any object that would obstruct either light sensor will degrade the automatic dimming control feature. Operation The NVS Mirror operates automatically whenever the vehicle ignition is ON. The status of the automatic dimming feature is indicated by a green light on the face of the mirror. To turn the automatic dimming feature off, press the button with the button. The indicator light will turn off to indicate that the automatic dimming feature is off. To turn the automatic dimming feature on, press the button with the button again. The indicator light will also turn on. If the automatic dimming feature is off when the vehicle ignition is turned off, the automatic dimming feature will become active when the vehicle ignition is turned back on. Electronic Compass Display The NVS Mirror in your vehicle is also equipped with a display the shows the vehicle heading using the 8 basic cardinal headings (N, NE, E, SE, etc.). For more information regarding these features in the NVS mirrors, please refer to the Gentex website – www.gentex.com. Electronic Compass Mirror Operation The Compass display operates automatically whenever the vehicle ignition is ON. To turn the display feature off, press the button with the symbol. To turn the display feature on, press the button with the symbol again. If the compass display feature is off when the vehicle ignition is turned off, the display feature will turn on again when the vehicle ignition is turned back on. There is a difference between magnetic north and true north. The compass in the mirror can compensate for this difference when it knows what region in which it is operating. This is set either by the dealer or by the user. These operating regions or zones for the continental United States are shown in the figure below. To adjust the zone setting press and hold the button with the symbol for more than 3 seconds. Determine the appropriate zone number based upon your current location and the map provided above. Press and hold the button until the new zone setting appears on the display (note: the numbers will repeat, ...13, 14, 15, 1, 2, ...). Release the button and within about 5 seconds the compass will start displaying a compass direction again. There are some conditions that can cause changes to the vehicle magnets. Items such as installing a ski rack or a CB antenna or even some body repair work on the vehicle can cause changes to the vehicle's magnetic field. In these situations, the compass will need to be re- calibrated to quickly correct for these changes. To re-calibrate the compass, press and hold the button for more than 6 seconds. When the compass memory is cleared a “C” will appear in the display. To calibrate the compass, drive the vehicle is 3 complete circles at less than five mph. HomeLink ® Universal Transceiver The HomeLink ® Universal Transceiver included in your NVS Mirror with Homelink® provides a convenient way to replace up to three hand-held transmitters with a single built-in component. This innovative feature will learn the radio frequency codes of most current transmitters used to activate devices such as garage doors, entry door locks, estate gates, security systems, and home or office lighting. For additional information on HomeLink and/or HomeLink compatible products, call 1-800-355-3515 or refer to the HomeLink web site at www.homelink.jci.com. Precautions When programming the HomeLink Universal Transceiver to a garage door opener or entry gate, make sure that people and objects are out of the way to prevent potential harm or damage. Do not use the HomeLink Universal Transceiver with any garage door opener that lacks the safety stop and reverse feature as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982.) A garage door opener which cannot detect an object, signaling the door to stop and reverse, does not meet current federal safety standards. Using a garage door opener without these features increases risk of serious injury or death. For more information, call 1-800-355-3515 or on the internet at www.homelink.jci.com. Retain the original transmitter for future programming procedures (i.e., new vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed HomeLink Universal Transceiver buttons be erased for security purposes (follow step 1 in the “Programming” portion of this text). Programming Note: For best results, replace the battery in the hand-held transmitter with a new battery before programming. If your garage door opener receiver (located in the garage) is equipped with an antenna, make sure the antenna is completely uncoiled and hangs straight down. 1. Press and hold the two outside buttons - releasing only when the indicator light begins to flash after 20 seconds. (This procedure erases the factory set default codes and does not have to be followed to program additional hand-held transmitters.) 2. Hold the end of the hand-held transmitter of the device you wish to train approximately one to three inches away from the HomeLink surface - keeping the indicator light in view. (For p…

Text truncated - open the document above for the full version.

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449606.DOC COVER Letter: Page 1 of 2 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer Federal Communications Commission Equipment Approval Services, P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization & Evaluation Division Re: Application for Certification of Gentex Corporation Transmitter under 47CFR 15.231. FCC ID: NZLACHL3 Gentlemen: On behalf of the applicant, Gentex Corporation, please find attached the submittal materials for certification of the Universal Garage Door Opener transceiver in an NVSX Mirror. The model is NZLACHL3. This unit is capable of learning the current garage door transmit frequencies from 288MHz through 420MHz except in the forbidden frequency regions. The complete List of the Exhibits in this submittal package appears on Page 2 of this cover letter. The Federal Communications Commission will be notified, in writing, of any changes in the software/programming of the device that could affect the device’s RF characteristics. A copy of a ‘Power of Attorney” is included to demonstrate that AHD has been authorized to provide the service of preparing this application. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 269. 424.7014 email: [email protected] Test report #0400681F FCC 15.231 for NZLACHL3 FCC ID: NZLACHL3 Tested May 25, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449606.DOC Cover Letter: Page 2 of 2 Table of Contents Cover Letter / Table of Contents Total Pages 2 Letter of Request of Confidentiality Total Pages 1 EXHIBIT A: ID Label / Location [2.925,2.926,2.1033(b2,7),15.19(a3)] EXA_Label.doc, EXA_Labellocation.pdf Total Pages 2 EXHIBIT B: Description of Product [2.1033(b6)] EXB_desc.doc Total Pages 1 Description of Operation [2.1033(b4)] EXB_operation.doc Total Pages 1 Circuit Block Diagram [2.1033(b5)] EXB_Blockdiagram.doc Total Pages 1 Schematics [2.1033(b5)] EXB_schematic.pdf Total Pages 8 EXHIBIT C: Product photos ten photos Total Pages 10 : Interior & Printed Circuit Boards [2.1033(b7)] Eight photos EXC_3PCBtop.jpg, EXC_3PCBbtm.jpg, EXC_LCDPCBtop.jpg EXC_HL3PCBtop.jpg, EXC_HL3PCBbtm.jpg, EXC_LCDPCBbtm.jpg EXC_CPUPCBtop/jpg. EXC_CPUCBbtm.jpg Exterior views [2.1033(b7)] Two photos EXC_Mirrorfrnt.jpg, EXC_Mirrorrear.jpg EXHIBIT D: User’s Manual EXD_UserManual.doc Total Pages 6 EXHIBIT E: Setup photos [2.1033(b8)] Four photos Total Pages 4 EXE_pretest.jpg, EXE_side.jpg, EXE_end.jpg, EXE_flat.jpg Report of Measurements [2.1033(b6)] Total Pages 28 Table of Contents Page 2 Manufacturer/Applicant [2.1033(b1)] Page 4 Measurement/Test Facility & Equipment Page 4 Configuration/Setup [2.1033(b8)] Page 5 Test Standards / Methods Used [2.1033(b6)] Page 8 Test Methodology [2.1033(b6)] Page 8 Test Data [2.1033(b6)] Summary of Results Page 6 Level vs Supply Voltage [15.31(e)] Page 14 Occupied Bandwidth Page 15 Radiated Field Strength [15.231(b)] Page 17 Misc. EXHIBIT: RF Exposure Information [2.1093(c)] Total Pages 1 Tuning Information [2.1033(b5] Total Pages 1

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449607.DOC Request for CONFIDENTIALITY: Page 1 of 1 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer Federal Communications Commission Equipment Approval Services, P.O. Box 358315 Pittsburgh, PA 15251-5315 Attention: Authorization & Evaluation Division Re: Request for Confidentiality in Application for Certification of Gentex Corporation Transmitter under 47CFR 15.231. FCC ID: NZLACHL3 Gentlemen: Pursuant to 47CRF 0.459, Gentex Corporation requests that these listed exhibits be held confidential . Circuit Block Diagrams file names: EXB_Blockdiagram.docf Theory/Description of Operation, file name: EXB_operation.doc Schematics file names: EXB_schematic.pdf Gentex Corporation has invested considerable resources into developing this product. Having sections of Exhibit B, listed above, available to ‘competition’ would negate the advantage achieved in developing this product. Since this product type is a major product line for Gentex Corporation, not protecting the details of the design would result in a financial hardship for the company. The Federal Communications Commission will be notified, in writing, of any changes in the software/programming of the device that could affect the device’s RF characteristics. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 616. 424.7014 email: [email protected]

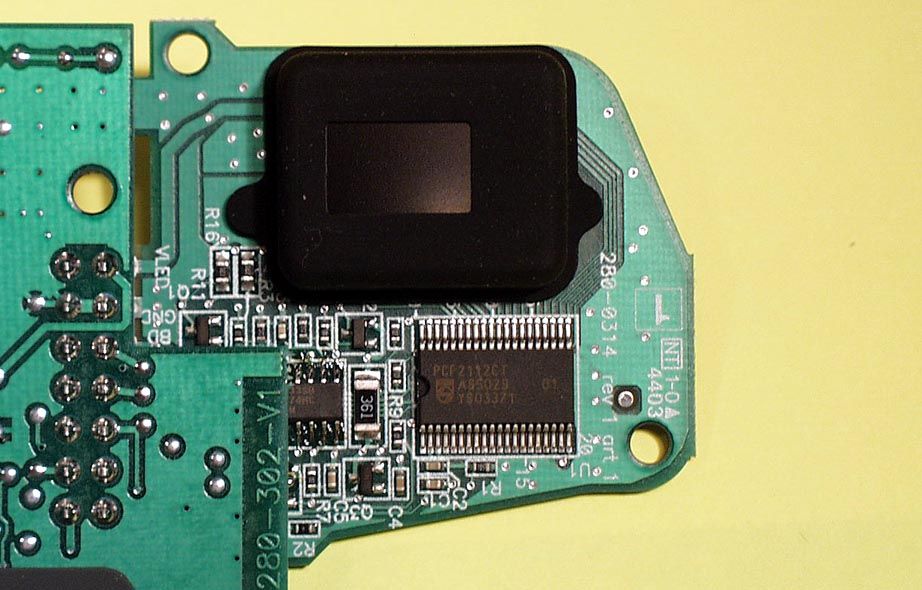

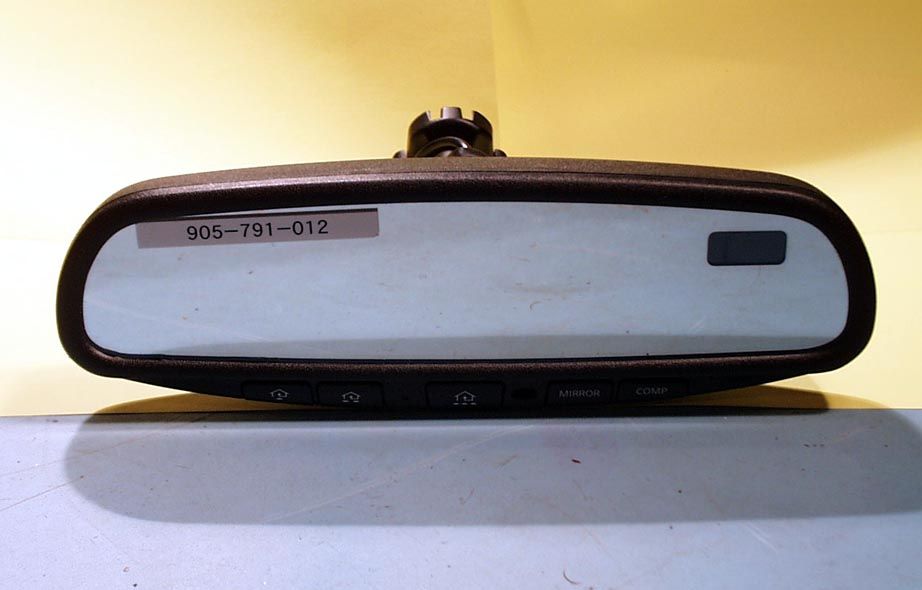

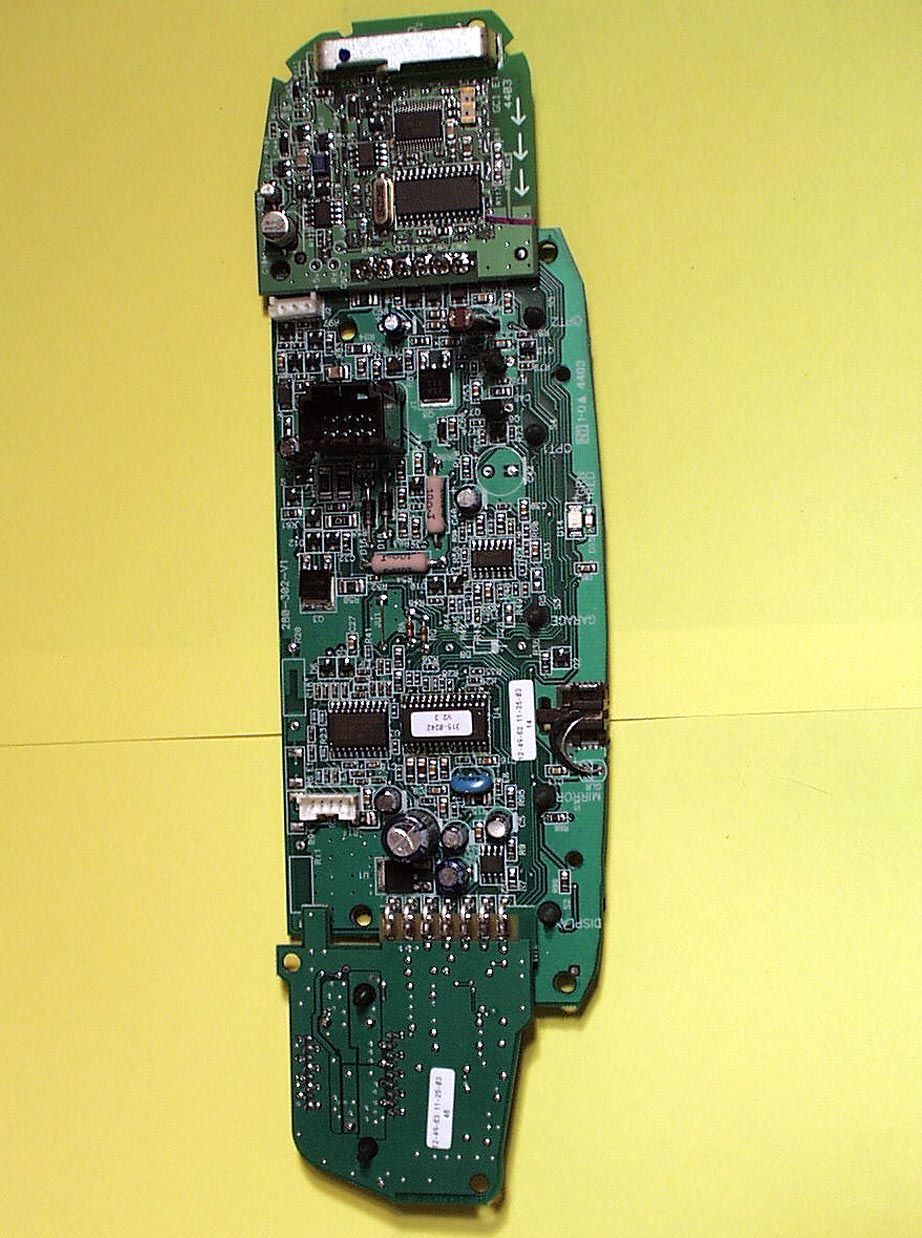

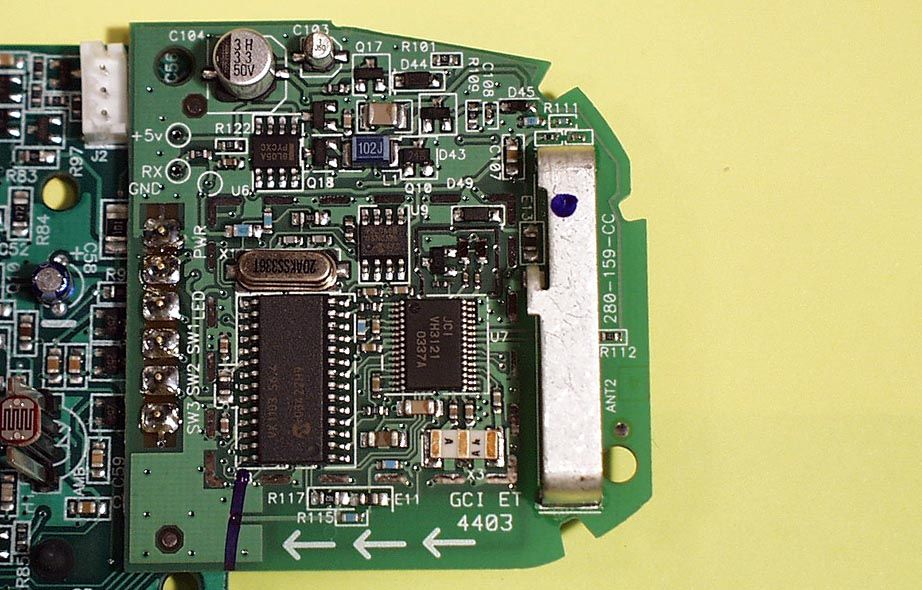

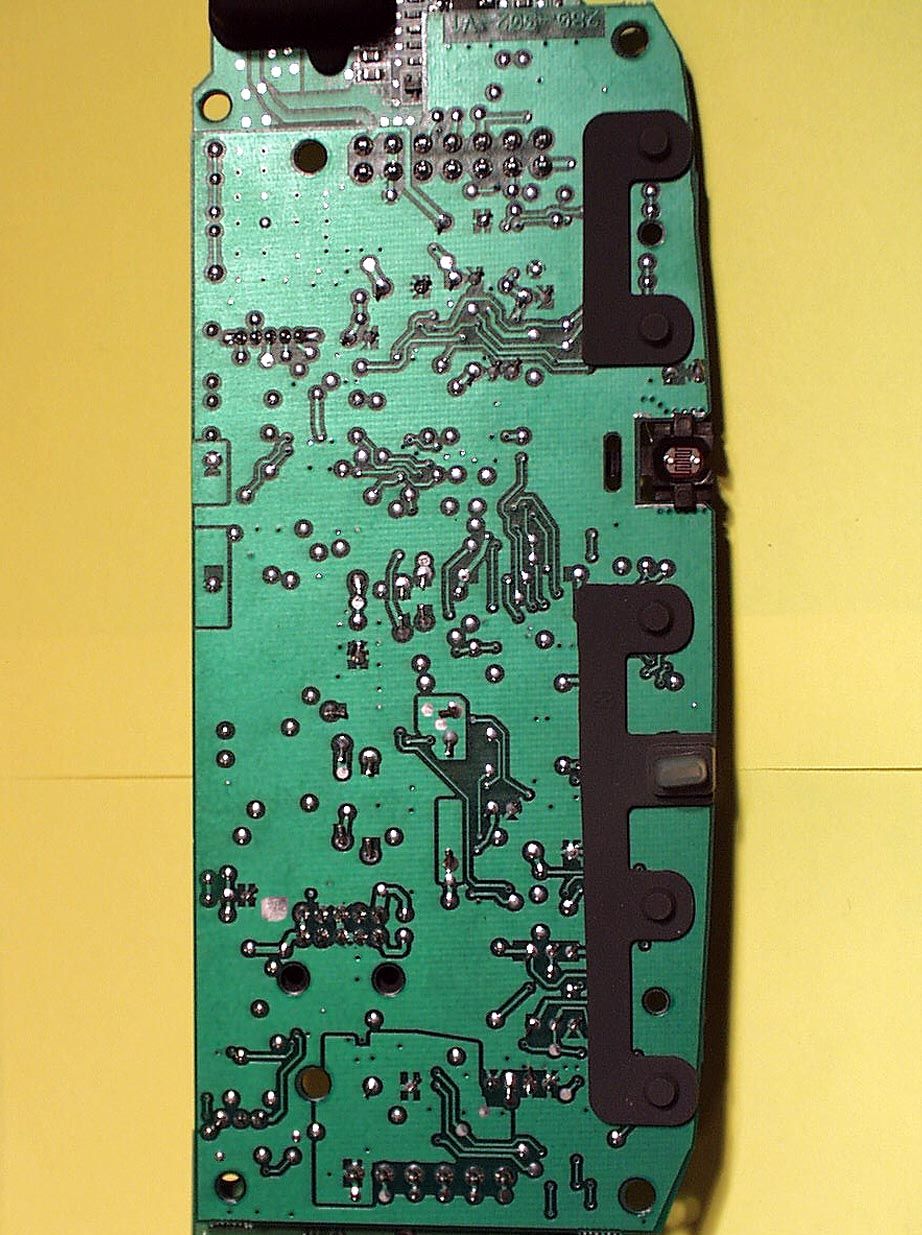

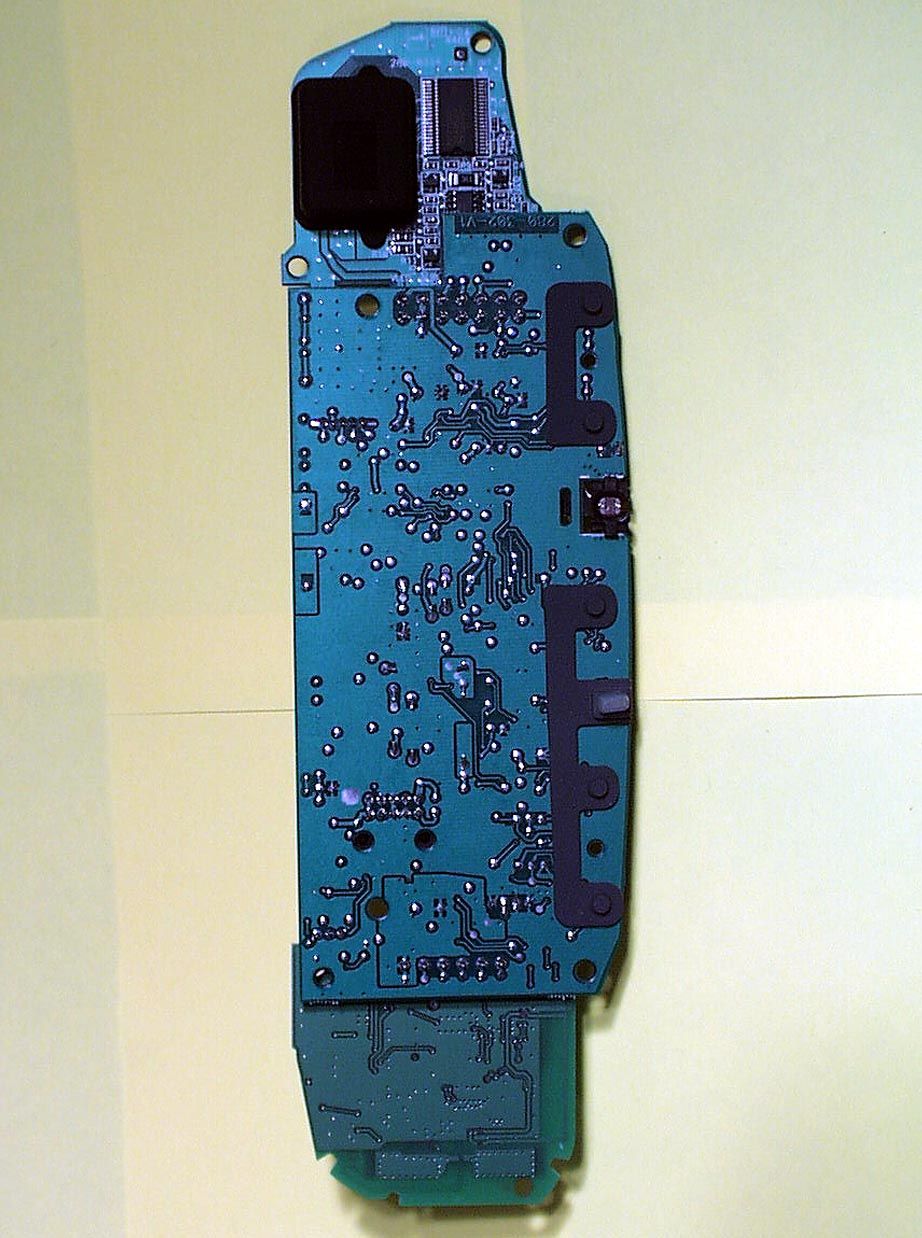

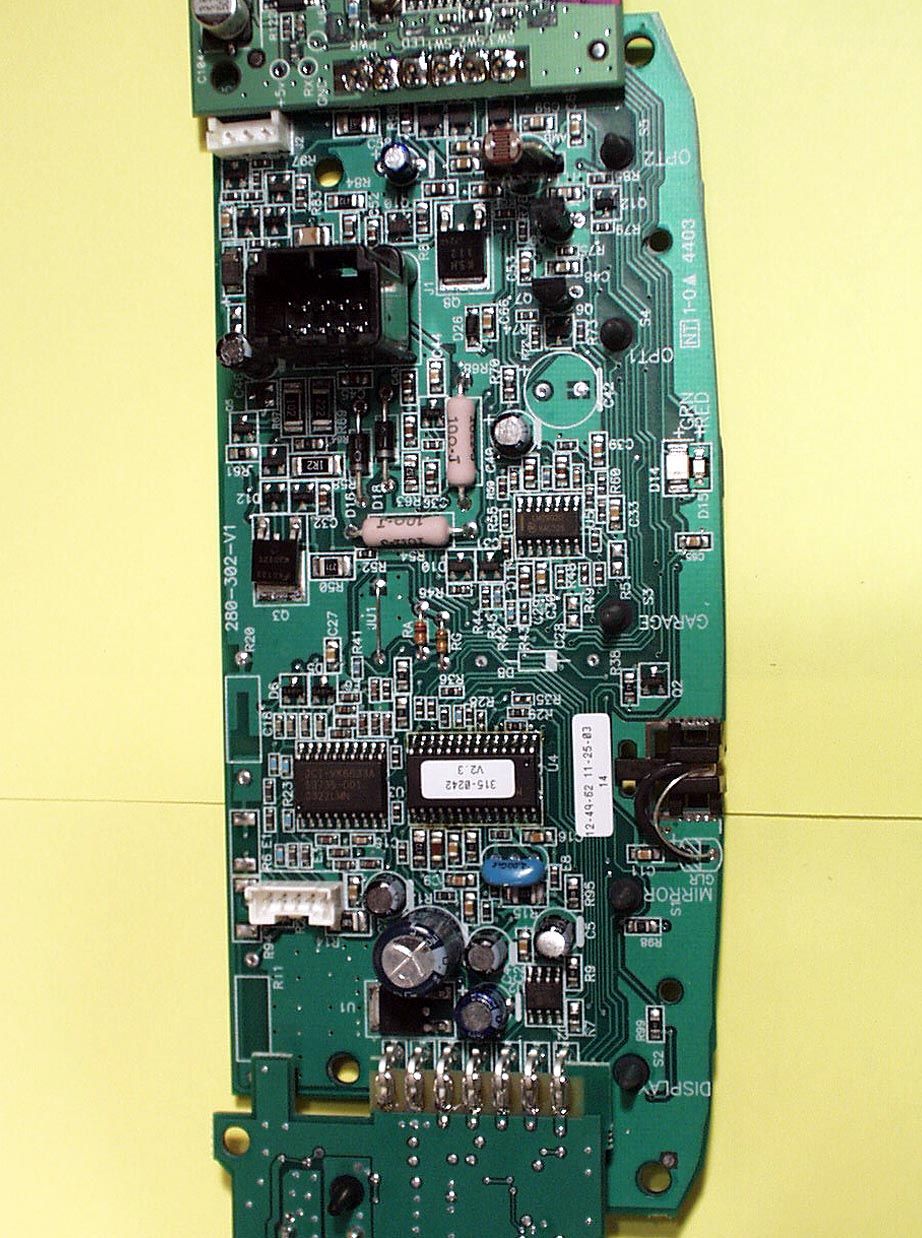

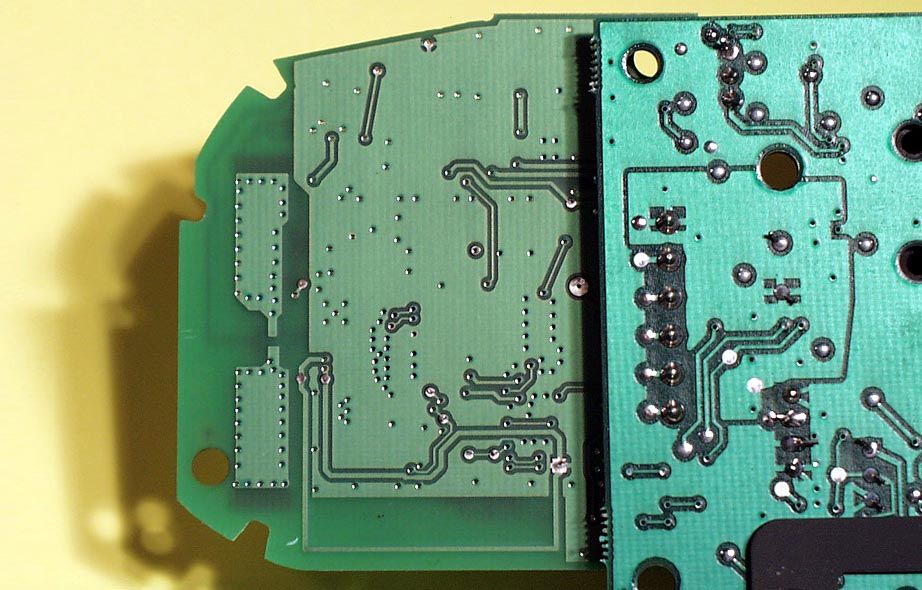

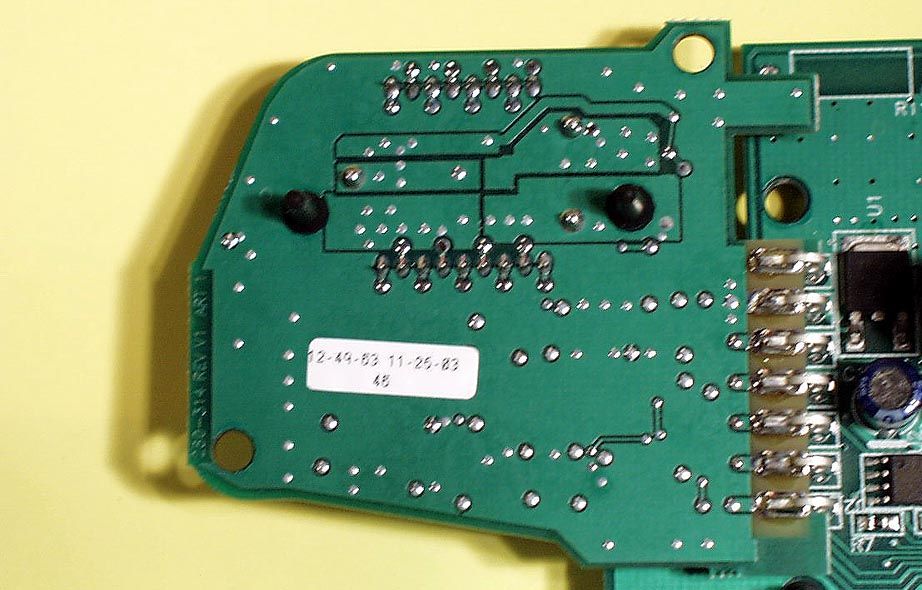

Automatic – Dimming NVS Mirror with Homelink, Electronic Compass Display Description The Automatic Dimming NVS TM with Homelink® universal garage door opener is designed to reduce nuisance glare to the driver’s eyes. The glare is controlled with an eletrochromic mirror element that is driven by a microcontroller where dimming levels are determined based on inputs from light sensors monitoring both ambient light in front of the vehicle and glare light from behind the vehicle. The NVS mirror is also equipped with an electronic compass which displays the direction the vehicle is facing. The compass shows the appropriate cardinal heading (N, NE, SW, etc.) which is determined by the signals from the magneto inductive sensors. This model may also be equipped with an optional display of outside temperature. With this option the microprocessor also determines the outside temperature by monitoring an external thermistor probe. The Homelink8 III is a low-power transceiver device that is installed into the rearview mirror of the automobile and powered by the 12volt system of the automobile. The installation is provided by trained technicians during the course of the manufacturer of the automobile. This Universal Garage Door Opener has the capability to: 1. Learn the frequency and bit code format of the user’s existing garage door remote control devices and 2. Reproduce and transmit the frequency and bit code format to remotely operate the user’s garage door. The unit is designed for the periodic operation of a control signal which activates typically a garage door. The Homelink8 III printed circuit board (PCB) is permanently joined to the main mirror printed circuit board. The mirror PCB contains the three user push buttons and light emitting diode (LED). This three-button Homelink® unit replaces up to three hand-held transmitters. In addition to the typical operation of the garage door, the unit will learn the radio frequency codes of other transmitter types to activate entry door locks, estate gates, security systems, and home or office lighting. The transmit unit is only operational when the user depresses one of the three control buttons. This unit becomes inactive after release of the control button. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and GENTEX Corporation.

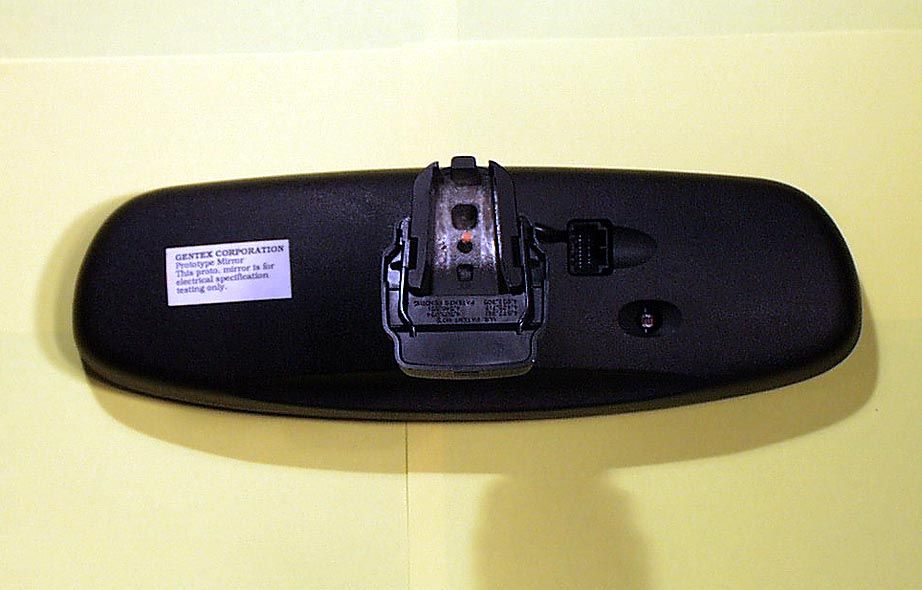

Test report #0400681F FCC 15.231 for NZLACHL3 FCC ID: NZLACHL3 Tested May 25, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449630.DOC Exhibit A: Page 1 of 2 EXHIBIT A: EQUIPMENT LABEL [2.925, 2.926, 2.1033(B2,7), 15.19(A3)] LABEL EXAMPLE For the label Information refer to picture file “EXA_LabelLocation.pdf” The FCC Identifier assigned to the EUT is FCC ID: NZLACHL3. This number will be molded into the rear of the mirror housing. Because of the size and location of the transmitter portion of the product, the following statements will appear in the user’s manual. Refer to Exhibit D for the entire text of the user’s manual. “This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and Industry Canada rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.” FCC ID Number LOCATION The information will be molded onto the outside of the NZLACHL3 plastic housing.

Test report #0400681F FCC 15.231 for NZLACHL3 FCC ID: NZLACHL3 Tested May 25, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449661.DOC Misc. EXHIBIT: Page 2 of 2 MISC. EXHIBIT: TUNING INFORMATION [2.1033(B5)] Tuning: (Programming) The user programs the NZLACHL3 as outlined in the Users Manual, Exhibit D. A summary is provided here. 1. Pressing the two outer Homelink buttons until the indicator LED begins to flash resets the memory. 2. Holding the hand-held transmitter to be copied near the NZLACHL3 and simultaneously activating the hand-held transmitter and one of the user buttons until the indicator LED flashed rapidly trains the unit to duplicate the hand-held transmitter. The information is stored in the non-volatile memory of the NZLACHL3. During usage, when the “trained” button is pressed, the NZLACHL3 recalls the stored information. 1. The Voltage Controlled Oscillator (VCO) is set on the desired RF carrier frequency. 2. The antenna is coarse tuned by sweeping twice around the expected tuning point. 3. The antenna is fine tuned with 9 pulses of approximately 210 uS with 11 mS off. 4. The VCO is then modulated with the appropriate garage door opener bit code from the non- volatile memory.

Test report #0400681F FCC 15.231 for NZLACHL3 FCC ID: NZLACHL3 Tested May 25, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449660.DOC Misc. EXHIBIT: Page 1 of 2 MISC. EXHIBIT: RF EXPOSURE INFORMATION [2.1093(C)] The manufacturer and applicant: GENTEX CORPORATION 600 N. Centennial St. Zeeland, Michigan 49464 Product: NVSX Mirror with Homelink® III Universal Garage Door Opener Model: NZLACHL3 Applicable Rules: 47CFR Part 15.231 Pursuant to 47CFR Part 1.1307(b), 47CFR Part 2.1091(c), and 47CFR Part 2.1093(c) this transmitting device, compliant to 47CFR Part 15.231, is categorically excluded from evaluation regarding the Maximum Permissible Exposure of RF energy.

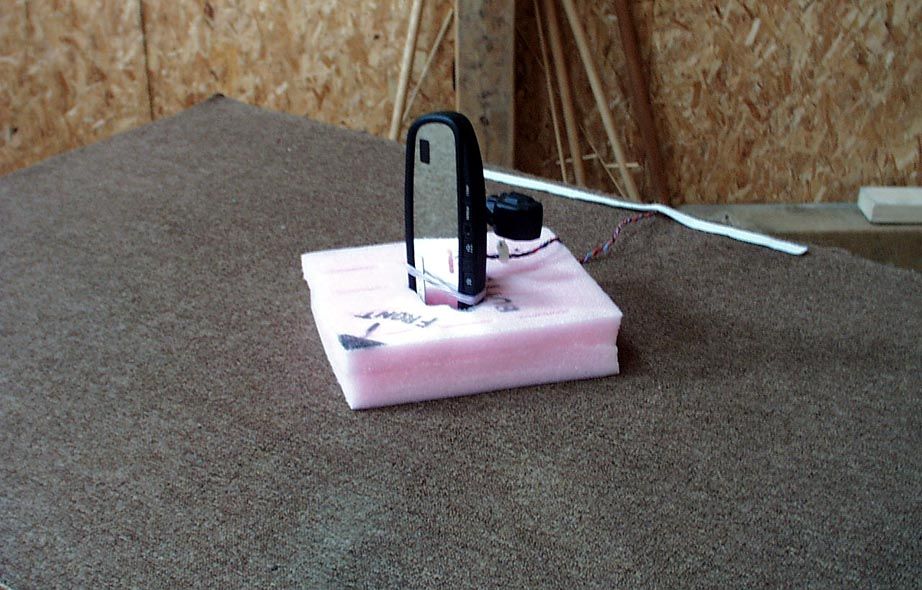

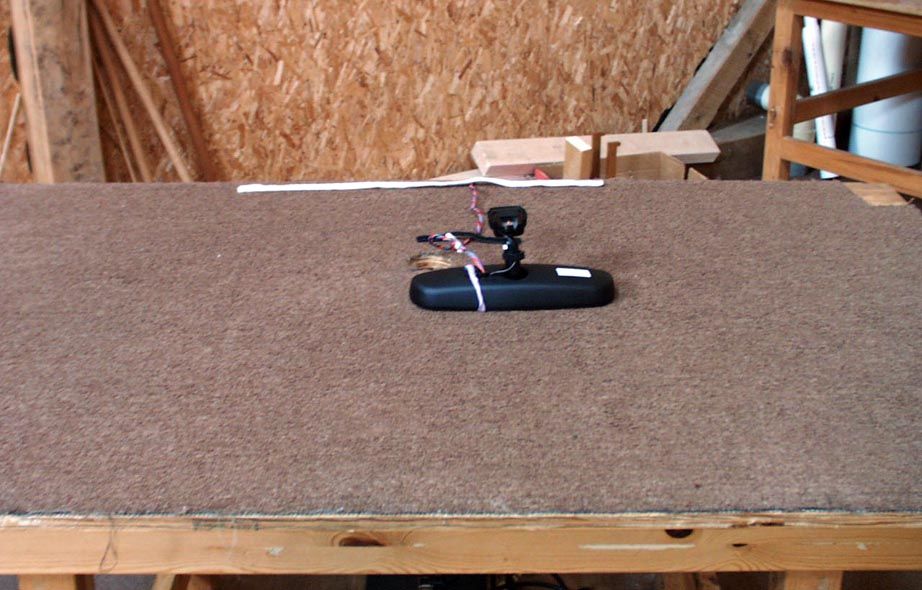

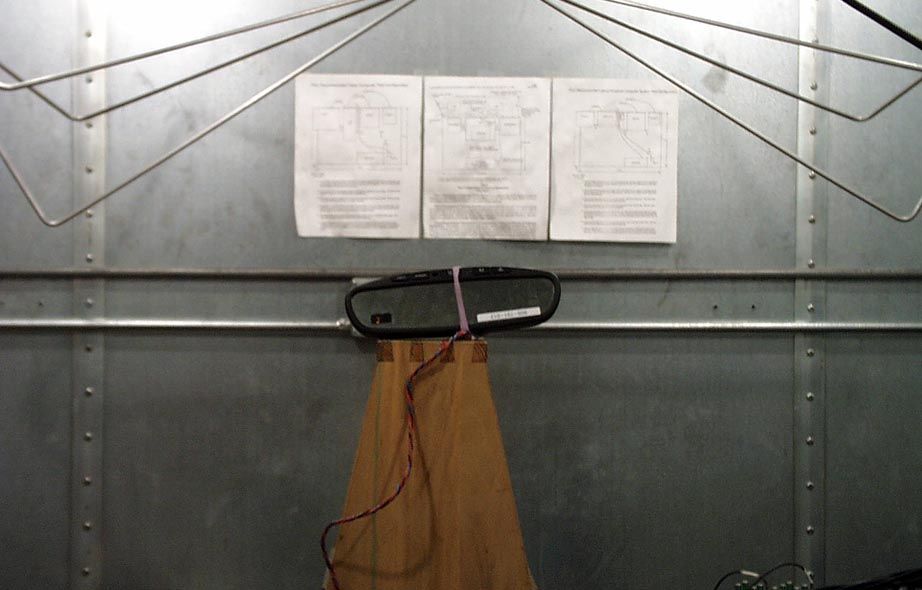

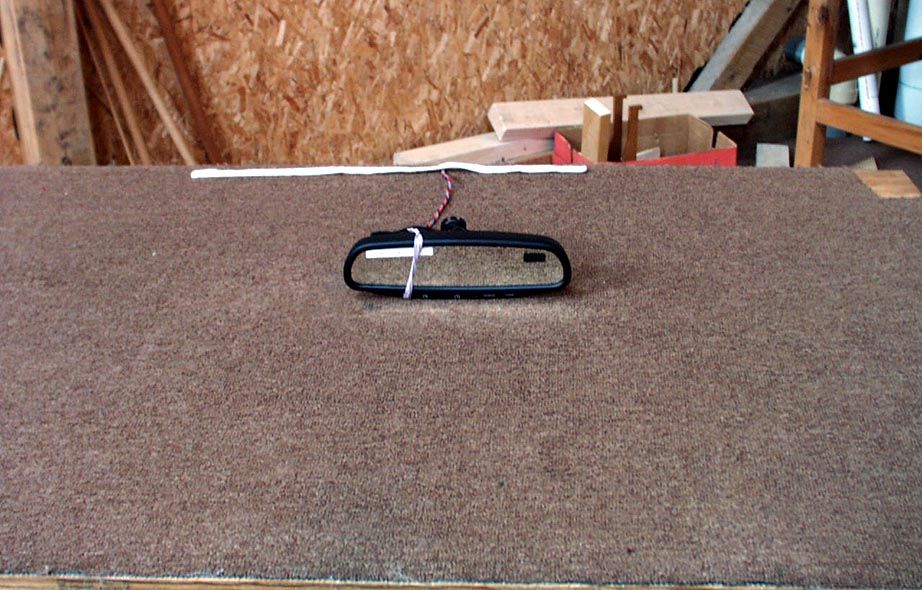

Test report #0400681F FCC 15.231 for NZLACHL3 FCC ID: NZLACHL3 Tested May 25, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449662.DOC EXHIBIT E: Page 1 of 28 EXHIBIT E: REPORT OF MEASUREMENTS [2.1033(B6)] Test Report for FCC ID: NZLACHL3 FCC Part 2.1031, Part 15 Subpart C(15.231) Report #0400681F Issued 7/13/04 MODEL NZLACHL3 NVSX MIRROR WITH HOMELINK8 III TRANSCEIVER, Prepared for: Mr. Brian Perschbacher Gentex Corporation 600 N. Centennial St. Zeeland, MI 49464 Test Date(s): April 1. May, 12,18,25, 2004 data recorded by witnessed by Ted Chaffee, NCE Test Engineer, AHD This report prepared by: Ted Chaffee, NCE Technical Manager/Test Engineer, AHD Test report #0400681F FCC 15.231 for NZLACHL3 FCC ID: NZLACHL3 Tested May 25, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449662.DOC EXHIBIT E: Page 2 of 28 TABLE OF CONTENTS EXHIBIT E: Report of Measurements [2.1033(b6)] .....................................................................................1 TABLE OF CONTENTS.........................................................................................................................2 Statements Concerning this Report.......................................................................................................3 Manufacturer/Applicant [2.1033(b1)] ....................................................................................................4 Measurement/Test Site Facility & Equipment........................................................................................4 Test Site [2.948, 2.1033(b6)] ......................................................................................................4 Measurement Equipment Used.............................................................................................................4 Environment...........................................................................................................................................4 Tested Configuration /Setup: [2.1033(b8)] ............................................................................................5 Support Equipment & Cabling .......................................................................................................5 Setup Diagram ...............................................................................................................................5 Description of Equipment Under Test............................................................................................6 Summary of Results: .............................................................................................................................6 Changes made to achieve compliance..........................................................................................7 Variance from test plan ..................................................................................................................7 Standards Applied to Test: [2.1033(b6)]................................................................................................8 Test Methodology: [2.1033(b6)].............................................................................................................8 FORMULAS AND SAMPLE CALCULATIONS: ...........................................................................10 Test Data [2.1033(b6)].........................................................................................................................12 Modulation Characteristics ..........................................................................................................12 Relative Emission Level vs. Supply Voltage [15.31(e)] ...............................................................14 Occupied Bandwidth [15.231(c)]..................................................................................................15 Restricted Bands: [15.205]..........................................................................................................16 Radiated Field Strength Measurements: [15.231(b), 15.205] ....................................................17 Radiated Field Strength Measurements ......................................................................................19 Test report #0400681F FCC 15.231 for NZLACHL3 FCC ID: NZLACHL3 Tested May 25, 2004 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (269) 424-7014 449662.DOC EXHIBIT E: Page 3 of 28 Statements Concerning this Report NVLAP Accreditation: NVLAP Lab Code 200129-0 The scope of AHD accreditation is the test methods of: IEC/CISPR 22: Limits and methods measurement of radio disturbance characteristics of information technology equipment. FCC Method – 47 CFT Part 15: Digital Devices. AS/NZS 3548: Electromagnetic Interference – Limits and Methods of Measurement of Information Technology Equipment. IEC61000-4-2 and Amend.1: ElectroStatic Discharge Immunity IEC61000-4-5: Surge Immunity Test Data: This test report contains data included in the scope of NVLAP accreditation. Subcontracted Testing: This report does not contain data produced under subcontract. Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMAS public…
