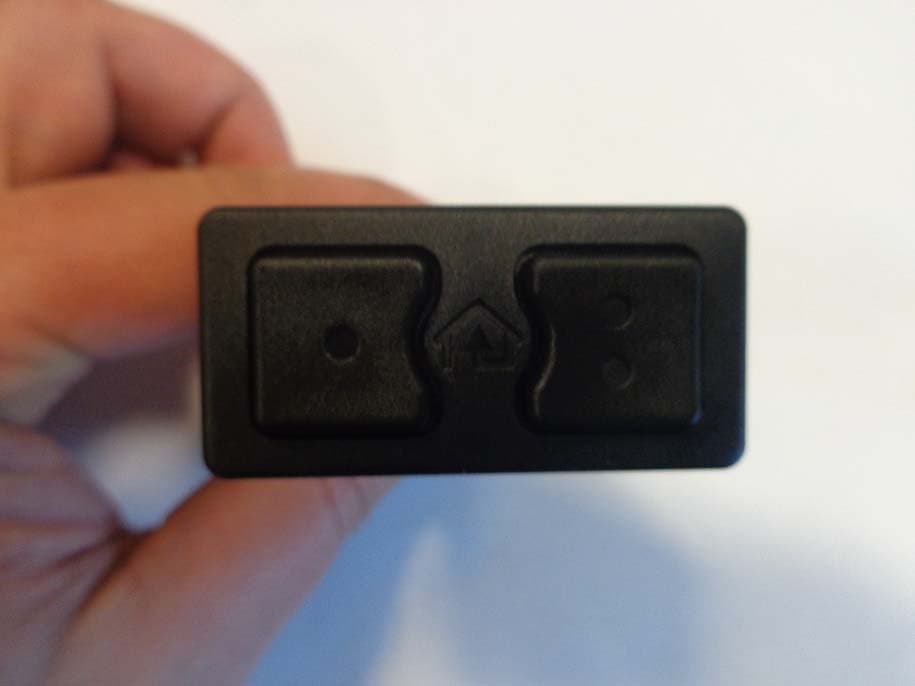

NZLSAHL5HUniversal Garage Door Opener Transmitter

Programming and Information Guide
Programming 2-Button HomeLink: Before programming HomeLink® • During programming, it is possible that garage doors, gates, or other devices may operate. For this reason, make sure that people and objects are clear of the garage door or other devices to prevent injury or other potential harm. • It is recommended that a new battery be placed in the remote control transmitter for more accurate programming. • Garage door opener motors manufactured after 1995 may be equipped with rolling code protection. If this is the case, you may need a stepladder or other sturdy, safe device to reach the “Learn” or “Smart” button on the garage door motor. • Please note that the instructions below apply to the majority of HomeLink use cases. However, there are some HomeLink applications or HomeLink compatible systems that require slightly different instructions. Programming a brand new HomeLink • Position the hand-held transmitter 1-3 inches away from the HomeLink surface, keeping the HomeLink indicator light in view. • Using both hands, simultaneously press and hold both the desired HomeLink button and hand held transmitter button. DO NOT release until the HomeLink indicator light flashes slowly and then changes to solid or rapidly flashing. The change in flashing indicates the frequency signal has been learned. o Note: Some gate operators and garage door openers may require you to use the “cycling” procedure noted in the “Programming an entry gate” section. • Press and hold the programmed HomeLink button and observe the indicator light. o If the indicator light is solid/continuous, programming is complete and your device should activate when the HomeLink button is pressed and released. o If the indicator light blinks rapidly, proceed with the following programming instructions for a rolling code device. o A second person may make the following steps quicker and easier. Use a stepladder or other stable, safe device. • Rolling Code • At the garage door opener motor in the garage, locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit). If there is difficulty locating the “learn” or “smart” button, reference the garage door opener’s manual. • Press and release the “learn” or “smart” button (the name and color of the button may vary by manufacturer). o Note: Once the button is pressed, there are typically about 30 seconds in which to initiate the next step. • Return to the vehicle and press and release the programmed HomeLink button. Repeat the “press/release” sequence up to 3 times to complete the training process. HomeLink should now activate your rolling code equipped device. • To program additional HomeLink buttons, repeat this process. • Once programmed, the HomeLink Wireless Control System or the original hand-held transmitter may be used to activate the device (e.g. garage door, entry lock, gate, etc.). Programming an entry gate (for U.S.A. owners)/Programming a device in the Canadian market • Position the hand-held transmitter 1-3 inches away from the HomeLink surface, keeping the HomeLink indicator light in view. • Using both hands, hold the HomeLink button, and simultaneously press and release the hand- held transmitter button at 2-second intervals. DO NOT release the HomeLink button until the indicator light flashes slowly and then changes to solid or rapidly flashing. The change in flashing indicates the frequency signal has been learned. Programming and Information Guide
• Press and hold the programmed HomeLink button and observe the indicator light. o If the indicator light is solid/continuous, programming is complete and your device should activate when the HomeLink button is pressed and released. o If the indicator light blinks rapidly, proceed with the following programming instructions for a rolling code device. o A second person may make the following steps quicker and easier. Use a stepladder or other stable, safe device. • Rolling Code • At the garage door opener motor in the garage, locate the “learn” or “smart” button (usually near where the hanging antenna wire is attached to the unit). If there is difficulty locating the “learn” or “smart” button, reference the garage door opener’s manual. • Press and release the “learn” or “smart” button (the name and color of the button may vary by manufacturer). o Note: Once the button is pressed, there are typically about 30 seconds in which to initiate the next step. • Return to the vehicle and press and release the programmed HomeLink button. Repeat the “press/release” sequence up to 3 times to complete the training process. HomeLink should now activate your rolling code equipped device. • To program additional HomeLink buttons, repeat this process. • Once programmed, the HomeLink Wireless Control System or the original hand-held transmitter may be used to activate the device (e.g. garage door, entry lock, gate, etc.). Reprogramming a single HomeLink button When the following procedure is performed, buttons which already have devices registered to them can be overwritten: • Press and hold the desired HomeLink button. • After about 20 seconds, the HomeLink indicator will start slowly flashing. While continuing to hold the HomeLink button, position the hand-held transmitter 1-3 inches away from the HomeLink and press and hold the hand held transmitter button until HomeLink indicator light changes to solid or rapid flashing. The change in flashing indicates the frequency signal has been learned so, you can release both the buttons. o Note: Some gate operators and garage door openers may require you to use the “cycling” procedure noted in the “Programming an entry gate” section. • Press and hold the programmed HomeLink button and observe the indicator light. o If the indicator light is solid/continuous, programming is complete and your device should activate when the HomeLink button is pressed and released. o If the indicator light blinks rapidly, proceed with …

Text truncated - open the document above for the full version.

Model: SAHL5H

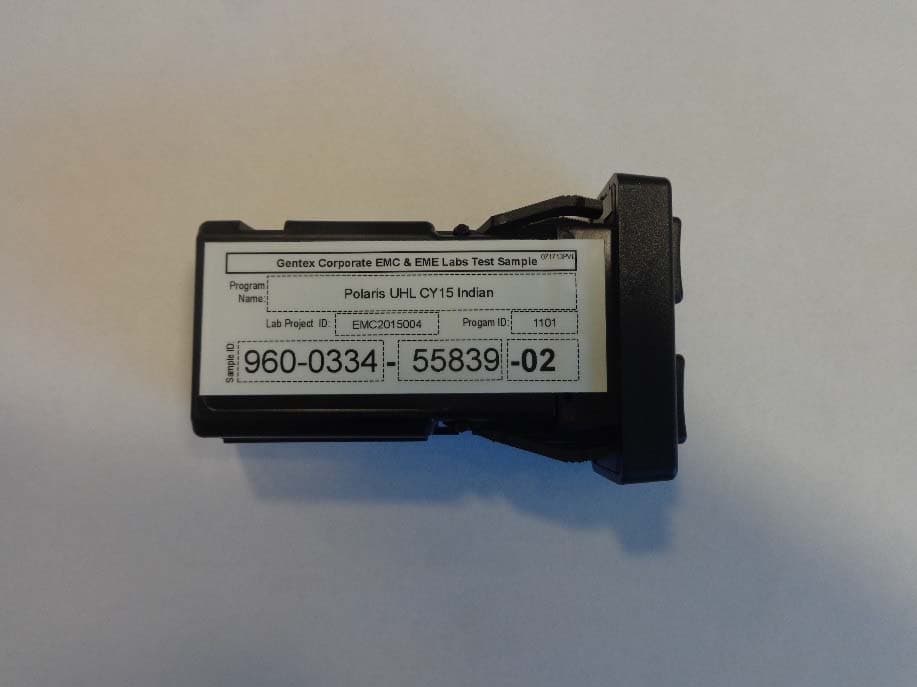

Label Location

960 ‐ 0334 ‐ 001 Model: SAHL5H Trace Antenna TX Area

FCC Report Form for 15.231 Revision: 01/21/2015 Approved By: Craig Harder Uncontrolled copy if printed unless stamped as a Lab Controlled Document Technical Report to the FCC and Industry Canada Regarding Gentex Corporation - HomeLink© V Model: SAHL5H FCC ID: NZL SAHL5H IC: 4112A- SAHL5H Emission Designator: 69K0L1D 6/9/15 A report concerning approval for Gentex Corporation HomeLink® model SAHL5H Please issue grant immediately upon review. Measurements Made by: Measurements Reviewed by: Bolay Pannell Brian Miller Senior EMC Test Engineer Senior EMC Test Engineer Gentex Corporation Gentex Corporation Report and Application Prepared by: Report Approved and Submitted by: Brian Miller Craig Harder Senior EMC Test Engineer Lab Manager - EMC Lab Gentex Corporation Gentex Corporation FCC Report Form for 15.231 Revision: 01/21/2015 Approved By: Craig Harder Uncontrolled copy if printed unless stamped as a Lab Controlled Document 1. General Information 1.1. Product Description The Gentex Corporation HomeLink® HLV Universal Garage Door Opener is a low-power transceiver OEM device that is installed into an overhead area of the automobile. The installation is provided by trained technicians during the course of the manufacture of the automobile. It is powered by the 12 Volt system of the automobile. This Universal Garage Door Opener has the capability to 1. Learn the frequency and bit code format of the user’s existing garage door remote control devices and 2. Reproduce and transmit the frequency and bit code format to remotely operate the user’s garage door. The unit is designed for the periodic operation of a control signal, which typically activates a garage door opener receiver. The unit is supplied to the automobile manufacturer without harness. For testing purposes a typical assembly and 2-conductor cable harness were used to power to the unit. The unit is only operational when the user depresses the control button. It becomes inactive after release of the control button. The two-button HomeLink® unit replaces up to three hand-held transmitters. In addition to the typical operation of the garage door, the unit will learn the radio frequency codes of other transmitter types to activate entry door locks, estate gates, security systems, and home or office lighting. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and Gentex Corporation. 1.2. Related Grants No related grants to this model. 1.3. Test Methodology Radiated Emissions testing was performed according to ANSI C63.4-2009. The power source for this product is a 12V automotive vehicle battery, thus conducted emissions measurements are not required. The unit is supplied to the automobile manufacturer without harness. For testing purposes a 2- conductor cable harness was used to interface to the unit. 1.4. Test Facility The Open Area Test Site where these measurements were taken is located on the grounds of Gentex Corporation’s Technical Campus, in the city of Holland, county of Ottawa, state of FCC Report Form for 15.231 Revision: 01/21/2015 Approved By: Craig Harder Uncontrolled copy if printed unless stamped as a Lab Controlled Document Michigan, United States of America. The site is a fully enclosed 10m weather-protected OATS. All structure materials above the conducting ground-plane are non-metallic and consist of wood, laminated lumber, fiberglass, glue, plastic, or fiberglass reinforced plastic. The site contains a 15-foot diameter turntable capable of supporting large cars and light trucks under test. Tabletop testing was conducted on a smaller 3m turntable described in the site recertification report. The test site has been fully described in a reports filled with the FCC and Industry Canada. The report filed with the FCC is dated February 6, 2015, was accepted by the FCC in a letter dated April 8, 2015. The report filled with Industry Canada, dated February 6, 2015, was accepted via a letter dated February 11, 2015. Our OATS is registered with the IC under file number IC# 4112A. Corporate Mailing/Shipping Address Gentex Corporation 600 N. Centennial Street Zeeland, MI 49464 Site Address Gentex Corporation 864 E. 24 th Street Holland, MI 49423 1.5. Accreditation The Gentex Corporate EMC Lab is accredited to ISO 17025 by the American Association for Laboratory Accreditation (A2LA). Our laboratory scope and accreditation certificate #2529.01 are available from their web site www.a2la.org. Our scope of accreditation covers ANSI C63.4 Radiated Emissions at 3m, FCC 47 CFR Part 15, and IC RSS-210. 2. Product Labeling 2.1. Identifiers The FCC Identifier assigned is FCC ID: NZLSAHL5H. The Industry Canada certification number is 4112A-SAHL5H. These identifiers will be labeled on the product housing. The label will be imprinted on the exterior of the mirror housing using molding tool that will permanently affix the label. Because of the small size of the device and because the installation is inside a portion of the automobile, the following statements will appear in the user’s manual. Refer to attachment “Users Manual.pdf” for the entire text of the user’s manual. “This device complies with FCC rules Part 15 and with Industry Canada RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and Industry Canada rules. Changes or modifications not expressly approved by the party responsible for the compliance could void the user’s authority to operate the device.” The term “IC:” before the certification/registration number only signifies that Industry Canada technical specifications were met. IC: 4112A-SAHL5H MODEL/FCC ID: NZLSAHL5H FCC Report Form for 15.231 Revision: …

Text truncated - open the document above for the full version.

Test Setup Photos Test Setup – Above 1GHz Test Setup Photos Test Setup – Below 1GHz Test Setup Photos Test Setup – Flat Orientation Test Setup Photos Test Setup – Side Orientation Test Setup Photos Test Setup – End Orientation
