NZLSTDHL3Universal Garage Door Opener

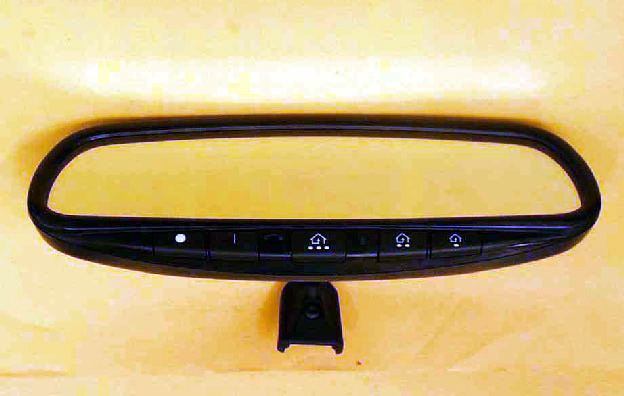

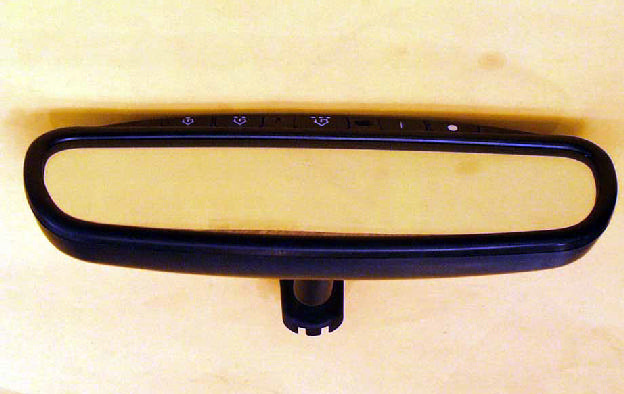

Recommended Owners Manual for Automatic-Dimming NVS Mirror with Homelink® series Universal Garage Door Opener. Automatic-Dimming NVS Mirror with Homelink® Suggested Owner’s Manual Text July, 2001 Automatic-Dimming Night Vision Safety (NVS) Mirror The NVS Mirror in your vehicle is the most advanced way to eliminate dangerous and annoying glare in the rearview mirror during any driving situation. For more information regarding NVS mirrors and other applications, please refer to the Gentex website – www.gentex.com. Precautions The NVS Mirror automatically reduces glare during driving conditions based upon light levels monitored in front of the vehicle and from the rear of the vehicle. These light sensors are visible through openings in the front and rear of the mirror case. Any object that would obstruct either light sensor will degrade the automatic dimming control feature. Operation The NVS Mirror operates automatically whenever the vehicle ignition is ON. The status of the automatic dimming feature is indicated by a green light on the face of the mirror. To turn the automatic dimming feature off, press the button with the •. The indicator light will turn off to indicate that the automatic dimming feature is off. To turn the automatic dimming feature on, press the button with the . The indicator light will also turn on. If the automatic dimming feature is off when the vehicle ignition is turned off, the automatic dimming feature will become active when the vehicle ignition is turned back on. HomeLink ® Universal Transceiver The HomeLink ® Universal Transceiver included in your NVS Mirror with Homelink® provides a convenient way to replace up to three hand-held transmitters with a single built-in component. This innovative feature will learn the radio frequency codes of most current transmitters used to activate devices such as garage doors, entry door locks, estate gates, security systems, and home or office lighting. For additional information on HomeLink and/or HomeLink compatible products, call 1-800-355-3515 or refer to the HomeLink web site at www.homelink.jci.com. Precautions When programming the HomeLink Universal Transceiver to a garage door opener or entry gate, make sure that people and objects are out of the way to prevent potential harm or damage. Do not use the HomeLink Universal Transceiver with any garage door opener that lacks the safety stop and reverse feature as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982.) A garage door opener which cannot detect an object, signaling the door to stop and reverse, does not meet current federal safety standards. Using a garage door opener without these features increases risk of serious injury or death. For more information, call 1-800-355-3515 or on the internet at www.homelink.jci.com. Retain the original transmitter for future programming procedures (i.e., new vehicle purchase). It is also suggested that upon the sale of the vehicle, the programmed HomeLink Universal Transceiver buttons be erased for security purposes (follow step 1 in the “Programming” portion of this text). Programming Note: For best results, replace the battery in the hand-held transmitter with a new battery before programming. If your garage door opener receiver (located in the garage) is equipped with an antenna, make sure the antenna is completely uncoiled and hangs straight down. 1. Press and hold the two outside buttons - releasing only when the indicator light begins to flash after 20 seconds. (This procedure erases the factory set default codes and does not have to be followed to program additional hand-held transmitters.) 2. Hold the end of the hand-held transmitter of the device you wish to train approximately one to three inches away from the HomeLink surface - keeping the indicator light in view. (For placement questions, please contact HomeLink at 1-800-355-3515 or on the internet at www.homelink.jci.com.) 3. Using both hands, simultaneously push the hand-held transmitter button and the desired HomeLink button. Do not release the buttons until step 4 has been completed. Note: Some entry gates and garage door openers may require you to replace this programming step (#3) with the procedures noted in the “Canadian Programming / Gate Programming” section. 4. The HomeLink indicator light will flash, first slowly and then rapidly. When the indicator light flashes rapidly, release both buttons. (The rapid flashing light indicates successful programming of the new frequency signal.) If, after 20 seconds, the indicator light does not flash rapidly, release both the HomeLink and the hand-held transmitter buttons and repeat steps two through four. However, position the hand-held transmitter at a different length and/or angle until the indicator light begins to flash rapidly. Release both buttons after the indicator light flashes rapidly. Refer to “Rolling Code Programming” and/or “Canadian Programming/Gate Programming” for additional procedures if necessary. To activate the garage door or other programmed device upon successfully completing the steps above, press and hold the HomeLink button - releasing when the device begins to activate. To program the remaining two buttons, follow steps 2 through 4. If you do not successfully program the HomeLink Universal Transceiver to learn the signal of the hand-held transmitter, refer to “Rolling Code Programming” within this text or call toll-free for customer assistance at 1-800- 355-3515 or on the internet at www.homelink.jci.com. Canadian Programming / Gate Programming Canadian frequency laws, and the technology of some entry gates, require you to “cycle” (press and re-press the hand-held transmitter button every two seconds) during programming. Continue to press and hold the desired HomeLink button (note steps 3 through 5 in the “Programming” portion of this text) while you “cycle” your hand-held transmitter until the frequency signal…

Text truncated - open the document above for the full version.

Test report #0100443FFCC 15.231 for NZLSTDHL3FCC ID: NZLSTDHL3 Tested July 17, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014168669 Misc. EXHIBIT: Page 1 of 13 MISC. EXHIBIT: RF E XPOSURE I NFORMATION [2.1093( C )] The manufacturer and applicant: GENTEX CORPORATION 600 N. Centennial St. Zeeland, Michigan 49464 Product: NVS υ Mirror with Homelink® III Universal Garage Door Opener Model: NZLSTDHL3 Applicable Rules: 47CFR Part 15.231 Pursuant to 47CFR Part 1.1307(b), 47CFR Part 2.1091(c), and 47CFR Part 2.1093(c) this transmitting device, compliant to 47CFR Part 15.231, is categorically excluded from evaluation regarding the Maximum Permissible Exposure of RF energy.

AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014168670 Cover / Confidentiality Request Letter: Page 1 of 2 NVLAP ACCREDITED NARTE Certified Engineer Professional Engineer ELITE Electronic EngineeringAugust 28, 2001 TCB Services 1516 Centre Circle Downers Grove, IL 60515-1082 Re: Application for Certification of Gentex Corporation Transmitter under 47CFR 15.231. FCC ID: NZLSTDHL3 Gentlemen: On behalf of the applicant, Gentex Corporation, please find attached the submittal materials for certification of the Universal Garage Door Opener in a Standard Mirror, Model NZLSTDHL3. This unit is capable of learning the current garage door transmit frequencies from 288MHz through 420MHz except in the forbidden frequency regions. Pursuant to 47CRF 0.459, Gentex Corporation requests that these listed exhibits be held confidential. Circuit Block Diagrams page 2 of Exhibit B Theory/Description of Operation, page 3 of Exhibit B Schematics pages 4 & 5 of Exhibit B Bill of Material, Parts List page 1,2 of Misc. Exhibits The complete List of the Exhibits in this submittal package appears on Page 2 of this cover letter. A copy of a ‘Power of Attorney” is included to demonstrate that AHD has been authorized to provide the service of preparing this application. Your prompt consideration of this application for product certification will be greatly appreciated. Should you have any questions regarding the content of this report, kindly contact me. Sincerely, Ted Chaffee, Technical Lab Manager Narte Certified Engineer, #EMC-002025-NE tel/fax: 616. 424.7014 email: [email protected], or [email protected] Test report #0100443FFCC 15.231 for NZLSTDHL3FCC ID: NZLSTDHL3 Tested July 17, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014168670 Cover / Confidentiality Request Letter: Page 2 of 2 Table of Contents Cover Letter / Table of ContentsTotal Pages 2 EXHIBIT A: ID Label / Location [2.925,2.926,2.1033(b2,7),15.19(a3)] Total Pages 2 EXHIBIT B: Description of Product [2.1033(b6)] Total Pages 1 Circuit Block Diagram [2.1033(b5)] Total Pages 1 Description of Operation [2.1033(b4)] Total Pages 2 Schematics [2.1033(b5)] EXB_schematic.pdfTotal Pages 5 EXHIBIT C: Product photos ten photosTotal Pages 11 :Interior & Printed Circuit Boards [2.1033(b7)] Seven photos EXC_2PCBtop.jpg, EXC_2PCBbtm.jpg, EXC_MainPCBtop.jpg, EXC_MainPCBbtm.jpg, EXC_HL3PCBtop.jpg, EXC_HL3PCBbtm.jpg, EXC_Mirrorin.jpg Exterior views [2.1033(b7)] Three photos EXC_Mirrorfrnt.jpg, EXC_Mirrorrear.jpg, EXC_Mirrorbtm.jpg EXHIBIT D: User’s Manual EXD_OEMUserManual.docTotal Pages 5 EXHIBIT E: Setup photos [2.1033(b8)] Four photosTotal Pages 5 EXE_pretest.jpg, EXE_side.jpg, EXE_end.jpg, EXE_flat.jpg Report of Measurements [2.1033(b6)] Total Pages 33 Table of ContentsPage 2 Manufacturer/Applicant [2.1033(b1)]Page 4 Measurement/Test Facility & EquipmentPage 4 Configuration/Setup [2.1033(b8)]Page 5 Test Standards / Methods Used [2.1033(b6)] Page 7 Test Methodology [2.1033(b6)]Page 7 Test Data [2.1033(b6)] Summary of ResultsPage 6 Level vs Supply Voltage [15.31(e)]Page 13 Occupied BandwidthPage 14 Radiated Field Strength [15.231(b)] Page 16 Misc. EXHIBIT: RF Exposure Information [2.1093(c)]Total Pages 1 Parts List/Tune-up Information [2.1033(b5] Total Pages 12 EXmisc_Layout.pdf,EXmisc_MainBOM.pdf, EXmisc_HL3BOM.pdf

Test report #0100443F FCC 15.231 for NZLSTDHL3 FCC ID: NZLSTDHL3 Tested July 17, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 EXA_Label Exhibit A: Page 1 of 2 EXHIBIT A: EQUIPMENT LABEL [2.925, 2.926, 2.1033(B2,7), 15.19(A3)] LABEL EXAMPLE For the label print refer to picture file “EXA_Label.jpg” The FCC Identifier assigned to the EUT is FCC ID: NZLSTDHL3. This number will be molded into the rear of the mirror housing. Because of the size and location of the transmitter portion of the product, the following statements will appear in the user’s manual. Refer to Exhibit D for the entire text of the user’s manual. “This device complies with FCC rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and DOC/MDC rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device.” FCC ID Number LOCATION The information will be molded onto the outside of the NZLSTDHL3 plastic housing.

A H D EMC Laboratory 92723 M-152, Dowagiac, MI 49047 USA Phone: (616) 424-7014 www.ahde.com AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 EXE_TestRprt EXHIBIT E: Page 1 of 35 EXHIBIT E: REPORT OF MEASUREMENTS [2.1033(B6)] Test Report for FCC ID: NZLSTDHL3 FCC Part 2.1031, Part 15 Subpart C(15.231) Report #0100443F Issued 08/08/01 NVSuu MIRROR WITH HOMELINKqq III TRANSMITTER MODEL NZLSTDHL3 Prepared for: Mr. Brian Perschbacher Gentex Corporation 600 N. Centennial St. Zeeland, MI 49464 Test Date(s): July 16-17, 2001 data recorded by witnessed by Ted Chaffee, NCE Brian Perschbacher Test Engineer, AHD This report prepared by: Ted Chaffee, NCE Technical Manager/Test Engineer, AHD Test report #0100443F FCC 15.231 for NZLSTDHL3 FCC ID: NZLSTDHL3 Tested July 17, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 EXE_TestRprt EXHIBIT E: Page 2 of 35 TABLE OF CONTENTS EXHIBIT E: Report of Measurements [2.1033(b6)].................................................................................1 TABLE OF CONTENTS................................................................................................................2 Statements Concerning this Report................................................................................................3 Manufacturer/Applicant [2.1033(b1)]..............................................................................................4 Measurement/Test Site Facility & Equipment.................................................................................4 Test Site [2.948, 2.1033(b6)]...............................................................................................4 Measurement Equipment Used [2.947(d), 15.31(b)].................................................................4 Tested Configuration /Setup: [2.1033(b8)].......................................................................................5 Support Equipment & Cabling................................................................................................5 Setup Diagram......................................................................................................................5 Summary of Results:....................................................................................................................7 Changes made to achieve compliance....................................................................................8 Standards Applied to Test: [2.1033(b6)]..........................................................................................8 Test Methodology: [2.1033(b6)].....................................................................................................8 FORMULAS AND SAMPLE CALCULATIONS:.......................................................................10 Test Data [2.1033(b6)]................................................................................................................12 Modulation Characteristics...................................................................................................12 Relative Emission Level vs. Supply Voltage [15.31(e)]............................................................14 Occupied Bandwidth [15.231(c)]...........................................................................................15 Restricted Bands: [15.205]..................................................................................................16 Radiated Field Strength Measurements: [15.231(b), 15.205]..................................................17 Radiated Field Strength Measurements.................................................................................19 APPENDIX: Tune Pulses - Data Details...................................................................................30 Test report #0100443F FCC 15.231 for NZLSTDHL3 FCC ID: NZLSTDHL3 Tested July 17, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 EXE_TestRprt EXHIBIT E: Page 3 of 35 Statements Concerning this Report Test Traceability: The calibration of all measuring and test equipment and the measured data using this equipment are traceable to the National Institute for Standards and Technology (NIST). Limitations on results: The test results contained in this report relate only to the Item(s) tested. Any electrical or mechanical modification made to the test item subsequent to the test date shall invalidate the data presented in this report. Any electrical or mechanical modification made to the test item subsequent to this test date shall require an evaluation to verify continued compliance. Limitations on copying: This report shall not be reproduced, except in full, without the written approval of AHD. Limitations of the report: This report shall not be used to claim product endorsement by NVLAP, FCC, or any agency of the US Government. Statement of Test Results Uncertainty: Following the guidelines of NAMAS publication NIS81 and NIST Technical Note 1297, the Measurement Uncertainty at a 95% confidence level is determined to be: ±3.6 dB Test report #0100443F FCC 15.231 for NZLSTDHL3 FCC ID: NZLSTDHL3 Tested July 17, 2001 AHD EMC Lab, 92723 M152, Dowagiac, MI 49047, (616) 424-7014 EXE_TestRprt EXHIBIT E: Page 4 of 35 Manufacturer/Applicant [2.1033(b1)] The manufacturer and applicant: GENTEX CORPORATION 600 N. Centennial St. Zeeland, Michigan 49464 Measurement/Test Site Facility & Equipment Test Site [2.948, 2.1033(b6)] The AHD test facility is centered on 9 acres of rural property near Sister Lakes, Michigan. The mailing address is 92723 M-152, Dowagiac, Michigan 49047. This test facility is NVLAP accredited (LabCode 200129-0). It has been fully described in a report filed with the FCC and Industry Canada. The original report filed with the FCC is, dated November 5, 1996, was accepted by the FCC in a letter dated January 15, 1997 and reconfirmed July 14, 2000, (31040/SIT 1300F2). The original report filed with Industry Canada, dated August 11, 1998, was accepted via a lett…
