Garage door opener RADIO FREQUENCY (RF) TRANSCEIVER [G2001751] WARNINGS: Do not use the Radio Frequency (RF) transceiver with any garage door opener that lacks the safety stop and reverse feature, as required by safety standards. A closing garage door may cause serious injuries or death. Do not use the RF transceiver with any garage door opener that was manufactured before April 1982. An outdated garage door opener can lead to malfunction of the garage door, potentially causing serious injury or death. When programming the RF transceiver to a garage door opener or entry gate, make sure that the area is clear of people and objects. Potential harm or damage may occur, as the gate or garage door activates during programming. CAUTION: The system may suffer from interference if operated in the vicinity of a mobile or fixed station transmitter. Interference is likely to affect the hand-held transmitter, as well as the RF transceiver. See See INFORMATION AND ASSISTANCE. The RF transceiver is also known as HomeLink ® . The HomeLink device is located in the rear-view mirror. The hand-held transmitter is also known as a garage door remote. The HomeLink wireless control system provides a convenient way to replace up to three remote controls. HomeLink can be used to activate devices such as gate operators, garage door openers, entry door locks, security systems, and home lighting. HomeLink ® is a registered trademark of Gentex Corporation. BEFORE PROGRAMMING [G2001753] CAUTION: Unplug the remote device during programming if repeated operation of the remote control is required. Repeated operation of the remote control during programming may result in damage to the remote device. NOTE: HomeLink ® is compatible with a wide range of remote devices. For information on compatible devices and instructional videos, visit: www.HomeLink.com. For the best results, fit a new battery to the remote control before programming. If the remote device’s receiver is equipped with an antenna, make sure the antenna is extended. HomeLink ® is a registered trademark of Gentex Corporation. PROGRAMMING [G2200557] NOTES: The instructions below apply to the majority of HomeLink compatible systems. However, there are some HomeLink applications, or HomeLink compatible systems, that require slightly different instructions. For more information and instructional videos, visit: www.HomeLink.com. Garage door openers manufactured after 1995 may be equipped with rolling code protection. In this case, a stepladder, or other sturdy, safe device, may be required to reach the learn or smart button on the garage door opener. 1. HomeLink buttons. 2. LED indicator. 3. Remote control for the device, e.g., garage door. If required, erase the previous programming from the HomeLink device. See See TO ERASE ALL PROGRAMMING.. To program the HomeLink device: 1. With the vehicle’s electrical system switched on, press and release the HomeLink button chosen to be programmed (1) on the rear-view mirror. The LED in the rear-view mirror's glass (2) flashes orange. 2. Position the end of the remote control (3) 2 to 8 cm from the HomeLink button. 3. Press and hold the button on the remote control. Release the button when the LED indicator on the rear-view mirror changes from flashing orange to flashing or solid green. NOTE: Some remote device systems require the operator to cycle the remote control button every 2 seconds during programming. Refer to the additional information in Cycling the remote control at the end of the PROGRAMMING instructions. 4. Firmly press and release the programmed HomeLink button up to three separate times to activate the device. The device should now be programmed. If not, carry out the following additional steps: 1. Locate the learn or smart button on the garage door opener motor-head unit. NOTE: The learn or smart button can usually be found directly on the motor-head unit. If in doubt, refer to the garage door opener manual to identify the button. 2. Firmly press and release the learn or smart button. There are typically 30 seconds to initiate Step 7. 3. Return to the vehicle. Firmly press and release the programmed HomeLink button up to three separate times to activate the device. If the device activates, programming is complete. Cycling the remote control Some remote device systems have a remote control signal that only operates for a short period of time. The signal times-out before programming is complete. The operator is required to cycle the remote control button every 2 seconds during programming. If experiencing difficulties while programming the remote device, carry out the following: During programming of the remote device, replace programming step 3 with the following: 1. Press and release the HomeLink button. Simultaneously, press and release the remote control button every 2 seconds, until the LED indicator rapidly flashes green or continuously illuminates green. Release the HomeLink and remote control buttons. 2. Continue the programming process from step 4. If the HomeLink LED indicator does not rapidly flash green or continuously illuminate green after performing these steps, contact HomeLink at: www.homelink.com. HomeLink ® is a registered trademark of Gentex Corporation. REPROGRAMMING A SINGLE GARAGE DOOR OPENER BUTTON [G2001757] To program a remote device to a previously programmed HomeLink ® memory button: 1. Switch the vehicle’s ignition on. 2. Press and hold the required HomeLink memory button. After approximately 20 seconds, the LED starts to flash orange. 3. Release the button. 4. Follow the programming instructions from step 3 onwards, as described in PROGRAMMING. HomeLink ® is a registered trademark of Gentex Corporation. TO ERASE ALL PROGRAMMING [G2001759] To erase all programming from the HomeLink ® device: 1. Switch the vehicle’s ignition on. 2. Press and hold the outer two HomeLink buttons until the LED on the rear-view mirror changes from continuously illuminated orange to flashing green. NOTE: …

Text truncated - open the document above for the full version.

600 N. Centennial St. • Zeeland, MI 49464 • Phone 616-772-1800 • Fax 616-772-7348 • www.gentex.com Request for Confidentiality Date: 3/31/20 Subject: Confidentiality Request for: NZLUAHL5G Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* 3 User’s Manual Gentex Corporation has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ ___Craig Harder (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

UAHL5G UAHL5G UAHL5G UAHL5G UAHL5G UAHL5G

Label Location

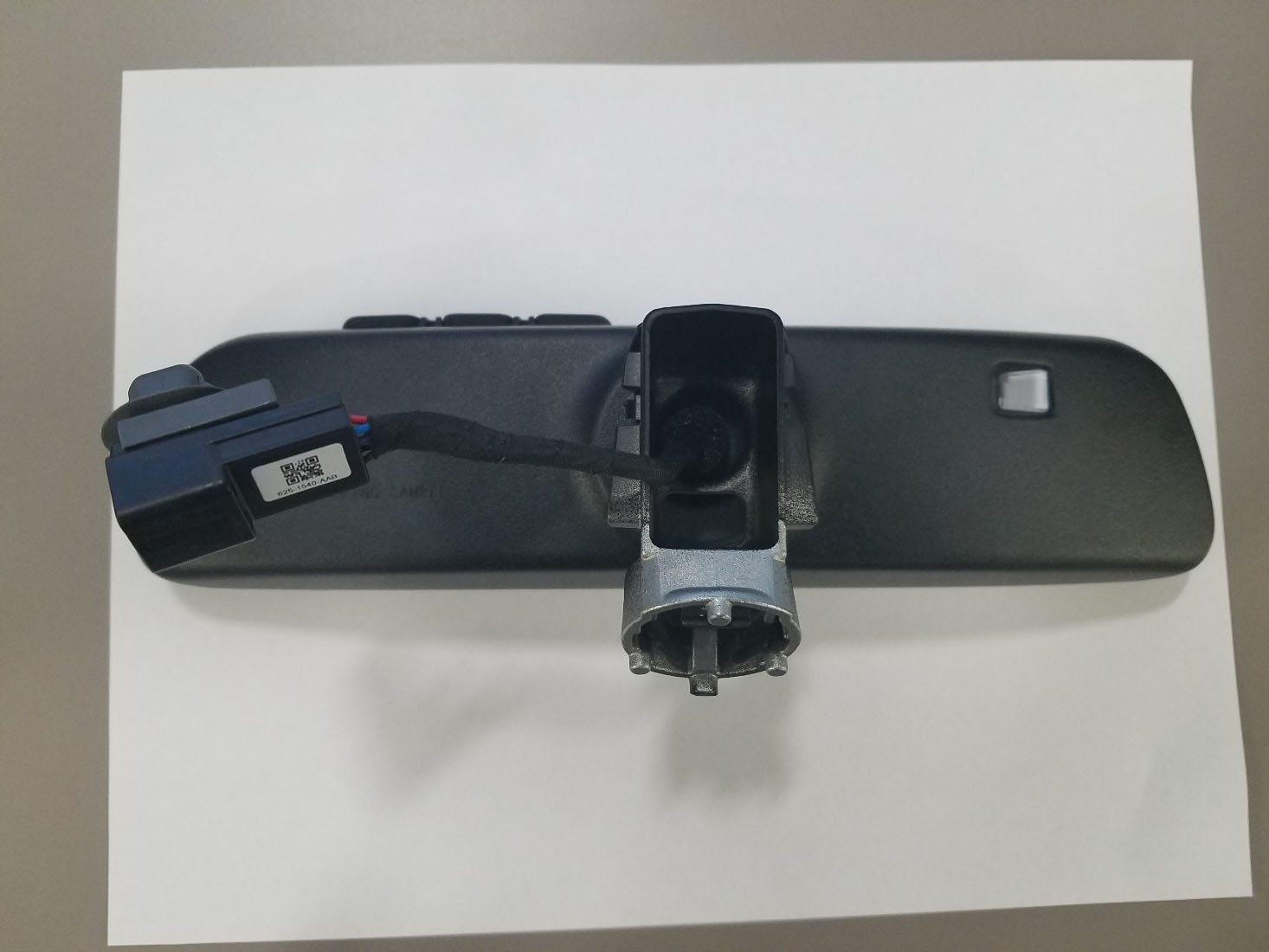

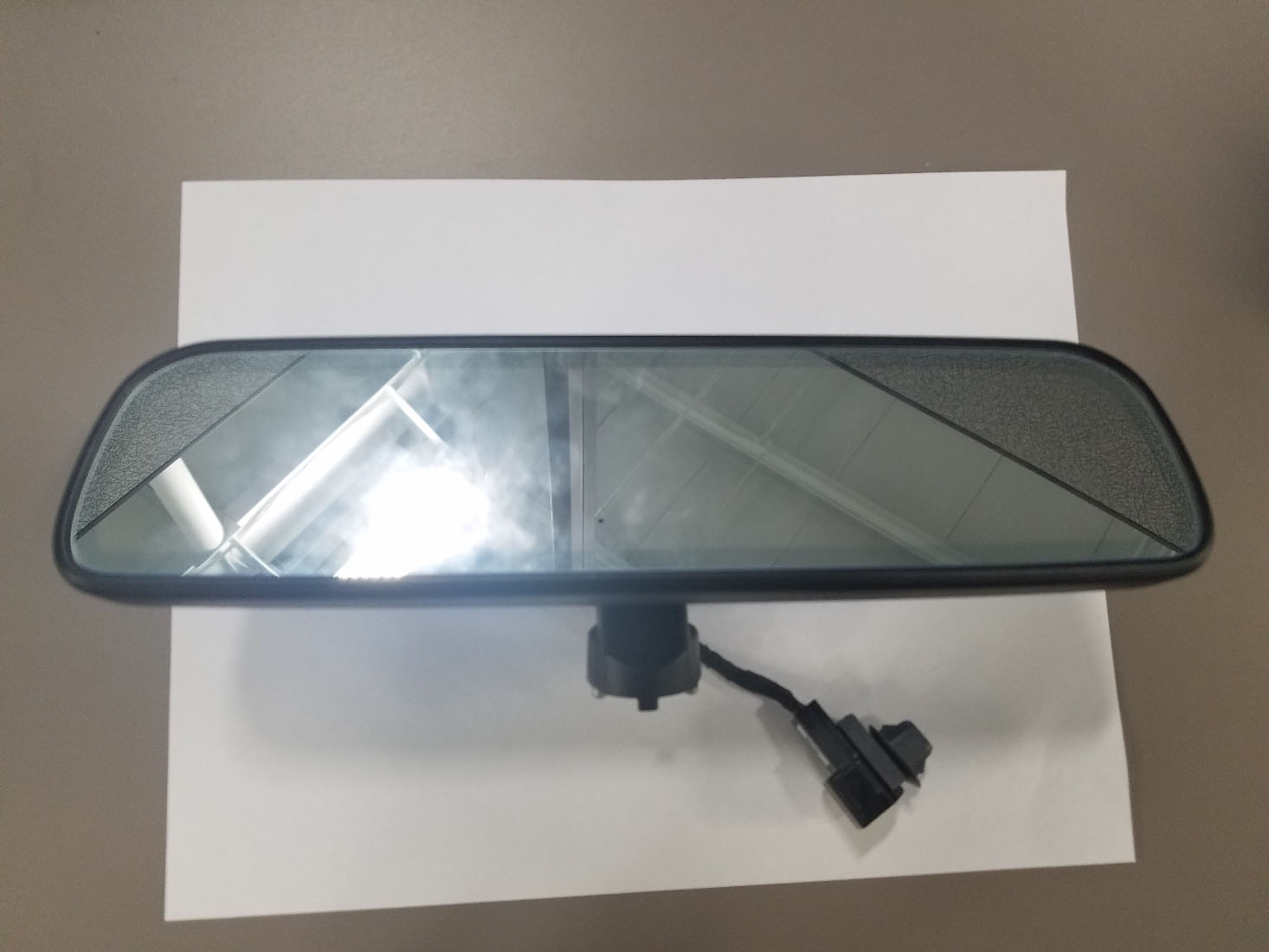

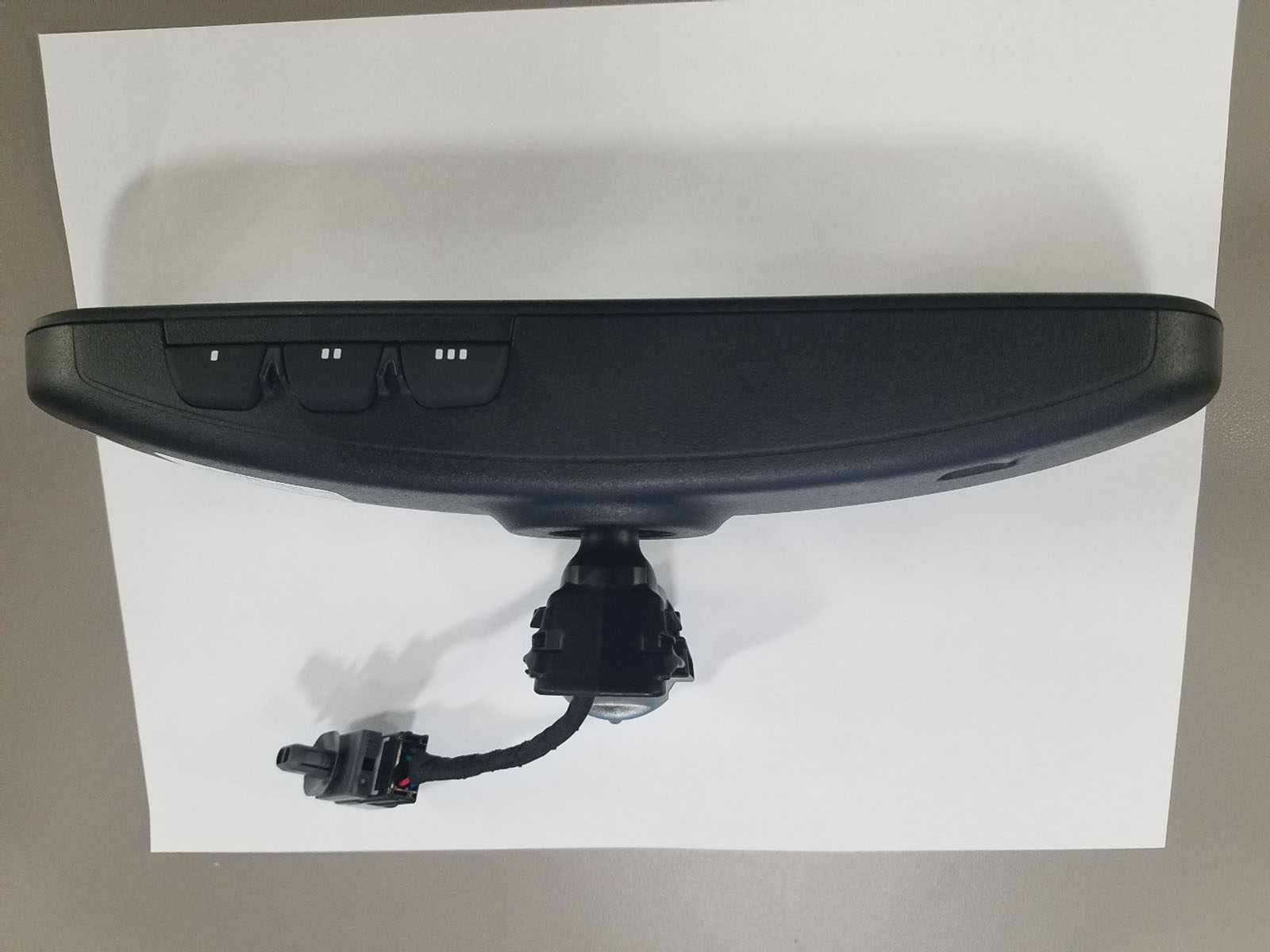

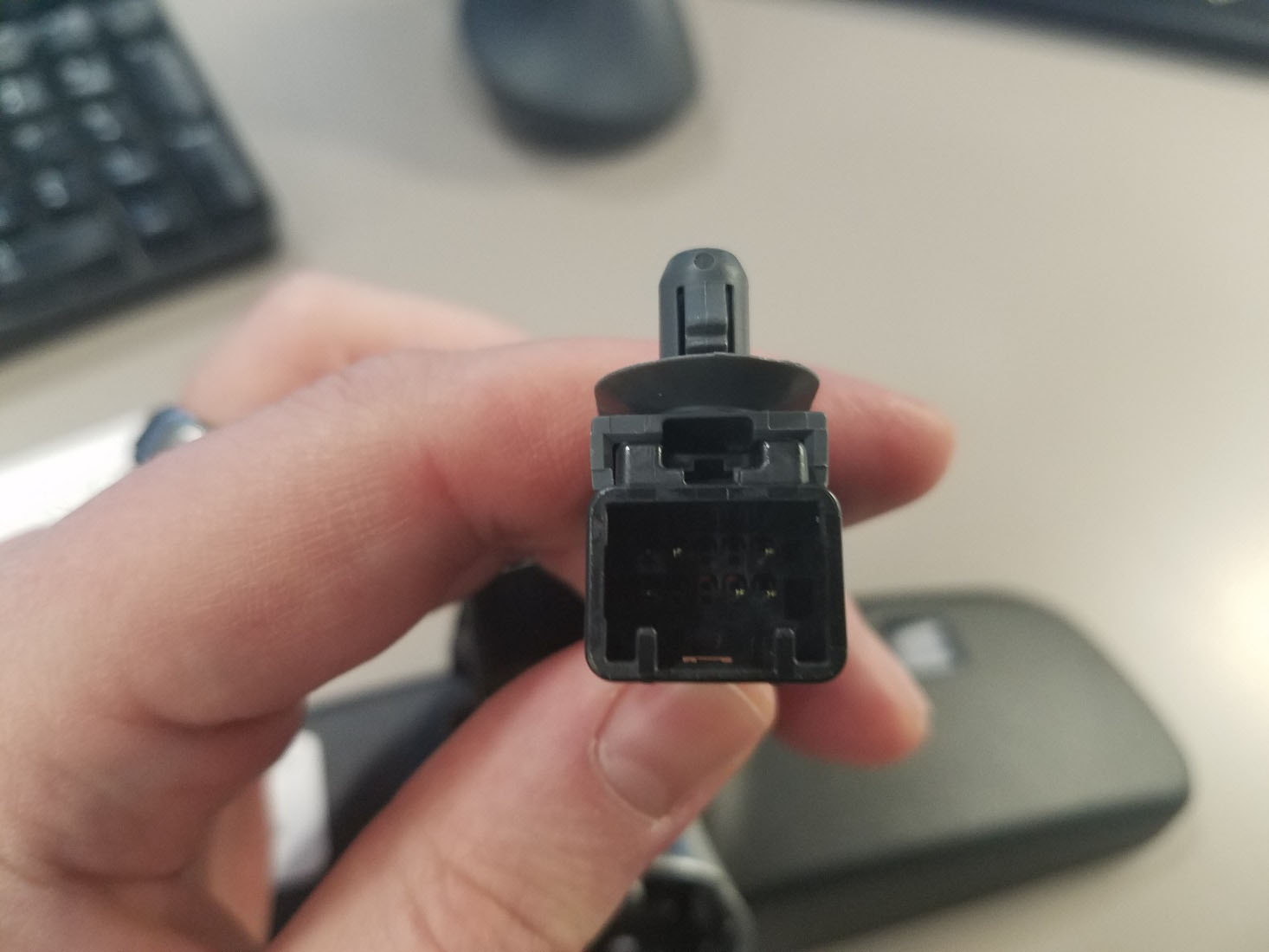

UAHL5G – Internal Photos UAHL5G – Internal Photos UAHL5G – Internal Photos TX Area UAHL5G – Internal Photos UAHL5G – Internal Photos UAHL5G – Internal Photos Trace Antenna

FCC ID: NZLUAHL5G RF Exposure/ S A R Statement Applicant: Gentex Corporation Model: UAHL5G Calculations: The following information provides the minimum separation distance for the antenna as part of the design for the “UAHL5G” as calculated from the FCC OET Bulletin 65, Appendix A, Table (B) Limits for General Population/Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering an f/1500mW/cm 2 (0.601mW/cm 2 ) uncontrolled exposure limit. The power density formula used was: S = (P*G)/ (4*PI*r 2 ) Where P = -9.5 dBm (Maximum Power Output Power) G = 7.8dBi (Numerical Antenna Gain, 7.8dBi) R = 20.0cm (P+G) = -1.7dBm + 1.0dB (for maximum tolerance adjustment) Converting -0.7dBm to mW = 1.39 mW EIRP The Power Density S = 0.0003mW/cm 2 This is less than the above limit as well as the RSS-102 limit in Section 2.5 Table 1 for a separation distance of 30mm of 80mW.

Lab Project ID#: EMC2020-05826 Test ID: Test-054635 and Test-054638 FCC Report Form for 15.247 – 3m Revision: 01/30/2020 Approved By: Craig Harder Uncontrolled copy if printed unless stamped as a Lab Controlled Document Technical Report to the FCC and ISED Regarding Gentex Corporation - Homelink© 5 Model: UAHL5G FCC ID: NZLUAHL5G ISED: 4112A-UAHL5G Emission Designator: 282KF7D 2/25/20 A report concerning approval for Gentex Corporation Homelink® model UAHL5G Please issue grant immediately upon review. Measurements Made by: Measurements Reviewed by: Bolay Pannell Dan Brasier Senior EMC Test Engineer Senior EMC Test Engineer Gentex Corporation Gentex Corporation Report and Application Prepared by: Report Approved and Submitted by: Brian Miller Nick Dipisa Corporate Labs Group Leader – Wireless Regulatory Corporate Labs Group Leader Gentex Corporation Gentex Corporation Model: UAHL5G 2/25/20 1 of 34 Lab Project ID#: EMC2020-05826 Test ID: Test-054635 and Test-054638 FCC Report Form for 15.247 – 3m Revision: 01/30/2020 Approved By: Craig Harder Uncontrolled copy if printed unless stamped as a Lab Controlled Document Test Report Revision REV Number Date Author Description 1.0 2/25/20 Brian Miller Initial Release. Results relate only to the items tested as received. Compliance has been evaluated based on the Lab Manual section 7.6.2. The decision rule used regarding measurement uncertainty was to determine results solely on whether the measured values met the defined acceptance criteria without factoring in measurement uncertainty values. Model: UAHL5G 2/25/20 2 of 34 Lab Project ID#: EMC2020-05826 Test ID: Test-054635 and Test-054638 FCC Report Form for 15.247 – 3m Revision: 01/30/2020 Approved By: Craig Harder Uncontrolled copy if printed unless stamped as a Lab Controlled Document 1. General Information 1.1. Product Description The Gentex Corporation HomeLink® HL5 Universal Garage Door Opener is a low-power transceiver OEM device that is installed into the rearview mirror of the automobile. The installation is provided by trained technicians during the course of the manufacture of the automobile. It is powered by the 12 Volt system of the automobile. This Universal Garage Door Opener has the capability to 1. Learn the frequency and bit code format of the user’s existing garage door remote control devices 2. Transmit and receive frequency hopping spread spectrum in the 902 to 928 MHz band using an internal antenna as per Federal Communications Commission “Code of Federal Regulations”, Title 47, Part 15.247 The unit is designed for the periodic operation of a control signal, which typically activates a garage door opener receiver. The unit is supplied to the automobile manufacturer without harness. For testing purposes a typical assembly and 2-conductor cable harness were used to power to the unit. The three-button HomeLink® unit replaces up to three hand-held transmitters. In addition to the ty pical operation of the garage door, the unit will learn the radio frequency codes of other transmitter types to activate entry door locks, estate gates, security systems, and home or office lighting. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and Gentex Corporation. 1.2. Related Grants This device will have functionality that is covered under 47 CFR 15.231. The device will have a FCC ID # of NZLUAHL5G and an ISED ID # of 4112A-UAHL5G under both rule parts. A separate report is submitted for functionality covered under 47 CFR 15.231. 1.3. Test Methodology Radiated Emissions testing was performed according to ANSI C63.10:2013. The power source for this product is a 12V automotive vehicle battery. Conducted measurements were performed using a power supply. Measurements were performed per FCC OET KDB 558074. The unit is supplied to the automobile manufacturer without harness. For testing purposes a 2- conductor cable harness was used to interface to the unit. The unit ground is provided through the negative terminal of the harness. 1.4. Test Facility The 3- meter semi-anechoic chamber where these measurements were taken, is located on the grounds of Gentex Corporation’s Corporate Labs, in the city of Zeeland, county of Ottawa, state of Michigan, United States of America. Model: UAHL5G 2/25/20 3 of 34 Lab Project ID#: EMC2020-05826 Test ID: Test-054635 and Test-054638 FCC Report Form for 15.247 – 3m Revision: 01/30/2020 Approved By: Craig Harder Uncontrolled copy if printed unless stamped as a Lab Controlled Document For radiated measurements above 1 GHz, RF absorbing material is placed between the antenna and EUT in accordance with ANSI C63.4:2014 Section 5.5 and chamber manufacturer’s instructions. The 3m chamber has been added to our A2LA scope of accreditation on 05/20/2016 and includes accredition to ANSI C63.4:2014 and ANSI C63.10:2013. The report filed wi th ISED, dated February 11, 2015, was accepted via a letter dated February 11, 2015. Our 3m chamber is registered with the ISED under Site# 4112A-2 and FCC under registration number 357351. Corporate Mailing/Shipping Address Gentex Corporation 600 N. Centennial Street Zeeland, MI 49464 Site Address Gentex Corporation 380 Riley Street Zeeland, MI 49423 1.5. Accreditation The Gentex Corporate EMC Lab is accredited to ISO/IEC 17025 by the American Association for Laboratory Accreditation (A2LA). Our laboratory scope and accreditation certificate # 2529.01 are available from their web site www.a2la.org . Our scope of accreditation covers ANSI C63.4: 2014, ANSI C63.10:2013, and Radiated Emissions at 3m, FCC 47 CFR Part 15, ISED RSS-210, and ISED RSS-247 Issue 2. 2. Product Labeling 2.1. Identifiers The FCC Identifier assigned is FCC ID: NZLUAHL5G. The ISED certification number is 4112A-UAHL5G. These identifiers will be labeled on th e product housing. The label will be placed on the exterior of the HL housing us…

Text truncated - open the document above for the full version.

Test Setup Photos Test Setup – Below 1GHz Test Setup Photos Test Setup – Above 1GHz Test Setup Photos Test Setup – Side Orientation
