NZLUAHLCDWireless Garage Door Opener

Your mirror comes packed with features, including auto-dimming technology, compass readout, HomeLink two-way communication and HomeLink car-to-home automation. HOMELINK WITH HOMELINK CONNECT® HomeLink’s mirror-integrated buttons allow you to program and operate devices like garage doors and gates, in addition to wireless smart home devices like thermostats and home lighting. Programming HomeLink is easy with the HomeLink Connect mobile app, which guides you through the button programming process. It also allows you to control your smart home devices by paring the app to the mirror via Bluetooth®. AUTO-DIMMING During nighttime driving, your auto-dimming mirror senses distracting glare from the vehicle headlights behind you and automatically darkens to preserve your vision and prevent eye fatigue. OWNER’S MANUAL SUPPLEMENT AUTO-DIMMING MIRROR WITH HOMELINK ® AND COMPASS *550-0757-000* HOMELINK PROGRAMMING To program your HomeLink buttons to operate your garage door/gate, or to control your smart home devices, download the HomeLink Connect app. 1. Scan the QR code or open Google Play/App Store 2. Search “HomeLink Connect” 3. Download the app 4. Follow app prompts with the vehicle ignition on to pair with the mirror • Standard garage door programming information can also be obtained at homelink.com. • To learn more about smart home connectivity via the HomeLink Connect app, visit connect.homelink.com. 550-0757-000 HomeLink ButtonsBluetooth Button AndroidiOS Accessories HomeLink® and the HomeLink House® logo are registered trademarks of Gentex Corporation. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gentex Corporation is under license. “Volkswagen” and the Volkswagen logo are registered trademarks of Volkswagen AG. FCC and Canada This device complies with FCC rules part 15 and Innovation, Science, and Economic Development Canada RSS-210. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has been tested and complies with FCC and ISED rules. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device. This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment. End Users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must be at least 20 cm from the user and must not be co-located or operating in conjunction with any other antenna or transmitter. FCC (États-Unis) et ISED (Canada) Cet appareil est conforme aux règlements de la FCC, section 15, et au CNR-210 d’Innovation, Sciences et Développement économique Canada. Le fonctionnement est assujetti aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles et (2) cet appareil doit accepter toute interférence reçue, y compris celle qui pourrait entraîner un dysfonctionnement. MISE EN GARDE : L’émetteur a subi des tests et est conforme aux règlements de la FCC et d’ISDE. Les changements ou modifications non approuvés explicitement par la partie responsable de la conformité pourraient rendre caduque l’autorisation de l’utilisateur de se servir du dispositif. Cet appareil est conforme aux limites d’exposition aux radiations de la FCC et d’ISDE établies pour un environnement non contrôlé. Les utilisateurs finaux doivent respecter les instructions d’utilisation spécifiques pour satisfaire aux exigences de conformité aux expositions de RF. L’émetteur doit se trouver à 20 cm au minimum de l’utilisateur et ne doit pas être situé au même endroit que tout autre émetteur ou antenne ni fonctionner avec un autre émetteur ou antenne. Mexico La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada. COMPASS SETTINGS • COMPASS ON/OFF — To toggle the display on/off, use a paperclip to push and release the compass switch. • COMPASS RESET— To reset your compass: a. Find your location and number on the map below. b. Use a paper clip to press and hold the compass switch until a number appears in the display (hold for 6-7 seconds). c. Press the switch again until your locations number appears in the display. Your new location will automatically save when the display shows a direction. d. Then, use a paper clip to press and hold the compass switch until a “C” appears in the display (hold for 12-15 seconds). e. Drive the vehicle in a complete circle at less than 5 mph until the display shows a direction. 15 14 13 12 11 10 9 8 7 6 5 4 3 GNTX Magnetic Zone Variation Map Map Data (for reference only): USGS, National Atlas of the United States, World Boundary Data Bank II Magnetic Field Data: NOAA/NCEI WMM2020 (Data for 2025) © 2016, 2019 Gentex Corporation Compass Switch

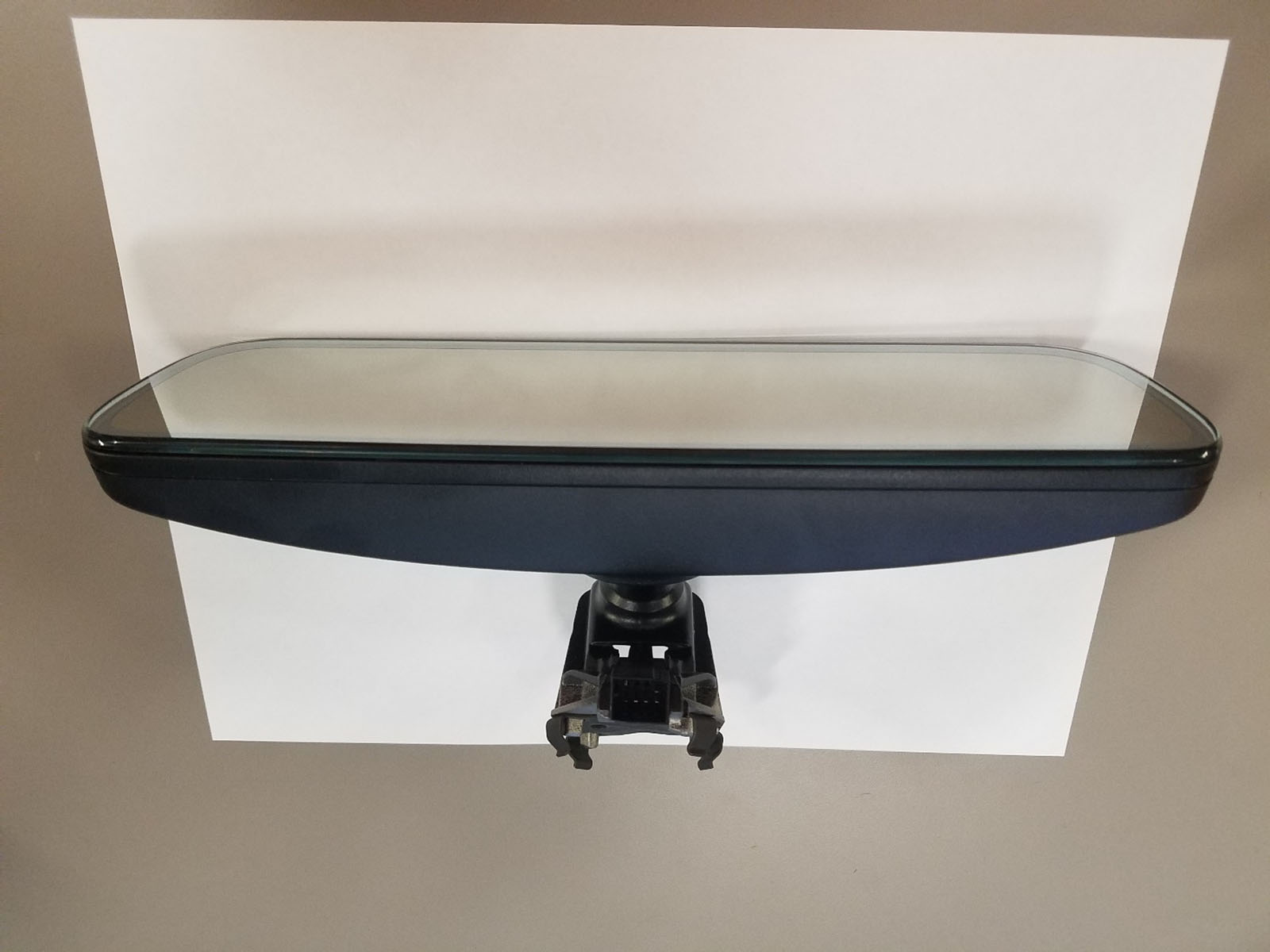

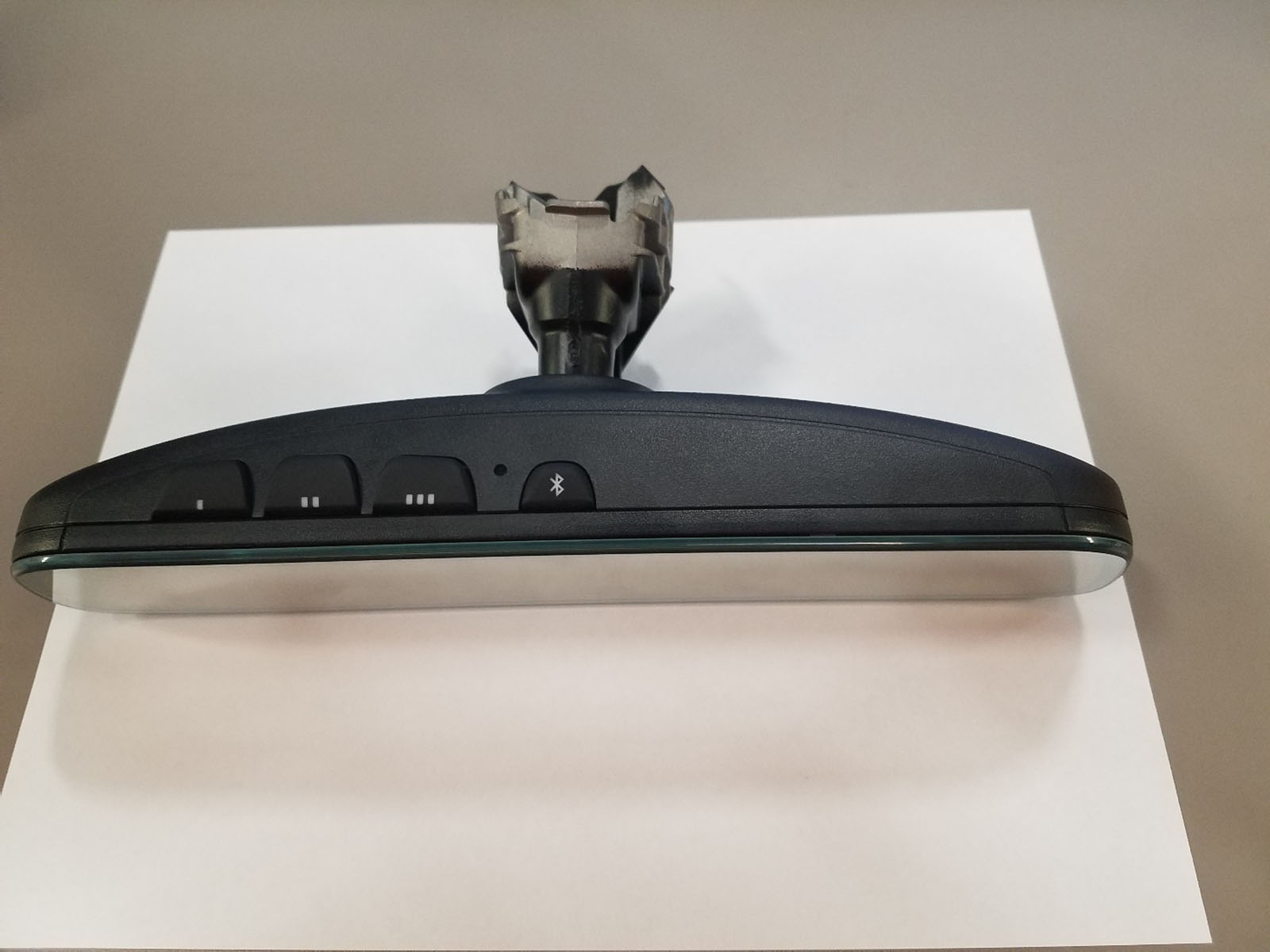

UAHLCD UAHLCD UAHLCD UAHLCD UAHLCD

Label Location

UAHLCD – Internal Photos UAHLCD – Internal Photos BLE TX Area BLE Trace Antenna UAHLCD – Internal Photos HL TX Area UAHLCD – Internal Photos UAHLCD – Internal Photos UAHLCD – Internal Photos HomeLink Trace Antenna

Lab Project ID#: EMC2020-06997 Test ID: Test-062671, Test-062668 Model: UAHLCD FCC Report Form for 15.231 - 3m Date: 1/6/20 Revision: 10/29/2020 Approved By: Nick Dipisa Page 1 of 25 Uncontrolled copy if printed unless stamped as a Lab Controlled Document Technical Report to the FCC and ISED Regarding Gentex Corporation - HomeLink© V Model: UAHLCD FCC ID: NZLUAHLCD ISED: 4112A-UAHLCD Emission Designator: 51K4L1D 1/6/20 A report concerning approval for Gentex Corporation HomeLink® model UAHLCD Please issue grant immediately upon review. Measurements Made by: Measurements Reviewed by: Bolay Pannell Dan Brasier Senior EMC Test Engineer Corporate Labs Development Engineer Gentex Corporation Gentex Corporation Report Prepared, Approved, and Submitted by: Brian Miller Corporate Labs Group Leader – Wireless Regulatory Gentex Corporation Lab Project ID#: EMC2020-06997 Test ID: Test-062671, Test-062668 Model: UAHLCD FCC Report Form for 15.231 - 3m Date: 1/6/20 Revision: 10/29/2020 Approved By: Nick Dipisa Page 2 of 25 Uncontrolled copy if printed unless stamped as a Lab Controlled Document Test Report Revision REV Number Date Author Description 1.0 1/6/20 Brian Mille r Initial Release. Results relate only to the items tested as received. Compliance has been evaluated based on the Lab Manual section 7.6.2. The decision rule used regarding measurement uncertainty was to determine results solely on whether the measured values met the defined acceptance criteria without factoring in measurement uncertainty values. Lab Project ID#: EMC2020-06997 Test ID: Test-062671, Test-062668 Model: UAHLCD FCC Report Form for 15.231 - 3m Date: 1/6/20 Revision: 10/29/2020 Approved By: Nick Dipisa Page 3 of 25 Uncontrolled copy if printed unless stamped as a Lab Controlled Document 1. General Information 1.1. Product Description The Gentex Corporation HomeLink® HLV Universal Garage Door Opener is a low-power transceiver OEM device that is installed into an overhead area of the automobile. The installation is provided by trained technicians during the course of the manufacture of the automobile. It is powered by the 12 Volt system of the automobile. This Universal Garage Door Opener has the capability to 1. Learn the frequency and bit code format of the user’s existing garage door remote control devices and 2. Reproduce and transmit the frequency and bit code format to remotely operate the user’s garage door. The unit is designed for the periodic operation of a control signal, which typically activates a garage door opener receiver. The unit is supplied to the automobile manufacturer without harness. For testing purposes, a typical assembly and 2-conductor cable harness were used to power to the unit. The unit is only operational when the user depresses the control button. It becomes inactive after release of the control button. The three-button HomeLink® unit replaces up to three hand-held transmitters. In addition to the typical operation of the garage door, the unit will learn the radio frequency codes of other transmitter types to activate entry door locks, estate gates, security systems, and home or office lighting. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and Gentex Corporation. 1.2. Related Grants This device will have functionality that is covered under 47 CFR 15.247. The device will have FCC ID # of NZLUAHLCD and ISED ID # of 4112A-UAHLCD under both rule parts. A separate report is submitted for functionality covered under 47 CFR 15.247. 1.3. Test Methodology Radiated Emissions testing was performed according to ANSI C63.10:2013. The power source for this product is a 12V automotive vehicle battery, thus conducted emissions measurements are not required. The unit is supplied to the automobile manufacturer without harness. For testing purposes a 2- conductor cable harness was used to interface to the unit. 1.4. Test Facility The 3-meter semi-anechoic chamber where these measurements were taken is located on the grounds of Gentex Corporation’s Corporate Labs, in the city of Zeeland, county of Ottawa, state of Michigan, United States of America. Lab Project ID#: EMC2020-06997 Test ID: Test-062671, Test-062668 Model: UAHLCD FCC Report Form for 15.231 - 3m Date: 1/6/20 Revision: 10/29/2020 Approved By: Nick Dipisa Page 4 of 25 Uncontrolled copy if printed unless stamped as a Lab Controlled Document For radiated measurements above 1 GHz, RF absorbing material is placed between the antenna and EUT in accordance with ANSI C63.4:2014 Section 5.5 and chamber manufacturer’s instructions. Tabletop testing was conducted on a 3m turntable described in the site recertification report. The 3m chamber has been added to our A2LA scope of accreditation on 05/20/2016 and includes accreditation to ANSI C63.4:2014 and ANSI C63.10:2013. The report filed with ISED, dated February 11, 2015, was accepted via a letter dated February 11, 2015. Our 3m chamber is registered with the ISED under Site# 4112A-2 and FCC under registration number 357351. Corporate Mailing/Shipping Address Gentex Corporation 600 N. Centennial Street Zeeland, MI 49464 Site Address Gentex Corporation 380 Riley Street Zeeland, MI 49464 1.5. Accreditation The Gentex Corporate EMC Lab is accredited to ISO/IEC 17025 by the American Association for Laboratory Accreditation (A2LA). Our laboratory scope and accreditation certificate #2529.01 are available from their web site www.a2la.org. Our scope of accreditation covers ANSI C63.4:2014, ANSI C63.10:2013, and Radiated Emissions at 3m, FCC 47 CFR Part 15, ISED RSS-210. 2. Product Labeling 2.1. Identifiers The FCC Identifier assigned is FCC ID: NZLUAHLCD. The ISED certification number is 4112A- UAHLCD. These identifiers will be labeled on the product housing. The label will be imprinted on the exterior of the mirror housing using molding tool that will permanently affix the labe…

Text truncated - open the document above for the full version.

Lab Project ID#: EMC2020-06997 Test ID: Test-062668 - 062675 Model: UAHLCD FCC Report Form for Part 15 Intermodulation Spurious Emissions Date: 3/2/21 Revision: 01/18/2021 Approved By: Nick Dipisa Page 1 of 10 Uncontrolled copy if printed unless stamped as a Lab Controlled Document Technical Report to the FCC Gentex Corporation Model: UAHLCD FCC ID: NZLUAHLCD ISED: 4112A-UAHLCD 3/2/21 A report concerning approval for Gentex Corporation model UAHLCD Please issue grant immediately upon review. Measurements Made by: Measurements Reviewed by: Bolay Pannell Dan Brasier Senior EMC Test Engineer Corporate Labs Development Engineer Gentex Corporation Gentex Corporation Report Prepared, Approved, and Submitted by: Brian Miller Corporate Labs Group Leader – Wireless Regulatory Gentex Corporation Lab Project ID#: EMC2020-06997 Test ID: Test-062668 - 062675 Model: UAHLCD FCC Report Form for Part 15 Intermodulation Spurious Emissions Date: 3/2/21 Revision: 01/18/2021 Approved By: Nick Dipisa Page 2 of 10 Uncontrolled copy if printed unless stamped as a Lab Controlled Document Test Report Revision REV Number Date Author Description 1.0 2/22/21 Brian Mille r Initial Release. 2.0 3/2/21 Brian Miller This is an amendment to the FCC Report Form for Part 15 Intermodulation Spurious Emissions.pdf report for EMC2020-06997 dated 2/22/21. Alterations were made on 3/2/21 to include limit lines on the sweep graphs. Results relate only to the items tested as received. Compliance has been evaluated based on the Lab Manual section 7.6.2. The decision rule used regarding measurement uncertainty was to determine results solely on whether the measured values met the defined acceptance criteria without factoring in measurement uncertainty values. Lab Project ID#: EMC2020-06997 Test ID: Test-062668 - 062675 Model: UAHLCD FCC Report Form for Part 15 Intermodulation Spurious Emissions Date: 3/2/21 Revision: 01/18/2021 Approved By: Nick Dipisa Page 3 of 10 Uncontrolled copy if printed unless stamped as a Lab Controlled Document 1. General Information 1.1. Product Description The Gentex Corporation Bluetooth and HomeLink OEM device that is installed into the automobile rearview mirror. The installation is provided by trained technicians during the course of the manufacture of the automobile. It is powered by the 12 Volt system of the automobile. The unit is designed for the periodic operation as a toll module. The unit is supplied to the automobile manufacturer without harness. For testing purposes, a typical assembly and 2-conductor cable harness were used to power to the unit. The unit is only operational when interrogated by a reader operating in the same protocol. The antenna system is an integral part of the unit. It cannot be altered nor replaced by the user. Service of this system is only available from the Automobile Manufacturer’s Dealerships and Gentex Corporation. 1.2. Related Grants This device will have functionality that is covered under 47 CFR Part 15 and ISED Canada RSS- RSS-210 and RSS-247. The device will have FCC ID # of NZLUAHLCD and ISED ID # of 4112A-UAHLCD. 1.3. Test Methodology Radiated Emissions testing was performed according to ANSI C63.10:2013. The power source for this product is a 12V automotive vehicle battery, thus conducted emissions measurements are not required. The unit is supplied to the automobile manufacturer without harness. For testing purposes, a 2- conductor cable harness was used to interface to the unit. 1.4. Test Facility The 3-meter semi-anechoic chamber where these measurements were taken is located on the grounds of Gentex Corporation’s Corporate Labs, in the city of Zeeland, county of Ottawa, state of Michigan, United States of America. For radiated measurements above 1 GHz, RF absorbing material is placed between the antenna and EUT in accordance with ANSI C63.4:2014 Section 5.5 and chamber manufacturer’s instructions. Tabletop testing was conducted on a 3m turntable described in the site recertification report. The 3m chamber has been added to our A2LA scope of accreditation on 4/18/2019 and includes accreditation to ANSI C63.4:2014, ANSI C63.10:2013, and C63.26:2015. Our 3m chamber is registered with the ISED under Site# 4112A-2 and FCC under registration number 357351. Lab Project ID#: EMC2020-06997 Test ID: Test-062668 - 062675 Model: UAHLCD FCC Report Form for Part 15 Intermodulation Spurious Emissions Date: 3/2/21 Revision: 01/18/2021 Approved By: Nick Dipisa Page 4 of 10 Uncontrolled copy if printed unless stamped as a Lab Controlled Document Corporate Mailing/Shipping Address Gentex Corporation 600 N. Centennial Street Zeeland, MI 49464 Site Address Gentex Corporation 380 Riley Street Zeeland, MI 49464 1.5. Accreditation The Gentex Corporate EMC Lab is accredited to ISO/IEC 17025 by the American Association for Laboratory Accreditation (A2LA). Our laboratory scope and accreditation certificate #2529.01 are available from their web site www.a2la.org. Our scope of accreditation covers ANSI C63.4:2014, ANSI C63.10:2013, ANSI C63.26:2015 and Radiated Emissions at 3m, FCC 47 CFR Part 90, ISED RSS-137. 2. Product Labeling 2.1. Identifiers The FCC Identifier assigned is FCC ID: NZLUAHLCD. The ISED certification number is 4112A- UAHLCD. These identifiers will be labeled on the product housing. The label will be printed on a label, which will be placed on the exterior of the housing and permanently affixed. Because of the small size of the device and because the installation is inside a portion of the automobile, the following statements will appear in the user’s manual. Refer to attachment “Users Manual.pdf” for the entire text of the user’s manual. “The receiver portion of the device complies with FCC rule Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference that may be received including interference that may cause undesired operation. WARNING: The transmitter has be…

Text truncated - open the document above for the full version.

Test Setup Photos Test Setup – Below 1GHz Test Setup Photos Test Setup – Above 1GHz Test Setup Photos Test Setup – Side Orientation
