O2MIS928ERF Lighting Device

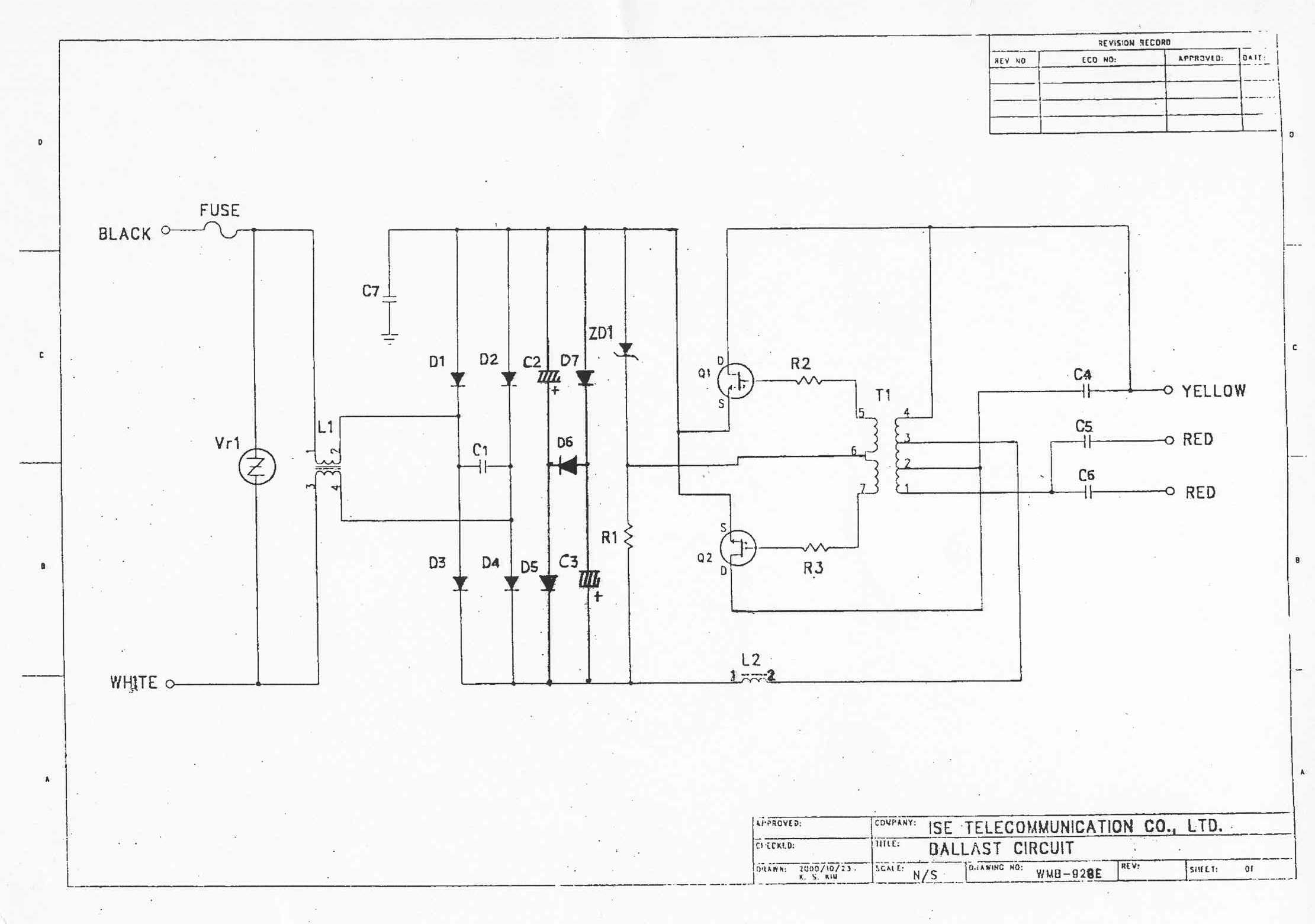

KTL Korea Testing Laboratory Page 1 of 11 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Hee-Soo Kim , Telecommunication Team Manager KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 02-341-002 Name and address of the applicant ISE TELECOMMUNICATION CO., LTD. 276-18, Eunhang-Dong, Shiheung-Shi, Kyonggi-Do, Korea 429-060 Standard / Test regulation FCC Part 18 Test result Pass Incoming date : March 20, 2002 Test item( s) ; RF Lighting Devices – Consumer Equipme nt (Electronic Ballast) Model/type ref. ; WMB-928E Manufacturer ; ISE TELECOMMUNICATION CO., LTD. Additional information ; -Re quire d Aut ho riz atio n : Ce rtificatio n -FCC ID. : O2MIS928E Test date : April 26, 2002Issue date : April 30, 2002 Ref. Report No. 02 - 341 – 002 2 Page of 11 TABLE O F CONTENTS I. GENERAL INFORMATION 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement α. CONDUCTED EMISSION MEASUREMENT (Section 18.307) 4 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data β. RADIATED EMISSION MEASUREMENT (Section 18.305) 8 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data χ. TEST EQUIPMENTS USED FOR MEASUREMENT 11 Ref. Report No. 02 - 341 – 002 3 Page of 11 . GENERAL INFORMATION 1. Applicant’s Name and : ISE TELECOMMUNICATION CO., LTD. Mailing Address 276-18, Eunhang-Dong, Shiheung-Shi, Kyonggi-Do, Korea, 429-060 2. Manufacturer's Name and: ISE TELECOMMUNICATION CO., LTD. Mailing Address276-18, Eunhang-Dong, Shiheung-Shi, Kyonggi-Do, Korea, 429-060 3. Equipment Descriptions 3.1 Input Voltage: AC 120 V, 60 Hz 3.2 Oscillation Frequency:140 kHz 4. Rules and Regulations: FCC Part 18 5. Measuring Procedure: FCC / OET MP-5 (1986) 6. Date of Measurement 6.1 Conducted Emission: April 25, 2002 6.2 Radiated Emission : April 26, 2002 Ref. Report No. 02 - 341 – 002 4 Page of 11 . CONDUCTED EMISSION MEASUREMENT (Section 18.307) 1. Test Procedure The EUT was installed with fluorescent lamp in accordance with the manufacturer’s instruction and operated in a manner that is the representative of the typical usage for equipment. Conducted emission measurements on the EUT were performed by "Conducted Powerline Measurement" procedure as per MP-5. The EUT w as set up on a w ooden table 0.8 meters height, 1.0 by 1.5 meters in size, placed in the shielded enclosed with a side of wall of which constituted a vertical conducting surface of 2.2 m x 3.1 m in size to maintain 0.4 meters from the rear of EUT LISN's(Line Impedance Stabilization Network, EMCO, 3825/2, 50 ohm / 50 ∝H) were installed and electrically boned to the conducting ground plane. The EUT was connected to the LISN. One of two 50 ohm output terminals of the LISN was connected to the Spectrum Analyzer(HP, 8566B, 10 kHz to 22 GHz) with the Quasi-Peak Adapter (HP, 85650A, 10 kHz to 1.0 GHz) and the other was terminated in 50 ohms. Measurements w ere again performed after interchanging such a connection oppositely. The frequency range from 450 kHz to 30 MHz was examined and the peak values that are within 6 dB of the limit would be compared to quasi-peak values using the Quasi-Peak instrument (ROHDE & SCHWARZ, ESH3, 9 kHz to 30 MHz : Detector Function CISPR Quasi-Peak) or HP Quasi-Peak adapter(85650A, 10 kHz to 1.0 GHz) The voltage developed across the 50 ohms port in LISN was measured by the Spectrum Analyzer and graphed by the Plotter(HP, 7470A). The 6 dB bandwidth of the Spectrum Analyzer and Quasi-Peak Adapter was set to 9 kHz with no post detector video filter. The position of connecting cables of the EUT was changed to find the w orst case configuration during measurements. The maximum emission level from the EUT occurred in such configuration as shown in the following photograph. Ref. Report No. 02 - 341 – 002 5 Page of 11 2. Photograph for the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB∂) was converted into microvolt (∂) as show n in following sample calculation. For example : Measured Value at 0.469 MHz 43.8 dB∂ + Cable Losses * 0.0 dB −−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−− = Conducted Emission 43.8 dB∂ ( = 154.9 ∂ ) * In case of RG214/ RF cable 15 Ft, the loss is about 0.17 dB at the frequency of 30 MHz which is negligible. Ref. Report No. 02 - 341 – 002 6 Page of 11 4. Measurement Data - Resolution Bandwidth : x Peak (6dB Bandwidth : 9kHz) x CISPR Quasi-Peak (6dB Bandwidth : 9kHz) Measured Value Emission Level Power Lead Tested Frequency (MHz) Peak (dB∂) Q-Peak (dB∂) (dB∂) (∂) Limit (∂) (*) Margin (dB) 0.509 44.0 39.8 39.8 97.7 250 - 8.2 0.666 42.5 39.0 39.0 89.1 250 - 9.0 0.745 41.5 39.7 39.7 96.6 250 - 8.3 1.535 37.7 35.7 35.7 60.9 250 - 12.3 18.010 25.5 21.7 21.7 12.2 250 - 26.3 21.012 30.0 25.6 25.6 19.1 250 - 22.4 Live to Ground 27.016 28.0 25.1 25.1 18.0 250 - 22.9 0.469 46.8 43.8 43.8 154.9 250 - 4.2 0.949 37.2 34.2 34.2 51.3 250 - 13.8 1.267 37.2 33.7 33.7 48.4 250 - 14.3 1.586 37.0 34.2 34.2 51.3 250 - 13.8 21.012 29.7 27.8 27.8 24.5 250 - 20.2 27.016 29.0 25.0 25.0 17.8 250 - 23.0 Neutral to Ground - - - - - - - Note : The noise floor level of the spectrum analyzer was observed in 20 dB∂. Refer to measured graphs on next page. * Margin(dB) : Emission Level (dB) - Limit (dB) Ref. Report No. 02 - 341 – 002 7 Page of 11 (Test mode : Live to Ground) (Test mode : Neutral to Ground) Ref. Report No. 02 - 341 – 002 8 Page of 11 . RADIATED EMISSION MEASUREMENT (Section 18.305) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to deter…

Text truncated - open the document above for the full version.

Ref. Report No. 02 - 341 – 002 5 Page of 11 2. Photograph for the test configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB) was converted into microvolt () as shown in following sample calculation. For example : Measured Value at 0.469 MHz 43.8 dB + Cable Losses * 0.0 dB = Conducted Emission 43.8 dB ( = 154.9 ) * In case of RG214/RF cable 15 Ft, the loss is about 0.17 dB at the frequency of 30 MHz which is negligible.
