O2W-THPHandheld TX

Rev 001a February 2025 User manual RRC THRUSTER HANDHELD TRANSMITTER Pag. 4 Mode d’emploi EMETTEUR PORTABLE RRC THRUSTER Pag. 8 EN FRFR HT94 + HT98 + HANDLED TRANSMITTER RRC RADIO REMOTE CONTROL 3 RRC HT94+/HT98+ - REV001A INDEX/ SOMMAIRE INDEX EN SOMMAIRE FR Pg. 4 CHARACTERISTICS AND INSTALLATION / OPERATION - power supply - enabling - operation status Pg. 5/6 OPERATION - correspondence between pressed key and activated relay Pg. 7 OPERATION / MAINTENANCE - backlight - Disabling the transmitter - Low battery signal - battery replacement / MAINTENANCE / TECHNICAL DATA Pg.12 DIMENSIONS P. 8 CARACTÉRISTIQUES ET INSTALLATION / FONCTIONNEMENT - alimentaton - activation - etat de fonctionnement P. 9/10 FONCTIONNEMENT - correspondance touche appuyee e relais active P. 1 1 FONCTIONNEMENT / ENTRETIEN - retro-eclairage - désactivation de l’émetteur - signalisation de batterie déchargée - remplacement de la batterie / ENTRETIEN / CARACTÉRISTIQUES TECHNIQUES P.12 DIMENSION 4 EN RRC HANDHELD TRANSMITTER RRC HT94+/HT98+ - REV001A The RRC Thruster handheld radio transmitter is a device which combined with a RRC radio receiver is used to control Quick thrusters installed on recreational crafts. The RRC radio system for thrusters must be used as a supplement to the Quick wired thruster control system already installed on the boat. Take necessary steps in order to avoid that malfunctioning of the RRC thruster radio control system may cause damage to people, animals or property. OPERATION WARNING: the transmitter needs to be programmed in the receiver’s memory. To do this, follow the procedure shown in the receiver’s user manual. Power supply The handheld transmitter is powered using 3 AAA alkaline or rechargeable batteries. To replace them, see the BATTERY REPLACEMENT paragraph. Enabling The handheld transmitter is enabled by keeping the ON/OFF button pressed. When pressed, it starts to flash regularly and then starts flashing more quickly. After it is released, it remains on for 3 seconds and then, by means of a short flashing, it shows that enabling has taken place. If the ON/OFF button is released before it flashes quickly, the transmitter is not enabled and is off again. Operational status While pressing any key the blue transmission LED flashes quickly and signals that transmission has taken place. Each key pressed corresponds to the activation of a relay (or 2 relays) on the receiver, which will stay active as long as the key isn’t released. The advantages offered by the RRC thruster handheld radio transmitter are: • Microcontroller-operated functions. • Operating temperatures from -20°C to +50°C. • FSK modulation and carrier frequency 913.7 MHz. • LED indication of operational status, low battery and transmission feedback. • IP67. • Floating. • Also working with rechargeable batteries. • Keyboard backlighting by means of LEDs. INSTALLATION BEFORE USING THE RADIO TRANSMITTER, CAREFULLY READ THIS USER MANUAL. IN CASE OF DOUBTS PLEASE CONTACT THE RETAILER OR QUICK ® CUSTOMER SERVICE. Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. This device was designed and constructed for use on recreational crafts. Other forms of use are not permitted without written authorization from the company Quick ® . The RRC handheld radio transmitter for thruster has been designed and manufactured for the purposes described in this user manual. Quick ® is not liable for direct or indirect damages caused by an improper use of the radio control, due to an incorrect installation or errors possibly present in this manual. THE PACKAGE CONTAINS: handheld radio transmitter with batteries included - protective case - lanyard - conditions of warranty - the present manual of installation and use. F F LED di trasmissione Backlit ON/OFF button model HT94+ model HT98+ 5 EN RRC HANDHELD TRANSMITTER RRC HT94+/HT98+ - REV001A RRC HT94+ Thruster handheld transmitter and RRC R04+ radio receiver Pressing the key (anchor ascent) activates relay 1 on the receiver. Pressing the key (anchor descent) activates relay 2 on the receiver. Pressing the two keys simultaneously cancels the transmission. Pressing the key (bow left) activates relay 3 on the receiver. Pressing the key (bow right) activates relay 4 on the receiver. A 2 second transmission delay is introduced when passing from the key (bow left) to the key (bow right) and vice versa. Pressing the two keys simultaneously cancels the transmission. Pressing 3 or more keys simultaneously cancels the transmission. RRC HT94+ Thruster handheld transmitter and RRC R06+ radio receiver Pressing the key (anchor ascent) activates relay 1 on the receiver. Pressing the key (anchor descent) activates relay 2 on the receiver. Pressing the two keys simultaneously cancels the transmission. Pressing the key (bow left) activates relay 3 on the receiver. Pressing the key (bow right) activates relay 4 on the receiver. A 2 second transmission delay is introduced when passing from the key (bow left) to the key (bow right) and vice versa. Pressing the two keys simultaneously cancels the transmission. Pressing 3 or more keys simultaneously cancels the transmission. COM SHIELD relè 4relè 3 NO2 NO1 NO4 NO3 V +V- relè 1relè 2 ANT PROG COM SHIELD relè 1relè 2 relè 3relè 4 relè 5relè 6 relè 8relè 7 relè 10relè 9 relè 12relè 11 NO1 NO3 NO5 NO2 NO4 NO6 NO8 NO10 NO12 NO7 NO9 NO11 V+V- ANT PROG CORRESPONDENCE BETWEEN PRESSED KEY AND ACTIVATED RELAY RRC HT94+ THRUSTER HANDHELD TRANSMITTER RRC R04+ RADIO RECEIVERRRC R06+ RADIO RECEIVER 6 EN RRC HANDHELD TRANSMITTER RRC HT94+/HT98+ - REV001A RRC HT98+ Thruster handheld transmitter and RRC R06+ radio receiver Pressing the key (anchor ascent) activates relay 1 on the receiver. Pressing the key (anchor descent) activates relay 2 on the receiver. Pressing the two keys simultaneously cancels the transmission. Pressing the key 1 (bow left) activates relay 3 on the receiver. Pressing the key 2 (…

Text truncated - open the document above for the full version.

Rev 001a February 2025 H902+ H904+ H912+ EN FRFR User manual RRC HANDLED TRANSMITTER Pag. 4 Mode d’emploi EMETTEUR PORTABLE RRC Pag. 6 RRC HANDLED TRANSMITTER RADIO REMOTE CONTROL 3RRC H902+ / H904+ / H912+ - REV001A CHARACTERISTICS AND OPERATION...................................................................Pag. 4 MAINTENANCE - battery replacement............................................................... Pag. 5 TECHNICAL DATA................................................................................ Pag. 5 Dimensions...............................................................................Pag.8 CARACTÉRISTIQUES ET FONCTIONNEMENT........................................................Pag. 6 ENTRETIEN - remplacement de la batterie........................................................Pag. 7 CARACTÉRISTIQUES TECHNIQUES........................................................Pag. 7 Dimensions...............................................................................Pag.8 INDEX INDEX / SOMMAIRE SOMMAIRE EN FR 4 RRC HANDLED RADIO TRANSMITTER EN RRC H902+ / H904+ / H912+ - REV001A RRC HANDHELD TRANSMITTER The RRC radio transmitter is a device which combined with a RRC radio receiver is used to control operation of devices or accessories installed on recreational crafts. The RRC radio system is a generic radio control whose failed operation must not cause damage to people, animals or property. The advantages offered by the RRC hand held radio transmitter are: • Microcontroller-operated functions. • Operating temperatures from -20°C to +50°C. • FSK modulation and carrier frequency 913.7 MHz. • LED indication of operational status, low battery and transmission feedback. • Possibility to control more receivers with one transmitter. • Two functions can be activated at the same time. • IP67. • Floating. • Also working with rechargeable batteries. • Keyboard backlighting by means of LEDs. INSTALLATION BEFORE USING THE RADIO TRANSMITTER, CAREFULLY READ THIS USER MANUAL. IN CASE OF DOUBTS PLEASE CONTACT THE RETAILER OR QUICK ® CUSTOMER SERVICE. This device was designed and constructed for use on recreational crafts. Other forms of use are not permitted without written authorization from the company Quick ® . Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. The RRC handheld radio transmitter has been designed and manufactured for the purposes described in this user manual. Quick ® is not liable for direct or indirect damages caused by an improper use of the radio control, due to an incorrect installation or errors possibly present in this manual. THE PACKAGE CONTAINS: handheld radio transmitter with batteries included - protective case - labels (mod. H912+) - lanyard - conditions of warranty - the present manual of installation and use. APPLYING LABELS (H912+ MODEL) • Use a soft cloth moistened with water to clean the proper surfaces. • Choose the label to be positioned on the previously cleaned surface. • Set the label into its seat, make sure that it is positioned correctly, and then press the label against the surface for at least 5 seconds. WARNING: the transmitter needs to be programmed in the receiver’s memory. To do this, follow the procedure shown in the receiver’s user manual. Power supply The handheld transmitter is powered using 3 AAA alkaline or rechargeable batteries. To replace them, see the BATTERY REPLACEMENT paragraph. Enabling The handheld transmitter is enabled by keeping the ON/OFF button pressed. When pressed, it starts to flash regularly and then starts flashing more quickly. After it is released, it remains on for 3 seconds and then, by means of a short flashing, it shows that enabling has taken place. If the ON/OFF button is released before it flashes quickly, the transmitter is not enabled and is off again. Operational status While pressing any key the blue transmission LED flashes quickly and signals that transmission has taken place. It is possible to press up to two keys at the same time, while pressing 3 or more keys simultaneously cancels transmission (transmission LED switched off). Each key pressed corresponds to the activation of a relay on the receiver (see RRC radio receiver manual), which will stay active as long as the key isn’t released. Transmission LED Backlit ON/OFF button model H902+model H904+model H912+ F F 5” CAUTION Applying the label is not recommended if transmitter surface temperature is under 10°C. 10° 5 EN RRC HANDLED RADIO TRANSMITTER RRC H902+ / H904+ / H912+ - REV001A WARNING: before operating on the transmitter, make sure that the RRC radio receiver is not powered. Accidentally pressing a key may activate the corresponding device and create a dangerous situation. • Remove the transmitter from the protective case. • Remove the transmitter base by unscrewing the six screws using a Phillips screwdriver. • Remove the batteries from the battery holder. • Insert the new batteries (the type indicated in the technical characteristics) paying attention to their polarity. • Close it checking that the transmitter base sits correctly in the gasket groove, located on the front of the transmitter, in order to restore the seal. • Tighten the six screws. • Re-insert the protective case. WARNING: once closed, verify that the transmitter is operating correctly. At the end of its useful life, the battery contained in the product must be disposed of separately from other separated urban waste. Dispose of the battery in accordance with the provisions of local law. BACKLIGHT Once the enabling procedure is complete, the keyboard backlight is on, along with the ON/OFF key, and then it turns off. It switches on again for a short amount of time when any key, or a 2 key combination, is released. It can also be turned on manually, without pressing any key, by quickly pressing and releasing the ON/OFF button. Disabling the transmitter Disabling a transmitter that is i…

Text truncated - open the document above for the full version.

The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A.. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. TEST REPORT No. AR24-0103136-02 performed in accordance with FCC Rules: Code of Federal Regulations (CFR) no. 47 Part 15 Subpart C Section 15.249 and INDUSTRY CANADA Spectrum Management and Telecommunications Radio Standards Specification RSS-210:2024 Licence-Exempt Radio Apparatus: Category I Equipment PRODUCT LPD transmitter of RRC radio system MODEL(s) TESTED H912+ FCC ID 02W-THP IC CODE 10492A-THP TRADE MARK(s) QUICK APPLICANT QUICK S.p.A. – Via Piangipane, 120/A – IT-48124 Piangipane (RA) Tested by Robertino Torri [Laboratory technician] Approved by Federico Sirtori [Laboratory manager] Revision Sheet Release No. Date Revision Description Rev. 0 2025-11-18 First edition Digital signed - AR24-0103136-02_Rev3_TR_FCC Part C 15.249 + RSS 210-GEN - QUICK - H912+.doc Rev. 1 2026-02-05 Second edition Fixed typo on ISED testing location, added maximum RF gain as declared by manufacturer and specified measurement type performed (radiated) Rev. 2 2026-03-25 Third edition Updated limit values to AV measurement and standards referencies Rev. 3 2026-06-24 Fourth edition Updated table on page 16 & 20 Mod. TRF 3724/ 4 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY Test Report No. AR24-0103136-02 Date: 2026-06-24 Page 2 of 22 Mod. TRF 3724 / 4 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 1. GENERAL DATA SAMPLE Samples received on 2024-04-23 (Item(s) sampled and sent by applicant) IMQ reference samples BEM 117192 Samples tested No. 1 Object under analysis recognition Not carried out Date of acceptance of test item 2024-04-23 TEST LOCATION Testing dates 2024-07-22 ÷ 2024-07-24 Testing laboratory IMQ S.p.A. - Via Quintiliano, 43 – IT-20138 Milano Testing site Viale Lombardia, 20/B – IT-20021 Bollate (MI) ISED Canada Test site registration number 22460 (at the date of Rev. 1 test report revision) ENVIRONMENTAL CONDITIONING Parameter Measured Ambient Temperature 20÷22 C Relative Humidity 58 % Atmospheric Pressure 978 mbar The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. REMARKS Throughout this report a point is used as the decimal separator. The ability or reliability of this product to perform its intended function in a particular application has not been investigated. The test results apply to the sample as received. All information relating to the details of the equipment under test at the § 3 of this document was provided by the applicant. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Test Report No. AR24-0103136-02 Date: 2026-06-24 Page 3 of 22 Mod. TRF 3724 / 4 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 2. REFERENCE DOCUMENT DOCUMENT DATE TITLE 47 CFR Part 15 / Radio Frequency Device ANSI C63.4 2020 Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10 2020 American National Standard for Testing Unlicensed Wireless Devices (For FCC only) ANSI C63.10 2020 Corr. 1-2023 C63.10a-2024 American National Standard for Testing Unlicensed Wireless Devices. (For ISED only) RSS-GEN Amd.1 Amd.2 2018 Issue 5 2019 2021 General Requirements for Compliance of Radio Apparatus RSS-210 2024 Issue 11 Licence-Exempt Radio Apparatus: Category I Equipment Test Report No. AR24-0103136-02 Date: 2026-06-24 Page 4 of 22 Mod. TRF 3724 / 4 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 3. EQUIPMENT UNDER TEST (EUT) DETAILS GENERAL DATA MODEL (tested) Description H912+ LPD transmitter of RRC radio system MODEL (derivated) Description H902+ H904+ HT94+ HT98+ As H912+ The transmitters have the same electronic board (the same PCB and components) but the number of the buttons and their disposition can change. The firmware is the same and factory settable for the five different types of use. FCC ID 02W-THP IC CODE 10492A-THP Manufacturer QUICK S.p.A. – Via Piangipane, 120/A – IT-48124 Piangipane (RA) Type of equipment LPD transmitter Operating frequency 913.7 MHz Max radiated peak power 90.9 dBμV/m (PK at 3m distance) Modulation FSK Channel Spacing / Channel bandwidth 100 kHz Antenna Integrated (strip line on PCB) Number of channels / Test Report No. AR24-0103136-02 Date: 2026-06-24 Page 5 of 22 Mod. TRF 3724 / 4 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY 4. TEST CONFGURATION OF EQUIPMENT UNDER TEST EUT PORTS Port Description Max length Enclosure Plastic / AC power / / DC power 4.5 V DC by AAA type (alkaline or NiMH rechargeable battery) / Signal/ Control / / Antenna Integrated (strip line on PCB) / STATE OF THE EUT DURING TESTS Ref. Transmission Mode Description #1 Modulated Continuous modulated transmission SUPPORT EQUIPMENT Defined as equipment needed for correct operation or loading of the EUT, but not considered as tested: Equipment Manufacturer Model / / / EUT Antenna Port AC Power Port Earth Port Wired network Port Signal/Control Port DC Power Port Enclosure Port Test Report No. AR24-0103136-02 Date: 2026-06-24 Page 6 of 22 Mod. TRF 3724 / 4 B.U. P RODUCTS C ONFORMITY A SSESSMENT – EMC & R ADIO E QUIPMENT L ABORATORY ELECTROMAGNETICALLY RELEVANT COMPONENTS Component No. Manufacturer Model PCB board 1 QUICK RCC H912 Radio module 1 MIPOT 32001550US RFI SUPPRESSION DEVICES Component No. Manufacturer Model / / / / EMI PROTECTION DEVICES Component No. Manufacturer Model / / / / EUT TECHNICAL DOCUMENTATION Document Reference / / Test Report No.…

Text truncated - open the document above for the full version.

B USINESS U NIT P RODOTTO – A PPARECCHIATURE RADIO EMF ASSESSMENT REPORT FCC Rules: Code of Federal Regulations (CFR) no. 47 RF Exposure and INDUSTRY CANADA Spectrum Management and Telecommunications Radio Standards Specification RSS-102:2023 § 6.3 Radio Frequency (RF) Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Report Number. .............................. : AR24-0103138-02 Rev. 1 Date of issue ................................... : 2026-02-05 Total number of pages ................... : 12 Name of Testing Laboratory preparing the Report ...................... : IMQ S.p.A. Applicant’s name ............................ : QUICK S.p.A. Address ........................................... : Via Piangipane, 120/A – IT-48124 Piangipane (RA) Test specification: Standards ....................................... : 47 CFR Part 15 and 447498 D01 V06 RSS-102:2023 Test Report Form No. ..................... : TRF 3609/7 Test Report Form(s) Originator ..... : IMQ S.p.A. Master TRF ...................................... : Dated 2024-09-10 Test item description ..................... : LPD transmitter of RRC radio system Trademark or brand name ............. : QUICK Manufacturer ................................... : QUICK S.p.A. Model/Type reference(s) ................ : H912+ Ratings ............................................ : 4.5 V DC by AAA type (alkaline or NiMH rechargeable battery) FCC ID .............................................. : 02W-THP IC CODE ........................................... : 10492A-THP General disclaimer: The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This Report shall not be reproduced partially the written approval of IMQ S.p.A. The authenticity of this Test Report and its contents can be verified by contacting IMQ S.p.A., responsible for this Test Report. Page 2 of 12 Report No. AR24-0103138-02 Mod. TRF 3609 / 7 B USINESS U NIT P RODOTTO – A PPARECCHIATURE RADIO Responsible Assessment Laboratory and testing location(s): Assessment Laboratory: IMQ S.p.A. Assessment location/ address .................... : Viale Lombardia, 20 – IT-20021 Bollate (MI) Assessed by (name, function, signature) .. : Robertino Torri [Laboratory deputy] Page 3 of 12 Report No. AR24-0103138-02 Mod. TRF 3609 / 7 B USINESS U NIT P RODOTTO – A PPARECCHIATURE RADIO List of Attachments (including a total number of pages in each attachment): / Summary of testing Tests performed (name of test and test clause): 3.1 SAR test exclusion 3.2 RF exposure evaluation Testing location: Viale Lombardia, 20 – IT-20021 Bollate (MI) Page 4 of 12 Report No. AR24-0103138-02 Mod. TRF 3609 / 7 B USINESS U NIT P RODOTTO – A PPARECCHIATURE RADIO Possible test case verdicts: - test case does not apply to the test item . : N/A (Not Applicable) - test item does meet the requirement ....... : P (Pass) - test item does not meet the requirement . : F (Fail) IMQ reference samples BEM 117192 (Item(s) sampled and sent by applicant) Date of receipt of test item .......................... : 2024-04-23 Date of acceptance of test item ................... : 2024-04-23 Date (s) of performance of tests ................. : 2024-07-22 to 2024-07-24 General remarks: Throughout this report a comma / point is used as the decimal separator. Throughout this report, the term “Test item” is used over terms such as Test object, EUT or DUT. Name and address of factory (ies): / General product information (GPI) and other remarks: The ability or reliability of this product to perform its intended function in a particular application has not been investigated. The test results apply to the sample as received. All information relating to the details of the equipment under test at the § 1 of this document was provided by the applicant. IMQ declines any responsibility derived from missing or wrong information provided aside by the applicant. Environmental reference conditions .......... : The climatic conditions during the tests are within the limits specified by the manufacturer for the operation of the EUT and the test equipment. The climatic conditions during the tests were within the following limits: Temperature Humidity Atmospheric pressure 15 °C – 35 °C 30 % - 60 % 86 kPa – 106 kPa If explicitly required in the basic standard or applied product standard the climatic values are recorded and documented separately in this test report. The laboratory is monitored by a continuous environmental conditions measurements system. Temperature, humidity and pressure data are recorded on a weekly basis and stored in local archive. Page 5 of 12 Report No. AR24-0103138-02 Mod. TRF 3609 / 7 B USINESS U NIT P RODOTTO – A PPARECCHIATURE RADIO Table of contents 1 General description of test item........................................................................................................ 6 1.1 Test item(s) ......................................................................................................................... 6 1.2 Port(s) .................................................................................................................................. 6 1.3 Power rating(s) .................................................................................................................... 6 1.4 Additional parameters ......................................................................................................... 7 1.5 Radio parameters ................................................................................................................ 7 1.6 Electromagnetically relevant components ........................................................................... 7 1.7 Documents as provided by the applicant ............................................................................ 7 2 Verdict summary section ............................................................................................................…

Text truncated - open the document above for the full version.

CONDUCTED OUTPUT POWER MEASUREMENT This introduction outlines the procedures followed to measure the conducted power of the remote controls under test (HANDHELD and POCKET transmitters). It also describes the test setup and the specific configuration of the instrumentation employed. HANDHELD POCKET H902+ H904+ H912+ HT94+ HT98+ P902+ P904+ PT94+ PW94+ INDEX 1. HARDWARE SETUP...................................................................................................................... 2 2. EQUIPMENT LIST......................................................................................................................... 3 3. INSTRUMENTATION SETUP............................................................................................................ 4 4. TEST SETUP............................................................................................................................... 4 1. HARDWARE SETUP HANDHELD POCKET In both cases, to measure the transmission conducted power, one end of a shielded coaxial cable was soldered to the RF output of the mounted module, while an SMA connector was soldered to the other end. The core of the coaxial cable was soldered to the RF signal output point of the module, while the braid was soldered to a ground point. The conducted output power measurement point was taken upstream of the antenna matching network, as the latter is part of the remote control’s radiating system and therefore contributes to the antenna gain. The shortest possible cable was used to find a compromise between achieving a reliable core-to-signal and braid-to- ground connection and minimizing the insertion losses introduced by the cable itself. An external plastic support was used to press the buttons. The device was powered according to its rated specifications: - HANDHELD: 3 x AAA alkaline batteries, 1.5 V each. - POCKET: 1 x CR2450 3 V battery 2. EQUIPMENT LIST REF. # DESCRIPTION MODEL MANUFACTURER SERIAL NUMBER 1 FULL-ANECHOIC CHAMBER Dimens.7.5 x 5 x 3m. Pyramidal absorbers SOLIANI EMC SRL - - - 2 ISOLATING TRANSFORMER VA4000 ZU4001016.IP55 TRANSFITALIA LOT.402102 3 WOODEN TRIPOD FOR HL562 HZ-1 BERLEBACH 100473 4 WOODEN TRIPOD FOR BBHA9120E CAS 6015 SCHAFFNER - - - 5 TURN TABLE CT0800 INN-CO CT0800/033/10781005/L 6 EMI TEST RECEIVER - SPECTRUM ANALYZER ESPI7 ROHDE&SCHWARZ 1164.6407K07 - 101099 7 50-Ω LOW LOSS CABLE SET SUCOFLEX 126 HUBER & SUHNER - - - 3. INSTRUMENTATION SETUP The configuration of the R&S ESPI7 spectrum analyzer used for the conducted power measurement is reported below. PARAMETER VALUE MEASUREMENT UNIT Center Frequency 913.7 MHz Span 1 MHz Reference Level 20 dBm Attenuation 30 dB RBW 100 kHz VBW 300 kHz Detector Peak Trace Mode Max Hold Sweep Time Auto * Cable losses were compensated for in the spectrum analyzer settings using an amplitude offset. 4. TEST SETUP

RRC HANDHELD TRANSMITTER INTERNAL PHOTOS H902+ H904+ H912+ INTEGRATED ANTENNA ON PCB INTEGRATED ANTENNA ON PCB INTEGRATED ANTENNA ON PCB RRC HANDHELD TRANSMITTER INTERNAL PHOTOS HT94+ HT98+ INTEGRATED ANTENNA ON PCB INTEGRATED ANTENNA ON PCB

RRC MOD1 MODULE PHOTOS HANDHELD with shield RRC MOD1 MODULE PHOTOS HANDHELD without shield

LABEL POSITION – HANDHELD TRANSMITTERS LABEL POSITION

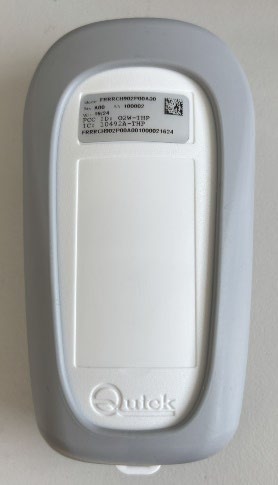

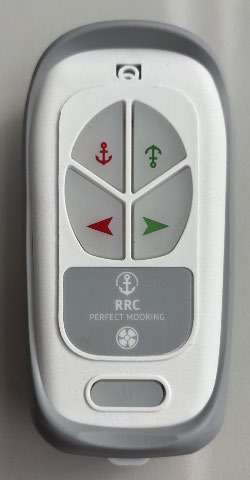

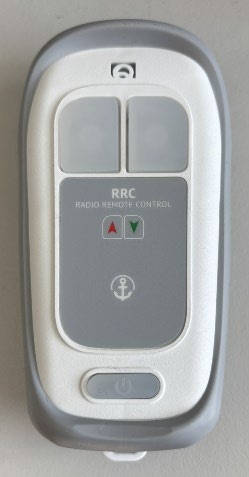

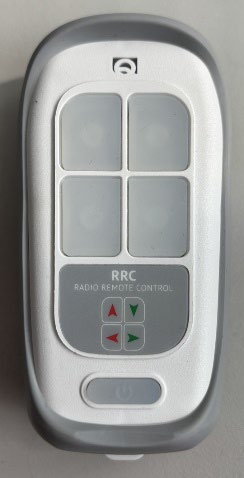

RRC HANDHELD TRANSMITTER EXTERNAL PHOTOS H902+ H904+ RRC HANDHELD TRANSMITTER EXTERNAL PHOTOS H912+ HT94+ RRC HANDHELD TRANSMITTER EXTERNAL PHOTOS HT98+
