O2Z-AZ210SMARTPHONE

Congratulations on your new phone purchase! This guide will help you to quickly setup and understand the important features on your new San Diego from Orange. welcome Note: Screen images and icons are simulated for the purpose of this guide. Actual displays may vary. Instructions in this guide may change depending on the software version on your device. a fast processor Featuring the 1.6 GHz Intel ® Atom ™ processor that delivers great performance for speedy application and web page loading, advanced multi-tasking, and smooth video playback. intelligent camera An advanced 8MP HD camera that lets you capture images quickly - up to 10 photos a second so you’ll never miss the best shot, even in challenging environments. Featuring advanced image processing for quality, color accuracy and low-light capture. These smart features mean that no matter how you capture your images, they come out exactly how you want them. great entertainment Easily create and share superb [or true] HD-quality video, and with super-smooth playback, your phone becomes a personal theatre you can take with you anywhere. To maximize your entertainment experience you can easily project your smartphone screen to your HDTV through an HDMI cable. PAGE : 2contents Contents Table of Contents ........................................................................................2 contents ..................................................................................................2 1 get started ................................................................................................4 1.1 your phone .........................................................................................4 1.2 phone buttons ....................................................................................5 1.3 phone slots, ports & jacks ...................................................................5 1.4 charge the battery ..............................................................................5 1.5 insert micro-SIM card .........................................................................6 1.6 turn on the phone ...............................................................................6 1.7 set up your phone ..............................................................................7 1.8 sleep and wake .................................................................................7 1.9 touchscreen ........................................................................................8 2 homescreen and basic features ..............................................................9 2.1 customize your homescreen .............................................................10 2.2 status and notification icons ..............................................................10 2.3 search ..............................................................................................12 2.4 secure your phone ............................................................................13 2.5 use the app launcher ........................................................................13 2.6 use the play store .............................................................................14 3 onscreen keyboard basics .....................................................................15 3.1 suggestions and auto-complete ........................................................15 3.2 swype keyboard ...............................................................................16 4 make and answer calls ...........................................................................17 4.1 use the phone tab ............................................................................17 4.2 answer and reject calls .....................................................................19 4.3 using the call log tab .........................................................................20 4.4 use the contacts tab .........................................................................20 4.5 quick contacts ..................................................................................22 4.6 contact settings ................................................................................23 4.7 use the Favorites tab ........................................................................23 5 send and receive messages ..................................................................24 5.1 send messages ................................................................................24 5.2 manage messages ...........................................................................25 5.3 message settings ..............................................................................26 6 take photos and videos ..........................................................................27 6.1 change picture & video settings ........................................................28 6.2 view your pictures and video .............................................................30 7 browse the web ......................................................................................32 7.1 bookmarks, most visited, and history ................................................33 7.2 use multiple browser windows ..........................................................33 7.3 set your home page ..........................................................................33 7.4 change browser settings ...................................................................33 8 play music ...............................................................................................35 8.1 playback screen ...............................................................................35 8.2 work with Playlists ............................................................................36 8.3 manage music on your phone...........................................................36 9 Wi-Fi/Bluetooth/VPN ..................................................................…

Text truncated - open the document above for the full version.

Rev. 1/1/03 Intel Corporation 2200 Mission College Blvd., Santa Clara, California 95052-8119, United States Tel: 408-765-0031 ; Fax: 408-765-4500 Date: August 27, 2012 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: O2Z-AZ210 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics (file: AZ210_Schem.pdf) Block Diagram (file: AZ210_BlkDia.pdf) Parts List (file: AZ210_PartsLst.pdf) Operation Description (file: AZ210_OpDes.pdf) Tune up Procedure (file: AZ210_TunPro.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Christine Ryan

Intel Corporation 2200 Mission College Blvd., Santa Clara, California 95052-8119, United States Tel: 408-765-0031 ; Fax: 408-765-4500 Date: August 27, 2012 Power of Attorney To whom it may concern, Please be notified that I, Christine Ryan, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: O2Z-AZ210 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Contact Person: Christine Ryan Company: Intel Corporation TEL: 408-300-2167 E-mail: [email protected]

1/1 Intel Corporation 2200 Mission College Blvd., Santa Clara, California 95052-8119, United States Tel: 408-765-0031 ; Fax: 408-765-4500 Date: August 27, 2012 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : O2Z-AZ210 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:
External Photos (file: AZ210_ExtPho.pdf)
Internal Photos (file: AZ210_IntPho.pdf)
Test Setup Photos (file: AZ210_Tsup.pdf)
User Manual (file: AZ210_UserMan.pdf) The application contains technical information, which Intel Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Christine Ryan

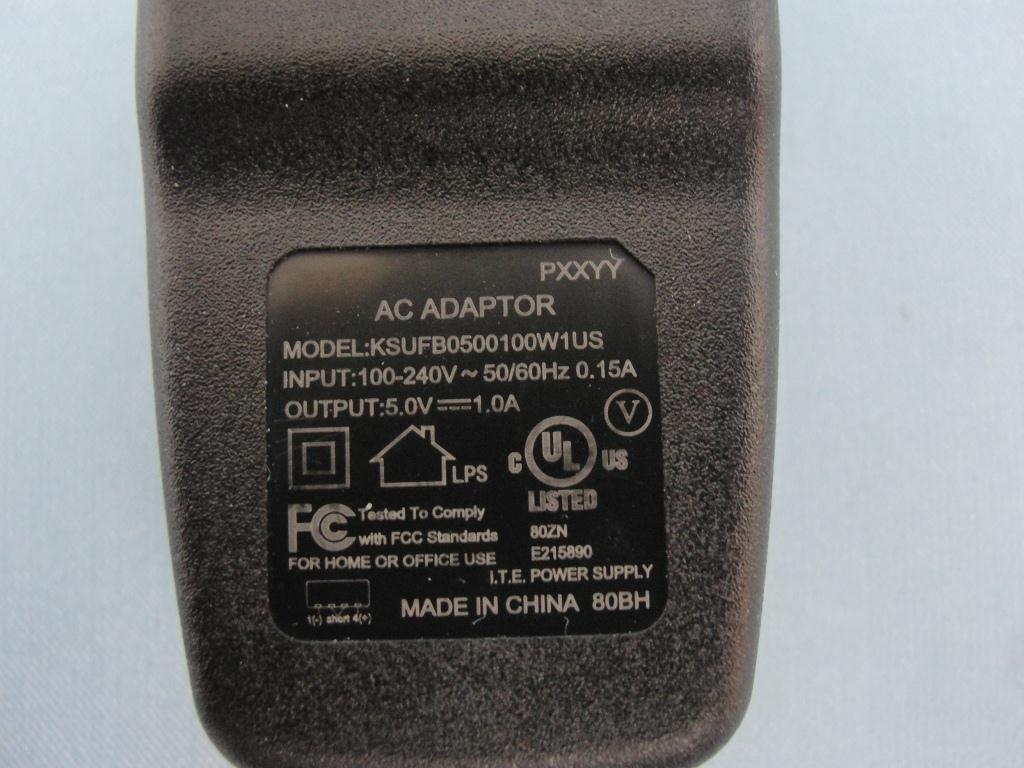

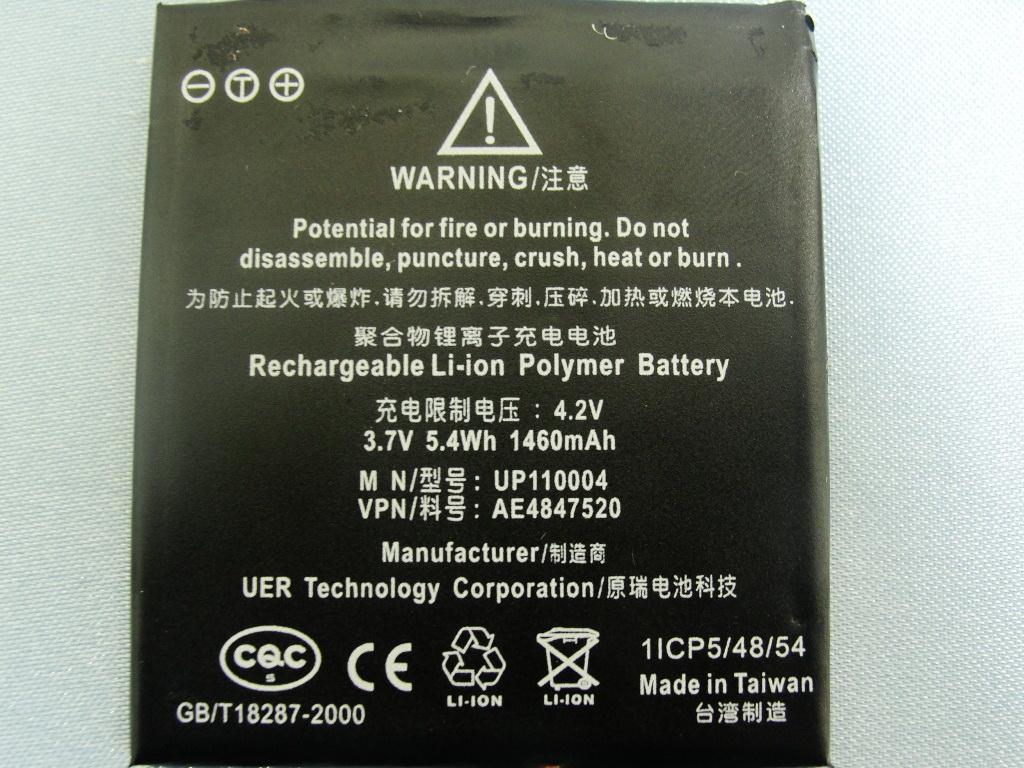

Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 1 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 2 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 3 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 List of Accessory: Specification of Accessory AC Adapter Brand Name PCH Model Name KSUFB0500100W1US Battery Brand Name UER Model Name UP110004 Earphone Brand Name PCH Model Name ME-828A3 USB Cable Brand Name PCH Model Name PKBB20508B01 LCD Panel Brand Name Toshiba Model Name LT040MDT6200 Camera Brand Name Liteon Model Name 11P1BA812 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 4 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 720510 Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 5 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 AC Adapter Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 6 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 Battery

Label Location Back cover of EUT

Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 7 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 8 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 9 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 10 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 11 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 WLAN & Bluetooth Antenna <Tx/Rx> Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 12 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 GPS Antenna <Rx> Photographs of EUT Report No.: EP232306 Brand Name: Intel ; Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 13 of 13 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 NFC Antenna <Tx/Rx>

Photographs of EUT Report No.: EP232306 Brand Name: Intel / Model Name / Marketing Name: AZ210 SPORTON INTERNATIONAL INC. Page Number : 1 of 1 TEL : 886-3-327-3456 Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: O2Z-AZ210 Antenna location Length Width WWAN Antenna <TX / RX> 3.6cm 1.0cm NFC Antenna <TX / RX> 5.0cm 4.0cm WLAN & Bluetooth Antenna <TX / RX> 2.3cm 0.9cm GPS Antenna <RX> 1.85cm 1.6cm GPS Antenna <RX> WWAN Antenna <TX / RX> WLAN & Bluetooth Antenna <TX / RX> NFC Antenna <TX / RX> 2.5 cm 1.3 cm 1 cm 0.2 cm 0.15 cm 0.15 cm 0.2 cm 0.1 cm 4.8cm 11.2cm 11.1 cm

SPORTON INTERNATIONAL INC. Page Number : 1 of 47 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 FCC SAR Test Report Report No. : FA232306 FCC SAR Test Report APPLICANT : Intel Corp. EQUIPMENT : Android Smart Phone BRAND NAME : Intel MODEL NAME / MARKETING NAME : AZ210 FCC ID : O2Z-AZ210 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on May 04, 2012 and completely tested on May 15, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 47 TEL : 886-3-327-3456 Report Issued Date : Sep. 03, 2012 FAX : 886-3-328-4978 Report Version : Rev. 02 FCC ID : O2Z-AZ210 FCC SAR Test Report Report No. : FA232306 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (DUT) .......................................................................................................... 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standards .................................................................................................................................................. 8 3.4 Device Category and SAR Limits ........................................................................................................................... 8 3.5 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) .......................................................................................................................12 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................13 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................16 5.8 Test Equipment List ...............................................................................................................................................18 6. Tissue Simulating Liquids ...........................................................................................................................................20 7. Uncertainty Assessment .............................................................................................................................................22 8. SAR Measurement Evaluation ....................................................................................................................................25 8.1 Purpose of System Performance check ................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/5 System Check_Head_835MHz_120505 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_120505 Medium parameters used: f = 835 MHz; σ = 0.881 mho/m; ε r = 42.2; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.39, 6.39, 6.39); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.62 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.9 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 3.37 W/kg SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.59 mW/g Maximum value of SAR (measured) = 2.60 mW/g 0 dB = 2.60mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/5 System Check_Body_835MHz_120505 DUT: D835V2-SN:499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_835_120505 Medium parameters used: f = 835 MHz; σ = 0.997 mho/m; ε r = 55.1; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.22, 6.22, 6.22); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.72 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 54.6 V/m; Power Drift = -0.021 dB Peak SAR (extrapolated) = 3.46 W/kg SAR(1 g) = 2.51 mW/g; SAR(10 g) = 1.68 mW/g Maximum value of SAR (measured) = 2.72 mW/g 0 dB = 2.72mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/5 System Check_Head_1900MHz_120505 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_120505 Medium parameters used: f = 1900 MHz; σ = 1.44 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(5.03, 5.03, 5.03); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: SAM-Left; Type: QD 000 P40 C; Serial: TP-1478 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 11.5 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 90.0 V/m; Power Drift = 0.101 dB Peak SAR (extrapolated) = 18.6 W/kg SAR(1 g) = 10.1 mW/g; SAR(10 g) = 5.21 mW/g Maximum value of SAR (measured) = 11.4 mW/g 0 dB = 11.4mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/4 System Check_Body_1900MHz_120504 DUT: D1900V2-SN:5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: MSL_1900_120504 Medium parameters used: f = 1900 MHz; σ = 1.51 mho/m; ε r = 55; ρ = 1000 kg/m 3 Ambient Temperature：22.7 °C; Liquid Temperature：21.7 °C DASY4 Configuration: - Probe: ES3DV3 - SN3270; ConvF(4.64, 4.64, 4.64); Calibrated: 2011/9/12 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011/6/20 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (91x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.1 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.6 V/m; Power Drift = -0.010 dB Peak SAR (extrapolated) = 17.8 W/kg SAR(1 g) = 9.69 mW/g; SAR(10 g) = 5 mW/g Maximum value of SAR (measured) = 11.0 mW/g 0 dB = 11.0mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-05-10 System Check_Head_2450MHz_120510 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_120510 Medium parameters used: f = 2450 MHz; σ = 1.84 mho/m; ε r = 39.3; ρ = 1000 kg/m 3 Ambient Temperature：22.6 °C; Liquid Temperature：21.6 °C DASY4 Configuration: - Probe: ET3DV6R - SN1788; ConvF(3.99, 3.99, 3.99); Calibrated: 2012-01-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011-06-20 - Phantom: SAM_Left; Type: SAM; Serial: TP-1150 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Pin=250mW/Area Scan (61x61x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 16.3 mW/g Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 94.0 V/m; Power Drift = -0.027 dB Peak SAR (extrapolated) = 33.1 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6.23 mW/g Maximum value of SAR (measured) = 15.5 mW/g 0 dB = 15.5mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012-05-10 System Check_Body_2450MHz_120510 DUT: D2450V2-SN:736 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120510 Medium parameters used: f = 2450 MHz; σ = 2 mho/m; ε r = 54; ρ = 1000 kg/m 3 Ambient Temperature：22.4 °C; Liquid Temperature：21.4 °C DASY4 Configuration: - Probe: ET3DV6R - SN1788; ConvF(3.55, 3.55, 3.55); Calibrated: 2012-01-26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn577; Calibrated: 2011-06-20 - Phantom: SAM_Right; Type: SAM; Serial: TP-1303 - Measurement SW: DASY4, V4.7 Build 80; Po…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/5 #50 GSM850_GPRS12_Right Cheek_Ch189 DUT: 232306 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: HSL_850_120505 Medium parameters used: f = 836.4 MHz; σ = 0.882 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.39, 6.39, 6.39); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.729 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.87 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.803 W/kg SAR(1 g) = 0.692 mW/g; SAR(10 g) = 0.533 mW/g Maximum value of SAR (measured) = 0.718 mW/g 0 dB = 0.718mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/5 #50 GSM850_GPRS12_Right Cheek_Ch189_2D DUT: 232306 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: HSL_850_120505 Medium parameters used: f = 836.4 MHz; σ = 0.882 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.39, 6.39, 6.39); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.729 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.87 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.803 W/kg SAR(1 g) = 0.692 mW/g; SAR(10 g) = 0.533 mW/g Maximum value of SAR (measured) = 0.718 mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/5 #51 GSM850_GPRS12_Right Tilted_Ch189 DUT: 232306 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: HSL_850_120505 Medium parameters used: f = 836.4 MHz; σ = 0.882 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.39, 6.39, 6.39); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/Area Scan (61x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.442 mW/g Ch189/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.0 V/m; Power Drift = -0.048 dB Peak SAR (extrapolated) = 0.496 W/kg SAR(1 g) = 0.424 mW/g; SAR(10 g) = 0.329 mW/g Maximum value of SAR (measured) = 0.446 mW/g 0 dB = 0.446mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/5 #52 GSM850_GPRS12_Left Cheek_Ch189 DUT: 232306 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2 Medium: HSL_850_120505 Medium parameters used: f = 836.4 MHz; σ = 0.882 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6 - SN1787; ConvF(6.39, 6.39, 6.39); Calibrated: 2011/5/20 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn910; Calibrated: 2011/12/7 - Phantom: SAM-Right; Type: QD 000 P40 C; Serial: TP-1383 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch189/…

Text truncated - open the document above for the full version.
