O3L-PT-02-MRWireless Desktop Optical Mouse

User Manual User Manual Wireless Keyboard/Mouse Wireless Keyboard/Mouse M/N: PT-2002-X Compatible with all IBM-compatible PCs and equipped with USB interface. Windows XP, 2000, 98SE, ME Compatible Equipment Compatible with Windows Operating Systems: Instruction Of The Wireless Keyboard/Mouse Please read the instruction for installing, operating, and using the wireless desktop. 1 2 Note FEDERAL COMMUNICATIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions :(1) this device may not cause harmful interference, and (2) this device must accept anyinterference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation if this equipment does cause harmful interference to radio or television, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/TV technician of help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Please Review this Checklist Your System Includes: Wireless mouse 1 AAA size batteries 2 Instruction manual 1 AA size battery 2 Wireless keyboard 1 Receiver 1 3 4 Receiver 2.1. 4. Press the reset button on the mouse. 5. Press the receiver button. Press the connect button on the keyboard. 3. Insert the batteries in the mouse and keyboard. 6. Insert CD disk to your computer Connect the receiver to your USB port. USB Enjoy using Your keyboard and mouse. 3. Move your mouse or keyboard to make sure the connection. 4.If the mouse or keyboard doesn't work properly, please repeat step 4 to step 6. 5. Every time after you replace batteries, please reconnect your devices. ( step 4 to step 6) 6. In office or multi-user environment, set up each system separately and don't move or click other devices when one system is under installation. 1.Please complete step 4 to step 6 within 30seconds 2.Insert the driver disk and install. For any further question, please refer to the CD-ROM instruction manual. Wireless Mouse ConnectionConnection ConnectionConnection For the hot key function descriptions, please to software help file. Extendable props on the keyboard may be adjusted in two stages to optimize the position for the user. Wireless Keyboard Operating Software installation If you have previously installed other keyboard ormouse drivers on your PC, please uninstall them first. Insert the driver disk to install the program for Multimedia and Internet functions. If the program does not auto-run, please read this menu page 5 "Software Installation Guide." Quick Installation Guide. Product Features: USB Standard Keyboard Hotkey Functions Volume Down - Decreases your system volume My Music - Launch Microsoft my music My Picture - Launch Microsoft my picture My Documents - Launch Microsoft my Documents Volume Up - Increases your system volume Volume Mute - Mutes your system volume Play / Pause - Starts and stops the playback of your Audio and Video applications Stop Refresh - Reload the current web page Mail - Open your systems's default E-mail application WWW - Open your systems's default Internet Browser Previous Track - Back to the previous track Next Track - Go to the next track My Favorite - Open you favorite list 5 Maintaining your hardware and resolving basic problems A desk made of iron will negatively impact wireless keyboard and mouse operations. If your cursor is controlled by another system in an office or multi-user environment, try to unload the batteries, insert them again after 2 minutes and repeat step 5 to step 7 of the quick installation guide. Please locate the receiver at a minimum distance of 20 cm away from computer chassis, monitors, zip-drives, speakers, or switching power supply. Normal expected battery life for the keyboard and mouse units: Battery life is greatly affected by the length of time these units are in use. Under "normal" usage conditions, you may expect unit batteries to last between two and three months. The environment within which the units are used will also affect the length of battery life. If your devices don't function smoothly, you may try the following steps: a. replace with new batteries b. repeat step 5 to step 7 of the quick installation guide to ensure connection c. move mouse and keyboard closer to receiver Product Number Over 20cm USB Keyboard USB Mouse Receiver Desktop PT-2002-X PT-2002-K3L PT-2002-MR PT-2002-RLPUM, PT-2002-RLPUJ, PT-2002-RLPU I 5

Paten Wireless technology Inc. Jan, 22,2003 FCC ID:O3L-PT-02-MR Federal Communications Commission Authorization and Evaluation Division Confidentially Request Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the grant for this application. With best regards

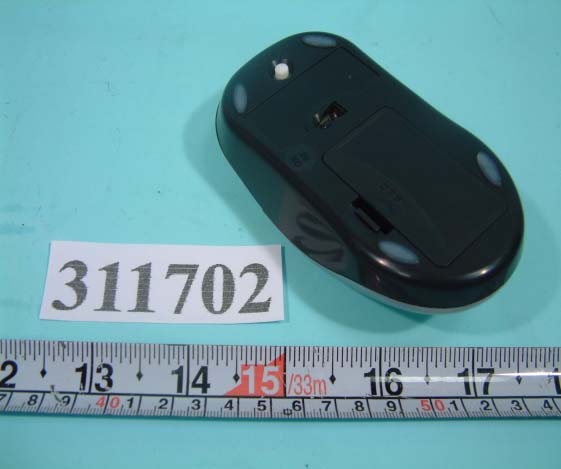

FCC ID: O3L-PT-02-MR NUMBER 1 FRONT SIDE OF EUT FCC ID: O3L-PT-02-MR NUMBER 2 REAR SIDE OF EUT

FCC ID : O3L-PT-02-MR FCC ID LOCATION (MOUSE)

XXXXXXXX Wireless Desktop Wireless Desktop 2 9 . 8 0 Wireless Desktop XXXXXXXXXXX TXXXXX Rating:3V 10mA TXXXXX TXXXXX

FCC ID : O3L-PT-02-MR Number 1 Mechanical Construction FCC ID : O3L-PT-02-MR Number 2 Mechanical Construction FCC ID : O3L-PT-02-MR Number 3 Mechanical Construction FCC ID : O3L-PT-02-MR Number 4 Mechanical Construction FCC ID : O3L-PT-02-MR Number 5 Mechanical Construction FCC ID : O3L-PT-02-MR Number 6 Front side of Main Board FCC ID : O3L-PT-02-MR Number 7 Rear side of Main Board FCC ID : O3L-PT-02-MR Number 8 Front side of Scroll Wheel Board FCC ID : O3L-PT-02-MR Number 9 Rear side of Scroll Wheel Board

Work Basis Mouse (FCC ID: O3L-PT-02-MR): 1.When the mouse were moved, the IRPT would detect the glide signal to also transmit signal to the MCU. 2.The MCU will convert the signal and modulate the signal. (Use FSK mode) 3.Through the 27MHZ frequency transmit the modulation signal. Keyboard (FCC ID: O3L-PT-02-K3L): 1.When user typing the keyboard, membrane will detect the user typing character also transmit signal to the MCU. 2.The MCU will convert the signal and modulate the signal. (Use FSK mode ) 3.Through the 27MHZ frequency transmit the modulation signal. Receiver: 1.When the receiver receives the modulation signal will demodulate signal through RF circuit. And responds signal to MCU. 2.The MCU meeting converts the signal PC acceptable format.

FCC TEST REPORT Report No.: F311702 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Wireless Desktop (Optical Mouse) Model No. : PT-2002-X; PT-2002-MR FCC ID : O3L-PT-02-MR Filing Type : Certification Applicant : Paten Wireless Technology Inc. 4F, No. 50, Lane 10, Jihu Road, Neihu, Taipei 114, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: F311702 SPORTON International Inc. FCC ID : O3L-PT-02-MR TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Feb. 13, 2003 Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1. Test Manner ....................................................................................................................................................................................3 2.2. Description of Test System .............................................................................................................................................................3 2.3. Band edge compliance plot per 15.227(b). .....................................................................................................................................5 2.4. Connection Diagram of Test System ..............................................................................................................................................6 3. General Information of Test............................................................................................................................7 3.1. Test Facility .....................................................................................................................................................................................7 3.2. Test Voltage ....................................................................................................................................................................................7 3.3. Standard for Methods of Measurement...........................................................................................................................................7 3.4. Test in Compliance with ..................................................................................................................................................................7 3.5. Frequency Range Investigated .......................................................................................................................................................7 3.6. Test Distance ..................................................................................................................................................................................7 4. Test of Conducted Powerline .........................................................................................................................8 5. Test of Radiated Emission..............................................................................................................................9 5.1. Major Measuring Instruments..........................................................................................................................................................9 5.2. Test Procedures ............................................................................................................................................................................10 5.3. Typical Test Setup Layout of Radiated Emission..........................................................................................................................11 5.4. Test Result of Radiated Emission .................................................................................................................................................12 6. EMI Suppression Component List ...............................................................................................................13 7. Antenna Factor & Cable Loss ......................................................................................................................14 8. List of Measuring Equipments Used ...........................................................................................................15 9. Uncertainty of Test Site …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F311702 SPORTON International Inc. FCC ID : O3L-PT-02-MR TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued Date : Feb, 13, 2003 1.1. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
