O3L-PT-02-MSLabtec Wireless Optical Desktop

Labtec ® Wireless Optical DesktopGetting Started Guide English English Important ErgonomicInformationLong periods of repetitive motions using an improperly set-up workspace, incorrect body position, and poor workhabits may be associated with physical discomfortand injury to nerves, tendons, and muscles.If you feel pain, numbness, weakness, swelling,burning, cramping, or stiffness in these areas,see a qualified health professional. For more information,please read the Comfort Guidelines located on the Labtec ® Software CD. 1 Turn off the computer 2 Remove the old keyboardand mouse Caution! If you have previously installed other keyboard or mousedrivers on your computer, please remove them first!(Use Windows ® Add/Remove Programs in the Windows ® Control Panel.) Do not proceed with installation until youhave removed these old drivers. They may interfere withthe proper operation of your new keyboard and mouse. 3 Connect the keyboardand mouse receivercables 4 Install the batteries in thekeyboard and the mouse Refer to the ba tter y dia gram inside the battery compartment. Note where the positive and negative ends of the batteries are to be inserted. Mouse cable is green and has a mouse icon. Keyboard cable is purple and has a keyboard icon. 5 Turn on the computer 6 Establish communicationbetween the receiverand keyboard and mouse Press the connect button on the receiver, then press thereset button on the mouse. Next, press the connect buttonon the receiver again, and press the reset button onthe keyboard. Note: you only have 10 seconds fromthe time you press the receivers button to press the mouseor keyboard reset buttons. 7 Install the software 1. Insert the software CD into the CD-ROM drive of the computer. 2. Follow the on-screen instructions to finish installing the software (double click on the “SETUP” iconif installation does not start automatically). 8 Troubleshooting If your keyboard or mouse does not work, try the following:Remove the old mouse and keyboard drivers.Refer to step 2.Check cable connections. The receiver’s keyboard cable plugs into the PS/2 keyboard port on the back of thecomputer. The receiver’s mouse cable plugs into the PS/2mouse port. Refer to step 3. Check battery installation. Refer to the battery diagram inside the battery compartments. Refer to step4. Battery life is 2-6 months, depending on usage.Establish communications. Keep the distance between the receiver and the keyboard and mouse within 1 meter (1.5 meters max). Some objects may affect the operatingdistance or completely block the signal. Metallic surfaceswill shorten transmission distances. Refer to step 6. Introduction to the Labtec ® Wireless Desktop The Labtec ® Wireless Desktop is loaded full of features. A wireless 3-button wheel mouse and a wireless 110 key multimedia keyboard connect to your computer with a single receiver using RF (Radio Frequency) technology. This customdesigned receiver can accept signals up to 1.5 meters away. We have included all the batteries you need to get started.Battery life will depend greatly on the amount of usage but you can expect in excess of 2-6 months. Labtec ® Wireless Mouse Utility Program The utility program uses your normal “Mouse Control Panel”. This addition adds two sets of tabs to the menus(“Wheel” and Buttons”). For additional help with all “Mouse Control Panel” items use the help buttons locatedin the menus.Scrolling FunctionsThese controls enable and disable smooth scrolling and the number of lines to scroll at a time. See the Details buttonfor more information.3rd Button FunctionalityThese controls support the functions of the middle wheel button. The available controls are outlined here. See the Helpbutton for more details.• Universal Scroll – Allows you to change the scrolling style and speeds of the mouse wheel. • Zooming – Magnify a section of your screen for easier viewing of small text and graphics. • Auto Scroll – Program the screen to scroll by the direction of mouse movement. • Vertical Wheel Cooperate Functions – This provides 3 types of additional functions to the scroll wheel including; zoom, shift lock, and switch from vertical to horizontal scrolling. • Other Functions – Among these additional functions are “Backspace”, “F1”, and “Delete” plus activation of other special functions of Windows and Explorer. Labtec keyboard multi-Media Key Assignments1. Play/Pause – Starts and stops the playback of your Audio and Video applications 2. Volume Mute – Mutes your system volume 3. Refresh – Refreshes the currently displayed web page 4. Internet – Opens your system default Internet Browser 5. Mail – Opens your systems default E-mail application 6. Volume Up – Increases your system volume 7. Volume Down – Decreases your system volume Low Battery LightsIf the light in the front of the mouse or the top left of the keyboard does not go on when you move the mouse or pressa key, the voltage of the battery is low. Please replace your batteries. Expected battery life is 2 to 6 months dependingon usage. Refer to the Battery Warning document located on the CD for more information on battery safety.Maintenance of your Wireless Desktop • You may c lean the surface of the Mouse and Keyboard with a soft damp c loth. • Do not use any harsh or abrasive cleaners• Before using any chemical cleaners, please test the results on the bottom of the device. Warranty and FCCThis product comes with a limited 2-year warranty and is FCC compliant. For more information, please read the includedProduct Warranty and FCC document located on the software CD.Customer ServiceIf you need additional help with your product, contact Labtec at (702) 269-3612 or on the web at: www.labtec.com.© 2003 Labtec. All rights reserved. Labtec, the Labtec logo, and other Labtec marks are owned by Labtec and may be registered.All other trademarks are the property of their respective owners. English English English Federal Communication Commission Interference Statement This equipment has been te…

Text truncated - open the document above for the full version.

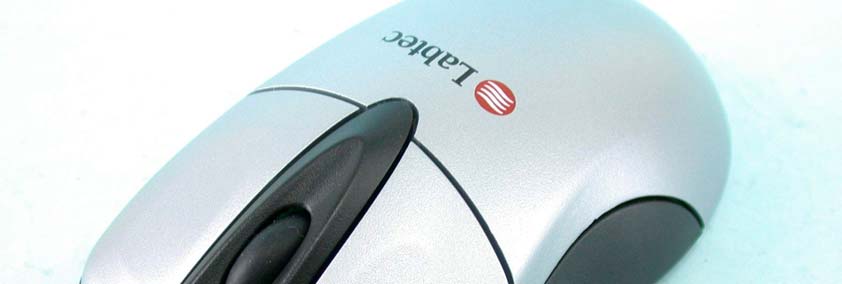

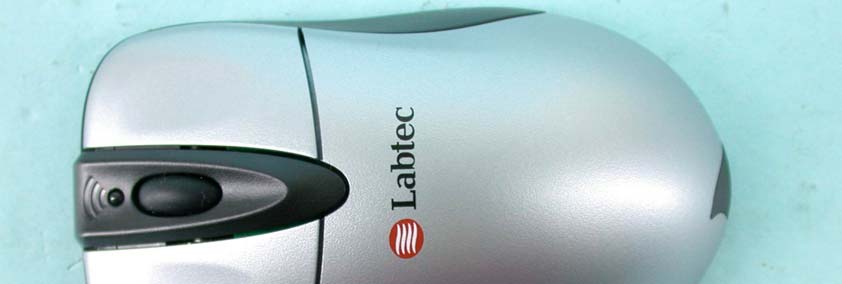

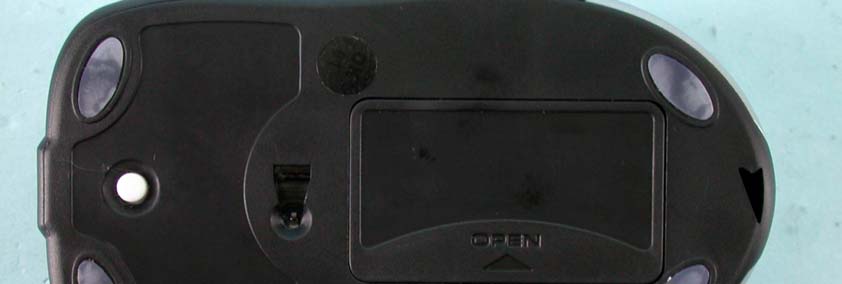

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

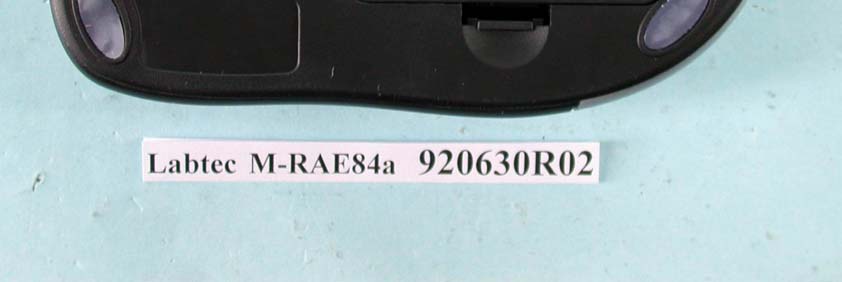

Label Location

Page 3 Page 4 Page 5 Page 6

FCC ID: O3L-PT-02-MS ADT No.920630R02 Operational Description The transmitter of the EUT ( Labtec Wireless Optical Desktop) is powered by 3V Battery. The transmitter use printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: O3L-PT-02-MS Report No.: RF920630R021Issued: July 15, 2003 FCC TEST REPORT REPORT NO.: RF920630R02 MODEL NO.: M-RAE84a RECEIVED: June 30, 2003 TESTED: July 3 ~ 5, 2003 APPLICANT: Paten Wireless Technology Inc. ADDRESS: 4F, No.50, Lane. 10, Jihu Road, Neihu, Taipei 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: O3L-PT-02-MS Report No.: RF920630R022Issued: July 15, 2003 Table of Contents 1CERTIFICATION.............................................................................................. 3 2SUMMARY OF TEST RESULTS ..................................................................... 4 3GENERAL INFORMATION .............................................................................. 5 3.1GENERAL DESCRIPTION OF EUT ....................................................................................... 5 3.2DESCRIPTION OF TEST MODES ......................................................................................... 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................................ 6 3.4DESCRIPTION OF SUPPORT UNITS ................................................................................... 6 4TEST PROCEDURE AND RESULT................................................................. 7 4.1Conducted Emission Measurement ........................................................................................ 7 4.2Radiated Emission Measurement ........................................................................................... 7 4.2.1Limits of Radiated Emission Measurement ......................................................................... 7 4.2.2Test Instrument .................................................................................................................... 8 4.2.3Test Procedure ..................................................................................................................... 9 4.2.4Test Setup .......................................................................................................................... 10 4.2.5EUT OPERATING CONDITION......................................................................................... 10 4.2.6Test Result ..........................................................................................................................11 4.3ANTENNA REQUIREMENT.................................................................................................. 13 4.3.1STANDARD APPLICABLE................................................................................................. 13 4.3.2ANTENNA CONNECTED CONSTRUCTION .................................................................... 13 5PHOTOGRAPHS OF THE TEST CONFIGURATION .................................... 14 6INFORMATION ON THE TESTING LABORATORIES................................... 15 FCC ID: O3L-PT-02-MS Report No.: RF920630R023Issued: July 15, 2003 1 CERTIFICATION PRODUCT : Labtec Wireless Optical Desktop BRAND NAME : Labtec MODEL NO : M-RAE84a TEST ITEM: ENGINEERING SAMPLE APPLICANT : Paten Wireless Technology Inc. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from July 3 ~ July 5, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: O3L-PT-02-MS Report No.: RF920630R024Issued: July 15, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –15.10dBuV at 324.51MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: O3L-PT-02-MS Report No.: RF920630R025Issued: July 15, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Labtec Wireless Optical Desktop MODEL NO. M-RAE84A POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz BANDWIDTH OF EACH CHANNEL NA NUMBER OF CHANNEL 1 ANTENNA TYPE Printed Antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a Wireless Mouse. 2. For more detailed feature description of the EUT, please refer to user’s manual. FCC ID: O3L-PT-02-MS Report No.: RF920630R026Issued: July 15, 2003 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045 MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Labtec Wireless Optical Desktop. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: O3L-PT-02-MS Report No.: RF920630R027Issued: July 15, 2003 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radia…

Text truncated - open the document above for the full version.

Occupied Bandwidth

FCC ID: O3L-PT-02-MS Report No.: RF920630R0214Issued: July 15, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
