O3L-PT-02-MVWireless Optical Travel Mouse

Travel Mouse Wireless User Manual Please read the instruction for installing, operating, and using the wireless Travel Mouse. If the travel mouse is not functional for compatibiliry problem, please up date your operation system. Your System Includes: Please Review this Checklist Windows XP, 2000, ME, 98SE Compatible with Windows Operating Systems: Features of Travel Mouse Compact and ergonomic design Easy to carry for users to travel around USB interface to enable Plug and Play Low power indication Compatible with all IBM-compatible PCs and equipped with USB interface. Compatible Equipment Maintaining your hardware and resolving basic problems If the mouse doesn't work smoothly and properly, please try to do the following improvements: Check the battery and replace with a new one when the LED of the mouse turns from green to red. Adjust the angle of the external antenna to get better performance. If your cursor is controlled by another Travel Mouse in an office or multi-user environment, please proceed "Switching Security ID of Travel Mouse" procedure accordingly. Please check the USB plug of the receiver is properly installed into the USB socket of your Notebook / Laptop. Please keep iron-made office partitions, computer chassis, monitors, zip-drives, speakers, and switching power supply, 20 cm at least away from the mouse and receiver. If the above points don't improve your utility, please move the mouse closer to the receiver to avoid any unidentified interferences. Quick Installation Guide. Taking the receiver out of mouse Press the reject button on the bottom of the mouse Take the receiver out of the compartment Storing the receiver into mouse 1.Place the receiver 90 to the compartment. 2.Press the receiver into the compartment when the receiver is in the compartment of the mouse, power supply is automatically off to stop power consumption Battery replacement 2.Take out the exhausted battery and replace with a new one. 1.Open the battery cover of mouse. How to install Travel Mouse to your Notebook / Laptop 1.Take out the receiver from the mouse compartment. Plug it into USB port of your Notebook / Laptop. 2.Move it and enjoy the freedom. If your Travel Mouse doesn't work smoothly, please adjust the angle of the antenna stick on the side the receiver to improve it. Switching security ID of Travel Mouse to avoid different users interference under multi-users environment. 1.Press the connection button on the upper side of receiver. 2.Press the reset button on the bottom of mouse. 3.Waiting for 5 seconds and enjoy it again. ID code will be renewed to default one each time when power is on. When your notebook is under sleeping mode or stand-bymode,your USB ports might not remain power-on,which lead to replace by default ID Please repent above steps M/N : The LED of Travel Mouse will turn red when its battery is low. PT-2002-Y PT-2003-D PT-2003-A PT-2002-Y2 PT-2002-Y1 Receiver Wireless mouse PT-2002-MVPT-2002-MZPT-2002-MYPT-2003-MAPT-2003-MC PT-2002-RSUK Product Number Receiver Wireless mouse AAA size batteries Instruction manual 1 1 2 1 6cm EJECT EJECTEJECT EJECTEJECT EJECT EJECT EJECT EJECT EJECT

Paten Wireless technology Inc. Jan, 02,2003 FCC ID:O3L-PT-02-MV Federal Communications Commission Authorization and Evaluation Division Confidentially Request Pursuant to Section 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the grant for this application. With best regards

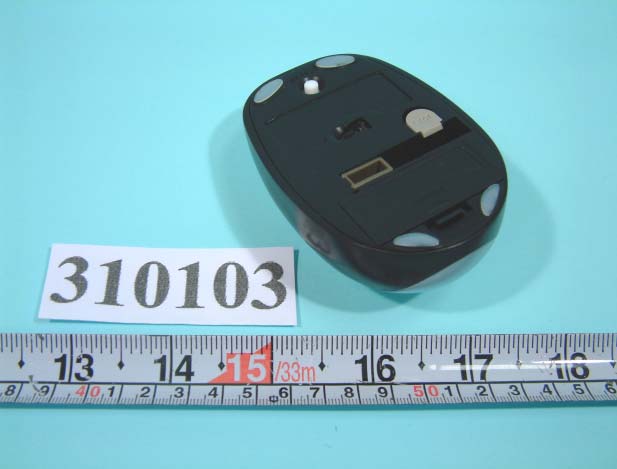

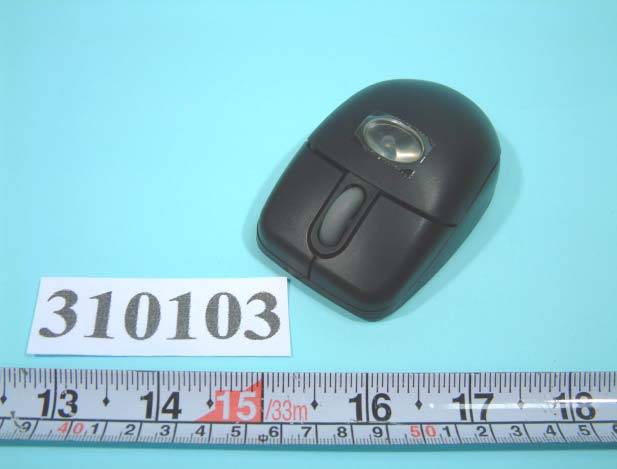

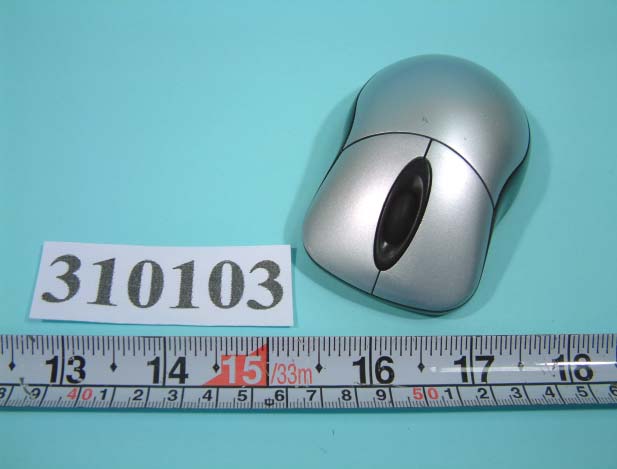

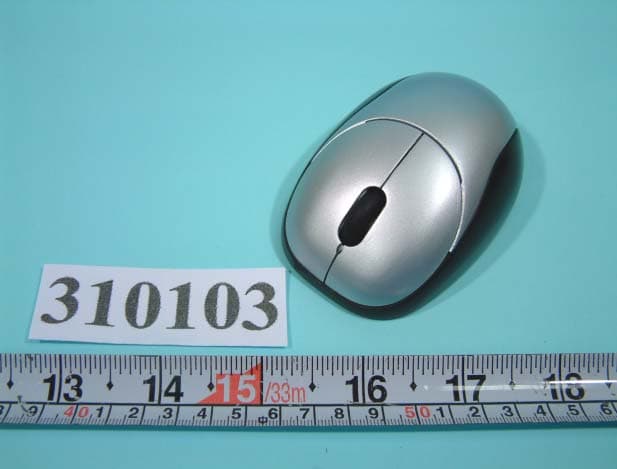

FCC ID: O3L-PT-02-MV NUMBER 1 FRONT SIDE OF EUT (PT-2002-MY) FCC ID: O3L-PT-02-MV NUMBER 2 REAR SIDE OF EUT (PT-2002-MY) FCC ID: O3L-PT-02-MV NUMBER 3 FRONT SIDE OF EUT (PT-2002-MA) FCC ID: O3L-PT-02-MV NUMBER 4 REAR SIDE OF EUT (PT-2002-MA) FCC ID: O3L-PT-02-MV NUMBER 5 FRONT SIDE OF EUT (PT-2002-MC) FCC ID: O3L-PT-02-MV NUMBER 6 REAR SIDE OF EUT (PT-2002-MC) FCC ID: O3L-PT-02-MV NUMBER 7 FRONT SIDE OF EUT (PT-2002-MZ) FCC ID: O3L-PT-02-MV NUMBER 8 REAR SIDE OF EUT (PT-2002-MZ)

FCC ID : O3L-PT-02-MV FCC ID LOCATION

PT-2002-RSUK Paten Optical RX Label MADE IN CHINA M/N:XXXXXXXXXX XXXXXXXX XXXXXT Wireless Optical Travel Mouse PT-2002-Y1 MADE IN CHINA M/N:XXXXXXXXXX 45.5 20.5 4-R0.8 Paten Optical TM Label 0470 XXXXXXXX PT-2002-MY Wireless Optical Travel Mouse PT-2002-Y2 MADE IN CHINA M/N:XXXXXXXXXX Fcc ID:O3L-PT-02-MV 45.5 20.5 4-R0.8 Paten Optical TM Label 0470 XXXXXXXX PT-2002-MZ Wireless Optical Travel Mouse PT-2003-A MADE IN CHINA M/N:XXXXXXXXXX 45.5 20.5 4-R0.8 Paten Optical TM Label 0470 XXXXXXXX PT-2003-MA Wireless Optical Travel Mouse PT-2003-D MADE IN CHINA M/N:XXXXXXXXXX 45.5 20.5 4-R0.8 Paten Optical TM Label 0470 XXXXXXXX PT-2003-MC Rating:5V 15mA Rating:3V 40mA Rating:3V 40mA Rating:3V 40mA Rating:3V 40mA TXXXXX TXXXXX TXXXXXTXXXXX TXXXXXTXXXXX Fcc ID:O3L-PT-02-MV Fcc ID:O3L-PT-02-MV Fcc ID:O3L-PT-02-MV

FCC ID : O3L-PT-02-MV Number 1 Mechanical Construction FCC ID : O3L-PT-02-MV Number 2 Mechanical Construction FCC ID : O3L-PT-02-MV Number 3 Mechanical Construction FCC ID : O3L-PT-02-MV Number 4 Mechanical Construction FCC ID : O3L-PT-02-MV Number 5 Front side of Scroll Wheel Board FCC ID : O3L-PT-02-MV Number 6 Rear side of Scroll Wheel Board FCC ID : O3L-PT-02-MV Number 7 Front side of Main Board FCC ID : O3L-PT-02-MV Number 8 Rear side of Main Board

Work Basis FCC ID: O3L-PT-02-MV Mouse: 1.When the mouse were moved, the IRPT would detect the glide signal to also transmit signal to the MCU. 2.The MCU will convert the signal and modulate the signal. (Use FSK mode) 3.Through the 27MHZ frequency transmit the modulation signal. Receiver: 1.When the receiver receives the modulation signal will demodulate signal through RF circuit. And responds signal to MCU. 2.The MCU meeting converts the signal PC acceptable format.

FCC TEST REPORT Report No. : F310103 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Wireless Optical Travel Mouse Model No. : PT-2002-MY, PT-2002-MZ, PT-2003-MA, PT-2003-MC FCC ID : O3L-PT-02-MV Filing Type : Certification Applicant : Paten Wireless Technology Inc. 4F, No. 50, Lane 10, Jihu Road, Neihu, Taipei 114, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F310103 SPORTON International Inc. FCC ID : O3L-PT-02-MV TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Feb. 28, 2003 Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 Mouse....................................................................................................................................................................3 ITEM .......................................................................................................................................................................................................3 SPEC ......................................................................................................................................................................................................3 REMARK.................................................................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................4 2.3. Band edge compliance plot per 15.227(b). .....................................................................................................................................6 2.4. Connection Diagram of Test System ..............................................................................................................................................7 3. General Information of Test............................................................................................................................8 3.1. Test Facility .....................................................................................................................................................................................8 3.2. Test Voltage ....................................................................................................................................................................................8 3.3. Standard for Methods of Measurement...........................................................................................................................................8 3.4. Frequency Range Investigated .......................................................................................................................................................8 3.5. Frequency Range Investigated .......................................................................................................................................................8 3.6. Test Distance ..................................................................................................................................................................................8 4. Test of Conducted Powerline .........................................................................................................................9 5. Test of Radiated Emission............................................................................................................................10 5.1. Major Measuring Instruments........................................................................................................................................................10 5.2. Test Procedures ............................................................................................................................................................................11 5.3. Typical Test Setup Layout of Radi…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F310103 SPORTON International Inc. FCC ID : O3L-PT-02-MV TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued Date : Feb, 28, 2003 1.1. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
