O3L-PT-04-PA2.4GHz Notebook Presenter

Français 1 2 4 English 5 Français 6 English Getting Started Guide Guide de Démarr a ge Rapide Guía de Inicio Rápido Important Ergonomic InformationLong periods of repetitive motions using an improperly set-up workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. If you feel pain, numbness, weakness, swelling, burning, cramping, or stiffness in these areas, see a qualified health professional.The Wireless PresenterThis presenter uses the 2.4GHz RF technology to bring users unprecedented performance and value. No software driver is needed to operate the devices. Function of Presenter1. Slide Back2. Start/Stop Slides3. Slide Forward4. Laser Pointer5. Hide Slides Installation of the Presenter1. Install the batteries. The presenter uses 2 AAA batteries. 2. Turn on the computer. Open the PowerPoint application.3. Flip the receiver out of the presenter. Plug the receiver into the USB port of the computer. The presenter will be automatically connected to the receiver. Switching Channels If you find that you are having problems with your presenter, simply switch the channel by pressing the channel button on the bottom of the presenter. This will automatically switch the channel.Low BatteryIf your presenter is not responsive, please replace your batteries. Expected battery life is 2 to 3 months depending on usage.TroubleshootingIf your presenter does not function properly, please review the following steps for troubleshooting.1. Ensure that the USB connector of the wireless receiver is properly inserted into the USB port of the computer.2. Check the power level of the batteries.3. Keep the distance between the receiver and the presenter within 10 meters. Some objects may affect the operating distance or completely block the wireless signal. 4. Metallic surfaces will shorten transmission distances.5. Try changing to another channel. Please see the section “Switching Channels”.Customer ServiceIf you need additional help with you product, contact Labtec at (702) 269-3612 or on the web at: www.labtec.com English Français Español English Package Contents• Presenter• Receiver• AAA alkaline x 2Product WarrantyLimited Warranty. Labtec warrants that any hardware product accompanying this documentation shall be free from significant defects in material and workmanship for a period of two (2) years from the date of purchase. Labtec’s limited warranty is nontransferable and is li mited to the original purchaser. This warranty gives you specific legal rights, and you may also have other rights which vary under local laws.Remedies. Labtec’s entire liability and your exclusive remedy for any breach of warranty shall be, at Labtec’s option, to: (a) repair or replace the hardware, or (b) refund the price paid, provided that the hardware is returned to the point of purchase or such other place as Labtec may direct, with a copy of the sales receipt. If Labtec chooses to repair or replace the hardware, Labtec may use new or refurbished parts, or com parable products. Any replacement hardware will be warranted for the remainder of the original warranty period or thirty (30) days, whichever is long er. These remedies are void if failure of the hardware has resulted from accident, abuse, misapplication, or any unauthorized repair, modification or disassembly. Further, for cordless devices, these remedies are void if you use battery types other than those recommended by Labtec. Upon request from La btec, you must prove the date of the original purchase of the hardware by a dated bill of sale or dated itemized receipt.DISCLAIMER OF WARRANTY. THE WARRANTIES EXPRESSLY SET FORTH IN THIS AGREEMENT REPLACE ALL OTHER WARRANTIES. LABTEC AND ITS SUPPLIERS EXPRESSLY DISCLAIM ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD-PARTY RIGHTS WITH RESPECT TO THE HARDWARE, SOFTWARE, DOCUMENTATION AND ANY OTHER MATERIALS PROVIDED BY LABTEC AND/OR ITS SUPPLIERS, AND ANY WARRANTIES OF NON-INTERFERENCE OR ACCURACY OF INFORMATIONAL CONTENT. NO LABTEC DEALER, AGENT, OR EMPLOYEE IS AUTHORIZED TO MAKE ANY MODIFICATION, EXTENSION, OR ADDITION TO THIS WARRANTY. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above l imitation may not apply to you.LIMITATION OF LIABILITY. IN NO EVENT WILL LABTEC OR ITS SUPPLIERS BE LIABLE FOR ANY COSTS OF PROCUREMENT OF SUBSTITUTE PRODUCTS OR SERVICES, LOST PROFITS, LOSS OF INFORMATION OR DATA, OR ANY OTHER SPECIAL, INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES ARISING IN ANY WAY OUT OF THE SALE OF, USE OF, OR INABILITY TO USE ANY LABTEC PRODUCT OR SERVICE, EVEN IF LABTEC HAS BE EN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL LABTEC’S AND ITS SUPPLIERS’ TOTAL LIABILITY EXCEED THE ACTUAL MONEY PAID FOR THE LABTEC PRODUCT OR SERVICE GIVING RISE TO THE LIABILITY. Some jurisdictions do not allow the exclusion or lim itation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. The above limitations will not apply in case of personal injury where and to the extent that applicable law requires such liability.© 2005 Labtec. All Rights Reserved. Labtec, the Labtec logo, and other Labtec marks are owned by Labtec and may be registered. All other trademarks are the property of their respective owners. Labtec assumes no responsibility for any errors that may appear in this manual. Information contained herein is subject to change without notice. 3 Français 7 English FCC Compliance and Advisory StatementThis hardware device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to com…

Text truncated - open the document above for the full version.

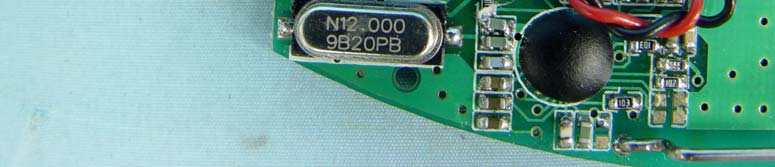

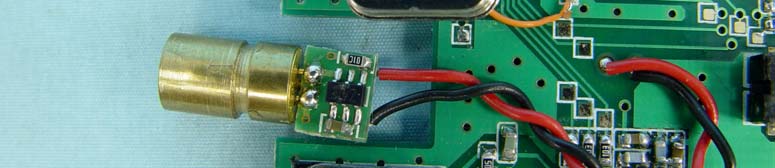

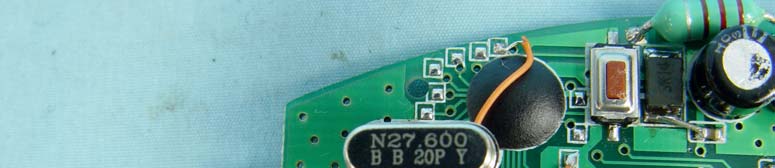

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID Label Location (FCC ID: O3L-PT-04-PA)

第 1 頁，共 1 頁 2005/5/11file://R:\Customer%20document\派登\940504L01(R-RE9)\TX\Labtec_Presenter安規.jpg

Page 2 Page 3 Page 4

FCC ID: O3L-PT-04-PA Report No.: RF940504L01 Operational Description The transmitter of the EUT (2.4GHz Notebook Presenter) is powered by 3Vdc Batteries. The receiver is powered by host equipment. Both transmitter and receiver use print Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: O3L-PT-04-PA Report No.: RF940504L011Report Format Version 2.0.2 FCC TEST REPORT REPORT NO.: RF940504L01 MODEL NO.: R-RE9 RECEIVED: May 04, 2005 TESTED: May 10 ~ May 16, 2005 ISSUED: May 16, 2005 APPLICANT: Paten Wireless Technology Inc. ADDRESS: 8F, No.407 Rueiguang Rd., Neihu, Taipei 114, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 23 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: O3L-PT-04-PA Report No.: RF940504L012Report Format Version 2.0.2 Table of Contents 1CERTIFICATION .......................................................................................................3 2SUMMARY OF TEST RESULTS ...............................................................................4 2.1MEASUREMENT UNCERTAINTY.............................................................................4 3GENERAL INFORMATION........................................................................................5 3.1GENERAL DESCRIPTION OF EUT ..........................................................................5 3.2DESCRIPTION OF TEST MODES ............................................................................6 3.2.1CONFIGURATION OF SYSTEM UNDER TEST .......................................................7 3.2.2TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL: ...........................8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................9 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................9 4TEST TYPES AND RESULTS .................................................................................10 4.1CONDUCTED EMISSION MEASUREMENT ..........................................................10 4.2RADIATED EMISSION MEASUREMENT ...............................................................10 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................10 4.2.2TEST INSTRUMENTS............................................................................................. 11 4.2.3TEST PROCEDURES .............................................................................................12 4.2.4DEVIATION FROM TEST STANDARD ...................................................................12 4.2.5TEST SETUP...........................................................................................................13 4.2.6EUT OPERATING CONDITIONS ............................................................................13 4.2.7TEST RESULTS ......................................................................................................14 4.3BAND EDGES MEASUREMENT ............................................................................18 4.3.1LIMITS OF BAND EDGES MEASUREMENT..........................................................18 4.3.2TEST INSTRUMENTS.............................................................................................18 4.3.3TEST PROCEDURE................................................................................................18 4.3.4DEVIATION FROM TEST STANDARD ...................................................................18 4.3.5EUT OPERATING CONDITION ..............................................................................18 4.3.6TEST RESULTS ......................................................................................................19 5PHOTOGRAPHS OF THE TEST CONFIGURATION..............................................22 6INFORMATION ON THE TESTING LABORATORIES ............................................23 FCC ID: O3L-PT-04-PA Report No.: RF940504L013Report Format Version 2.0.2 1 CERTIFICATION PRODUCT : 2.4GHz Notebook Presenter MODEL NO. : R-RE9 BRAND NAME : Labtec APPLICANT : Paten Wireless Technology Inc. TESTED : May 10 ~ May 16, 2005 TEST SAMPLE : ENGINEERING SAMPLE STANDARDS : FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment has been tested by Advance Data Technology Corporation, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:May 16, 2005 ( Wendy Liao) TECHNICAL ACCEPTANCE: , DATE:May 16, 2005 Responsible for RF ( Gary Chang ) APPROVED BY:, DATE:May 16, 2005 ( Cody Chang, Deputy Manager ) FCC ID: O3L-PT-04-PA Report No.: RF940504L014Report Format Version 2.0.2 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission Test NA Power supply is 3Vdc from batteries 15.209 15.249 15.249 (d) Radiated Emission Test Band Edge Measurement Limit: 50dB less than the peak value of fundamental frequency or meet radiated emission limit in section 12.209 PASS Minimum passing margin is -1.40dB at 7361.00MHz 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4: MEASUREMENTFREQUENCYUNCERTAINTY Conducted emissions9kHz~30MHz2.44 dB 30MHz ~ 200MHz3.73 dB 200MHz ~1000MHz3.74 dB 1GHz ~ 18GHz2.20 dB Radiated emissions 18GHz ~ 40GHz1.88 dB FCC ID: O3L-PT-04-PA Report No.: RF940504L015Report For…

Text truncated - open the document above for the full version.

FCC ID: O3L-PT-04-PA Report No.: RF940504L0122Report Format Version 2.0.2 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
