O3U-10011PC peripheral toy

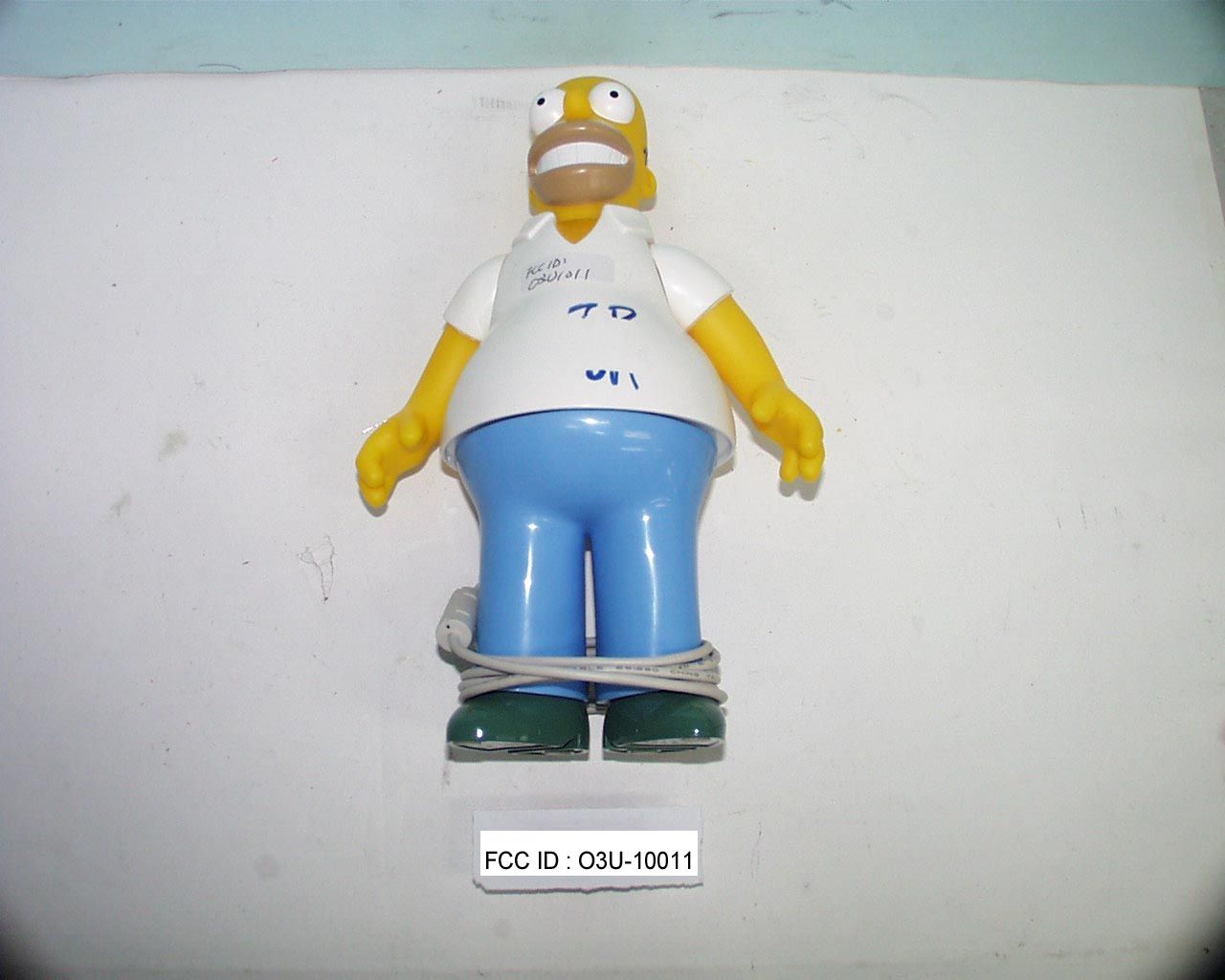

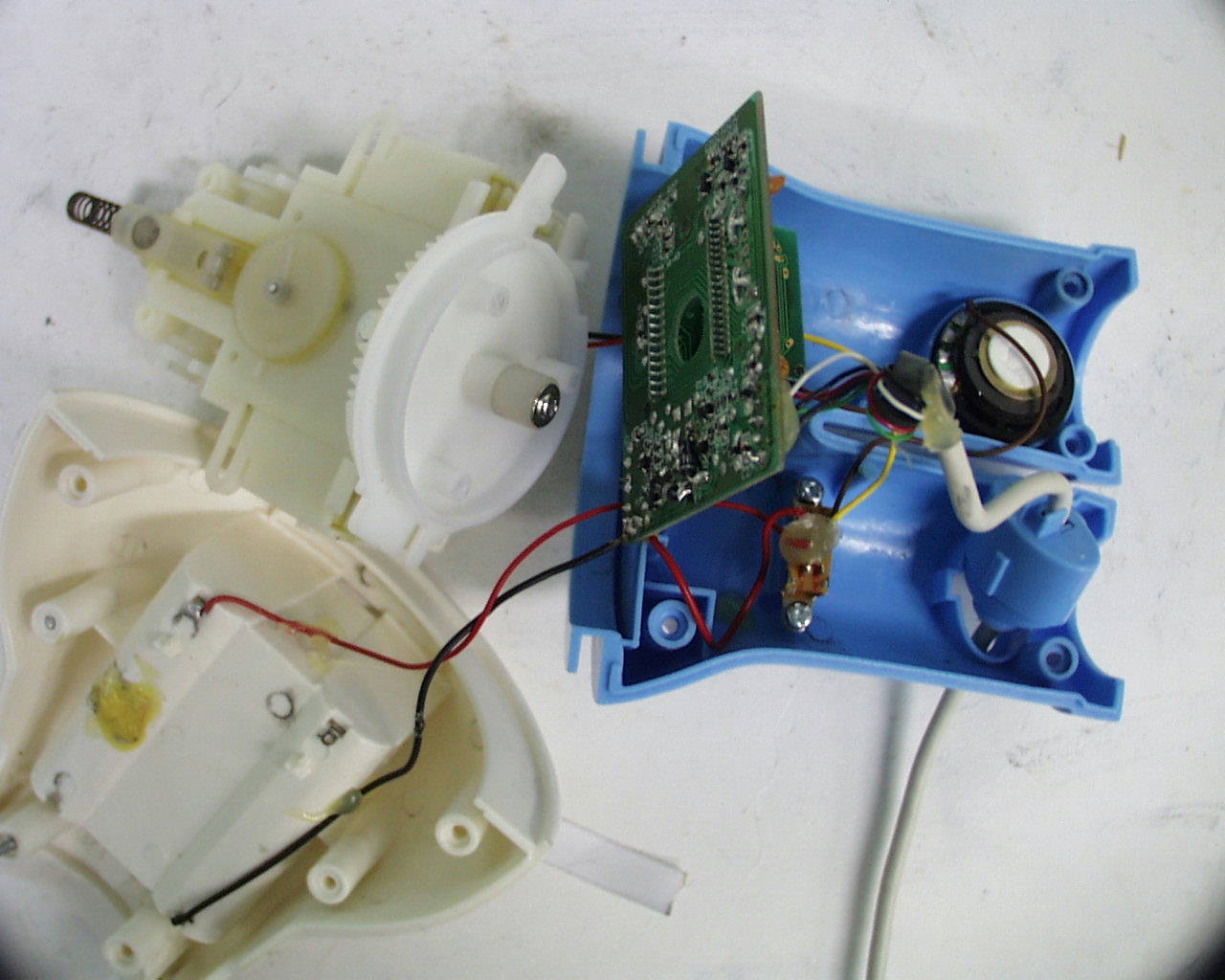

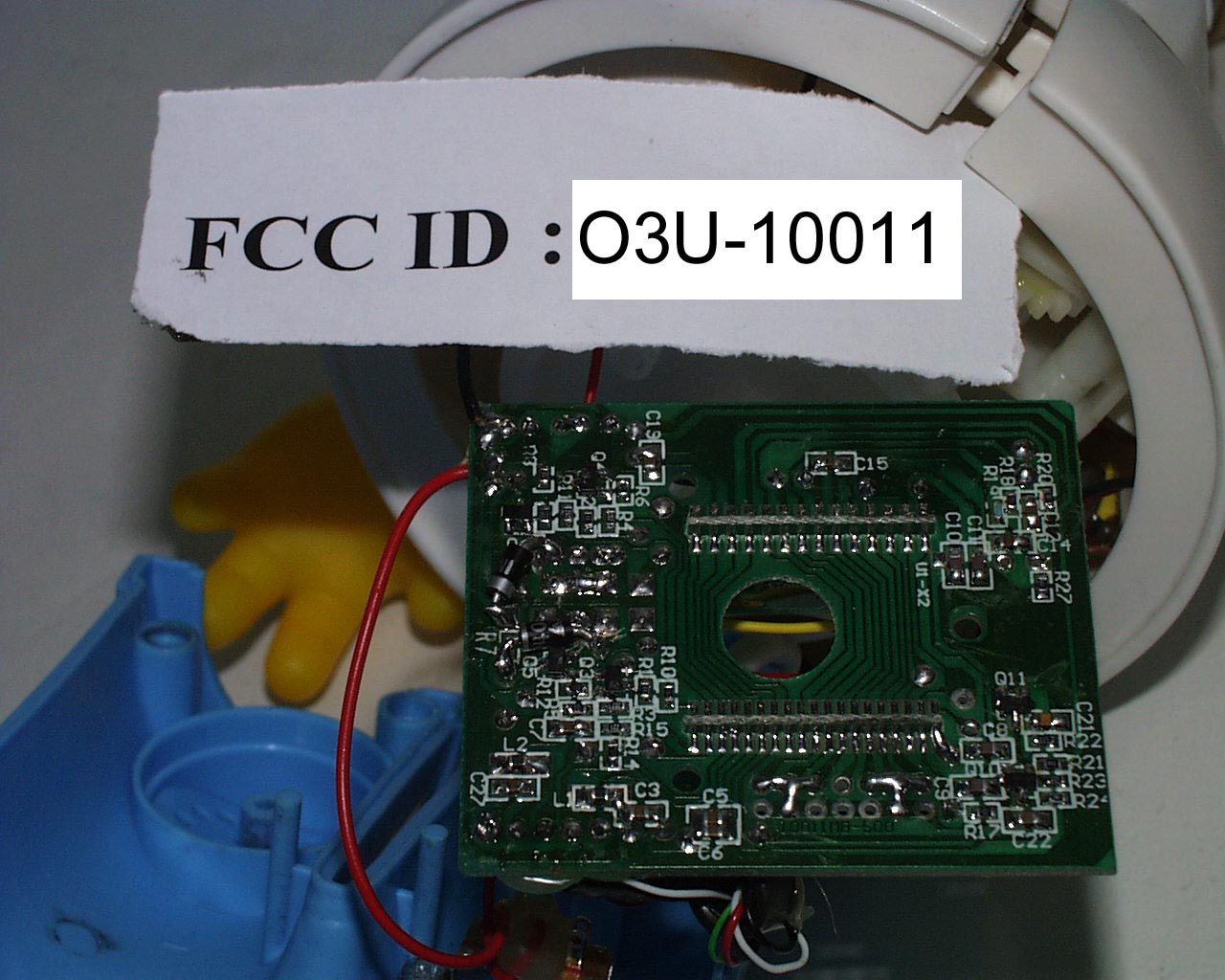

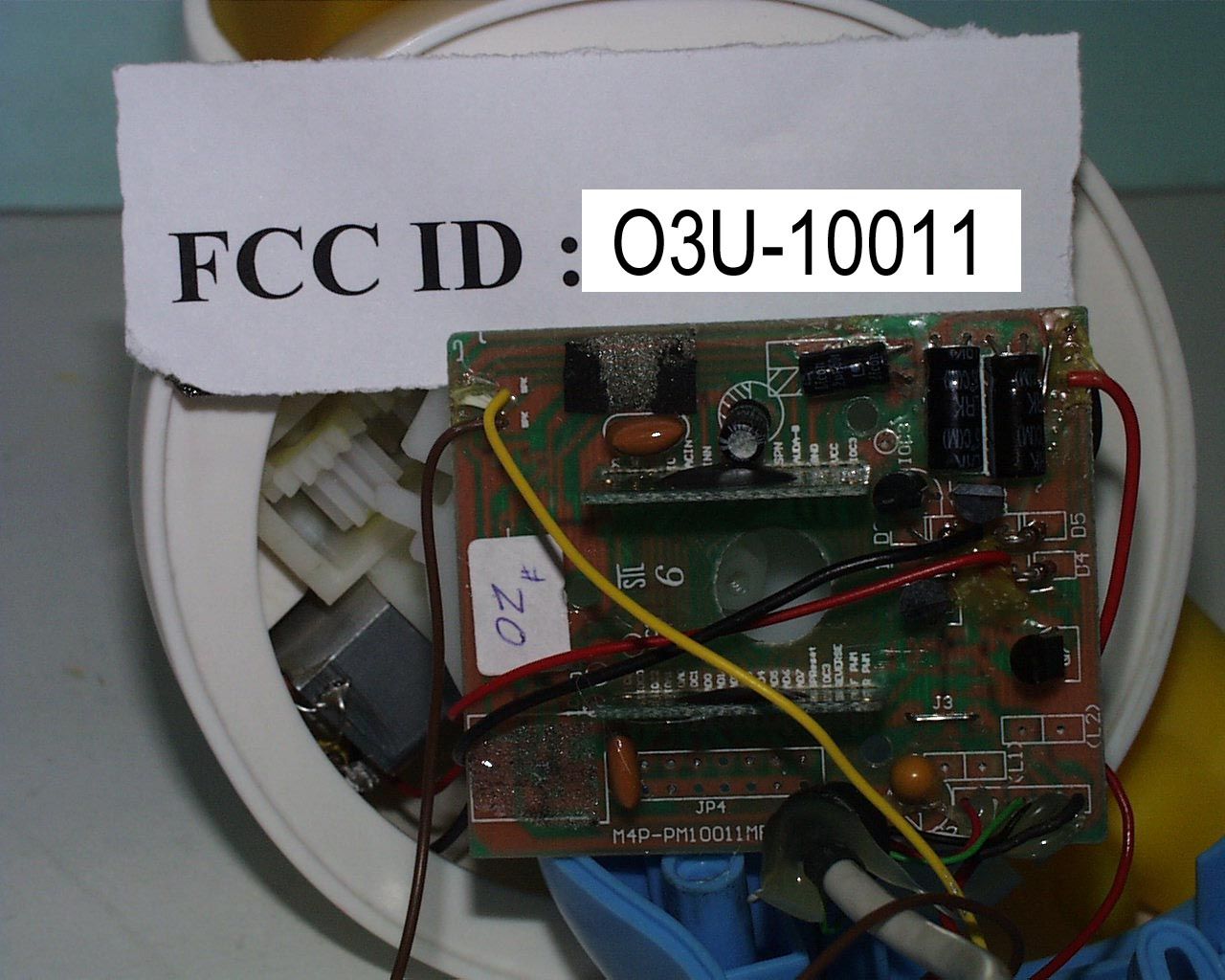

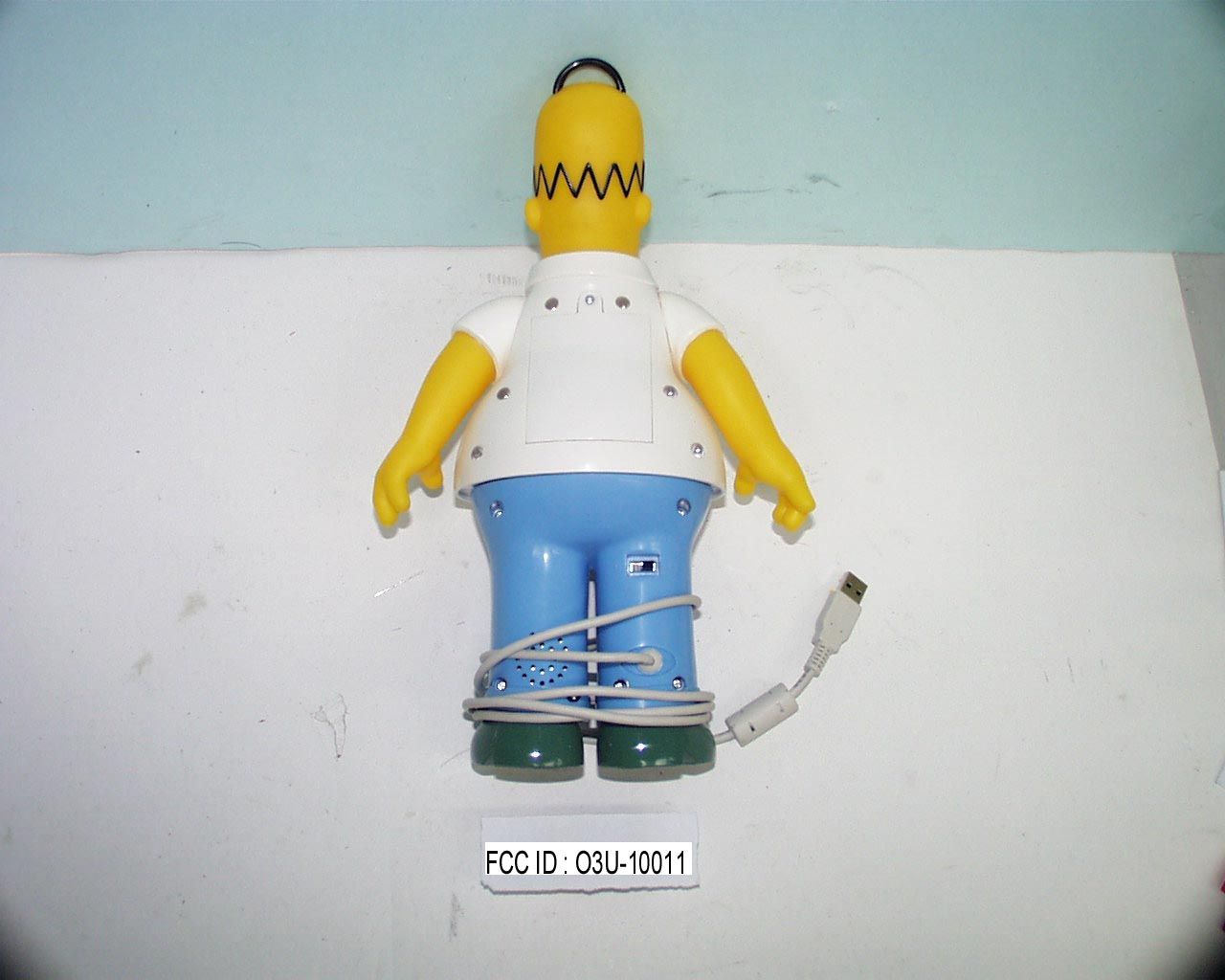

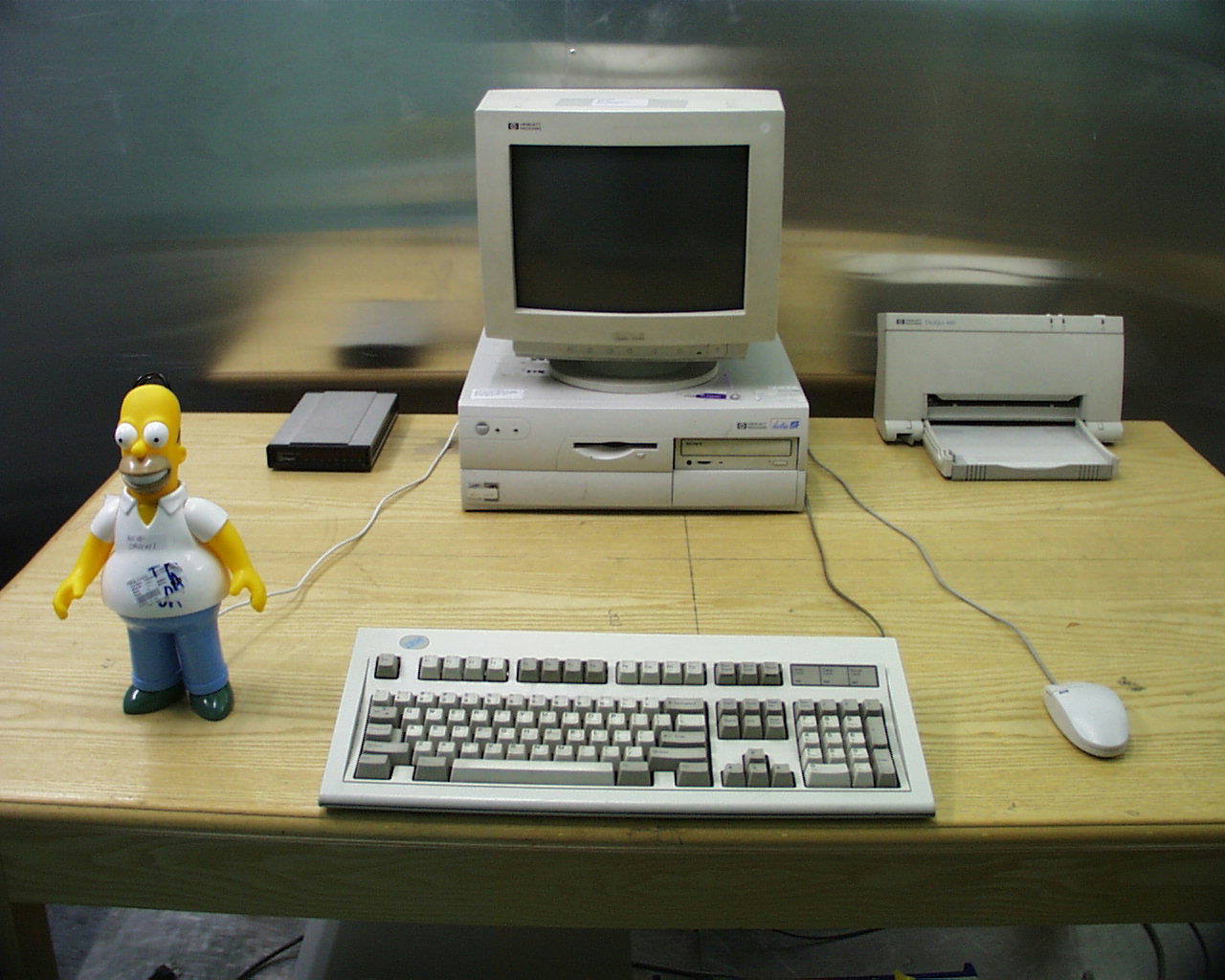

1.0General Description 1.1Product Description The equipment under test (EUT) is a computer controlled toy. The EUT is powered by three “AA” batteries. There is a ON/OFF switch and a USB cable. The computer can control the EUT (e.g. talking, singing and remind you at a important day) through the specified software. (Dot-pals) The brief circuit description is listed as follows: - Q1, Q2, Q3, Q4, Q5, Q6, Q7 and Q8 and associated circuit act as Motor Driver. - L3, L4, C25, C26 and associated circuit act as filter circuit. - U1 and associated circuit act as CPU. - U2 and associated circuit act as D/A Converter - U3 and associated circuit act as audio amplifier. 1.2Related Submittal(s) Grants This is a single application for certification of a computer peripheral.

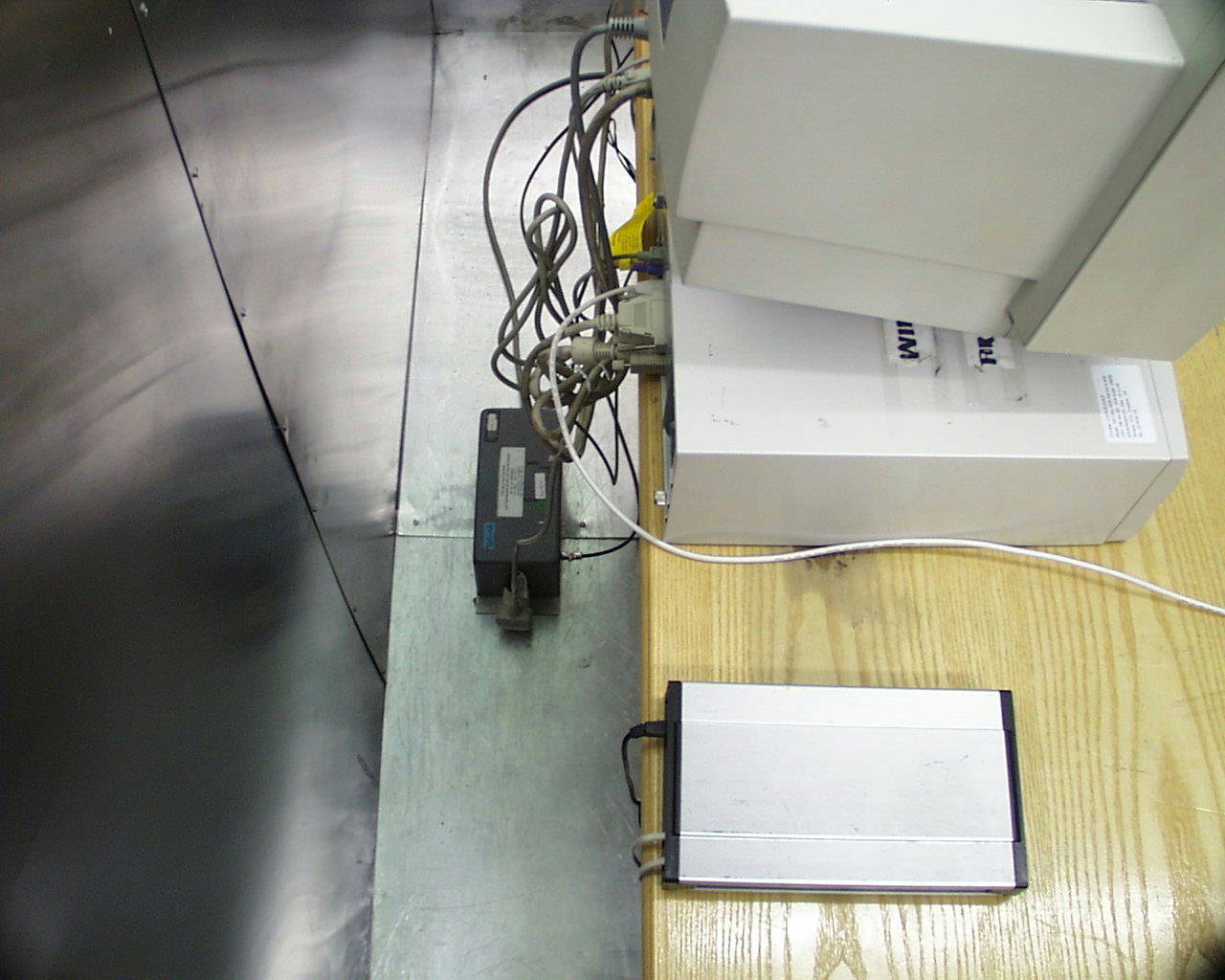

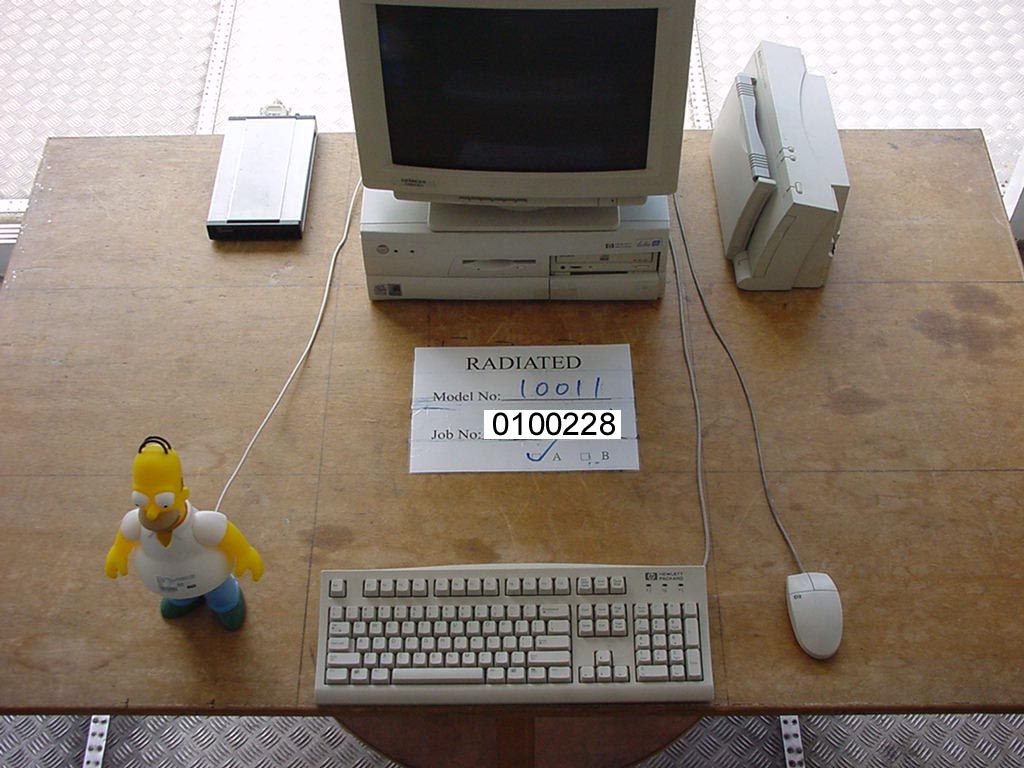

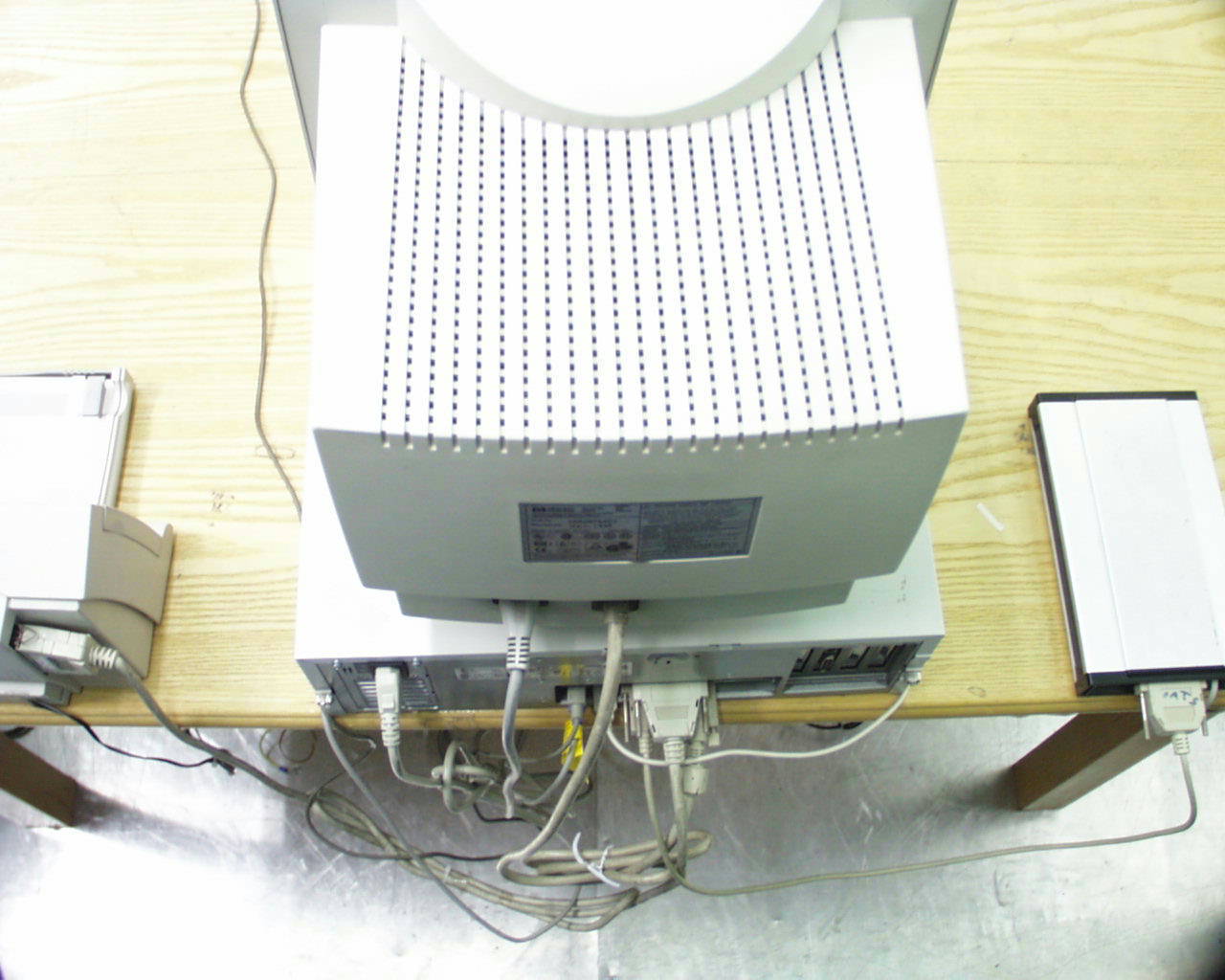

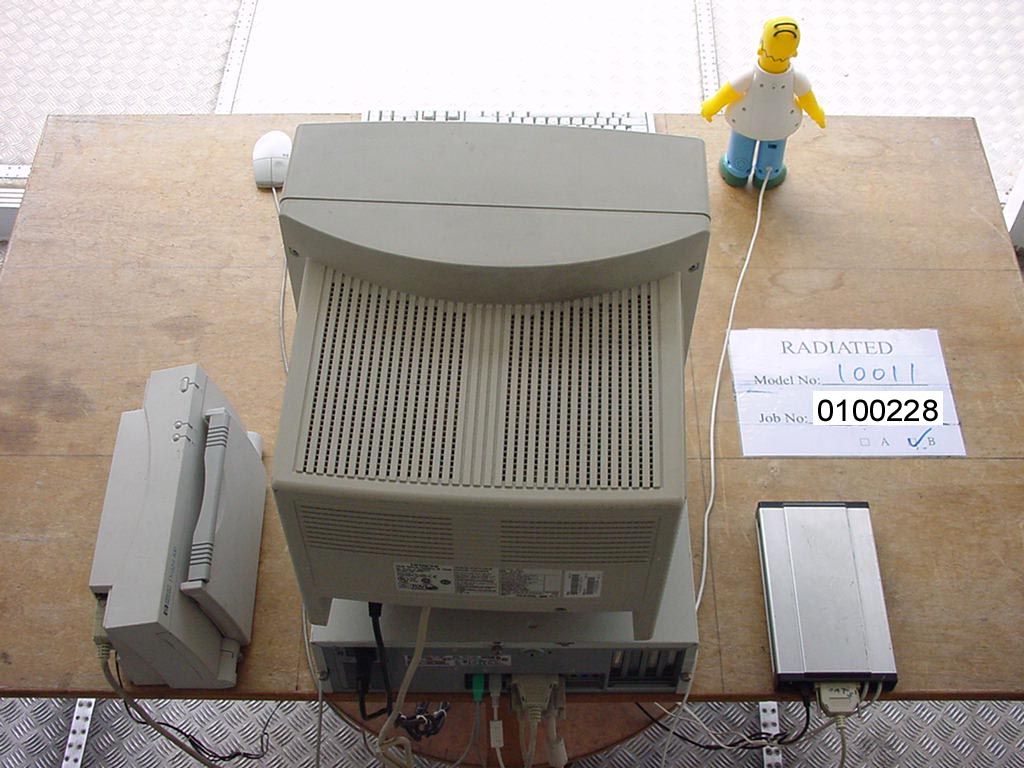

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed to refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed FCC ID : O3U-10011 Playmates Asia Services Limited Application For Certification (FCC ID: O3U-10011) Computer Peripheral, Model : Asst. No.: 10010, Stock No.: 10011 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart B for Unintentional Radiator, mention 47 CFR [10-1-99 edition] WO# 0100228 WN/at February 28, 2001 INTERTEK TESTING SERVICES FCC ID: O3U-10011 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :Emission Results EXHIBIT 4 :Equipment Photographs EXHIBIT 5 :Product Labelling EXHIBIT 6 :Technical Specifications EXHIBIT 7 :Instruction Manual INTERTEK TESTING SERVICES FCC ID: O3U-10011 ii MEASUREMENT/TECHNICAL REPORT Playmates Asia Services Limited - MODEL: Asst. No.: 10010, Stock No.: 10011 FCC ID: O3U-10011 February 28, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Computer Peripheral (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart B for Unintentional radiator - the new 47 CFR [10-1-96 Edition] provision. Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: O3U-10011 iii Table of Contents 1.0 General Description ................................................................................................................ 2 1.1 Product Description............................................................................................................. 2 1.2 Related Submittal(s) Grants.................................................................................................2 1.3 Test Methodology................................................................................................................ 3 1.4 Test Facility......................................................................................................................... 3 2.0 System Test Configuration ...................................................................................................... 5 2.1 Justification.......................................................................................................................... 5 2.2 EUT Exercising Software ....................................................................................................5 2.3 Special Accessories ............................................................................................................. 5 2.4 Equipment Modification......................................................................................................6 2.5 Support Equipment List and Description ............................................................................ 6 3.0 Emission Results ...................................................................................................................... 8 3.1 Field Strength Calculation ................................................................................................... 9 3.1 Field Strength Calculation (cont’d) ................................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................................. 11 3.3 Radiated Emission Data .................................................................................................... 12 3.4 Conducted Emission Configuration Photograph ............................................................... 14 3.5 Conducted Emission Data ................................................................................................. 15 4.0 Equipment Photographs ....................................................................................................... 17 5.0 Product Labelling .................................................................................................................. 19 6.0 Technical Specifications ........................................................................................................ 21 7.0 Instruction Manual ................................................................................................................ 23 INTERTEK TESTING SERVICES FCC ID: O3U-10011 iv List of attached file Exhibit typeFile Descriptionfilename Cover LetterLetter of Agencyletter.pdf Test ReportTest Reportreport.doc Operation DescriptionTechnical Descriptiondescri.pdf Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test Setup PhotoConducted Emissionconducted1.jpg to conducted3.jpg External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto3.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: O3U-10011 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: O3U-10011 2 1.0 General Description 1.1Product Description The equipment under test (EUT) is a computer controlled toy. The EUT is powered by three “AA” batteries. There is a ON/OFF switch and a USB cable. The computer can control the EUT (e.g. talking, singing and remind you at a important day) through the specified software. (Dot-pals) The brief circuit description is listed …
