O3U630174RXWireless Audio Player

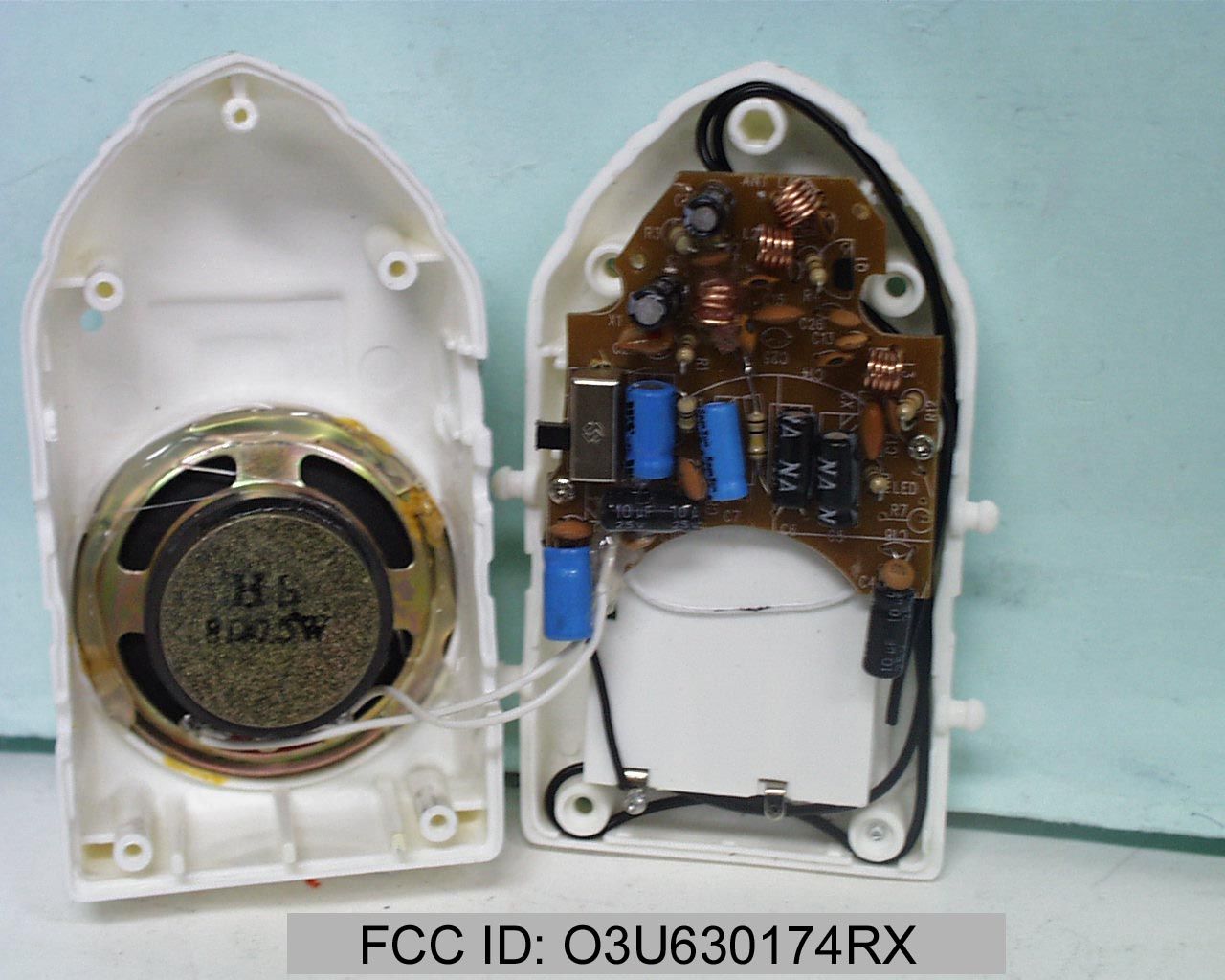

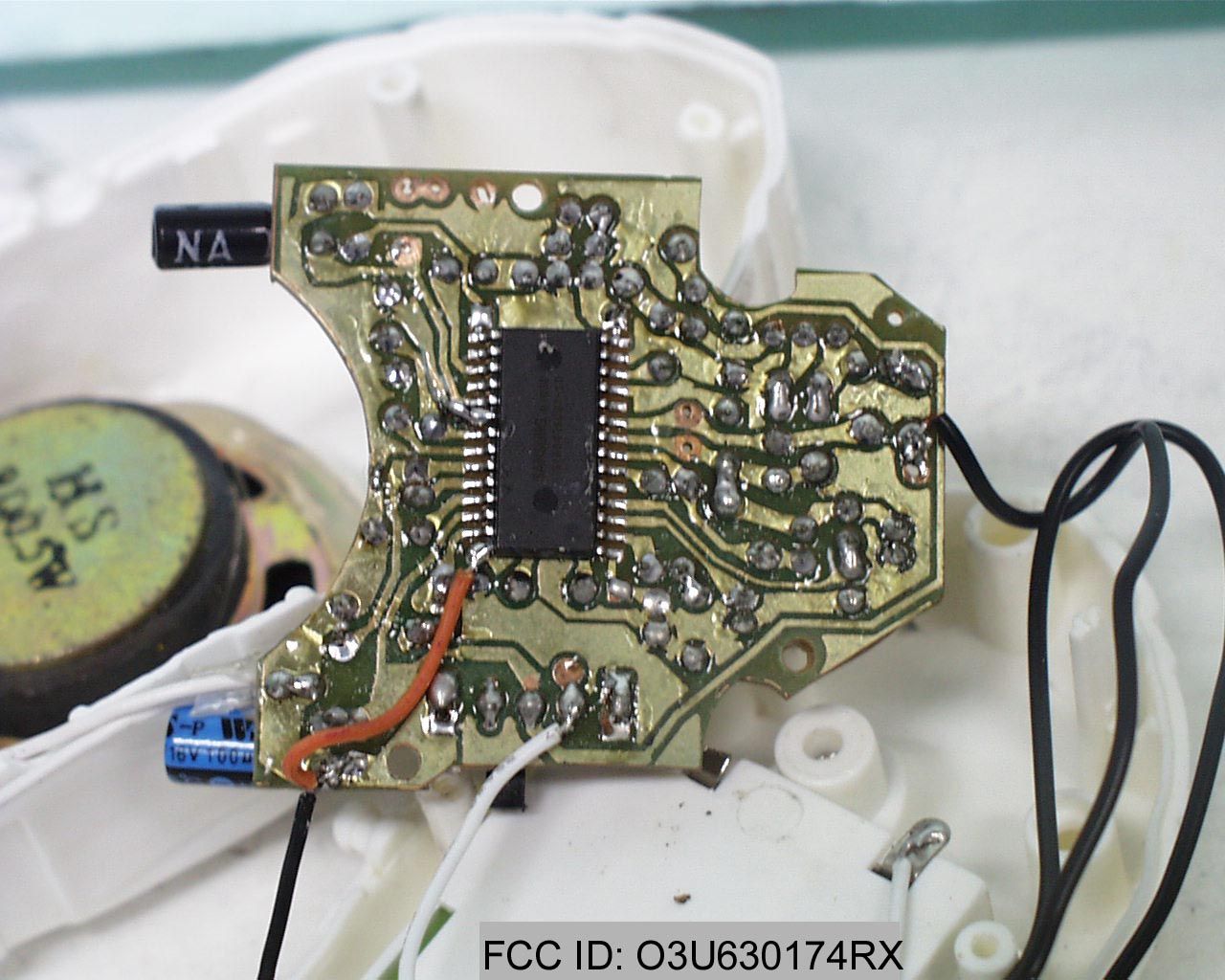

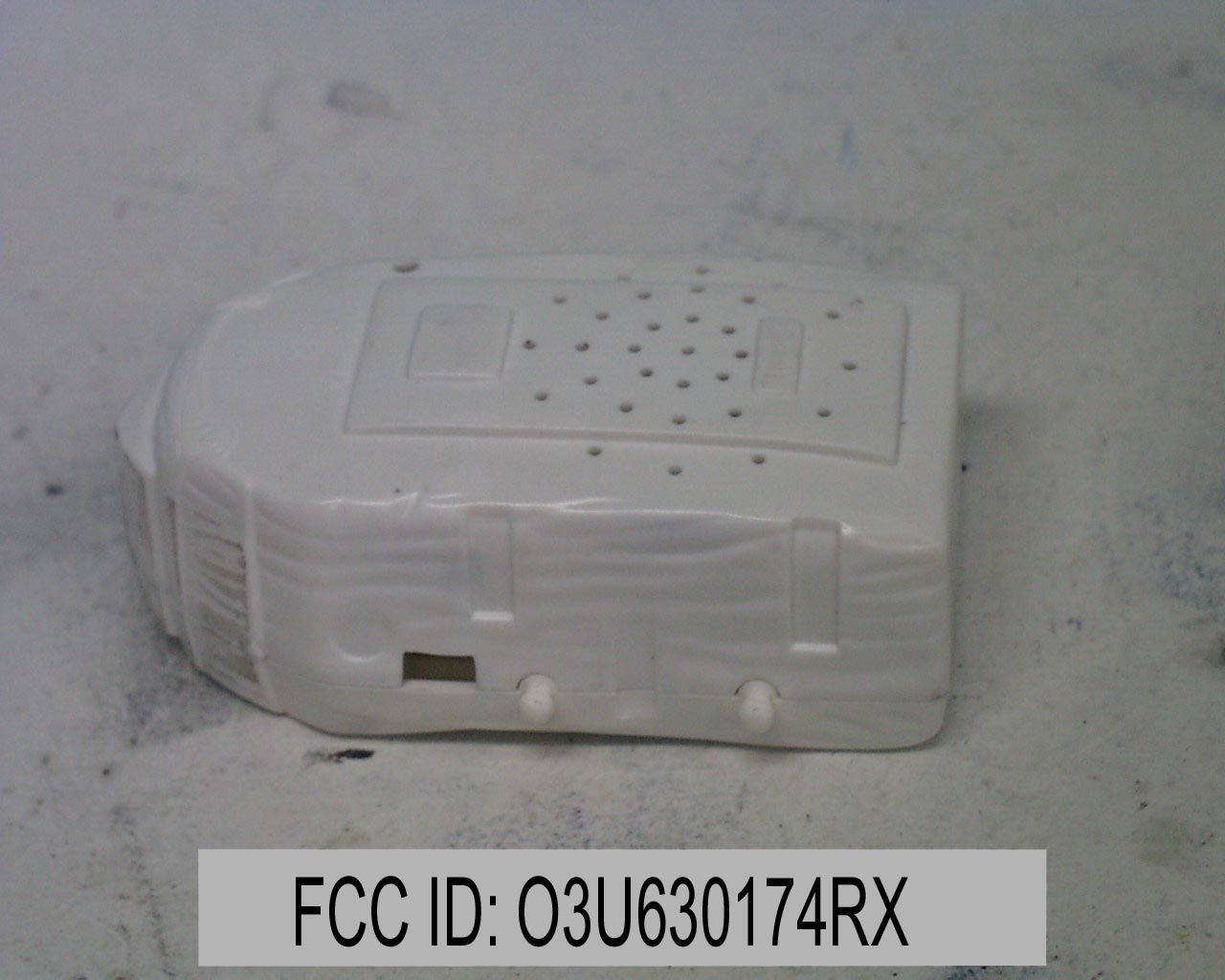

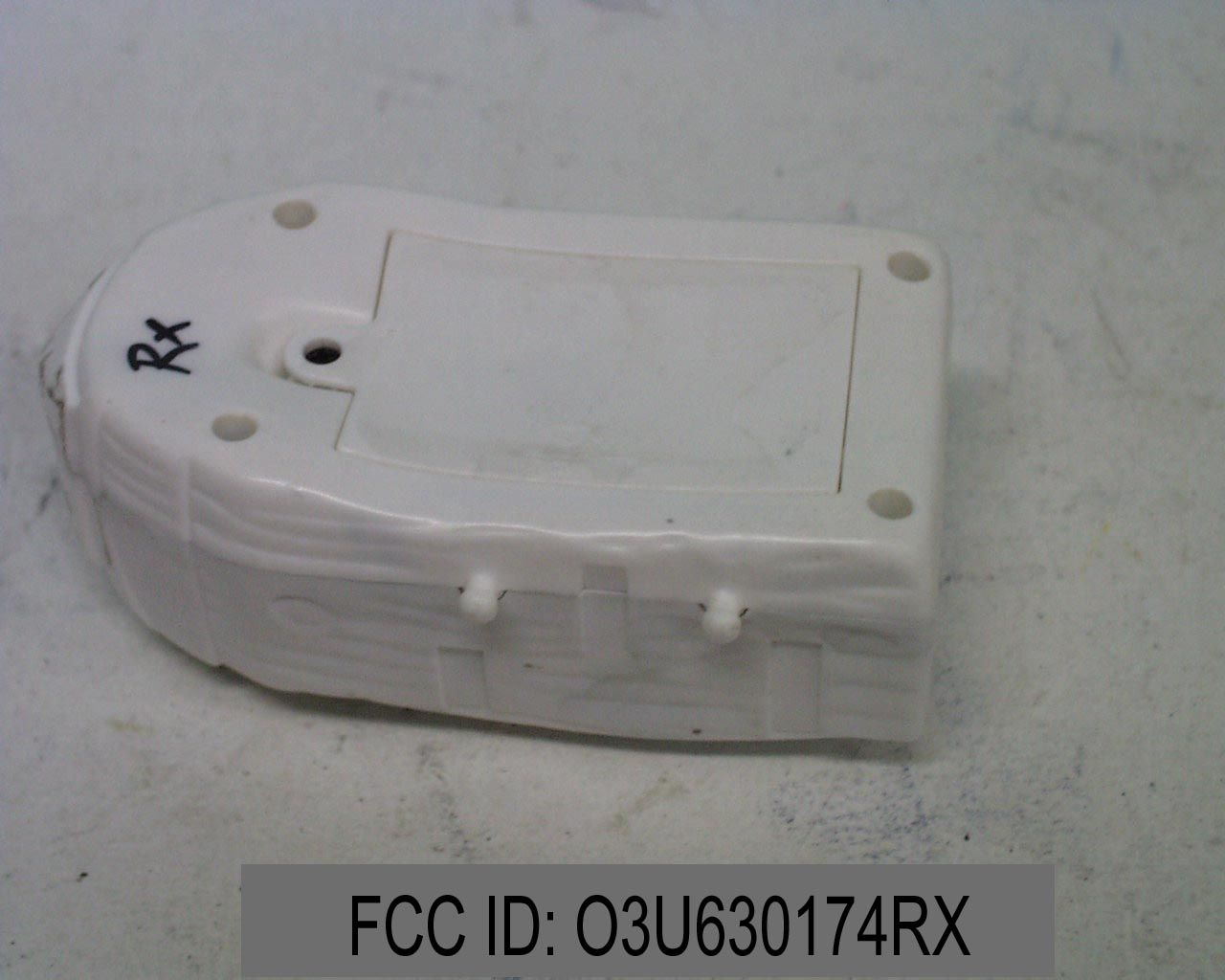

#630174 Real Heroes Shuttle Commander W/CD Technical Description The product consists of 2 parts, the transmitter unit and receiver unit. The transmitter unit is connected to the music player (“walkman” or “discman”) to accept audio music, and send the music to the receiver unit via the RF channel. The receiver unit demodulate the RF signal from the transmitter unit, and output to the speaker. The transmitter unit is operated with 4 x 1.5V AAA battery cells. When the transmitter unit is powered on and connected to the music player (“walkman” or “discman”), The transmitter unit will modulate the audio music with the carrier signal (107.7MHz), and send out the mixed signal (carrier signal and audio music) via the antenna. The signal is emitted continuously while the transmitter unit is powered on. The receiver unit is either operated with 3 x 1.5V AAA battery cells. When the power switch is turned on, the unit is ready to receive the RF signal. If the transmitter unit is powered on and connected to the music player, there will be a RF signal output from the antenna of the transmitter unit. The receiver unit will receive the RF signal, and recover the original music by means of demodulation. At last the audio music is output to the speaker.

Frequency Alignment Procedure of #630174 Real Shuttle Commander 1.Transmitter a)Connect the transmitter unit to the DC power supply (+6VDC); b)Use the Spectrum Analyzer to monitor the frequency; c)Adjust the coil L5 on the PCB unit the frequency reading on the Spectrum Analyzer is 107.7MHz +/-0.05MHz; d)Use the wax to seal and fix the coil L5. 2.Receiver a)Connect the receiver unit to the DC power supply (+4.5VDC); b)Use the Sweep Generator to generate a RF signal of 107.7MHz, and connect the speaker output of the receiver unit to the input of the Sweep Generator, there will be a “S” curve display on the Sweep Generator c)Adjust the coil L1 to align the center point of the “S” curve on the Sweep Generator to the frequency point of 107.7MHz +/- 0.1MHz; d)Use the wax to seal and fix the coil L1.

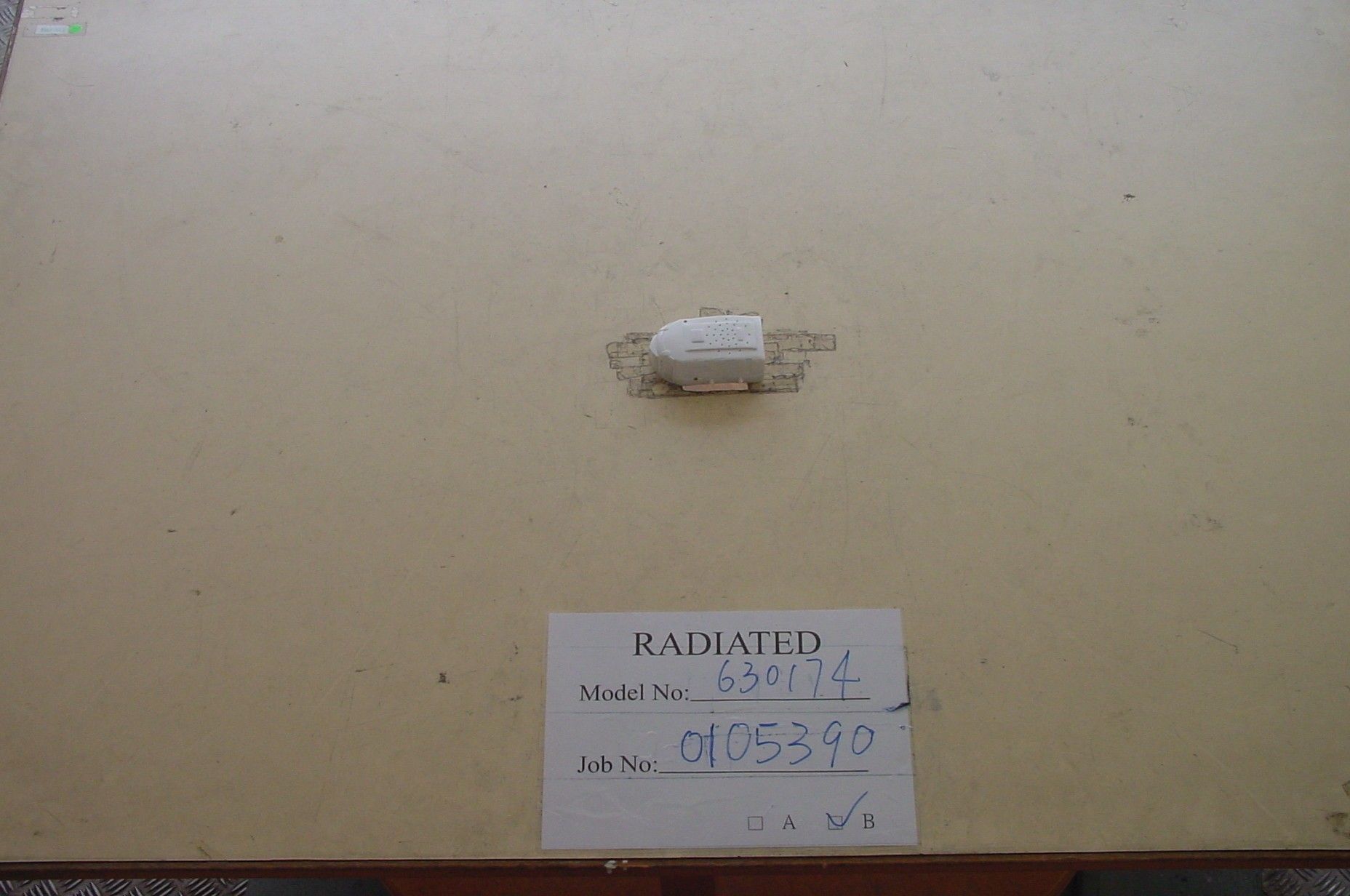

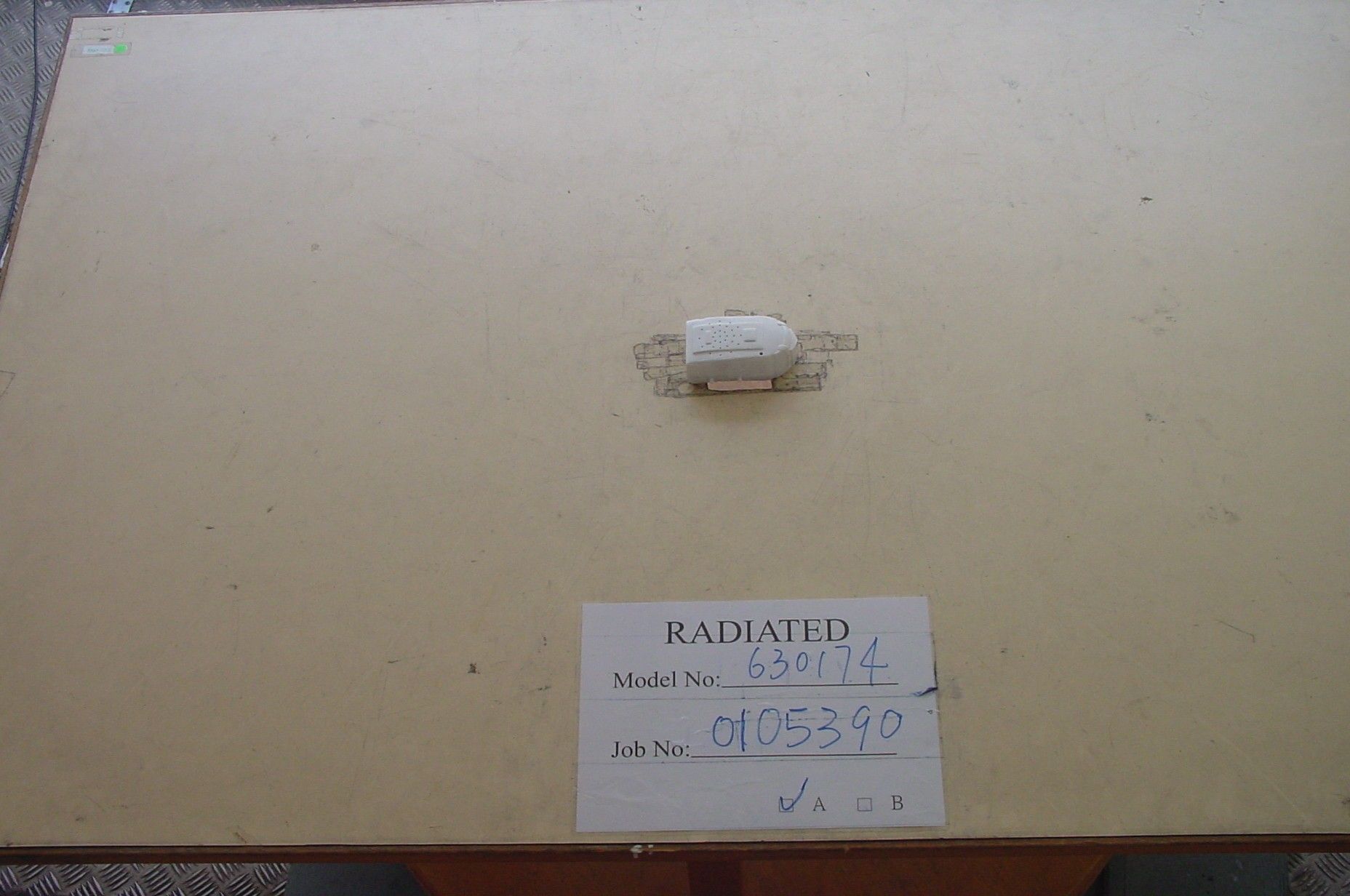

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited FCC ID : O3U630174RX Playmates Asia Services Limited Application For Certification (FCC ID: O3U630174RX) Superheterodyne Receiver WO# 0105390 WN/at June 14, 2001 INTERTEK TESTING SERVICES FCC ID: O3U630174RX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual INTERTEK TESTING SERVICES FCC ID: O3U630174RX ii MEASUREMENT/TECHNICAL REPORT Playmates Asia Services Limited - MODEL: 630174 FCC ID: O3U630174RX June 14, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-1-98 Edition] provision. Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: O3U630174RX iii Table of Contents 1.0 General Description........................................................................................................................2 1.1 Product Description.......................................................................................................................2 1.2 Related Submittal(s) Grants.........................................................................................................2 1.3 Test Methodology..........................................................................................................................3 1.4 Test Facility...................................................................................................................................3 2.0 System Test Configuration............................................................................................................5 2.1 Justification...................................................................................................................................5 2.2 EUT Exercising Software..............................................................................................................5 2.3 Support Equipment List and Description.....................................................................................5 2.4 Equipment Modification................................................................................................................6 2.5 specialk Accessories.......................................................................................................................6 3.0 Emission Results..............................................................................................................................8 3.1 Field Strength Calculation............................................................................................................9 3.2 Radiated Emission Configuration Photograph...........................................................................10 3.3 Radiated Emission Data..............................................................................................................11 4.0 Equipment Photographs..............................................................................................................14 5.0 Product Labelling..........................................................................................................................16 6.0 Technical Specifications..............................................................................................................18 7.0 Instruction Manual.......................................................................................................................20 INTERTEK TESTING SERVICES FCC ID: O3U630174RX iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.doc Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg External PhotoExternal Photoophoto1.jpg, ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto2.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: O3U630174RX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: O3U630174RX 2 1.0General Description 1.1Product Description The equipment under test (EUT) is a receiver for Wireless Audio Player operating at 107.7 MHz. The EUT is powered by three 1.5 AAA batteries. There is one ON/OFF switch on the EUT. Once turn on the EUT, it receive the RF Signal continuously, and receiver the original music by means of demodulation. At last the audio music is output to the speaker. The brief circuit description is listed as follows : -Q1 and associated circuit act as RF Amplifier. -IC1 and associated circuit act as FM demodulator. 1.2Related Submittal(s) Grants This is a single application for certification of a receiver. The transmitter for this receiver is authorized by Certification procedure. INTERTEK TESTING SERVICES FCC ID: O3U630174RX 3 1.3Test Methodology The radiated emission measurements were performed according to the procedures in ANSI C63.4 (1992). All measurements were performed in Open Area Test Sites. Preliminary scans were performed in the Open Area Test Sites only to determ…
