Quick guide RF1058 09.04.2020 xxxxx 1.0 1 / 1 GB For wireless operation of your motorized comfort bed system Wireless, ergonomic, reliable, easy handling, elegant design Activate the pairing mode at the CU458-2. Example for a Pairing method: 1. Press the pairing button (a) at the CU458-2 2x until the LED (b) turns on. You now have 60s for the pairing process. 2. Press button (1) and (20) of the RF1058 simultaneously. If the pairing LED or the LED SET flashes 2x, the programming has been completed. 3. According to this method you can pair an external Power Socket or a second CU458-2 by using button (3) and (20).  Note: The distance between transmitter and receiver should be less than two meters for pairing. Button Function LED Function of massage 1 Drive M1 up (HEAD) 2 Memory timer (SNORE) 3 Drive M2 up (FOOT) 4 Drive M1 down (HEAD) 5 Memory position (ZGRAV) 6 Drive M2 down (FOOT) 7 Under Bed Light on/off Keep pressed: dimming 9 Flashlight on/off 10 HEAD massage higher level 11 Massage on/off 12 FOOT massage higher level 13 HEAD massage lower level 14 Massage wave 15 FOOT massage lower level 16 Memory position M1 17 SET memory 18 Memory position M2 19 Memory position M3 20 Memory position (FLAT) 8 Button LOCK 1 + 20 Pairing System 1 3 + 20 Pairing System 2 13 + 15 Activate: press & release 17 + 20 Activate: press & hold c Fast d Medium e Slow FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. ISEDC Warning: This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes. a RF1058 CU458-2 c d e b Kurzanleitung RF1058 09.04.2020 xxxxx 1.0 1 / 1 D Zur kabellosen Bedienung Ihres motorisierten Komfortbettes Kabellos, ergonomisch, zuverlässig, einfache Bedienung, elegantes Design Aktivieren Sie den Pairing-Modus an der CU458-2. Beispiel für eine Pairing-Methode: 1. Drücken Sie 2x die Pairing-Taste (a) an der CU458-2 bis die LED (b) leuchtet. Der Pairing-Prozess ist für die nächsten 60sec aktiv. 2. Drücken Sie gleichzeitig die Tasten (1) und (20) am RF1058. Wenn die Pairing LED bzw. die LED-Set 2x blinkt ist das Einlernen abgeschlossen. 3. Mit den Tasten (3) und (20) können Sie nach der gleichen Methode eine Funksteckdose oder eine zweite CU458-2 pairen.  Hinweis: Für den Pairing-Prozess sollte der Abstand zwischen Sender und Empfänger weniger als zwei Meter betragen. Taste Funktion LED Massagefunktion 1 Antrieb M1 auf (HEAD) 2 Memoryposition (SNORE) 3 Antrieb M2 auf (FOOT) 4 Antrieb M1 ab (HEAD) 5 Memoryposition (ZGRAV) 6 Antrieb M2 ab (FOOT) 7 Unterbettbeleuchtung ein/aus Lange drücken; Dimmfunktion 9 Taschenlampe an/aus 10 Massageintensität + (HEAD) 11 Massage ein/aus 12 Massageintensität + (FOOT) 13 Massageintensität - (HEAD) 14 Massage WAVE wechseln 15 Massageintensität - (FOOT) 16 Memoryposition M1 17 Memoryspeichertaste (SET) 18 Memoryposition M2 19 Memoryposition M3 20 Memoryposition (FLAT) 8 Tastensperre 1 + 20 Pairing System 1 3 + 20 Pairing System 2 13 + 15 Aktiviert: Press & Release 17 + 20 Aktiviert: Press & Hold c Schnell d Mittel e Langsam FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. ISEDC Warning: This device complies with Innovation, Science, and Economic Development Canad licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance. Le …

Text truncated - open the document above for the full version.

Company Name:.DewertOkin GmbH Add: Weststr.1,32278KirchIengern,Germany Tel: +49 5223 979 184 Email: [email protected] FCC Authorization 2020/4/9 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, DewertOkin GmbH , the undersigned, hereby authorize Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Print Name: Werner Kracht Title: Engineer

Com p any Name:DewertOkin GmbH Add: Weststr.1,32278 KirchIengern,Germany Tel: +49 5223 979 184 Email:[email protected] FCC Confi dential Authorization 2020/04/22 FEDER AL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: O3YF105820 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, DewertOkin GmbH hereby request confidential accompanying this application as outlined below:  Bloc k D iagram--- (Long term)  Circuit Description--- (Long term)  Detailed Circuit Schematics of EUT--- (Long term) The a bove materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provide unjustified benefits to its competitors in the market. Sincerely Yours Signature： Printed Name： Werner Kracht Title：Engineer treatment of information

Company Name: DewertOkin GmbH Add: Weststr.1, 32278KirchIengern, Germany Tel: +49 5223 979 184 Email: [email protected] Product Similarity Declaration 2020-03-11 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, DewertOkin GmbH hereby declare that we have products named as RF-1058, FCC ID: O3YF105820, Model: RF1058F-20, adding models: RF1058F-18, RF1058F-16 were tested by BACL, for marketing purpose, we would like to list all the series models on reports and certificate, all the models are identical in the main board, but are different in below items: The product is provided in different colors depends on customer requirements. The product is provided in different key-symbols depends on customer requirements. RF1058F-20: The product is provided with max 20 keys. RF1058F-18: The product is provided with max 18 keys. RF1058F-16: The product is provided with max 16 keys. We confirm that all information above is true, and we’ll be responsible for all the consequences. We confirm those different variants have no effect on Safety, EMC, Radio and Health test. Please contact me if you have any question. Sincerely, Signature: Printed Name: Werner Kracht Title: Engineer

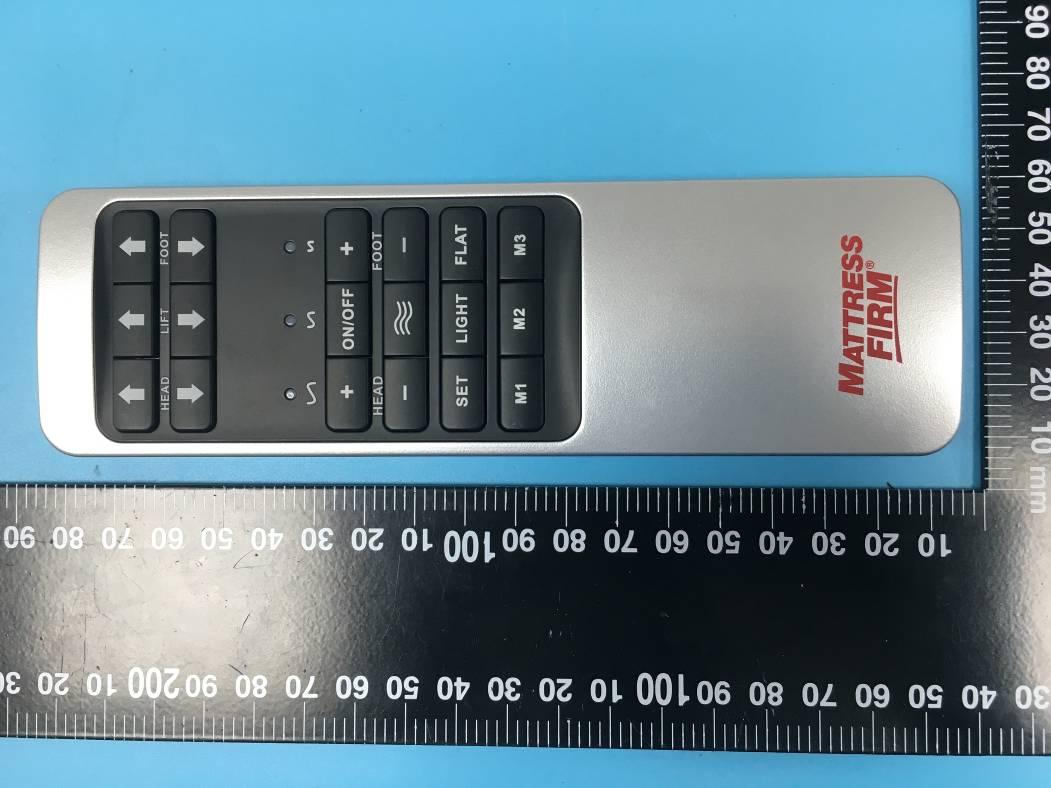

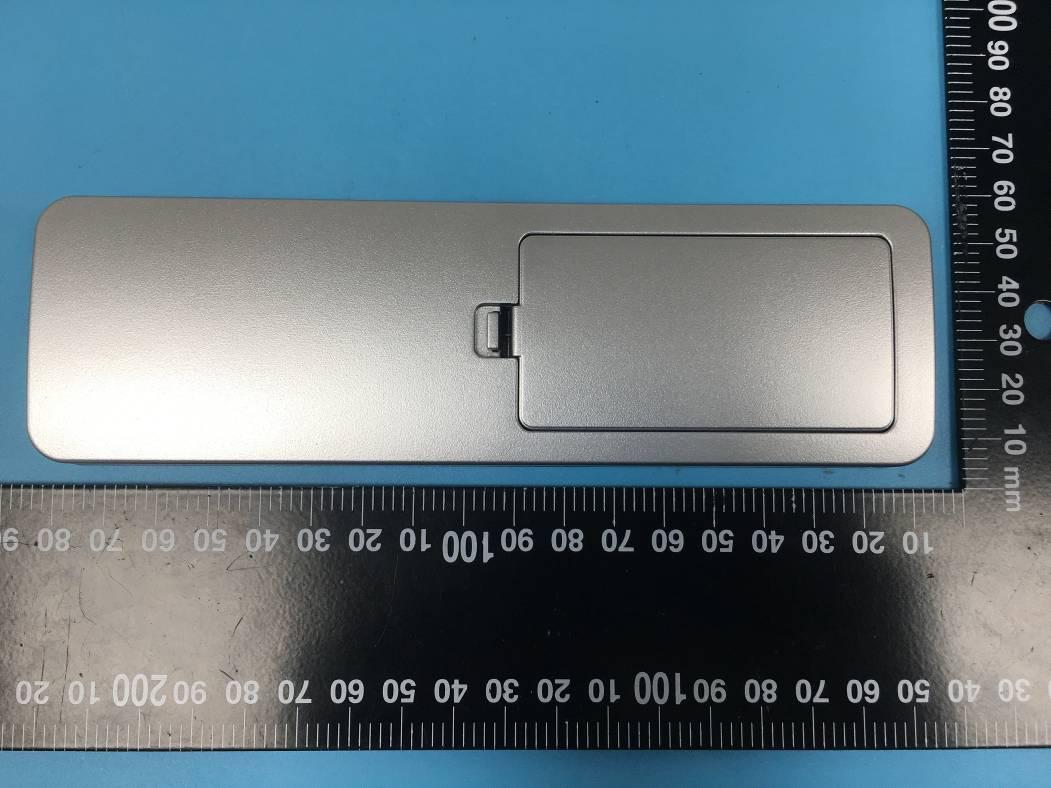

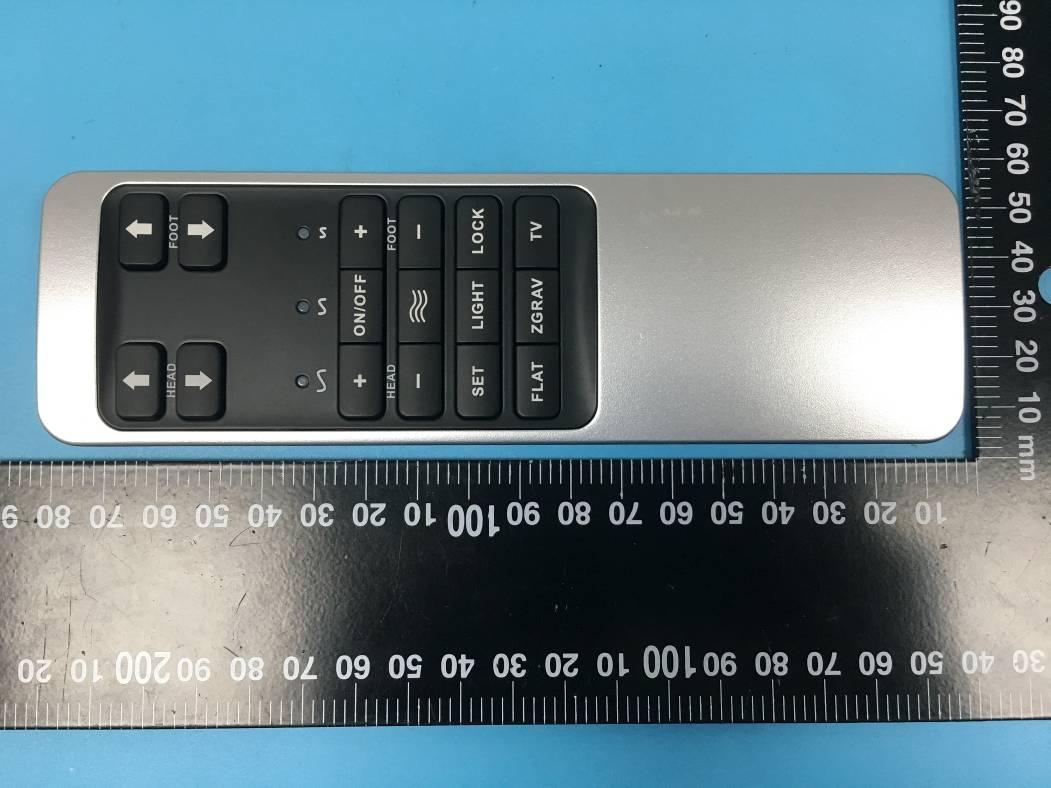

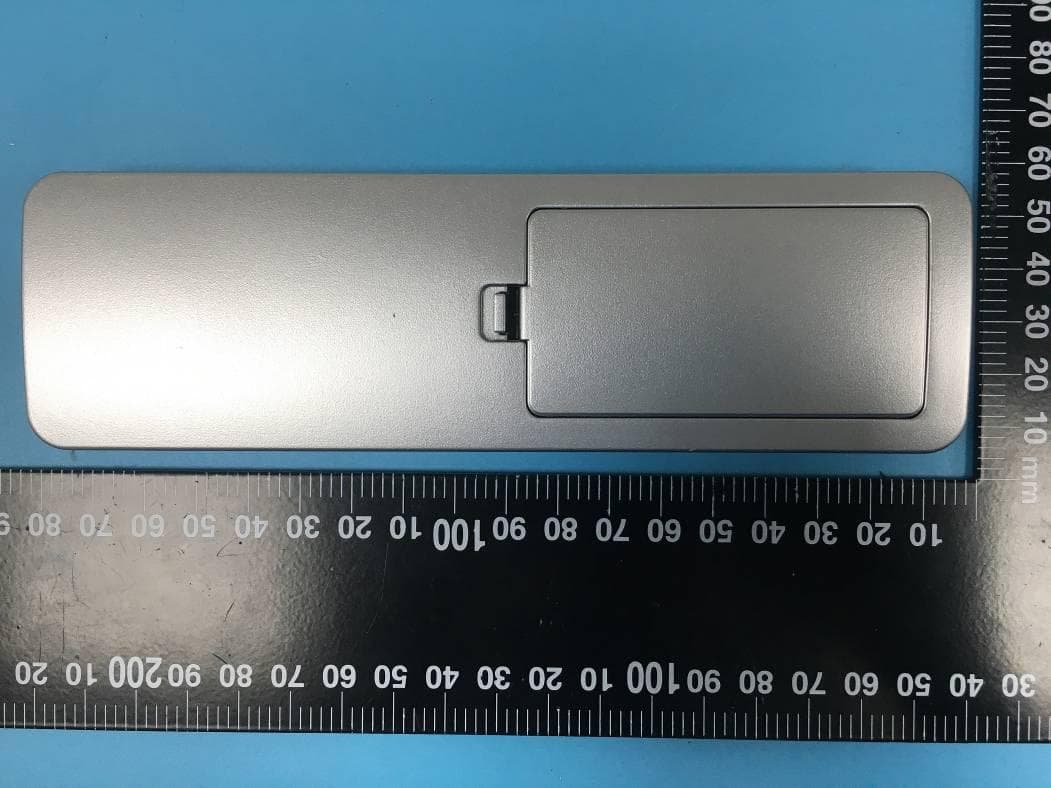

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS RF1058F-20 RF1058F-18 RF1058F-16

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS RF1058F-20 Antenna \ RF1058F-18 Antenna \ RF1058F-16 Antenna \

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.249 TEST REPORT For DewertOkin GmbH Weststr. 1, 32278 Kirchlengern, Germany FCC ID: O3YF105820 R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e : RF-1058 Report Number: RSZ200303551-00 Report Date: 2020-03-31 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200303551-00 FCC Part 15.249 Page 2 of 24 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 SUPPORT CABLE DESCRIPTIONS ................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 TEST EQUIPMENT LIST ........................................................................................................................................... 8 FCC§15.203 - ANTENNA REQUIREMENT.............................................................................................................. 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC§15.205, §15.209 & §15.249(D) - RADIATED EMISSIONS ............................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST EQUIPMENT SETUP ............................................................................................................................................ 10 EUT SETUP ................................................................................................................................................................ 11 TEST PROCEDURE ...................................................................................................................................................... 12 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 12 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC§15.215(C) - 20DB EMISSION BANDWIDTH ................................................................................................ 22 APPLICABLE STA…
