O4Y1002549 MHz Walkie Talkie - TX

APPLICANT : 200 TOY(HK)LTD. FCC ID. : O4Y10025 Circuit Description Work mode : Single mode (receive, transmit and change state by switch SW1). Modulation mode : Amplitude modulation (AM) Circuit Combination: High frequency filter : combined by L1, L3, L4,L5, C16, C17,C18 and C19. Super heterodyne rectifier : combined by L2, Q1, Outer resistors and capacitors. High frequency vibration and modulation : combined by L2, Q1,XTAL and related bias resistors, capacitors. Low frequency amplification and modulation : combined by Q2, Q3 ,Q4, T1, bias resistors , coupling capacitors. Electricity - Sound and Sound - Electricity swapping completed by SP. Work Processing: Reception: (Switch automatically recovery at position R), antenna ANT receives the high frequency signal in the air, transmitted through high frequency filter to the super heterodyne rectifier circuit to select frequency and rectifying. The rectified signal then transmitted to the low frequency amplification circuit via coupling capacitor C7,and C9 to amplify the signal , and finally transmitted from T1 to speaker SP. Transmission: Switch SW1 at position T, speakerSP convert sound wave signal to electrical signal, transmitted to low frequency amplification to amplify the signal then transmitted to the high frequency vibration circuit . The signal is then modulated with the high frequency so as to convert high frequency signal to amplitude modulated high frequency signal . Afterwards, the signal is transmitted to the high frequency filter and finally transmitted to the air through the antenna. 200 TOY (HK) LTD. FCC ID: O4Y10025 EXHIBIT #: 10

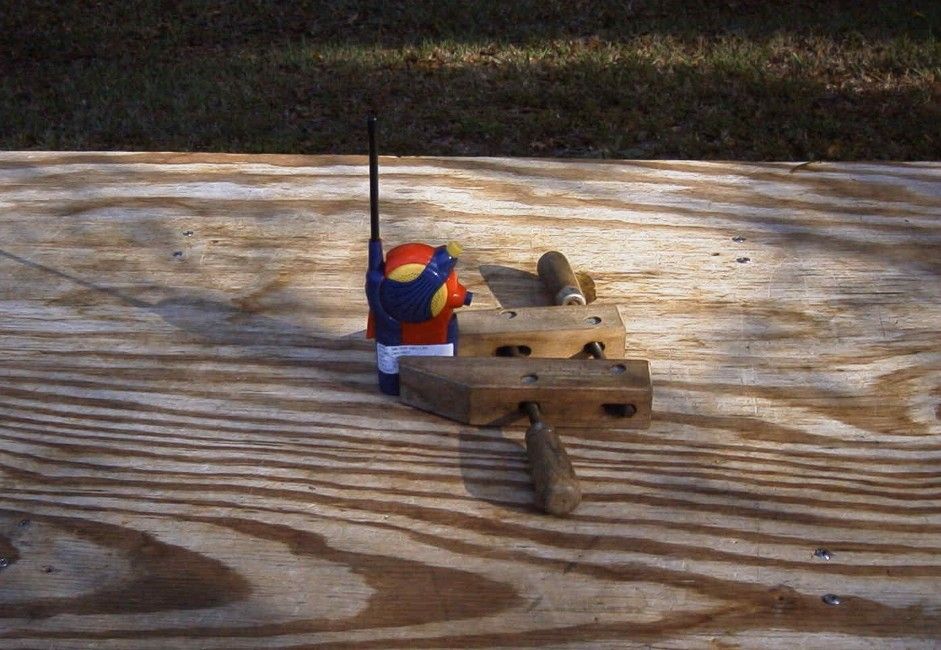

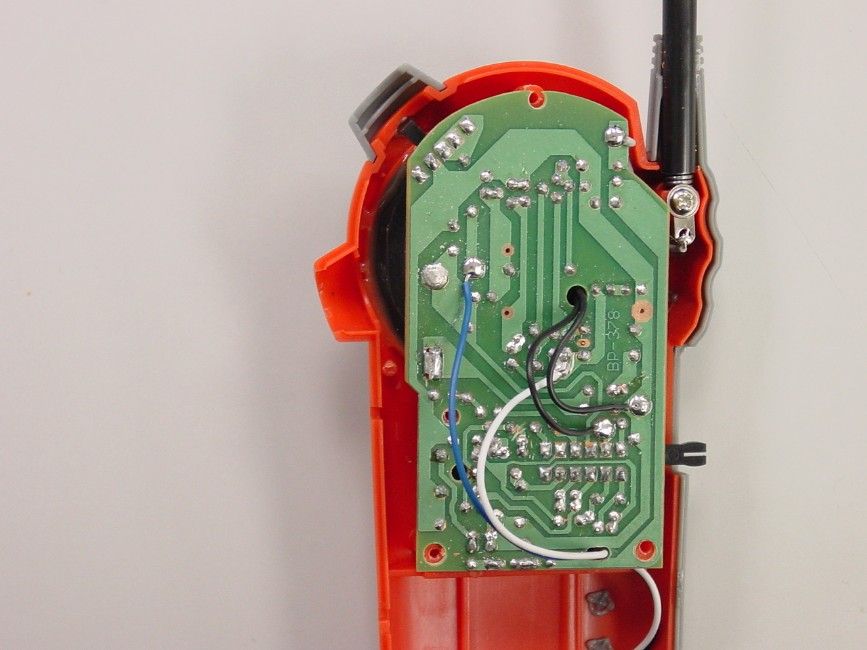

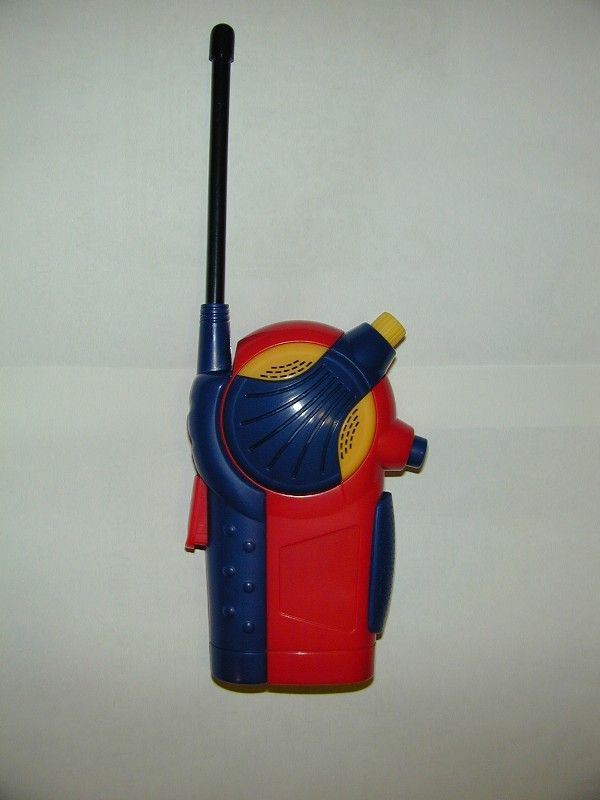

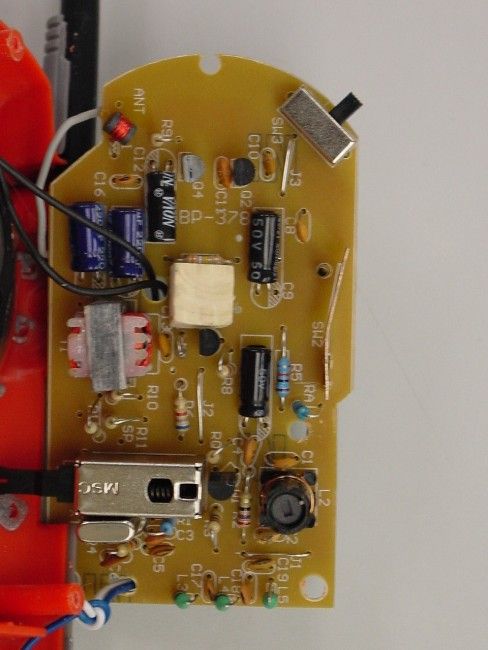

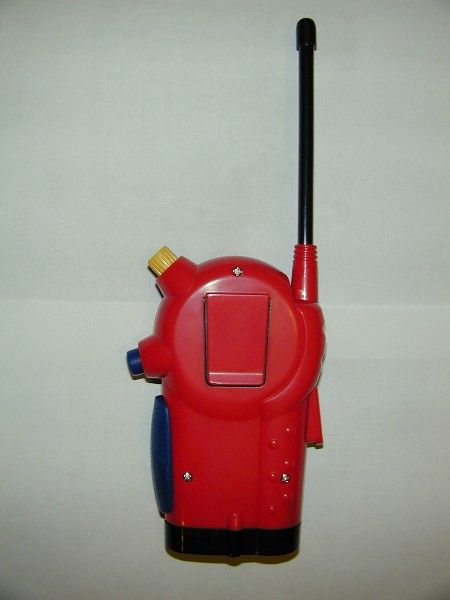

TABLE OF CONTENTS LIST APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST AND TEST PROCEDURE PAGE 2......TEST PROCEDURE CONTD. PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA PAGE 5......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3............INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SET UP PHOTO APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 REPORT #: T\TWO\1199AH1\1199AH1RPT.doc PAGE: TABLE OF CONTENTS LIST APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 TEST EQUIPMENT LIST 1. X Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2. X Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal. 10/1/01 Due 10/1/02 3. Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4. Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 3/15/00 Due 3/15/01 5. X Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 3/15/00 Due 3/15/01 6. Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 Due 4/27/00 7. 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 8. Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 9. Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 10. Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/27/01 Due 1/27/02 11. Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 11/20/00 Due 11/20/01 12. Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 13. X Open Area Test Site #1-3meters Cal. 12/22/99 14. Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 15. Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 6/10/00 Due 6/10/01 16. Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Char. 11/24/00 Due 11/24/01 17. AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 18. X Digital Multimeter: Fluke Model 77, S/N 43850817 Cal. 11/16/00 Due 11/16/01 19.Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 REPORT #: T\TWO\1199AH1\1199AH1RPT.doc PAGE: 1 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 81°C with a humidity of 49%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 REPORT #: T\TWO\1199AH1\1199AH1RPT.doc PAGE: 2 APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.235 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m Margin dB 49.86 28.5 V 0.80 11.83 41.13 38.87 49.86 44.7 V 0.80 11.83 57.33 22.67 149.50 6.9 V 1.40 16.45 24.75 18.75 199.40 6.3 H 1.80 17.21 25.31 18.19 199.40 7.2 V 1.80 17.21 26.21 17.29 249.20 18.0 H 2.00 12.06 32.06 13.94 249.20 21.8 V 2.00 12.06 35.86 10.14 299.10 4.2 H 2.20 13.68 20.08 25.92 299.10 10.4 V 2.20 13.68 26.28 19.72 348.90 4.7 H 2.49 14.42 21.61 24.39 348.90 9.6 V 2.49 14.42 26.51 19.49 448.60 9.7 V 2.95 16.99 29.64 16.36 498.60 7.7 V 3.10 17.45 28.25 17.75 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: JOSEPH SCOGLIO DATE: DECEMBER 17, 2001 APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 REPORT #: T\TWO\1199AH1\1199AH1RPT.doc PAGE #: 3 APPLICANT: 200 TOY (HK) LTD. FCC ID: O4Y10025 NAME OF TEST: Occupied Ban…
