O5UKS110RPC to Stereo Link Remote Station

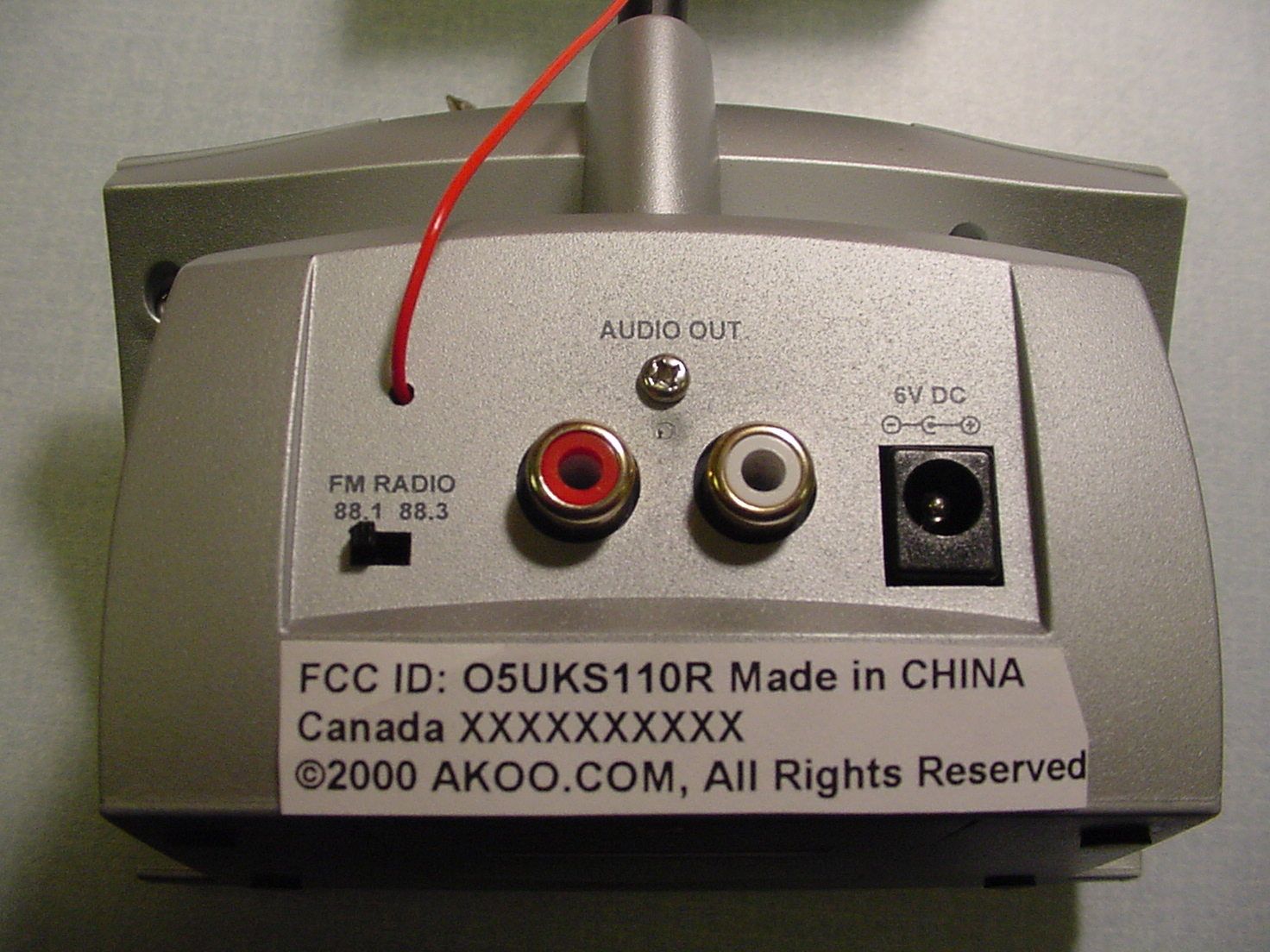

Akoo.com Kima operating instructions: The Kima system allows you to listen to music over the Internet on your home stereo system or FM radio. The Remote unit allows you to either directly connect to your stereo with RCA type cables or to retransmit the music over the FM band at 88.1 or 88.3 MHz. Use Instructions: 1) Connect the Audio out of your PC sound card, CD player or similar device to the Audio Input of the Kima Base unit. 2) Place the Kima Remote unit up to 1000 feet away, within 10 feet of your FM radio to use the FM transmitter function or connect the Stereo out connection of the Remote unit to the Audio In of your stereo receiver. 3) If you wish to use the FM transmitter feature, tune your radio to the same station as the Kima Remote unit is set to, either 88.1MHz or 88.3MHz. Battery Power: The Kima Base and Remote units can be powered either from a 6 Volt AC Adapter or from 4 AAA type batteries. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by Akoo.com may void the users authority to operate this equipment. The following is provided for users of the Kima remote without FM Band transmitter option: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

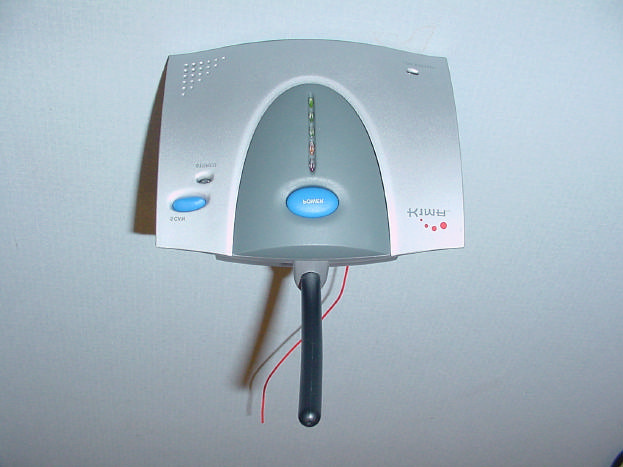

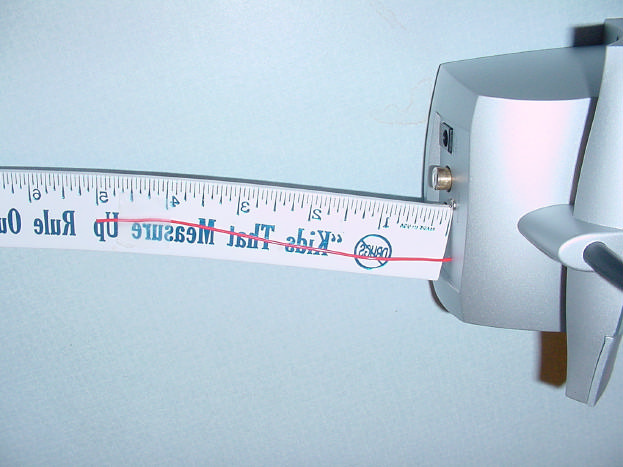

PHOTOGRAPHS Exterior Product TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote PHOTOGRAPHS Exterior Product TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote PHOTOGRAPHS Exterior Product

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 FEDERAL COMMUNICATIONS COMMISSION PART 15.239 CERTIFICATION TESTING 88 - 108 MHz Subpart C - Intentional Radiators for Akoo.com 2500 North Harlem Avenue Elmwood Park, IL 60707 202-418-2470 of Kima Kima Remote FCCID#: O5UKS110R on August 18, 2000 Tested by Reviewed by Page 2 of 28 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote TABLE OF CONTENTS • Test Description • Test Results and Conclusions • Test Procedures • Part 15 Subpart C Test Limits • Test Facility Description • Test Setup and Connection Information • Test Measurements and Results Radiated Measurements Radiated Output Power & Occupied Bandwidth Conducted Measurements • Notes and Comments • Photographs Radiated Test Setup (Front & Rear) Conducted Test Setup (Front & Rear) Exterior and Interior Photographs of Product Page 3 of 28 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote TEST DESCRIPTION 1. TEST OBJECTIVE To test the Kima Remote KS110R to FCC Part 15.239, Subpart C limits and write a report. 2. E.U.T. DESCRIPTION GENERAL The Kima Remote is a 900 MHz band receiver and 88 MHz transmitter used for sending music to a stereo receiver. The Kima Remote is a component of the Kima system. SERIAL NUMBERS: Pre-Production Prototype. Page 4 of 28 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote TEST RESULTS AND CONCLUSIONS PRODUCT TESTED - Kima MODEL NUMBER - Kima Remote KS110R RADIATED TEST RESULTS The test results show that the emissions radiated from this equipment are in compliance with FCC Rules, Part 15, Subpart C, Section 15.209. OCCUPIED BANDWIDTH & OUTPUT POWER The test results show that the occupied bandwidth and output power of this equipment are in compliance with FCC Rules, Part 15, Subpart C, Section 15.239. CONDUCTED TEST RESULTS The test results show that the emissions conducted through the power line from this equipment are in compliance with FCC Rules, Part 15, Subpart C, Section 15.207. ANALYSIS AND CONCLUSIONS Based upon the radiated and conducted measurements we find that this equipment is within the limits of the FCC Rules, Part 15, Subpart C. All results are based on a test of one sample, and represent other production units, only in as much as a sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. NOTES (Special conditions unique to this test) None. Page 5 of 28 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote TEST PROCEDURES 1. TEST EQUIPMENT A. HP 8546A (9 kHz - 6.5 GHz) EMI Receiver w/ RF Filter Section Calibration Date: 7-18-2000, calibrated annually. B. LISN, Compliance Worldwide, Model 50 μH / 50 ohm, S/N 100. Calibration Date: 2-22-2000, calibrated annually. C. Combilog Antenna, (30MHz – 2GHz)Com-Power, Model AC-220 Calibration Date: 8-11-2000, calibrated annually. 2. FREQUENCY RANGE TO BE SCANNED. A. Radiated Test from 30 MHz to 1 GHz B. Conducted Test from 450 kHz to 30 MHz. Page 6 of 28 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote 3. TEST PROCEDURES. Radiated test procedure The EUT, associated cables and peripheral devices are placed on the supporting table and any support equipment is placed off the site. The EUT is turned on and any necessary operating or test software installed and allowed to warm up. The frequency band from 30 MHz to 1 GHz is scanned. When an emission is found the emission is maximized by varying the bundle position of the connecting cables, the antenna height, the antenna polarization (vertical and horizontal) and the table orientation (360 degrees). The maximum reading is recorded and the next signal is searched for. Conducted test procedure The power line of the EUT is connected to the LISN (Line Impedance Stabilization Network). A measurement of the emissions are made from the power line for both phase and neutral on the analyzer in the frequency range from 450 kHz to 30 MHz. The maximum readings are recorded for each phase. All measurements are made according to the procedures defined in: "ANSI C63.4-1992 Standard Methods of Measurement of Radio Noise Emissions from Low-Voltage Electrical and Electronics Equipment in the Range of 9 kHz to 40 GHz, American National Standard for (ISBN 1- 55937-215-5). Page 7 of 28 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote PART 15.239 TEST LIMITS 1. 15.209, 15.239 Radiation Limits (Quasi-Peak): Frequency MHz Distance meters Limit dBμV/m Limit μV/m 1.705 - 30 30 29.5* 30* 30 - 88 3 40.0 100 88 - 108 3 48.0* 250* 88 - 216 3 43.5 150 216 - 960 3 46.0 200 960 - 1000 3 54.0 500 *NOTE: Average Limits 2. 15.207 Conduction Limits (Quasi-Peak): Frequency MHz Limit dBμV/m Limit μV/m 0.450 - 30.0 48.0 250 Page 8 of 28 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote TEST FACILITY DESCRIPTION In keeping with the requirements of Section 2.948 of the Federal Communications Commission's Rules, Compliance Worldwide has filed a Test Facility Description with the F.C.C. Anyone wishing to review this Test Facility Description is referred to registration number 96392. This is currently on file at the FCC's Authorization and Evaluation…

Text truncated - open the document above for the full version.

PHOTOGRAPHS Radiated Test Setup (Front) TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote PHOTOGRAPHS Radiated Test Setup (Rear) TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote PHOTOGRAPHS Conducted Test Setup (Front) TEST NUMBER - 295-00 Akoo.com Kima - Kima Remote PHOTOGRAPHS Conducted Test Setup (Rear)
