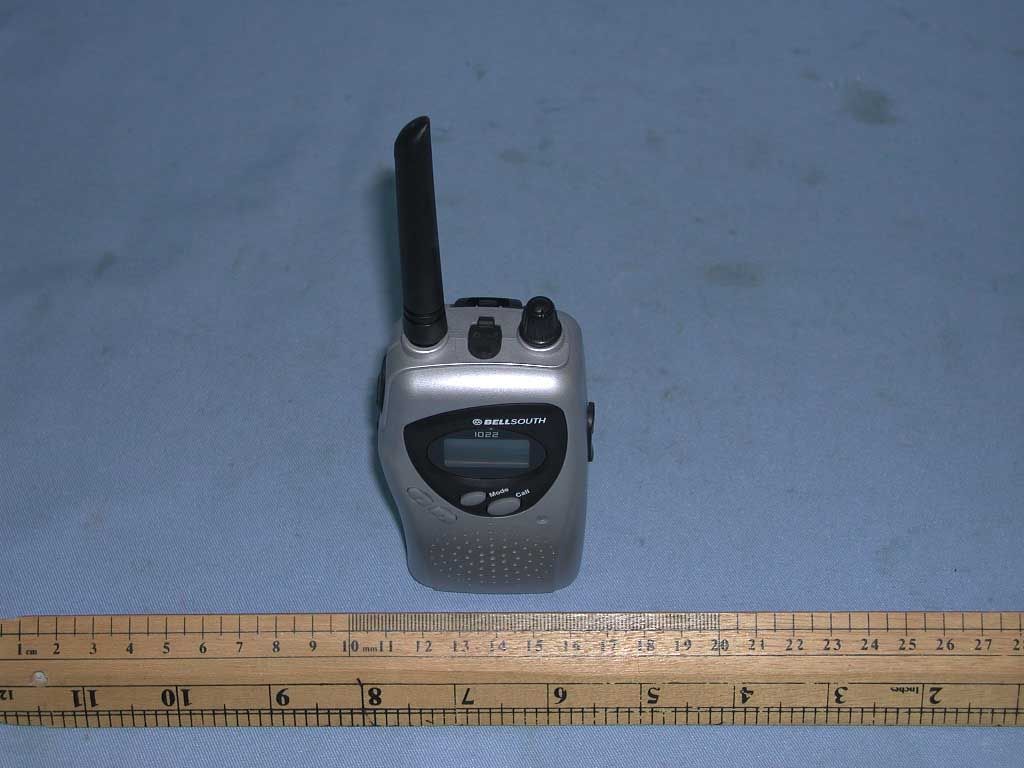

O63102214-Channel Family Radio Service

To: Team A ITS/ES-HKG Subject: RE: TCB Certification (FCC ID: O631022) Dear Joyce: Thank you for this FCC Part 95B application. We have completed an administrative and technical review, and have the following comments: ADMINISTRATIVE 1) information on 2.1033(c)(8) voltage and current into final RF stages is missing, or cannot be found; please provide. 2) The external and internal photos are somewhat larger (309 - 367KB) than the FCC limit for JPEG file sizes (300KB). We will compress them here, but in future please try to keep the JPEG files below 300KB each. TECHNICAL 1) 2.1033(c)(9) the tuneup procedure specifies a power setting of -0.46 dBm, whereas the rated output power for the device is 14 mW or +11.5 dBm. This could be possible if there were an attenuator in the test fixture, but it is not described. Please have the manufacturer amend the power setting protocol or provide additional information on any attenuator in the test fixture. 2) Test Report: attenuation of spurious emissions (2.1053) is measured in field strength and converted to power. The FCC accepts this when the apparent power is lower than 20 dB below the required limit. If the margin is less than 20 dB, the FCC policy is to show substitution power measurements. I recognize that the policy for Part 95B devices may differ from this. Has the FCC accepted your field strength measurements for spurious compliance margins of 10 dB or less? Regards, Roland -----Original Message----- From: Team A ITS/ES-HKG Sent: Wednesday, June 06, 2001 11:52 PM To: Roland Gubisch ITS/ES-Box; TCB_Admin ITS/ES-Crt Subject: TCB Certification (FCC ID: O631022) Dear all, Please review the attached documents for TCB Certification: << File: block.pdf >> << File: bw.pdf >> << File: circuit.pdf >> << File: descri.pdf >> << File: FORM731.doc >> << File: iphoto1.JPG >> << File: iphoto2.JPG >> << File: iphoto3.JPG >> << File: label.pdf >> << File: manual.pdf >> << File: mfr.pdf >> << File: mlc.pdf >> << File: ophoto1.JPG >> << File: ophoto2.JPG >> << File: partlist.pdf >> << File: radiated11.jpg >> << File: radiated21.jpg >> << File: report.doc >> << File: spurious.pdf >> << File: Surveillance.pdf >> << File: tuneup.pdf >> Best Regards, Joyce Chan Customer Service Officer ETL SEMKO - OP Team

From: Ben Ho ITS/ES-HKG Sent: Friday, June 08, 2001 6:12 AM To: Roland Gubisch ITS/ES-Box Cc: Wilson Loke ITS/ES-HKG; Joyce Chan ITS/ES-HKG; Team A ITS/ES-HKG Subject: RE: TCB Certification (FCC ID: O631022) Follow Up Flag: Follow up Flag Status: Flagged Dear Roland, With reference to your email, our reply is as follow: (i) The input current to the unit is 0.2A at 6.0V d.c. (ii) Thanks for for help and we will keep the photo size below 300kB each. (iii)The tune-up procedure has been revised. Please see the attached document. (iv) We have about four years experience in handling the FCC application of the FRS. Up to now, they did not reject our data or any comment on our measurement method even the margin is less than 10 dB. Best regards Ben Ho - ITS HK -----Original Message----- From: Roland Gubisch ITS/ES-Box Sent: Thursday, June 07, 2001 9:39 PM To: Team A ITS/ES-HKG Cc: Robert F. Martin ITS/ES-Box Subject: RE: TCB Certification (FCC ID: O631022) Dear Joyce: Thank you for this FCC Part 95B application. We have completed an administrative and technical review, and have the following comments: ADMINISTRATIVE 1) information on 2.1033(c)(8) voltage and current into final RF stages is missing, or cannot be found; please provide. 2) The external and internal photos are somewhat larger (309 - 367KB) than the FCC limit for JPEG file sizes (300KB). We will compress them here, but in future please try to keep the JPEG files below 300KB each. TECHNICAL 1) 2.1033(c)(9) the tune-up procedure specifies a power setting of -0.46 dBm, whereas the rated output power for the device is 14 mW or +11.5 dBm. This could be possible if there were an attenuator in the test fixture, but it is not described. Please have the manufacturer amend the power setting protocol or provide additional information on any attenuator in the test fixture. 2) Test Report: attenuation of spurious emissions (2.1053) is measured in field strength and converted to power. The FCC accepts this when the apparent power is lower than 20 dB below the required limit. If the margin is less than 20 dB, the FCC policy is to show substitution power measurements. I recognize that the policy for Part 95B devices may differ from this. Has the FCC accepted your field strength measurements for spurious compliance margins of 10 dB or less? Regards, Roland -----Original Message----- From: Team A ITS/ES-HKG Sent: Wednesday, June 06, 2001 11:52 PM To: Roland Gubisch ITS/ES-Box; TCB_Admin ITS/ES-Crt Subject: TCB Certification (FCC ID: O631022) Dear all, Please review the attached documents for TCB Certification: << File: block.pdf >> << File: bw.pdf >> << File: circuit.pdf >> << File: descri.pdf >> << File: FORM731.doc >> << File: iphoto1.JPG >> << File: iphoto2.JPG >> << File: iphoto3.JPG >> << File: label.pdf >> << File: manual.pdf >> << File: mfr.pdf >> << File: mlc.pdf >> << File: ophoto1.JPG >> << File: ophoto2.JPG >> << File: partlist.pdf >> << File: radiated11.jpg >> << File: radiated21.jpg >> << File: report.doc >> << File: spurious.pdf >> << File: Surveillance.pdf >> << File: tuneup.pdf >> Best Regards, Joyce Chan Customer Service Officer ETL SEMKO - OP Team

FCC ID: O631022 Voltage and current to final RF stage:0.2A at 6.0V d.c.

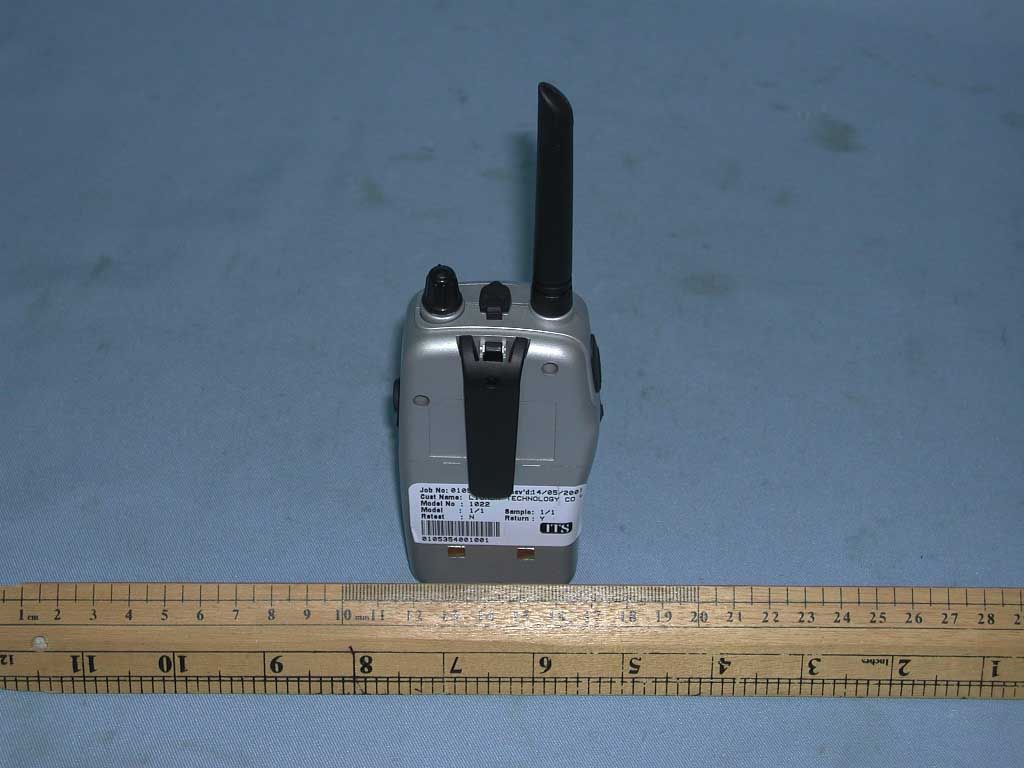

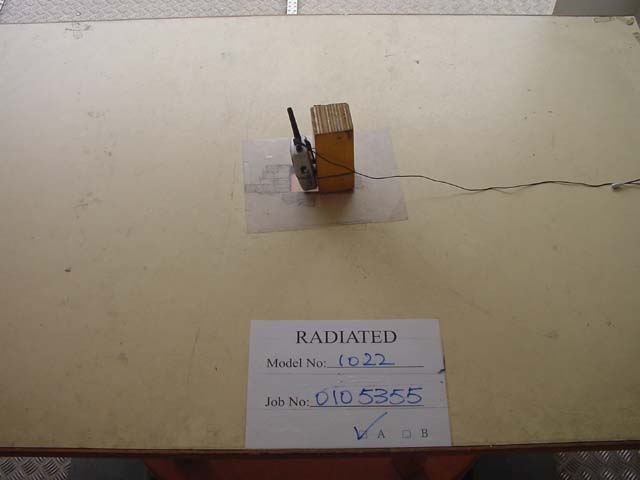

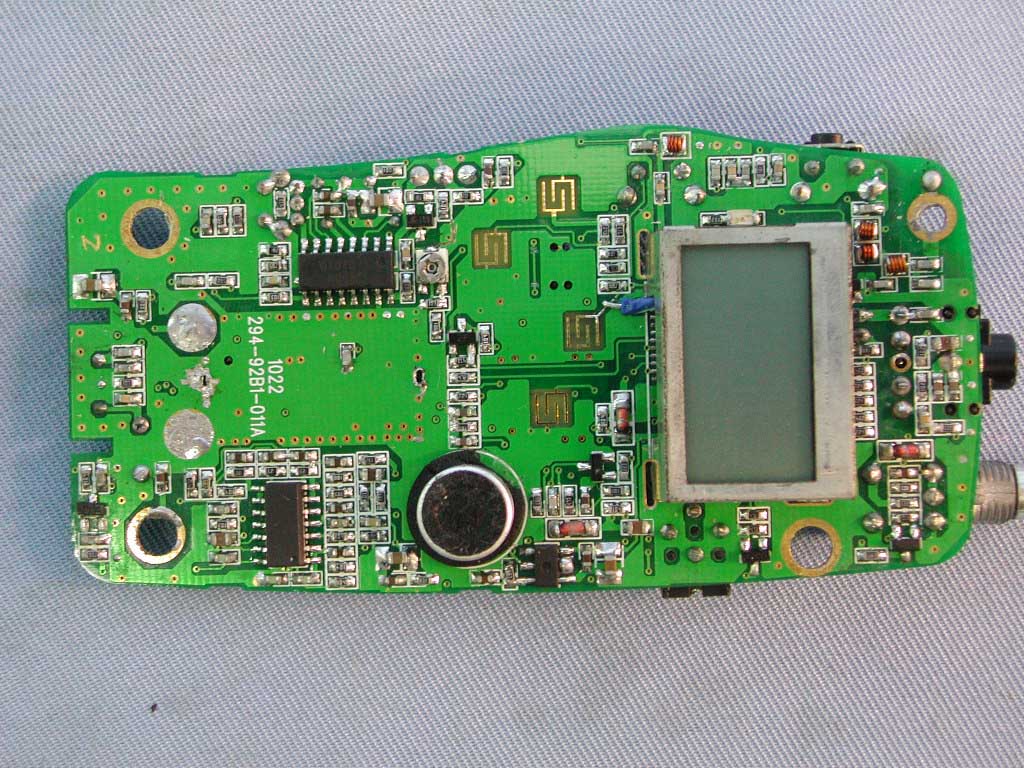

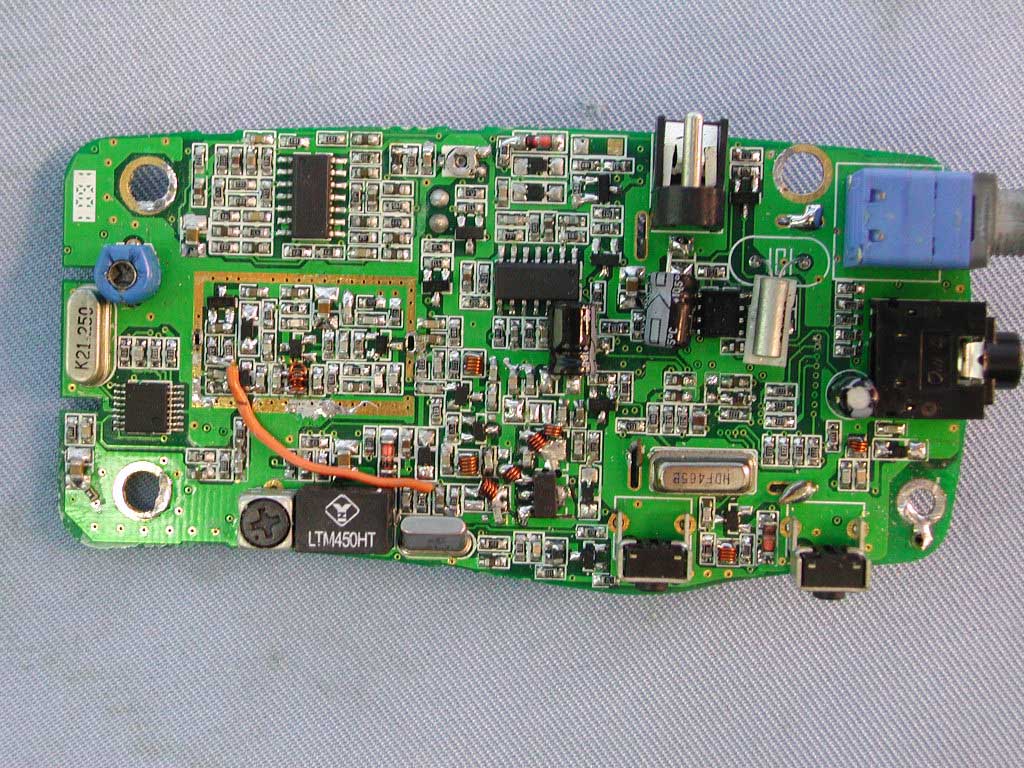

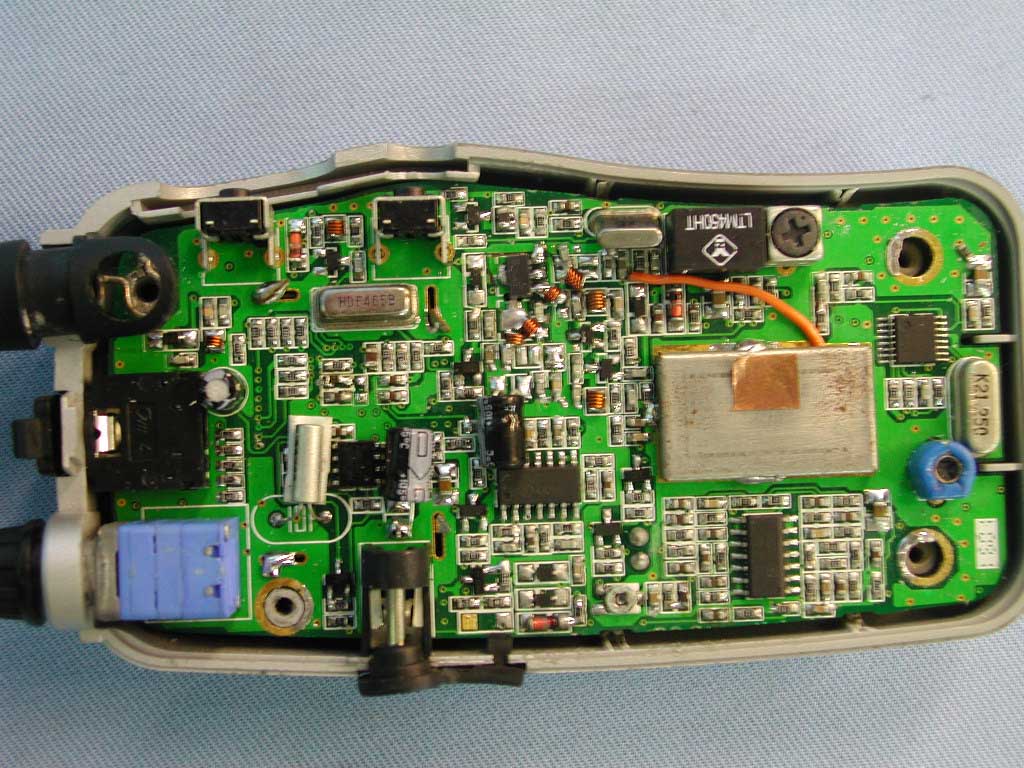

• The test results rep orted in this rep ort shall refer only to the samp le actually tested and shall not refer or be deemed a refer to bulk from which such a samp le may be said to have been obtained. • This rep ort shall not be rep roduced excep t in full without p rior authorization from Intertek Testing Services Hong Kong Limit ed • For Terms And Conditions of the services, it can be p rovided up on request. Inte rte k Te sting Se rvice s Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Lionda Technology Co. Ltd. Application For Certification (FCC ID: O631022) June 5, 2001 WO# report.doc WL/Sandy June 5, 2001 INTERTEK TESTING SERVICES FCC ID: O631022 i SUMMARY OF CONTENTS LIST OF EXHIBITS EXHIBIT 1 :General Description EXHIBIT 2 :System Test Configuration EXHIBIT 3 :RF Power Output EXHIBIT 4 :Modulation Characteristics EXHIBIT 5 :Occupied Bandwidth EXHIBIT 6 :Emission Spurious EXHIBIT 7 :Frequency Stability EXHIBIT 8 :Technical Specifications EXHIBIT 9 :Product Labelling EXHIBIT 10 :Photographs EXHIBIT 11: Instruction Manual INTERTEK TESTING SERVICES FCC ID: O631022 ii MEASUREMENT/TECHNICAL REPORT Application: Lionda Technology Co. Ltd. Trade Name/Model No : BELLSOUTH 1022 Date: June 5, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Family Radio Service, FRS Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by:Wilson Loke Intertek Testing Services. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8575 Fax:852-2745-8306 INTERTEK TESTING SERVICES FCC ID: O631022 iii Table of Contents 1.1Product Description ........................................................................................................................................ 2 2.0 System Test Configuration ...............................................................................................................................5 2.1Justification..................................................................................................................................................... 5 2.2EUT Exercising Software................................................................................................................................ 6 4.0 Frequency Deviation ....................................................................................................................................... 13 6.0 Equipme nt Photographs .................................................................................................................................. 21 7.0 Product Labe lling ............................................................................................................................................ 28 8.0 Te chnical Spe cifications .................................................................................................................................. 37 INTERTEK TESTING SERVICES FCC ID: O631022 iv List of attached file Exhibit typeFile DescriptionFilename Operation DescriptionTechnical Descriptiondescri.pdf Test ReportBandwidth Plotbw.pdf Test ReportModulation Frequency Responsemfr.pdf Test ReportModulation Limit Characteristicmlc.pdf Test ReportSpurious Emissionspurious.pdf Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf Test ReportTest Reportreport.doc Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto3.jpg External PhotoExternal Photoophoto1.jpg to ophoto2.jpg Test ReportTune Up Proceduretuneup.pdf Test ReportPart Listpartlist.pdf INTERTEK TESTING SERVICES FCC ID: O631022 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: O631022 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a 14-Channel FRS operating at 462.5625 to 467.7125MHz. The EUT is powered by 6V batteries (4 x 1.5V “AAA” battery). Transmitter Portion: i) Type of Emission: 10K35F3E ii) Frequency Range: 462.5625 to 467.7125MHz iii) Maximum Power Rating: 0.014W The brief circuit description is saved with filename: descri.pdf INTERTEK TESTING SERVICES FCC ID: O631022 3 1.2Related Submittal(s) Grants This is an Application for Certification of the transmitter portion of a FRS Transceiver. The receiver section of the FRS Transceiver is subject to verification process. 1.3 Test Methodology Radiated emission measurements were performed according to the procedures in ANSI C63.4 (1992). All measurement were performed in Open Area Test Sites. Preliminary scans were performed in the Open Area Test Sites only to determine worst case modes. For each scan, the procedure of maximizing emissions in Appendices D and E were followed. All Radiated tests were performed at an antenna the EUT distance of 3 meters, unless stated otherwise in the “Justification Section” of this Application. 1.4Test Facility The open area test site and conducted measurement facility used to collect the emission data is located at Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. The test facility and site measurement data have been fully placed on file with the FCC. INTERTEK TESTING SERVICES FCC ID: O631022 4 EXHIBIT 2 SYSTEM TEST CONFIGURATION INTERTEK TESTING SERVICES FCC ID: O631022 5 2.0 System Test Configuration 2.1Justification The device was configured for testing in a typical fashion (as a customer would normally use it). The device was placed on a turntable, which enabled the engineer to maximize emissions through its placement in the three orthogonal axes. When the radiated emissions are measured. The device was powered by 4 x fully charged 1.5V "AAA" battery. The frequency ra…
