O632280LD02FRS/GMRS Transceiver

2 Changing CHANNELS MONITOR MODE/LOCK VOX TRANSMIT Battery Sending Call Tones ..........................................................12 ................................................... ...................... 12 ............................. 12 .............................................................15 Button (FUNCTION EDITING) Changing the CTCSS SUB-CHANNELS Selection POWER CHANNEL SCAN Charge Level/Low Battery Indication To Charge the FRS/GMRS ..................................... 13 .................................................................... 13 ............................................................. 14 ................................................................. 14 .............................. 15 ...................................................... 15 SPECIFICATIONS NOTES ...................................................................16 .................................................................................... 22 TROUBLESHOOTING WARRANTY .............................................................. 18 ............................................................................19 Removing the Belt Clip Installing the Belt Clip Connecting the Adapter Accessory Connection ........................................................8 .........................................................8 ......................................................8 ........................................................8 Battery Installation LCD Screen Turning the Unit ON Turning the Unit OFF Adjusting Speaker Volume Receiving a Signal Transmitting a Signal .............................................................9 .................................................................... 10 ............................................................ 11 .......................................................... 11 .................................................... 11 ........................................................... 11 .......................................................... 11 OPERATION SPECIAL FEATURES CARE AND SAFETY FCC NOTICE ...................................................3 .....................................................5 ...............................................................7 GETTING STARTED Contents C a l l M o d e 4 BELT CLIP ANTENNA 3 BELT CLIP(LOCATED ON THE REAR) (Pg. 8) UP BUTTON (CHANNEL/FUNCTION EDIT) (Pgs. 4, 12-14, 18) DOWN BUTTON (CHANNEL/FUNCTION EDIT) (Pgs. 4, 12-14, 18) PTT BUTTON (PUSH TO TALK) (Pgs. 4, 7, 11-14) CALL BUTTON (Pg. 4, 15) CHARGE JACK (Pg. 8, 15) MONITOR BUTTON (Pgs. 4, 11, 12, 18) MODE BUTTON (Pgs. 4, 12-14, 18) ON/OFF/VOLUME CONTROL (Pgs. 4, 9, 11, 15, 18) LCD SCREEN (Pgs. 4, 10-15, 18) MIC (Pgs. 6, 11, 18) ANTENNA (Pgs. 5-7) CHARGE TERMINAL (LOCATED ON THE REAR) BATTERY COMPARTMENT COVER LATCH (LOCATED ON THE REAR) (Pg. 4, 9) BATTERY COMPARTMENT (LOCATED ON THE REAR)) (Pgs. 4, 6, 9) EARPHONE & MICROPHONE JACK (Pg. 8) CALL button- Press to transmit CALL Tones. PTT (PUSH TO TALK) button- Press to transmit. UP/DOWNbuttons- Press to change channels and select FUNCTION in every editing mode. SPEAKER LCD (Liquid Crystal Display) Screen- Displays current channel selection and other radio status symbols. BATTERY COMPARTMENT COVER LATCH- Secures BATTERY COVER. MIC- MICROPHONE CHARGE JACK MONITOR M button- Press to tune in and hold onto weak signals. ON/OFF/VOLUME CONTROL- Rotate to . turn your unit ON/OFF and to adjust the VOLUME CONTROL level MODE- Allows you to shift into FUNCTION editing mode.button EARPHONE & MIC (MICROPHONE) JACK CHARGE TERMINAL SPEAKER (Pg. 11) Special FeaturesSpecial Features 1 around buildings or large structures. NOTE:The maximum transmission range will vary depending on terrain and environment. Range will be greater in open fields, while range is shorter within and PRODUCT DESCRIPTION The FRS/GMRS is the newest generation in personal two-way communications. The FRS/GMRS operates in a licensed radio band (FCC license is needed for its operation), on any of the 22 licensed channels. The FRS/GMRS is a lightweight, compact two-way communication device that can be used to communicate with family or friends at parks, shopping malls, sporting events, concerts - any indoor or outdoor activity! The FRS/GMRS is compatible with other brands utilizing the same frequency band (operating in the frequency range from 462.5625MHz The FRS/GMRS has 22-CHANNELS, featuring a multi-functional LCD Screen (which displays the current channel and various status icons). This unit may not ensure privacy of communication. Other features include ON/OFF VOLUME CONTROL and BATTERY SAVE CIRCUITRY. Please read this Owner's Manual carefully to get the most out of your FRS/ GMRS. Congratulations on your selection of a quality . With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide BellSouth Product BellSouthis committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail U.S. Electronics 105 Madison Avenue New York, NY 10016 your comments to: you with years of trouble-free service. to 462.7250 MHz). VX TXRX SC FRS/GMRS Ni-MH rechargeable batteries (not included with the package). BATTERY COMPARTMENT- Houses four(4) "AAA" alkaline or Figure 1 Figure 2 Getting Started 8 Removing the BELT CLIP Installing the BELT CLIP 1. Pull the BELT CLIP LATCH away from the unit. 2. While pulling the BELT CLIP LATCH, push up on the BELT CLIP to remove it from the unit, as shown in Figure 1. 1. Slide the BELT CLIP into the BELT CLIP SLOT as shown in Figure 2. Care and SafetyCare and Safety NOTE:Areas with potentially explosive atmospheres are often, but not always, clearly marked. They include fueling areas such as below deck on boats; fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and …

Text truncated - open the document above for the full version.

2282BDA.sch-1 - Mon Apr 01 14:50:30 2002

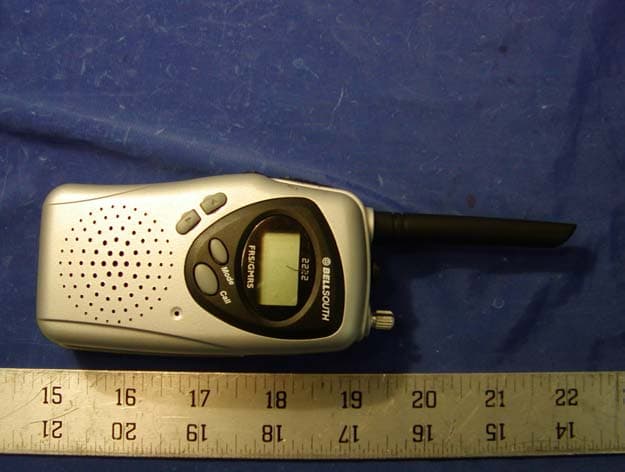

EUT External Photographs EUT - Front View EUT - Bottom View EUT - Top View EUT - Side View 1 EUT - Side View 2

FCC ID Labeling and Location Proposed FCC ID Labeling Proposed FCC ID Location Bottom Side of EUT FCC ID: O632280LD02 Proposed FCC ID i

EUT INTERNAL PHOTOGRAPHS EUT - Component View EUT - Solder View EUT - Shield Removed Component View

LIONDA TECHNOLOGY COMPANY LIMITED Lionda Research and Development Center 2280seriesdesc Page 1 4/1/02 CIRCUIT DESCRIPTION Model: 2280,2290,2282,2292 (0.5W and 1W) a. Receiver Section Radio Frequency signal received by the antenna (ANT1), passing through the Low Pass Filter (L2-L3, C30-C31). The RF signal is then amplified by Low Noise Amplifier Q2 and passes through a Band Pass Filter FL1 (465MHz). The filtered signal within the range of 462 MHz – 467 MHz is then mixed with the first local oscillator signal from the Voltage Controlled Oscillator (VCO) circuit (Q19-Q21, D8, L17) through Q11, a portion of VCO signal is then feedback to the PLL IC (IC5) for phase comparison generating a stable RX Frequency, the output signal is filtered by FL2 (21.7 MHz) which is the first Intermediate Frequency (IF) and is then amplified by Q14. The IF signal is fed to the discriminator IC (IC2) pin 16 which is then mixed with the second local oscillator supplied by crystal X2 (21.25 MHz) to produced and reduced second IF signal. Demodulated signal is recovered through correct adjustment of IF coil (L13) and the internal discriminator circuit of IC2. The recovered Audio signal is outputted at pin 9 of IC2 and then processed through filtering done by U3-D circuit, the fully recovered audio signal is then further amplified by Power Amplifier U3-A. An audible sound is therefore produce by the speaker SPK1, which can be varied from minimum to maximum through the key function (up/down) and process by the CPU IC6. b. Transmitter Section PTT switch when pushed triggers the Transmitter Circuit “ON”, the voice signal generates by the surrounding noise passes through the Microphone MIC1 where mechanical to electrical transformation occurs, the electrical transformed signal is then filtered by a Band Pass Filter U3-A, D, and C. The output signal is Modulated by a modulator circuit with a varactor diode D8 and L17. The external components from Q19-Q21 form a VCO Circuit, which generates the required oscillating frequency for transmission; a portion of this signal is feedback to the PLL IC5 pin 14 for phase comparison in order to produce a stabilized TX frequency. The modulated signal is then amplified by a Cascaded Amplifier Circuit Q17 and Q18 and again amplified by Q24 to produce a sufficient Radio Frequency signal emitted by the Antenna (ANT1). c. Call Transmission By pushing the CALL key, a signal is detected by the CPU (IC6), a CALL data is then produced by the CPU. This data passes through the Band Pass Filter U1-C and modulated by the varactor diode D2 and L8. The signal follows it’s conventional transmission section path through the antenna. d. Continuous Tone Coded Squelch Signal Protocol Once the unit is set to the corresponding Channel and CTCSS code at TX mode a tone is continuously generated from CPU through R96 and R103 and then passes through U1C for filtering and amplification. Then the Coded Tone signal follows its conventional transmission section path. During receiving mode once the Coded Tone signal matched with the set Code the CPU acknowledges and RX mute will disabled and RX will be active. LIONDA TECHNOLOGY COMPANY LIMITED Lionda Research and Development Center 2280seriesdesc Page 2 4/1/02 e. Battery Low Detection Battery Low Detection is controlled by the IC6 as detected on the LCD1, however a voltage divider circuit R50 and R51 serve as the stabilize reference voltage for the IC6 to process its detection. f. Squelch Detection Supported by the linear IC circuit (IC2), a variable resistor VR1 sets the level of detection and Diode D11 acts as a comparator circuit interface with the CPU IC6. g. Power Supply Supply voltage of 6 Volts dc is needed to power “ON” the whole circuitry, by four (4) batteries “AAA” size. FREQUENCY CHART CHANNEL DISPLAY CHANNEL TYPE FREQ (MHz) POWER (Watts) CHANNEL DISPLAY CHANNEL TYPE FREQ (MHz) POWER (Watts) 1 GMRS/FRS 462.5625 1 12 FRS 467.6625 0.5 2 GMRS/FRS 462.5875 1 13 FRS 467.6875 0.5 3 GMRS/FRS 462.6125 1 14 FRS 467.7125 0.5 4 GMRS/FRS 462.6375 1 15 GMRS 462.5500 1 5 GMRS/FRS 462.6625 1 16 GMRS 462.5750 1 6 GMRS/FRS 462.6875 1 17 GMRS 462.6000 1 7 GMRS/FRS 462.7125 1 18 GMRS 462.6250 1 8 FRS 467.5625 0.5 19 GMRS 462.6500 1 9 FRS 467.5875 0.5 20 GMRS 462.6750 1 10 FRS 467.6125 0.5 21 GMRS 462.7000 1 11 FRS 467.6375 0.5 22 GMRS 462.7250 1 CTCSS CODE FREQUENCY CHART CODE FREQUENCY (Hz) CODE FREQUENCY (Hz) 1 67.0 20 131.8 2 71.9 21 136.5 3 74.4 22 141.3 4 77.0 23 146.2 5 79.7 24 151.4 6 82.5 25 156.7 7 85.4 26 162.2 8 88.5 27 167.9 9 91.5 28 173.8 10 94.8 29 179.9 11 97.4 30 186.2 12 100.0 31 192.8 13 103.5 32 203.5 14 107.2 33 210.7 15 110.9 34 218.1 16 114.8 35 225.7 17 118.8 36 233.6 18 123.0 37 241.8 19 127.3 38 250.3

2282mschA.sch-1 - Mon Apr 01 14:53:10 2002 2282schrfB.sch-1 - Mon Apr 01 14:58:17 2002

Note: This test report is specially limited to the above client company and product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 95 EMI MEASUREMENT AND TEST REPORT For Lionda Technology Company Limited Block 2 Laodong 2 nd Industrial Area, Xixian, Baoan, Shenzhen, Guangdong, China 518102 FCC ID: O632280LD02 April 2, 2002 This Report Concerns: Original Report Equipment Type: FRS & GMRS Test Engineer: Benjamin Jin Test Date: March 23, 2002 Reviewed By: John Y. Chan - Engineering Manager Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Lionda Technology Company Limited FCC ID: O632280LD02 Report # R0203112 FCC Part 95 Test Report Page 2 of 21 TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................4 1.2 OBJECTIVE.............................................................................................................................................................4 1.3 TEST METHODOLOGY............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 TEST EQUIPMENT LIST...........................................................................................................................................5 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................6 2.1 JUSTIFICATION.......................................................................................................................................................6 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................6 2.3 SPECIAL ACCESSORIES...........................................................................................................................................6 2.4 SCHEMATICS / BLOCK DIAGRAM...........................................................................................................................6 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................6 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................7 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................7 3 - REQUIREMENTS OF PROVISIONS ...................................................................................................................8 3.1 REQUIREMENTS AND TEST SUMMARY...................................................................................................................8 3.2 LABELING REQUIREMENT......................................................................................................................................8 4 - EFFECTIVE RADIATED POWER.......................................................................................................................9 4.1 PROVISION APPLICABLE.........................................................................................................................................9 4.2 TEST PROCEDURE..................................................................................................................................................9 4.3 TEST EQUIPMENT.................................................................................................................................................10 4.4 TEST RESULTS.....................................................................................................................................................10 5 - MODULATION CHARACTERISTICS ..............................................................................................................11 5.1 PROVISION APPLICABLE.......................................................................................................................................11 5.2 TEST PROCEDURE................................................................................................................................................11 5.3 TEST EQUIPMENT.................................................................................................................................................11 5.4 TEST RESULTS.....................................................................................................................................................11 6 - OCCUPIED BANDWIDTH OF EMISSION.......................................................................................................14 6.1 PROVISION APPLICABLE.......................................................................................................................................14 6.2 TEST PROCEDURE................................................................................................................................................14 6.3 TEST EQUIPMENT.................................................................................................................................................14 6.4 TEST RESULTS.........................................................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1Radiated Emission Setup - Front View Radiated Emission Setup - Rear View
