O632282LD02FRS/ GMRS

Lionda Technology Co Ltd

Click to zoom

Application Details

Equipment Class: FRF - Part 95 Family Radio Face Held Transmitter
Date of Grant: May 09, 2002
Application Purpose: Original Equipment
Date of Application: May 07, 2002
Equipment Note: FRS/ GMRS
Frequency Range: 462.56250000 - 467.71250000
Company: Lionda Technology Co Ltd
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

2 Changing CHANNELS MONITOR MODE/LOCK VOX TRANSMIT Battery Sending Call Tones ..........................................................12 ................................................... ...................... 12 ............................. 12 .............................................................15 Button (FUNCTION EDITING) Changing the CTCSS SUB-CHANNELS Selection POWER CHANNEL SCAN Charge Level/Low Battery Indication To Charge the FRS/GMRS ..................................... 13 .................................................................... 13 ............................................................. 14 ................................................................. 14 .............................. 15 ...................................................... 15 SPECIFICATIONS NOTES ...................................................................16 .................................................................................... 22 TROUBLESHOOTING WARRANTY .............................................................. 18 ............................................................................19 Removing the Belt Clip Installing the Belt Clip Connecting the Adapter Accessory Connection ........................................................8 .........................................................8 ......................................................8 ........................................................8 Battery Installation LCD Screen Turning the Unit ON Turning the Unit OFF Adjusting Speaker Volume Receiving a Signal Transmitting a Signal .............................................................9 .................................................................... 10 ............................................................ 11 .......................................................... 11 .................................................... 11 ........................................................... 11 .......................................................... 11 OPERATION SPECIAL FEATURES CARE AND SAFETY FCC NOTICE ...................................................3 .....................................................5 ...............................................................7 GETTING STARTED Contents C a l l M o d e 4 BELT CLIP ANTENNA 3 BELT CLIP(LOCATED ON THE REAR) (Pg. 8) UP BUTTON (CHANNEL/FUNCTION EDIT) (Pgs. 4, 12-14, 18) DOWN BUTTON (CHANNEL/FUNCTION EDIT) (Pgs. 4, 12-14, 18) PTT BUTTON (PUSH TO TALK) (Pgs. 4, 7, 11-14) CALL BUTTON (Pg. 4, 15) CHARGE JACK (Pg. 8, 15) MONITOR BUTTON (Pgs. 4, 11, 12, 18) MODE BUTTON (Pgs. 4, 12-14, 18) ON/OFF/VOLUME CONTROL (Pgs. 4, 9, 11, 15, 18) LCD SCREEN (Pgs. 4, 10-15, 18) MIC (Pgs. 6, 11, 18) ANTENNA (Pgs. 5-7) CHARGE TERMINAL (LOCATED ON THE REAR) BATTERY COMPARTMENT COVER LATCH (LOCATED ON THE REAR) (Pg. 4, 9) BATTERY COMPARTMENT (LOCATED ON THE REAR)) (Pgs. 4, 6, 9) EARPHONE & MICROPHONE JACK (Pg. 8) CALL button- Press to transmit CALL Tones. PTT (PUSH TO TALK) button- Press to transmit. UP/DOWNbuttons- Press to change channels and select FUNCTION in every editing mode. SPEAKER LCD (Liquid Crystal Display) Screen- Displays current channel selection and other radio status symbols. BATTERY COMPARTMENT COVER LATCH- Secures BATTERY COVER. MIC- MICROPHONE CHARGE JACK MONITOR M button- Press to tune in and hold onto weak signals. ON/OFF/VOLUME CONTROL- Rotate to . turn your unit ON/OFF and to adjust the VOLUME CONTROL level MODE- Allows you to shift into FUNCTION editing mode.button EARPHONE & MIC (MICROPHONE) JACK CHARGE TERMINAL SPEAKER (Pg. 11) Special FeaturesSpecial Features 1 around buildings or large structures. NOTE:The maximum transmission range will vary depending on terrain and environment. Range will be greater in open fields, while range is shorter within and PRODUCT DESCRIPTION The FRS/GMRS is the newest generation in personal two-way communications. The FRS/GMRS operates in a licensed radio band (FCC license is needed for its operation), on any of the 22 licensed channels. The FRS/GMRS is a lightweight, compact two-way communication device that can be used to communicate with family or friends at parks, shopping malls, sporting events, concerts - any indoor or outdoor activity! The FRS/GMRS is compatible with other brands utilizing the same frequency band (operating in the frequency range from 462.5625MHz The FRS/GMRS has 22-CHANNELS, featuring a multi-functional LCD Screen (which displays the current channel and various status icons). This unit may not ensure privacy of communication. Other features include ON/OFF VOLUME CONTROL and BATTERY SAVE CIRCUITRY. Please read this Owner's Manual carefully to get the most out of your FRS/ GMRS. Congratulations on your selection of a quality . With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide BellSouth Product BellSouthis committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail U.S. Electronics 105 Madison Avenue New York, NY 10016 your comments to: you with years of trouble-free service. to 462.7250 MHz). VX TXRX SC FRS/GMRS Ni-MH rechargeable batteries (not included with the package). BATTERY COMPARTMENT- Houses four(4) "AAA" alkaline or Figure 1 Figure 2 Getting Started 8 Removing the BELT CLIP Installing the BELT CLIP 1. Pull the BELT CLIP LATCH away from the unit. 2. While pulling the BELT CLIP LATCH, push up on the BELT CLIP to remove it from the unit, as shown in Figure 1. 1. Slide the BELT CLIP into the BELT CLIP SLOT as shown in Figure 2. Care and SafetyCare and Safety NOTE:Areas with potentially explosive atmospheres are often, but not always, clearly marked. They include fueling areas such as below deck on boats; fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust, or metal powders; and …

Text truncated - open the document above for the full version.

External Photos

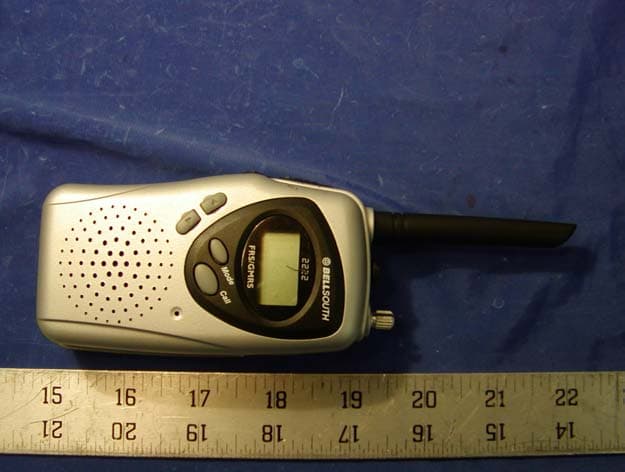

EUT External Photographs EUT - Front View EUT - Bottom View EUT - Top View EUT - Side View 1 EUT - Side View 2

ID Label/Location Info

FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Bottom Side of EUT FCC ID: O632282LD02 Proposed FCC ID i

Internal Photos

EUT INTERNAL PHOTOGRAPHS EUT - Component View EUT - Solder View EUT - Shield Removed Component View

Operational Description

LIONDA TECHNOLOGY COMPANY LIMITED Lionda Research and Development Center 2280seriesdesc Page 1 4/6/02 CIRCUIT DESCRIPTION Model: 2280,2290,2282,2292 (0.5W and 2W) a. Receiver Section Radio Frequency signal received by the antenna (ANT1), passing through the Low Pass Filter (L2-L3, C30-C31). The RF signal is then amplified by Low Noise Amplifier Q2 and passes through a Band Pass Filter FL1 (465MHz). The filtered signal within the range of 462 MHz – 467 MHz is then mixed with the first local oscillator signal from the Voltage Controlled Oscillator (VCO) circuit (Q19-Q21, D8, L17) through Q11, a portion of VCO signal is then feedback to the PLL IC (IC5) for phase comparison generating a stable RX Frequency, the output signal is filtered by FL2 (21.7 MHz) which is the first Intermediate Frequency (IF) and is then amplified by Q14. The IF signal is fed to the discriminator IC (IC2) pin 16 which is then mixed with the second local oscillator supplied by crystal X2 (21.25 MHz) to produced and reduced second IF signal. Demodulated signal is recovered through correct adjustment of IF coil (L13) and the internal discriminator circuit of IC2. The recovered Audio signal is outputted at pin 9 of IC2 and then processed through filtering done by U3-D circuit, the fully recovered audio signal is then further amplified by Power Amplifier U3-A. An audible sound is therefore produce by the speaker SPK1, which can be varied from minimum to maximum through the key function (up/down) and process by the CPU IC6. b. Transmitter Section PTT switch when pushed triggers the Transmitter Circuit “ON”, the voice signal generates by the surrounding noise passes through the Microphone MIC1 where mechanical to electrical transformation occurs, the electrical transformed signal is then filtered by a Band Pass Filter U3-A, D, and C. The output signal is Modulated by a modulator circuit with a varactor diode D8 and L17. The external components from Q19-Q21 form a VCO Circuit, which generates the required oscillating frequency for transmission; a portion of this signal is feedback to the PLL IC5 pin 14 for phase comparison in order to produce a stabilized TX frequency. The modulated signal is then amplified by a Cascaded Amplifier Circuit Q17 and Q18 and again amplified by Q24 to produce a sufficient Radio Frequency signal emitted by the Antenna (ANT1). c. Call Transmission By pushing the CALL key, a signal is detected by the CPU (IC6), a CALL data is then produced by the CPU. This data passes through the Band Pass Filter U1-C and modulated by the varactor diode D2 and L8. The signal follows it’s conventional transmission section path through the antenna. d. Continuous Tone Coded Squelch Signal Protocol Once the unit is set to the corresponding Channel and CTCSS code at TX mode a tone is continuously generated from CPU through R96 and R103 and then passes through U1C for filtering and amplification. Then the Coded Tone signal follows its conventional transmission section path. During receiving mode once the Coded Tone signal matched with the set Code the CPU acknowledges and RX mute will disabled and RX will be active. LIONDA TECHNOLOGY COMPANY LIMITED Lionda Research and Development Center 2280seriesdesc Page 2 4/6/02 e. Battery Low Detection Battery Low Detection is controlled by the IC6 as detected on the LCD1, however a voltage divider circuit R50 and R51 serve as the stabilize reference voltage for the IC6 to process its detection. f. Squelch Detection Supported by the linear IC circuit (IC2), a variable resistor VR1 sets the level of detection and Diode D11 acts as a comparator circuit interface with the CPU IC6. g. Power Supply Supply voltage of 6 Volts dc is needed to power “ON” the whole circuitry, by four (4) batteries “AAA” size. FREQUENCY CHART CHANNEL DISPLAY CHANNEL TYPE FREQ (MHz) POWER (Watts) CHANNEL DISPLAY CHANNEL TYPE FREQ (MHz) POWER (Watts) 1 GMRS/FRS 462.5625 2 12 FRS 467.6625 0.5 2 GMRS/FRS 462.5875 2 13 FRS 467.6875 0.5 3 GMRS/FRS 462.6125 2 14 FRS 467.7125 0.5 4 GMRS/FRS 462.6375 2 15 GMRS 462.5500 2 5 GMRS/FRS 462.6625 2 16 GMRS 462.5750 2 6 GMRS/FRS 462.6875 2 17 GMRS 462.6000 2 7 GMRS/FRS 462.7125 2 18 GMRS 462.6250 2 8 FRS 467.5625 0.5 19 GMRS 462.6500 2 9 FRS 467.5875 0.5 20 GMRS 462.6750 2 10 FRS 467.6125 0.5 21 GMRS 462.7000 2 11 FRS 467.6375 0.5 22 GMRS 462.7250 2 CTCSS CODE FREQUENCY CHART CODE FREQUENCY (Hz) CODE FREQUENCY (Hz) 1 67.0 20 131.8 2 71.9 21 136.5 3 74.4 22 141.3 4 77.0 23 146.2 5 79.7 24 151.4 6 82.5 25 156.7 7 85.4 26 162.2 8 88.5 27 167.9 9 91.5 28 173.8 10 94.8 29 179.9 11 97.4 30 186.2 12 100.0 31 192.8 13 103.5 32 203.5 14 107.2 33 210.7 15 110.9 34 218.1 16 114.8 35 225.7 17 118.8 36 233.6 18 123.0 37 241.8 19 127.3 38 250.3

Parts List/Tune Up Info

SLC_NPARTGD_NPARTDESCRIPREV 111-1210-027AIC_uP U8567-LD005H(DDB9H) DICE FRS1510A 111-2103-001ASIC-212-0021IC_LI KA3361/MC3361D/SIT336101-S0B0 (SOP)A 111-2103-005ASIC-212-0067IC_LI KA324/KIA324/LM324(SOP)A 111-2103-006ASIC-212-0070IC_LI TB31202FN(SOP)A 111-2103-008ASIC-212-0072IC_LI KA386/LM386(SOP)A 111-4111-001AIC_MOS VOLTAGE REGULATOR XC62FP4002PR(SOT-89)A 111-6103-002AIC_MEM 24LC02 (SOIC-8)A 112-1106-001ASTR-115-0003TR_SS KST2907TF/KTN2907S/AS /MMBT2907LT1(SOT-23)A 112-1306-001ASTR-125-0008TR_SS KSC1623Y(SOT-23)A 112-2213-001BTR_RF POWER BFQ540(SOT-89)A 112-2306-001ASTR-225-0005TR_RF KTC3880Y SOT23A 112-2306-003BTR_RF 2SC4784 (SOT-23)A 112-5114-001ATR_MOSFET 2SK3079A (2-5NIA)A 113-3025-002ASLD-442-H002LED CHIP GREEN ELT-0805GCA 113-4000-007ALCD XKS2109-TO FOR GMRS F29002A 114-1109-001A SDD-119-H002DIODE_SW KDS114(URP)A 114-1207-001ASDD-127-0005DIODE_SW LL4148/MM4148 MELFA 114-4008-001BSDD-319-H001DIODE_VAR KDV154C(USC)A 115-0207-8R2ADIODE_ZEN. TZMC8V2 (8.2V/0.5W) MELFA 122-0224-000AERS-611-0000RES_(0603)-10 0 OHMA 122-0224-100AERS-611-0100RES_(0603)-10 10 OHMA 122-0224-101AERS-611-0101RES_(0603)-10 100 OHMA 122-0224-102AERS-611-0102RES_(0603)-10 1 KOHMA 122-0224-103AERS-611-0103RES_(0603)-10 10 KOHMA 122-0224-104AERS-611-0104RES_(0603)-10 100 KOHMA 122-0224-105AERS-611-0105RES_(0603)-10 1 MOHMA 122-0224-122AERS-611-0122RES_(0603)-10 1.2 KOHMA 122-0224-123AERS-611-0123RES_(0603)-10 12 KOHMA 122-0224-124AERS-611-0124RES_(0603)-10 120 KOHMA 122-0224-152AERS-611-0152RES_(0603)-10 1.5 KOHMA 122-0224-153AERS-611-0153RES_(0603)-10 15 KOHMA 122-0224-182AERS-611-0182RES_(0603)-10 1.8 KOHMA 122-0224-183AERS-611-0183RES_(0603)-10 18 KOHMA 122-0224-154AERS-611-0184RES_(0603)-10 150 KOHMA 122-0224-202ARES_(0603)-10 2 KOHMA 122-0224-222AERS-611-0222RES_(0603)-10 2.2 KOHMA 122-0224-223AERS-611-0223RES_(0603)-10 22 KOHMA 122-0224-223AERS-611-0223RES_(0603)-10 22 KOHMA 122-0224-224AERS-611-0224RES_(0603)-10 220 KOHMA 122-0224-224AERS-611-0224RES_(0603)-10 220 KOHMA 122-0224-273AERS-611-0273RES_(0603)-10 27 KOHMA 122-0224-330AERS-611-0330RES_(0603)-10 33 OHMA 122-0224-331AERS-611-0331RES_(0603)-10 330 OHMA 122-0224-332AERS-611-0332RES_(0603)-10 3.3 KOHMA 122-0224-333AERS-611-0333RES_(0603)-10 33 KOHMA 122-0224-334AERS-611-0334RES_(0603)-10 330 KOHMA 122-0224-393AERS-611-0393RES_(0603)-10 39 KOHMA 122-0224-471AERS-611-0471RES_(0603)-10 470 OHMA 122-0224-472AERS-611-0472RES_(0603)-10 4.7 KOHMA 122-0224-473AERS-611-0473RES_(0603)-10 47 KOHMA 122-0224-474AERS-611-0474RES_(0603)-10 470 KOHMA 122-0224-513AERS-611-0513RES_(0603)-10 51 KOHMA 122-0224-560AERS-611-0560RES_(0603)-10 56 OHMA 352-0500-051DSHIELD COVER FRS1022 (GALVANIZED) SKA 122-0224-562AERS-611-0562RES_(0603)-10 5.6 KOHMA 122-0224-563AERS-611-0563RES_(0603)-10 56 KOHMA 122-0224-564AERS-611-0564RES_(0603)-10 560 KOHMA 122-0224-682AERS-611-0682RES_(0603)-10 6.8 KOHMA 122-0224-683AERS-611-0683RES_(0603)-10 68 KOHMA 122-0224-684AERS-611-0684RES_(0603)-10 680 KOHMA 122-0224-820AERS-611-0820RES_(0603)-10 82 OHMA 122-0224-822AERS-611-0822RES_(0603)-10 8.2 KOHMA 122-0224-823AERS-611-0823RES_(0603)-10 82 KOHMA 123-3224-503AERV-263-0503CHIP SVR 50 KOHMA 123-4713-103AROTARY SVR. 15KC-B 10 KOHMA 125-0255-003AEHS-300-H001CHIP SPRING COIL D1.2X0.32X3TA 125-0255-004AEHS-300-H002CHIP SPRING COIL D1.2X0.32X4TA 125-0255-005AEHS-300-H003CHIP SPRING COIL D1.2X0.32X5TA 125-0123-S22AEHS-123-0220CHIP COIL SQUARE 22nH/K(0603)A 125-0133-2R2AEHS-134-0222CHIP COIL SQUARE 2.2uH/K(0805)A 126-0102-001AIFT COIL 224-005SA 127-6300-070ACAP_C_TRIMMER 7PF JTC06A07A 128-1211-010AECS-310-0010CAP_C CHIP 1PF/B/(CH)/(0603) A:COG150LA 128-1212-020AECS-311-0020CAP_C CHIP 2PF/C/(CH)/(0603) A:COG150LA 128-1213-040AECS-312-0040CAP_C_CHIP 4PF/D(CH)(0603) A:COG150LA 128-1213-050AECS-312-0050CAP_C_CHIP 5PF/D(CH)(0603) A:COG150LA 128-1213-070AECS-312-0070CAP_C_CHIP 7PF/D(CH)(0603) A:COG150LA 128-1213-080AECS-312-0080CAP_C_CHIP 8PF/D(CH)(0603) A:COG150LA 128-1213-100AECS-312-0100CAP_C CHIP 10PF/D/(CH)/(0603) A:COG150LA 128-1213-2R5ACAP_C_CHIP 2.5PF/D(CH)(0603) A:COG150LA 128-1213-3R3ACAP_C_CHIP 3.3PF/D(CH)(0603) A:COG150LA 128-1216-101AECS-314-0101CAP_C_CHIP 100PF/J(CH)(0603) A:COG150LA 128-1216-120AECS-314-0120CAP_C_CHIP 12PF/J(CH)(0603) A:COG150LA 128-1216-150AECS-314-0150CAP_C_CHIP 15PF/J(CH)(0603) A:COG150LA 128-1216-200AECS-314-0200CAP_C_CHIP 20PF/J(CH)(0603) A:COG150LA 128-1216-220AECS-314-0220CAP_C_CHIP 22PF/J(CH)(0603) A:COG150LA 128-1216-221AECS-314-0221CAP_C_CHIP 220PF/J(CH)(0603) A:COG150LA 128-1216-300AECS-314-0300CAP_C_CHIP 30PF/J(CH)(0603) A:COG150LA 128-1216-471AECS-314-0471CAP_C_CHIP 470PF/J(CH)(0603) A:COG150LA 128-1216-561AECS-314-0561CAP_C_CHIP 560PF/J(CH)(0603) A:COG150LA 128-1216-681ACAP_C_CHIP 680PF/J(CH)(0603) A:COG150LA 128-1216-820AECS-314-0820CAP_C_CHIP 82PF/J(CH)(0603) A:COG150LA 128-2297-102AECS-555-0102CAP_C_C.H.D. B0.001uF/K(0603) X:X7R282LA 128-2297-103AECS-555-0103CAP_C_C.H.D. B0.01uF/K(0603) X:X7R282LA 128-2297-153AECS-555-0153CAP_C_C.H.D. B0.015uF/K(0603) X:X7R282LA 128-2297-222AECS-555-0222CAP_C_C.H.D. B0.0022uF/K(0603) X:X7R282LA 128-2297-223AECS-555-0223CAP_C_C.H.D. B0.022uF/K(0603) X:X7R282LA 128-2297-332AECS-555-0332CAP_C_C.H.D. B0.0033uF/K(0603) X:X7R282LA 128-2297-472AECS-555-0472CAP_C_C.H.D. B0.0047uF/K(0603) X:X7R282LA 128-22A8-473AECS-566-0473CAP_C_C.H.D. F0.047uF/M(0603) Y:YF153LA 128-22A9-104AECS-567-0104CAP_C_C.H.D. F0.1uF/Z(0603) Y:YF153LA 128-22A9-104AECS-567-0104CAP_C_C.H.D. F0.1uF/Z(0603) Y:YF153LA 128-22A9-104AECS-567-0104CAP_C_C.H.D. F0.1uF/Z(0603) Y:YF153LA 128-23A9-105AECS-667-0105CAP_C_C.H.D. F 1uF/Z(0805) Y:YF153LA 128-22A9-224AECS-667-0224CAP_C_C.H.D. F0.22uF/Z(0603) Y:YF153LA 128-22A9-474AECS-667-0474CAP_C_C.H.D. F0.47uF/Z(0603) Y:YF153LA 12A-2022-101AECE-222-0101CAP_E_MINI 100uF/10V(D5XL7)A 12A-2032-471AECE-232-0471CAP_E_MINI 470uF/16V(D8XL12)A 12C-1170-001AEXT-080-0001XTAL_32.768KHz D3X8A 12C-1420-004AXTAL_21.25MHz HC-49US(3.6mm) +/-3PPM(-10~+65)A 12D-1420-001AEXR-020-H008CRYSTAL FILTERS 21.7MHzA 12D-2120-001BEXR-020-H006CERAMIC FILT…

Text truncated - open the document above for the full version.

Schematics

2282mschB.sch-1 - Mon Apr 01 14:55:47 2002 2282schrfB.sch-1 - Mon Apr 01 15:01:18 2002

Test Report

Note: This test report is specially limited to the above client company and product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 95 EMI MEASUREMENT AND TEST REPORT For Lionda Technology Company Limited Block 2 Laodong 2 nd Industrial Area, Xixian, Baoan, Shenzhen, Guangdong, China 518102 FCC ID: O632282LD02 April 16, 2002 This Report Concerns: Original Report Equipment Type: FRS & GMRS Test Engineer: Benjamin Jin Report Number: R0203158 Test Date: April 1, 2002 Reviewed By: John Y. Chan - Engineering Manager Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Lionda Technology Company Limited FCC ID: O632282LD02 Report # 2282_Rpt FCC Part 95 Test Report Page 2 of 21 TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................4 1.2 OBJECTIVE.............................................................................................................................................................4 1.3 TEST METHODOLOGY............................................................................................................................................4 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 TEST EQUIPMENT LIST...........................................................................................................................................5 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................6 2.1 JUSTIFICATION.......................................................................................................................................................6 2.2 EUT EXERCISE SOFTWARE....................................................................................................................................6 2.3 SPECIAL ACCESSORIES...........................................................................................................................................6 2.4 SCHEMATICS / BLOCK DIAGRAM...........................................................................................................................6 2.5 EQUIPMENT MODIFICATIONS.................................................................................................................................6 2.6 CONFIGURATION OF TEST SYSTEM.........................................................................................................................7 2.7 TEST SETUP BLOCK DIAGRAM...............................................................................................................................7 3 - REQUIREMENTS OF PROVISIONS ...................................................................................................................8 3.1 REQUIREMENTS AND TEST SUMMARY...................................................................................................................8 3.2 LABELING REQUIREMENT......................................................................................................................................8 4 - EFFECTIVE RADIATED POWER.......................................................................................................................9 4.1 PROVISION APPLICABLE.........................................................................................................................................9 4.2 TEST PROCEDURE..................................................................................................................................................9 4.3 TEST EQUIPMENT.................................................................................................................................................10 4.4 TEST RESULTS.....................................................................................................................................................10 5 - MODULATION CHARACTERISTICS ..............................................................................................................11 5.1 PROVISION APPLICABLE.......................................................................................................................................11 5.2 TEST PROCEDURE................................................................................................................................................11 5.3 TEST EQUIPMENT.................................................................................................................................................11 5.4 TEST RESULTS.....................................................................................................................................................11 6 - OCCUPIED BANDWIDTH OF EMISSION.......................................................................................................14 6.1 PROVISION APPLICABLE.......................................................................................................................................14 6.2 TEST PROCEDURE................................................................................................................................................14 6.3 TEST EQUIPMENT.................................................................................................................................................14 6.4 TEST RESULTS.................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

TEST SETUP PHOTOGRAPHS 1Radiated Emission Setup - Front View Radiated Emission Setup - Rear View

Contact Information

Applicant

Dan Coronia(Senior Engineer)

[email protected]86-755-791-7824Fax: 86-755-791-7944

Test Firm

Bay Area Compliance LaboratoryJohn Chan

[email protected]408-732-9162Fax: 408-732-9164

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	95B	462.5625 MHz - 467.7125 MHz	106.00 mW	10K6F3E	2.5 ppm

Grant Notes

This device is authorized to operate in the following radio services: FRS (Part 95B) or GMRS (Part 95A). There must be an informational insert inside the box (product package) that clearly informs the consumer (buyer/owner) when the radio is transmitting on GMRS frequencies, that operation on GMRS frequencies requires an FCC license and such operation is subject to additional rules specified in 47 C.F.R. Part 95. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
