O63BE24DCDLD03Digital Cordless Phone

2.4 GHz Digital Spread Spectrum Technology CORDLESS CALLER ID TELEPHONE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. Model BE - 24DC Owner's Manual and Operating Instructions MULTI-HANDSET, MULTI-BASE UNIT SYSTEM 77 CHANNEL AUTO-HOP page charg In use Power 2.4GHz Cordless FLASH RE/PA MENU VO L SAV E INT DELETE EDIT 1 2 3 AB C DEF 5 6 JKL MN O 4 GHI 8 9 TU V WXYZ 7 PQ RS 0 # * Tone Oper D I R / E S C T A L K Ne w call MSG waiting 2.4GHz Cordless manual BE - 24DC ITS.qxd 8/25/2003 10:01 AM Page 1 Special Features Special Fea When examining your new cordless telephone, you will find an array of special features including: Digital Spread Spectrum Technology - Utilizes a “wider frequency band” for a more secure conversation with a clarity of digital sound, extended range, and minimal interference from other cordless telephones. 77 Channel Auto-hop- When interference is received, the telephone automatically hops to the clearest channel. Desk or Wall Mount- Use this equipment as a desk phone or as a wall phone. Tone or Pulse Dialing- Use this phone for either TONE (push-button) or PULSE (rotary) dialing. Automated Functions - Redial the last number called and automatic STANDBY mode. Security- Ensures greater privacy because of a built-in security code with 4,000,000 possible combinations that prevents use of your telephone line by another nearby cordless phone. Special Services- Use the button to access special services such as Call Waiting supplied by your telephone company or company switchboard. STANDBY Mode- When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call. When the HANDSETis on the BASE UNIT, it is automatically in the STANDBY mode (ON- HOOK). When the HANDSETis taken off the BASE UNIT, it remains in the STANDBY mode until you activate the button. Battery Power Saver- Recharge your BATTERY PACK many times with the built-in CHARGER. Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximum of ten days without the need for recharging. Length of charge depends on frequency of use. Luminous LCD Screen- The LCD Screen emits light for 5 seconds every time you press any of the TELEPHONE KEYPAD buttons. HANDSET Ringer Level- Select the ringer sound level (High, Low, Off). HANDSET Ring Melody- Select the desired ring melody from the 10 available melodies. HANDSET Volume Control- Press the button and then select the desired receiver volume setting from Low, Medium, High, or Maximum. Alarm Clock- The telephone emits a distinctive sound when the ALARM CLOCK function is activated (See page 26). HEADSET JACK- Your telephone can utilize a headset for hands-free communication. BELT CLIP- Use the BELT CLIP to hang your HANDSET on your belt. EDIT/FLASH VOL/MENU TALK manual BE - 24DC ITS.qxd 8/25/2003 10:01 AM Page 2 Special Features CALLER ID SYSTEM Multi-Function Large LCD Screen- Shows the number you are dialing and, with Caller ID service (available through subscription from your local telephone company), displays information about the caller before you answer the call. Name and Number DIRECTORY (PHONE BOOK) - Stores up to 40 names and numbers so that you can call them with a single key stroke. Caller List- Available with Caller ID service. Stores up to 50 calls to keep track of everyone you called. The name, phone number, time and date of the call are recorded. Allows you to return their calls with a few key strokes. Outgoing Call Memory- The telephone stores the last 8 OUTGOING CALLS to keep track of the one you called. The phone number, time, date, and the duration of the call are recorded. Allows you to call them again with a single key stroke. Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and a special ring will sound or a selected PREFERRED RING MELODY will be heard. Blocked Calls - You can mark the name and number of an unwelcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and the ringer will be disabled. Repeat Call Indicator- Shows if a new incoming call has called more than once. Out of Area Call Indicator- Advises you that the incoming call is not in a Caller ID service area. Unavailable Call Indicator- Advises you that the origin of the incoming call does not support the Caller ID system. Call Waiting Service- Displays the name and number of the second caller, if you have subscribed to Call Waiting service from your local telephone company (see page 13.) MULTI-HANDSET, MULTI-BASE UNIT SYSTEM Multi-HANDSET- Registers a total of 9 HANDSETSinto the operating system. Multi-BASE UNIT - The user can have the option to add another BASE UNIT. The system supports 2 BASE UNITSconnected to separate telephone lines. Once registered, the HANDSETScan link to either of the BASE UNITSto make and/or receive a call. Automatic Linking - All 9 HANDSETS can register to the twoBASE UNITS (B1, B2). When the FIRST BASE UNIT (B1)is already engaged, the other HANDSETScan automatically link to the SECOND BASE UNIT (B2)by pressing the button. Intercom Call- A HANDSETcan make an INTERCOM call to the other HANDSETS in the system. Call Transfer- During a telephone conversation, the call can be transferred from one HANDSETto another HANDSET. Extension Phone Detection- When one HANDSETis connected to a BASE UNIT, the LCD Screen of the other HANDSETSthat are linked to the same BASE UNITwill display “Ext in-use.” TALK manual BE - 24DC ITS.qxd 8/25/2003 10:01 AM Page 3 HANDSET Controls HANDSET 1. LARGE LCD SCREEN 11. DIR (DIRECTORY)/ESC (ESCAPE) BUTTON Pg. 14~19 14. DEL (DELETE)/INT (INTERCOM) BUTTON Pg. 15, 16, 18, 19, 27 28 8. RE ( REDIAL)/PA (PAUSE) /SAVE BUTTON Pg. 10, 15~18, 20~26 9. MESSAGE WAITING LED INDICATOR Pg. 13 NEW CALL/ 10. BATTERY CHARGE INDICATOR Pg. 30 4. HEADSET JACK Pg. 11 13. MENU/VOL (VOLUME) BUTTON Pg. 10, 20~26 5. TELEPHONE KEYPAD …

Text truncated - open the document above for the full version.

SHENZHEN BAOAN HANTONG ELECTRONICS FACTORY Block 11 & 12, Jinbi Industrial Area, Hwangtian, Baoan, Shenzhen, China. TEL.: +86-755-7506252 FAX: +86-755-7506248 August 23, 2003 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: O63BE24DCDLD03. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Circuit Description The above documents contain information for new 2.4 GHz DSS (Cordless Telephone) technology and ideas, so we would like to prevent the use of this information by other companies. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dan Coronia – Senior Approval Engineer

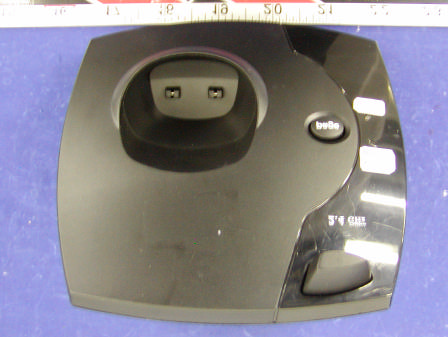

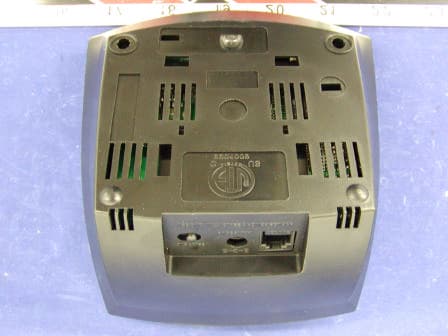

Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 APPENDIX C - EUT PHOTOGRAPHS Base - Top View Base - Bottom View

Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Handset - Top View Handset - Back View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of Base/Proposed FCC ID Back Side of Handset/Proposed FCC ID FCC ID: O63BE24DCDLD03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone.

Base – Chassis Cover off View Base - Main Board Component View Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Base - Main Board Solder View Base - Transceiver Component View Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Base - Transceiver Solder View

Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Handset – Chassis Cover off View Handset - Main Board Component View Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Handset - Main Board Solder View Handset - Transceiver Component View Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Handset - Transceiver Solder View

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Lionda Technology Company Limited Block 2 Laodong 2 nd Industrial Area, Xixian, Baoan, Shenzhen, Guangdong, China 518102 FCC ID: O63BE24DCDLD03 2003-09-05 This Report Concerns: Original Report Equipment Type: 2.4GHz Digital Cordless Telephone System - Household Appliances Test Engineer:Jerry Wang Report Number:R0308015 Test Date:2003-08-25, 2003-08-28 Reviewed By:Hans Mellberg Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Report # R0308015Rpt Page 2 of 44 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................4 1.2 OBJECTIVE................................................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................................4 1.5 TEST FACILITY.........................................................................................................................................................................4 1.6 TEST EQUIPMENT LIST............................................................................................................................................................5 1.7 LOCAL SUPPORT EQUIPMENT................................................................................................................................................5 1.8 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................5 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................6 2.1 DESCRIPTION OF TEST CONFIGURATION..............................................................................................................................6 2.2 EQUIPMENT MODIFICATIONS.................................................................................................................................................6 2.3 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................7 2.4 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................7 3 - SUMMARY OF TEST RESULTS........................................................................................................................................8 4 - CONDUCTED OUTPUT POWER MEASUREMENT..................................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................................9 4.2 MEASUREMENT PROCEDURE.................................................................................................................................................9 4.3 MEASUREMENT RESULT.........................................................................................................................................................9 5 - 6 DB BANDWIDTH................................................................................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................................12 5.2 MEASUREMENT PROCEDURE...............................................................................................................................................12 5.3 MEASUREMENT DATA..........................................................................................................................................................12 6 - SPURIOUS EMISSION.........................................................................................................................................................15 6.1 STANDARD APPLICABLE.......................................................................................................................................................15 6.2 MEASUREMENT PROCEDURE...............................................................................................................................................15 6.3 MEASUREMENT DATA..........................................................................................................................................................15 7 - 100 KHZ BANDWIDTH OF BAND EDGES MEASUREMENT..............................................................................27 7.1 STANDARD APPLICABLE.......................................................................................................................................................27 7.2 MEASUREMENT PROCEDURE.…

Text truncated - open the document above for the full version.

Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 APPENDIX B - TEST SETUP PHOTOGRAPHS Conducted Emission Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Base Radiated Emission Lionda Technology Company Limited FCC ID: O63BE24DCDLD03 Handset Radiated Emission
