Multi-HANDSET, Multi-BASE UNIT 2.4GHz Digital Spread Spectrum Technology CORDLESS CALLER ID/CALL WAITING WITH SPEAKERPHONE 77 CHANNEL AUTOHOP Model GH9742 OWNER’S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. For installation information, please see “Getting Started” instructions on page 6 or your separate Quick Start guide. Visit Us on the Web: www.uselectronics.info © 2002 BellSouth Corporation 2 . 4 G H z 2.4 GH z W XYZ P Q RS T UV M NO J K LG HI D EF A BC manual 9742.qxd 1/11/2003 11:24 AM Page 1 Special Features ongratulations on your selection of a quality BellSouth Product. With proper care and adherence to the set-up and user instructions in this Owner's Manual, this unit will provide you with years of trouble-free service. BellSouthis committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to: U.S. Electronics 105 Madison Avenue New York, NY 10016 When examining your new BellSouth cordless telephone, you will find an array of special features including: Digital Spread Spectrum Technology - Utilizes a “wider frequency band” for a more secure conversation with a clarity of digital sound, extended range, and minimal interference from other cordless telephone. 77 Channel Auto-hop- When interference is received, the telephone automatically hops to the clearest channel. Desk or Wall Mount- Use this equipment as a desk phone or as a wall phone. Tone or Pulse Dialing- Use this phone for either TONE (push-button) or PULSE (rotary) dialing. Automated Functions - Redial the last number called and automatic STANDBY mode. Security- Ensures greater privacy because of a built-in security code with 4,000,000 possible combinations that prevents use of your telephone line by another nearby cordless phone. Special Services- Use the button to access special services such as Call Waiting supplied by your telephone company or company switchboard. STANDBY Mode- When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call. When the HANDSETis on the BASE UNIT, it is automatically in the STANDBY mode (ON- HOOK). When the HANDSETis taken off the BASE UNIT, it remains in the STANDBY mode until you activate the button. Battery Power Saver- Recharge your BATTERY PACK many times with the built-in CHARGER. Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximum of five days without the need for recharging. Length of charge depends on frequency of use. Luminous LCD Screen- The LCD Screen emits light for 5 seconds everytime you press any of the TELEPHONE KEYPAD button. HANDSET Ringer Level- Select the ringer sound level (HI, LOW, OFF). HANDSET Ringer Melody- Select the desired ringer melody from the 10 available melodies. HANDSET Volume Control- Press the /MENU button and then select the desired receiver volume setting from Low, Medium, High, or Maximum. Alarm Clock- The telephone emits a distinctive sound when the ALARM CLOCK function is activated (See page 27). HEADSET JACK- Your telephone can utilize a headset for hands-free communication. BELT CLIP- Use the BELT CLIP to hang your HANDSET on your belt. FLASH/EDIT TALK C VOL manual 9742.qxd 1/11/2003 11:24 AM Page 2 Special Features CALLER ID SYSTEM Multi-Function Large LCD Screen- Shows the number you are dialing and, with Caller ID service available through subscription from your local telephone company, displays information about the caller before you answer the call. Name and Number DIRECTORY (PHONE BOOK) - Stores up to 40 names and numbers so that you can call them with a single key stroke. Caller List- Available with Caller ID service. Stores up to 50 calls to keep track of everyone who called. The name, phone number, time and date of the call are recorded. Allows you to return their calls with a few key strokes. Outgoing Call Memory- The telephone stores the last 8 OUTGOING CALLS to keep track of the one you called. The name, phone number, time, date, and the duration of the call are recorded. Allows you to call them again with a single key stroke. Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and a special ring sound or the selected PREFERRED RINGER MELODY will be heard. Blocked Calls - You can mark the name and number of an unwelcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and the ringer will be disabled. Repeat Call Indicator- Shows if a new incoming call has called more than once. Out of Area Call Indicator- Advises you that the incoming call is not in a Caller ID service area. Unavailable Call Indicator- Advises you that the origin of the incoming call does not support the Caller ID system. Call Waiting Service- Displays the name and number of the second caller, if you have subscribed for Call Waiting service from your local telephone company (see page 14.) MULTI-HANDSET, MULTI-BASE UNIT SYSTEM Multi-HANDSET- Registers a total of 9 HANDSETSinto the operating system. Multi-BASE UNIT - The user can have the option to add another BASE UNIT. The system supports 2 BASE UNITSconnected to a separate telephone line. Once registered, the HANDSETScan open link to any of the BASE UNITSto make and/or receive a call. Automatic Linking - All 9 HANDSETS can register to the twoBASE UNITS (B1, B2). When the FIRST BASE UNIT (B1)is already engaged, the other HANDSETScan automatically open link to the SECOND BASE UNIT (B2)by pressing the button. Intercom Call- A HANDSETcan make an INTERCOM call to the other HANDSETS in the system. Call Transfer- During a telephone conversation, the call can be transferred from one HANDSETto another HANDSET. Extension Phone Detection- When one HANDSETgets ON-HOOK, the LCD Screen of all the other HANDSETSlinked t…

Text truncated - open the document above for the full version.

13 Caller ID System This telephone automatically displays an incoming caller’s name and telephone number together with the date and time of the call. It records up to 50 calls and stores the data in Memory. IMPORTANT:You must subscribe to the Caller ID service from your local telephone company to utilize this feature. Viewing Caller Information During Incoming Calls 1.When there is an incoming call, the name and the telephone number of the caller will automatically appear after the first ring. If the name has more than 14 characters, the first 14 letters will be displayed first. Press the SHIFT LEFT button to view all the following letters. OR Caller’s telephone number will appear if the caller’s name is not available. OR “Unavailable”will appear when Caller ID information is not available. The origin of the call does not support the Caller ID system (including international calls). OR “Data error”will appear when the Caller ID information was received incorrectly or only part of the data was received. NOTE:When an error is received, none of the data from this call is saved in memory. OR “Private”will appear if the caller’s name and/or telephone number is blocked. OR “Msg waiting”will appear when a Voice Mail Message has been received and is stored by the Message Waiting service provided by the telephone company. Caller ID System Operation NOTE: This functions is applicable to both HANDSETand BASE UNIT. manual 9742.qxd 1/11/2003 11:25 AM Page 21 14 Caller ID with Call Waiting When you subscribe to Call Waiting service from your local telephone company, this telephone will display a flashing name and number of the second caller while you are having a phone conversation with your first caller. When a new call comes in while you are talking, you will hear a notification beep from the HANDSET and the volume is momentarily muted. The new caller’s name and phone number, if available, appears on the LCD Screen. 1.When you receive a “Call Waiting” call and you want to connect the call, press the button and start talking with the second caller. The active call will be placed on hold. 2.Press the button to alternate between calls. 3.Press the button or place the HANDSETon the BASE UNITto end the call. Second Caller First Caller TALK “MSG Waiting” (Message Waiting) The Message Waiting LED indicator will blink green when there is a message for you from your telephone company if you have subscribed to Voice Mail message service and if you have requested Visual Message Indication from your local telephone company. “Msg waiting”will appear on the LCD Screen in STANDBY mode. (To remove the MSG WAITING indicator, see page 26 for detail.) FLASH/EDIT Note:This function requires voice mail subscription from the local telephone company. Furthermore, the local phone company must provide a type of voice mail signaling called “FSK” (Frequency Shift Key). Not all telephone companies have the visual message waiting feature available. Please contact your local telephone company to check if this is available in your area. Caller List This phone automatically stores the last 50 calls received. It records call information such as caller’s name and telephone number together with the date and time of the call. The NEW CALL LED indicator will blink red to indicate that you have a new Caller ID call stored in memory. Also, “New call:_ _”will be diplayed on the LCD Screen with “_ _” being the number of new calls that have not been reviewed. FLASH/EDIT Caller ID System Operation manual 9742.qxd 1/11/2003 11:25 AM Page 22 15 Viewing the Caller List 1.With the HANDSETor BASE UNITin STANDBY mode, press the SCROLL UP or DOWNbut- ton. The LCD Screen will display “Incoming call,”press the SCROLL UP or DOWN button again to display the Caller ID records. 2.Any unviewed (new) calls will be displayed first. The information on the call will be displayed with the name, number, date, and time that the call was received. 3.Pressing the SCROLL DOWN button will go through the calls from the last call received to the first Caller ID record. Pressing the SCROLL UP button will allow you to view the calls from the first call received to the last. 4. If the name has more than 14 characters, the first 14 letters will be displayed first. Press the SHIFT LEFT button to view all the following letters. 5.Press the button on the HANDSET or /HOLD button on the BASE UNITto return to STANDBY mode. Placing a Call from the Caller List You can place a call from the Caller list by using the Caller ID CALLBACK feature. 1.When viewing the Caller ID List, press the SCROLL UP or DOWN button to find the record you wish to call back. 2.Press the /OPTIONbutton to change the displayed number to 7, 10, or 11 digits. The first dialing option displayed is the 11 digits for a long distance call. Press the /OPTIONbutton for the second time, the displayed number will change to 7 digits for a local call. Press the /OPTIONbutton for the third time, the displayed number will change to 10 digits for a local call with area code. Press the button to cancel and return to STANDBY mode. 3.Press the button to dial the displayed number. 4.To end a call, either press the button or place the HANDSET on the BASE UNIT. TALK # First press. Second press. Third press. Caller ID System Operation DIR/ ESC DIR/ ESC DIR # # TALK manual 9742.qxd 1/11/2003 11:25 AM Page 23 16 Storing Caller ID Records into the DIRECTORY (PHONE BOOK) 1.When viewing the Caller ID List, press the SCROLL UP or DOWN button to find the record you wish to store into the DIRECTORY (PHONE BOOK). 2.Press and hold the /RE/PAbutton. 3.The LCD Screen will display “Saved.” 4.If you wish to edit the newly stored number, edit it in the DIRECTORY (PHONE BOOK) (page 19, “Editing a Stored Number”). 5.Press the button to return to STANDBY mode. NOTE: You can store Caller ID Records into the DIRECTORY (PHONE BOOK) on the BASE UNITby following the steps 1 to 3. Deleting Caller ID Records When viewing the Caller ID List you can dele…

Text truncated - open the document above for the full version.

LIONDA TECHNOLOGY CO., LTD.TITLE: GH9742/GH9743 DSS B/M BDDRAWNDATE: 01/15/03Dan APPROVED CHECKEDPAGE: REV: 01 1OF1 CPU X’TAL X2 5.1612MHz CODEC X’TAL X3 16.384MHz RING DETECT DATA BUS SURGE PROTECT CHARGE DETECT L3 L4 LINE INTERFACE CODE CLOCK CPU RESET DSP CODEC RESET RF POWER CONTROL VOLTAGE REGULATOR T/P CONTROL AC/DC 12V DC ADAPTOR TRANSMITTER RECEIVER R2D2 C7 C8 GND GND GND GAUSE FILTER CPU CODEC DSP X’TAL 19.2MHz X1 LED1 GND R12 IN USE/CHG PAGE SW2 D4 C34 GND GND 2 1 CONTROL BUS DSP INTERF ACE SSP BUS PLL INTERFACE GND TX POWER (RF POWER) ENABLE PLL-SW. RX / TX CONTROL RX DATA RSSI CPU POWER TIP RING RF CONNECTOR TX DATA MODULATION DSP RESET LIONDA TECHNOLOGY CO., LTD.TITLE: GH9742/GH9743 DSS H/M BDDRAWN APPROVED CHECKED DATE: PAGE: REV: 01 1OF1 Dan CODEC X’TAL 6.144MHz DATA BUS CPU X’TAL 32.768KHz CHARGE DETECT CODE CLOCK CPU RESET DSP CODEC RESET REGULATOR GAUSE FILTER CPU CODEC DSP X’TAL 19.2MHz X1 GND CONTROL BUS DSP INTERF ACE SSP BUS TX POWER (RF POWER) ENABLE PLL-SW. RX / TX CONTROL RX DATA RSSI RF CONNECTOR TX DATA MODULATION DSP RESET 123 6 5 47 8 9 Talk # 0 * Memo Flash Mute Tone Re/Pa CHARGE PROTECT POLARITY L L D CPU POWER RF POWER 3.0V GND SPKR POWER DRIVERBUZZER AMPLIFIER SPKR MIC1 BUZZER SPEAKER GNDGNDGND MIC V REFERENCE 3.0V LED IN USE/BATLOW R 01/15/03 Dan PLL INTERFACE LIONDA TECHNOLOGY CO., LTD.TITLE: GH9742/GH9743 DSS RF BM/HM BDDRAWN APPROVED CHECKED DATE: PAGE: REV: 01 1OF1 Dan 3.6V DC BASEMAIN / HANDYMAIN ANT 3.0V REGULATOR TX POWER CONTROL Q6 & Q7 POWER CONTROL TX POWER RF PWR MODULA TION TX DATA RX DATA SQ CONTROL 01/15/03 LNA 1 Q4 FT2 2442P LNA 2 Q5 FT1 2442P BIAS CONTROL RX POWER CONTROL AMPLIFIER Q3 PRE-AMPLIFIER Q2 FREQUENCY TRIPLER Q1 D1D2 LEDATACLOCK Ml2725 IC1 NOTE: THIS IC INCLUDE THE FOLLOWING FUNCTION: - PLL- IF CIRCUITS- CONTROL LOGIC-TXDATAFILTER-TXRFBUFFER- QUADRATURE DIVIDED BY 2 .. 1.6GHZ VCO

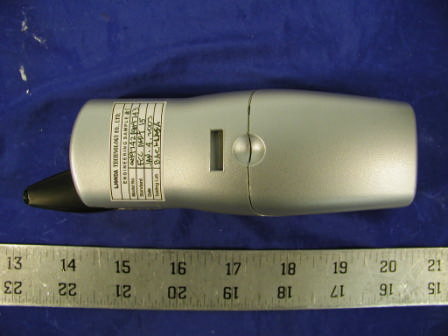

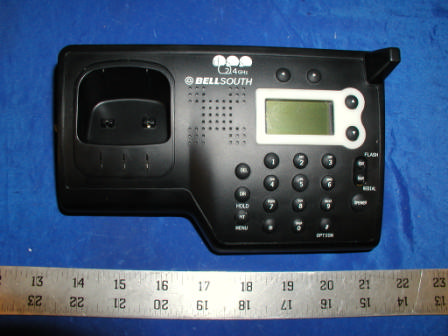

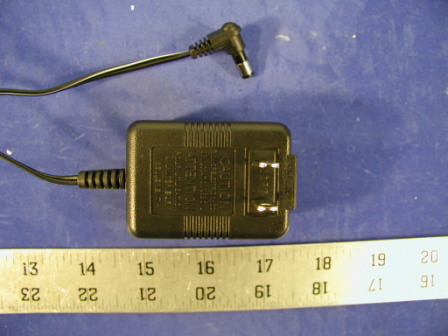

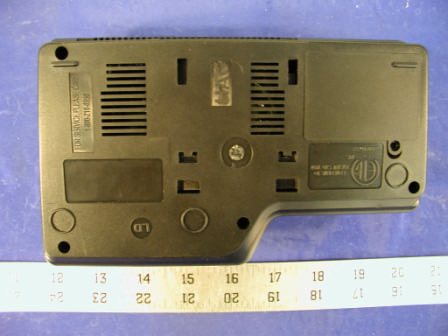

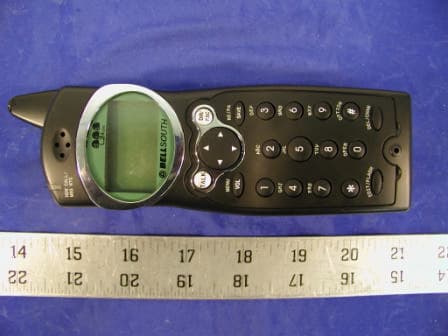

Lionda Technology Company Limited FCC ID: O63GH9742DLD03 APPENDIX C - EUT EXTERNAL PHOTOGRAPHS EUT - Adapter View Base - Top View Lionda Technology Company Limited FCC ID: O63GH9742DLD03 Base - Bottom View Handset - Top View Lionda Technology Company Limited FCC ID: O63GH9742DLD03 Handset - Back View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of Base/Proposed FCC ID Back Side of Handset/Proposed FCC ID FCC ID: O63GH9742DLD03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone.

Lionda Technology Company Limited FCC ID: O63GH9742DLD03 APPENDIX C - EUT INTERNAL PHOTOGRAPHS Base - Main Board Component View Base - Main Board Solder View Lionda Technology Company Limited FCC ID: O63GH9742DLD03 Base - Transceiver Component View Base - Transceiver Solder View Lionda Technology Company Limited FCC ID: O63GH9742DLD03 Handset - Main Board Component View Handset - Main Board Solder View Handset - Transceiver Component View Handset - Transceiver Solder View Base Antenna Connection Handset Antenna Connection

LIONDA TECHNOLOGY COMPANY LIMITED Lionda Rsearch and Development Center GH9742/9743DSSseries Page 1 3/13/2003 CIRCUIT DESCRIPTION Model: GH9742/GH9743 – Digital Spread Spectrum Cordless Phone Equipment Description: The device is a digital spread spectrum cordless telephone, which meets with FCC Part 15 and 68 requirements. This device is a telephone terminal that is designed for voice operation in a similar fashion to an ordinary residential or business telephone without the inconvenience and restrain of a handset cord. This device consists of a base unit and a handset. The base unit is intended to connect to standard telephone modular jacks and is supplied electric power from a standard AC power line by using with the AC adapter. The handset is powered from an internal battery pack. 1. Transmission: ADPCM CODEC converts the voice signal into 32kbps digital data. The digital data is fed to differential encoder, spreader that is responsible for the Spread Spectrum Modulation. The CD/SS Chip sends out digital data, which is made by the spread spectrum sequence. This data having 1.366Mbps data rate is filtered and upper converted to RF by FSK (Frequency Shift Keying) modulator. Then, filtered by LPF (Low Pass Filter) to suppress the spurious of the antenna transmission signal. 2. Reception: The receiver is direct conversion type. The incoming signal is passes through the RF BPF (Band Pass Filter). Down-conversion to quadrature base band signal is done using RF IC ML2725 for the LO (Local Oscillator). The CD/SS Chip calculates the correlation from the spreading code and the outputs the detected voice data to ADPCM CODEC. Finally, the ADPCM CODEC outputs received analog signal. 3. Duplexing: This device can communicate by using Time Division Duplex. It uses same frequency in both transmission and reception. It has 2.35 msec time frame of one transmission and reception cycle. This frame signal is generated by CD/SS Chip and is provided to all circuits. 4. Control: The CPU controls the RF frequency channel, and the ASIC controls ADPCM CODEC and audio signal switching also set up the spreading code. Before established the communication link, this device searches clearest available RF channel and then transmits RF signal at the clearest available channel. The CPU generates a random security code out of more than 4 million codes, which can protects customer’s privacy. Specification: • Frequency: 2402.304 ~ 2480.128 MHz • Channel: 77 • Channel Separation: 1.024MHz • Spread Spectrum Modulation Method: FSK (Frequency Shift Keying) • RF Output Power: 100 mW • Duplexing: TDD (Time Division Duplex) • Burst Frame (RX/TX): 2.35msec / 2.35msec • Spread Rate: 32 – Chip per Symbol • Data Rate per Symbol: 3 Bit / Symbol • Average Chip per Data Bit: 32 (Chip / Symbol) / 3 (Bit / Symbol) = 10.667 Chip per Bit • Symbol Rate at 19.2MHz Master Clock: 23.4us (micro second) per Symbol • Chip Rate: 1.366Mbps • Voice Coding: ADPCM (Adaptive Differential Pulse Code Modulation) LIONDA TECHNOLOGY COMPANY LIMITED Lionda Rsearch and Development Center GH9742/9743DSSseries Page 2 3/13/2003 • Power Supply: 3.6VDC, 800mAh (Handset) / 120VAC 500mA (Base Unit)

LIONDA CONFIDENTIAL & PROPRIETARY 1 2.4GHz DSS Specification - Frequency: 2402.304 ~ 2480.128 - Channel: 77 - Channel separation: 0.024MHz - Spread Spectrum Method: FSK Modulation - RF Output Power: 0.100Watts - Spread Rate: 32 – Chip per Symbol - Data Rate per Symbol: 3-Bit / Symbol - Average Chip per Data bit: 32 (Chip / Symbol) / 3 (Bit / Symbol) = 10.667 Chip per Bit - Symbol rate at 19.2MHz master clock: 23.4 us (microsecond) pr symbol - Chip Rate: 1.366Mbps - Voice Coding: ADPCM - Power supply: 3.6VDC , 800mAh (Handset) / 120VAC 300mA (Base unit)

DSST GH9742.sch-1 - Tue Jan 21 09:25:28 2003

DSST GH9742.sch-2 - Tue Jan 21 09:26:24 2003

DSST GH9742HM.sch-1 - Tue Jan 21 09:27:47 2003

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Lionda Technology Company Limited Block 2 Laodong 2 nd Industrial Area, Xixian, Baoan, Shenzhen, Guangdong, China 518102 FCC ID: O63GH9742DLD03 February 13, 2003 This Report Concerns: Original Report Equipment Type: 2.4GHz Digital Cordless Telephone System - Household Appliances Test Engineer:Benjamin Jin Report Number:R0301085 Test Date:January 22, 2003 Reviewed By:Hans Mellberg Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Lionda Technology Company Limited FCC ID: O63GH9742DLD03 Report # R0301085Rpt Page 2 of 34 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................4 1.2 OBJECTIVE................................................................................................................................................................................4 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................4 1.4 TEST METHODOLOGY.............................................................................................................................................................4 1.5 TEST FACILITY.........................................................................................................................................................................4 1.6 TEST EQUIPMENT LIST............................................................................................................................................................5 1.7 LOCAL SUPPORT EQUIPMENT................................................................................................................................................5 1.9 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................5 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................6 2.1 DESCRIPTION OF TEST CONFIGURATION..............................................................................................................................6 2.2 EQUIPMENT MODIFICATIONS.................................................................................................................................................6 2.3 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................7 2.4 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................7 3 - SUMMARY OF TEST RESULTS........................................................................................................................................8 4 - CONDUCTED OUTPUT POWER MEASUREMENT..................................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................................9 4.2 MEASUREMENT PROCEDURE.................................................................................................................................................9 4.3 MEASUREMENT RESULT.........................................................................................................................................................9 5 - 6 DB BANDWIDTH................................................................................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................................12 5.2 MEASUREMENT PROCEDURE...............................................................................................................................................12 5.3 MEASUREMENT DATA..........................................................................................................................................................12 6 - SPURIOUS EMISSION.........................................................................................................................................................15 6.1 STANDARD APPLICABLE.......................................................................................................................................................15 6.2 MEASUREMENT PROCEDURE...............................................................................................................................................15 6.3 MEASUREMENT DATA..........................................................................................................................................................15 7 - 100 KHZ BANDWIDTH OF BAND EDGES MEASUREMENT..............................................................................18 7.1 STANDARD APPLICABLE.......................................................................................................................................................18 7.2 MEASUREMENT PROCEDU…
