O63XG2100ALD032.4 GHz 50 Channels Cordless Telephone

CORDLESS TELEPHONE Model XG2100 OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. 4 © 2002 BellSouth Corporation Visit Us on the Web: www.uselectronics.info ongratulations on your selection of a quality XACT Product. With proper care, and by following the setup and user instructions in this owner’s manual, this unit will provide you with years of trouble free service. BellSouth is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to: U.S. Electronics 105 Madison Avenue New York, NY 10016 When examining your new BellSouth cordless telephone, you will find an array of special features including: Filtered Sound™ System - Receives considerably less noise than conventional cordless telephones because of a special circuit which delivers the clearest possible reception. 50 Channel Autoscan - Press the button on the HANDSET to find and lock on to the clearest channel for any call. Telephone Number Storage - Store up to 10 frequently called numbers. Desk or Wall Mount - Use this equipment as a desk phone and as a wall phone. TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary) dialing. Automated Functions - Redial the last number called, speed dial 10 numbers, and automatic STANDBY mode. Security - Ensures greater privacy because a built-in security code with 65,536 combinations prevents use of your telephone line by another nearby cordless phone. Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger. The battery low warning tone tells you when the BATTERY PACK needs recharging. (See page 11.) Special Services - Use the button to access special services such as Call Waiting supplied by your telephone company or company switchboard. STANDBY Mode - When in STANDBY mode (ON-HOOK), the phone is capable of receiving a call. When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode (ON-HOOK). When the HANDSET is off the BASE UNIT, it remains in the STANDBY mode until you activate the button. Battery Power Saver - Once fully charged, in STANDBY mode, and with the RINGER SWITCH in the “ON” position, the HANDSET can receive/send calls for a maximum of five days without the need for recharging. Length of charge depends on frequency of use. HANDSET Volume Control Switch - Select the receiver volume level (HI, MID, LOW). HEADSET JACK - Your telephone can utilize a headset for hands-free communication. BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt. Special Features C TALK SCAN FLASH HANDSET Controls 4 7. PAUSE BUTTON Pg. 9 1. TALK B UTTON Pg. 5, 7~9, 13 6. MEMO BUTTON Pg. 8, 9 10. VOLUME CONTROL (HI, MID, LOW) SWITCH 11 . CHARGE CONTACTS 8. SCAN BUTTON Pg. 7, 10, 13, 16 3. FLASH BUTTON 9. REDIAL BUTTON Pg. 9 4. HEADSET JACK Pg. 10 11 . TONE BUTTON 5. RINGER ON/OFF SWITCH Pg. 8 2. IN USE/BATT LOW LED INDICATOR Pg. 7, 8, 11 IMPORTANT In order to get maximum life from the HANDSET BATTERY PACK, be sure to charge the HANDSET for 12 hours before initial use. HANDSET Controls 1. Button: Press to answer an incoming call or to place a call. Press to end a call. 2. IN USE/BATT LOW LED Indicator: Lights up when the HANDSET is in TALK mode. Blinks when the battery charge is low. (See page 11 for detail.) 3. Button: Press to answer an incoming call if you have Call Waiting. 4. HEADSET JACK: For connecting your headset plug to enjoy hands-free communication. (See page 10 for detail). 5. RINGER ON/OFF Switch: Switch to ON to engage the ringer on the HANDSET. Set switch to OFF to disengage the ringer on the HANDSET. 6. Button: Press to store phone numbers in memory or to call a number you have previously stored. 7. Button: Press to insert a PAUSE while dialing. (You will need the button to dial numbers which use an alternative Long Distance Access Code.) 8. Button: Press to change the operating channel when you hear interference. 9. Button: Press to REDIAL the last number you called. 10. HANDSET Volume Control (HI, MID, LOW) Switch: Select the receiver volume level. 11. Button: Press to change the dialing mode from PULSE to TONE. 12. CHARGE CONTACTS: For charging the BATTERY PACK inside the HANDSET. We recommend cleaning the CHARGE CONTACTS periodically with a damp cloth. FLASH SCAN REDIAL TONE TALK PAUSE MEMO PAUSE BASE UNIT Controls 1. TELEPHONE LINE CONNECTION JACK Pg. 4, 6, 13 3. TONE/PULSE SELECT SWITCH Pg. 5, 13 2. POWER-IN CONNECTION JACK Pg. 4 5. CHARGE TERMINALS 4. BASE UNIT ANTENNA 6. IN USE/CHARGE LED INDICATOR Pg. 8 7. PAGE BUTTON BASE UNIT Controls 1. TELEPHONE LINE CONNECTION JACK 2. POWER-IN CONNECTION JACK 3. TONE/PULSE Select Switch 4. HANDSET RETAINER TAB: Holds the HANDSET in the BASE UNIT CRADLE when wall mounting the telephone. 5. BASE UNIT ANTENNA 6. CHARGE TERMINALS: For charging the BATTERY PACK inside the HANDSET. We recommend cleaning the CHARGE TERMINALS periodically with a damp cloth. 7. Button: Press to page the HANDSET. Press again to stop. 8. IN USE/CHARGE LED Indicator: Lights up when the HANDSET is in TALK mode or when the HANDSET is placed on the BASE UNIT for charging. IMPORTANT Placing your BASE UNIT near appliances such as televisions, refrigerators, radios, or microwave ovens may cause interference. PAGE Contents 1 Safety Instructions....................................................................................................................... 2 Getting Started............................................................................................................................. 4 Desk Mounting.............................................................................................................................. 6 Wall Mounting............................................................................................................................... 6 Basic Operation......…

Text truncated - open the document above for the full version.

Block 2 Laodong 2nd Industria Area, Xixian, Baoan, Shenzhen, China Tel.: 86-755-7917824/ 86-755-7902415, Fax: 86-755-7917944 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: O63XG2100ALD03. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Circuit Description The above documents contain information for new 2.4 GHz DSS (Cordless Telephone) technology and ideas, so we would like to prevent the use of this information by other companies. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dan Coronia – Senior Engineer

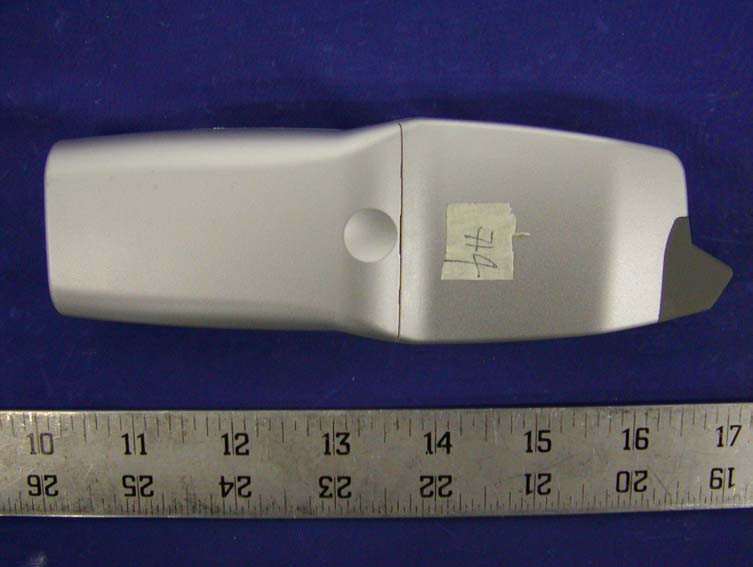

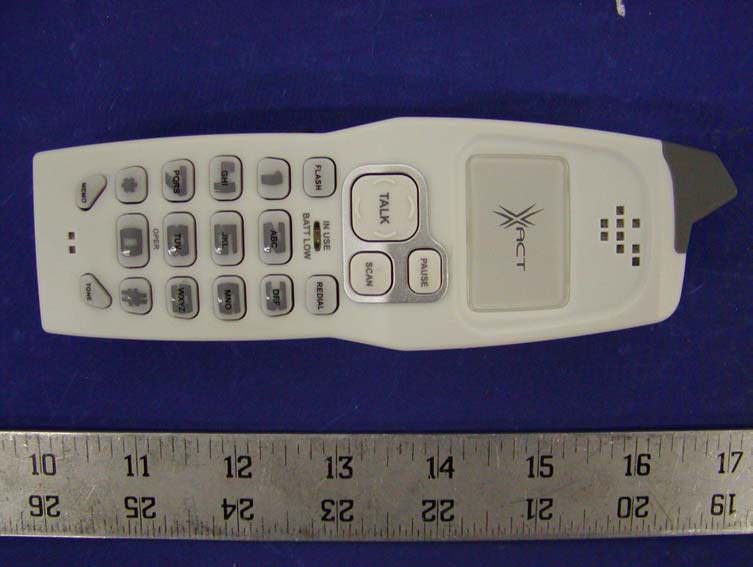

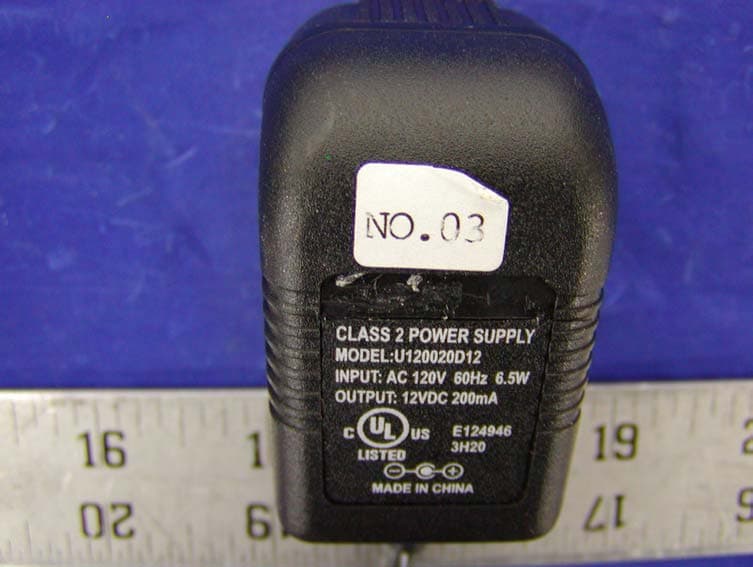

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Handset - Top View Handset – Bottom View Base – Top View Base - Bottom View Power Supply – Top View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Port Side of EUT Base/Proposed FCC ID Label Location / EUT Handset FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: O63XG2100ALD03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0"

APPENDIX C - EUT INTERNAL PHOTOGRAPHS Handset – Cover Off View (1) Handset – Cover Off View (2) Handset - Component View Handset –Solder View Handset – Transmitter Top View Base – Cover Off View (1) Base – Cover Off View (2) Base – Main Board Component View Base – Main Board Solder View Base – Transmitter Component View Base – Transmitter Solder View Base – Transceiver Top View Base – Transceiver Component View Base – Transceiver Solder View

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Lionda Technology Co., Ltd. Block 2 Laodong 2 nd Industrial Area, Xixiang, Baoan, Shenzhen, Guangdong, P.R.China 518102 FCC ID: O63XG2100ALD03 March 3, 2003 This Report Concerns: Original Report Equipment Type: 2.4GH Cordless Telephone Test Engineer: Jerry Wang Report No.: R0302033 Test Date: February 4, 2003 Reviewed By: Hans Mellberg Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Lionda Technology Co., Ltd. FCC ID: O63XG2100ALD03 Report # R0302033Rpt.doc Page 2 of 17 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) ......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 1.6 TEST EQUIPMENT LIST...........................................................................................................................................4 1.7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...................................................................................................4 1.8 EXTERNAL I/O CABLING LIST AND DETAILS..........................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION................................................................................................................5 2.2 CONFIGURATION OF TEST SYSTEM (BASE)............................................................................................................5 2.3 TEST SETUP BLOCK DIAGRAM...............................................................................................................................6 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................6 3 - CONDUCTED EMISSIONS TEST DATA............................................................................................................7 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 3.2 EUT SETUP............................................................................................................................................................7 3.3 SPECTRUM ANALYZER SETUP................................................................................................................................7 3.4 TEST PROCEDURE..................................................................................................................................................7 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................8 3.6 CONDUCTED EMISSIONS TEST DATA.....................................................................................................................8 3.7 PLOT OF CONDUCTED EMISSIONS TEST DATA.......................................................................................................8 4 - RADIATED EMISSION DATA ...........................................................................................................................11 4.1 MEASUREMENT UNCERTAINTY............................................................................................................................11 4.2 EUT SETUP..........................................................................................................................................................11 4.3 SPECTRUM ANALYZER SETUP..............................................................................................................................11 4.4 TEST PROCEDURE................................................................................................................................................12 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION...........................................................................................12 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................12 4.7 RADIATED EMISSIONS TEST RESULT DATA.........................................................................................................13 5 - BAND EDGES TESTING .....................................................................................................................................16 5.1 TEST PROCEDURE................................................................................................................................................16 5.2 TEST EQUIPMENT.......…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Base Conducted Emission - Front View Base Conducted Emission - Rear View Base Radiated Emission - Front View Base Radiated Emission - Rear View Handset Radiated Emission - Front View Handset Radiated Emission - Rear View
