O63XG2200ALD032.4 GHZ Cordless Phone W/ CID and Call Waiting

2.4 GHz CORDLESS CALLER ID TELEPHONE WITH CALL WAITING 50 CHANNEL AUTOSCAN Model XG2200 PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS 5 Visit Us on the Web: www.uselectronics.info Special Features ongratulations on your selection of a quality XACT Product. With proper care, and by following the setup and user instructions in this manual, this unit will provide you with years of trouble-free service. XACT is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product. You may mail your comments to: U.S. Electronics 105 Madison Avenue New York, NY 10016 When examining your new BellSouth cordless telephone, you will find an array of special features including: Filtered Sound™ System - Receives considerably less noise than conventional cordless telephones because of a special circuit which delivers the clearest possible reception. 50 Channel Autoscan - Press the /CHAN button on the HANDSET to find and lock on to the clearest channel for any call. Desk or Wall Mount - Use this equipment as a desk phone or as a wall phone. TONE or PULSE Dialing - Use this phone for either TONE (push-button) or PULSE (rotary) dialing. Automated Functions - Redial the last number called and automatic STANDBY mode. Security - Ensures greater privacy because a built-in security code with 65,536 combinations prevents use of your telephone line by another nearby cordless telephone. Dependable Battery - Recharge your BATTERY PACK many times with the built-in charger. The battery low warning tone tells you when the BATTERY PACK needs recharging (See page 27). Special Services - Use the /FLASH button to access special services such as Call Waiting supplied by your telephone company or company switchboard. STANDBY Mode - When in STANDBY mode (ON-HOOK), the telephone is capable of receiving a call. When the HANDSET is on the BASE UNIT, it is automatically in the STANDBY mode (ON-HOOK). When the HANDSET is taken off the BASE UNIT, it remains in the STANDBY mode until you activate the button. Battery Power Saver - Once fully charged, in STANDBY mode, the HANDSET can receive/send calls for a maximum of five days without the need for recharging. Length of charge depends on frequency of use. Luminous LCD Screen - The LCD Screen emits light for 10 seconds every time you press any of the TELEPHONE KEYPAD buttons. HANDSET Ringer Level - Select the ringer sound level (HI, LOW, OFF). HANDSET Volume Control Switch - Select the receiver volume level (HI, MID, LOW). C TALK DEL EDIT HEADSET JACK - Your telephone can utilize a headset for hands-free communication. BELT CLIP - Use the BELT CLIP to hang your HANDSET on your belt. CALLER ID SYSTEM Multi-Function Large LCD Screen - Shows the number you are dialing and, with Caller ID service (available through subscription from your local telephone company), displays information about the caller before you answer the call. Name and Number DIRECTORY (PHONE BOOK) - Stores up to 40 names and numbers so that you can call them with a single key stroke. Caller List - Available with Caller ID service. Stores up to 80 calls to keep track of everyone who called. The name, phone number, time and date of the call are recorded. Allows you to return their calls with a few key strokes. Preferred Calls - You can mark the name and number of a welcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and a special ring sound will be heard. Blocked Calls - You can mark the name and number of an unwelcome caller in the DIRECTORY (PHONE BOOK). When that number calls in, the caller’s name will appear on the LCD Screen and the ringer will be disabled. Repeat Call Indicator - Shows if a new incoming call has called more than once. Unavailable Call Indicator - Advises you that the origin of the incoming call does not support the Caller ID system. Call Waiting Service - Displays the name and number of the second caller, if you have subscribed for Call Waiting service from your local telephone company (see page 13). Voice Mail - Indicates message waiting signal if you subscribed to Voice Mail message service and requested Visual Message Indication from your local telephone company (see page 13). This telephone also detects a Stutter Dial Tone signal every time there is a Voice Mail message for you from your Voice Mail message provider if you have subscribed to Voice Mail message service. Special Features 1. LARGE LCD SCREEN 11. DIR (DIRECTORY) BUTTON Pg. 14~19 16. DEL (DELETE)/CHAN (CHANNEL) BUTTON Pg. 15, 16, 18, 19, 26, 29, 30 13. RE ( REDIAL)/PA (PAUSE) /SAVE BUTTON Pg. 10, 15~18, 20~25 12. MESSAGE WAITING LED INDICATOR Pg. 13, 14 NEW CALL/ 14. VOLUME CONTROL (HI, MID, LOW) SWITCH 10. BATT LOW INDICATOR Pg. 27 5. HEADSET JACK Pg. 11 4. MENU/VOICE MAIL BUTTON Pg. 13, 20~25 6. TELEPHONE KEYPAD Pg. 16~18, 20~ 25 8. FLASH BUTTON Pg. 13, 16~18, 20~25 EDIT/ 17. CHARGE CONTACTS HANDSET Controls 2. SCROLL UP-DOWN/SHIFT LEFT-RIGHT BUTTON Pg. 12, 14~24 3. TALK BUTTON Pg. 6, 7, 9, 10, 13, 14, 18, 25, 29 Pg. 19, 21, 25 7 15. OPTION (#) BUTTON Pg. 14, 18, 19, 25 9.HANDSET ANTENNA 3. Button: Press to answer an incoming call or to place a call. Press to end a call. TALK HANDSET Controls 1. large LCD Screen. 1. Large LCD Screen: Shows call information, phone status, prompts and directory (PHONE BOOK) items. HANDSET Controls 4. /MENU Button: (VOICE MAIL) Press to automatically dial the Voice Mail Post Code in your area to access your Voice Mail message. (MENU) Press and hold to access the special functions operation in STANDBY mode. (For special functions see pages 20~25.) 5.HEADSET JACK: For connecting your headset plug to enjoy hands-free communication. (See page 11 for detail.) 6.TELEPHONE KEYPAD to Buttons: Allows you to make a call depending on pressed button. (For TELEPHONE KEYPAD characters, see page …

Text truncated - open the document above for the full version.

Block 2 Laodong 2nd Industria Area, Xixian, Baoan, Shenzhen, China Tel.: 86-755-7917824/ 86-755-7902415, Fax: 86-755-7917944 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: O63XG2200ALD03. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Circuit Description The above documents contain information for new 2.4 GHz DSS (Cordless Telephone) technology and ideas, so we would like to prevent the use of this information by other companies. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Dan Coronia – Senior Engineer

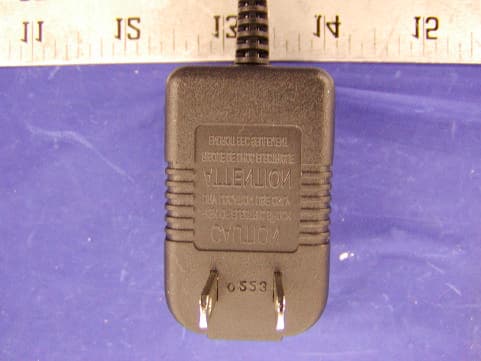

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Handset - Top View Handset – Bottom View Base – Top View Base - Bottom View Power Supply – Top View Power Supply – Rear View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk- screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Port Side of EUT Base/Proposed FCC ID Label Location / EUT Handset FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: O63XG2200ALD03 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this phone. 2.1875" 1.0"

APPENDIX C - EUT INTERNAL PHOTOGRAPHS Handset – Cover Off View Handset - Component View Handset – Transmitter Solder View Handset – Transmitter Solder View 2 Handset – Transceiver Front View Handset – Transceiver Rear View Handset – Transceiver Component View Handset – Transceiver Solder View Base – Cover Off View Base – Main Board Component View Base – Main Board Solder View Base – Transceiver Top View Base – Transceiver Component View Base – Transceiver Solder View

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT For Lionda Technology Co., Ltd. Block 2 Laodong 2 nd Industrial Area, Xixiang, Baoan, Shenzhen, Guangdong, P.R.China 518102 FCC ID: O63XG2200ALD03 February 22, 2003 This Report Concerns: Class II Permissive Change Equipment Type: 2.4GH Cordless Telephone Test Engineer: Jerry Wang Report No.: R0302034 Test Date: January 5, 2003 Reviewed By: Hans Mellberg Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Lionda Technology Co., Ltd. FCC ID: O63XG2200ALD03 Report # R0302034Rpt.doc Page 2 of 17 FCC Part 15 Subpart C Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).....................................................................................................................................3 1.4 TEST METHODOLOGY..............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................4 1.6 TEST EQUIPMENT LIST............................................................................................................................................................4 1.8 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS...............................................................................................................5 1.9 EXTERNAL I/O CABLING LIST AND DETAILS......................................................................................................................5 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................6 2.1 DESCRIPTION OF TEST CONFIGURATION..............................................................................................................................6 2.2 CONFIGURATION OF TEST SYSTEM (BASE).........................................................................................................................6 2.3 TEST SETUP BLOCK DIAGRAM...............................................................................................................................................7 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................................7 3 - CONDUCTED EMISSIONS TEST DATA........................................................................................................................8 3.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................8 3.2 EUT SETUP...............................................................................................................................................................................8 3.3 SPECTRUM ANALYZER SETUP................................................................................................................................................8 3.4 TEST PROCEDURE....................................................................................................................................................................8 3.5 SUMMARY OF TEST RESULTS.................................................................................................................................................9 3.6 CONDUCTED EMISSIONS TEST DATA....................................................................................................................................9 3.7 PLOT OF CONDUCTED EMISSIONS TEST DATA....................................................................................................................9 4 - RADIATED EMISSION DATA..........................................................................................................................................12 4.1 MEASUREMENT UNCERTAINTY...........................................................................................................................................12 4.2 EUT SETUP.............................................................................................................................................................................12 4.3 SPECTRUM ANALYZER SETUP..............................................................................................................................................12 4.4 TEST PROCEDURE..................................................................................................................................................................13 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION.......................................................................................................13 4.6 SUMMARY OF TEST RESULTS...............................................................................................................................................13 4.7 RADIATED EMISSIONS TEST RESULT DATA...…

Text truncated - open the document above for the full version.

4.7 Radiated Emissions Test Result Data Base Unit, 30 MHz to 25GHz, 3 meters INDICATED TABLE ANTENNA CORRECTION FACTOR CORRECTED AMPLITUDE FCC 15 SUBPART C Frequency Ampl. Angle Height Polar Antenna Cable Amp. Corr. Ampl. Limit Margin MHz dBμV/m Comments Degree Meter H/ V dBμV/m DB dB dBμV/m dBμV/m dB Low Frequency 245.670 48.1 / 45 2.0 H 13.8 2.2 25 39.1 46.0 -6.9 375.020 43.7 / 90 2.5 H 15.3 2.4 25 36.4 46.0 -9.6 3310.830 39.0 AVE 45 2.5 H 30.3 4.0 30 43.3 54.0 -10.7 2400.592 81.7 AVE 30 1.8 V 28.1 3.4 30 83.1 94.0 -10.9 2400.592 81.1 AVE 180 1.0 H 28.1 3.3 30 82.6 94.0 -11.5 360.120 41.1 / 180 1.2 V 15.5 2.4 25 34.0 46.0 -12.0 960.010 37.2 / 300 2.0 H 23.5 4.3 25 40 54.0 -14.0 4801.120 31.8 AVE 120 1.5 V 32.5 4.9 30 39.2 54.0 -14.8 3310.830 33.8 AVE 0 1.8 V 30.3 4.0 30 38.1 54.0 -15.9 250.000 38.2 / 90 1.0 V 13.3 2.2 25 28.7 46.0 -17.3 3310.830 43.8 PEAK 45 2.5 H 30.3 4.0 30 48.1 74.0 -25.9 2400.590 86.5 PEAK 330 1.8 V 28.1 3.4 30 87.9 114.0 -26.1 3310.830 43.2 PEAK 0 1.8 V 30.3 4.0 30 47.5 74.0 -26.5 2400.592 84.2 PEAK 180 1.0 H 28.1 3.4 30 85.7 114.0 -28.4 4801.120 35.2 PEAK 120 1.5 V 32.5 4.9 30 42.6 74.0 -31.4 4801.120 32.9 PEAK 270 1.0 H 32.5 4.9 30 40.3 74.0 -33.7 4801.120 28.1 AVE 270 1.0 H 32.5 4.9 30 35.5 74.0 -38.5 High Frequency 959.20 38.2 / 90 1.2 V 23.3 4.3 25 40.84 46.0 -5.16 2483.29 44.8 AVE 0 1.8 H 28.1 3.4 30 46.28 54.0 -7.72 124.19 47.2 / 180 1.2 V 11.7 1.6 25 35.47 43.5 -8.03 234.02 42.7 / 180 2 H 12.6 2.2 25 32.47 46.0 -13.53 4810.6 32.1 AVE 90 1.5 H 32.5 4.9 30 39.51 54.0 -14.49 120.08 40.6 / 0 2.5 H 11.7 1.6 25 28.87 43.5 -14.63 2405.315 77.7 AVE 30 2 H 28.1 3.4 30 79.12 94.0 -14.88 3316.8 34.7 AVE 120 2 V 30.3 4.0 30 38.98 54.0 -15.02 4810.6 31.3 AVE 0 1.8 V 32.5 4.9 30 38.71 54.0 -15.29 140.4 38.7 / 200 1.2 V 12.4 1.6 25 27.73 43.5 -15.77 2405.315 76.2 AVE 90 2 V 28.1 3.4 30 77.62 94.0 -16.38 234.01 39.8 / 200 1.5 V 12.6 2.2 25 29.57 46.0 -16.43 3316.8 30.1 AVE 330 1.2 H 30.3 4.0 30 34.41 54.0 -19.59 2487.29 52.3 PEAK 0 1.8 H 28.1 3.4 30 53.78 74.0 -20.22 3316.8 41.2 PEAK 120 2 V 30.3 4.0 30 45.48 74.0 -28.52 4810.6 38.0 PEAK 0 1.8 V 32.5 4.9 30 45.41 74.0 -28.59 4810.6 37.8 PEAK 90 1.5 H 32.5 4.9 30 45.24 74.0 -28.76 3316.8 38.0 PEAK 330 1.2 H 30.3 4.0 30 42.31 74.0 -31.69 2405.315 80.7 PEAK 30 2 H 28.1 3.4 30 82.12 114.0 -31.88 2405.32 79.2 PEAK 90 2 V 28.1 3.4 30 80.62 114.0 -33.38

APPENDIX B - TEST SETUP PHOTOGRAPHS Base Conducted Emission - Front View Base Conducted Emission - Rear View Base Radiated Emission - Front View Base Radiated Emission - Rear View Handset Radiated Emission - Front View Handset Radiated Emission - Rear View
