O6Y-CDM7025SPTri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)

UTStarcom Korea Technologies Ltd.

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jan 05, 2006
Application Purpose: Original Equipment
Date of Application: Jan 05, 2006
Equipment Note: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/ CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: UTStarcom Korea Technologies Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 WELCOME TO UTSTARCOM Thank you for choosing the up-to-date UTStarcom CDM-7025SP, our new model, developed by top researchers to support the CDMA2000 1X system through Qualcomm- manufactured MSM6050 chips and CDMA technologies. This product allows for high speed communication services and a GUI animation menu. T9 input mode makes it much easier to enter text, while VR (Voice Recognition) makes the UTStarcom more user friendly. Other proven technologies include: lFull graphic display of 9 text input lines and 1 icon line with variable font size. lEasy to dial through the VR feature. lEasy to enter letters through the T9 text input mode. lGUI & Animation display compliant with CDMA2000 1X. lFull graphic - STN65K color LCD lNavigation Key and 20 keys aligned for more convenience. lSophisticated features of speaker phone and voice recognition. lAdditional services of text messaging and call forwarding, call transfer, call waiting. 2 WELCOME TO UTSTARCOM This UTStarcom user guide contains very important information about how to handle and use the product. Please read this manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, which are related with the unauthorized use of components. 3 TABLE OF CONTENTS CHAPTER 1. BEFORE USING YOUR PHONE PACKAGE INCLUDES .............................................................................................9 HANDSET DESCRIPTION ......................................................................................10 BATTERY USAGE .................................................................................................14 POWER CONNECTION ........................................................................................................16 PCS AND 1X BATTERY TIMES .............................................................................................17 BATTERY LIFE (FOR NEW BATTERY) ...................................................................................17 BATTERY HANDLING INFORMATION ..................................................................18 DO’s ....................................................................................................................................18 DON’Ts................................................................................................................................18 CHAPTER 2. BASIC OPERATION TURNING THE PHONE ON / OFF ..........................................................................21 TURNING THE PHONE ON...................................................................................................21 TURNING THE PHONE OFF..................................................................................................21 ACCESSING THE MENU .......................................................................................22 MENU SUMMARY ...............................................................................................23 BASIC FUNCTIONS...............................................................................................25 MAKING A CALL .................................................................................................................25 ANSWERING CALLS ............................................................................................................26 WAIT/PAUSE FEATURE........................................................................................................26 ANSWERING A CALL...........................................................................................................27 3-WAY CALLING .................................................................................................................27 CALLER ID FUNCTION .........................................................................................................28 CALL WAITING FUNCTION..................................................................................................28 ADJUSTING VOLUME ..........................................................................................................29 4 TABLE OF CONTENTS DURING A CALL ..................................................................................................30 MUTE (UNMUTE) ................................................................................................................30 SEND TXT MSG ...................................................................................................................30 CONTACTS ..........................................................................................................................30 RECENT CALLS ....................................................................................................................30 VOICE PRIVACY ..................................................................................................................30 LOCATION...........................................................................................................................31 MAKING AN EMERGENCY CALL .........................................................................32 911 IN LOCK MODE ............................................................................................................32 911 USING ANY AVAILABLE SYSTEM .................................................................................32 CHAPTER 3. MEMORY FUNCTION STORING A PHONE NUMBER ..............................................................................35 ENTERING LETTERS, NUMBERS & SYMBOLS .......................................................36 STANDARD INPUT MODE ...................................................................................................37 ALPHA INPUT MODE...........................................................................................................38 NUMERIC MODE.................................................................................................................39 SYMBOL…

Text truncated - open the document above for the full version.

Attestation Statements

UTStarcom, Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY, 08830, U.S.A Date: December 5, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch, 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: O6Y-CDM7025SP (Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA)) Part 24, 22 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until Dec. 31, 2004. Sincerely Yours, UTStarcom, Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY, 08830, U.S.A Date: December 5, 2005 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the tri-mode phone (FCC ID: O6Y-CDM7025SP) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely Yours, UTStarcom, Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY, 08830, U.S.A Date: December 5, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch, 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: O6Y-CDM7025SP (Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA)) Part 24, 22 Certification Gentlemen: UTStarcom, Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. Sincerely Yours, UTStarcom, Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY, 08830, U.S.A Date: December 5, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: FCC E911 Requirements Per §22.921 FCC ID: O6Y-CDM7025SP (Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA)) Part 22/ 24 Certification Gentlemen : UTStarcom, Inc. hereby certifies that the tri-mode phone(FCC ID : O6Y-CDM7025SP ), using the Automatic A/B Roaming - Intelligent Retry Method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permits the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours,

Attestation Statements

UTStarcom Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Date: December 10, 2005 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: UTStarcom Inc. FCC ID: O6Y-CDM7025SP Part 20.19 Certification To Whom It May Concern: We, UTStarcom Inc., hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely,

Attestation Statements

Cover Letter(s)

Courtenay Geraghty From: Gregory Czumak [[email protected]] Sent: Thursday, October 20, 2005 3:25 PM To: PCTEST - Courtenay Subject: FW: CDMA 2000 application Follow Up Flag: Follow up Flag Status: Red Attachments: CDMA-2000 SAR Config.doc Page 1 of 2 11/7/2005 From: Kwok Chan [mailto:[email protected]] Sent: Thursday, May 19, 2005 11:37 AM To: Gregory Czumak Cc: PCTEST - Al Cirwithian; PCTEST - Randy Ortanez Subject: RE: CDMA 2000 application Greg: According to information available to us, the attached describes the basic criteria for reviewing typical CDMA- 2000 client devices. This should be considered as a draft while we are continuing to review & identify other test and product specific issues. Please let us know if this is insufficient or if more coordination is necessary, and continue to inform us on subsequent CDMA-2000 filings. Kwok Chan -----Original Message----- From: Gregory Czumak [mailto:[email protected]] Sent: Thursday, May 19, 2005 9:10 AM To: Kwok Chan Cc: PCTEST - Al Cirwithian; PCTEST - Randy Ortanez; PCTest - Andrea Zaworski; PCTEST - Keats Ortiz; PCTEST - Steve Liu; PCTEST - Yukio Tanuma Subject: CDMA 2000 application Hi Kwok, I hope all is well with you and your family (your kids must be getting big... I know mine are!). Based on the info provided last week at the Workshop, I am contacting you to let you know that I am currently reviewing an application for a WLL PCS CDMA phone that has CDMA 2000 capabilities. As with most WLL phones that we see, it is designed to replace the phone on your desk (i.e., it sits on the desk, and looks like a regular corded phone- no RF in the handset, just a whip antenna sticking out of the back of the base portion). The lab performed body SAR measurements with a separation distance of 2.5 cm. Is there anything specific for which I should look, given its CDMA 2000 capabilities? Please let me know at your earliest convenience (of course, we are under pressure to finish the review ASAP). I appreciate your time and effort- thank you. Take care. Greg Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 2 11/7/2005

Cover Letter(s)

SAN 136-1,AMI-RI,BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701,KOREA SUBJECT: UTStarcom, Inc. FCC ID: O6Y-CDM7025SP MODEL: CDM7025SP Part 22 / 24 / 2 Certification Gentlemen: Submitted herewith, on behalf of UTStarcom, Inc., is an application for Part 22 / 24 Certification of the following Tri- Mode Dual-Band Phone (AMPS/ CDMA/ PCS CDMA): Trade Name/Model(s): UTStarcom / CDM7025SP EUT Type: Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.362W ERP AMPS (25.6dBm) / 0.285W ERP CDMA (24.6dBm) / 0.299W EIRP PCS CDMA (24.8dBm) Maximum SAR: 1.16 W/kg AMPS Brain SAR / 1.19 W/kg AMPS Body SAR / 0.953 W/kg CDMA Brain SAR / 1.07 W/kg CDMA Body SAR / 1.35 W/kg PCS CDMA Brain SAR / 0.943W/kg PCS CDMA Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by : Ki-Soo Kim Manager of Product Compliance Team cc: Mr. Rick Phung – UTStarcom, Inc. Project Manager December 24, 2005 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 TEL: +82 31 639 8518 FAX: +82 31 639 8525 http://www.hct.co.kr

Cover Letter(s)

Page 1 of 3 1/6/2006 ----- Original Message ----- Subject: Questions Regarding FCC ID: O6Y-CDM7025SP To: From: Gregory Czumak/ PCTEST TCB Re: FCC ID: 06Y-CDM7025SP Applicant: UTStarcom Inc. Application Received: 12/15/2005 Correspondence Reference Number: 151215A.06Y Confirmation Number: 1512150589 Date of Original Email: 01/04/2006 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Regarding the use of cdma2000, filings should be clear about transmitter setup & operation capabilities to ensure devices are configured properly according to communication protocol and operating requirements in order to obtain valid SAR results. Please address the following questions. a. What is the CDMA MS Protocol Revision number? ==> CDMA MS Protocol Revision number is 6. b. Were SAR tests performed using internally generated test codes, or was a call box used to set up the call? ==> We used base station simulator (E5515C). c. If a call box was used, please identify the CDMA Radio Configurations, Service Options, multiplex options, voice/data, code channel combinations and options used for the SAR tests. ==> RC5/SO55 Please note that a power table containing all SO/ RC is required for CDMA phones. To avoid delays in the certification process please include the power tables in all future CDMA applications. 2. Does the EUT employ EV-DO? If so, body-worn SAR should be repeated in EV-DO (Rev. 0 only) using the CDMA 2000 body-worn channel configuration that resulted in the highest SAR among the various Radio Configurations in this frequency band (that is, just a single SAR test for EV-DO, as a sanity check). If this EV-DO SAR is greater than the highest body-worn SAR in CDMA 2000, perform body-worn SAR for the other 2 channels (among the required H, M, L channels). Note: EV-DO operates independently of CDMA 2000 with different modulation, channel and protocol structures. It is not an integral part (seamless) of the CDMA 2000 structure, but overlays the 1x structure. EV-DO Rev A allows 307 kbps and higher order modulations; therefore, may need additional considerations. The above procedures applies to single band CDMA 2000 1x handsets with built-in EV-DO (Rev. 0) using the same transmit path hardware. Please contact us if the device in question operates in other configurations or EV-DO does not apply to body-worn conditions. ==> CDM7025 doesn't support EV-DO operation. 3. A statement attesting to compliance with ANSI TIA/EIA 553-A-1999 is required for AMPS operation, per Section 22.901(e)(1). Please submit this statement. ==> Please inform us the statement and let me know where this statement is located. Then we'll revise and send you quickly. 4. None of the tissue parameters listed on the various SAR plots correspond to the values listed in the table on p.12/24 of the SAR report, nor are they consistent with one another. In addition, the conductivity value listed for some of the PCS body SAR tests appears to be outside of the 5% tolerance from the target permitted by the FCC. Please address these discrepancies, and, if necessary, re-perform any SAR tests in which the tissue parameters were outside of spec., and submit new data. ==> The DASY4 software calculate the tissu parameters automatically. It means that different liquid parameters are used for the different frequency bands. As you know, it is interpolated value. Values listed in the SAR report are target value. (validation frequency 835MHz, 1900MHz). Therefore the values are different from test data plot. It seems that there is no problem. Please recheck this. Page 2 of 3 1/6/2006 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fees. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 3 of 3 1/6/2006

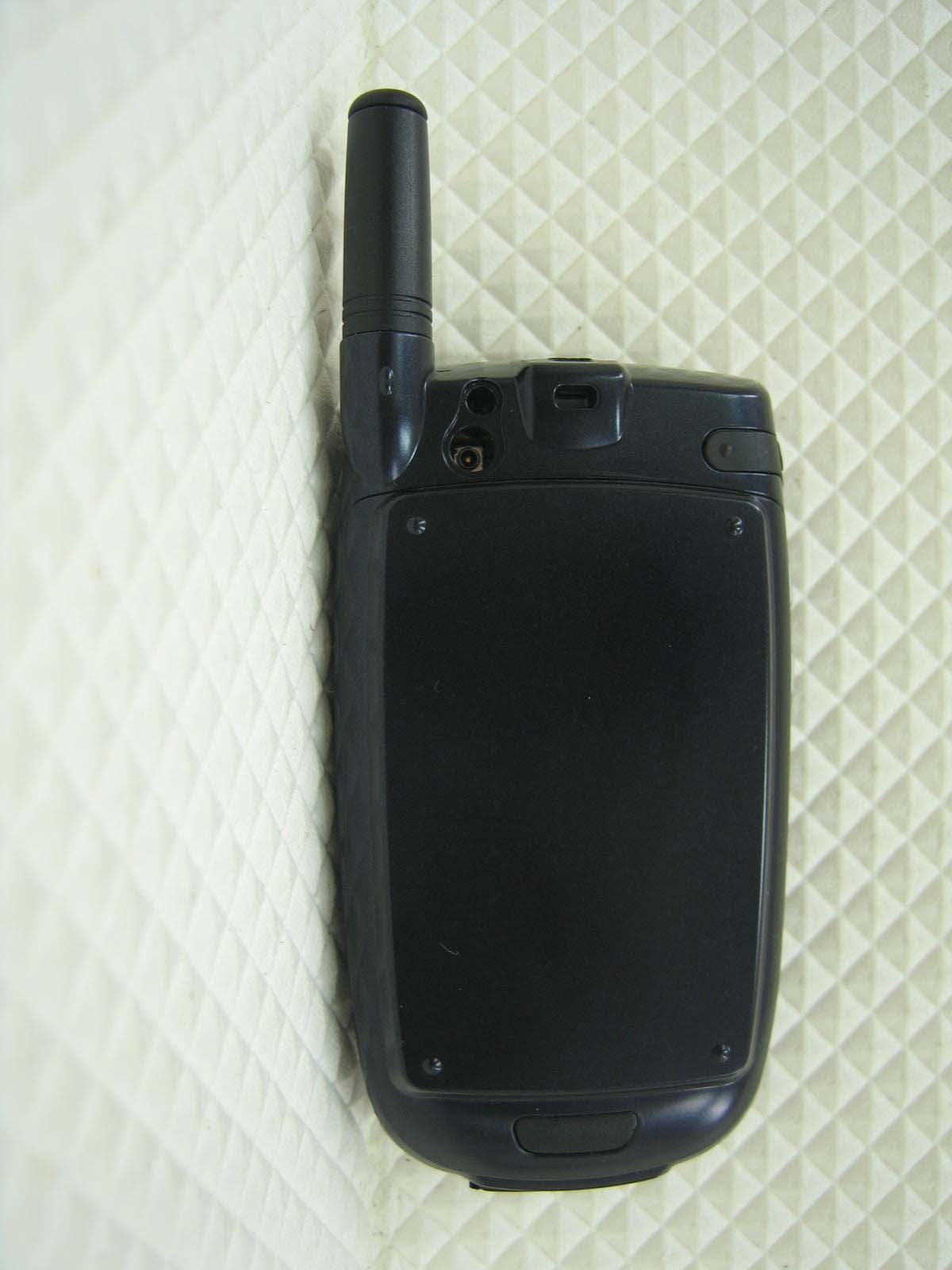

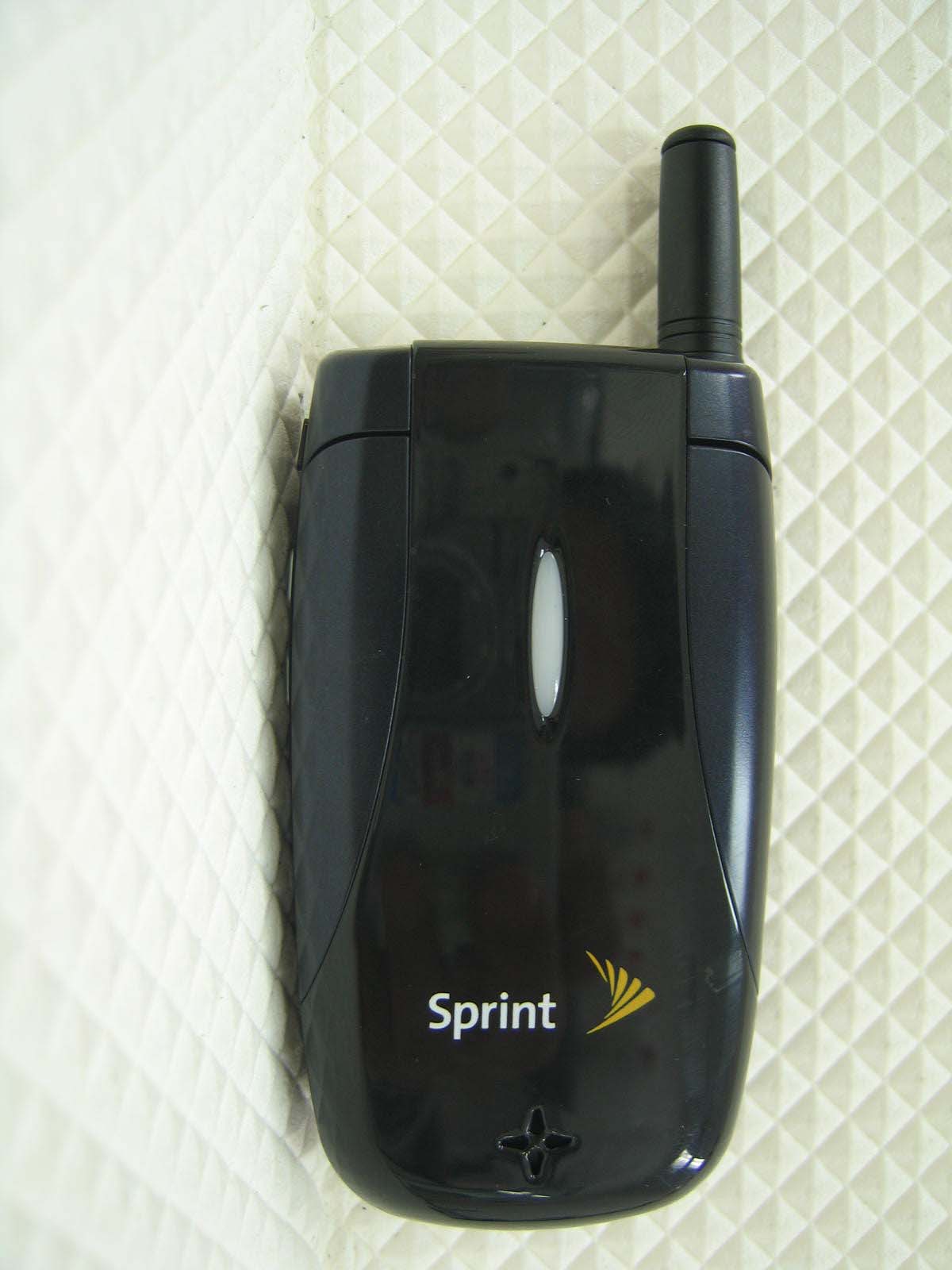

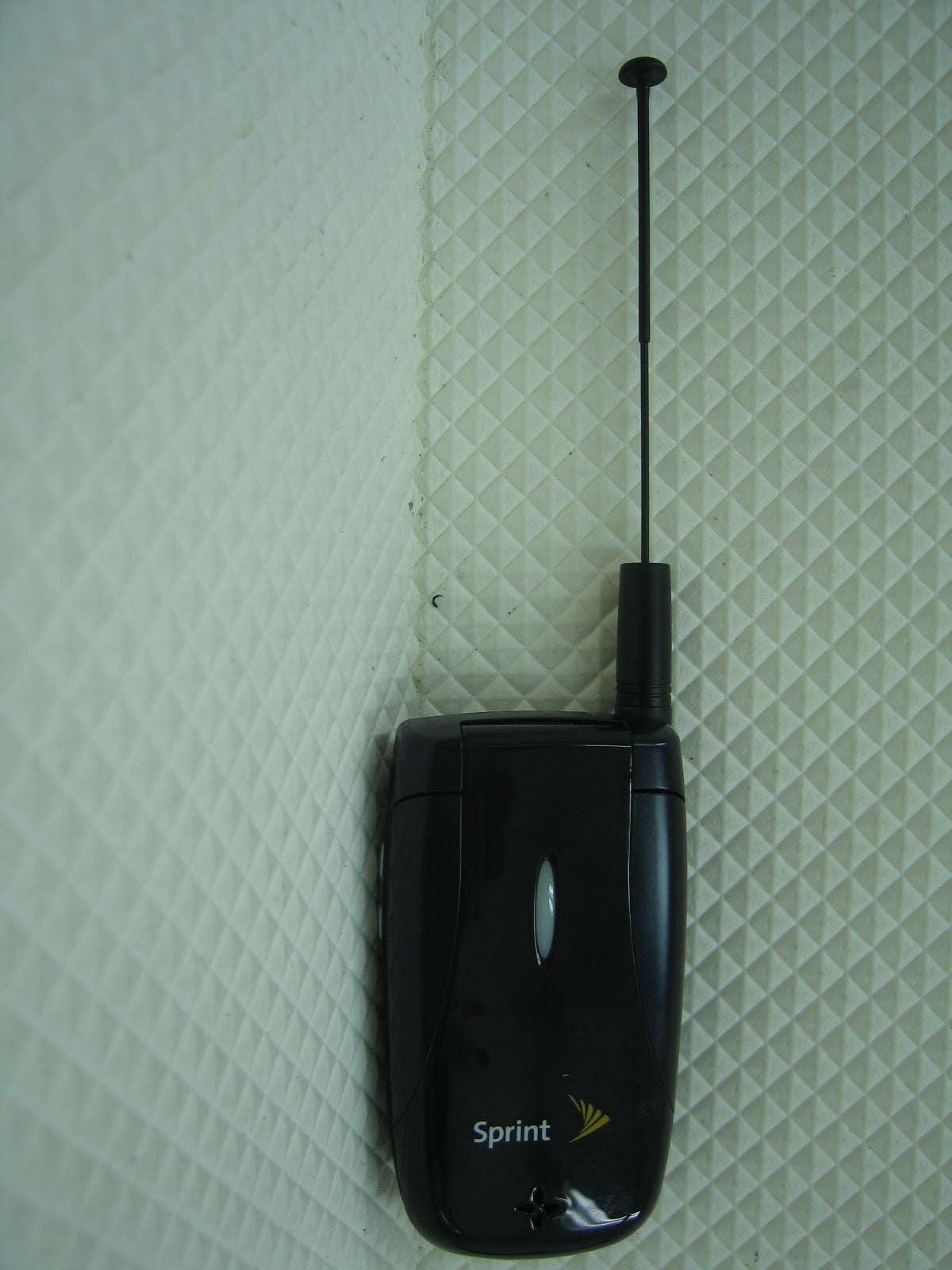

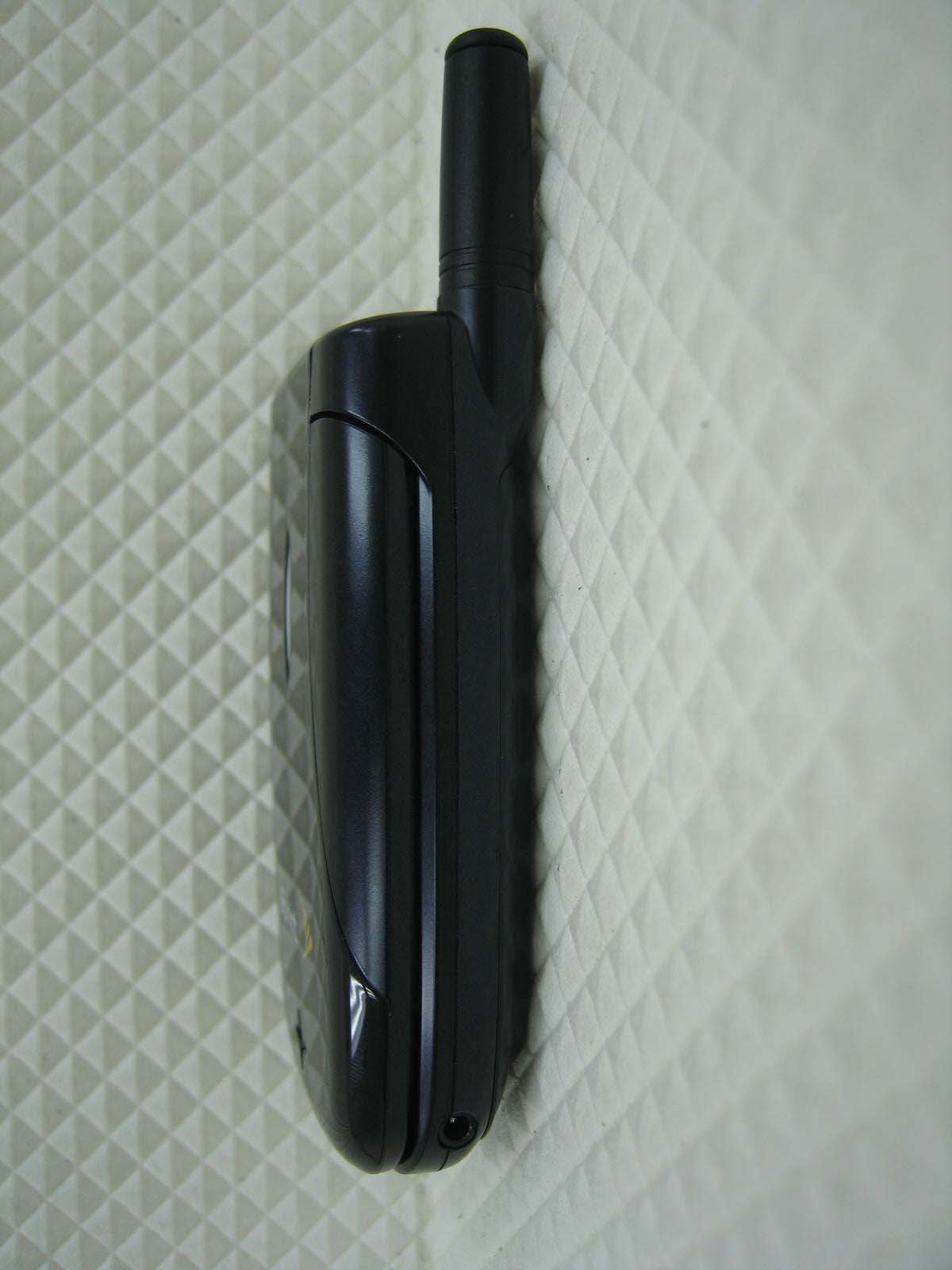

External Photos

ID Label/Location Info

Internal Photos

Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1210 FCC ID: 06Y-CDM7025SP DATE: December 22, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

RF Exposure Info

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE SAR EVALUATION EUT Type: Tri-Mode Dual-Band Phone (AMPS/CDMA/ PCS CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.362W ERP AMPS (25.6dBm) / 0.285W ERP CDMA (24.6dBm) / 0.299W EIRP PCS CDMA (24.8dBm) Max. RF Output Power: 0.355W AMPS (25.5dBm) / 0.282W CDMA (24.5dBm) (Conducted) 0.282W PCS CDMA (24.5dBm) Trade Name/Model(s): UTStarcom /CDM7025SP FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 1.16 W/kg AMPS Brain SAR / 1.19W/kg AMPS Body SAR 0.953 W/kg CDMA Brain SAR / 1.07 W/kg CDMA Body SAR 1.35 W/kg PCS CDMA Brain SAR / 0.943 W/kg PCS CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S.…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Chung-Sung Lee(Director, R&D)

[email protected]82-2-368-9023Fax: 82-2-2057-0181

Technical Contact

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

HCT Co., LTDSang Lee

[email protected]82-31-645-6420Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	299.00 mW	1M27F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configurations is limited to the specific configuration tested in this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values are: Part 22- Head: 1.16 W/kg, Body-worn: 1.19 W/kg, Part 24- Head: 1.35 W/kg, Body-worn: 0.943 W/kg. HAC Rating: M3
