O6Y-CDM7075Dual-Band CDMA Phone

21 WELCOME TO UTSTARCOMWELCOME TO UTSTARCOM Thank you for choosing the up-to-date UTStarcom CDM-7075 camera phone with built-in flash, our new model, developed by top researchers to support the CDMA2000 1X system through Qualcomm-manufactured MSM6050 chips and CDMA technologies. This product allows for high speed communication services and a GUI animation menu. T9 input mode makes it much easier to enter text, while VR (Voice Recognition) makes the UTStarcom more user friendly. Other proven technologies include: lFull graphic display of 8 text input, 1 line status bar, and 1 line icon with variable font size. lEasy to dial through the VR feature. lEasy to enter letters through the T9 text input mode. lGUI & Animation display compliant with CDMA2000 1X. lFull graphic - Main LCD : STN 65K color LCD/ Sub LCD : Black/White. lA built-in 330K Pixel camera. lNavigation Key and 20 keys aligned for more convenience. lSophisticated features of speaker phone and voice recognition. lAdditional services of text messaging and call transfer. This UTStarcom user guide contains very important information about how to handle and use the product. Please read this manual thoroughly, pay attention to the warranty on the back page and be alert to the exclusions and limitations of your warranty, which are related with the unauthorized use of components. 43 TABLE OF CONTENTSTABLE OF CONTENTS CHAPTER 1. BEFORE USING YOUR PHONE PACKAGE INCLUDES .............................................................................................9 HANDSET DESCRIPTION ......................................................................................10 BATTERY USAGE .................................................................................................14 POWER CONNECTION ........................................................................................................16 PCS AND 1X BATTERY TIMES .............................................................................................17 BATTERY LIFE (FOR NEW BATTERY) ...................................................................................17 BATTERY HANDLING INFORMATION ..................................................................18 DO’s ....................................................................................................................................18 DON’Ts................................................................................................................................18 CHAPTER 2. BASIC OPERATION TURNING THE PHONE ON / OFF ..........................................................................21 TURNING THE PHONE ON...................................................................................................21 TURNING THE PHONE OFF..................................................................................................21 ACCESSING THE MENU .......................................................................................22 MENU SUMMARY ...............................................................................................23 BASIC FUNCTIONS...............................................................................................25 MAKING A CALL .................................................................................................................25 ANSWERING CALLS ............................................................................................................26 WAIT/PAUSE FEATURE........................................................................................................26 ANSWERING A CALL...........................................................................................................27 3-WAY CALLING .................................................................................................................27 CALLER ID FUNCTION .........................................................................................................28 CALL WAITING FUNCTION..................................................................................................28 ADJUSTING VOLUME ..........................................................................................................29 DURING A CALL ..................................................................................................30 MUTE (UNMUTE) ................................................................................................................30 SEND TXT MSG ...................................................................................................................30 CONTACTS ..........................................................................................................................30 RECENT CALLS ....................................................................................................................30 VOICE PRIVACY ..................................................................................................................30 LOCATION...........................................................................................................................31 MAKING AN EMERGENCY CALL .........................................................................32 911 IN LOCK MODE ............................................................................................................32 911 USING ANY AVAILABLE SYSTEM .................................................................................32 CHAPTER 3. MEMORY FUNCTION STORING A PHONE NUMBER ..............................................................................35 ENTERING LETTERS, NUMBERS & SYMBOLS .......................................................36 STANDARD INPUT MODE ...................................................................................................37 WORD INPUT MODE ...........................................................................................................38 NUMERIC MODE..............................................…

Text truncated - open the document above for the full version.

UTStarcom Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Date: January 5, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: O6Y-CDM7075 UTStarcom, Inc. Part 22/ 24 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until March 31, 2006 UTStarcom Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Date: January 5, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Request for Confidentiality FCC ID: O6Y-CDM7075 UTStarcom, Inc. Part 22/ 24 Certification Gentlemen: In accordance with 0.459 of CFR 47, UTStarcom, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which UTStarcom, Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, UTStarcom, Inc. feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. UTStarcom Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Date: January 5, 2006 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046, U.S.A. Subject: User's Manual RF Exposure Warning Statement FCC ID: O6Y-CDM7075 UTStarcom, Inc. Part 22/ 24 Certification Gentlemen: UTStarcom, Inc. hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the user's manual. Should you have any questions or comments concerning the above, please do not hesitate contact me. UTStarcom Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Date: January 5, 2006 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Dual-mode CDMA phone (FCC ID: O6Y-CDM7075) is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative.

UTStarcom Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Date: January 5, 2006 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: UTStarcom Inc. FCC ID: O6Y-CDM7075 Part 20.19 Certification To Whom It May Concern: We, UTStarcom Inc., hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned.

Courtenay Geraghty From: Gregory Czumak [[email protected]] Sent: Thursday, October 20, 2005 3:25 PM To: PCTEST - Courtenay Subject: FW: CDMA 2000 application Follow Up Flag: Follow up Flag Status: Red Attachments: CDMA-2000 SAR Config.doc Page 1 of 2 11/7/2005 From: Kwok Chan [mailto:[email protected]] Sent: Thursday, May 19, 2005 11:37 AM To: Gregory Czumak Cc: PCTEST - Al Cirwithian; PCTEST - Randy Ortanez Subject: RE: CDMA 2000 application Greg: According to information available to us, the attached describes the basic criteria for reviewing typical CDMA- 2000 client devices. This should be considered as a draft while we are continuing to review & identify other test and product specific issues. Please let us know if this is insufficient or if more coordination is necessary, and continue to inform us on subsequent CDMA-2000 filings. Kwok Chan -----Original Message----- From: Gregory Czumak [mailto:[email protected]] Sent: Thursday, May 19, 2005 9:10 AM To: Kwok Chan Cc: PCTEST - Al Cirwithian; PCTEST - Randy Ortanez; PCTest - Andrea Zaworski; PCTEST - Keats Ortiz; PCTEST - Steve Liu; PCTEST - Yukio Tanuma Subject: CDMA 2000 application Hi Kwok, I hope all is well with you and your family (your kids must be getting big... I know mine are!). Based on the info provided last week at the Workshop, I am contacting you to let you know that I am currently reviewing an application for a WLL PCS CDMA phone that has CDMA 2000 capabilities. As with most WLL phones that we see, it is designed to replace the phone on your desk (i.e., it sits on the desk, and looks like a regular corded phone- no RF in the handset, just a whip antenna sticking out of the back of the base portion). The lab performed body SAR measurements with a separation distance of 2.5 cm. Is there anything specific for which I should look, given its CDMA 2000 capabilities? Please let me know at your earliest convenience (of course, we are under pressure to finish the review ASAP). I appreciate your time and effort- thank you. Take care. Greg Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 2 11/7/2005

UTStarcom Inc. 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Date: January 5, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: O6Y-CDM7075 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, UTStarcom Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Sh ort-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give UTStarcom Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, UTStarcom Inc.

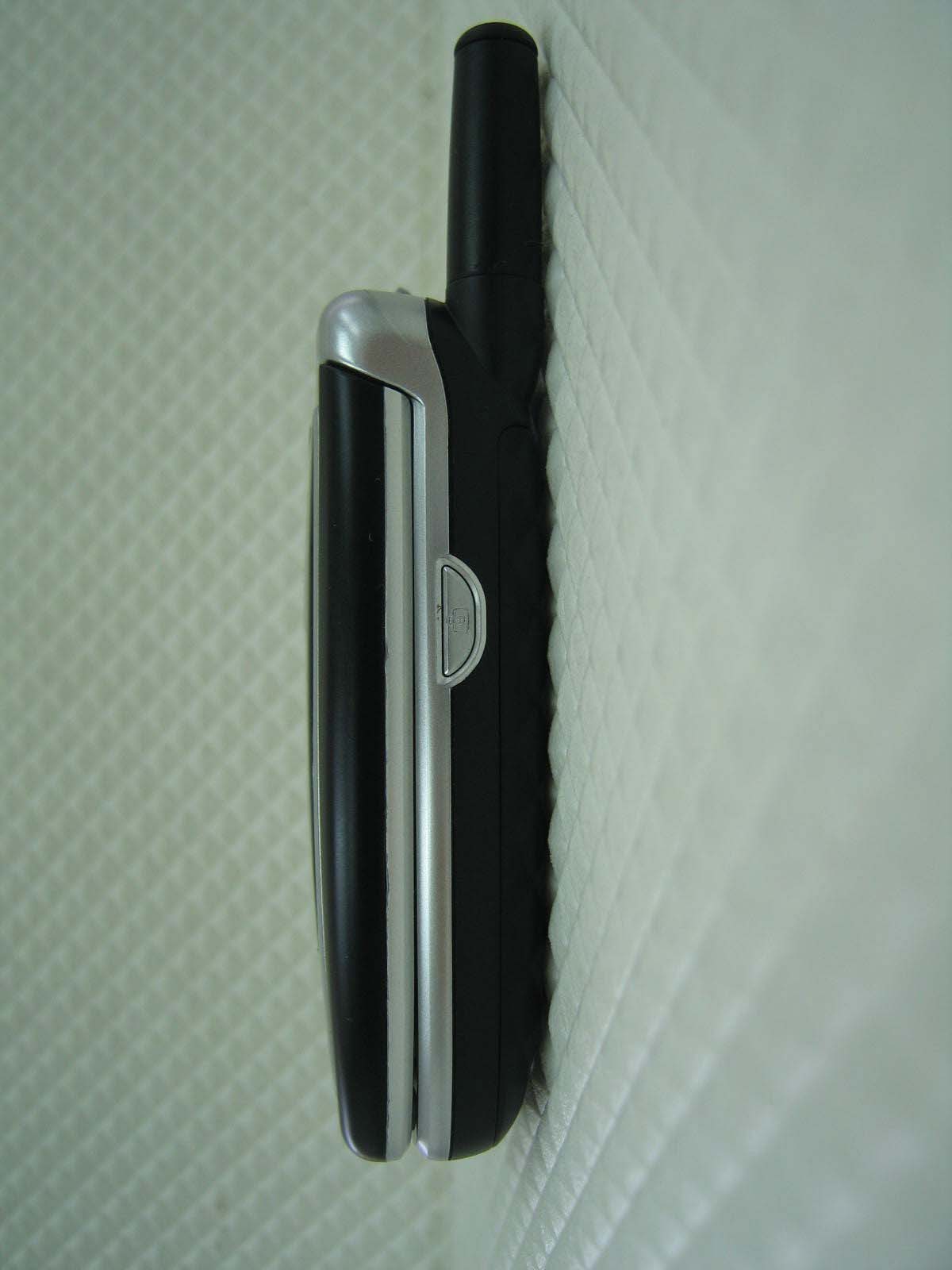

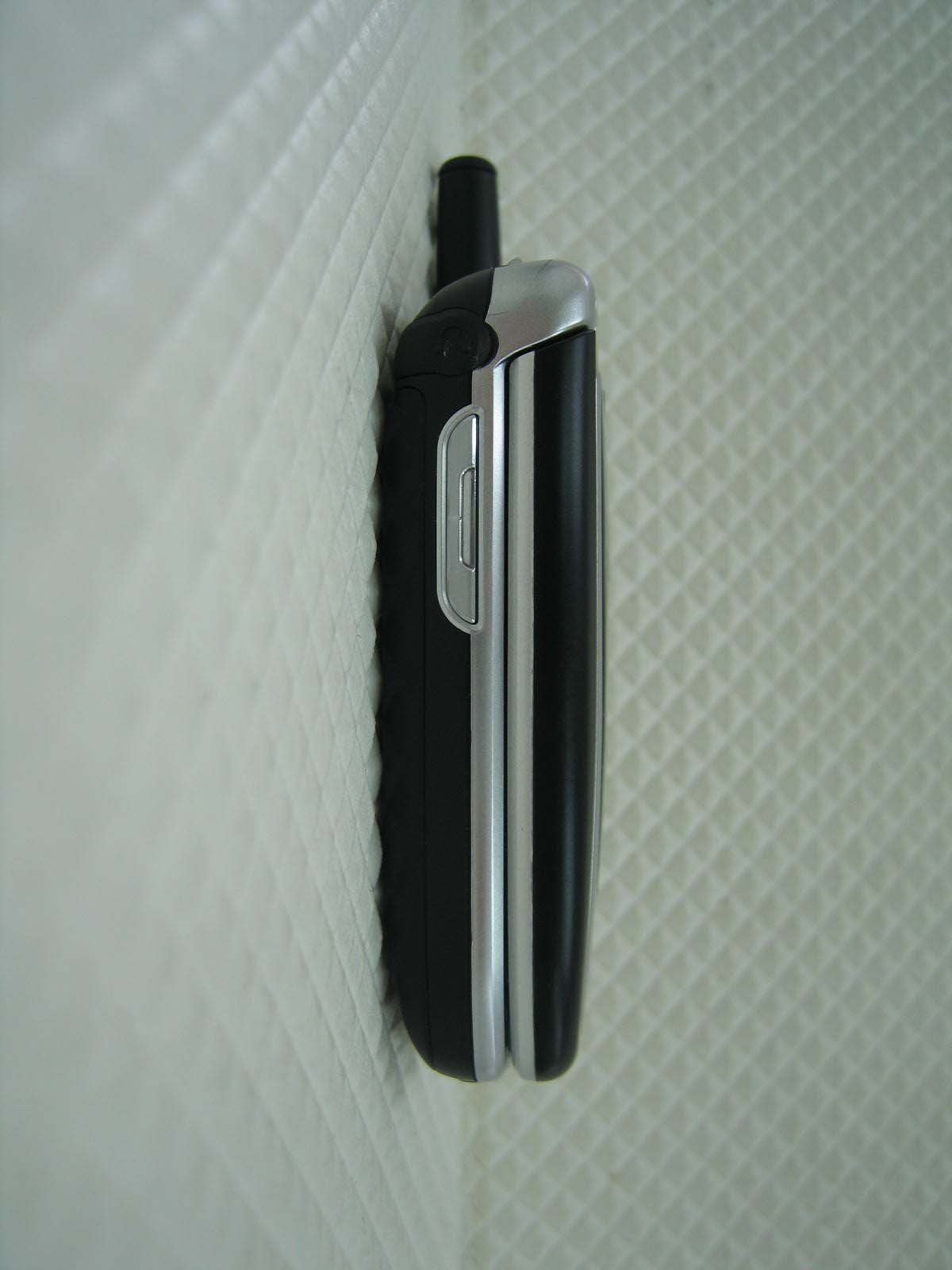

Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE SAR EVALUATION EUT Type: Dual-Mode Phone (CDMA/ PCS CDMA)- Prototype Tx Frequency: 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.303W ERP CDMA (24.8dBm) 0.291W EIRP PCS CDMA (24.6dBm) Max. RF Output Power: 0.282W CDMA (24.5dBm) (Conducted) 0.282W PCS CDMA (24.5dBm) Trade Name/Model(s): UTStarcom / CDM7075 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 1.29 W/kg CDMA Head SAR / 1.02 W/kg CDMA Body SAR 1.36 W/kg PCS CDMA Head SAR / 0.976 W/kg PCS CDMA Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : O6Y-CDM7075 UTStarcom Inc. Date of Issue: February 4, 2005 Test Report No.: HCT-SAR06-0202 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 UTStarcom, Inc. 1275 Harbor Bay Parkway Alameda, CA 94502 USA FRN: 0005823877 Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ２ of 22 Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-19 20 21 22 Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ３ of 22 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Dual-Mode Phone (CDMA/ PCS CDMA)- Prototype • Trade Name: UTStarcom • Model(s): CDM7075 • FCC ID: O6Y-CDM7075 • Serial Number(s): O6YCDM707520060200001 • Tx Frequency: 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): CDMA/ PCS CDMA • Αntenna Type: Retractable (Retracted/Extended) • Max RF. Output Power: 0.303W ERP CDMA (24.8dBm) 0.291W EIRP PCS CDMA (24.6dBm) • Date(s) of Tests: February 2, 2006 – February 3, 2006 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR06-0202 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: UTStarcom, Inc. Address: 33 Wood Avenue South 3 rd , Floor Iselin, NEW JERSEY 08830, United Stated Attention: Mr. Rick Phung – UTSta…

Text truncated - open the document above for the full version.

Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (1 of 3) Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (2 of 3) Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR06-0202 FCC ID: O6Y-CDM7075 DATE: February 4, 2006 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 …

Text truncated - open the document above for the full version.
