O6Y-FSU810PCS Fixed Wireless Network Interface Device

1 Trademark Statement: “’UTStarcom’, ‘iPAS’ and the UTStarcom logo are the trademarks of UTStarcom, Inc.” Copyright Statement: “© UTStarcom, Inc. 2004 .All rights reserved. No part of this publication may be reproduced or distributed by any means without the prior written permission of UTStarcom, Inc.” Warranty Language: “The contents of this Guide, whether in whole or in part, do not constitute any express or implied warranty with respect to any products of UTStarcom, Inc. or its subsidiaries. “ 2 TABLE OF CONTENT INTRODUCTION ...............................................................3 HOW TO USE THIS INSTRUCTION MANUAL...........5 SAFERTY PRECAUTIONS.............................................6 1. GETTING STARTED..................................................15 1.1 CHECK THE PHONE AND ITS ACCESSORIES............................. 15 1.2 PHONE SPECIFICATIONS......................................................... 16 1.3 DESCRIPTION OF COMPONENTS............................................. 17 1.4 BATTERY INSTALLATION.......................................................... 18 1.5 SUPPLY POWER...................................................................... 19 1.6 CHARGE THE BATTERY............................................................ 20 1.7 GETTING STARTED.................................................................. 21 2. FUNCTIONS AND OPERATIONS............................22 2.1 CONNECTED WITH A TELEPHONE........................................... 22 2.2 CONNECTED WITH A FAX MACHINE......................................... 24 2.3 WIRELESS INTERNET ACCESS(REQUIRES NETWORK SUPPORT) ..................................................................................................... 24 3. REFERRENCE INFORMATION...............................25 3.1 CARE AND MAINTENANCE....................................................... 25 3.2 TROUBLESHOOTING................................................................... 26 4. ACCESSORIES...........................................................27 3 4.1 THE 4.5DBI OMNI ANTENNA.................................................... 27 4.2 THE 10DBI DIRECTIONAL ANTENNA......................................... 27 INTRODUCTION • Thank you for purchasing FSU810. • To ensure correct usage of this equipment, please read this User Guide thoroughly. • The illustrations used in this document were created expressly for instructional purposes and may differ slightly from the actual phone. • Changes or modifications not expressly approved by UTStarcom, Inc. could void the user’s authority to operate this equipment. • This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference 4 to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. • The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located with or operated in conjunction with any other antenna or transmitter. 5 HOW TO USE THIS INSTRUCTION MANUAL • In this manual, “press” means to press the key and then release; “press and hold” means to press the key for 2 sec or more and then release. • In this manual, “service area” refers to area that FSU810 can receive signals effectively. • Before using this equipment, please read these “Safety 6 Precautions” thoroughly to ensure correct and safety usage. • The cautions included here are provided to prevent danger to persons and property. • The following explain the degree of danger and damage that could occur if these safety precautions are not observed correctly. SAFERTY PRECAUTIONS This symbol indicates that erroneous operations may directly result in property damage or injury. This symbol indicates that erroneous operations may result in the possibility of property damage or injury. This symbol indicates that erroneous operations may result in the possibility of injury or physical damage. z The following symbols indicate explanations of what is to be 7 observed. This symbol indicates a prohibited action. This symbol indicates an action that must always be performed. This symbol indicates that disassembly is prohibited. This symbol indicates that the plug of the power cord must be removed form the outlet. z Handling the Equipment and Power Adapter Use only the battery and power adapter designated for this equipment. Otherwise, it may cause battery leakage, overheating, explosion or even fire. Do not store in places with high humidity, high temperature or much dust, to avoid malfunction. 8 The equipment, battery and the power adapter are not waterproof, so they should be kept from wetting by rain or etc. Do not apply strong impact or vibration, and do not throw. Such actions could result in battery leakage, overheating, cracking or fire. Do not place the equipment or power adapter inside a microwave oven or high-voltage appliances. Otherwise, it may result in battery leakage, overheating or cracking as well as phone or power adapter overheating, smoke, fire or circuit damage. Do not use in places with volatile ga…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 59 of 86 APPENDIX C: CONFIDENTIALITY REQUEST LETTER Please see the following page. . Test/Tune Procedure

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 58 of 86 APPENDIX B: AGENCY AUTHORIZATION LETTER Please see the following page.

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 73 of 86 APPENDIX L: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 8: TOP VIEW Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 74 of 86 PHOTOGRAPH 9: BOTTOM VIEW Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 75 of 86 PHOTOGRAPH 10: RIGHT SIDE VIEW SHOWING ANTENNA CONNECTOR Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 76 of 86 PHOTOGRAPH 11: REAR VIEW SHOWING POWER, RJ-11 AND DATA CONNECTIONS

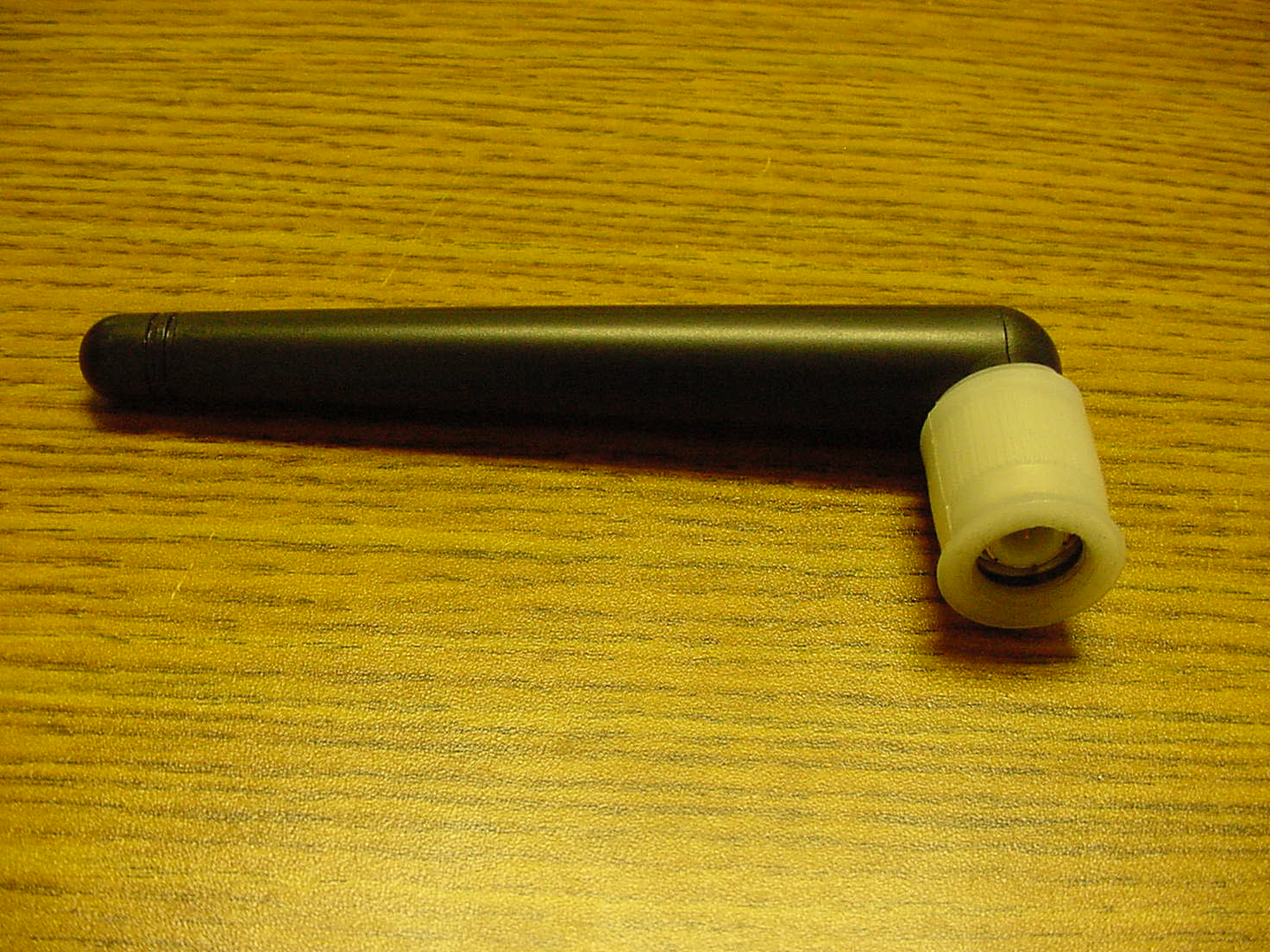

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 77 of 86 PHOTOGRAPH 12: WHIP ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 78 of 86 PHOTOGRAPH 13: PATCH ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 79 of 86 PHOTOGRAPH 14: ROD ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 80 of 86 PHOTOGRAPH 15: 6.8 V DC POWER SUPPLY

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Appendix E: FCC ID Label Sample and Location Photograph 1: FCC ID Label Sample and Location on bottom of EUT Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Photograph 2: FCC Part 15 1-Part Statement on bottom of EUT

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 81 of 86 APPENDIX M: INTERNAL PHOTOGRAPHS PHOTOGRAPH 16: TOP OF POWER SWITCH/LED PCB Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 82 of 86 PHOTOGRAPH 17: INSIDE TOP COVER SHOWING BACK SIDE OF POWER SWITCH/LED PCB Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 83 of 86 PHOTOGRAPH 18: TOP OF PCB IN BASE

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 84 of 86 PHOTOGRAPH 19: TOP OF PCB Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 85 of 86 PHOTOGRAPH 20: TOP OF PCB WITH SHIELDS REMOVED Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 86 of 86 PHOTOGRAPH 21: BOTTOM OF PCB

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 78 of 86 PHOTOGRAPH 13: PATCH ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 PHOTOGRAPH 13A: INSIDE PATCH ANTENNA

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 54 of 86 APPENDIX A: RF EXPOSURE COMPLIANCE FCC Rules and Regulations Part 1.1307, 1.1310, 2.1091, 2.1093: 1. General Information: FCCID: O6Y-FSU810 Environment: General Population/Uncontrolled Exposure Device category: Mobile per Part 2.1091 Modulation Type/Mode: PHS (TDMA-TDD) 2. Operating Configurations and Test Conditions: 2.1 Antenna Type(s): Antenna Type Gain (dBi) Numeric Gain Whip Omni 2.5 1.78 Rod Omni 4.5 2.82 65° Directional Patch 10 10 Frequency Range Frequency Tolerance (ppm) Emission Designator 1880.15-1909.85 0.61 262KDXW 10 dBi Antenna Output Power (Worst Case) Time averaging as an inherent property (100 % Duty Cycle) (W) Time averaging as an inherent property (11.2 % Duty Cycle, -9.5 dB) (W) EIRP 0.066 (18.2 dBm) 0.007 (8.7 dBm) Conducted 0.085 (19.3 dBm) 0.010 (9.8 dBm) 3. MPE Calculation: The maximum distance from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters: The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: Z E S 2 = where: S = Power density E = Electric field Z = Impedance. ZSmVE×=)/( 1 mW/cm 2 = 10 W/m 2 Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 55 of 86 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: 37710)/(×=mVE = 61.4 V/m MPE Calculation: The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters above and solving for d below: d GP mVE ×× = 30 )/( and )/( 30 mVE GP d ×× = Power density: 3770 )/( 2 2 E cmmWP d = The limit for general population/uncontrolled exposure environment above 1500 MHz is 1 2 /cmmW. SEPARATION DISTANCE: Antenna Gain (dBi) Separation Distance A 10 Power B (Watt) (cm) Duty Cycle (%) 0.010 2.8 11.2 0.085 8 100.0 Calculations: 11.2% duty cycle = 4.61 10010.030 028.0 ×× = m 100% duty cycle = 4.61 10085.030 08.0 ×× = m Where: S = Power density P = Transmitter conducted power in watts G = Numeric gain D = Distance to radiation center Fundamental Operating Frequency: 1880.15-1909.85 MHz Measured conducted power: 0.085W (19.3 dBm) Antenna Gain = 10 dBi; Numeric Gain = 10 2 4d GP S ×× × = π Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 56 of 86 At 100% Duty Cycle S = 80 x 10/4 x π x 20 2 = 0.159 mW/ cm 2 at 20 cm At 11.2 % Duty Cycle S= 10 x 10/4 x π x 20 2 = 0.02 mW/ cm 2 at 20 cm Antenna Gain = 10 dBi Conducted Power (mW) = 85 Separation Distance Power Density Limit Calculated Power density at 20 cm distance 1 mW/cm 2 0.159 mW/ cm 2 Notes: Distances are calculated for the largest (worst-case) separation distance as applicable. C ONCLUSION: The device complies with the MPE requirements by providing a safe separation distance between the antenna, including any radiating structure, and any persons. Proposed RF exposure safety information to include in User’s Manual: CAUTION: Antenna Installation Requirement The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 57 of 86 Duty Cycle Calculation: 0.56 ms / 5 ms = 0.112 and 10 log (11.2%) = -9.5 dB

Engineering and Testing for EMC and Safety Compliance CERTIFICATION APPLICATION REPORT FCC PART 24 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 Contact: [email protected] Applicant: UTStarcom, Inc. Phone: 732-516-7524 33 Wood Avenue South Fax: 732-767-5283 3 rd Floor Iselin, NJ 08830 USA Contact: Tom Borrelli ([email protected]) FCC ID: O6Y-FSU810 GRANTEE FRN NUMBER: 0005823877 PLAT FORM: Transmitter RTL WORK ORDER NUMBER: 2004227 MODEL: FSU810 RTL QUOTE NUMBER: QRTL04-433 DATE OF TEST REPORT: December 20, 2004 American National Standard Institute: ANSI/TIA-603-B-2002 FCC Classification: PCB – Licensed Base Station for Part 24 FCC Rule Part(s): Part 24: Personal Communications Services Subpart E – Broadband PCS Digital Interface Information Digital Interface was found to be compliant Frequency Range (MHz) Power (W) Frequency Tolerance Emission Designator 1880.15-1909.85 0.085 0.61 ppm 262KDXW I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the FCC Part 2, FCC Part 15, FCC Part 24, ANSI C63.4 and ANSI/TIA-603-B-2002. Signature: Date: December 20, 2004 Typed/Printed Name: Desmond Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 2 of 86 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................................................................. 5 1.1 SCOPE ....................................................................................................................................................................... 5 1.2 TEST FACILITY.......................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................................... 5 2 EQUIPMENT INFORMATION.............................................................................................................................................. 6 2.1 JUSTIFICATION ......................................................................................................................................................... 6 2.2 EXERCISING THE EUT ............................................................................................................................................. 6 2.3 MODIFICATIONS ....................................................................................................................................................... 6 2.4 TEST SYSTEM DETAILS........................................................................................................................................... 7 2.5 CONFIGURATION OF TESTED SYSTEM................................................................................................................. 8 3 DC VOLTAGES AND CURRENTS - PART §2.1033(C)(8) ................................................................................................. 9 3.1 DC VOLTAGES AND CURRENTS TEST EQUIPMENT ............................................................................................ 9 4 RF POWER OUTPUT - §2.1046 ........................................................................................................................................ 10 4.1 ANSI/TIA-603-B-2002, SECTION 2.2.17 TEST PROCEDURE ................................................................................ 10 4.2 EFFECTIVE ISOTROPIC RADIATED POWER LIMITS - §24.232(B) TEST PROCEDURE .................................... 10 4.3 RF POWER TEST EQUIPMENT .............................................................................................................................. 10 4.4 EFFECTIVE ISOTROPIC RADIATED POWER TEST DATA- §2.1046 .................................................................... 11 5 OCCUPIED BANDWIDTH - §2.1049; NECESSARY BANDWIDTH §2.202 (OCCUPIED BANDWIDTH) – PART 24.238(B) (EMISSION BANDWIDTH) ....................................................................................................................................... 13 5.1 TEST PROCEDURE................................................................................................................................................. 13 5.2 OCCUPIED BANDWIDTH TEST EQUIPMENT........................................................................................................ 13 5.3 TEST DATA (CHANNEL 1: OCCUPIED BANDWIDTH = 262 KHZ)........................................................................ 14 6 CONDUCTED SPURIOUS AND HARMONIC EMISSIONS - §2.1051 .............................................................................. 15 6.1 TEST PROCEDURE................................................................................................................................................. 15 6.2 CONDUCTED SPURIOUS AND HARMONIC EMISSIONS TEST EQUIPMENT..................................................... 15 6.3 CONDUCTED SPURIOUS AND HARMONIC TEST DATA - §2.1051 ..................................................................... 16 7 RADIATED SPURIOUS AND HARMONIC EMISSIONS - §2.1053................................................................................... 19 7.1 RADIATED SPURIOUS AND HARMONIC EMISSIONS - §2.1053..................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 67 of 86 APPENDIX K: TEST PHOTOGRAPHS PHOTOGRAPH 2: RADIATED FRONT VIEW WITH WHIP ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 68 of 86 PHOTOGRAPH 3: RADIATED BACK VIEW WITH WHIP ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 69 of 86 PHOTOGRAPH 4: RADIATED FRONT VIEW WITH PATCH ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 70 of 86 PHOTOGRAPH 5: RADIATED BACK VIEW WITH PATCH ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 71 of 86 PHOTOGRAPH 6: RADIATED FRONT VIEW WITH ROD ANTENNA Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: FSU810 Suite 1400 FCC ID: O6Y-FSU810 Herndon, VA 20170 http://www.rheintech.com FCC: Report #: Part 24 2004227 Page 72 of 86 PHOTOGRAPH 7: RADIATED BACK VIEW WITH ROD ANTENNA
