O6Y-UT106PCS Licensed Transmitter held to ear

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 37 of 55 APPENDIX I: MANUAL Please see the following pages. UT106 USER GUIDE i _______________________________________ Trademark Statement: “‘UTStarcom’, ‘iPAS’, and the UTStarcom logo are trademarks of UTStarcom, Inc.” Copyright Statement: “©UTStarcom, Inc. 2004. All rights reserved. No part of this publication may be reproduced in any form or by any means without the prior written permission of UTStarcom, Inc.” Warranty Language: “The contents of this manual, whether in whole or in part, do not constitute any express or implied warranty with respect to any products of UTStarcom, Inc., or its subsidiaries.” Table of Contents SAFETY PRECAUTIONS....................................................1 1. GETTING STARTED.......................................................7 1.1 PACKAGE CONTENTS.....................................................................7 1.2 PHONE SPECIFICATIONS................................................................8 1.3 HANDSET DESCRIPTION.................................................................9 1.4 ATTACH THE HAND STRAP............................................................11 1.5 DISPLAY INDICATORS...................................................................11 1.6 CHARGE THE BATT ERY................................................................12 1.7 REPLACE THE BATT ERY...............................................................14 1.8 CONVENTIONS IN THIS GUIDE.......................................................15 1.9 ACCESS MENU/LIST OPTIONS......................................................16 2. BASIC OPERATIONS...................................................17 2.1 SWITCH THE PHONE ON/OFF.......................................................17 2.2 MAKE A CALL...............................................................................17 2.3 SPEED DIAL A PHONE NUMBER....................................................17 2.4 MAKE AN IP CALL........................................................................18 2.5 ANSWER A CALL..........................................................................18 2.6 REJECT A CALL............................................................................19 2.7 HOLD A CALL...............................................................................19 2.8 CALL WAITING.............................................................................19 2.9 THREE WAY CALLING...................................................................20 2.10 ACCESS PHONEBOOK DURING A CALL........................................21 2.11 ADJUST EARPIECE VOLUME DURING A CALL................................21 2.12 STORE A PHONE NUMBER..........................................................22 2.13 CALL LOG SHORTCUT................................................................22 2.14 CUSTOM FUNCTIONS SHORTCUT................................................23 2.15 CURRENT PROFILE SHORTCUT...................................................23 2.16 MEETING PROFILE SHORTCUT...................................................23 2.17 KEYPAD LOCK...........................................................................24 ii iii 3. PHONEBOOK (NAMES)............................................... 25 3.1 SEARCH...................................................................................... 25 3.1.1 Quick Search.................................................................................26 3.1.2 Edit................................................................................................26 3.1.3 Delete Entry...................................................................................27 3.2 ADD ENTRY................................................................................. 27 3.3 DELETE ENTRY............................................................................ 28 3.3.1 One by One...................................................................................28 3.3.2 All...................................................................................................28 3.4 GROUP INFO............................................................................... 29 3.4.1 Browse...........................................................................................29 3.4.2 Ring Tone.......................................................................................29 3.5 SPEED DIAL................................................................................ 29 3.6 MEMORY..................................................................................... 30 4. MENU............................................................................ 31 4.1 SMS........................................................................................... 31 4.1.1 Edit Message.................................................................................31 4.1.2 Inbox..............................................................................................32 4.1.3 Outbox...........................................................................................34 4.1.4 Draft...............................................................................................35 4.1.5 Clear..............................................................................................36 4.1.6 Memory..........................................................................................37 4.2 CALL LOG................................................................................... 38 4.2.1 Missed Log....................................................................................38 4.2.2 Received Log.................................................................................39 4.2.3 Dialed log.......................................................................................40 4.2…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 31 of 55 APPENDIX C: CONFIDENTIALITY REQUEST LETTER Please see the following page. . Test/Tune Procedure

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 30 of 55 APPENDIX B: AGENCY AUTHORIZATION LETTER Please see the following page.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 13, 2004 RE: FCC ID: O6Y-UT106_ATCB001989 Attention: Rick McMurray / Kathy Grzovic I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that when the power between the EMC and SAR report are not the same, the power used in the SAR report is to be the higher of the two. This way it is insured that the highest SAR is achieved. Please note that while only 5mw difference exists the reports do show that the SAR report did not have the higher level. Please explain and justify why the SAR report did not test with the higher power. (i.e. the devices used were the same device but differences in measurement equipment may explain the difference). In any case, please explain. 2. Please note that page 8 of the manual states that the device has been tested for body worn operation. Please note that the SAR report does not contain any body worn configuration testing. Please provide this test data for body worn operation. 3. Please provide the distance of separation between the phone and the body for body worn operations. This separation distance should be in the report as well as in the manual. Please note that OET65C states that in this type case the separation distance should be in the manual (see page 41 of OET65C). Please provide this separation distance in the manual. 4. Please note that the tune up procedure is not listed in the request for confidentiality. If this exhibit is desired to be held confidential, please provide a request for confidentiality that includes this exhibit. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 13, 2004 RE: FCC ID: O6Y-UT106_ATCB001989 Attention: Rick McMurray / Kathy Grzovic I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that when the power between the EMC and SAR report are not the same, the power used in the SAR report is to be the higher of the two. This way it is insured that the highest SAR is achieved. Please note that while only 5mw difference exists the reports do show that the SAR report did not have the higher level. Please explain and justify why the SAR report did not test with the higher power. (i.e. the devices used were the same device but differences in measurement equipment may explain the difference). In any case, please explain. Response : The same unit was used for both EMC and SAR testing. Though the SAR report indicates the lower value, the 5 mW difference (3%) between the reports is well within the measurement uncertainties between the labs. Additionally, the maximum SAR value of 0.151 W/kg is over one magnitude smaller than the limit for this device (1.6 W/kg). 2. Please note that page 8 of the manual states that the device has been tested for body worn operation. Please note that the SAR report does not contain any body worn configuration testing. Please provide this test data for body worn operation. Response : This is not a body-worn device, and no SAR testing was done for body-worn operation. Please see the revised manual uploaded with this response. 3. Please provide the distance of separation between the phone and the body for body worn operations. This separation distance should be in the report as well as in the manual. Please note that OET65C states that in this type case the separation distance should be in the manual (see page 41 of OET65C). Please provide this separation distance in the manual. Response : No separation distance is provided, as this is not a body-worn device. 4. Please note that the tune up procedure is not listed in the request for confidentiality. If this exhibit is desired to be held confidential, please provide a request for confidentiality that includes this exhibit. Response : The tune up procedure should be confidential; a revised confidentiality request has been uploaded with this response. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

dward ATCB From: Kathy Grzovic [[email protected]] Sent: Friday, December 17, 2004 8:17 AM To: [email protected] Cc: Rick McMurray Subject: Response to your Questions on O6Y-UT106_ATCB001989 12/18/2004 Hi Dennis: Please see responses following your questions. Thank you. Kathy -----Original Message----- From: dward ATCB [mailto:[email protected]] Sent: Thursday, December 16, 2004 10:11 PM To: 'Kathy Grzovic' Subject: RE: Response Uploaded for O6Y-UT106_ATCB001989 Hi Kathy: Question: In your response to item 2 (body worn) is confusing. The manual shows a wrist strap or lanyard. Can this strap be fit around the neck so the device can be worn next to the body? Response: The wrist strap is about 15cm (about 6in) long (doubled) or about 30cm around (length of the string). This is too small to fit over someone's head. Question: The manual also shows data via the I/O data cable. Can an external earpiece and microphone be fit to the device via its I/O data cable to allow communication while on the body? Response: The Data I/O cable is used for synchronizing the phone book to a PC application, not for connecting to anything to transmit data. The phone book download/upload to a PC is done when the phone is idle. It does not transmit at all during this process. From: Kathy Grzovic [mailto:[email protected]] Sent: Thursday, December 16, 2004 7:07 PM To: Dennis Ward Subject: RE: Response Uploaded for O6Y-UT106_ATCB001989 Hi Dennis - just checking in to see how things are going. Is Taiwan what you expected? I wanted to let you know that we've got several M/A-Com and EF Johnson applications coming in before the end of the year, due to some rule changes they need approvals before year's end. I don't mean to pry, but will you be working any days between Christmas and New Year's? I understand you've got a "road trip" planned sometime before Christmas - I hope you have a wonderful time! Thank you. Kathy -----Original Message----- From: Kathy Grzovic [mailto:[email protected]] Sent: Wednesday, December 15, 2004 10:24 AM To: '[email protected]' Subject: Response Uploaded for O6Y-UT106_ATCB001989 Hi Dennis: I have uploaded our response to these comments. Please review and advise. Thanks, Kathy -----Original Message----- From: dward ATCB [mailto:[email protected]] Sent: Monday, December 13, 2004 3:05 AM To: 'Kathy Grzovic' Cc: [email protected] Subject: O6Y-UT106_ATCB001989 Hi Kathy Please see comments. Thanks Dennis Ward ATCB Phone - Headquarters (703) 847-4700 Phone - Dt Associates (209) 966-2145 Phone -Alternate business (703) 880-4841 12/18/2004

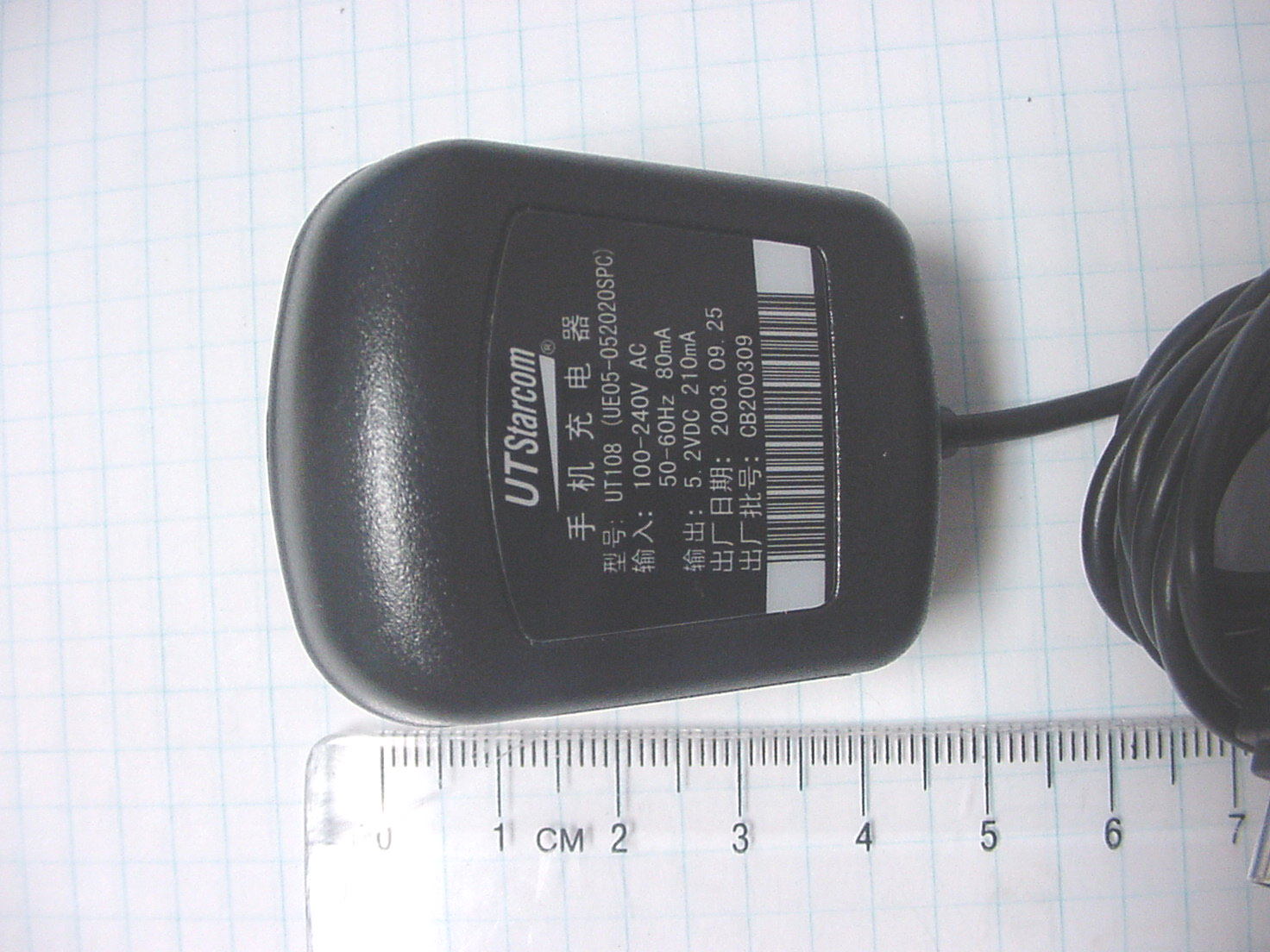

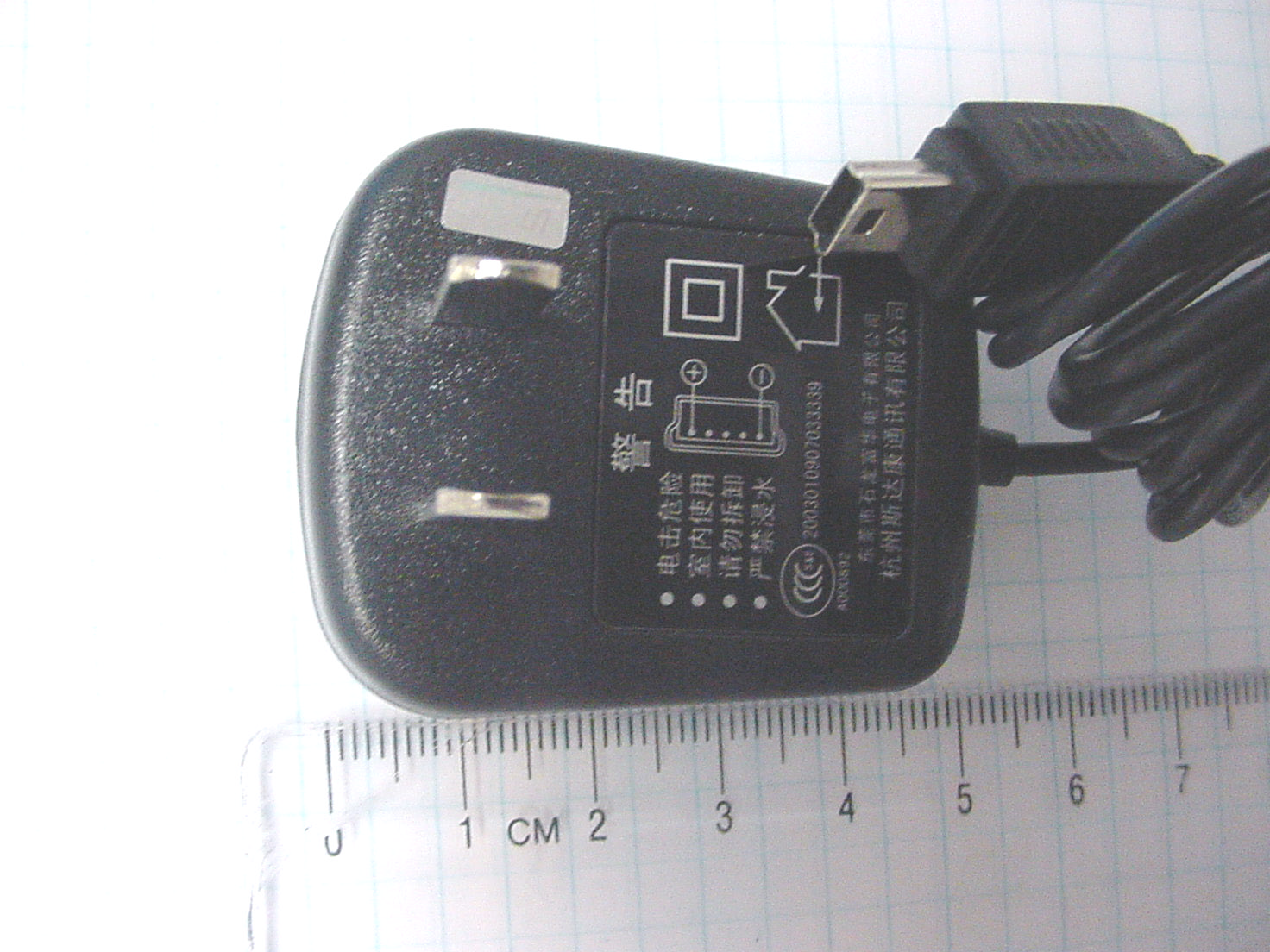

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 42 of 55 APPENDIX K: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 6: FRONT VIEW Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 43 of 55 PHOTOGRAPH 7: BOTTOM VIEW SHOWING RECHARGE CONNECTOR Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 44 of 55 PHOTOGRAPH 8: REAR VIEW Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 45 of 55 PHOTOGRAPH 9: TOP OF CHARGER Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 46 of 55 PHOTOGRAPH 10: BOTTOM OF CHARGER

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 36 of 55 APPENDIX H: LABEL AND LABEL LOCATION PHOTOGRAPH 1: FCC ID LABEL SAMPLE AND LOCATION

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 47 of 55 APPENDIX L: INTERNAL PHOTOGRAPHS PHOTOGRAPH 11: INSIDE BACK COVER Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 48 of 55 PHOTOGRAPH 12: INSIDE FRONT COVER Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 49 of 55 PHOTOGRAPH 13: PCB IN BACK COVER Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 50 of 55 PHOTOGRAPH 14: BACK OF PCB WITH SPEAKER Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 51 of 55 PHOTOGRAPH 15: FRONT OF KEYPAD

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 52 of 55 PHOTOGRAPH 16: BACK OF KEYPAD Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 53 of 55 PHOTOGRAPH 17: FRONT OF PCB WITH LCD Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 54 of 55 PHOTOGRAPH 18: BACK OF PCB Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 55 of 55 PHOTOGRAPH 19: FRONT OF PCB

Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 29 of 55 APPENDIX A: RF EXPOSURE COMPLIANCE FCC RULES AND REGULATIONS PART 1.1307, 1.1310, 2.1091, 2.1093: Please refer to the SAR evaluation that follows. © 2004 Celltech Labs Inc. 1 of 23 Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation DECLARATION OF COMPLIANCE SAR RF EXPOSURE EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Services 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information UTSTARCOM INC. 33 Wood Ave. South, 3 rd Floor Iselin, NJ 08830 United States FCC IDENTIFIER: O6Y-UT106 Model(s): UT106 FCC Rule Part(s): 47 CFR §2.1093 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) IEEE Standard 1528-2003 FCC Classification: Part 24 Licensed Portable Transmitter held to ear (PCE) Device Type: Portable Single-Mode PAS PHS Handset Tx Frequency Range: 1880.15 - 1909.85 MHz Access Method: TDMA (Time Division Multiple Access) Modulation: DQPSK (Differential Quadrature Phase Shift Keying) Max. RF Output Power Tested: 79 mW EIRP (1880.15 MHz) 115 mW EIRP (1895.10 MHz) 165 mW EIRP (1909.85 MHz) Max. Duty Cycle Tested: 12.8 % (Crest Factor: 1:7.8) Max. Source-Based Time-Average Power: 21.1 mW EIRP (1909.85 MHz) Antenna Type Tested: Fixed Stubby Battery Type Tested: 3.6 V Lithium-ion, 480 mAh (P/N: HZSL053040B) Body-worn Accessories Tested: n/a (handset does not have provision for body-worn operation) Max. SAR Level(s) Evaluated: Head: 0.151 W/kg (1g average) Celltech Labs Inc. declares under its sole responsibility that this wireless portable device has demonstrated compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C (Edition 01-01) and IEEE Standard 1528-2003 for the General Population / Uncontrolled Exposure environment. All measurements were performed in accordance with the SAR system manufacturer recommendations. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. © 2004 Celltech Labs Inc. 2 of 23 Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation TABLE OF CONTENTS 1.0INTRODUCTION......................................................................3 2.0DESCRIPTION OF DUT............................................................. 3 3.0SAR MEASUREMENT SYSTEM................................................. 4 4.0MEASUREMENT SUMMARY...................................................... 5 5.0DETAILS OF SAR EVALUATION................................................ 6-7 6.0EVALUATION PROCEDURES.................................................... 7-8 7.0SYSTEM PERFORMANCE CHECK............................................. 9 8.0SIMULATED EQUIVALENT TISSUES......................................... 10 9.0SAR SAFETY LIMITS............................................................... 10 10.0ROBOT SYSTEM SPECIFICATIONS........................................... 11 11.0PROBE SPECIFICATION (ET3DV6)............................................ 12 12.0SAM PHANTOM V4.0C............................................................. 12 13.0DEVICE HOLDER..................................................................... 12 14.0TEST EQUIPMENT LIST............................................................ 13 15.0MEASUREMENT UNCERTAINTIES............................................. 14-15 16.0REFERENCES.........................................................................16 APPENDIX A - SAR MEASUREMENT DATA............................................ 17 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA.......................... 18 APPENDIX C - SYSTEM VALIDATION.................................................... 19 APPENDIX D - PROBE CALIBRATION................................................... 20 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS................ 21 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY.............. 22 APPENDIX G - SAR TEST SETUP & DUT PHOTOGRAPHS...................... 23 © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106)3 of 23 Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation This measurement report demonstrates that the UTSTARCOM INC. Model: UT106 Single-Mode PAS PHS Handset FCC ID: O6Y-UT106 complies with the SAR (Specific Absorption Rate) RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [2]), and IEEE Standard 1528-2003 (see reference [3]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the provisions of the rules are included within this test report. FCC Device Classification Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s) 47 CFR §2.1093 FCC OET Bulletin 65, Supplement C (01-01) Test Procedure(s) IEEE Standard 152…

Text truncated - open the document above for the full version.

© 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106)23 of 23 Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation APPENDIX G - SAR TEST SETUP & DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106) Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation HEAD SAR TEST SETUP PHOTOGRAPHS Left Head Section / Cheek-Touch Position © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106) Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation i 15q Tilt HEAD SAR TEST SETUP PHOTOGRAPHS Left Head Section / Ear-Tilt Position (15q) © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106) Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation HEAD SAR TEST SETUP PHOTOGRAPHS Right Head Section / Cheek-Touch Position © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106) Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation 15q Tilt HEAD SAR TEST SETUP PHOTOGRAPHS Right Head Section / Ear-Tilt Position (15q) © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106) Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation Front of DUT Back of DUT DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106) Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation Left Side of DUT Right Side of DUT Top of DUT Bottom of DUT DUT PHOTOGRAPHS © 2004 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6Y-UT106 (Model: UT106) Single-Mode PAS PHS TDMA Handset (1880.15-1909.85 MHz) Test Report S/N: 081904-551O6Y Test Date(s): August 23, 2004 Test Type: FCC SAR Evaluation Battery Compartment Li-ion Battery in DUT Li-ion Battery DUT PHOTOGRAPHS

Engineering and Testing for EMC and Safety Compliance CERTIFICATION APPLICATION REPORT FCC PART 24 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 Contact: [email protected] Applicant: UTStarcom, Inc. Phone: 732-516-7524 33 Wood Avenue South Fax: 732-767-5283 3 rd Floor Email: [email protected] Iselin, NJ 08830 USA Contact: Bill Aranguren FCC ID: O6Y-UT106 GRANTEE FRN NUMBER: 0005823877 PLAT FORM: Transmitter RTL WORK ORDER NUMBER: 2004125 MODEL: UT106 RTL QUOTE NUMBER: QRTL04-285 DATE OF TEST REPORT: November 18, 2004 American National Standard Institute: ANSI/TIA-603-B-2002 FCC Classification: PCE – Licensed Portable Transmitter Held to Ear FCC Rule Part(s): Part 24: Personal Communications Services Subpart E – Broadband PCS Digital Interface Information Digital Interface was found to be compliant Frequency Range (MHz) Power (W) Frequency Tolerance Emission Designator 1880.15-1909.85 0.170 1.2 ppm 288KDXW I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Modifications were made to the equipment during testing in order to achieve compliance with these standards; please see section 2.3 for details. Furthermore, there was no deviation from, additions to, or exclusions from, the FCC Part 2, FCC Part 15, FCC Part 24, ANSI C63.4 and ANSI/TIA-603-B-2002. Signature: Date: November 18, 2004 Typed/Printed Name: Desmond Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. The test results relate only to the item that was tested. Note: This report may not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Rhein Tech Laboratories, Inc. Client: UTStarcom 360 Herndon Parkway Model: UT106 Suite 1400 FCC ID: O6Y-UT106 Herndon, VA 20170 http://www.rheintech.com Standard: Report #: Part 24 2004125 Page 2 of 55 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................................................................. 5 1.1 SCOPE ....................................................................................................................................................................... 5 1.2 TEST FACILITY.......................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................................... 5 2 EQUIPMENT INFORMATION.............................................................................................................................................. 6 2.1 JUSTIFICATION ......................................................................................................................................................... 6 2.2 EXERCISING THE EUT ............................................................................…
