O6Y-UT251UT GF251 Handset

1 UT GF251 User Guide version 0.1, 2004/08/09 2 Contents 1. Security Rules ................................................... 3 2. Getting Started ................................................... 5 3. Quick start .................................................... 7 4. Introduction ................................................... 11 5. Introduction of menu ................................................... 15 6. Menu tree ................................................. 24 7. FCC RF Exposure Information ................................................. 28 3 1. Security Rules Please read the handbook carefully. The manipulation that does not agree with the handbook may bring dangers or violate the law. 1.1. Safety Information ƒ The safety of driving Please do not use the handset when you are driving. This behavior will violate the law in some countries. ƒ Power off the phone first when you are supplying the energy Be sure not to use handset near the gas station, fuel, or chemical. ƒ Power off the phone when you are in the airplane The wireless phone will lead to communication confliction. Use the handset in the airplane is dangerous and illegal. ƒ Power off the phone when you are in the hospital. Please obey the rules of the hospital and power off the phone near the medical machines. ƒ Obey the rule Obey the forbidden rules anywhere to avoid conflictions and dangers (such as in the hospital). ƒ Conflictions Any wireless phone may encounter the wireless confliction and affect the performance. ƒ Choose the qualified service Only the qualified staffers can fix the phone. ƒ Use naturally Please use the phone naturally and avoid touching the antenna when powering on. ƒ Emergency call Be sure that the phone is powered on and in service. After calling the emergency number, you should show your position and not power off your phone. ƒ Ionization radiation Keep away from the antenna when using the phone. ƒ Note Be sure to use the normal accessories and batteries. Otherwise, it would be dangerous. 1.2. Battery Information ƒ In lower temperature condition In lower temperature condition, LCD’s showing speed become slower. This phenomenon is 4 normal. The phone may stop working when the battery is too hot or too cold. ƒ Charging the new battery * The new battery for user may be uncharged. * In order to make full use of battery, the first charging time length is preferred beyond 15 hours, but lower 24 hours. * The battery may be charged and discharged for hundreds of time, but it would be invalidate in the end. When its using time is too short, we should use new battery. * When the charger is unused, we should switch off electrical source. ƒ Attention * Just use the suitable charger. * Keep away from the fire. Do not disassemble the charge by authenticated person. * Do not throw phone. This will affect battery’s life. * The performance of battery mostly depends on networks. * If it is unused, the charged battery will auto discharge in a mouth. * If battery is not used continuously, you’d better discharge it completely and place it in the cool, no-sunshine, and thirty place. * Do not place the phone or the battery in hot situation(beyond 60), such as the sun°C-shine window. * Clear the phone with the prevent-electrostatic cloth. Do not use the dry or electrostatic cloth. * Old battery should be discarded at the pointed place and not throw away freely. 5 2. Getting Started 2.1. SIM card You need to register as a subscriber of a network operator and receive a SIM (Subscriber Identity Module) card. A SIM card contains a micro computer chip which can track of phone number, services included in your subscription, phone book and etc. A default PIN (Personal Identity Number) code is provided by the SIM card from your operator and must be entered when switch on this mobile phone. 2.2. Install SIM card and battery 2.2.1. Install SIM card 1. Press key to turn off the phone. Push the catch up and then remove the battery. 2. Insert your SIM card into SIM card slot as figure below. 3. Make sure that the golden connectors are facing downward and that the beveled corner is on the left. 4. Replace the battery into its place. 2.2.2. Remove the SIM card 1. Press key to turn off the phone. Push the battery lock up and then pick up the battery. 2. Slide the SIM card out of the slot carefully. 2.2.3. Replace the battery 1. The battery is at the back of the phone. 2. Push the battery down to match the slot on it to the tabs at the bottom of the phone. 3. Press the battery down until it click into place. 6 2.2.4. Remove the battery 1. Push the catch above the battery towards the top of the phone and hold it in the position. 2. Lift the battery away as shown. 2.3. Charging the battery 1. Connect the battery to the base of the phone. 2. Connect the adapter to the mains. The battery charging icon appears on the screen. 3. The battery icon stops blinking after battery full. 4. When charging is finished, unplug the adapter from both the power outlet and the charger. 5. When charging the phone, the battery might be hotter. This is normal situation. 2.4. Power management Battery Status Standard Battery Charging times 2 hours Ta l k t i me 2~3 hours Standby time 90~150 hours Battery Capacity 600 mAh Notice: ƒ Variation in operating times will occur depending on SIM card, network and usage settings, usage style and environments. ƒ The actual charging times depend on the adapter. 7 3. Quick start 3.1. Switching the phone on and off 3.1.1. Power on Figure Steps Description 1. Open the flip 2. Press and hold end key Switch on the phone 3. Display idle mode screen after power on. 4. Enter the PIN code if PIN code request is enabled. The ‘*’ mark is displayed instead of number input while entering PIN code. Notice: ƒ If you key in an incorrect PIN code three times in succession, SIM card will be locked. Key in the PUK code to unlock it. ƒ PIN code is usually supplied with SIM card. ƒ The PUK code may be supplied with the SIM card…

Text truncated - open the document above for the full version.

UTStarcom Inc. 1/1 Aug. 10, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID：O6Y-UT251 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Part list 2. Block Diagram 3. Tune-up procedures 4. Schematics 5. Operational Description The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely yours, Te Pi Wang/ Deputy Manager Applicant: Hon Hai Precision Ind. Co., Ltd. ADDRESS: 5F-1, 5 Hsin-An Road, Hsinchu, Science-Based Industrial Park Taiwan, R.O.C TEL: 03-5784957 EXT 7644 FAX: 03-5778112

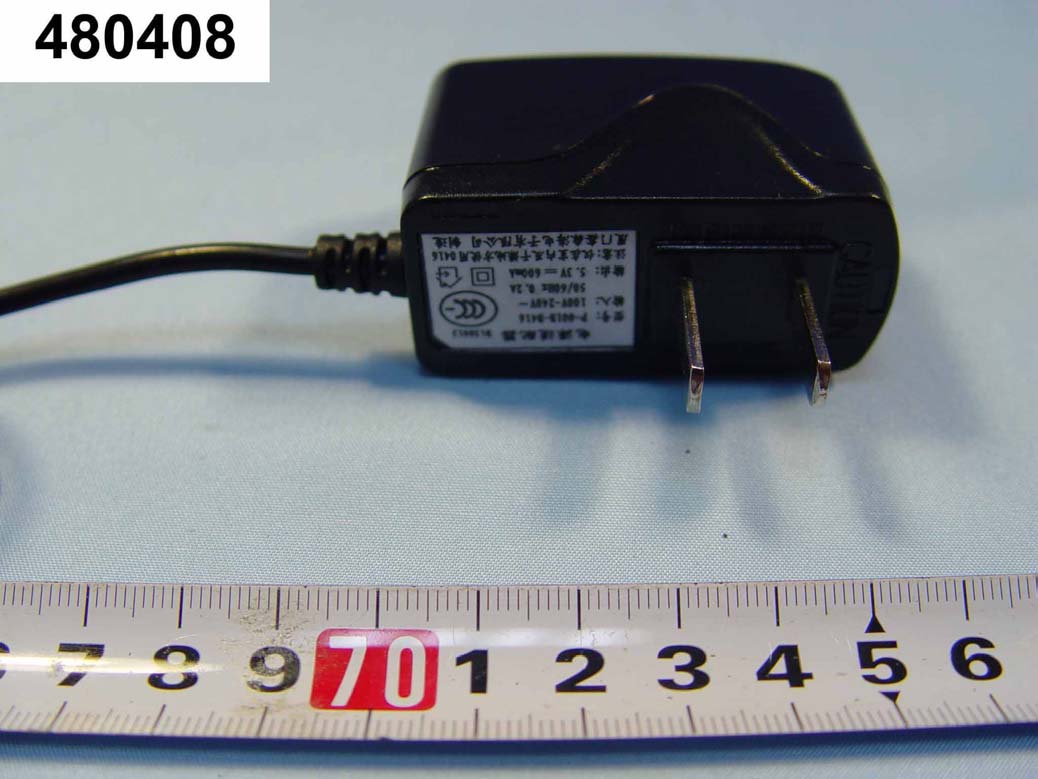

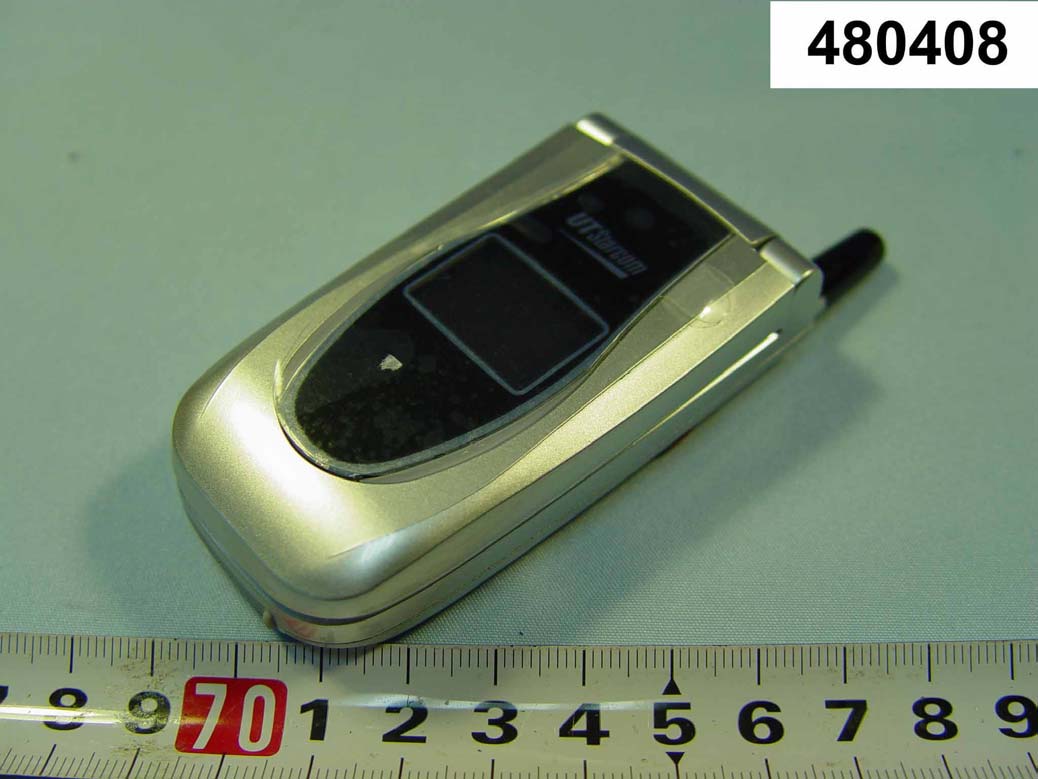

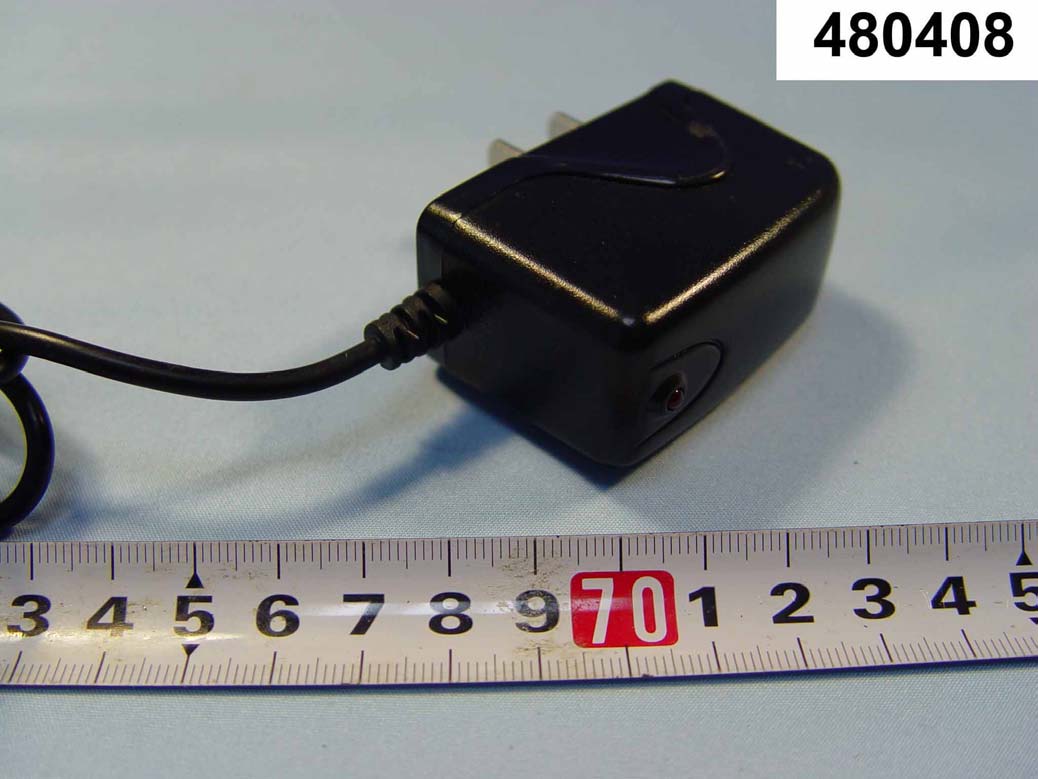

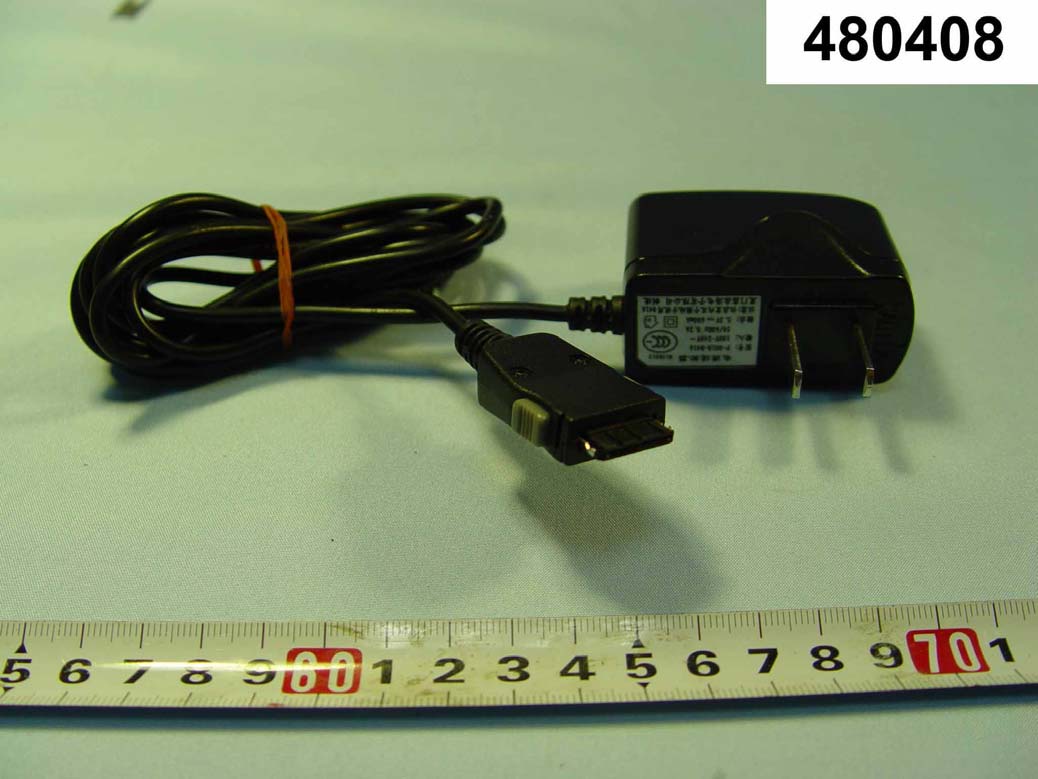

FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A1 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 APPENDIX A. External Photographs of EUT FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A2 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A3 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A4 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A5 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A6 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A7 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A8 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A9 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A10 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A11 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A12 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A13 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A14 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A15 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : A16 OF A16 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255

Label Abalone 200

Label Sample:

FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : B1 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 APPENDIX B. Internal Photographs of EUT FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : B2 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : B3 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : B4 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : B5 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F480408 SPORTON International Inc. PAGE NUMBER : B6 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 12, 2004 FAX : 886-2-2696-2255

Tune up procedure 1. It must provide an operational voltage (3.4~4.2V DC) to turn on the phone and on one certain channel in service mode by means of company proprietary software. 2. Base station simulator (CMU 200) measures the GSM phone specific RF characteristics. 3. The maximum gain of each individual phone are adjusted until the target value met PCL = 0, PWR = 29.8 ± 0.2 dBm PCL =1, PWR = 28 ± 0.2 dBm PCL =2, PWR = 26 ± 0.2 dBm PCL =3, PWR = 24 ± 0.2 dBm PCL =4, PWR = 22 ± 0.2 dBm PCL =5, PWR = 20 ± 0.2 dBm PCL =6, PWR = 18 ± 0.2 dBm PCL =7, PWR = 16 ± 0.2 dBm PCL =8, PWR = 14 ± 0.2 dBm PCL =9, PWR = 12 ± 0.2 dBm PCL =10, PWR = 10 ± 0.2 dBm PCL =11, PWR = 8 ± 0.2 dBm PCL =12, PWR = 6 ± 0.2 dBm PCL =13, PWR = 4 ± 0.2 dBm PCL =14, PWR = 2 ± 0.2 dBm PCL =15, PWR = 0 ± 0.2 dBm then this appropriate gain settings are stored in each phone individually. The user has no possibility to change these settings later on, and during manufacturing each phone will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a Rohde& Schwarz CMU200 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01

©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 Specific Absorption Rate (SAR) Test Report for UTStarcom Inc. on the GSM / GPRS Phone Report No. : O480408-1-2-01 Trade Name : UTStarcom Model Name : UT GF251 FCC ID : O6Y-UT251 Date of Testing : Aug. 4, 2004 Date of Report. : Aug. 10, 2004 Date of Review : Aug. 10, 2004 ‚ The test results refer exclusively to the presented test model/sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ O480408-1-2-01 Table of Contents 1. Statement of Compliance----------------------------------------------------------------------------------------------------------------- 1 2. Administration Data ------------------------------------------------------------------------------------------------------------------------ 2 2.1 Testing Laboratory -------------------------------------------------------------------------------------------- 2 2.2 Detail of Applicant--------------------------------------------------------------------------------------------- 2 2.3 Detail of Manfacturer----------------------------------------------------------------------------------------- 2 2.4 Application Detail---------------------------------------------------------------------------------------------- 2 3.General Information------------------------------------------------------------------------------------------------------------------------- 3 3.1 Description of Device Under Test (DUT)---------------------------------------------------------------- 3 3.2 Product Photo-------------------------------------------------------------------------------------------------- 4 3.2 Applied Standards:-------------------------------------------------------------------------------------------- 5 3.3 Device Category and SAR Limits------------------------------------------------------------------------- 6 3.4 Test Conditions: ----------------------------------------------------------------------------------------------- 6 3.4.1 Ambient Condition------------------------------------------------------------------------------------ 6 3.4.2 Test Configuration ------------------------------------------------------------------------------------ 6 4.Specific Absorption Rate (SAR)--------------------------------------------------------------------------------------------------------- 7 4.1 Introduction ----------------------------------------------------------------------------------------------------- 7 4.2. SAR Definition ------------------------------------------------------------------------------------------------ 7 5. SAR Measurement Setup ----------------------------------------------------------------------------------------------------------------- 8 5.1.DASY4 E-Field Probe System----------------------------------------------------------------------------- 9 5.1.1.ET3DV6 E-Field Probe Specification ----------------------------------------------------------10 5.1.2 ET3DV6 E-Field Probe Calibration -------------------------------------------------------------10 5.2 DATA Acquisition Electronics (DAE) -------------------------------------------------------------------- 11 5.3 Robot------------------------------------------------------------------------------------------------------------12 5.4 Measurement Server ---------------------------------------------------------------------------------------12 5.5 SAM Twin Phantom -----------------------------------------------------------------------------------------12 5.6. Device Holder for SAM Twin Phantom ----------------------------------------------------------------14 5.7 Data Storage and Evaluation -----------------------------------------------------------------------------15 5.7.1 Data Storage------------------------------------------------------------------------------------------15 5.7.2 Data Evaluation --------------------------------------------------------------------------------------15 5.8. Test Equipment List-----------------------------------------------------------------------------------------18 6. Tissue Simulating Liquids ------------------------------------------------------------------------------------------------------------- 19 7. Uncertainty Assessment---------------------------------------------------------------------------------------------------------------- 21 8. SAR Measurement Evaluation -------------------------------------------------------------------------------------------------------- 23 8.1 Purpose of System Performance check ---------------------------------------------------------------23 8.2 System Setup -------------------------------------------------------------------------------------------------23 8.3Validation Results---------------------------------------------------------------------------------------------25 9. Description for DUT Testing Position ---------------------------------------------------------------------------------------------- 26 10. Measurement Procedures ------------------------------------------------------------------------------------------------------------ 31 10.1 Spatial Peak SAR Evaluation ---------------------------------------------------------------------------31 10.2 Scan Procedures -------------------------------------------------------------------------------------------32 10.3 SAR Averaged Methods ----------------------------------------------------------------------------------32 11. SAR Test Results ---------------------------…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Pa ge No. 1 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT for 47 CFR Part 24E Equipment : GSM / GPRS phone Model No. : UT GF251 FCC ID : O6Y-UT251 Filing Type : Certification Applicant : UTStarcom Inc. 1275 Harbor Bay Parkway, Alameda, CA 94502, USA ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Pa ge No. 2 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 The applicant has been cautioned as to the following: 15.21 Information to User. The users manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.27(a) Special Accessories. Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Pa ge No. 3 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 Table of Contents Rule Description Page Test Report 4 2.1033(c) General Information Required 5 2.1033(c)(14) Rule Summary 9 General Information 10 Standard Test Conditions and Engineering Practices 11 2.1046(a) EIRP Carrier Power (Radiated) 12 2.1051, 2.1049(c), 24, 24.238(b). Transmitter Conducted Measurements 17 Conducted Spurious Emission 23 2.1053(a) Field Strength of Spurious Radiation 28 2.1055(a)(1) Frequency Stability (Temperature Variation) 40 2.1055(b)(1) Frequency Stability (Voltage Variation) 49 Antenna Factor & Cable Loss 53 List of Measuring Equipments 54 Uncertainty of Test Site 55 Appendix A External Product Photograph Appendix B Internal Photograph Appendix C Set up Photograph FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Pa ge No. 5 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 List of General Information Required for Certification In Accordance with FCC Rules and Regulations, Volume II, Part 2 and 24E, Confidentiality Sub-Part 2.1033 (c)(1): Name and Address of Applicant: UTStarcom Inc. 1275 Harbor Bay Parkway, Alameda, CA 94502, USA Manufacturer HonXun Electrical Industry (HangZhou) Co. Hang Zhou Economic & Technology Development Zone Road No. 1. (c)(2): FCC ID: O6Y-UT251 Model Number: UT GF251 (c)(3): Instruction Manual(s): Please See Attached Exhibits (c)(4): Type of Emission: 300 KGXW (c)(5): FREQUENCY RANGE, MHz: 1850.2 to 1909.8 (c)(6): Power Rating, Watts: 0.977 (conducted) 0.365 (EIRP) x Switchable Variable N/A (c)(7): Maximum Power Rating, Watts: 1 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Pa ge No. 6 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 Subpart 2.1033 (continued) (c)(8): Voltages & Currents in All Elements in Final RF Stage, Including Final Transistor or Solid State Device: Collector Current, A = 0.5 Collector Voltage, Vdc = 3.6 Supply Voltage, Vdc = 3.6 (c)(9): Tune-Up Procedure: Please See Attached Exhibits (c)(10): Circuit Diagram/Circuit Description: Please See Attached Exhibits (c)(11): Label Information : Please See Attached Exhibits (c)(12): Photographs: Please See Attached Exhibits (c)(13): Digital Modulation Description: ___ Attached Exhibits _x_ N/A (c)(14): Test and Measurement Data: Follows FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 8 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 Certificate of NVLAP Accreditation FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 9 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 Sub-part 2.1033(c)(14): Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II; Part 2, Sub-part J, Sections 2.947, 2.1033(c), 2.1041, 2.1046, 2.1047, 2.1079, 2.1051, 2.1053, 2.1055, 2.1057 and the following individual Parts: 22 – Public Mobile Services 22 Subpart H - Cellular Radiotelephone Service x 24 – Personal Communications Services FCC TEST REPORT Report No. : …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 36 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 37 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 38 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 39 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 40 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 ¾ Mark: Frequency from 15000MHz to 19000MHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 41 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 GSM1900, Vertical Polarization FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 42 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 43 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 Remark: #3 Fundamental Signal #4 BCCH from CMU200 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 44 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 45 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT Report No. : F480408 SPORTON International Inc. FCC ID O6Y-UT251 TEL : 886-2-2696-2468 Page No. 46 of 55 FAX : 886-2-2696-2255 Issued Date Aug. 12, 2004 FCC TEST REPORT R…

Text truncated - open the document above for the full version.
