O6YUTS-700UPHS Portable PCS Phone

Document No. 2XX 700 100 UTS 700 U (C) User Manual Issue 1.0 ii Table of Contents 700 U (C) User Manual Trademark Statement: “‘UTStarcom,’ ‘AN-2000,’ and the UTStarcom logo are trademarks of UTStarcom, Inc.” Copyright Statement: “UTStarcom, Inc. 2003. All rights reserved. No part of this publication may be reproduced in any form or by any means without the prior written permission of UTStarcom, Inc.” Warranty Language: “The contents of this manual, whether in whole or in part, do not constitute any express or implied warranty with respect to any products of UTStarcom, Inc., or it subsidiaries.” 700 U (C) User Manual Table of Contents iii Safety Precautions Introduction ƒ Thank you for purchasing your new UTS 700 U (C) phone. ƒ Please read this instruction manual thoroughly. ƒ The display screens, illustrations, etc., used in this document are created for instructional purposes and can differ slightly with the actual phone. How to Use This Instruction Manual 1. Before using your phone Includes facts you should know before using your new phone. 2. Basic operation Explains the basic operation of making and receiving calls 3. Phone Book Explains the operations used to store names and numbers in the memory of the phone. 4. More Essential function Explains useful convenience functions. 5. Reference Explains phone maintenance and troubleshooting procedures. Conventions with the manual: ƒ “press” means to press a key and then release; ƒ “press and hold down” means to press a key for 2 sec or more and then release. ƒ “service area” refers to a service coverage area where a handset can receive signals effectively. iv Table of Contents 700 U (C) User Manual Explanation of Symbols ƒ Before using your phone, please read the “Safety Precautions” thoroughly. ƒ The cautions included here are provided to prevent danger to persons and property. ƒ The following explain the degree of danger and damage that could occur if these safety precautions are not observed. This symbol indicates that erroneous operations may directly result in personal serious injury or death. This symbol indicates that erroneous operations may result in the possibility of death or serious injury. This symbol indicates that erroneous operations may result in the possibility of injury or physical damage. ƒ Explanations of other symbols used in the manual: This symbol indicates a prohibited action. This symbol indicates an action that must always be performed. This symbol indicates that disassembly is prohibited. This symbol indicates that the power cord must be removed from the outlet. 700 U (C) User Manual Table of Contents v Handling the Phone, Battery, and Charger Use only the battery and charger approved for the UTS700U (C) phone. The use of any other types can result in damage to the phone, electric shock or the risk of fire. Do not store the phone or charger in hot, wet, or dusty areas. High temperatures, humidity and dust can damage electrical and mechanical components. This can cause the phone or charger to malfunction. Keep the phone, battery and the charger dry. Exposure to precipitation, humidity and liquids can damage electronic components and circuit boards. Do not drop, shake or throw the phone or charger. Rough handling can break internal circuit boards and damage the battery pack. Do not use a microwave oven or any other type of heating equipment to dry the phone, battery pack or charger. High temperature can shorten the life of electronic devices, damage the battery pack, and warp or melt plastic parts. Do not use the phone in the vicinity of volatile gases. Leave the area before using the phone. Failure to leave the area can result in the risk of fire or an explosion. Do not disassemble or modify the phone or charger. Incorrect modifications or reassembly can cause malfunctions or personal injury when the phone or charger is used. vi Table of Contents 700 U (C) User Manual Handling the Phone Do not use the phone while driving. Park the vehicle before using the phone. Traffic safety first. Observe any special regulations in effect in any area (hospital, aircraft, etc) when you have to use the phone. Always disconnect the charger and remove the battery of your phone whenever it is forbidden to use it, or when it may cause interference or danger. Do not use the phone near electronic equipment prone to interference. . Radio frequency interference may result in malfunction of the electronic equipment. The following are such electronic equipment: Hearing aids, pacemakers and other clinical electronic devices, fire detectors, automatic doors and other automatically controlled devices. If you have to use phone near electronic medical devices such as pacemakers, please consult device manufacturer or local dealers. In rare cases, using the phone inside certain models of vehicles can adversely affect the electronic equipment inside the vehicle. Do not use the phone in such cases, because it is dangerous for personal security. Keep all storage media (magnetic cards, floppy disks, credit cards, etc.,) away from the phone. Close encounters or contact can erase or damage the storage media. Keep all sharp metal objects (Pins, Nails, Hairpins etc.) away from the handset of the phone. The earpiece of the handset contains a strong magnet that can attract and hold metal objects. Remove any objects from the handset earpiece before using to avoid personal injury. 700 U (C) User Manual Table of Contents vii Handling the Battery Do not dispose of the battery pack in a fire. It may explode. Check with local waste management codes for disposal instructions. Do not force the battery pack into the phone. Improper installation can cause malfunctions or damage the battery pack. This may result in the risk of fire or personal injury. Use caution in handling batteries in order not to short the battery to conductive materials such as rings, bracelets, and keys. The battery and/or conductor may overheat and cause burns. Do not solder the battery term…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 23, 2003 RE: UTStarcom, Inc. FCC ID: O6YUTS-700U After a review of the submitted information, I have a few comments on the above referenced Application. 1) Digital device data was submitted for radiated emissions. Please confirm that AC power line conducted emissions has also been performed. Response : The AC power line conducted emissions has also been performed. EMC Report 2) The test photographs provided appear to be for 2 different devices. Please review and explain. Response : The client provided two samples of the same unit for testing; each unit had a different colored cover. 3) It appears that information on this system from UTStarcom's web site states that radios for this system can come in 10 mW, 200 mW, and 500 mW average powers. Please confirm that this device was tested at its maximum setting. Response : The unit was tested at its maximum setting. 4) The EIRP shown in Table 4.5 appears to be incorrect for channel 25. Please verify, as it appears this should be 18.6 dBm EIRP. Response: 20.6 dBm is the correct EIRP; an error occurred for the channel 25 EIRP. Please see the revised test report uploaded with this response. 5) Please explain the EIRP on the 731 form of 0.112 Watt EIRP. It appears this should be 0.098 mW. Response : Actually the EIRP should be 0.114 Watt EIRP, since the highest EIRP value is 20.6 dBm. Please see the revised 731 Form uploaded with this response. 6) It is not clear if the air interface is strictly TDMA. While the emission designator 271KDXW appears to be for the TDMA please explain if the device is capable of transmitting in any other mode. Response : The air interface is PHS, which is strictly a TDMA-TDD interface conforming to Japan Standard RCR-28. American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 7) The device appears to function from 1893.65 - 1909.85 MHz which matches previous approvals for this applicant, while the web site for UTStarcom appears to state 1895 to 1918.1 MHz. Please confirm and explain the lowest and highest channels used by this device. Response : The device does indeed operate from 1893.65 - 1909.85 MHz. The center frequency of the lowest channel (Channel 251) is 1893.65 MHz, and the center frequency of the highest channel (Channel 50) is 1909.85. UTStarcom is in the process of updating their web site. 8) The margins shown in Table 6-3 do not appear to be properly calculated for all entries except the first one. Please verify and/or correct as necessary. Response : Table 6-3 has been corrected. Please see the revised test report uploaded with this response. SAR Report 9) The verification frequency(s) should be within ± 100 MHz of device center frequency(s), however the 1800 MHz dipole falls just outside this (1901.75 MHz). Please explain. Response : At the time of testing this device, a 1900 MHz dipole was not available to CellTech. Currently a new 1900 MHz dipole is being manufactured and calibrated for future testing at this frequency. CellTech determined that due to low SAR results and low maximum power level of 10 mW, their 1800 MHz dipole being outside the +/-100 MHz range of the device's center frequency by 1% would result in no appreciable change in the system validation when performed with a 1900 MHz dipole. 10) Typical TDMA phones use a crest factor of 3. However the crest factor given in the report is 14% (7.1). Please provide measurements and/or appropriate information to support the use of 14%. Additionally, is this worse case duty cycle? Response : The crest factor of 14% represents worst case and is based on measured data. We measured an on time of 700 us and a period of 5 ms. This concurs with the manufacturer’s theoretical duty cycle of 12.5%. In test mode, the phone transmits at an 8:1 duty cycle, which matches its operational performance. For TDMA access, each 300 khz carrier has 8 time slots - 4 in each direction. The phone talks on one, listens on one, and does nothing with the rest. 11) The manufacturer’s dipole information appears out of calibration (almost 2 years old). Please explain. Response : At the time of purchase, the dipole manufacturer’s recommended calibration interval was 24 months, based on the justification that significant deviations after one year were not expected to occur. The manufacturer’s dipole calibration interval is now 12 months per IEEE recommendations. 12) The users manual mentions body worn operation (page 10), but information regarding body testing has note been supplied. Additionally, the users manual should clearly label the Response : The 700U does not have an external headphone jack, and therefore does not have a body-worn configuration. The manual has been revised to remove the reference to the body- worn operation. American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 13) The users manual (page 14) mentions a NiMH battery, while only a Lithium Ion appears to have been tested as stated in the SAR report (various pages). All batteries must be tested. Please explain. Response : The EUT was tested with an NiMH battery. The SAR report has been corrected and uploaded with this response. 14) It appears that the device was tested for power output via EIRP method. Did this device not have the capability to be tested via conducted power? Note that conducted power was listed in the EMC report. Response : The EUT does not have a port available for conducted testing. Nonetheless, Rhein Tech did modify a unit to obtain conducted power measurements. The EUT that Celltech tested for SAR was an unmodified version, and testing was based on EIRP measurements. We feel that SAR testing would have been influenced had a modified EUT been used for SAR testing. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced appl…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 23, 2003 RE: UTStarcom, Inc. FCC ID: O6YUTS-700U After a review of the submitted information, I have a few comments on the above referenced Application. 1) Digital device data was submitted for radiated emissions. Please confirm that AC power line conducted emissions has also been performed. EMC Report 2) The test photographs provided appear to be for 2 different devices. Please review and explain. 3) It appears that information on this system from UTStarcom's web site states that radios for this system can come in 10 mW, 200 mW, and 500 mW average powers. Please confirm that this device was tested at its maximum setting. 4) The EIRP shown in Table 4.5 appears to be incorrect for channel 25. Please verify as it appears this should be 18.6 dBm EIRP. 5) Please explain the EIRP on the 731 form of 0.112 Watt EIRP. It appears this should be 0.098 mW 6) It is not clear if the air interface is strictly TDMA. While the emission designator 271KDXW appears to be for the TDMA please explain if the device is capable of transmitting in any other mode. 7) The device appears to function from 1893.65 - 1909.85 MHz which matches previous approvals for this applicant, while the web site for UTStarcom appears to state 1895 to 1918.1 MHz. Please confirm and explain the lowest and highest channels used by this device. 8) The margins shown in table 6-3 do not appear to be properly calculated for all entries except the first one. Please verify and/or correct as necessary. SAR Report 9) The verification frequency(s) should be within ± 100 MHz of device center frequency(s), however the 1800 MHz dipole falls just outside this (1901.75 MHz). Please explain. 10) Typical TDMA phones use a crest factor of 3. However the crest factor given in the report is 14% (7.1). Please provide measurements and/or appropriate information to support the use of 14%. Additionally, is this worse case duty cycle? 11) The manufactures dipole information appears out of calibration (almost 2 years old). Please explain. 12) The users manual mentions body worn operation (page 10), but information regarding body testing has note been supplied. Additionally, the users manual should clearly label the 13) The users manual (page 14) mentions a NiMH battery, while only a Lithium Ion appears to have been tested as stated in the SAR report (various pages). All batteries must be tested. Please explain. 14) It appears that the device was tested for power output via EIRP method. Did this device not have the capability to be tested via conducted power? Note that conducted power was listed in the EMC report. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be z Page 2July 23, 2003 considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 29 of 58 APPENDIX B: AGENCY AUTHORIZATION LETTER Please see the following page.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 30 of 58 APPENDIX C: CONFIDENTIALITY REQUEST LETTER Please see the following page.

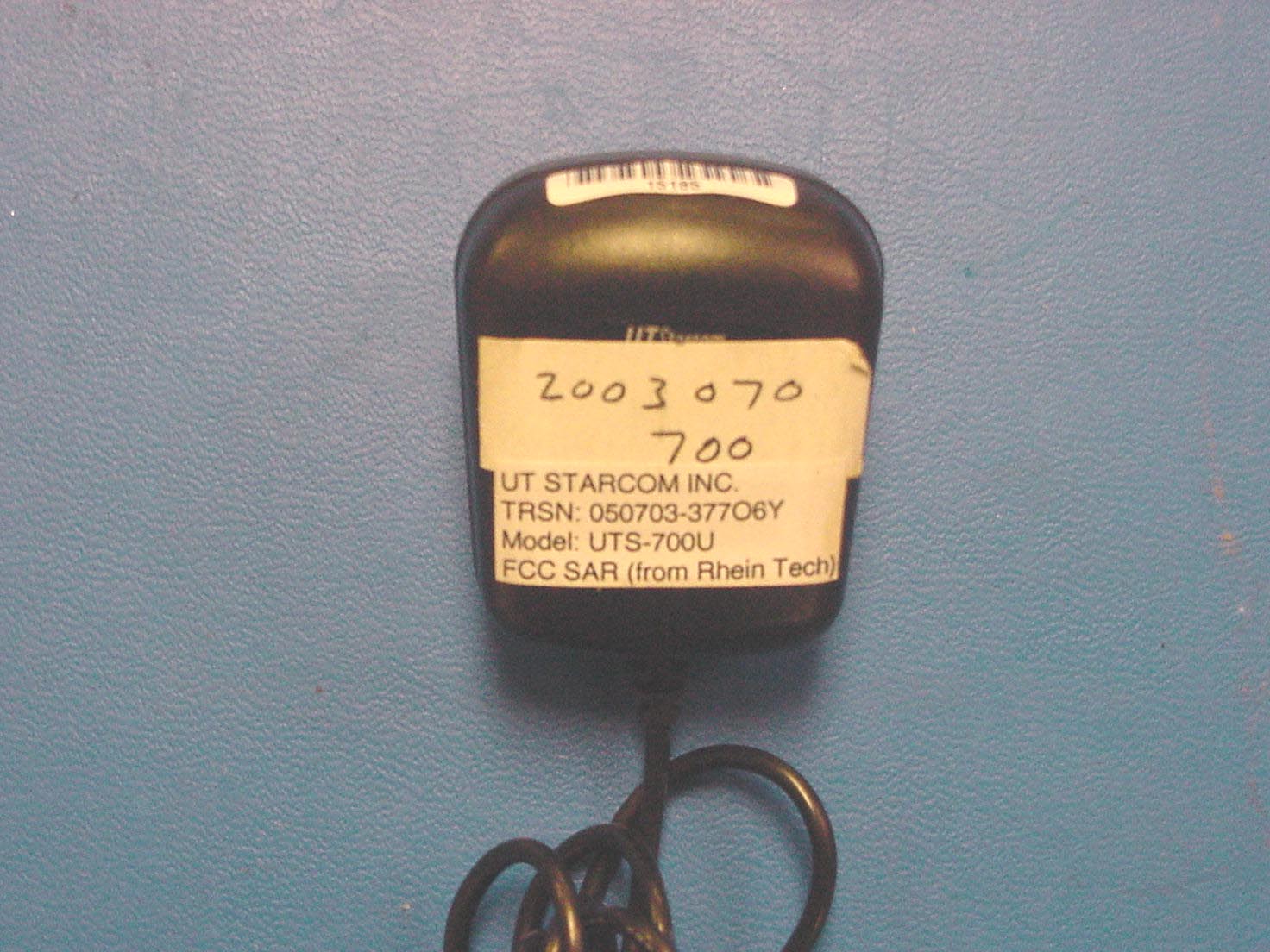

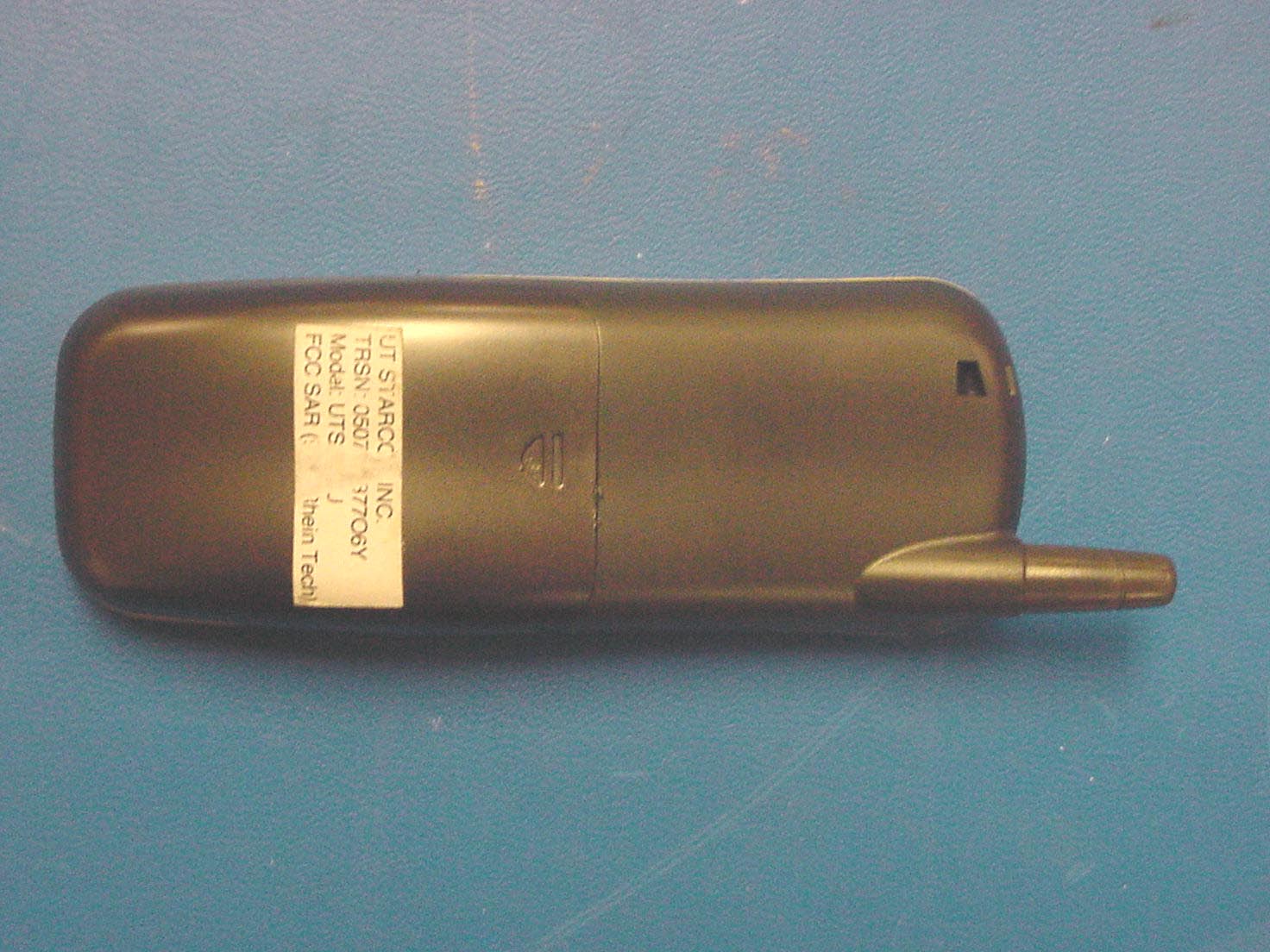

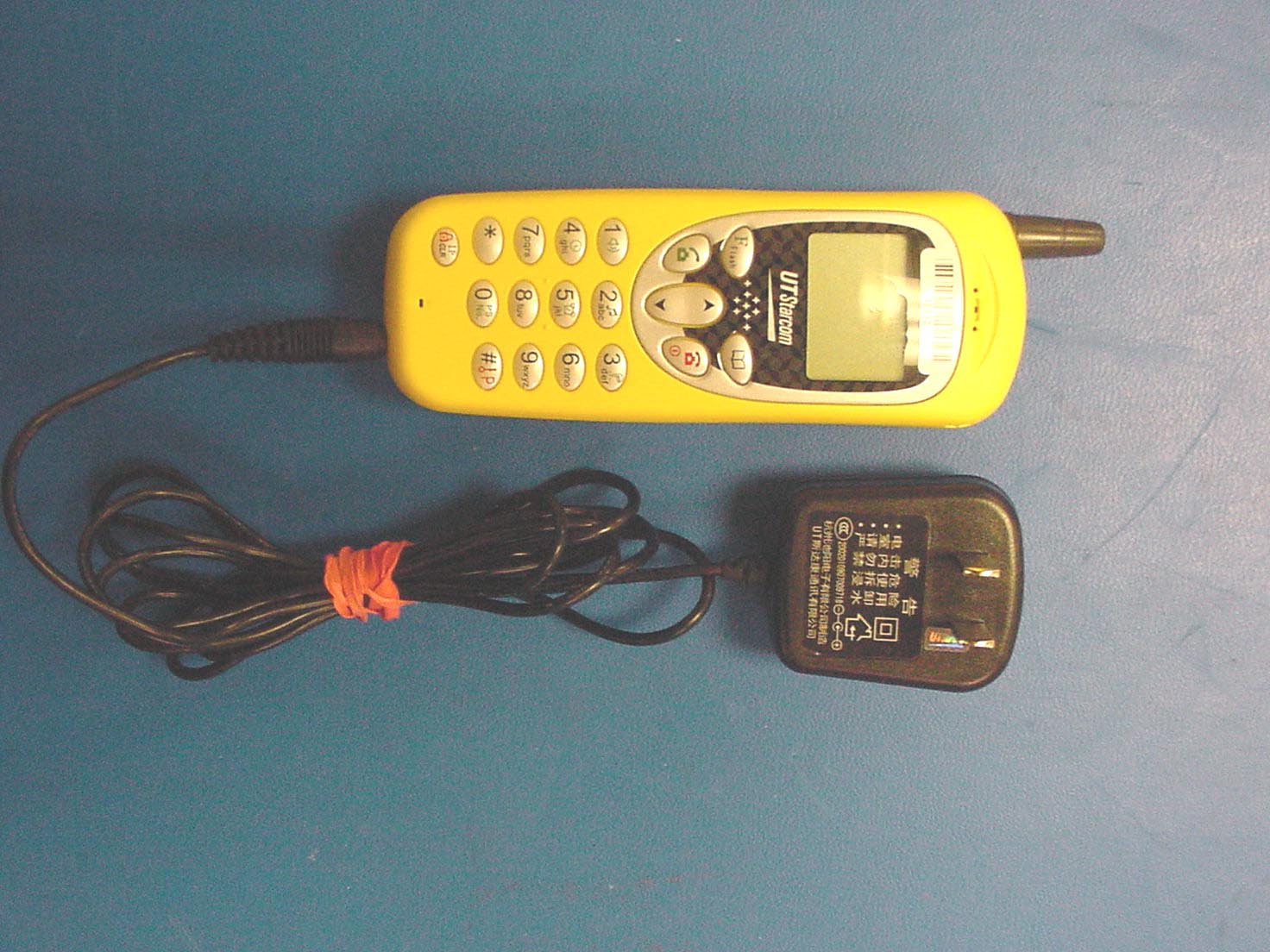

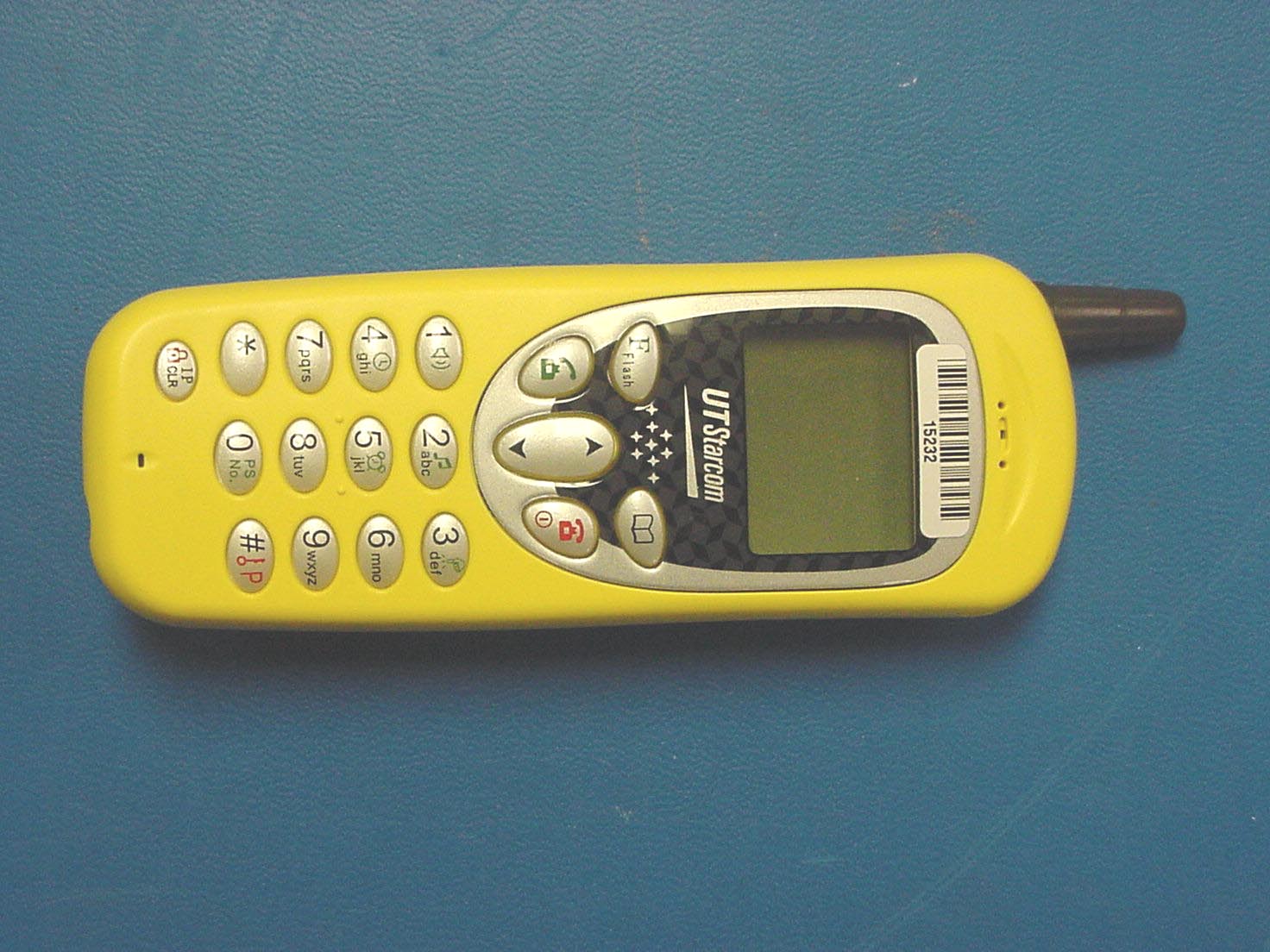

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 43 of 58 APPENDIX J: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 8: EUT FRONT VIEW WITH CHARGER/AC ADAPTER Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 44 of 58 PHOTOGRAPH 9: FRONT VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 45 of 58 PHOTOGRAPH 10: BACK VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 46 of 58 PHOTOGRAPH 11: ANTENNA PORT Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 47 of 58 PHOTOGRAPH 12: CHARGER/AC ADAPTER FRONT VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 48 of 58 PHOTOGRAPH 13: CHARGER/AC ADAPTER BACK VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 49 of 58 PHOTOGRAPH 14: ANTENNA

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 32 of 58 APPENDIX E: LABEL AND LABEL LOCATION Please refer to the following page for a photo of the label location. UTStarcom, Inc. Model: UTS700U FCC ID: O6YUTS-700U Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 33 of 58 PHOTOGRAPH 1: FCC ID LABEL LOCATION FCC ID LABEL HERE

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 50 of 58 APPENDIX K: INTERNAL PHOTOGRAPHS PHOTOGRAPH 15: BATTERY IN PLACE Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 51 of 58 PHOTOGRAPH 16: BATTERY REMOVED Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 52 of 58 PHOTOGRAPH 17: INSIDE FRONT COVER Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 53 of 58 PHOTOGRAPH 18: INSIDE BACK COVER Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 54 of 58 PHOTOGRAPH 19: PCB FRONT Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 55 of 58 PHOTOGRAPH 20: PCB BACK WITH SHIELDS Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 56 of 58 PHOTOGRAPH 21: PCB BACK WITHOUT SHIELDS Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 57 of 58 PHOTOGRAPH 22: LCD BACK

Test Report S/N: 050703-377O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc. 1 of 23 DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250-448-7047 Fax: 250-448-7046 e-mail: [email protected] web site: www.celltechlabs.com Applicant Information UTSTARCOM INC. 33 Wood Ave. South, 3 rd Floor Iselin, NJ 08830 FCC Rule Part(s): 47 CFR §2.1093 Test Procedure(s): FCC OET Bulletin 65, Supplement C (Edition 01-01) IEEE Standard 1528-200X (Draft) FCC Classification: Part 24 Licensed Portable Transmitter held to ear (PCE) FCC ID: O6YUTS-700U Model(s): UTS-700U Device Type: Single-Mode PAS PHS Handset Access Method: TDMA (Time Division Multiple Access) Modulation: DQPSK (Differential Quadrature Phase Shift Keying) Duty Cycle: 14 % Tx Frequency Range: 1893.65 - 1909.95 MHz RF Output Power Tested: 21.42 dBm EIRP (1902.35 MHz) Antenna Type: Stubby Battery Type: 3.6V NiMH, 650mAh (UTSN70AAA) Max. SAR Measured: 0.135 W/kg (Head) Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and IEEE Standard 1528-200X (Draft) for the General Population / Uncontrolled Exposure environment. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Test Report S/N: 050703-377O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc.2 of 23 TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF EUT............................................................3 3.0SAR MEASUREMENT SYSTEM ...............................................4 4.0MEASUREMENT SUMMARY.....................................................5 5.0DETAILS OF SAR EVALUATION...............................................6-7 6.0EVALUATION PROCEDURES...................................................7-8 7.0SYSTEM PERFORMANCE CHECK............................................9 8.0EQUIVALENT TISSUES...........................................................10 9.0SAR LIMITS...........................................................................10 10.0SYSTEM SPECIFICATIONS......................................................11 11.0PROBE SPECIFICATION..........................................................12 12.0SAM PHANTOM......................................................................12 13.0DEVICE HOLDER....................................................................12 14.0TEST EQUIPMENT LIST...........................................................13 15.0MEASUREMENT UNCERTAINTIES............................................14-15 16.0REFERENCES........................................................................16 APPENDIX A - SAR MEASUREMENT DATA..............................................17 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA.............................18 APPENDIX C - SYSTEM VALIDATION......................................................19 APPENDIX D - PROBE CALIBRATION.....................................................20 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS..................21 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY................22 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS.........................23 Test Report S/N: 050703-377O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc. UTSTARCOM INC. FCC ID: O6YUTS-700U (Model: UTS-700U) 3 of 23 Single-Mode PAS PHS TDMA Handset (1893.65-1909.95MHz) 1.0 INTRODUCTION This measurement report shows that the UTSTARCOM INC. Model: UTS-700U Single-Mode PAS PHS TDMA Handset FCC ID: O6YUTS-700U complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) (General Population / Uncontrolled Exposure environment). The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [2]), and IEEE Standard 1528-200X (Draft) (see reference [3]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) EUT Type Single-Mode PAS PHS Handset FCC Equipment Class Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s) 47 CFR §2.1093 Test Procedure(s) FCC OET Bulletin 65, Supplement C (01-01) IEEE Standard 1528-200X (Draft) FCC ID O6YUTS-700U Model No.(s) UTS-700U Serial No. Pre-production unit Tx Frequency Range 1893.65 - 1909.95 MHz RF Output Power Tested 21.42 dBm EIRP (1902.35 MHz) Access Method TDMA (Time Division Multiple Access) Modulation DQPSK (Differential Quadrature Phase Shift Keying) Duty Cycle 14 % Battery Type(s) 3.6V NiMH, 650 mAh (UTSN70AAA) Antenna Type Stubby Test Report S/N: 050703-377O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc.UTSTARCOM INC. FCC ID: O6YUTS-700U (Model: UTS-700U)4 of 23 Single-Mode PAS PHS TDMA Handset (1893.65-1909.95MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Labs SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engin…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 58 of 58 APPENDIX L: ADDITIONAL INFORMATION Radiated Test Data - OATS 1 Mode: Digital/Receiver Limit/Distance: FCC B/3M Temperature: 50°F Humidity: 91% Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Turntable Azimuth (deg) Antenna Height (m) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) 38.600 Qp V 180 1.0 42.4 -16.9 25.5 40.0 -14.5 57.790 Qp H 145 1.0 36.7 -22.7 14.0 40.0 -26.0 76.980 Qp V 180 1.0 44.3 -23.2 21.1 40.0 -18.9 96.170 Qp V 45 1.0 43.7 -19.1 24.6 43.5 -18.9 115.360 Qp V 145 1.0 41.3 -16.6 24.7 43.5 -18.8 153.740 Qp V 180 1.0 37.6 -17.9 19.7 43.5 -23.8 345.622 Qp V 25 1.0 35.2 -13.8 21.4 46.0 -24.6 518.332 Qp V 45 1.0 35.8 -9.6 26.2 46.0 -19.8 556.730 Qp H 45 1.0 33.9 -8.1 25.8 46.0 -20.2 633.472 Qp V 145 1.0 34.8 -7.4 27.4 46.0 -18.6 786.992 Qp V 45 1.0 33.8 -5.7 28.1 46.0 -17.9 TEST PERSONNEL: Signature: Test Date: May 18, 2003 Typed/Printed Name: Rachid Sehb Position: Test Engineer

Engineering and Testing for EMC and Safety Compliance Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368 Fax: 703-689-2056 CERTIFICATION APPLICATION REPORT FCC PART 24 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Email: [email protected] Applicant: UTStarcom, Inc. Phone: 732-767-5263 33 Wood Avenue South Fax: 732-548-1099 3 rd Floor Iselin, NJ 08830 USA Contact: Scott Black ([email protected]) FCC ID: O6YUTS-700U GRANTEE FRN NUMBER: 0005823877 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2003070 MODEL(S): UTS700U RTL QUOTE NUMBER: QRTL03-818 DATE OF TEST REPORT: July 10, 2003 American National Standard Institute: ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1 FCC Classification: PCE - Part 24 Licensed Portable Tx held to ear FCC Rule Part(s): PART 24: PERSONAL COMMUNICATIONS SERVICES Subpart E - Broadband PCS Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Peak EIRP (W) Frequency Tolerance Emission Designator 1893.65-1909.85 0.114 2.32 ppm 271KDXW I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 24, ANSI/TIA/EIA603, and ANSI/TIA/EIA 603-1. Signature: Date: July 10, 2003 Typed/Printed Name: Desmond A. Fraser Position: President Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS700U Suite 1400 FCC ID: O6YUTS-700U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 2 of 58 TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................... 5 1.1 SCOPE .......................................................................................................................................................................... 5 1.2 TEST FACILITY .......................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 5 2 EQUIPMENT INFORMATION .......................................................................................................................................... 6 2.1 TEST JUSTIFICATION ............................................................................................................................................... 6 2.2 EXERCISING THE EUT .............................................................................................................................................. 6 2.3 TEST RESULT SUMMARY ........................…

Text truncated - open the document above for the full version.
