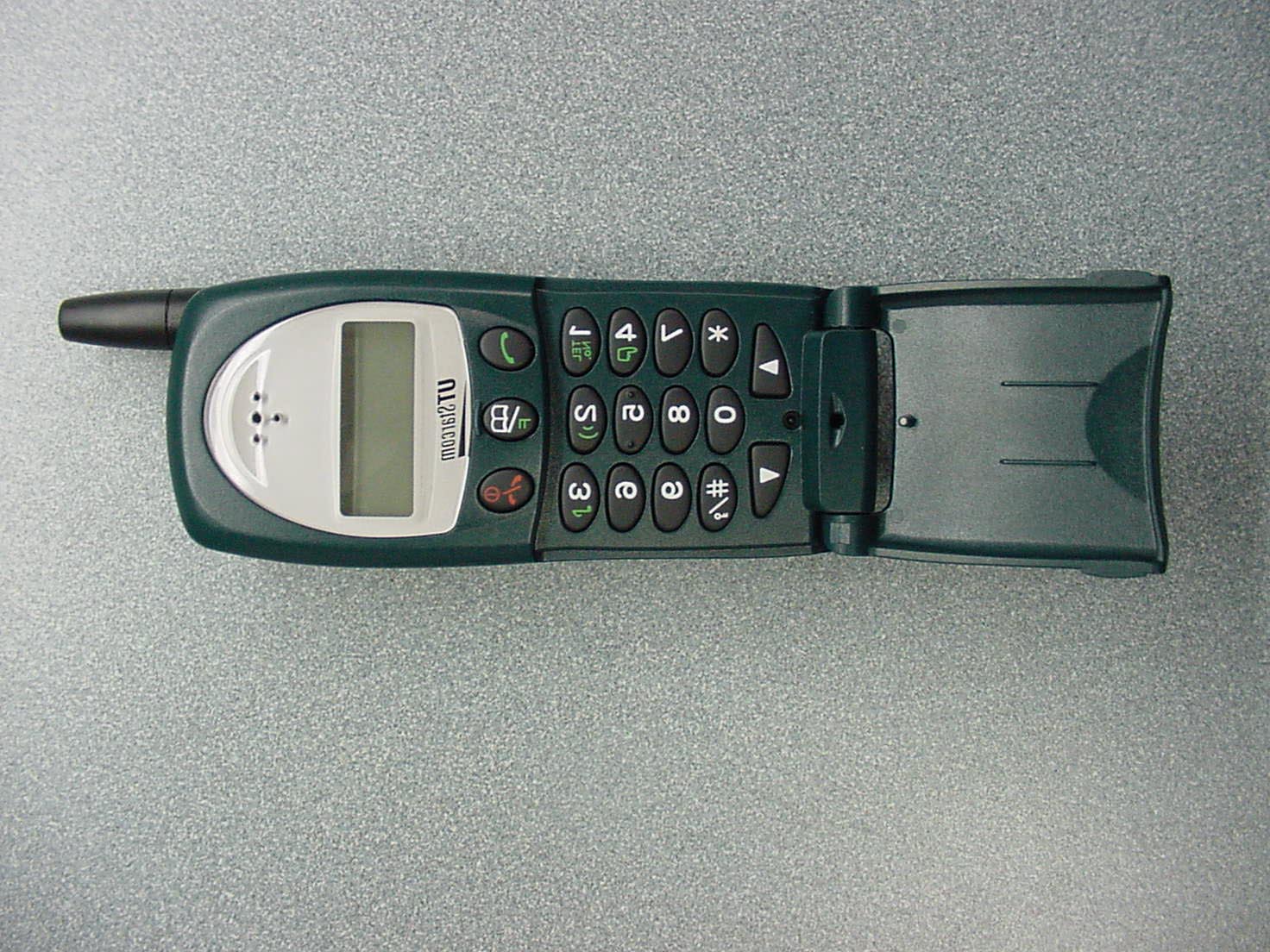

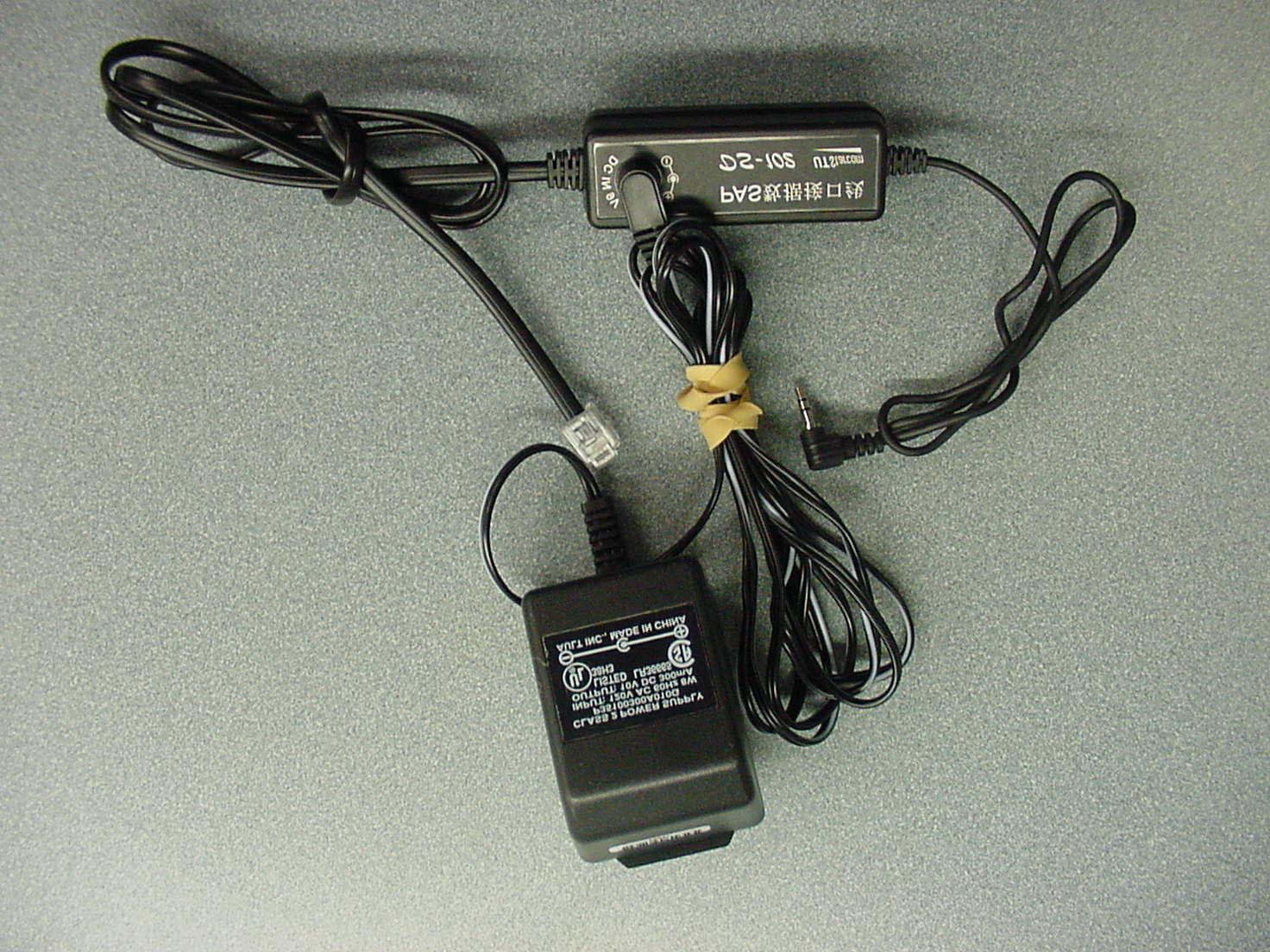

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 54 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X APPENDIX I: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 24: FRONT SIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 55 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 25: FRONT WITH KEYPAD COVER OPENED 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 56 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 26: LEFT SIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 57 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 27: RIGHT SIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 58 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 28: BACK SIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 59 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 29: TOP SIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 60 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 30: BOTTOM SIDE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 61 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 31: BACK WITH BATTERY COVER REMOVED 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 62 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 32: BATTERY COMPARTMENT LABEL 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 63 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 33: BATTERY 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 64 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 34: TEST JIG 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 65 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 35: TEST JIG MOUNTED TO PHONE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 66 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 36: TEST JIG WITH SERIAL CABLE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 67 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 37: DATA TRANSFER CABLE WITH POWER SUPPLY

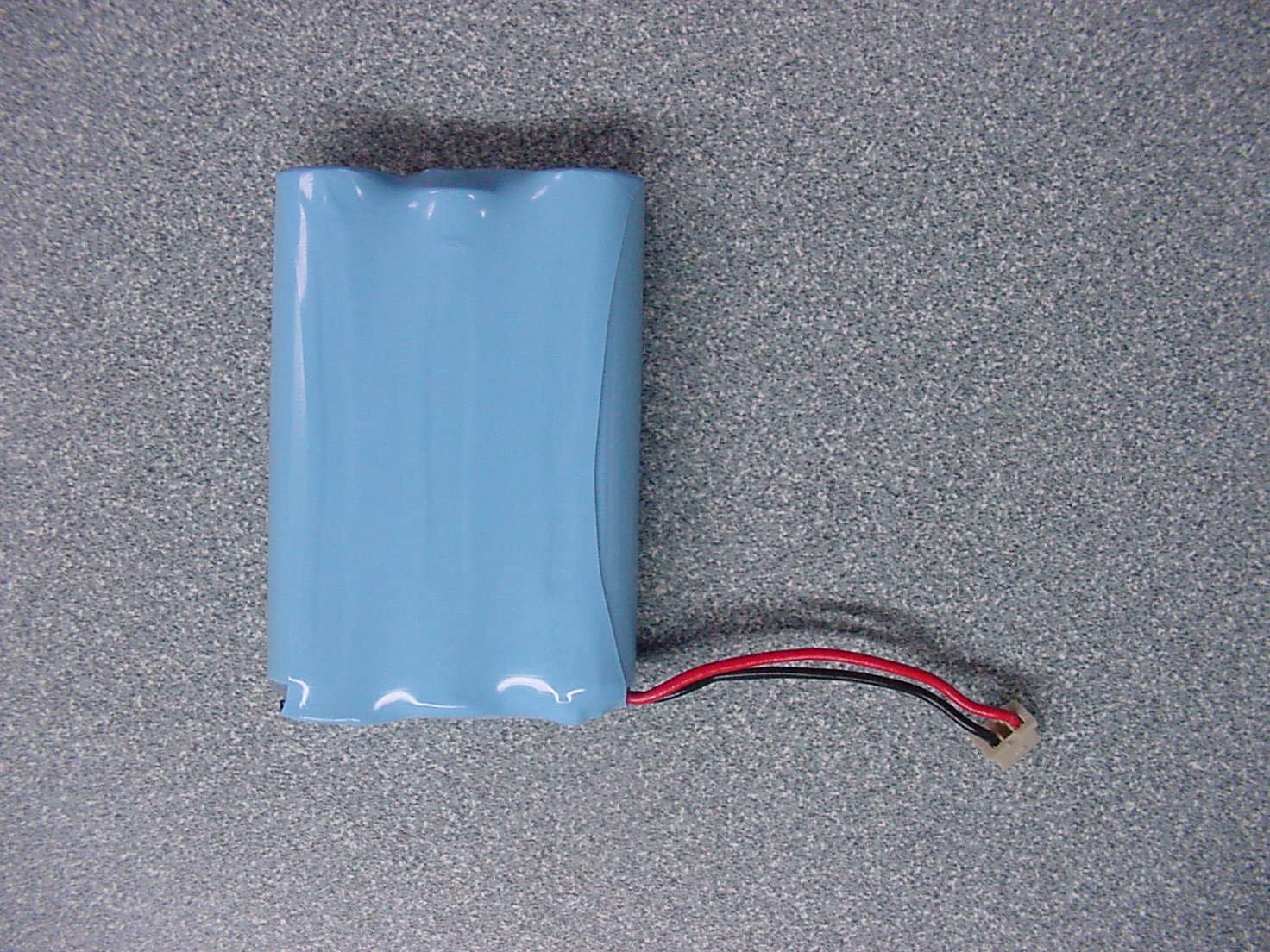

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 28 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X APPENDIX E: LABEL INFORMATION FCC ID LABEL LOCATION OF LABEL ON EUT PHOTOGRAPH 1: LABEL LOCATION Label will be placed where battery pack is installed in the device. UTStarcom UTS 700X FCC ID: O6YUTS-700X CANADA: XXXXXXXX

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 40 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X APPENDIX H: INTERNAL PHOTOGRAPHS PHOTOGRAPH 10: INSIDE FRONT COVER WITH KEYPAD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 41 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 11: FRONT OF KEYPAD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 42 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 12: BACK OF KEYPAD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 43 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 13: BACK OF FRONT COVER WITH KEYPAD REMOVED 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 44 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 14: INSIDE REAR COVER WITH ANTENNA REMOVED 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 45 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 15: INSIDE BACK COVER WITH ANTENNA 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 46 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 16: FRONT COVER REMOVED 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 47 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 17: BACK OF PLASTIC HOLDDOWN 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 48 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 18: FRONT OF PLASTIC HOLDDOWN 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 49 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 19: FRONT OF PCB WITH PLASTIC HOLDDOWN 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 50 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 20: FRONT OF PCB 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 51 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 21: UNDER LCD/SPEAKER ASSEMBLY (UPPER FRONT PCB) 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 52 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 22: BACK OF PCB WITH SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 53 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X PHOTOGRAPH 23: BACK OF PCB WITH SHIELDS REMOVED

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 25 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X APPENDIX B: PRODUCT DESCRIPTION

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 25 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X APPENDIX B: PRODUCT DESCRIPTION

PHS is a wireless access system based on digital cordless technology using the 1.9 GHz frequency band. It provides high capacity with good voice quality and a broad range of data transmission including ISDN services. PHS systems are easily implemented in the short term and at low cost, covering high-density areas to low-density areas. It is also equipped with dynamic channel assignment that allows coexistence of public and private PHS systems in the same area and same frequency band without any frequency arrangement. PHS provides public communication services with low mobility by using a micro-cell architecture ranging from 200 m to 500 m in radius depending on the transmitted power and environment. It efficiently covers urban to suburban areas and indoor areas such as public halls, department stores, theaters, subway stations etc. PHS uses 32 kbps ADPCM for voice coding, TDMA/TDD for multiple access and a transmission rate of 384 kbps. It is able to support high speed data transmission and can withstand multi-path interference for good mobility. In view of the above, PHS is the best multi-purpose communication tool. Parameter Characteristic/Value Modulation method ð/4 shift QPSK Transmission side filter Transmission rate 384 Kbps Frame length 5 ms Packet length 625ìs Bit length 2.6ìs Transmission rate accuracy <±5 ppm Transmission timing ±5.6ìs (±1 symbol) Transmission jitter ±0.7ìs (±1/8 symbol) Frequency stability <±3 ppm (±5.75 kHz) Modulation accuracy <12.5% Adjacent channel power (modulation) Standardized at transient Adjacent channel power (transient) 2×Äf (600kHz offset):< 0.8ìW 3×Äf (900kHz offset):< 0.25ìW Allowed value for occupied bandwidth 288 kHz Inter-modulation Not standardized Transmission spurious Within band: <250 nW Outside of band:<2.5ìW Carrier off time leakage power <80 nW Cabinet radiation <2.5ìW Antenna gain Private : <2.14 dBi (Cabinet built in)

CELLTECH RESEARCH INC. Test Report S/N: 081001-151O6Y 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.celtechlabs.com Applicant Information: UTSTARCOM INC. 33 Wood Avenue South, 3 rd Floor Iselin, NJ 08830 FCC Rule Part(s): 2.1093; ET Docket 96.326 FCC ID: O6YUTS-700X Model(s): UTS-700X Equipment Type: Single-Mode PCS TDMA Phone Classification: Part 24 Licensed Portable Transmitter Held to Ear (PCE) Tx Frequency Range: 1893.65 - 1909.95 MHz Output Power Tested: 0.147 W (EIRP) Antenna Type: Fixed Stubby CELLTECH RESEARCH INC. Test Report S/N: 081001-151O6Y 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-4 5.0 DETAILS OF SAR EVALUATION........................................... 5 6.0 EVALUATION PROCEDURES................................................. 6 7.0 SAR LIMITS........................................................................ 7 8.0 SYSTEM VALIDATION.......................................................... 7 9.0 SIMULATED EQUIVALENT TISSUES...................................... 8 10.0 TISSUE PARAMETERS......................................................... 8 11.0 SYSTEM SPECIFICATIONS.................................................... 9 12.0 PROBE SPECIFICATION....................................................... 10 13.0 GENERIC TWIN PHANTOM................................................... 10 14.0 DEVICE HOLDER................................................................. 10 15.0 TEST EQUIPMENT LIST........................................................ 11 16.0 MEASUREMENT UNCERTAINTIES........................................ 12 17.0 REFERENCES...................................................................... 13 APPENDIX A - SAR MEASUREMENT DATA........................................ 14 APPENDIX B - DIPOLE VALIDATION................................................ 15 APPENDIX C - PROBE CALIBRATION............................................... 16 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS.............................. 17 CELLTECH RESEARCH INC. Test Report S/N: 081001-151O6Y 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. UTSTARCOM INC. FCC ID: O6YUTS-700X 1 Single-Mode PCS TDMA Phone (1893.95-1909.95MHz) 1.0 INTRODUCTION This measurement report shows compliance of the UTSTARCOM INC. Model: UTS-700X Single-Mode PCS TDMA Phone FCC ID: O6YUTS-700X with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65, Supplement C (Edition 01- 01) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) EUT Type PCS TDMA Phone FCC ID O6YUTS-700X Equipment Class Part 24 Licensed Portable Transmitter Held to Ear (PCE) Model No.(s) UTS-700X FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type Part 24 Certification Tx Frequency Range (MHz) 1893.65 – 1909.95 S/N No. Pre-production Modulation TDMA RF Output Power Tested 0.147 Watts (EIRP) Antenna Type Fixed Stubby Battery Type(s) 3.6V 350mAh Ni-Cd Battery CELLTECH RESEARCH INC. Test Report S/N: 081001-151O6Y 1955 Moss Court, Kelowna Date(s) of Tests: August 15, 2001 B.C. Canada V1Y 9L3 FCC SAR Measurements _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. UTSTARCOM INC. FCC ID: O6YUTS-700X 2 Single-Mode PCS TDMA Phone (1893.95-1909.95MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing brain or muscle equivalent material. The robot is a …

Text truncated - open the document above for the full version.

UTStarcom Inc. FCC ID: O6YUTS-700X Generic Twin Phantom; Flat Section; Position: (90°,65°) Probe: ET3DV6 - SN1590; ConvF(5.78,5.78,5.78); Crest factor: 3.0 1800MHz Muscle: σ = 1.39 mho/m ε r = 54.6 ρ = 1.00 g/cm 3 Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0 Cube 5x5x7 SAR (1g): 0.109 mW/g, SAR (10g): 0.0584 mW/g Body SAR at 0.0cm Separation Distance UTStarcom Model: UTS-700X Mid Channel [1902.35 MHz] Power Level: 0.147 W (EIRP) TDMA Modulation Date Tested: August 15, 2001 Celltech Research Inc. Celltech Research Inc. 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 0.09 0.10 0.11 010203040 SAR tot [mW/g] [mm]

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT (BROADBAND PCS) UTStarcom, Inc. 33 Wood Avenue South 3 rd Floor Iselin, NJ 08830 732-767-5263 (Scott Black) MODEL: UTS-700X FCC ID: O6YUTS-700X July 19, 2001 S TANDARDS R EFERENCED FOR THIS R EPORT P ART 2: 1999 F REQUENCY A LLOCATIONS AND R ADIO T REATY M ATTERS ; G ENERAL R ULES AND R EGULATIONS P ART 15: 1999 §15.109: R ADIATED E MISSIONS L IMITS P ART 24 (E): 1998 P ERSONAL C OMMUNICATIONS S ERVICES – B ROADBAND PCS ANSI C63.4-1992 S TANDARD F ORMAT M EASUREMENT /T ECHNICAL R EPORT P ERSONAL C OMPUTER AND P ERIPHERALS ANSI/TIA/EIA603- 1992 L AND M OBILE FM OR PM C OMMUNICATIONS E QUIPMENT M EASUREMENT AND P ERFORMANCE S TANDARDS ANSI/TIA/EIA 603-1-1998 A DDENDUM TO ANSI/TIA/EIA 603-1992 RSS-133 (Rev. 1): November 1999 2 GH Z P ERSONAL C OMMUNICATIONS S ERVICES RSS-102 (Issue 1): September 1999 E VALUATION P ROCEDURE FOR M OBILE AND P ORTABLE R ADIO T RANSMITTERS WITH RESPECT TO H EALTH C ANADA ’ S S AFETY C ODE 6 FOR E XPOSURE OF H UMANS TO R ADIO F REQUENCY F IELDS Frequency Range Output Power (W) Freq. Tolerance Emission Designator 1890-1910 MHz 0.147 EIRP 5 ppm 273KDXW REPORT PREPARED BY: EMI Technician: Daniel Baltzell Administrative Writer: Melissa Fleming Document Number: 2001200 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 2 2001200/QRTL01-101 UTStarcom, Inc. UTS-700X T ABLE OF C ONTENTS 1 GENERAL INFORMATION ..........................................................................................................................................................................5 1.1 TEST FACILITY................................................................................................................................................................................................................5 1.2 RELATED SUBMITTAL(S)/GRANT(S)............................................................................................................................................................................5 2 CONFORMANCE STATEMENT...................................................................................................................................................................6 3 TESTED SYSTEM DETAILS ........................................................................................................................................................................7 3.1 EQUIPMENT TEST CONFIGURATION INFORMATION ................................................................................................................................................7 3.2 EQUIPMENT TEST CONFIGURATION...........................................................................................................................................................................7 4 FIELD STRENGTH CALCULATION ............................................................................................................................................................8 5 CONDUCTED AND RADIATED EMISSIONS MEASUREMENT INFORMATION ......................................................................................9 5.1 CONDUCTED MEASUREMENT......................................................................................................................................…
