O6YUTS-702UPortable PCS Phone

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 38 of 58 APPENDIX H: MANUAL Please see the following pages. Document No. 2XX 702 100 UTS 702 U User Manual Issue 1.0 ii Table of Contents 702 U User Manual Trademark Statement: “‘UTStarcom,’ ‘AN2000,’ and the UTStarcom logo are trademarks of UTStarcom, Inc.” Copyright Statement: “UTStarcom, Inc. 2000. All rights reserved. No part of this publication may be reproduced in any form or by any means without the prior written permission of UTStarcom, Inc.” Warranty Language: “The contents of this manual, whether in whole or in part, do not constitute any express or implied warranty with respect to any products of UTStarcom, Inc., or it subsidiaries.” 702 U User Manual Table of Contents iii Safety Precautions Introduction ƒ Thank you for purchasing your new UTS 702 U phone. ƒ Please read this instruction manual thoroughly. ƒ The display screens, illustrations, etc., used in this document are created for instructional purposes and can differ slightly with the actual phone. How to Use This Instruction Manual 1. Before using your phone Includes facts you should know before using your new phone. 2. Basic phone operation 3. Explains the basic operation of making and receiving calls. More Essential function Explains useful convenience functions. 4. Reference Explains phone maintenance and troubleshooting procedures. Conventions with the manual: ƒ “press” means to press a key and then release; ƒ “press and hold down” means to press a key for 2 sec or more and then release. ƒ “service area” refers to a service coverage area where a handset can receive signals effectively. iv Table of Contents 702 U User Manual Explanation of Symbols ƒ Before using your phone, please read the “Safety Precautions” thoroughly. ƒ The cautions included here are provided to prevent danger to persons and property. ƒ The following explain the degree of danger and damage that could occur if these safety precautions are not observed. This symbol indicates that erroneous operations may directly result in serious personal injury or death. This symbol indicates that erroneous operations may result in the possibility of serious injury or death. This symbol indicates that erroneous operations may result in the possibility of injury or physical damage. ƒ Explanations of other symbols used in the manual: Prohibited This symbol indicates a prohibited action. Compulsory This symbol indicates an action that must always be performed. Disassembly Prohibited This symbol indicates that disassembly is prohibited. Remove Power Plug This symbol indicates that the power cord must be removed from the outlet. 702 U User Manual Table of Contents v Handling the Phone, Battery, and Charger Use only the battery and charger approved for the UTS702U phone. The use of any other types can result in damage to the phone, electric shock or the risk of fire. Compulsory Do not store the phone or charger in hot, wet, or dusty areas. High temperatures, humidity and dust can damage electrical and mechanical components. This can cause the phone or charger to malfunction. Prohibited Keep the phone, battery and the charger dry. Exposure to precipitation, humidity and liquids can damage electronic components and circuit boards. Prohibited Do not drop, shake or throw the phone or charger. Rough handling can break internal circuit boards and damage the battery pack. Prohibited Do not use a microwave oven or any other type of heating equipment to dry the phone, battery pack or charger. High temperature can shorten the life of electronic devices, damage the battery pack, and warp or melt plastic parts. Prohibited Do not use the phone in the vicinity of volatile gases. Leave the area before using the phone. Failure to leave the area can result in the risk of fire or an explosion. Prohibited Do not disassemble or modify the phone or charger. Incorrect modifications or reassembly can cause malfunctions or personal injury when the phone or charger is used. Disassembly Prohibited vi Table of Contents 702 U User Manual Handling the Phone Do not use the phone while driving. Park the vehicle before using the phone. Traffic safety first. Prohibited Observe any special regulations in effect in any area (hospital, aircraft, etc) when you have to use the phone. Always disconnect the charger and remove the battery of your phone whenever it is forbidden to use it, or when it may cause interference or danger. Compulsory Do not use the phone near electronic equipment prone to interference. . Radio frequency interference may result in malfunction of the electronic equipment. The following electronic equipment can be effected: Hearing aids, pacemakers and other clinical electronic devices, fire detectors, automatic doors and other automatically controlled devices. If you have to use phone near electronic medical devices such as pacemakers, please consult device manufacturer or local dealers. Prohibited In rare cases, using the phone inside certain models of vehicles can adversely affect the electronic equipment inside the vehicle. Do not use the phone in such cases, because it is dangerous for personal security. Prohibited Keep all storage media (magnetic cards, floppy disks, credit cards, etc.,) away from the phone. Close encounters or contact can erase or damage the storage media. Prohibited Keep all sharp metal objects (Pins, Nails, Hairpins etc.) away from the handset of the phone. The earpiece of the handset contains a strong magnet that can attract and hold metal objects. Remove any objects from the handset earpiece before using to avoid personal injury. Prohibited 702 U User Manual Table of Contents vii Handling the Battery Do not dispose of the battery pack in a fire. They may explode. Check with local waste management codes for disposal instructions. Prohibited Do not force the battery pack into the phone. Imprope…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 32 of 58 APPENDIX C: CONFIDENTIALITY REQUEST LETTER Please see the following page.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 31 of 58 APPENDIX B: AGENCY AUTHORIZATION LETTER Please see the following page.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 18, 2003 RE: FCC ID: O6YUTS-702U Attention: Rick McMurray / Kathy Grzovic I have a few comments on this Application. 1. Please note that while EIRP power between the EMC and SAR report may sometimes be allowed to vary by several dB, in all cases the values measured in the SAR MUST be the higher value. Please note that the power in your EMC report is a maximum of 19.9dBm while the maximum reported in the SAR report is only 19.55dBm. Please retest and provide and EMC and SAR report comparison where the SAR report reports the higher of the two power levels. Response : The EMC test report contained a typo. The actual EIRP is 19.4 dbm. We regret the error. Please review the revised test report uploaded with this response; a revised 731 Form has also been uploaded. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

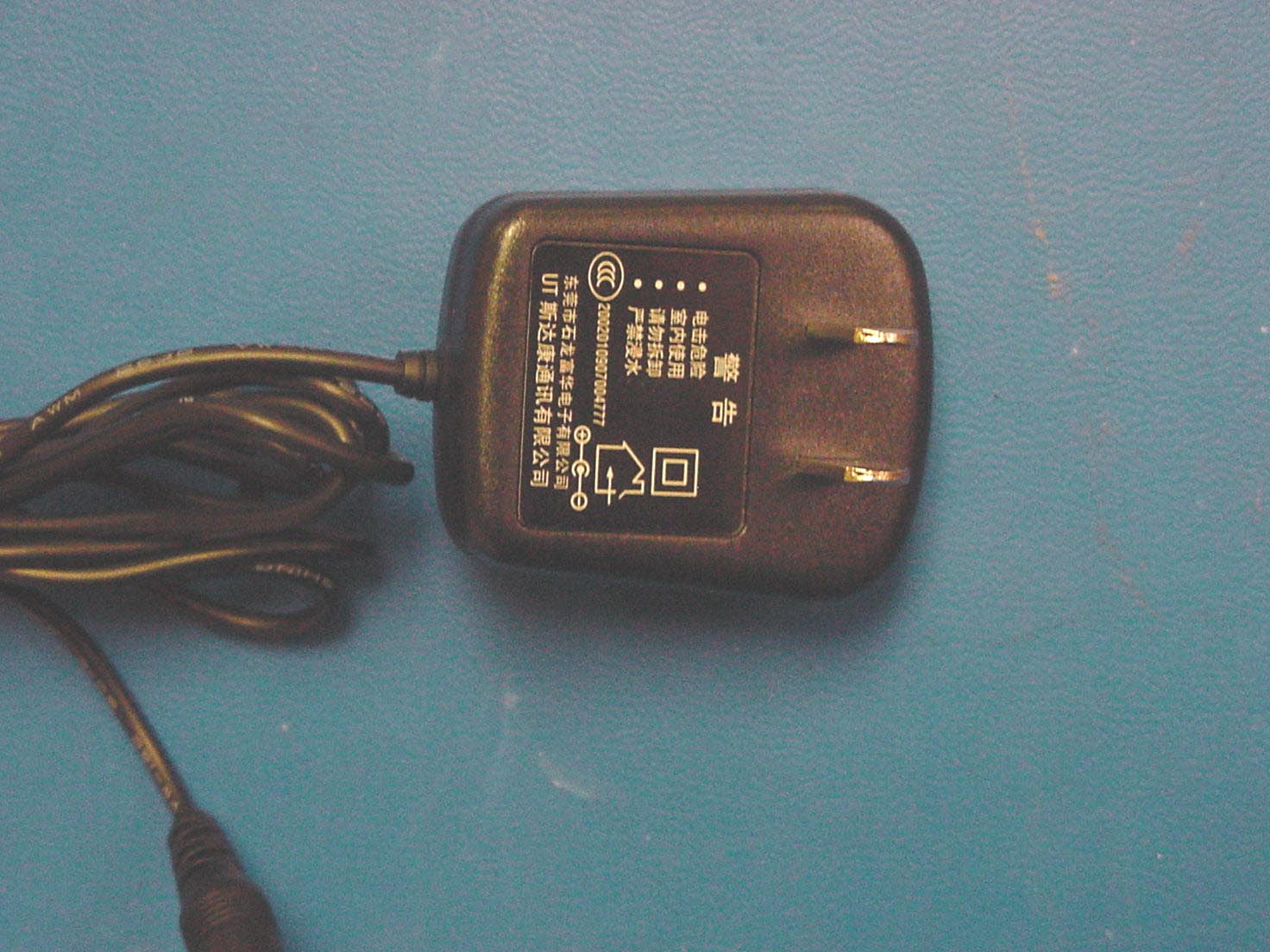

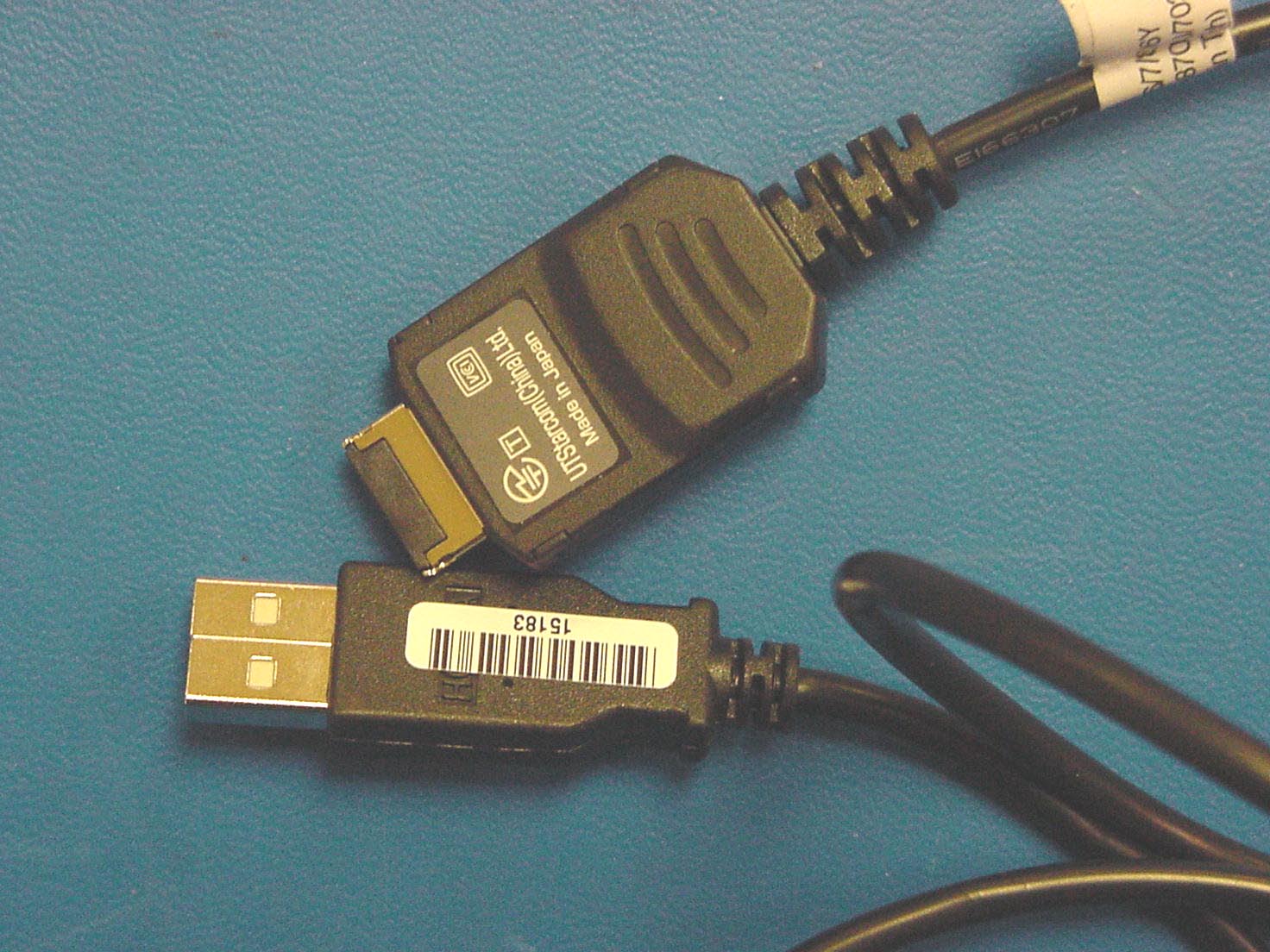

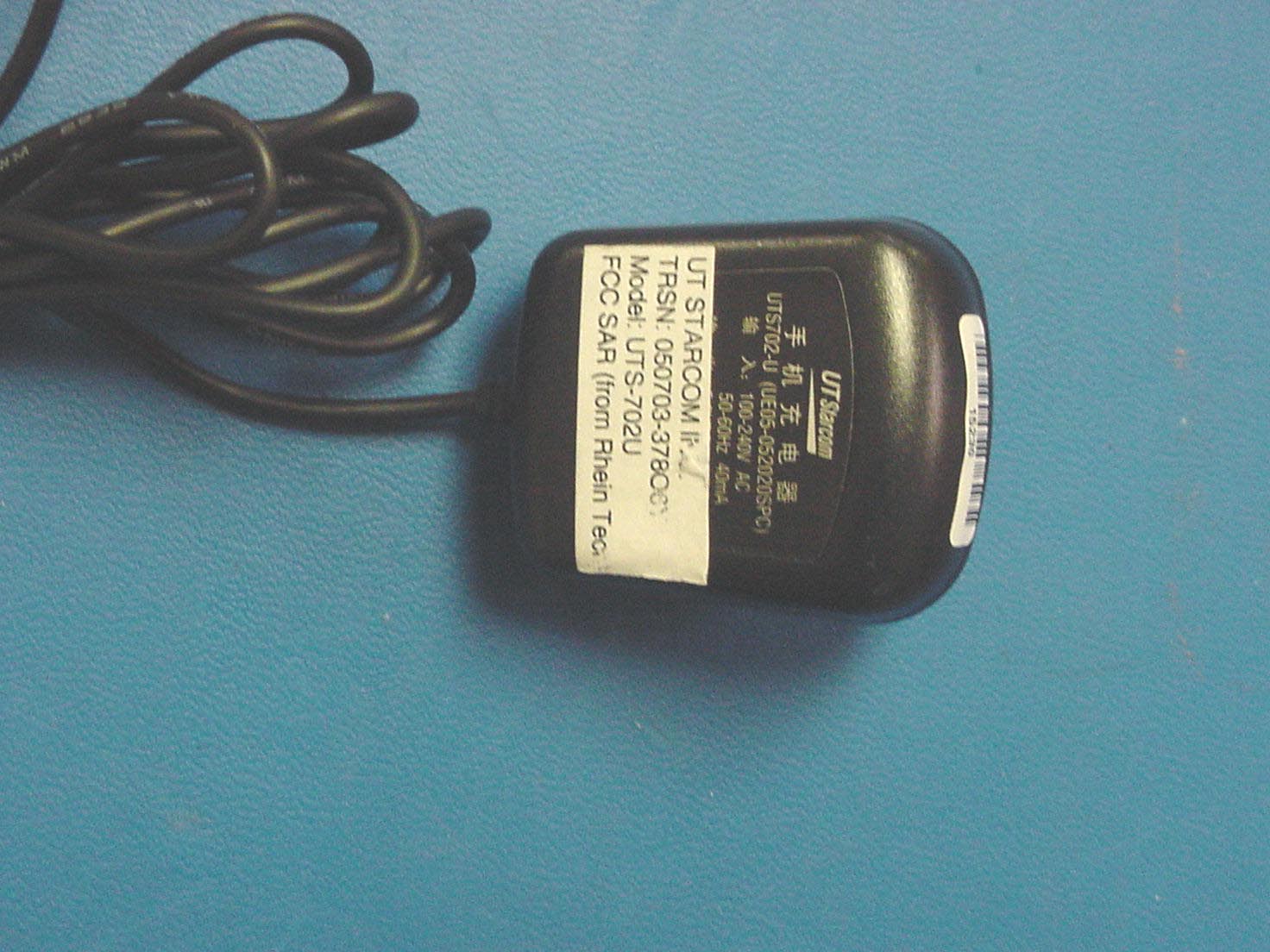

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 43 of 58 APPENDIX J: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 6: EUT FRONT VIEW WITH CHARGER/AC ADAPTER & CABLES Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 44 of 58 PHOTOGRAPH 7: EUT FRONT VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 45 of 58 PHOTOGRAPH 8: EUT BACK VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 46 of 58 PHOTOGRAPH 9: ANTENNA PORT Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 47 of 58 PHOTOGRAPH 10: ANTENNA Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 48 of 58 PHOTOGRAPH 11: CHARGER/AC ADAPTER FRONT VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 49 of 58 PHOTOGRAPH 12: CHARGER/AC ADAPTER BACK VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 50 of 58 PHOTOGRAPH 13: USB CABLES FRONT VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 51 of 58 PHOTOGRAPH 14: USB CABLES REAR VIEW

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 34 of 58 APPENDIX E: LABEL AND LABEL LOCATION Please refer to the following page for a photograph of the label location. UTStarcom, Inc. Model: UTS702U FCC ID: O6YUTS-702U Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 35 of 58 PHOTOGRAPH 1: FCC ID LABEL LOCATION UNDER BATTERY FCC ID LABEL HERE

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 52 of 58 APPENDIX K: INTERNAL PHOTOGRAPHS PHOTOGRAPH 15: BACK OF EUT WITH BATTERY Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 53 of 58 PHOTOGRAPH 16: BACK OF EUT WITH BATTERY REMOVED Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 54 of 58 PHOTOGRAPH 17: INSIDE BACK COVER Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 55 of 58 PHOTOGRAPH 18: PCB FRONT WITH LCD Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 56 of 58 PHOTOGRAPH 19: PCB BACK WITH SHIELDS Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 57 of 58 PHOTOGRAPH 20: PCB BACK WITHOUT SHIELDS

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 30 of 58 APPENDIX A: RF EXPOSURE Please see the SAR report that follows. Test Report S/N: 050703-378O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc.1 of 23 DECLARATION OF COMPLIANCE SAR EVALUATION Test Lab CELLTECH LABS INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone:250-448-7047 Fax:250-448-7046 e-mail:[email protected] web site:www.celltechlabs.com Applicant Information UTSTARCOM INC. 33 Wood Ave. South, 3 rd Floor Iselin, NJ 08830 FCC Rule Part(s):47 CFR §2.1093 Test Procedure(s):FCC OET Bulletin 65, Supplement C (Edition 01-01) IEEE Standard 1528-200X (Draft) FCC Classification:Part 24 Licensed Portable Transmitter held to ear (PCE) FCC ID: O6YUTS-702U Model(s):UTS-702U Device Type:Single-Mode PAS PHS Handset Access Method:TDMA (Time Division Multiple Access) Modulation:DQPSK (Differential Quadrature Phase Shift Keying) Duty Cycle:13 % Tx Frequency Range:1893.65 - 1909.95 MHz RF Output Power Tested:19.55 dBm EIRP (1902.35 MHz) Antenna Type:Stubby Battery Type:3.6V Lithium-ion, 480mAh (UTSL062248C) Max. SAR Measured:0.0798 W/kg (Head) Celltech Labs Inc. declares under its sole responsibility that this device was found to be in compliance with the Specific Absorption Rate (SAR) RF exposure requirements specified in FCC 47 CFR §2.1093. The device was tested in accordance with the measurement standards and procedures specified in FCC OET Bulletin 65, Supplement C, Edition 01-01 and IEEE Standard 1528-200X (Draft) for the General Population / Uncontrolled Exposure environment. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This test report shall not be reproduced partially, or in full, without the prior written approval of Celltech Labs Inc. The results and statements contained in this report pertain only to the device(s) evaluated. Russell W. Pipe Senior Compliance Technologist Celltech Labs Inc. Test Report S/N: 050703-378O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc.2 of 23 TABLE OF CONTENTS 1.0INTRODUCTION.....................................................................3 2.0DESCRIPTION OF EUT............................................................3 3.0SAR MEASUREMENT SYSTEM ...............................................4 4.0MEASUREMENT SUMMARY.....................................................5 5.0DETAILS OF SAR EVALUATION...............................................6-7 6.0EVALUATION PROCEDURES...................................................7-8 7.0SYSTEM PERFORMANCE CHECK............................................9 8.0EQUIVALENT TISSUES...........................................................10 9.0SAR LIMITS...........................................................................10 10.0SYSTEM SPECIFICATIONS......................................................11 11.0PROBE SPECIFICATION..........................................................12 12.0SAM PHANTOM......................................................................12 13.0DEVICE HOLDER....................................................................12 14.0TEST EQUIPMENT LIST...........................................................13 15.0MEASUREMENT UNCERTAINTIES............................................14-15 16.0REFERENCES........................................................................16 APPENDIX A - SAR MEASUREMENT DATA..............................................17 APPENDIX B - SYSTEM PERFORMANCE CHECK DATA.............................18 APPENDIX C - SYSTEM VALIDATION......................................................19 APPENDIX D - PROBE CALIBRATION.....................................................20 APPENDIX E - MEASURED FLUID DIELECTRIC PARAMETERS..................21 APPENDIX F - SAM PHANTOM CERTIFICATE OF CONFORMITY................22 APPENDIX G - SAR TEST SETUP & EUT PHOTOGRAPHS.........................23 Test Report S/N: 050703-378O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc.UTSTARCOM INC. FCC ID: O6YUTS-702U (Model: UTS-702U)3 of 23 Single-Mode PAS PHS TDMA Handset (1893.65-1909.95MHz) 1.0 INTRODUCTION This measurement report shows that the UTSTARCOM INC. Model: UTS-702U Single-Mode PAS PHS TDMA Handset FCC ID: O6YUTS-702U complies with the RF exposure requirements specified in FCC 47 CFR §2.1093 (see reference [1]) for the General Population / Uncontrolled Exposure environment. The test procedures described in FCC OET Bulletin 65, Supplement C, Edition 01-01 (see reference [2]), and IEEE Standard 1528-200X (Draft) (see reference [3]) were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) EUT Type Single-Mode PAS PHS Handset FCC Equipment Class Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s) 47 CFR §2.1093 Test Procedure(s) FCC OET Bulletin 65, Supplement C (01-01) IEEE Standard 1528-200X (Draft) FCC ID O6YUTS-702U Model No.(s) UTS-702U Serial No. Pre-production unit Tx Frequency Range 1893.65 - 1909.95 MHz RF Output Power Tested 19.55 dBm EIRP (1902.35 MHz) Access Method TDMA (Time Division Multiple Access) Modulation DQPSK (Differential Quadrature Phase Shift Keying) Duty Cycle 13 % Battery Type(s) 3.6V Lithium-ion, 480 mAh (UTSL062248C) Antenna Type Stubby Test Report S/N: 050703-378O6Y Test Date(s): May 14, 2003 FCC SAR Evaluation © 2003 Celltech Labs Inc.UTSTARCOM INC. FCC ID…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368 Fax: 703-689-2056 CERTIFICATION APPLICATION REPORT FCC PART 24 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Email: [email protected] Applicant: UTStarcom, Inc. Phone: 732-767-5263 33 Wood Avenue South Fax: 732-548-1099 3 rd Floor Iselin, NJ 08830 USA Contact: Scott Black ([email protected]) FCC ID: O6YUTS-702 GRANTEE FRN NUMBER: 0005823877 PLAT FORM: N/A RTL WORK ORDER NUMBER: 2003071 MODEL(S): UTS702U RTL QUOTE NUMBER: QRTL03-818 DATE OF TEST REPORT: July 10, 2003 American National Standard Institute: ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1 FCC Classification: PCE - Part 24 Licensed Portable Tx held to ear FCC Rule Part(s): PART 24: PERSONAL COMMUNICATIONS SERVICES Subpart E - Broadband PCS Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Peak EIRP (W) Frequency Tolerance Emission Designator 1893.65-1909.85 0.087 2.14ppm 275KDXW I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 24, ANSI/TIA/EIA603, and ANSI/TIA/EIA 603-1. Signature: Date: July 10, 2003 Typed/Printed Name: Desmond A. Fraser Position: President Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 2 of 58 TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................... 5 1.1 SCOPE .......................................................................................................................................................................... 5 1.2 TEST FACILITY .......................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 5 2 EQUIPMENT INFORMATION .......................................................................................................................................... 6 2.1 TEST JUSTIFICATION ............................................................................................................................................... 6 2.2 EXERCISING THE EUT .............................................................................................................................................. 6 2.3 TEST RESULT SUMMARY ........................................................................................................................................ 6 2.4 TEST SYSTEM DETAILS ........................................................................................................................................... 7 2.5 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 7 3 DC VOLTAGES AND CURRENTS - PART §2.1033(C)(8) .............................................................................................. 8 3.1 DC VOLTAGES AND CURRENTS TEST EQUIPMENT .......................................................................................... 8 4 RF POWER OUTPUT - §2.1046 .......................................................................................................................................... 9 4.1 RF POWER OUTPUT TEST EQUIPMENT ................................................................................................................ 9 4.2 ANSI/TIA/EIA-603-1992, SECTION 2.2.1 TEST PROCEDURE .............................................................................10 4.3 EFFECTIVE ISOTROPIC RADIATED POWER LIMITS - §24.232 (B)TEST PROCEDURE ................................ 10 4.4 RF POWER TEST EQUIPMENT............................................................................................................................... 10 4.5 EFFECTIVE ISOTROPIC RADIATED POWER TEST DATA- §2.1046 ................................................................. 11 5 OCCUPIED BANDWIDTH - §2.1049; NECESSARY BANDWIDTH §2.202 (OCCUPIED BANDWIDTH) – PART 24.238 (B) (EMISSION BANDWIDTH) ..................................................................................................................................... 12 5.1 TEST PROCEDURE................................................................................................................................................... 12 5.2 OCCUPIED BANDWIDTH TEST EQUIPMENT ..................................................................................................... 12 5.3 TEST DATA (CHANNEL 25: OCCUPIED BANDWIDTH = 275 KHZ) ................................................................ 13 6 CONDUCTED SPURIOUS AND HARMONIC EMISSIONS - §2.1051 ........................................................................ 14 6.1 TEST PROCEDURE................................................................................................................................................... 14 6.2 CONDUCTED SPURIOUS AND HARMONIC TEST EQUIPMENT ...................................................................... 14 6.3 CONDUCTED SPURIOUS AND HARMONIC TEST DATA - §2.1051.................................................................. 14 7 RADIATED SPURIOUS AND HARMONIC EMISSIONS - §2.1053.............................................................................17 7.1 RADIATED SPURIOUS AND HA…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS702U Suite 1400 FCC ID: O6YUTS-702U FCC: Part 24 Herndon, VA 20170 http://www.rheintech.com Page 58 of 58 APPENDIX L: ADDITIONAL INFORMATION Radiated Test Data - OATS 1 Mode: Digital/Receiver Limit/Distance: FCC B/3M Temperature: 50°F Humidity: 91% Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Turntable Azimuth (deg) Antenna Height (m) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) 38.600 Qp V 90 1.0 42.3 -16.9 25.4 40.0 -14.6 57.660 Qp V 145 1.0 37.0 -23.0 14.0 40.0 -26.0 76.980 Qp V 90 1.0 46.3 -23.2 23.1 40.0 -16.9 153.740 Qp V 45 1.0 39.3 -17.9 21.4 43.5 -22.1 268.880 Qp V 270 1.0 35.8 -15.9 19.9 46.0 -26.1 345.640 Qp V 90 1.0 37.4 -13.8 23.6 46.0 -22.4 384.020 Qp V 225 1.0 37.7 -12.6 25.1 46.0 -20.9 403.210 Qp V 45 1.0 39.3 -12.1 27.2 46.0 -18.8 441.590 Qp V 45 1.0 37.7 -11.0 26.7 46.0 -19.3 614.300 Qp V 90 1.0 38.5 -7.5 31.0 46.0 -15.0 978.910 Qp V 45 1.0 34.5 -3.8 30.7 54.0 -23.3 TEST PERSONNEL: Signature: Test Date: May 18, 2003 Typed/Printed Name: Rachid Sehb Position: Test Engineer
