O6YUTS-708JUTS-708J

Personal Station (PS) Model UTS-708J INSTRUCTION MANUAL i This wireless hand phone has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for general population/uncontrolled exposure environment. In addition, it complies with the following standards and guidelines: - FCC 96-326, Guidelines for Evaluating the Environmental Effets of Radio Frequency Radiation. - FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Electromagnetic Fields. - ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. - ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave.
SAFETY INFORMATION ii BEFORE USING THIS PRODUCT EXPLANATION OF ALERT SYNBOLS USED IN THIS MANUAL .......... 2 FOR SAFE OPERATION-IT IS IMPORTANT YOU READ THIS .... 3 CAUTION OF USING ............... 10 FEATURES OF PERSONAL STATION (PS) UTS-708J .................... 11 CHECK PACKAGE CONTENTS ... 12 NAMES AND FUNCTIONS OF COMPONENTS .................... 14 DISPLAY OWN PHONE NUMBER AND NUMBER OF EACH OPRATION MODE (F00) .......... 16 SETTING FUNCTIONS ............... 16 FUNCTOIN MENU LIST ............. 18 BECOMING FAMILIAR WITH YOUR PHONE .............................. 19 Liquid crystal display (LCD) ....... 19 Attaching the hand strap ......... 21 Using the antenna ................... 21 Using the Earphone/Microphone terminal ............................... 21 CHARGING THE BATTERY PACK ...22 Loading and removing the battery pack .................................... 22 Preparing the battery charger .. 23 Charging ............................... 24 Turning power on .................... 24 SETTING OPERATION MODES (F51) ..25 USE AS A PHS PHONE BEFORE USING AS A PHS PHONE ...28 PLACING A CALL .................... 29 Placing/ending a call ............... 29 Using dial memo ..................... 31 Using redial key to place calls ... 32 Deleting individual memorized numbers .............................. 33 Deleting all the content of redial, call memory or dial memo ...... 34 RECEIVING A CALL ................. 35 OPERATIONS DURING CALLS ... 37 Placing a call on hold ............... 37 Adjusting the receiver volume ... 37 Using the conversation memo function (communication log) .... 38 Using the hands-free/speaker function ............................... 39 Using the Flash function ........... 40 CHARACTER INPUT METHOD ... 41 Switching input character types... 41 USING PHONE BOOK ............. 43 Registering a phone book entry ....44 Registering numbers that are stored in radial, call memory or dial memo ............................ 48 Placing a call by search ........... 49 Placing a call using two touch dialing ................................. 52 Placing a call using three touch dialing ................................. 53 Correcting phone book entries .. 53 Changing the group name (F92).. 54 Deleting contents of phone book individually ............................ 54 Deleting all entries in phone book (F32) ................................... 55
CONTENTS iii USING THE ANSWER MESSAGE FUNCTION .......................... 56 Answering message (F24) ........ 56 Deleting and changing original answering message (F24) ...... 57 Setting the answening message ...58 Canceling the answering message .....59 Listening to and deleting messages ...59 Deleting all the stored left messages ............................ 60 Setting the response time from receiving the incoming call to answering (F25) .................... 61 Taking a call when it is received in answering message mode ...... 61 Setting answering message when receiving an incoming call ....... 61 MORE EFFECTIVE USE SETTING THE CLOCK AND ALARM ...64 Setting the clock (F62) ............ 64 Setting the alarm and auto power off (F09) .............................. 65 ADJUSTING THE SOUND .............67 Selecting the ring-tone volume and type .................................... 67 Selecting the incoming call notification method (F11) ....... 67 Selecting the hold-tone (F14) .... 69 Setting and Canceling manner mode .................................. 69 List of ring-tone melody numbers ...70 USING THE VOICE RECORDER (VOICE MEMO) FUNCTION ................... 72 LIST OF OPERATIONS THAT CAN BE PERFORMED BY FUNCTION KEY .... 74 USING THE SCHEDULE FUNCTION USING THE SCHEDULE FUNCTION ..76 Registering a schedule ............ 76 When the specified time arrives ..78 Confirming or revising the registered content of a schedule ............ 79 Deleting the registered content of schedules individually ............. 80 Confirming or deleting old schedules (6 or more weeks old) .............. 81 Deleting all the registered schedules ............................ 82 OTHERS USING THE 32KBPS HIGH SPEED DATA TRANSFER SERVICE ......... 84 Preparing for 32kbps high speed data transfer ........................ 84 Sending data by 32kbps high speed data transfer ........................ 85 Receiving data by 32kbps high speed data transfer ............... 86 USING MODEM FOR DATA/FAX COMMUNICATION .................... 87 Setting modem communication (F95) ................................... 88 Performing modem communication ...88 USING THE SHORT MESSAGE SERVICE ...89 Making an original message (Write Draft Text) .................. 89 Insart the made message into the original message ................... 90 Deleting the contents of original message (Draft Text) individually .. 90 iv Deleting the all contents of original message (Draft Text) ............. 91 Send the message .................. 91 Receive a message ................. 92 Read the received message ...... 93 Deleting the received message . 94 SETTING OTHER FUNCTIONS ... 95 Dial lock ................................ 95 Key lock ................................ 96 Phone book lock (F30) ..…

Text truncated - open the document above for the full version.

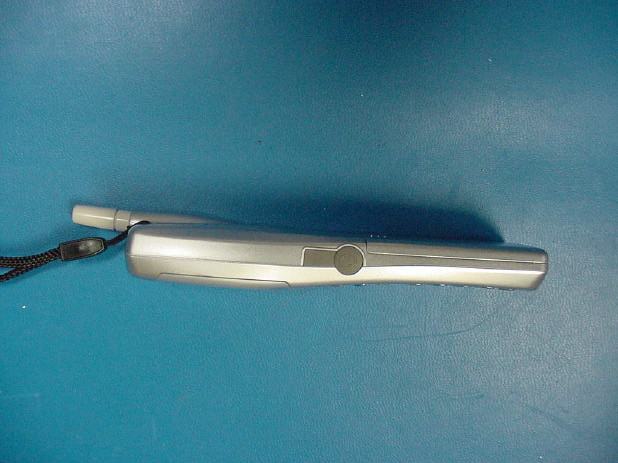

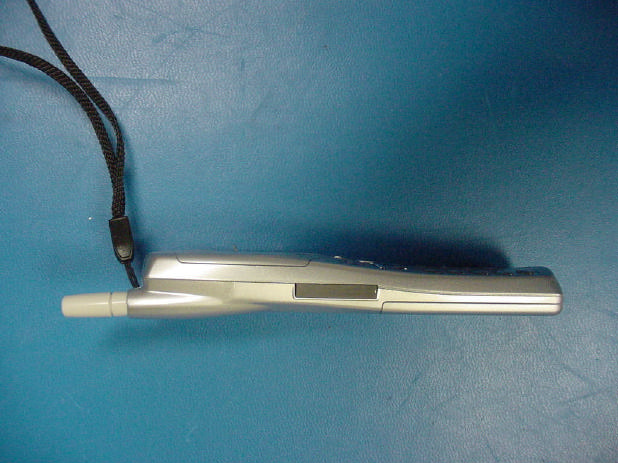

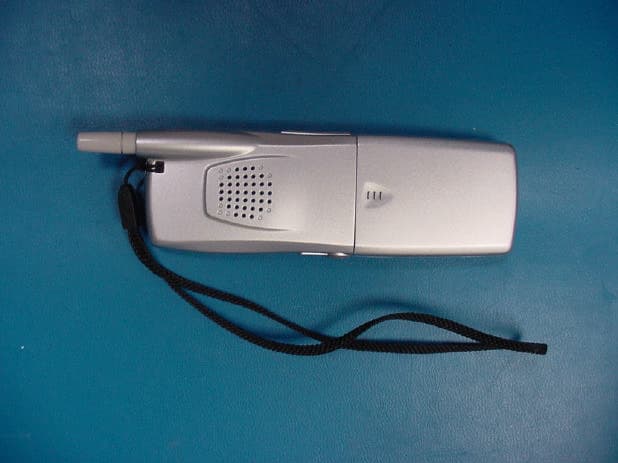

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 60 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 19 EXTERNAL PHOTOGRAPHS Front 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 61 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset Back 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 62 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset Left 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 63 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset Right

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 46 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 16 LABEL INFORMATION 16.1 FCC ID LABEL 16.2 LOCATION OF LABEL ON EUT Label will be placed where battery pack is installed on the device. UTStarcom UTS 708J FCC ID: O6YUTS-708J

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 49 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 18 INTERNAL PHOTOGRAPHS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 50 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 51 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 52 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 53 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 54 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 55 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 56 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 57 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 58 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 59 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 20 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 12 PRODUCT DESCRIPTION 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 21 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 22 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 23 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 24 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset

CELLTECH RESEARCH INC. Test Report S/N: 011901-54O6Y 1955 Moss Court, Kelowna, Dates of Tests: January 22-23, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. CERTIFICATE OF COMPLIANCE SAR EVALUATION This wireless mobile and/or portable device has been shown to be compliant for localized Specific Absorption Rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1999. I attest to the accuracy of data. All measurements were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Celltech Research Inc. certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Shawn McMillen General Manager Celltech Research Inc. Test Lab: CELLTECH RESEARCH INC. Testing and Engineering Lab 1955 Moss Court Kelowna, B.C. Canada V1Y 9L3 Phone: 250 - 860-3130 Fax: 250 - 860-3110 Toll Free: 1-877-545-6287 e-mail: [email protected] web site: www.globuswireless.com Applicant Information: UTSTARCOM INC. 33 Wood Avenue South, 3 rd Floor Iselin, NJ 08830 Attn: Scott Black, Compliance Engineer Phone: 732-767-5263 FCC ID: O6YUTS-708J Model(s): UTS-708J Equipment Type: Single-Mode PCS TDMA Phone Classification: Part 24 Licensed Portable Transmitter Held to Ear (PCE) Tx Frequency Range: 1895-1910 MHz Max. RF Output Power: 19dBm (Conducted) FCC Rule Part(s): 2.1093; ET Docket 96.326 CELLTECH RESEARCH INC. Test Report S/N: 011901-54O6Y 1955 Moss Court, Kelowna, Dates of Tests: January 22-23, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. TABLE OF CONTENTS 1.0 INTRODUCTION.................................................................. 1 2.0 DESCRIPTION OF EUT.......................................................... 1 3.0 SAR MEASUREMENT SYSTEM ............................................. 2 4.0 MEASUREMENT SUMMARY.................................................. 3-4 5.0 SAR LIMITS........................................................................ 5 6.0 DETAILS OF SAR EVALUATION........................................... 5 7.0 EVALUATION PROCEDURES................................................. 6 8.0 SYSTEM VALIDATION.......................................................... 6 9.0 SIMULATED EQUIVALENT TISSUES...................................... 7 10.0 TISSUE PARAMETERS......................................................... 7 11.0 SYSTEM SPECIFICATIONS.................................................... 8 12.0 TEST EQUIPMENT LIST........................................................ 9 13.0 MEASUREMENT UNCERTAINTIES........................................ 10 14.0 REFERENCES...................................................................... 11 APPENDIX A - SAR MEASUREMENT DATA..................................... 12 APPENDIX B - DIPOLE VALIDATION 13 APPENDIX C - PROBE CALIBRATION 14 APPENDIX D - SAR TEST SETUP PHOTOGRAPHS 15 CELLTECH RESEARCH INC. Test Report S/N: 011901-54O6Y 1955 Moss Court, Kelowna, Dates of Tests: January 22-23, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. UTStarcom Inc. FCC ID: O6YUTS-708J 1 Single-Mode PCS TDMA Phone (1895-1910MHz) 1.0 INTRODUCTION This measurement report shows compliance of the UTStarcom Inc. Model: UTS-708J Single- Mode PCS TDMA Phone FCC ID: O6YUTS-708J with FCC Part 2.1093, ET Docket 96-326 Rules for mobile and portable devices. The test procedures, as described in American National Standards Institute C95.1-1992 (1), FCC OET Bulletin 65–1997 were employed. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the evaluation, equipment used, and the various provisions of the rules are included within this test report. 2.0 DESCRIPTION of Equipment Under Test (EUT) Fig. 1. Front Profile Fig. 2. Rear Profile Fig. 3. Left Profile Fig. 4. Right Profile EUT Type Single-Mode PCS TDMA Phone FCC ID O6YUTS-708J Equipment Class Part 24 Licensed Portable Transmitter Held to Ear (PCE) Model No.(s) UTS-708J FCC Rule Part(s) § 2.1093, Docket 96-326 Application Type Part 24 Certification Tx Frequency Range (MHz) 1895-1910 S/N No. Pre-production Modulation TDMA Max. RF Output Power 19dBm (Conducted) Antenna Type Helical Battery Type(s) BU708-J Li-Battery 3.7 Volts - 410mAh CELLTECH RESEARCH INC. Test Report S/N: 011901-54O6Y 1955 Moss Court, Kelowna, Dates of Tests: January 22-23, 2001 B.C. CANADA V1Y 9L3 _________________________________________________________________________________________________________ © 2001 Celltech Research Inc. UTStarcom Inc. FCC ID: O6YUTS-708J 2 Single-Mode PCS TDMA Phone (1895-1910MHz) 3.0 SAR MEASUREMENT SYSTEM Celltech Research SAR measurement facility utilizes the Dosimetric Assessment System (DASY™) manufactured by Schmid & Partner Engineering AG (SPEAG™) of Zurich, Switzerland. The DASY system is comprised of the robot controller, computer, near-field probe, probe alignment sensor, and the generic twin phantom containing brain or muscle equivalent material (see Figure 5). The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF). A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and remote control, is used to drive the robot motors. The Staubli robot is connected to t…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT UTStarcom, Inc. 33 Wood Avenue South 3 rd Floor Iselin, NJ 08830 732-767-5263 (Scott Black) MODEL: UTS-708J FCC ID: O6YUTS-708J January 10, 2001 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 §15.109: RADIATED EMISSIONS LIMITS PART 24 (E): 1998 PERSONAL COMMUNICATIONS SERVICES – BROADBAND PCS ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 24(E) 1895-1910 MHz 0.102 EIRP 5 ppm 273KDXW REPORT PREPARED BY: EMI Technician: Daniel Baltzell Administrative Writer: Melissa Fleming Document Number: 2001013 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 2 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset TABLE OF CONTENTS 1 GENERAL INFORMATION.................................................................................................................................4 1.1 TEST FACILITY......................................................................................................................................................4 1.2 RELATED SUBMITTAL(S)/GRANT(S)....................................................................................................................4 2 CONFORMANCE STATEMENT........................................................................................................................5 3 TESTED SYSTEM DETAILS...............................................................................................................................6 3.1 COMPONENTS.......................................................................................................................................................6 3.2 CONFIGURATION OF TESTED SYSTEM.................................................................................................................6 4 CONDUCTED EMISSIONS..................................................................................................................................7 4.1 CONDUCTED MEASUREMENT...............................................................................................................................7 5 RADIATED EMISSIONS.......................................................................................................................................8 5.1 RADIATED MEASUREMENT..................................................................................................................................8 5.2 FIELD STRENGTH CALCULATION.........................................................................................................................9 5.3 PART 2.1046 (A) RF POWER OUTPUT: RADIATED – EIRP PART 24.232........................................................10 5.3.1 Test Procedure.........................................................................................................................................10 5.3.2 Test Data..................................................................................................................................................11 5.3.3 Test Equipment.........................................................................................................................................11 6 BAND-EDGE COMPLIANCE - PART 24.229 AND PART 24.238.............................................................12 6.1 TEST PROCEDURE:..............................................................................................................................................12 6.2 TEST DATA.........................................................................................................................................................12 6.3 TEST EQUIPMENT................................................................................................................................................13 7 FCC RULES AND REGULATIONS PART 2 §2.1053 (A): FIELD STRENGTH OF SPURIOUS RADIATION – PART 24.238.......................................................................................................................................14 7.1 TEST PROCEDURE...............................................................................................................................................14 7.2 TEST DATA.........................................................................................................................................................14 7.3 TEST EQUIPMENT................................................................................................................................................14 8 FCC RULES AND REGULATIONS PART 2 §2.1049 (C) (1): OCCUPIED BANDWIDTH – PART 24.238................................................................................................................................................................................15 8.1 `TEST PROCEDURE..............................................................................................................................................15 8.2 TEST DATA.........................................................................................................................................................15 Channel 25: Occupied Bandwidth = 273 kHz......................................................................................................15 8.3 TEST EQUIPMENT...................................…

Text truncated - open the document above for the full version.

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 47 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset 17 TEST CONFIGURATION PHOTOGRAPHS Radiated Back View 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 48 of 63 2001013 / QRTL00-407 UTStarcom, Inc. UTS-708J PCS Handset Radiated Front View
