O6YUTS-708SYPCS Band Cellular Telephone

SAFETY INFORMATION: This wireless hand phone has been tested and complies with the Federal Communications Commision (FCC) RF exposure limits for General Population/Uncontrolled exposure environment. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and when the back of the phone faces your body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. 3 2 continued to next page 3. Basic operations Placing a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39Selecting the strongest signal (Power Search) . . . . . . . . . . . . . . . . . . . . . . . 41Accepting a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42Redialing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43Dialing from the incoming calls log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45Storing a number while talking (number memo) . . . . . . . . . . . . . . . . . . . . . . 47Placing a call on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48Ear speaker volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48Whisper mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49Hands-free calling, using the speaker phone . . . . . . . . . . . . . . . . . . . . . . . . 50Adjusting the speaker phone volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51Using a headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Using the vibration ringer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Using the call-answered vibration mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Ringer volume adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55Selecting the ringer type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Composing a ringer melody. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57Using the good manners features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60Using custom functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 Telephone and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Attach the hand strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Important features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1. Introduction What is a PAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10For your safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11Cautions on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15Using this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Part names and their functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18Reading the display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20You can’t use the phone while; . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2. Before using your phone Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22Replacing the battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Turning the power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26Selecting a function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Table of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Animation display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30Setting the key beep . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31Setting key guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Confirming your phone number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34Displaying time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35Setting a lock code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36Preventing someone to use your phone (lock phone) . . . . . . . . . . . . . . . . . . 37Setting the usage mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 CONTENTS *SM-801 PHS/sec1(GB) 00.3.9 4:16 PM Page 2 5 4 Quick search . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 1, 2001 RE: UTStarcom FCC ID: O6YUTS-708SY There are still issues which require clarification on this product. 1.) The label location is still an issue. Will it be covering the chipsets? Will the label meet the requirements of 15.925(d), (d)(1), and (d)(2)? 2.) The Exhibit which you define as a Schematic appears to be simply a baseband schematic and is not the RF portion. Please indicate where the PA is on this schematic. 3.) Your second paragraph to Item #4 does not make sense. What are you trying to say? 4.) Section 7 Plot 7.1 showing 20db BW is performed incorrectly. Plot 7.2 appears to be correct. Please review and change as needed. 5.) Radiated Band Edge compliance appears to be set up incorrectly. Since the plots use units of dBm and not dBuV should I assume it is conducted and not radiated? If so, then I would expect the carrier to be only ~10dB from the reference level as shown in Occupied Bandwidth plot 7.2. If this is radiated, then the reference level should still be set up similar to Occupied BW and the display line would be referenced incorrectly. 6.) Using the information available in the Operational Description, I could not make sense of the on-off duty cycle of this TDMA system. Please send be transmitter timing information. If necessary send zero-span plots of the duty cycle. 7.) Please note the following language should be included in the Manual. “In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.” William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 1, 2001 RE: UTStarcom FCC ID: O6YUTS-708SY There are still issues which require clarification on this product. 1. The label location is still an issue. Will it be covering the chipsets? Will the label meet the requirements of 15.925(d), (d)(1), and (d)(2)? Revised label Information 2. The Exhibit which you define as a Schematic appears to be simply a baseband schematic and is not the RF portion. Please indicate where the PA is on this schematic. Awaiting Schematic from UTStarcom 3. Your second paragraph to Item #4 does not make sense. What are you trying to say? The block Diagram is being sent in addition to the schematics just to clarify any layout problems that may arise. 4. Section 7 Plot 7.1 showing 20db BW is performed incorrectly. Plot 7.2 appears to be correct. Please review and change as needed. Plot 7.1 has been retaken with the spectrum analyzer 99% occupied bandwidth selection. Plot 7.2 remains as the emission bandwidth plot used to determine the emission designator requirement (i.e. –26dB) 5. Radiated Band Edge compliance appears to be set up incorrectly. Since the plots use units of dBm and not dBuV should I assume it is conducted and not radiated? If so, then I would expect the carrier to be only ~10dB from the reference level as shown in Occupied Bandwidth plot 7.2. If this is radiated, then the reference level should still be set up similar to Occupied BW and the display line would be referenced incorrectly. Units of dBm were used in the reference level to match the EIRP levels the plots were taken radiated. I have retaken the plots which are almost identical to previous plots; however, I have included an additional plot taken with nothing in the setup changed except the span is 500 kHz, I allowed both plots to sweep through several times >10 at slower than normal sweep time. It is evident that the span of the spectrum analyzer is causing the level to seem lower than ~10 dB from the reference level. 6. Using the information available in the Operational Description, I could not make sense of the on-off duty cycle of this TDMA system. Please send be transmitter timing information. If necessary send zero-span plots of the duty cycle. Three plots are included showing the zero span of the duty cycle and pulse width, etc. 7. Please note the following language should be included in the Manual. Revised manual “In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna.” l Page 2 November 20, 2001 William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 19, 2001 RE: UTStarcom, Inc FCC ID: O6YUTS-708SY I have the following notes on this Application. 1. The internal photographs are way too grainy. The Commission will not accept these. Pictures retaken 2. Parts list is unreadable. Uploaded readable parts list. There are 4 files since I could not make the file smaller and be readable. 3. Orientation of the label in the device is unclear. Will it be covering the exposed parts? Will it meet the requirements in Part 2 for permanence? 4. Schematics and block diagram are identical exhibits. Only schematics are required under Part 2 of the Rules for licensed equipment. What do you wish to submit? The Schematics and block diagram are not identical exhibits. They are 2 separate and different files. Notice the size of each file is different. Please check again. The block diagrams are submitted to meet the requirements to provide sufficient clarity to reveal equipment construction and layout as met by photographs or drawings contained in the instruction manuals supplied with the certification request. 5. Warning statements in the manual are lacking. I will have to do further research before determining what, if any, statements are required. Please refer to page 1 of the user’s manual. 6. Please provide a more complete description of how the radiated band edge compliance test was performed. Include all the appropriate measurement bandwidths. Emission bandwidth was taken to determine the resolution settings for the band edge. It was found that 1% of the 262 kHz emission bandwidth was equivalent to 3kHz resolution. A radiated measured was used and the unit was maximized and an offset entered on the spectrum analyzer to achieve the corrected substitution measurement level as the reference level at a 1 MHz resolution bandwidth using max hold on the spectrum analyzer. The resolution was then changed to 3kHz and the plot taken with the display line at –13 dBm limit 7. Please provide description of modulation as required in Part 2 of the rules for Licensed equipment. Please justify emission designator. FYI: The 20dB bandwidth measurement is incorrect in the test report in plot 7-1 and 7-2. Label Location z Page 2 October 29, 2001 Modulation description is included in the product description. Plot 7-1 was mislabeled and should be Channel 251. Plot 7-2 is the emission bandwidth taken according to 24.238(b) Plots and headings have been resubmitted to avoid confusion of occupied bandwidth and emission designator requirements. 8. Please provide conducted power output measurements in addition to the radiated EIRP. Details should be included such as peak, average, timing etc. as with any TDMA-type transmitter. Are the frame lengths fixed or are they variable? If so this may also affect power output measurement Antenna is integral. Timing and frame lengths are included in product description and are fixed. 9. SAR report lists conducted Pout as 10mW. EIRP indicates approximately 100mW. It seems unlikely there is a 10dBi gain monopole antenna on this device. Please explain. Power was submitt ed as peak an d now made to agree through out the report with the SAR report value, which was given in averag e. Revised SAR Report Please note SAR report evaluation depends heavily on the resolution of the power output questions. William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 19, 2001 RE: UTStarcom, Inc FCC ID: O6YUTS-708SY I have the following notes on this Application. 1.) The internal photographs are way too grainy. The Commission will not accept these. 2.) Parts list is unreadable. 3.) Orientation of the label in the device is unclear. Will it be covering the exposed parts? Will it meet the requirements in Part 2 for permanence? 4.) Schematics and block diagram are identical exhibits. Only schematics are required under Part 2 of the Rules for licensed equipment. What do you wish to submit? 5.) Warning statements in the manual are lacking. I will have to do further research before determining what, if any, statements are required. 6.) Please provide a more complete description of how the radiated band edge compliance test was performed. Include all the appropriate measurement bandwidths. 7.) Please provide description of modulation as required in Part 2 of the rules for Licensed equipment. Please justify emission designator. FYI: The 20dB bandwidth measurement is incorrect in the test report in plot 7-1 and 7-2. 8.) Please provide conducted power output measurements in addition to the radiated EIRP. Details should be included such as peak, average, timing etc. as with any TDMA-type transmitter. Are the frame lengths fixed or are they variable? If so this may also affect power output measurement 9.) SAR report lists conducted Pout as 10mW. EIRP indicates approximately 100mW. It seems unlikely there is a 10dBi gain monopole antenna on this device. Please explain. Please note SAR report evaluation depends heavily on the resolution of the power output questions. William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

To: William Graff From: Andy Leimer [email protected] FCC Equipment Authorization Branch Re: FCC ID: O6YUTS-708SY Applicant: UTStarcom, Inc. Correspondence Reference Number: 3262 731 Confirmation Number: TC244459 Date of Original Email: 12/12/2001 Subject: Information Request EMC - Please provide the following information: 1) This is a PCS phone that communicates with micro-base stations - the emission designator (DXW) is used for 800 MHz by FCC convention. It is unclear if the device is a PCS/GSM 1900 (Emission Designator GXW) or PCS/TDMA (Emission Designator F9W). Is the PCS device GSM 1900 or TDMA? Correct the Grant emissions designator accordingly. This device is a PCS/TDMA 1.9GHz. I though, per convention, that F9W was used for PCS/CDMA. It is my understanding that the designator DXW is currently used for PCS/TDMA in the 800MHz and 1900MHz band. We would like to use DXW for consistency with previously granted product of the same type. 122801 System Overview.pdf 122801 Operational Description.pdf 122801 PAS Specifications.pdf 2) The Parts List is unreadable and contains too much parts information. Submit a revised parts list for the transmitter only. It should contain the major components of all RF circuits. Revised Parts List has been uploaded 122801 Parts List 1.pdf 122801 Parts List 2.pdf 122801 Parts List 3.pdf 122801 Parts List 4.pdf 122801 UTS-708SY T-R Block Diagram.pdf 3) Submit the Tune-up Procedure. Tune up Procedure has been uploaded. 122801 UTS-708SY Tune-up Procedure.pdf 4) The Grant condition indicates that the power is Average EIRP. The Test Report indicates that a Roberts Dipole was used for the EIRP measurement. A Roberts Dipole when used for the substitution method would yield ERP power. The use of a horn antenna would give EIRP power results when using the substitution method. In addition, it is my understanding that a Robert’s Dipole is only good up to 1 GHz for calibrated measurements. Describe what is meant by average EIRP as stated in the Grant condition. Further explain the EIRP measurement procedure. Note: Peak EIRP should be listed on the Grant. The test equipment list was incomplete and it was revised. A double ridge antenna was used to perform substitution measurement above 1 GHz. Average EIRP level means that the EUT reference level was measured (substitution method) using a HP power meter (diode sensor) in time-gated TDMA mode with a BW up to 300kHz. The test report was revised to list the Peak EIRP of 0.129 Watt. 5) The Operation Description lists the Peak Power as 80 mW for private mode. The Test Report lists EIRP as 16.1 mW. Explain this discrepancy. What does “Private” mean? The test report lists EIRP as 16.1mW average. Peak EIRP is 129 mWatts. The "private" word does not have any use in the US. It is used in Japan only to dissociate public from private usage and it was removed from the operation description. The operation description lists output power as conducted peak power 80 mW. SAR - Please provide the following information: 1) The Test Report timing plots indicate that the Duty Factor is 0.112 (Duty Factor = 0.560 ms / 5.0 ms). Crest Factor = 1/DF or 8.93. This would indicate that this is possibly a GSM phone. The SAR plots were tested using a Crest Factor of 3 (Typical for PCS/TDMA). Repeat all SAR measurements using the 8.93 Crest Factor OR adjust the data to correct for the use of an incorrect Crest Factor. If the data is adjusted provide a justification and explanation. 122801 SAR Amendment Cover Letter.PDF 122801 UTS-708SY SAR Test Report Revision.PDF 2) Liquid depths during testing. If available please provide Z-axis scan SAR data for the highest SAR test points. 122801 SAR Amendment Cover Letter.PDF 122801 UTS-708SY SAR Test Report Revision.PDF 3) Probe conversion factors used for muscle tissue SAR measurements. Certified conversion factors were only found for head simulating liquid in the posted exhibits. Please also provide a statement justifying any cases where the probe calibration was performed at different frequencies and with different tissue parameters than used for testing. Please include an analysis of the expected variation on the SAR value. Alternatively please provide new SAR data using a probe calibrated at corresponding test frequencies and with test tissue dielectric parameters. 122801 SAR Amendment Cover Letter.PDF 122801 UTS-708SY SAR Test Report Revision.PDF 4) Ambient and liquid temperatures during all tests and validations. Per Supplement C Appendix B I. 122801 SAR Amendment Cover Letter.PDF 122801 UTS-708SY SAR Test Report Revision.PDF 5) Recalculated SAR values and SAR plots for all test points using measured liquid parameters if possible without additional testing. Targets parameters were apparently used as noted on the provided SAR plots. If not possible please provide analysis showing the expected effects on the SAR values if the measured parameters had been used. 122801 SAR Amendment Cover Letter.PDF 122801 UTS-708SY SAR Test Report Revision.PDF 6) Confirmation that the phantom used is 2 mm thick. It is understood that some phantoms SPEAG sent out were actually 3.2 mm thick. 122801 SAR Amendment Cover Letter.PDF 122801 UTS-708SY SAR Test Report Revision.PDF 7) A revised User’s Manual with the RF exposure information removed. This device was tested in the body-worn configuration at 0 cm separation distance and thus does not require any User’s Manual statements for RF exposure. The safety information provided in the user's manual are based on OET 65C rev. 01-01 page 41 item 2. We believe that, although the measured SAR level are low, the tested configuration at 0 cm distance from the back of the phone, does provide provisions for ensuring compliance with belt-clips having metal parts or when the phone is used with the keypad facing the body (0cm) in body- worn use. We would like to keep the current general RF exposure information listed in the user's manual. 122801 SAR Amendment Cover Letter.PDF 122801 UTS-708SY S…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 December 31, 2001 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: O6YUTS-708SY To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Product Description • Block Diagram • Bill of Materials (Parts List) Best Regards, Melissa Carter [email protected] Rhein Tech Laboratories, Inc.

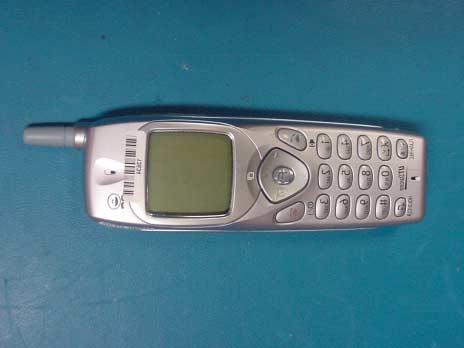

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 61 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY APPENDIX J: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 17: FRONT OF PHONE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 62 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 18: REAR OF PHONE 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 63 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 19: REAR WITH BATTERY REMOVED 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 64 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 20: RECHARGER BOTTOM 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 65 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 21: RECHARGER TOP

APPENDIX A: LABEL INFORMATION FCC ID LABEL AND LOCATION OF LABEL ON EUT PHOTOGRAPH 1: LABEL LOCATION CANADA: XXXXXXXX FCC ID: O6YUTS-708SY

360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 50 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY APPENDIX I: INTERNAL PHOTOGRAPHS PHOTOGRAPH 6: EXTERNAL FRONT COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 51 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 7: EXTERNAL BACK COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 52 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 8: INSIDE VIEW OF FRONT COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 53 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 9: INSIDE VIEW OF REAR COVER 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 54 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 10: MAIN AND SECONDARY WITH SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 55 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 11: MAIN AND SECONDARY WITHOUT SHIELDS 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 56 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 12: MAIN BOARD FRONT LCD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 57 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 13: MAIN REAR WITHOUT SECONDARY BOARD 360 Herndon Parkway Suite 1400 Herndon, VA 20170 http://www.rheintech.com FCC And Canadian Certification Report Page 58 2001244/QRTL01-271 UTStarcom, Inc. UTS-708SY PHOTOGRAPH 14: SECONDARY FRONT WITH SHIELDS 360 Herndon Parkway Suit…

Text truncated - open the document above for the full version.
