O6YUTS-801FSUPCS Phone

Document No. 2XX 801 102 UTS 801 (FSU) User Manual ii Table of Contents 801 (FSU) User Manual Trademark Statement: “‘UTStarcom,’ ‘AN2000,’ and the UTStarcom logo are trademarks of UTStarcom, Inc.” Copyright Statement: “UTStarcom, Inc. 2000. All rights reserved. No part of this publication may be reproduced in any form or by any means without the prior written permission of UTStarcom, Inc.” Warranty Language: “The contents of this manual, whether in whole or in part, do not constitute any express or implied warranty with respect to any products of UTStarcom, Inc., or it subsidiaries.” 801 (FSU) User Manual Table of Contents iii Safety Precautions Introduction ƒ Thank you for purchasing your new UTS801 FSU phone. ƒ Please read this instruction manual thoroughly. ƒ The display screens, illustrations, etc., used in this document are created for instructional purposes and may differ slightly with the actual phone. How to Use This Instruction Manual 1. Before using your phone Includes facts you should know before using your new phone. 2. Basic phone operation 3. Explains the basic operation of making and receiving calls. More Essential function Explains useful convenience functions. 4. Reference Explains phone maintenance and troubleshooting procedures. Conventions with the manual: ƒ “press” means to press a key and then release; ƒ “press and hold down” means to press a key for 2 sec or more and then release. ƒ .“service area” refers to a service coverage area where a handset can receive signals effectively. iv Table of Contents 801 (FSU) User Manual Explanation of Alarm Symbols ƒ Before using your phone, please read the “Safety Precautions” thoroughly. ƒ The cautions included here are provided to prevent danger to persons and property. ƒ The following explain the degree of danger and damage that could occur if these safety precautions are not observed. This symbol indicates that erroneous operations may directly result in personal serious injury or death. This symbol indicates that erroneous operations may result in the possibility of death or serious injury. This symbol indicates that erroneous operations may result in the possibility of injury or physical damage. ƒ Explanations of other symbols used in the manual: This symbol indicates a prohibited action. This symbol indicates an action that must always be performed. This symbol indicates that disassembly is prohibited. This symbol indicates that the power cord must be removed from the outlet. 801 (FSU) User Manual Table of Contents v Handling the Phone and AC Adapter Use only the battery and AC Adapter approved for the UTS801FSU phone. The use of any other types can result in damage to the phone, electric shock or the risk of fire. Do not store the phone or AC adaptor in hot, wet, or dusty areas. High temperatures, humidity and dust can damage electrical and mechanical components. This can cause the phone or AC adapter to malfunction. Keep the phone, battery and the AC adapter dry. Exposure to precipitation, humidity and liquids can damage electronic components and circuit boards. Do not drop, shake or throw the phone or AC adapter. Rough handling can break internal circuit boards and damage the battery pack. Do not use a microwave oven or any other type of heating equipment to dry the phone, battery pack or AC adapter. High temperature can shorten the life of electronic devices, damage the battery pack, and warp or melt plastic parts. Do not install or use the phone in the vicinity of volatile gases. Leave the area before installing or using the phone. Failure to leave the area can result in the risk of fire or an explosion. Do not disassemble or modify the phone or AC adapter. Incorrect modifications or reassembly can cause malfunctions or personal injury when the phone or AC adaptor is used. vi Table of Contents 801 (FSU) User Manual Handling the Phone Do not use the phone while driving. Park the vehicle before using the phone. Traffic safety first. Observe any special regulations in effect in any area (hospital, aircraft, etc) when you have to use the phone. Always disconnect the AC adapter and remove the battery of your phone whenever it is forbidden to use it, or when it may cause interference or danger. Keep a minimum 20 cm separati on distance between the device and the user. Do not use the phone near electronic equipment prone to interference. . Radio frequency interference may result in malfunction of the electronic equipment. The following are such electronic equipment: Hearing aids, pacemakers and other clinical electronic devices, fire detectors, automatic doors and other automatically controlled devices. If you have to use phone near electronic medical devices such as pacemakers, please consult device manufacturer or local dealers. In rare cases, using the phone inside certain models of vehicles can adversely affect the electronic equipment inside the vehicle. Do not use the phone in such cases, because it is dangerous for personal security. Keep all storage media (magnetic cards, floppy disks, credit cards, etc.,) away from the phone. Close encounters or contact can erase or damage the storage media. Keep all sharp metal objects (Pins, Nails, Hairpins etc.) away from the handset of the phone. The earpiece of the handset contains a strong magnet that can attract and hold metal objects. Remove any objects from the handset earpiece before using to avoid personal injury. 801 (FSU) User Manual Table of Contents vii Handling the Battery Do not dispose of the battery pack in a fire. They may explode. Check with local waste management codes for disposal instructions. Do not force the battery pack into the phone. Improper installation can cause malfunctions or damage the battery pack. This may result in the risk of fire or personal injury. Use caution in handling batteries in order not to short the battery to conductive materials such as rings, bracelets, and keys. The battery and/or conductor may overheat and cause burns. Do not s…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 33 of 62 APPENDIX C: CONFIDENTIALITY REQUEST LETTER Please see the following page.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 32 of 62 APPENDIX B: AGENCY AUTHORIZATION LETTER Please see the following page.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 21, 2003 RE: FCC ID: O6YUTS-801FSU Attention: Kathy Grzovic I have a few comments on this Application. 1. The manual does not appear to have the 20cm separation caution. Please include this 20cm separation caution statement in the manual for mobile devices. 2. Please note that the band edge plot PLOT 8-2 appears to be failing at 1895MHz. This may be due to the span used. Please note that at 1895MHz the band edge appears closer to - 11dBm than -13dBm. Please provide a plot that clearly shows compliance to the 1895MHz band edge. 3. Please note that the band edge plot PLOT 8-4 appears to be failing at 1910MHz. This may be due to the span used. Please note that at 1910MHz the band edge appears closer to - 12dBm than -13dBm. Please provide a plot that clearly shows compliance to the 1910MHz band edge. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 July 21, 2003 RE: FCC ID: O6YUTS-801FSU Attention: Kathy Grzovic I have a few comments on this Application. 1. The manual does not appear to have the 20cm separation caution. Please include this 20cm separation caution statement in the manual for mobile devices. Response : Please refer to the revised manual uploaded with this response. 2. Please note that the band edge PLOT 8-2 appears to be failing at 1895MHz. This may be due to the span used. Please note that at 1895MHz the band edge appears closer to - 11dBm than -13dBm. Please provide a plot that clearly shows compliance to the 1895MHz band edge. Response : The measurement performed with the spectrum analyzer was showing passing values for the block edge. By doing the same plots with a narrower span, we were able to show that all the signals at and after the block edge are compliant with the –13 dBm limit. Please see the revised report uploaded with this response. 3. Please note that the band edge PLOT 8-4 appears to be failing at 1910MHz. This may be due to the span used. Please note that at 1910MHz the band edge appears closer to - 12dBm than -13dBm. Please provide a plot that clearly shows compliance to the 1910MHz band edge. Response : The measurement performed with the spectrum analyzer was showing passing values for the block edge. By doing the same plots with a narrower span, we were able to show that all the signals at and after the block edge are compliant with the –13 dBm limit. Please see the revised report uploaded with this response. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

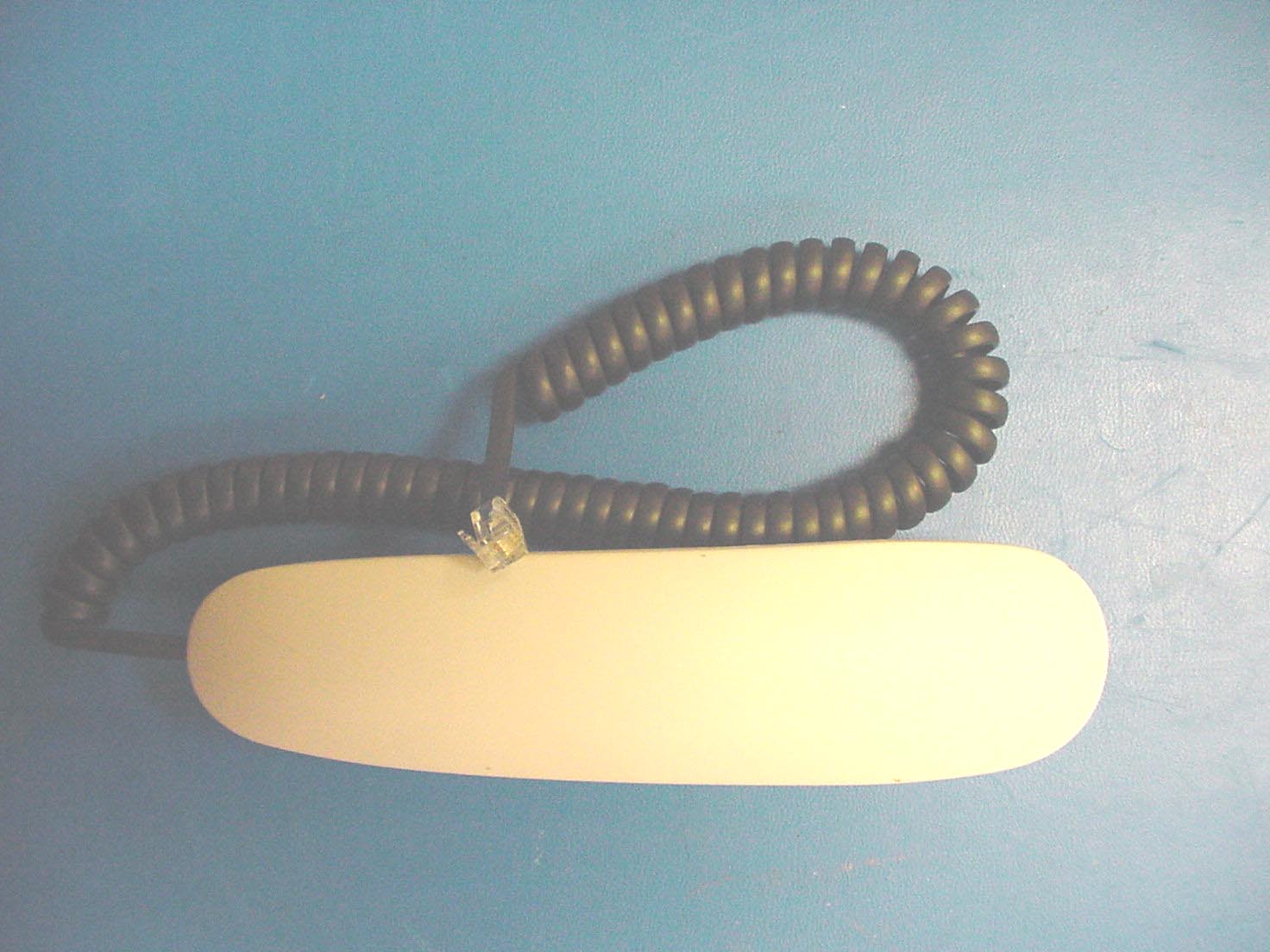

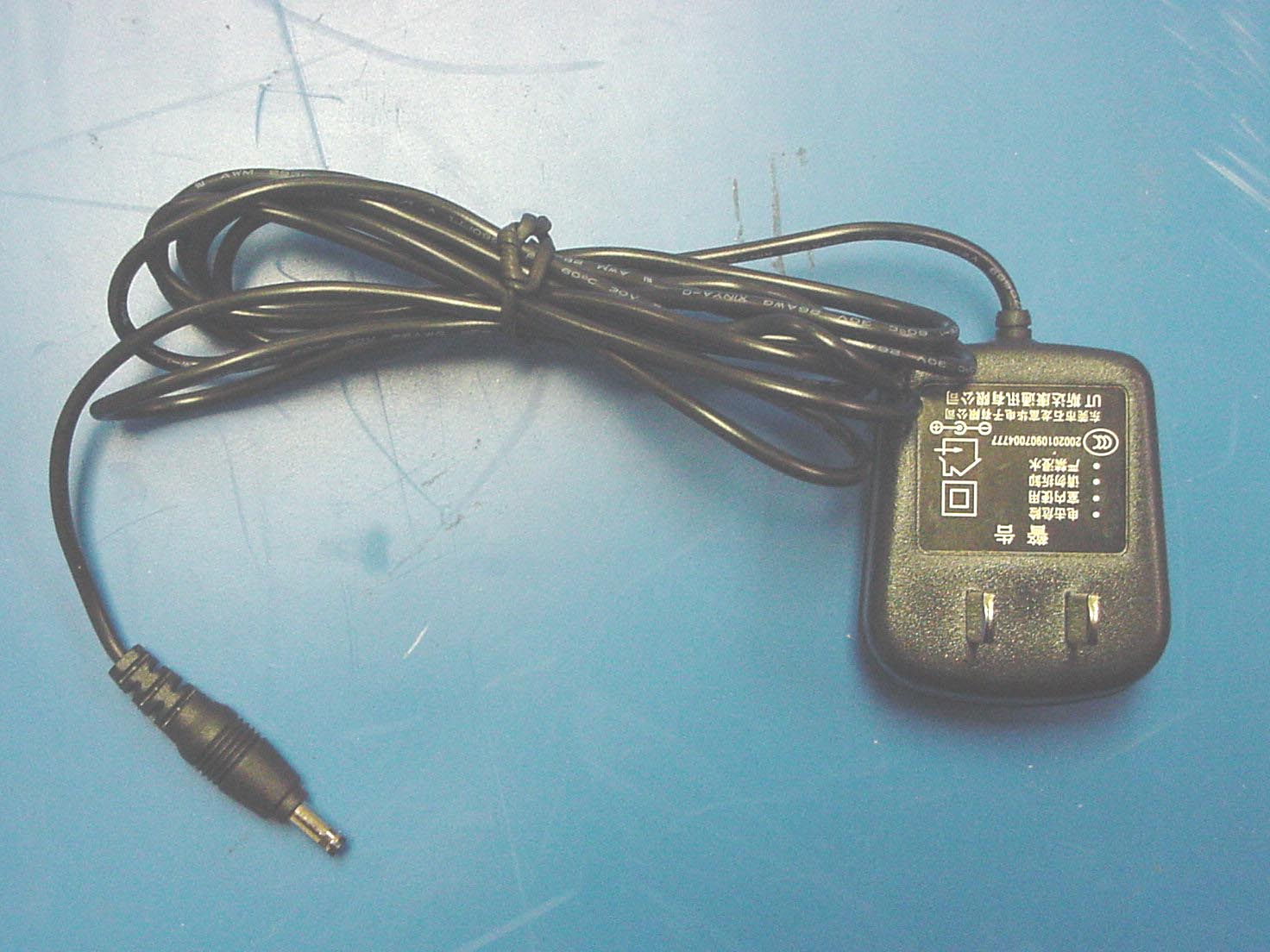

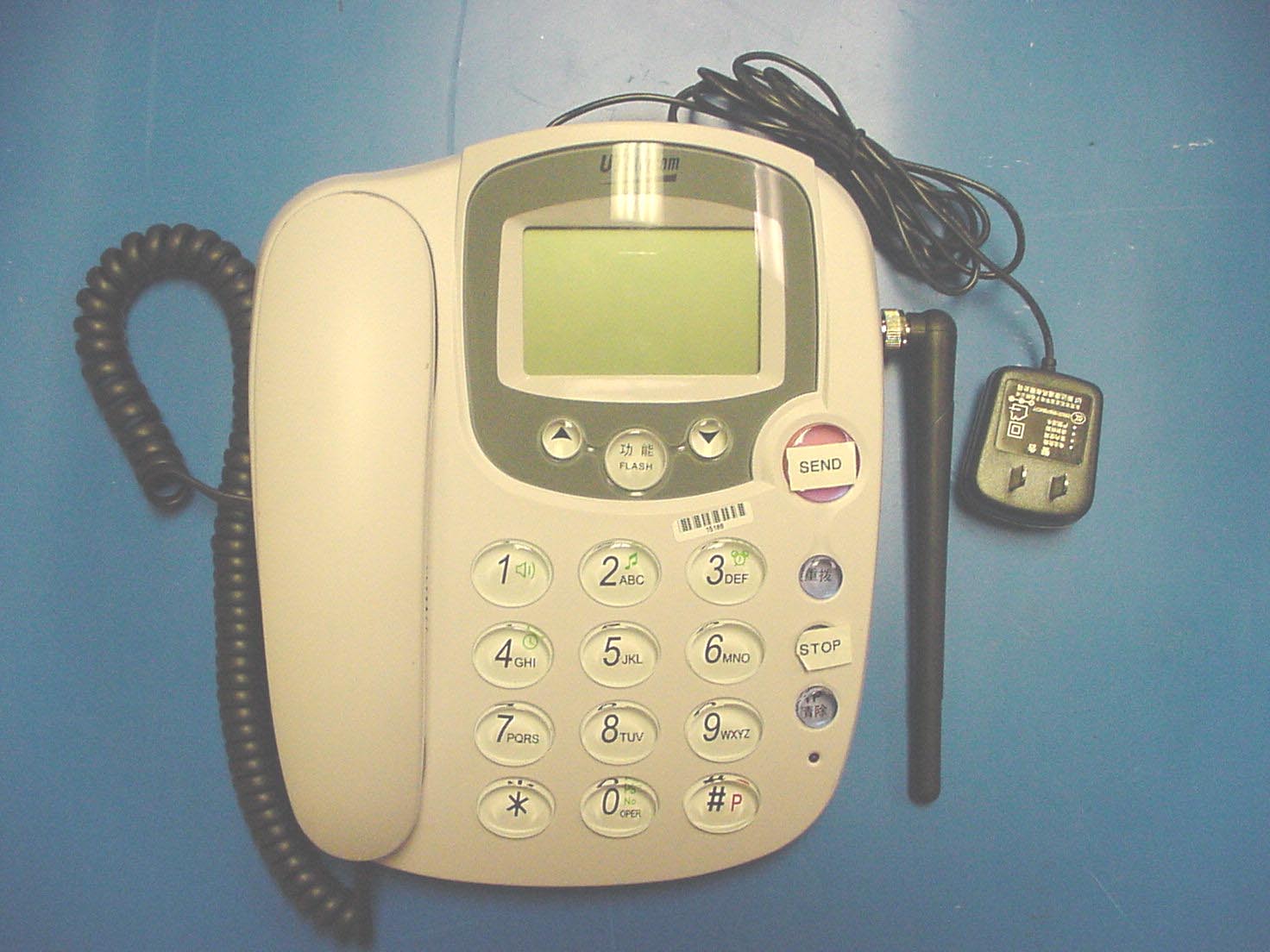

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 43 of 62 APPENDIX J: EXTERNAL PHOTOGRAPHS PHOTOGRAPH 5: TOP VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 44 of 62 PHOTOGRAPH 6: BACK VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 45 of 62 PHOTOGRAPH 7: HANDSET FRONT VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 46 of 62 PHOTOGRAPH 8: HANDSET REAR VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 47 of 62 PHOTOGRAPH 9: ANTENNA Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 48 of 62 PHOTOGRAPH 10: 4V DC POWER SUPPLY

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 35 of 62 APPENDIX E: LABEL AND LABEL LOCATION Please see the following page for a photograph of the label location. UTStarcom, Inc. Model: UTS801FSU FCC ID: O6YUTS-801FSU Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 36 of 62 PHOTOGRAPH 1: FCC ID LABEL LOCATION FCC ID LABEL HERE

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 49 of 62 APPENDIX K: INTERNAL PHOTOGRAPHS PHOTOGRAPH 11: INSIDE PHONE Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 50 of 62 PHOTOGRAPH 12: INSIDE TOP COVER Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 51 of 62 PHOTOGRAPH 13: INSIDE BACK COVER Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 52 of 62 PHOTOGRAPH 14: INSIDE HANDSET Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 53 of 62 PHOTOGRAPH 15: INSIDE TOP CASE WITH KEYPAD PCB ATTACHED Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 54 of 62 PHOTOGRAPH 16: FRONT VIEW OF LCD Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 55 of 62 PHOTOGRAPH 17: BACK VIEW OF LCD Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 56 of 62 PHOTOGRAPH 18: KEYBOARD PCB TOP VIEW Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 57 of 62 PHOTOGRAPH 19: INSIDE BOTTOM OF CASE WITH RF, POWER PCB’S, AND CONNECTOR Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 58 of 62 PHOTOGRAPH 20: RF PCB IN BOTTOM CASE Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 59 of 62 PHOTOGRAPH 21: CONNECTOR AND RF PCB IN CASE Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 60 of 62 PHOTOGRAPH 22: RF PCB WITHOUT SHIELDS Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 61 of 62 PHOTOGRAPH 23: BATTERY

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 29 of 62 APPENDIX A: RF EXPOSURE COMPLIANCE FCC Rules and Regulations Part 1.1307, 1.1310, 2.1091, 2.1093: 1. General Information: FCCID: O6YUTS-801FSU Environment: General Population/Uncontrolled Exposure Device category: Mobile per Part 2.1091 Modulation Type/Mode: PHS (TDMA-TDD) 2. Operating Configurations and Test Conditions: 2.1 Antenna Type(s): Antenna Type Gain (dBi) Numeric Gain Whip Omni 2.2 1.65 Frequency Range Frequency Tolerance (ppm) Emission Designator 1893.65-1909.85 1.54 282KDXW 2.2 dBi Antenna Output Power (Worst Case) Time averaging as an inherent property (100 % Duty Cycle) (W) Time averaging as an inherent property (13.0 % Duty Cycle, -8.8 dB) (W) ERP 0.0688 (18.38 dBm) 0.0090 (9.58 dBm) EIRP 0.100 (20.0dBm) 0.0131 (11.2 dBm) Conducted 0.1023 (20.1 dBm) 0.0134 (11.3 dBm) Rated 0.010 (10.0 dBm) 0.0013 (1.2 dBm) Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 30 of 62 3. MPE Calculation: The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters: The Electric field generated for a 1mW/cm 2 exposure (S) is calculated as follows: Z E S 2 = where: S = Power density E = Electric field Z = Impedance. ZSmVE×=)/( 1 mW/cm 2 = 10 W/m 2 The impedance of free space is 337 ohms, where E and H fields are perpendicular. Thus: 37710)/(×=mVE = 64.1 V/m MPE Calculation: The maximum distance, from the antenna at which MPE is met or exceeded, is calculated from the equation relating field strength E in V/m, transmit power P in Watts, transmit antenna numeric gain G, and separation distance in meters above and solving for d below: d GP mVE ×× = 30 )/( and )/( 30 mVE GP d ×× = Power density: 3770 )/( 2 2 E cmmWP d = The limit for general population/uncontrolled exposure environment above 1500MHz is 1 2 /cmmW. SEPARATION DISTANCE: Antenna Gain (dBi) Separation Distance A 2.2 Power B (Watt) (cm) Duty Cycle (%) 0.0131 0.4 13.0 0.1000 3.6 100.0 Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 31 of 62 Calculations: 12.8% duty cycle = 4.61 65.10131.030 013.0 ×× = m 100% duty cycle = 4.61 65.1100.030 036.0 ×× = m Notes: A = Distances are calculated for the largest (worst-case) separation distance as applicable B = Measured radiated output power EIRP C ONCLUSION: The device complies with the MPE requirements by providing a safe separation distance between the antenna, including any radiating structure, and any persons. Proposed RF exposure safety information to include in User’s Manual: CAUTION: Antenna Installation Requirement The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Engineering and Testing for EMC and Safety Compliance CERTIFICATION APPLICATION REPORT FCC PART 24 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web Site: www.rheintech.com Herndon, VA 20170 Contact: [email protected] Applicant: UTStarcom, Inc. Phone: 732-767-5263 33 Wood Avenue South Fax: 732-548-1099 3 rd Floor Iselin, NJ 08830 USA Contact: Scott Black ([email protected]) FCC ID: O6YUTS-801FSU GRANTEE FRN NUMBER: 0005823877 PLAT FORM: Transmitter RTL WORK ORDER NUMBER: 2003072 MODEL: UTS801FSU RTL QUOTE NUMBER: QRTL03-821 DATE OF TEST REPORT: July 16, 2003 American National Standard Institute: ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1 FCC Classification: PCB – Licensed Base Station for Part 24 FCC Rule Part(s): Part 24: Personal Communications Services Subpart E – Broadband PCS Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Power (W) Frequency Tolerance Emission Designator 1893.65-1909.85 0.103 1.54 ppm 282KDXW I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the FCC Part 2, FCC Part 15, FCC Part 24, ANSI C63.4, ANSI/TIA/EIA603 and ANSI/TIA/EIA 603-1. Signature: Date: July 16, 2003 Typed/Printed Name: Desmond Fraser Position: President Note: This report may not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 2 of 64 TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................... 5 1.1 SCOPE .......................................................................................................................................................................... 5 1.2 TEST FACILITY .......................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S)/GRANT(S)..................................................................................................................... 5 2 EQUIPMENT INFORMATION .......................................................................................................................................... 6 2.1 JUSTIFICATION .......................................................................................................................................................... 6 2.2 EXERCISING THE EUT .............................................................................................................................................. 6 2.3 TEST SYSTEM DETAILS ........................................................................................................................................... 6 2.4 CONFIGURATION OF TESTED SYSTEM ................................................................................................................ 6 3 DC VOLTAGES AND CURRENTS - PART §2.1033(C)(8) .............................................................................................. 7 4 RF POWER OUTPUT - §2.1046 .......................................................................................................................................... 8 4.1 ANSI/TIA/EIA-603-1992, SECTION 2.2.1 TEST PROCEDURE ............................................................................... 8 4.2 EFFECTIVE ISOTROPIC RADIATED POWER LIMITS - §24.232 TEST PROCEDURE ....................................... 8 4.3 RF POWER TEST EQUIPMENT................................................................................................................................. 9 4.4 EFFECTIVE RADIATED POWER TEST DATA- §2.1046 ...................................................................................... 10 5 OCCUPIED BANDWIDTH - §2.1049; NECESSARY BANDWIDTH §2.202 (OCCUPIED BANDWIDTH) – PART 24.238 (B) (EMISSION BANDWIDTH) ..................................................................................................................................... 11 5.1 TEST PROCEDURE................................................................................................................................................... 11 5.2 OCCUPIED BANDWIDTH TEST EQUIPMENT ..................................................................................................... 11 5.3 TEST DATA (CHANNEL 50: OCCUPIED BANDWIDTH = 282 KHZ) ................................................................ 12 6 CONDUCTED SPURIOUS AND HARMONIC EMISSIONS - §2.1051 ........................................................................ 13 6.1 TEST PROCEDURE................................................................................................................................................... 13 6.2 RF POWER TEST EQUIPMENT............................................................................................................................... 13 6.3 CONDUCTED SPURIOUS AND HARMONIC TEST DATA - §2.1051.................................................................. 14 7 RADIATED SPURIOUS AND HARMONIC EMISSIONS - §2.1053.............................................................................17 7.1 RADIATED SPURIOUS AND HARMONIC EMISSIONS - §2.1053 ...................................................................... 17 7.2 RADIATED SPURIOUS TEST EQUIPMENT .......................................................................................................... 17 …

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 40 of 62 APPENDIX I: TEST PHOTOGRAPHS PHOTOGRAPH 2: RADIATED FRONT VIEW WITH WHIP ANTENNA Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 41 of 62 PHOTOGRAPH 3: RADIATED BACK VIEW WITH WHIP ANTENNA Rhein Tech Laboratories Client: UTStarcom 360 Herndon Parkway Model: UTS801FSU Suite 1400 FCC ID: O6YUTS-801FSU Herndon, VA 20170 http://www.rheintech.com FCC: Part 24 Page 42 of 62 PHOTOGRAPH 4: CONDUCTED FRONT VIEW WITH WHIP ANTENNA
