RPC/RP Configuration RPC/RP Manual WLL-RPC/RP-IN/UM-1.0 19June2000 4-12 Figure 4-13: RPC Window 4.2.1 Set Time To set the system time, follow the procedures below: 1. Click the Set Time option on the Configuration pull-down menu. The Set Time window appears, as shown in the figure below. Figure 4-14: Set Time Window 2. By default the RPC time is set to the current time of the PC. Set new date and time to RPC if necessary. Make necessary adjustment using the Arrow RPC/RP Manual RPC/RP Configuration 19June2000 WLL-RPC/RP-IN/UM-1.0 4-13 buttons in the fields. Click OK to accept the setting or Cancel to stop the transaction. 4.2.2 RPC Change Sometimes the operation data for an RPC may not be compatible to the hosting RPC. Use this function to make changes to the SDM (System Data Memory) so that it can accommodate the hosting RPC. Before making any change, the RPC device manager will disconnect from the RPC. 1. From the Configuration main menu, select RPC Change. This opens the RPC Assignment window, as illustrated in the figure below. Figure 4-15: RPC Assignment Window 2. Select the target RPC and click OK. This will change the SDM to fit the target RPC. 3. If this command doesn’t work, exit the current Netman session and restart. 4.2.3 Unit Control The Unit Control option can be accessed through the Maintenance pull-down menu. It has the following functions: • Blockade: block or unblock RPIF, E1IF, RPCs, RPs • TimeSlot Layout: configure the RP control channel time slot • Maintenance: set or cancel system maintenance • Master RP: change Master RP • RPC Sync: RPC Synchronization • Online Trace: retrieve the information of the active RP RPC/RP Configuration RPC/RP Manual WLL-RPC/RP-IN/UM-1.0 19June2000 4-14 4.2.3.1 Blockade/Unblockade The Blockade option is used to block or unblock RP interface, E1 interface, RPs, or the entire RPC. Use this function to block traffic from a malfunctioning device. It is also used when units are replaced. Netman 2000 must be connected to the WLL/V5WLL in order to perform this function. Another important usage of this option is to regain the synchronization of the slave RPCs upon the recovery of the master RPC. 1. From the Maintenance main menu, select Unit Control and then Blockade. This opens the Blockade/Unblockade window, as displayed in the figure below. Figure 4-16: Blockade/Unblockade Window Field Name Description RPC The entire RPC, including all the units under its control E1-I/F #... E1 interface. Each RPC uses 4 E1 interfaces to communicate with WLL/V5WLL. RP-I/F #... RP interface. RPC uss 8 RP interfaces to control RPs. Each RP interface is connected to 4 RPs. All RP All the 32 RPs RP #... Individual RP. There are altogether 32 RPs under each RPC. Blockade If this radio button is selected, the selected unit is blocked. UnBlockade If this radio button is selected, the selected unit is unblocked. Table 4-1: Blockade/Unblockade Window Field Description 2. Select the target E1 interface, RP interface, RP, or RPC, and then select Blockade or Unblockade. Click OK. Selecting RPC will block or unblock all RPC/RP Manual RPC/RP Configuration 19June2000 WLL-RPC/RP-IN/UM-1.0 4-15 the units controlled by the RPC. No new calls will be accepted and all the calls in progress are allowed to complete and then dropped. 3. When the action is implemented, the system displays a message in the Self Message window, and the Status View window will also show the Blockade result, as illustrated in the figure below. Use the window to verify the result. Figure 4-17: Self Message and Status View window for Blockade F NOTE: If an RPC or all RPs are blocked, calls cannot be made. 4. Zero “o” in the Blockade Maint column means the unit is blocked, and dash “- ” means the unit is unblocked. The Status and the Self Messages windows both indicate that RP#1 and RP#2 are blocked. 5. There are two ways to access the Status View window. One is to click Status and then the relevant options: RPC, RPs, RP-I/F Board, E1 Signal, Node-I/F Board, Air Channel, or TimeSlot Status. The other is to click the target item on the left frame of the RPC window. In either case the Status View window opens on the right frame. Of course, one can always access the window by clicking the relevant toolbar. RPC/RP Configuration RPC/RP Manual WLL-RPC/RP-IN/UM-1.0 19June2000 4-16 4.2.3.2 TimeSlot Layout F WARNING: Users are NOT recommended to make changes to the settings of the Time Slot. Use with caution! When connected to an RPC, use this function to reconfigure the RP control channel time slot. This function is used to complete the RP configuration and make it usable. This function applies to both RPCs and RPs. 1. Before configuring the time slot, use the Blockade function to block the target RPC or PC. 2. From the Maintenance main menu, select Unit Control and then TimeSlot Layout. This opens the Time Slot Layout window, as shown in the figure below. Figure 4-18: Time Slot Layout Window 3. Select the target RPC or RP. 4. Select Measure Level1. If separation is not completed, try another one from Measure Level2 through Measure Level4. Selecting No Selection may accelerate separation. 5. Select No Selection. If selection must be made, select one from Slot #1 through Slot #80. 6. Click OK to close the window. RPC/RP Manual RPC/RP Configuration 19June2000 WLL-RPC/RP-IN/UM-1.0 4-17 7. Unblock the RPC or RP. F NOTE: The Time Slot Layout window is for configuration purpose only. Actual separation is done when the target RPC or RP is unblocked. 4.2.3.3 Maintenance Use this function to set RPC maintenance status, test RPs, and do other configuration. Eligible units are fully installed RPCs and installed RPs. F NOTE: General PSs can not use RP when maintenance is under way. 1. From the Maintenance main menu, click Unit Control, and then Maintenance. The Set/Cancel Maintenance window opens, as displayed in the figure below. Figure 4-19: Set / Cancel Maintenance Window 2. Select the target RPC or RP, and click Set to set t…

Text truncated - open the document above for the full version.

Wireless Local Loop RPC/RP Installation & Configuration Manual WLL-RPC/RP-IN/UM-1.0 June 19, 2000 RPC/RP Manual WLL-RPC/RP-IN/UM-1.0 19June2000 ii Compiled by (Joseph) Guangping Zhang  Copyright 2000 UTStarcom Inc. All Rights Reserved. This manual has been prepared for UTStarcom customers, UTStarcom personnel, and licensees. The information contained herein is the property of UTStarcom Inc. and shall be neither reproduced nor utilized in any form or by any means, electronically or mechanically, in whole or in part, without prior written approval from UTStarcom Inc. RPC/RP Manual 19June2000 WLL-RPC/RP-IN/UM-1.0 iii Important Safety Instructions ! Safety Information: Installer and User WARNING The device is to be installed and operated at a “fixed location”. The term "fixed location" means that the device is physically secured at one location and is not able to be easily moved to another location. It must be located - (for indoor RPs) up on or near the ceiling away from users or bystanders – (for outdoor RPs) on the roof top site, pole, building, or traffic light away from users or bystanders. It must be mounted in a manner to ensure that a minimum separation distance of 20cm is normally maintained between all users, bystanders and the antenna (including any radiating structure). The installer may be required to perform an MPE evaluation and an Environmental Assessment (EA) of the location at the time of licensing per CFR 47 Part 1.1307. Fixed mounted antennae that are co-located with other antennae must satisfy the co-location requirements of Part 1.1307. Limits: The limit for general population/uncontrolled environment exposures is 1 2 /cmmWfor the band 1895-1910 MHz. MPE evaluation: The following calculations are provided for the more restrictive limit: uncontrolled environment/general population. The calculated minimum safe distance, Radii(cm), is approximately 10 times lower than the minimum required installation distance of 20 cm per Part 2.1091. RPC/RP Manual WLL-RPC/RP-IN/UM-1.0 19June2000 iv Therefore, the transmitter model numbers EA7H74B and EA7H75B complies with the MPE requirements by providing a safe separation distance between the antenna (including any radiating structure) and any persons. The calculations were performed using formulas found in OET Bulletin 65 Edition 97-01(1997). Transmitter Specifications: Antenna Type Gain (dBi) Output power EIRP (dBm) Output Power (dBm) Base stations M/N Minimum Installation Distance (cm) 2.4 21.4 19 dBm (Peak) EA7H74B 20 Built-in 2.4 12.4 10 dBm (avg) EA7H74B 20 7 26 19 dBm(Peak) EA1H75B 20 Omni- Directional 7 17 10 dBm (avg) EA1H75B 20 MPE Radii (m) For general population/uncontrolled environment Power P(W) Max. Peak Antenna G numeric Radii(cm) Base stations M/N 0.08 1.7 1.5 EA7H74B 0.08 5.0 2.5 EA1H75B General Safety Instructions: • The sign on the top right corner is intended to alert the user the presence of important operation and maintenance (service) instructions in the literature accompanying the product. Also notice warnings such as “WARNING!” or “CAUTION.” • When installing, operating, or maintaining the system, please follow the basic safety procedures in order to reduce the risk of fire, electric shock, and injury to persons, as listed below: • Read and understand all instructions. • Follow all warnings and instructions marked on this product. • For information on proper mounting instructions, consult the Installation Manual provided with this product. • Install only equipment identified in the Installation Manual provided with this product. Use of other equipment may result in improper connection of circuitry leading to fire or injury to persons. RPC/RP Manual 19June2000 WLL-RPC/RP-IN/UM-1.0 v • The telecommunication interfaces should not leave the building unless connected to telecommunication devices providing primary and secondary protection, as applicable. • This product should only be operated from the type of power source indicated on the marking label. • This equipment must be provided with a readily accessible disconnect device as part of the building installation. • Installation must include an independent frame ground drop to building ground. Refer to installation instructions. • Do not use this product near water, for example in a wet basement. • Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. • Use caution when installing or modifying telecommunications lines. • Never install telecommunications wiring during a lightning storm. • Never install telecommunications in wet locations. • Never touch uninsulated telecommunications wires or terminals unless the telecommunications line has been disconnected at the network interface. • Never touch uninsulated telecommunications wires or terminals carrying direct current or ringing current or leave this wiring exposed. Protect and tape such wiring and terminals to avoid risk of fire, electric shock, and injury to service personnel. • Never push objects of any kind into this product through slots as they may touch dangerous voltage points or short-out parts that could result in a risk of fire or electrical shock. Never spill liquids of any kind on this product. • Slots and openings in the unit are provided for ventilation, to protect it from overheating. These openings must not be blocked or covered. This product should not be placed in a built-in installation unless proper ventilation is provided. • To reduce the risk of an electrical shock, do not disassemble this product. Service should be performed by trained personnel only. Opening or removing covers and/or circuit boards may expose you to dangerous voltages or other risks. Incorrect re-assembly can cause electrical shock when the unit is subsequently used. RPC/RP Manual WLL-RPC/RP-IN/UM-1.0 19June2000 vi • This equipment is intended for installation in restricted access locations where access is controlled or where access can only be gained …

Text truncated - open the document above for the full version.

C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 34 of 63 19 EXTERNAL PHOTOGRAPHS Top Indoor RP . Right C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 35 of 63 Left Bottom C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 36 of 63 Back

C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 25 of 63 14 LABEL INFORMATION FCC ID L ABEL L OCATION OF L ABEL ON EUT UTStarcom, Inc. Model: UTS-EA7H74B FCC ID: O6YUTS-EA7H74B

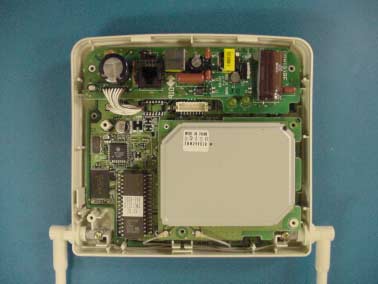

C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 29 of 63 18 INTERNAL PHOTOGRAPHS TOP COVER BOTTOM COVER C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 30 of 63 Component side of main PCB Solder side of main PCB C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 31 of 63 Component side of power PCB Solder side of power PCB C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 32 of 63 SOLDER SIDE OF RF PCB COMPONENT SIDE OF RF PCB C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 33 of 63 INSIDE TOP COVER REMOVED

C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA7H74B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA7H74B Page 26 of 63 15 PRODUCT DESCRIPTION Indoor Type RP Item Specifications RF output power average (Peak) 10 mW (80 mW) Sensitivity (Static BER = 1%) 14 dB μV Antenna (Diversity) Built-in antenna (2 branch 2.4 dBi) Diversity RX (uplink) Antenna selection diversity (frame by frame) TX (downlink) Transmitter antenna selection diversity (2 branch) Air interface Based on RCR STD-28 ver.2 RPC interface Proprietary BRI equivalent (4B+D+K) x 1 Speech cording rate 32 kbps (ADPCM) x 3 or 4 Maximum wire line length (⇔ RPC) km (φ 0.4) 5.0 km (φ 0.5) Maximum power consumption Approx. 3 W Power source Line power feeding (phantom) from RPC 56 - 116 V DC Operational Environment Temperature 0° C to +50° C Humidity Less than 95 % (non-condensing) Size 154(H) x 142(W) x 47(D) mm Weight Approx. 0.6 kg Line connection Modular connector Battery backup None

C OMPANY N AME : UTS TARCOM , I NC . EUT: UTS-EA1H75B W ORK O RDER N UMBER : 2000322 FCC ID: O6YUTS-EA1H75B Page 29 of 46 16 FCC RULES AND REGULATIONS PART 1.1307, 1.1310, 2.1091, 2.1093: RF EXPOSURES COMPLIANCE 16.1 S UGGESTED G RANT N OTES : 10 mW Outdoor unit RP: The antenna(e) (including any radiating structure) used for this outdoor transmitter is to be fixed-mounted on outdoor permanent structures providing a separation distance of at least 20 cm from all persons during normal operation. The maximum radiated output power at each antenna must satisfy the MPE categorical exclusion requirements per Part 2.1091. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). 16.2 SAFETY INFORMATION: 16.2.1 Installer and User WARNING The following instructions will be placed in the user manual instructing installers and users to maintain the MPE distances (or Radii) during normal operation of the transmitter. The device is to be installed and operated at a “fixed location”. The term "fixed location" means that the device is physically secured at one location and is not able to be easily moved to another location. It must be located on the roof top site, pole, building, or traffic light away from users or bystanders. It must be mounted in a manner to ensure that a minimum separation distance of 20cm is normally maintained between all users, bystanders and the antenna (including any radiating structure). The installer may be required to perform an MPE evaluation and an Environmental Assessment (EA) of the location at the time of licensing per CFR 47 Part 1.1307. Fixed mounted antennae that are co- located with other antennae must satisfy the co-location requirements of Part 1.1307. 16.2.2 Limits: The limit for general population/uncontrolled environment exposures is 1 2 /cmmW for the band 1895-1910 MHz. 16.2.3 MPE evaluation: The following calculations are provided for the more restrictive limit: uncontrolled environment/general population. The calculated minimum safe distance, Radii(cm), is approximately 10 times lower than the minimum required installation distance of 20 cm per Part 2.1091. Therefore, the transmitter UTS-EA1H75B complies with the MPE requirements by providing a safe separation distance between the antenna (including any radiating structure) and any persons. The calculations were performed using formulas found in OET Bulletin 65 Edition 97-01(1997). COMPANY NAME: UTSTARCOM, INC. EUT: UTS-EA1H75B WORK ORDER NUMBER: 2000322 FCC ID: O6YUTS-EA1H75B Page 30 of 46 16.3 TRANSMITTER SPECIFICATIONS: Antenna Type Gain (dBi) Output Power Peak (dBm) Duty Cycle (%) Base stations M/N Minimum Installation Distance (cm) Omni- Directional 7 19 dBm (80mW) 100 UTS- EA1H75B 20 16.4 MPE RADIUS FOR GENERAL POPULATION/UNCONTROLLED ENVIRONMENT Power P(W) Max. Peak Antenna numeric G Radius(cm) Base stations M/N 0.08 5.0 (7 dBi) 2.5 UTS- EA1H75B

COMPANY NAME: UTSTARCOM, INC. EUT: UTS-EA7H74B WORK ORDER NUMBER: 2000322 FCC ID: O6YUTS-EA7H74B Page 23 of 63 12.2.2 Frequency Stability as a function of Temperature variation RP Voltage Frequency Stability Nominal Voltage 5.2V 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.44.64.855.25.45.65.86 Voltage PPM 12.3 TEST EQUIPMENT Temperature Chamber Tenney TH65 s/n 11380 Frequency Counter HP8901A (Frequency Mode) s/n 2545A04102 13 FCC RULES AND REGULATIONS PART 2.202: NECESSARY BANDWIDTH AND EMISSION BANDWIDTH Modulation : TDMA Type of Emission: DXW Necessary Bandwidth: (measured at 99% power bandwidth) Bn = 280 kHz

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056; Metro: 703-471-6441 TYPE CERTIFICATION REPORT UTStarcom, Inc. 33 Wood Avenue South 3 rd Floor Iselin, NJ 08830 732-767-5263 (Scott Black) MODEL: UTS-EA7H74B FCC ID: O6YUTS-EA7H74B September 21, 2000 STANDARDS REFERENCED FOR THIS REPORT PART 2: 1999 FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS PART 15: 1999 §15.109: RADIATED EMISSIONS LIMITS PART 24 (E): 1998 PERSONAL COMMUNICATIONS SERVICES – BROADBAND PCS ANSI C63.4-1992 STANDARD FORMAT MEASUREMENT/TECHNICAL REPORT PERSONAL COMPUTER AND PERIPHERALS ANSI/TIA/EIA603- 1992 LAND MOBILE FM OR PM COMMUNICATIONS EQUIPMENT MEASUREMENT AND PERFORMANCE STANDARDS ANSI/TIA/EIA 603-1-1998 ADDENDUM TO ANSI/TIA/EIA 603-1992 FCC Rules Parts Frequency Range Output Power (W) Freq. Tolerance Emission Designator 24(E) 1895-1910 MHz 0.140 EIRP 13 ppm 280KDXW REPORT PREPARED BY: EMI Technician: Daniel Baltzell Administrative Writer: Melissa Fleming Document Number: 2000322 No part of this report may be reproduced without the full written approval of Rhein Tech Laboratories, Inc. COMPANY NAME: UTSTARCOM, INC. EUT: UTS-EA7H74B WORK ORDER NUMBER: 2000322 FCC ID: O6YUTS-EA7H74B Page 2 of 63 TABLE OF CONTENTS 1 Letter of Agency........................................................................................................................................................4 2 Letter of Confidential...............................................................................................................................................5 3 GENERAL INFORMATION.................................................................................................................................6 3.1 TEST FACILITY......................................................................................................................................................6 3.1 RELATED SUBMITTAL(S)/GRANT(S)....................................................................................................................6 4 CONFORMANCE STATEMENT........................................................................................................................7 5 EMISSIONS TEST EQUIPMENT LIST.............................................................................................................8 5.1 TESTED SYSTEM DETAILS..................................................................................................................................10 5.1.1 External Components..............................................................................................................................10 5.1.2 Internal Components...............................................................................................................................10 5.2 CONFIGURATION OF TESTED SYSTEM...............................................................................................................11 5.3 FIELD STRENGTH CALCULATION.......................................................................................................................12 6 CONDUCTED EMISSIONS – POWER LINES...............................................................................................13 6.1 RADIATED MEASUREMENT................................................................................................................................14 7 PART 2.1046 (A) RF POWER OUTPUT: RADIATED – EIRP PART 24.232...........................................15 7.1 TEST PROCEDURE...............................................................................................................................................15 7.1.1 Substitution Method: ERP......................................................................................................................15 7.1.2 Calculation Method: EIRP.....................................................................................................................15 7.2 TEST DATA.........................................................................................................................................................16 7.3 TEST EQUIPMENT................................................................................................................................................16 8 FCC RULES AND REGULATIONS PART 2 §2.1046 (A): RF POWER OUTPUT: CONDUCTED – PART 24.232(C)..............................................................................................................................................................17 8.1 TEST PROCEDURE...............................................................................................................................................17 8.2 TEST DATA.........................................................................................................................................................17 8.3 TEST EQUIPMENT................................................................................................................................................17 9 BAND-EDGE COMPLIANCE - PART 24.229 AND PART 24.238.............................................................18 9.1 TEST PROCEDURE:..............................................................................................................................................18 9.2 TEST DATA.........................................................................................................................................................18 9.3 TEST EQUIPMENT................................................................................................................................................19 10 FCC RULES AND REGULATIONS PART 2 §2.1053 (A): FIELD STRENGTH OF SPURIOUS RADIATION................................................................................................................................................................…
