O6ZC41-500Client Receiver

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 6. User manual 3 Welcome! Now that you’re plugged in, it’s time to start enjoying access to over 285 channels of TV programming, satellite music and a great selection of the biggest box office movies from DIRECTV CINEMA ™ . We’ll take you step by step through everything from pushing the POWER button to searching for and finding your favorite programs. This user guide applies to the DIRECTV ® HD DVR and the Genie™ (Adv Whole-Home) HD DVR and Clients. Because this user guide was designed to accommodate several models, your receiver and its user interface may vary slightly from what is shown here. Online Manuals and Other Resources To view the most up-to-date manuals for DIRECTV Receivers and other equipment, please visit www.directv.com/manuals or go to www.directv.com and search for keyword “manuals”. You can also visit www.directv.com to manage your account, and find information about DIRECTV service, programming packages, special promotions, and much more. Getting Connected If a professional installed your DIRECTV ® HD DVR and any Clients, you are ready to start watching TV. If your equipment was not professionally installed or you just added a surround sound system or other devices equipment, please see Appendix 1, “Setup and Activation”. IMPORTANT: • You must subscribe to HD Access or DIRECTV Advanced Receiver Service (ARS) to view the HD channels included in your programming package. • DIRECTV hardware and programming and HD fees available separately. For information and pricing regarding programming and HD Access or ARS, please visit directv.com. WELCOME TO THE DIRECTV FAMILY! 6 DIRECTV ® HD DVR RECEIVER USER GUIDE SAFETY & CARE Your DIRECTV ® Receiver has been designed and manufactured to stringent quality and safety standards. You should, however, be aware of the following important precautions for safe and optimal use of the equipment. Meaning of symbols printed on the rear panel of the product: This symbol indicates that dangerous voltage with a risk of electric shock is present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. 9. Use only the power supply (power cord) that came with your DIRECTV Receiver. Failure to use the authorized power supply (power cord) may cause electric shock, fire, bodily injury and/or property damage. If the power supply (power cord) becomes damaged or needs to be replaced, please contact DIRECTV Customer Service to obtain an authorized replacement. 10. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 11. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles and the point where they exit the apparatus. 12. Use only attachments/accessories specified by the manufacturer. 13. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 14. Unplug this apparatus during lightning storms or when unused for long periods of time. 15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 7 SAFETY & CARE CAUTION: Avoid moisture to reduce the risk of fire or electric shock. The DIRECTV ® Receiver should not be used near water (for example, kitchen sink, bathtub, pool, damp basement). Also, never spill liquid on the receiver. Do not place vases or other vessels containing liquid on top of it. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. WARNING: Use only the power supply (power cord) that came with your DIRECTV receiver. Failure to use the authorized power supply (power cord) may cause electric shock, fire, bodily injury and/or property damage. If the power supply (power cord) becomes damaged or needs to be replaced, please contact DIRECTV Customer Service to obtain an authorized replacement. IMPORTANT: Be sure not to place your DIRECTV ® Receiver near anything WET or HOT! If this product is rated at 240VAC, a suitable attachment plug should be used. TIP: We highly recommend plugging the DIRECTV ® Receiver into a surge protector to prevent damage from fluctuations in your power supply. CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN! • Ensure proper ventilation — the vent slot…

Text truncated - open the document above for the full version.

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. {HUMAX Co., Ltd} would like the following documents regarding this submission for FCC ID: {O6ZC41-500} to be kept confidential. 1. Appendix4. Block Diagram. 2. Appendix5. Schematics. 3. Operation Description 4. Appendix7. Part list The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Inseok Seo / Senior Manager HUMAX Co., Ltd.

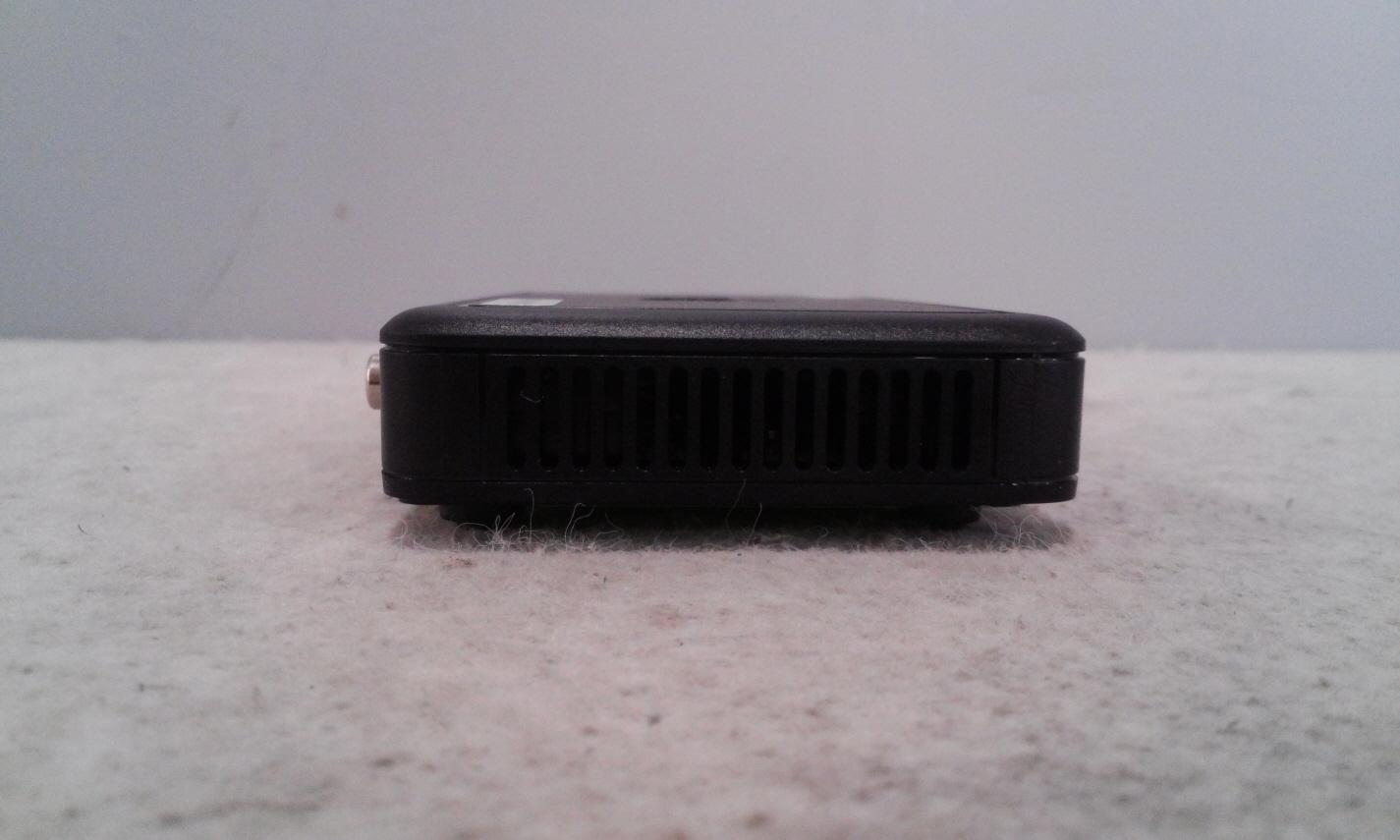

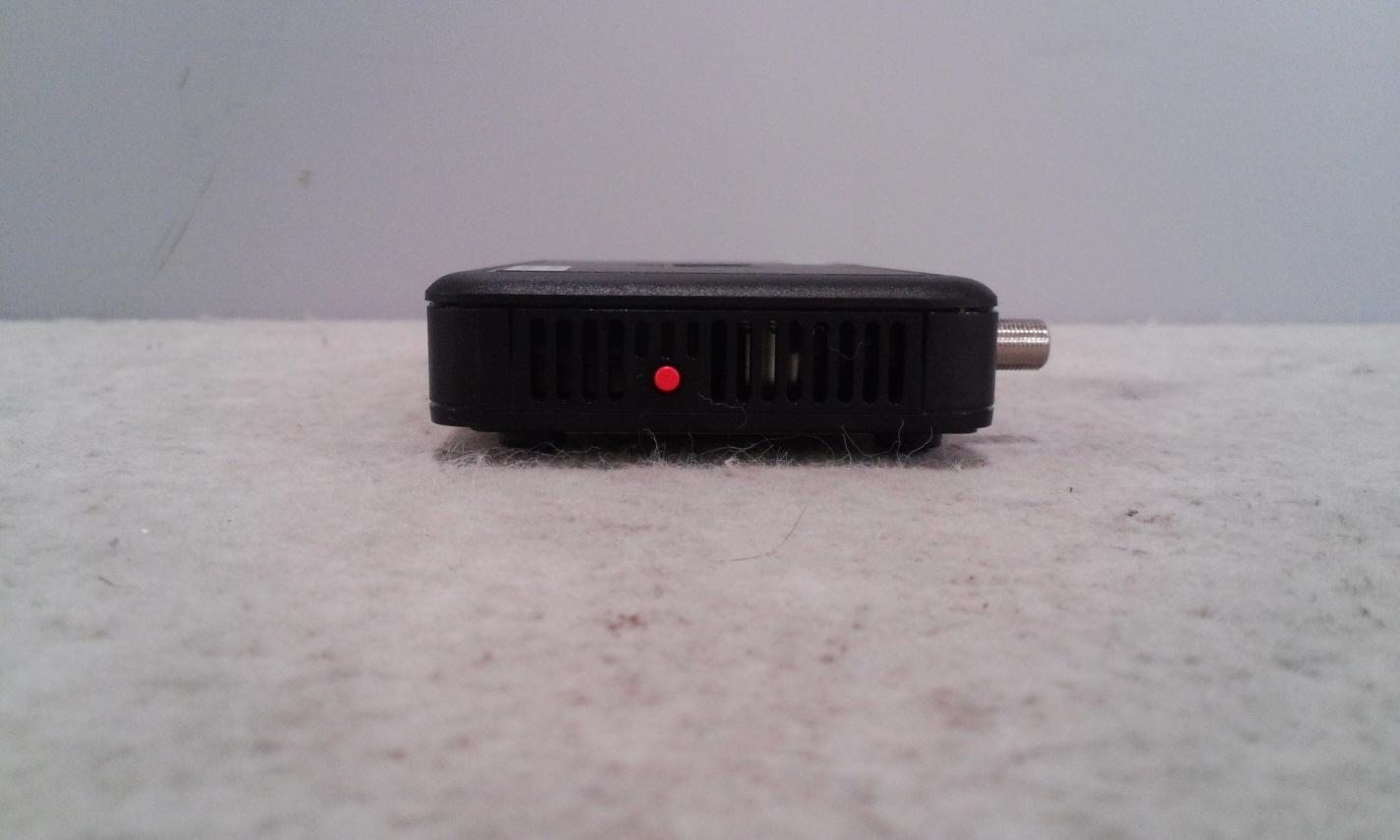

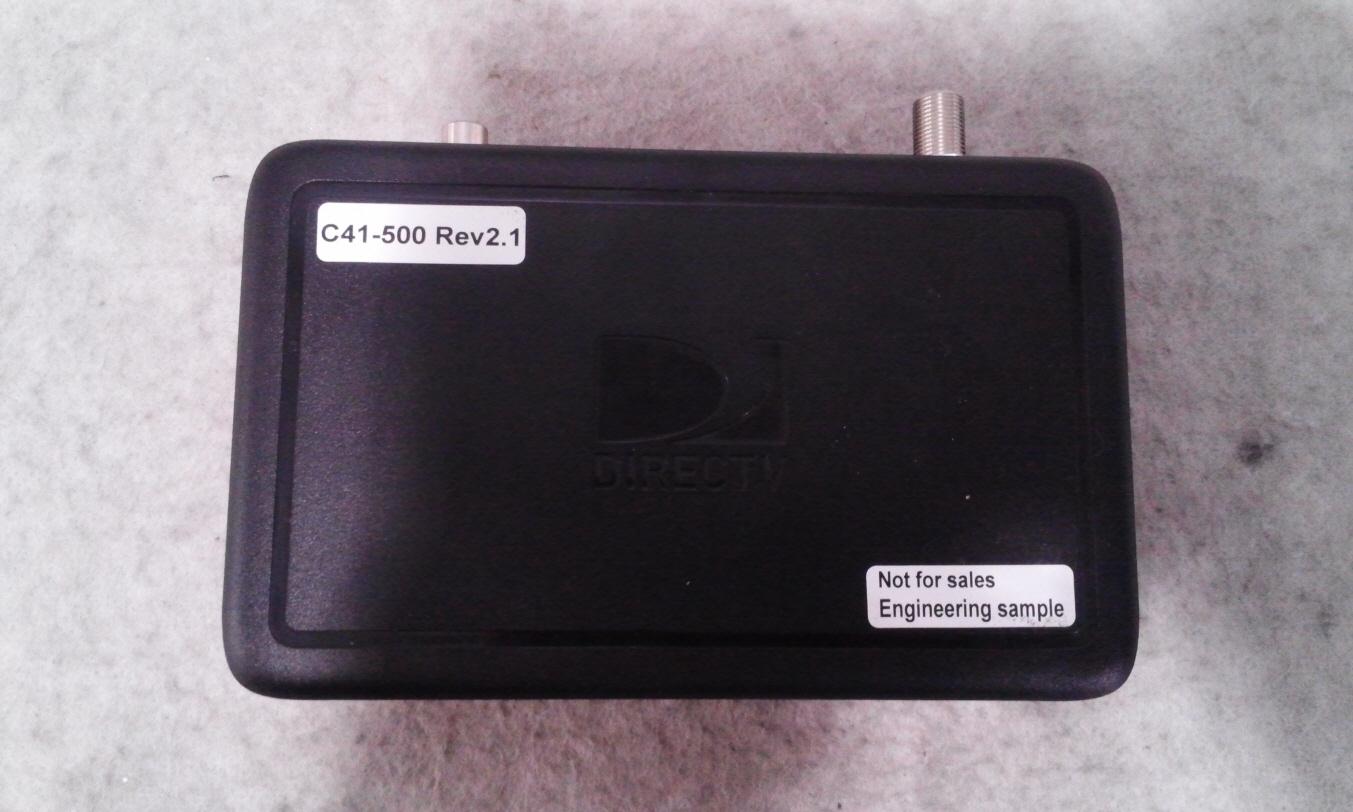

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 1 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 2 External photos of EUT - Front - Rear http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 2 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Top - Bottom http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 3 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Left - Right

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Label Location

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 3 Internal photos of EUT - Main board top - Main board bottom

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 1 of 40 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. FCC TEST REPORT Test report No.: EMC- FCC- R0091 FCC ID: O6ZC41-500 Type of equipment: Client Receiver Model Name: C41-500 Applicant: HUMAX Co., Ltd. Max.RF Output Power: 3.43 dBm FCC Rule Part(s): FCC Part 15 Subpart C 15.247 Frequency Range: 2 425 MHz ~ 2 475 MHz Test result: Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: January 14, 2013 ~ January 17, 2013 Issued date: January 18, 2013 Tested by: Approved by: . YU, SANG HOON KIM, CHANG MIN http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 2 of 40 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description .......................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage .................................................................................................................................................. 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Peak Power Spectral Density ...................................................................................................................... 12 5.4 6 dB Bandwidth(DTS Channel Bandwidth) ............................................................................................... 15 5.5 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS .................................................. 18 5.6 Conducted Emission ................................................................................................................................... 28 5.7 RF Exposure ............................................................................................................................................... 38 6. Test equipment used for test ........................................................................................................................... 40 Appendix 1 Test setup photos Appendix 2 External photos of EUT Appendix 3 Internal photos of EUT Appendix 4 Block diagram Appendix 5 Schematics Appendix 6 User manual Appendix 7 Part list Appendix 8 Layout diagram Appendix 9 Antenna Specification http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 3 of 40 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: HUMAX Co., Ltd Address: HUMAX Village, 11-4, Sunae-dong, Bundang-gu, Seongnam-si, Gyeonggi- do, 463-825, KOREA Telephone number: +82-31-776-6400 Facsimile number : +82-31-776-6149 Contact person: Inseok Seo / Senior Engineer Manufacturer : Flextronics Electronics Technology (ShenZhen) Co., Ltd. Address: 89, YongFu Rd, TongFuYu Ind Park, FuYong, BaoAn, SHZ, 518103 C http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 4 of 40 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC Compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea Telephone Number: 82 31 336 9919 Facsimile Number: 82 31 336 4767 Certificate CBTL Testing Laboratory, KOLAS NO.: 231 FCC Filing No.: 508785 VCCI Registration No.: C-1713, R-1606, T-258 SITE MAP SUWON-CITY EMC Compliance Ltd. http…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 1 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 1 Test setup photos - Below 1 GHz - Above 1 GHz http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0091 EMC compliance Ltd. Page: 2 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. - Below 30MHz
