Chapter 1: Getting started This chapter tells you everything you need to know before you start setting up and using your DIRECTV ® High-Definition Receiver. It includes information on: • Box contents • Front panel controls and lights • Back of the DIRECTV Receiver • Installing the batteries in the remote control • Inserting the Access Card AAA size batteries DIRECTV ® Receiver RJ-11 Telephone cord A/V cable Remote control RF coaxial cable Access Card VCR control cable Box contents Welcome! The first step in setting up your DIRECTV Receiver is to unpack the box and familiarize yourself with its contents. If you are missing any items, contact your Samsung dealer. S-Video cable DVI cable Component Video Cable Front panel controls and lights Now that you’ve unpacked the box, take a moment to take a look at the buttons and lights on the front of your DIRECTV ® High-Definition Receiver. (You need to open the front door by holding both sides of the front panel and pulling it towards you.) POWER button and light Push this button to turn your DIRECTV Receiver on or off. The light glows when power is on. Remote control sensor Point your remote control at this sensor when operating your receiver. INFO Push this button to display TV program information. EXIT Push this button to clear on-screen displays and return to TV program viewing. MENU Push this button to display the Main Menu. Arrows Push these buttons to navigate in the on-screen Guide and menu system. OK Push this button to select highlighted items on Guide and Menu screens. POWER light OK Menu EXIT Arrows Remote control sensor INFO POWER button DVI/ HDCP OUT Back of the DIRECTV ® High-Definition Receiver The diagram below illustrates the location of the input and output jacks on the back of the receiver. These illustrations may help you as you set up your DIRECTV Receiver. Step-by-step setup instructions appear in Chapter 3. AIR IN The cable from an off-air TV antenna (notfrom the satellite dish) connects to this jack. Both standard analog (NTSC) and high definition digital (ATSC) program broadcasts can be received through a single antenna connected to this jack. SATELLITE IN The RG-6 cable from the satellite dish connects to this jack. CABLE IN The RG-6 cable from cable TV provider (if you have one) connects to this jack. ACCESS CARD slot This slot holds the Access Card (which allows you to view DIRECTV ® programming). VIDEO OUT Using standard video cables, these jacks connect your DIRECTV Receiver to your TV or VCR. AUDIO OUT (L1, R1, L2, R2) Using standard stereo audio cables, these jacks provide stereo audio to your TV, VCR, or A/V receiver. AUDIO (Lt, Rt) Using standard stereo audio cables, these jacks provide an A/V receiver capable of decoding Dolby Prologic signals with the left, right, center, and surround audio channel signals. S-VIDEO This jack connects your DIRECTV Receiver to a TV or VCR that accepts S-Video input. Inserting the Access Card The next step is to insert your Access Card into your receiver. (You will not be able to view DIRECTV ® programming unless the Access Card is properly inserted into the DIRECTV ® High-Definition Receiver.) For some receivers, the card may already be inserted when you unpack the box. 1Locate the ACCESS CARD slot. The slot is located on the back of the DIRECTV Receiver. 2Insert the Access Card. Make sure the side with the bar code is facing down, and the arrow is pointing away from you. The Access Card should only be removed when replacing the card with a new one provided by DIRECTV or your program provider. DVI/ HDCP OUT Access Card (Top view) Before making connections The next step is to make the necessary connections. Before you begin, please note the following important safety and setup tips. Protect your components from power surges • Always turn off and unplug your DIRECTV Receiver, TV, and any other components before connecting or disconnecting any of the cables. Position all cables correctly to avoid audio hum or interference • After connecting the components, please run the audio/video cables along the side of the TV set, rather than straight down the back of the TV. • Make sure that all cables are plugged or screwed tightly into their jacks. • Please make sure that all antennas and cables are properly grounded. • Whenever possible, route audio and video cables away from power cords. Chapter 3: Setting up and connecting This chapter explains how to setup and start using your DIRECTV ® High-Definition Receiver. Contents include: • Before making connections •Jacks and cables •Connecting your DIRECTV Receiver •Connecting the VCR control cable •Turning on the DIRECTV Receiver for the first time • Adjusting the satellite dish •Testing your DIRECTV Receiver •Setting up local networks • Programming local channels •Activating your DIRECTV account •Upgrades Protect your components from overheating • Do not block ventilation holes in the top of the DIRECTV ® High-Definition Receiver, or any other components. Make sure to position the components so that air can circulate freely. • If you are positioning the components in a stand or rack, make sure to allow for proper ventilation. • Do not stack components. • If you have a stereo amplifier or receiver as a system component, please place it on the top shelf or top rack so that hot air rising from it will not flow around other components. Make strong connections • Make sure you securely connect cables when making connections. When a tight fit makes a secure connection difficult, you can sometimes make it easier by gently twisting the cable-end while pushing it onto the jack. (Important: never twist S-Video or Optical Digital Audio cables — they have specially shaped ends that must be correctly oriented before connecting.) Avoid cable damage • Never kink, bend, or twist optical digital audio cables; doing so might break the fragile optical fibers they contain, rendering them unable to carry a signal. Jacks and cables The illustrations in this sectio…

Text truncated - open the document above for the full version.

9Set the RESOLUTION switch to the highest resolution supported by your TV. (See Chapter 1 for information on resolutions. See your TV owner’s manual for information on your TV’s capabilities.) If you connect your TV to one of the composite video out jacks (Video Out, S- Video Out, or TV Out), and you view a high-definition program with the DIRECTV ® High-Definition Receiver’s RESOLUTION switch set to either 720p or 1080i, the picture will be slightly cropped at the top and bottom (the very top and bottom edges of the image will not appear on the TV screen). To avoid this problem, set the RESOLUTION switch to the 480p/i position if your TV is connected to one of the composite video outputs. 10If you connected your TV using RGB or DVI/HDCP output, set the switch to the left (DVI, RGB). If you connected your TV using the Component output, set the switch to the right (YPbPr). 11If you connected your TV or VCR to the TV OUT RF jack, set the CH3/4 switch to determine the channel used to view DIRECTV ® programming. The position of the CH 3/4 switch on your DIRECTV Receiver should match the setting of the similar CH 3/4 switch on your VCR. 12(Optional) follow the instructions on the next page if you have a VCR and want to hook up the VCR control. 13Plug in the power cords for your TV, A/V receiver, and DIRECTV Receiver. Setting your TV input switch To view any of the programming from your DIRECTV Receiver (satellite, cable, or off-air), set your TV to display the input from the video input jack you used to connect the DIRECTV Receiver. (This is a setting on your TV usually controlled by a Video, Input, or Mode button. See your TV manual for help.) Also, if necessary, set your A/V receiver to play the audio from the audio input jack you used to make the audio connection. See your A/V receiver manual for help. DVI/ HDCP OUT Connecting the VCR control cable The VCR control cable allows your DIRECTV ® High-Definition Receiver to automatically program your VCR to record a TV program. By selecting a Record option from the on-screen Program Guide, you can direct the VCR control cable to flash signals to the VCR’s remote control sensor programming the VCR to tape a TV program for you. To connect the VCR control cable to your DIRECTV Receiver, follow these steps: 1Plug the VCR control cable into the VCR CONTROL jack on the back of the DIRECTV Receiver. 2Remove the backing tape from the adhesive on the other end of the VCR control cable. Stick the VCR control next to the remote control sensor on your VCR. (See the manual for your VCR if you are not sure where its remote sensor is located.) Note: Before you can use the VCR control cable to program your VCR, you must set up the VCR control. See Setting up the VCR controlin Chapter 5 for details. Turning on the DIRECTV ® High-Definition Receiver for the first time You have completed the connection steps and are ready to start using your DIRECTV Receiver. The first step is to turn on the DIRECTV Receiver. 1Turn on your TV and set it to display the signal from your DIRECTV Receiver. If you connected the DIRECTV Receiver to an RF-type input jack, you will need to tune your TV to channel 3 or 4 (depending on how the CH 3/4 switch on the back of the DIRECTV Receiver is set). If you have a VCR, the VCR must be in TV mode or turned off. If you connected the DIRECTV Receiver to video input jacks on your TV, you will need to set your TV to display the input from these jacks. Usually this is done by pressing a Video, Input, or Mode button on your TV’s remote control. (See the manual for your TV if you need help.) 2Press the POWER button on the DIRECTV Receiver’s remote control or on the front of the DIRECTV Receiver. Adjusting the satellite dish If your DIRECTV Receiver is able to acquire the program guide and display TV programs, your satellite dish is setup and working. You can skip ahead to the section on Setting the dish type. If your DIRECTV Receiver cannot acquire the program guide, and you intend to watch DIRECTV ® programming, you may need to adjust the way your satellite dish is installed. To do this, first make sure your TV and DIRECTV Receiver are turned on and connected to each other properly. Then follow the instructions below to use your DIRECTV Receiver’s Menu system to set up your satellite dish. The light on the front panel will turn on. If this is the first time you have turned on your DIRECTV Receiver, it will take a few moments to acquire the program guide from the satellite. During this process, the Progress screen appears. When the program guide has been fully acquired, the Progress screen clears and the TV screen is displayed. You are ready to continue setting up your DIRECTV System. The Installationoption in the SETUPmenu provides access to a variety of important setup controls. The first of these is the Set Dishmenu. The Set Dishmenu allows you to: •Acquire the exact azimuth, elevation, and tilt angles to help you point your dish accurately based on your ZIP code. •Check the setup of your satellite dish using an on-screen signal meter. •Set the dish type (to tell your DIRECTV ® High-Definition Receiver what kind of satellite dish you are using). •Set your dish type automatically. The sections that follow detail each of these procedures. Acquiring the correct dish pointing angles The Dish Pointingmenu item in the Set Dishmenu allows you to find out exactly how to point your satellite dish by entering your ZIP code. If you have not yet successfully aligned your satellite dish, or if you need to realign it, follow these instructions to find the exact angles you should use to point your dish: 1Press the MENU button on your remote control. The Main menu appears. 2Highlight the SETUP menu item, then press the OK button. The SETUPmenu appears. 3Highlight the Installation menu item, then press the OK button. The Installation menu appears. 4Highlight the Set Dish menu item, then press the OK button. The Set Dishmenu appears. 5Highlight theDish Pointing…

Text truncated - open the document above for the full version.























































!"
"%

















































!"  "%




































































    (    )  (= ( ) permanently affixed   (    )     ) (  (  ! ( %




!"
  %



















































!" #"%

















































!" "%' >


















































!" ,"%' >


















































!" "%">


















































!" ,"%">


















































!" "%


















































!" ,"%


















































!" "% $$


















































!"  "% $$


















































!" "%



















































!"  "%



















































!" "% & $


















































!"  "% & $

Test Report No.: NK2CE517 FCC Certification Humax Co., Ltd. FCC ID:O6ZSIR-TS160 Page 1 of 54 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Manufacturer : Humax Co., Ltd. Dates of Issue : July 26, 2002 Humax Venture Tower 271-2, Seohyeon-dong Test Report No. : NK2CE517 Bundang-ku, Seongnam-city, Kyungki-Do, Korea Test Site : Nemko Korea Co., Ltd. Attn : Mr. Bong-kyu, Kwon EMC site, Korea FCC ID Brand Name Contact Person FCC Rule Part(s): Part 15 & 2 Classification : FCC Class B Device EUT Type: Satellite Receiver The device bearing the Brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : C. S. Choi Reviewed By : H.H. Kim Engineer Manager & Chief Engineer O6ZSIR-TS160 SAMSUNG Humax Co., Ltd. Humax Venture tower 271-2, Seohyeon-dong, Bundang-ku, Seongnam-city, Kyungki-do,Korea Mr. Bong-kyu, Kwon Telephone No. : +82 31 600 6553 Test Report No.: NK2CE517 FCC Certification Humax Co., Ltd. FCC ID:O6ZSIR-TS160 Page 2 of 54 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) GENERAL TEST CONDITION DESCRIPTION OF TEST (Conducted Emissions) DESCRIPTION OF TEST (Radiated Emissions) DESCRIPTION OF TEST (Antenna-conducted Power Emissions) DESCRIPTION OF TEST (Output-conducted Level Emissions) DESCRIPTION OF TEST (Antenna Transfer Switch Emissions) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) TEST DATA (Antenna-conducted Power Emissions) TEST DATA (Output-conducted Level Emissions) TEST DATA (Antenna Transfer Switch Emissions) PLOT OF EMISSION SAMPLE CALCULATIONS ACCURACY of MEASUREMENT LIST of TEST EQUIPMENT RECOMMENDATION/CONCLUSION APPENDIX A - LABELLING REQUIREMENTS APPENDIX B - CIRCUIT DIAGRAM APPENDIX C - PHOTOGRAPHS of TEST SET-UP APPENDIX D - EUT PHOTOGRAPHS APPENDIX E - USER’S MANUAL APPENDIX F - SCHEMATIC DIAGRAM 3 4 5 6 7 8 9 10 11 12 13 16 17 18 28 29 30 31 32 33 34 38 53 54 Test Report No.: NK2CE517 FCC Certification Humax Co., Ltd. FCC ID:O6ZSIR-TS160 Page 3 of 54 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party* : Contact Person : Manufacturer : Humax Co., Ltd. Mr. Bong-kyu, Kwon Tel No.: +82 31 600 6553 Humax Co., Ltd. Humax venture tower 271-2, Seohyeon-dong, Bundang-ku, Seongnam-city, Kyungki-Do, Korea Tel: +82 31 600 6553 / Fax: +82 31 600 6549

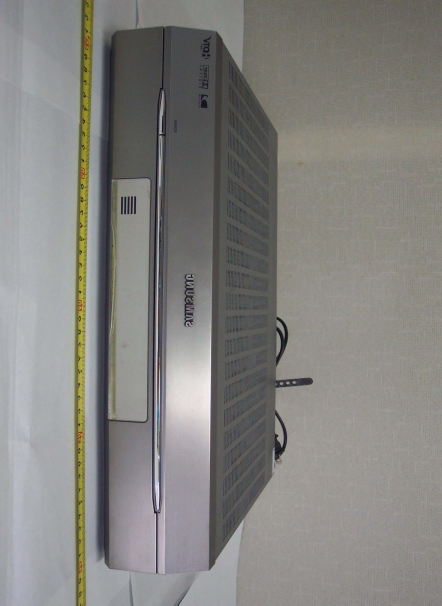

FCC ID: O6ZSIR-TS160
Model: SIR-TS160
Brand Name: Samsung
EUT Type: Satellite Receiver
Input Impedance:
Voltage:
Classification:
Rule Part(s):
Test Procedure(s):
Dates of Test:
Place of Tests:
Test Report No.: 75ohm unbalanced 120V AC 60Hz, 42W FCC Class B FCC Part 15 & Part 2 ANSI C63.4 (1992) July 18, 2002 to July 26, 2002 Nemko Korea Co., Ltd. EMC Site NK2CE517 * NOTE: Please refer to the duties and responsibilities of the Responsible Party attached. Test Report No.: NK2CE517 FCC Certification Humax Co., Ltd. FCC ID:O6ZSIR-TS160 Page 4 of 54 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from Humax Co., Ltd. FCC ID : O6ZSIR-TS160,Satellite Receiver. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation LTD. EMC Test Site is located in a mountain area at 50 kilometers (30 miles) southeast and Seoul International Airport (Kimpo Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of
2.948 according to ANSI C63.4 on October 19, 1992. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Kimpo Airport. Nemko Korea Co., Ltd. OPEN AREA TEST SITE 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2CE517 FCC Certification Humax Co., Ltd. FCC ID:O6ZSIR-TS160 Page 5 of 54 TEST CONDITIONS & EUT INFORMATION Operating During Test The receiver was tuned to the output frequency of color bar signal generator, with a pattern defined as 100/0/75/0 in the CCIR recommendation 471. Support Equipment Equipment Manufacturer Model Serial Number PC Intel Corp. BSG-200 BLS203810068 LCD Monitor Samsung RB15NS N136H1ERC00400 Modulator Conexant System CM2000 000442 RF Generator Doctor Design RF-100 N/A Keyboard MITSUMI KFK-EA4XT N/A Mouse H.P M-S48a LZE03050735 Simulator(ATSC) SENCORE HDTV996 N/A EUT Information Clock : 26.8MHz(X101), 4MHz(X102), 18.43MHz(X211) 8MHz(X601), 4.9152MHz(X701) Chipset(s) : BCM3510KPF(U109), STU0299B(U113) VPX3226E(U203), MSP3425G(U204), Port(s) : Air In, Satellite In, Video/Audio Out, Audio In, S-video Component Out, RGB Out, DVI/HDCP Out, Dolby Digital. T…

Text truncated - open the document above for the full version.
