O6ZSPECTRUM100-HSet top Box

HD Digital Receiver Quick Start Guide Spectrum100-H/ Spectrum200-H GB1 Notice Please read this quick start guide carefully to be able to safely install, use and maintain the product at maximum performance. Keep this quick start guide next to your product for future reference. The information in this quick start guide is subject to change without notice. Copyright Not to be copied, used or translated in part or whole without Time Warner Cable’s prior consent in writing except approval of ownership of copyright and copyright law. Meaning of Symbols To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. This symbol indicates dangerous voltage inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. Warnings, Cautions and Notes Throughout the whole manual, pay special attention to the following marks that indicate hazardous situations. Warning Indicates a hazardous situation which could result in serious injury Caution Indicates a situation which could damage the equipment or other apparatus Note Indicates additional information to make the user aware of possible problems and information of any importance to help understand, use and maintain the installation. Warranty The warranty does not cover parts which may become defective due to misuse of the information contained in this manual. ‘WEEE’ Instructions This product should not be disposed with other household wastes at the end of its working life. Please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. This will prevent possible harm to the environment or human health from uncontrolled waste disposal. Domestic users: Please contact either the retailer where you purchased this product or their local government office for details of where and how they can take this item for environmentally safe recycling. Business users: Contact your supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Trademarks Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDMI, the HDMI Logo, and High-Definition Multimedia interface are trademarks and registered trademarks of HDMI Licensing LLC. This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited. Notice GB2 For Your Safety Safety Instructions 1. POWER SUPPLY • Operate this product only from the type of power supply shown on the marking label. If you do not know the type of power supplied to your home, contact your local power company. • Disconnect the power supply before you start any maintenance or installation procedures. 2. OVERLOADING • Make sure that the wall outlet, extension cord and adapter have a sufficient power rating for the appliance. If not, this can cause an electric fire shock. 3. LIQUID • Do not expose this product to liquids. Do not put objects filled with liquid on the product. 4. CLEANING • Disconnect the product from the wall outlet before you clean it. • Use a moist cloth to clean the product. Do not use solvents. Wipe the surface gently with a soft cloth as it may get scratched. 5. VENTILATION • Make sure that the slots on top of the product are not blocked. It is necessary to have a sufficient airflow into the unit. • Do not put electronic equipment on the product. • Do not put objects on the product. This will block the ventilation or cause damage to the surface. 6. ATTACHMENTS • Do not use any unsupported attachments as these may be hazardous or cause damage to the product. 7. LIGHTNING, STORM OR NOT IN USE • Unplug the product from the wall outlet and disconnect the antenna during a thunderstorm or when left unattended and unused for long periods of time. This will prevent damage to the unit due to lightning and power-surges. 8. EXTRANEOUS OBJECTS • Do not insert anything through the openings in the unit, where they can touch dangerous voltage points or damage parts. 9. REPLACEMENT OF PARTS • When replacement of parts is required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part. Unauthorised substitution may result in additional damage to the unit. 10. CONNECTION TO THE SATELLITE DISH LNB/CABLE TV SIGNAL/AERIAL • Disconnect the power supply before you connect or disconnect the cable from the satellite dish/cable TV signal/aerial. If not, this can cause damage to the LNB/cable TV line/aerial. 11. CONNECTION TO THE TV • Disconnect the power supply before you connect or disconnect the cable from the TV. If not, this can cause damage to the TV. 12. EARTHING (satellite only) • Earth the LNB cable to the system earth for the satellite dish. 13. LOCATION • Place the product indoors to avoid exposure to lightning, rain or sun. Do not place it near a radiator or heat register. • Keep at least 10 cm clearance from any other appliances susceptible to electromagnetic influences such as a TV or a VCR. • If you place the product on a rack or a bookcase, make sure that there is adequate ventilation and that you have followed the manufacturer’s instructions for mounting. • Do not place the product on an unstable surface where it can fall. A falling product can cause serious injury to a personnel and serious damage to the appliance. 14. Environment • Attention should be drawn to the environmental aspects of battery disposal. • Care is required for the use of this apparatus in tropical and/or moderate climates. Cautions and Warnings 1. To avoid damage of the power cord or plug • Do not modify or process the power cord or plug arbitrarily. • Do not ben…

Text truncated - open the document above for the full version.

Humax Co., Ltd. HUMAX Village, 11-4, Sunae-dong, Bundang-gu Seongnam city, Gyeonggi-do South Korea 463-825 Date: Nov . 25, 2014 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: O6ZSPECTRUM100-H including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Humax Co., Ltd. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Inseok Seo Senior Engineer

Humax Co., Ltd. HUMAX Village, 11-4, Sunae-dong, Bundang-gu Seongnam city, Gyeonggi-do South Korea 463-825 Date: Nov. 25, 2014 Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA RE: Request of Confidentiality for FCC ID: O6ZSPECTRUM100-H To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Humax Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Humax Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Inseok Seo Senior Engineer

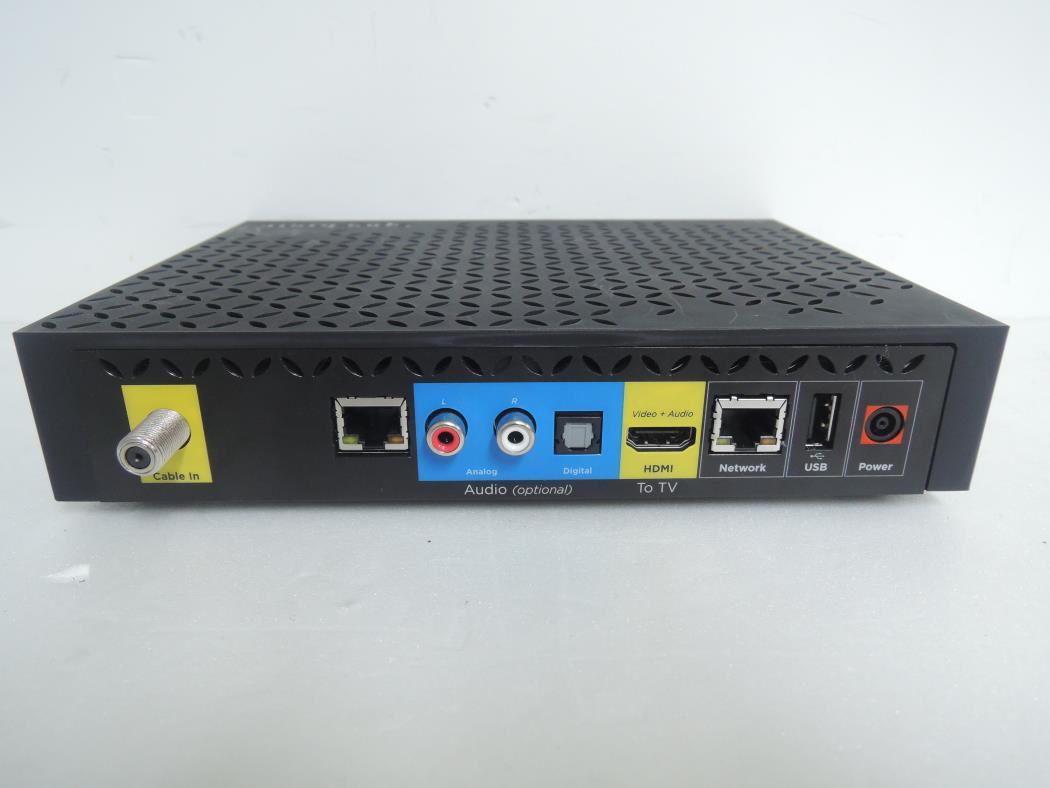

FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 3 / 3 View 3

FCC ID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Bottom of EUT - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label. - The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual.

FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 1 / 6 View 1 FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 2 / 6 View 2 FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 3 / 6 View 3 FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 4 / 6 View 4 FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 5 / 6 View 5 FCCID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Page 6 / 6 View 6

-~ - - ± &dBm ) - - The MPE calculation for this exposure is shown below. ▪=+- =+ == - ▪S=- = = MHz MPE Calculations : (Zigbee) Humax Co., Ltd. FCCID: O6ZSPECTRUM100-H Frequency range : 2425 MHz2475 dBm Min. Measured RF output power :dBm Target Power & Tolerance :dBm 2.67 3.0012 Maximum antenna peak gain :dBi Maximum output power for the calculation : 4.00 dBm dB ( Max. 4.40 4 The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the EIRPPGNote 4.00 dBm4.40 dBiP = Power input to the antenna(dBm) 8.40 dBm6.919 mWG = Power gain of the antenna(dBi) Power density at the specific separation EIRP / ( 4 R 2 π ) Note 6.919 / ( 4 X 20 2 X π )S = Maximum power dencity(mW/cm 2 ) The maximum permissible exposure(MPE) of the general population/Uncontrolled for this device is 1.0 mW/cm 2 . 0.001377 mW/cm 2 EIRP = Equivalent Isotropic Radiated Power(mW) R = Distance to the center of the radiation of the antenna(20cm) Conclusion : The exposure condition of this device is compliant with FCC rules. TRF-RF-206(01)140415

Antenna Pattern & Gain Report Model Name VerHorTotalVerHorTotal -3.7 dBi-6.2 dBi-1.7 dBi3.1 dBi1.9 dBi3.7 dBi -3.6 dBi-6.3 dBi-1.7 dBi3.4 dBi1.9 dBi3.8 dBi -3.3 dBi-6.0 dBi-1.5 dBi4.1 dBi2.0 dBi4.3 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi Company Name Airlink 2014-11-05 오전 11:22:52 100 Hz 0.00 dBm 15 ` Filename 5.48 dB 5.76 dB Theta75/Pie90 Theta75/Pie90 67.6 % 71.5 % 67.1 % 2,450,000,000 Hz 2,475,000,000 Hz 2,425,000,000 Hz Manufacturer Tester Name Test Date IF BW Port Power Theta75/Pie90 Meas Step Max Gain 5.45 dB Frequency EfficiencyDirectivityMax Position Average Gain Photo -20.0 dBi -15.0 dBi -10.0 dBi -5.0 dBi 0.0 dBi 5.0 dBi 10.0 dBi 123456789101112131415161718192021222324 Ver. -3.7 -3.6 -3.3 -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. Hor. -6.2 -6.3 -6.0 -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. Total -1.7 -1.7 -1.5 -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. Antenna Pattern & Gain Report Model Name VerHorTotalVerHorTotal -5.0 dBi-5.3 dBi-2.1 dBi1.9 dBi2.3 dBi3.4 dBi -4.7 dBi-4.9 dBi-1.8 dBi1.7 dBi2.7 dBi4.0 dBi -4.6 dBi-5.2 dBi-1.9 dBi1.5 dBi2.4 dBi4.4 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi -20.0 dBi Average Gain Theta45/Pie150 Meas Step Max Gain Company Name Airlink 5.50 dB Frequency EfficiencyDirectivityMax Position 2,425,000,000 Hz Manufacturer Tester Name Test Date IF BW Port Power 2,450,000,000 Hz 2,475,000,000 Hz 65.8 % 65.0 % 61.3 % Theta45/Pie135 Theta45/Pie135 5.85 dB 6.28 dB Filename 2014-11-05 오전 11:25:31 100 Hz 0.00 dBm 15 ` Photo -20.0 dBi -15.0 dBi -10.0 dBi -5.0 dBi 0.0 dBi 5.0 dBi 10.0 dBi 123456789101112131415161718192021222324 Ver. -5.0 -4.7 -4.6 -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. Hor. -5.3 -4.9 -5.2 -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. Total -2.1 -1.8 -1.9 -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20. -20.

FCCID: O6ZSPECTRUM100-H DTNC1411-04757 Report No.: DRTFCC1411-1512(1) TRF-RF226(00)140710 Page 2 / 46 Copyright ○ C 2014, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1411-1512 Nov. 27, 2014 Initial issue DRTFCC1411-1512(1) Dec. 05, 2014 Conducted emission re-test FCCID: O6ZSPECTRUM100-H DTNC1411-04757 Report No.: DRTFCC1411-1512(1) TRF-RF226(00)140710 Page 3 / 46 Copyright ○ C 2014, DT&C Co., Ltd. Table of Contents 1. EUT DESCRIPTION ................................................................... 4 2. SUMMARY OF TESTS ............................................................... 5 3. TEST METHODOLOGY ............................................................. 6 3.1 EUT Configuration ............................................................................................ 6 3.2 EUT Exercise ..................................................................................................... 6 3.3 General Test Procedures ................................................................................. 6 3.4 Description of Test Modes ............................................................................... 6 4. INSTRUMENT CALIBRATION ................................................... 7 5. FACILITIES AND ACCREDITATIONS ........................................ 7 5.1 Facilities ............................................................................................................ 7 5.2 Equipment ......................................................................................................... 7 6. ANTENNA REQUIREMENTS ..................................................... 7 7. TEST RESULT ........................................................................... 8 7.1 6dB Bandwidth ................................................................................................. 8 7.2 Maximum Peak Conducted Output Power .................................................... 12 7.3 Maximum Power Spectral Density. ................................................................ 16 7.4 Out of Band Emissions in non-restricted frequency band .......................... 20 7.5 Out of Band Emissions in restricted frequency band .................................. 33 7.6 AC Power-line Conducted Emissions ........................................................... 37 7.7 Occupied Bandwidth ...................................................................................... 42 8. LIST OF TEST EQUIPMENT .................................................... 43 APPENDIX I ................................................................................. 44 APPENDIX II ................................................................................ 45 FCCID: O6ZSPECTRUM100-H DTNC1411-04757 Report No.: DRTFCC1411-1512(1) TRF-RF226(00)140710 Page 4 / 46 Copyright ○ C 2014, DT&C Co., Ltd. 1. EUT DESCRIPTION Product Set top Box Model Name Spectrum100-H Power Supply DC 12 V Frequency Range 2425 ~ 2475 MHz(3 channels) Modulation Type ZIGBEE Antenna Specification Antenna Type: Internal Antenna Antenna gain ▪ Antenna 0 Gain: 4.3 dBi(PK) ▪ Antenna 1 Gain: 4.4 dBi(PK) Antenna configuration ▪ ZIGBEE : Single Transmitting (ANT 1 or ANT 2) Adapter Information Model : EADP-40MB A Input : 100-240 V ~ 1.2 A , 50-60 Hz Output : 12 V , 3 A S/N : HFHD49U006L FCCID: O6ZSPECTRUM100-H DTNC1411-04757 Report No.: DRTFCC1411-1512(1) TRF-RF226(00)140710 Page 5 / 46 Copyright ○ C 2014, DT&C Co., Ltd. 2. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20dBc in any 100kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power Spectral Density < 8dBm / 3kHz C - RSS Gen [6.6] Occupied Bandwidth (99%) RSS-Gen NA 15.205 15.209 RSS-210 [A8.5] General Field Strength Limits (Restricted Bands and Radiated Emission Limits) < FCC 15.209 limits Radiated C Note2 15.207 RSS-Gen [8.8] AC Conducted Emissions < FCC 15.207 limits AC Line Conducted C 15.203 - Antenna Requirements FCC 15.203 - C Note 1: C=Comply NC=Not Comply NT=Not Tested NA=Not Applicable Note 2: This test item was performed in each axis and the worst case data was reported. FCCID: O6ZSPECTRUM100-H DTNC1411-04757 Report No.: DRTFCC1411-1512(1) TRF-RF226(00)140710 Page 6 / 46 Copyright ○ C 2014, DT&C Co., Ltd. 3. TEST METHODOLOGY Generally the tests were performed according to the KDB558074 v03r02. And ANSI C63.10-2009 was used to reference appropriate EUT setup and maximizing procedures of radiated spurious emission and AC line conducted emission testing. 3.1 EUT Configuration The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT Exercise The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements of the Section 15.207, 15.209 and 15.247 under the FCC Rules Part 15 Subpart C. 3.3 General Test Procedures Conducted Emissions According to the requirements in Section 6.2 of ANSI C63.10, the EUT is placed on the turntable, which is 0.8 m above ground plane and the conducted emissions from the EUT are measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and Average detector. Radiated Emissions The EUT is placed on a turntable, which is 0.8 m above ground plane. The turntable shall rotate360 degrees to determine the position of maximum emission level. EUT is set 3 m away from the receiving antenna, which varied from 1 m to 4 m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of receiving antenna both…

Text truncated - open the document above for the full version.

FCC ID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCC ID: O6ZSPECTRUM100-H Copyright Ⓒ 2014, DT&C Co., Ltd. Test Setup Photo for AC Conducted Emissions
