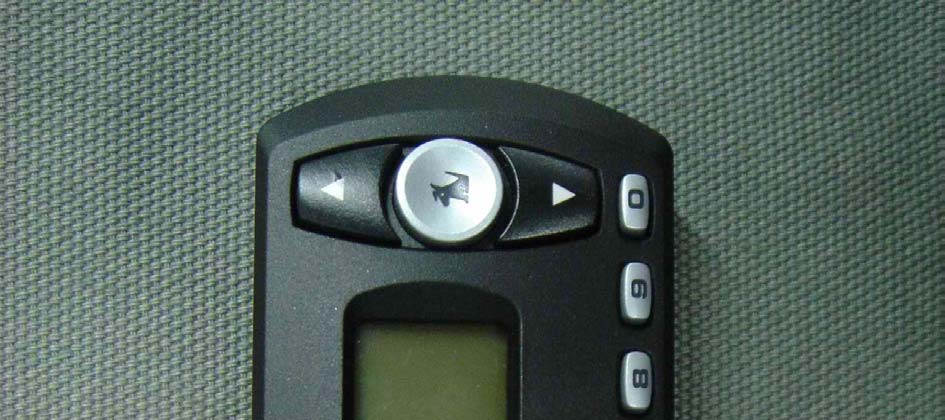

O6ZSV2Satellite Radio Receiver w/ FM Transmitter

Satellite Radio Plug-n-Play Receiver SIRIUS InV SV2 User Guide Congratulations on the Purchase of your new SIRIUS InV SV2 Plug- n-Play Receiver Your new SIRIUS InV SV2 Plug-n-Play Receiver lets you enjoy SIRIUS ® Satellite Radio’s digital entertainment in any vehicle. Use this manual to familiarize yourself with all of the InV’s’ features and capabilities. For the latest information about this and other SIRIUS products and accessories, visit http://www. sirius.com. [ Table of Contents ]  Table of Contents Table of ConTenTS 2 WaRnIng and SafeTy InfoRmaTIon 4 FCC Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Canadian Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 CoPyRIghTS & TRademaRkS 7 PaCkage ConTenTS 8 InSTallaTIon 9 Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Mounting the Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 13 Maximizing Audio Quality From Your SIRIUS Receiver . . . . . . . . . . . . . . . 14 Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Direct Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 18 ConTRolS 20 SIRIUS InV SV2 Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . 20 oPeRaTIon 22 Display Screen Information . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Changing Channels and Categories . . . . . . . . . . . . . . . . . . . . . . . . 23 Selecting Channels Directly . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 FM Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Jump Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Channel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 menU oPTIonS 28 SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 FM Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Audio Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 [ Table of Contents ]  Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Jump Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Channel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Factory Default . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 TRoUbleShooTIng 39 SPeCIfICaTIonS 40 WaRRanTy 41 SIRIUS Id 42 [ Warning and Safety Information ]  Warning and Safety Information FCC Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must not accept any interference received, including interference that may cause undesired operation. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canadian Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. General Precautions liquid Crystal Precautions If the LCD screen on the receiver is damaged, do not to touch the liquid crystal fluid. If any of the following situations happen, take the action indicated: 1. 2. [ Warning and Safety Information ]  If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth and then wash the skin thoroughly with soap and running water. If the liquid crystal fluid gets into your eye, flush the eye with clean water for at least 15 minutes. Seek medical care. If the liquid crystal fluid is ingested, flush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Seek medical care. Safety Precautions Be sure to observe the following warnings. Failure to follow these safety instructions and warnings may result in a serious accident. Do not operate the receiver in a way that might divert your attention from driving safely. As a driver, you alone are responsible for safely operating your vehicle in accordance with traffic safety laws at all times. Do not install the unit where it may obstruct your view through the windshield, or of your vehicle’s indicator displays. Do not install the unit where it may hinder the function of safety devices such as an airbag. Doing so may prevent the airbag from functioning properly in the event of an accident. Be sure the unit is installed as described in the installation instructions which accompany each accessory kit. SIRIUS Satellite Radio is not responsible for issues arising from instal- lations which were not installed according to the instructions. To avoid short circuits, do not open the unit, and never put or leave any metallic objects (coins, tools, etc.) inside the unit. If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect the unit from any power source. Do not drop the unit or subject it to strong shocks. If the unit doesn’t seem to be working properly, turn the unit off, remove the battery from the unit, wait 10 seconds, replace the battery and then turn it on again. The installation and use suggestions contained in this manual are subject to any restric- tions or limitations that may be imposed by applicable law. The purchaser should check appli…

Text truncated - open the document above for the full version.

HUMAX CO., LTD. Humax Bldg., 212-1, Yubang-Dong, Yongin-Si, Gyeonggi-Do, 449-080, Korea Tel: +82-31-600-6362, Fax: +82-31-600-6396 Power of Attorney Date: August 01, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize ONETECH Corp., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ONETECH Corp., as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, __________________________ Mr. Jung-Jae, Chio / Engineering Manager HUMAX Co., Ltd. Tel: +82-31-600-6362 Fax: +82-31-600-6396 E-Mail: [email protected]

#505 SK Apt. Factory, 223-28 Sangdaewon1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-705 Korea [TEL]031-746-8500 [FAX]031-746-8700 CBTL -002 (Rev. 2) KOLAS www.onetech.co.k r Date : 2006. 10. 23 Ref. No : To : Application Examiner / Reviewing Engineer FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 CC : Subject : Request for confidentiality per Section 0.459 of FCC Rules Applicant: Humax Co., Ltd., FCC ID: O6ZSV2 To whom it may concern, Request is hereby submitted, on behalf of my client, Humax Co., Ltd., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Block Diagram Operational Description Rationale for request for confidentiality: Humax Co., Ltd., has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Chief Engineer Onetech Corp. Email: [email protected]

Helen Zhao Sent: Monday, October 23, 2006 11:05 PM Subject: FW: HUMAX CO., LTD., FCC ID: O6ZSV2, Assessment NO.: AN06T6251, Notice#1 10/24/2006 Dear Helen, Thank you for your prompt cooperation. 1) I just received new schematic diagram from the Humax. The file size is more than 4 MB, so I divided into 2 files. I will send to you in two mails. 2) Attached please find a revised test report. Best Regards, Y. G. Gwon -----Original Message----- Sent: Monday, October 23, 2006 2:33 PM Subject: HUMAX CO., LTD., FCC ID: O6ZSV2, Assessment NO.: AN06T6251, Notice#1 Question #1: Please send a clear version of the schematics. Quesiton #2: The test report shows the field strength of fundamenal emission (Horizontal) is 38.89dBuV/m at 107.9MHz, but the spurious emission (Horizontal) is 39.95dBuV/m at 545.60MHz. Based on FCC 15.215(b), "In no case shall the level of the unwanted emissions from an intentional radiator operating under these additional provisions exceed the field strength of the fundamental emission." Please address this non-incompliance issue. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

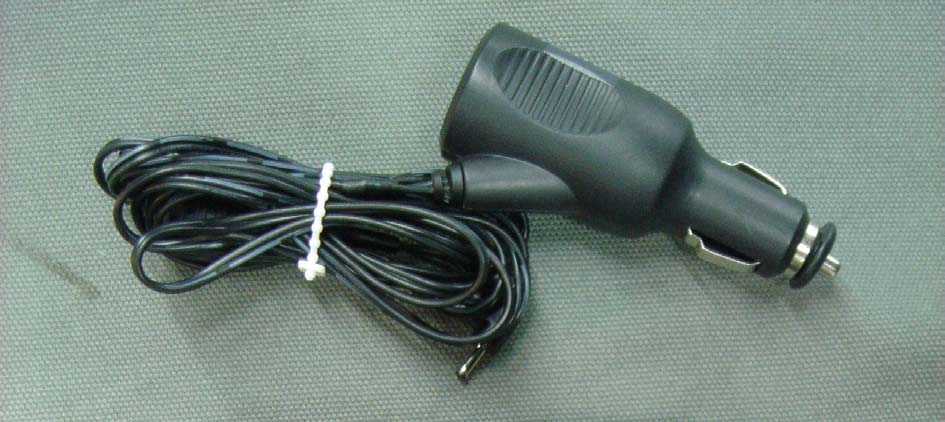

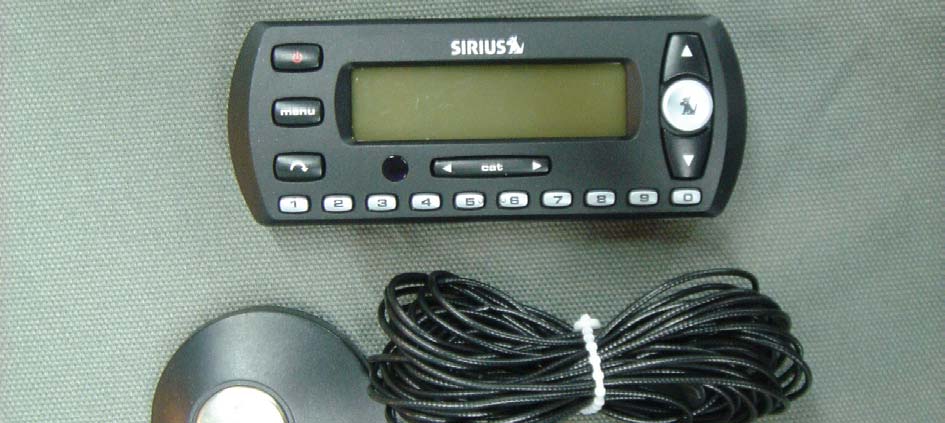

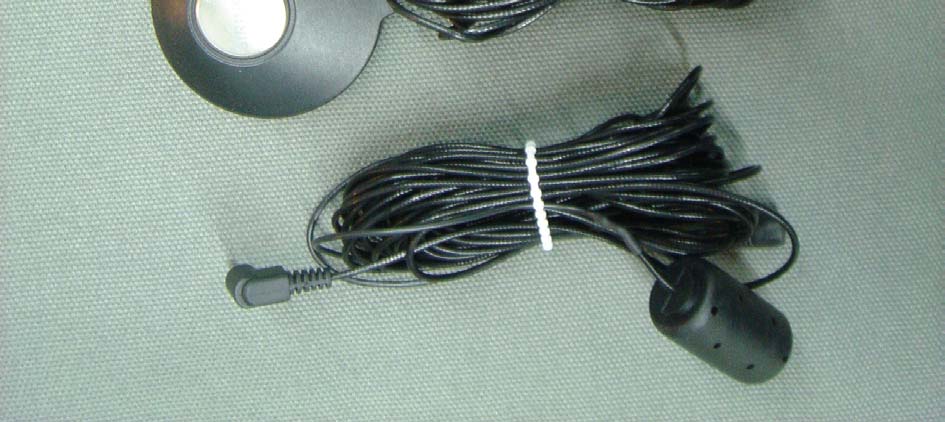

#505 SK Apt. Factory, 223-28 Sangdaewon1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-705 Korea [TEL]+82-31-746-8500 [FAX]+82-31-746-8700 CBTL 전사-002 (Rev. 2) KOLAS www.onetech.co.kr October 23, 2006 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner / Reviewing Engineer Re: Confirmation Letter for FM Transmitter Applicant: Humax Co., Ltd. FCC ID: O6ZSV2 To whom it may concern, We, Onetech Corp., would like to answer following questions for requesting by the TCB, Compliance Certification Services Inc on behalf of our customer, Humax Co., Ltd. 1. How does this device operate? <Answer> The SV2 is a satellite receiver that consists of the following individual pieces and used in a car. 1) Satellite radio with internal FM modulator, 2) DC power adapter, 3) External remote radiating antenna, 4) Satellite Antenna. 2. Provide information on the device and its antenna <Answer> This device has an FM modulator, internal antenna and external remote antenna. In the SV2 the modulator is contained in the satellite receiver with the internal antenna mounted in the radio. The satellite radio receives the satellite signal from the satellite antenna, decodes the audio signal to base band and couples it to the FM modulator contained in the SV2 receiver. The output of the FM modulator is coupled to either the internal antenna or the external remote antenna depending on the user’s preference. If performance is satisfactory with the internal antenna, then it is expected that the customer would not install the external remote antenna. The internal antenna is a short vertical monopole arrangement. The external remote antenna is a length of coax cable with the last 15 inches having the shield braid removed. At the end point of the braid, a ferrite bead is added with the cable looped three times. 3. How is it installed? <Answer> The unit is installed with the radio mounted in a manner that avoids blocking the view of the road by the driver. The internal antenna will normally be activated at this time and the customer will locate and tune the satellite radio to output its signal on an unused FM channel in his locale. After determining the appropriate channel, the user will tune his car radio to the same channel. If performance is not satisfactory the user is instructed to mount the external remote antenna adjacent to the window glass antenna if the vehicle has one or as close as possible to the vertical whip antenna or shark fin antenna whichever is applicable. After mounting the remote antenna it is plugged into the FM output port which automatically decouples any internal antenna. 4. What test procedure was used? <Answer> ANSI C 63.4. #505 SK Apt. Factory, 223-28 Sangdaewon1-Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do 462-705 Korea [TEL]+82-31-746-8500 [FAX]+82-31-746-8700 CBTL 전사-002 (Rev. 2) KOLAS www.onetech.co.kr 5. If tested in a car, how was it configured/tested? <Answer> The external remote antenna was attached as a function of the FM auto antenna arrangement. If a window glass antenna is used the remote antenna is placed adjacent to it and along it's length and attached with the adhesive fixtures provided. If a fender mount antenna is used, the remote antenna is placed vertically along the roof support column nearest the car antenna. If a shark fin antenna is used, the remote antenna is placed on the window glass as close as possible to the shark fin antenna. Measurements were made at a distance of 3 meters from the auto on a minimum of 8 equally spaced radials around the vehicle. All measurements were made at a firm with a description of their facilities filed with the FCC pursuant to Section 2.948 of the FCC rules. 6. Was the tuning range properly verified? <Answer> Yes, the low channel is 88.1MHz, and the highest channel is 107.9 MHz. Please refer to the statement and test data on page 15 and 16 of the test report. 7. Was the bandwidth properly tested with maximum audio input? <Answer> Yes, the device does not have audio input port, so internal 1 kHz was used for the testing and the EUT was transmitted with maximum audio level. If you have questions or need further information, please contact the undersigned. Sincerely, Y.K. Kwon / Director Onetech Corp.

FCC ID. : O6ZSV2 Page 1 of 3 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : O6ZSV2 Page 2 of 3 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : O6ZSV2 Page 3 of 3 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

FCC ID. : O6ZSV2 Page 1 of 1 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. EMC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 307-51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The FCC ID shall be permanently affixed to the rear side of the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : O6ZSV2 FCC ID AREA

FCC ID. : O6ZSV2 Page 1 of 5 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : O6ZSV2 Page 2 of 5 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : O6ZSV2 Page 3 of 5 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : O6ZSV2 Page 4 of 5 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) FCC ID. : O6ZSV2 Page 5 of 5 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904)

SIRIUS SATELLITE RADIO REMOTE RADIATOR VEHICLE TESTING UNIVERSITY OF MICHIGAN Model SV-2 September27, 2006 DISCUSSION OF TESTING AND RESULTS Satellite radio products function to receive satellite radio channels, decode the modulation on the satellite signal and modulate the recovered base band signal onto a carrier in the FM radio band for reception by the FM radio in the vehicle. The remote radiator concept provides for better coupling to the car radio of the modulated FM signal from the satellite receiver. These tests were implemented to gather data on a remote radiator configuration with Sirius Satellite radio products. The data was taken on 8 radials with 3 different vehicles at a distance of 3 meters from the closest point of the vehicle. In situ testing was performed for three vehicles based on the following vehicle sizes; small, medium, and large. The selected vehicles were: Chrysler 300, Mercedes ML 320, and a Honda Accord. The above vehicles have window mount antennas and the remote antenna was located adjacent to the window antenna in each case. Three frequencies in the FM band were measured; one near the low end (88 MHz), middle, (98 MHz) and high end (108 MHz) of the band in both horizontal and vertical polarizations. The results show that the remote radiator produces levels are about 14 dB or more below the FCC Section 15.239 limits when measured 3 meters from the perimeter of the vehicle. In the tables that follow, Kg is the correction factor for preamp gain and cable loss and Ka is the antenna factor for the measurement antenna. Below is a diagram of the radial arrangement for measurements as laid out on the test site showing their position relative to the vehicle position. Measurement were made using an antenna and mast moved to each marked location. Antenna height was varied from 1 to 4 meters at each location. 90 270 Vehicle 45 135 225 315 TEST SITE Front Rear 0 180 Chrysler 300 w/ Rear Glass Antenna Mercedes ML320 w/ Rear Glass Antenna Honda Accord w/ Rear Glass Antenna TEST SITE PHOTOS

FCC ID. : O6ZSV2 Page 1 of 18 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) ELECTROMAGNETIC EMISSION C OMPLIANCE REPORT FOR LOW POWER, NON-LICENSED TRANSMITTER Test Report No. : E069R-004 AGR No. : A069A-003 Applicant : Humax Co., Ltd. Address : Humax Building, 212-1, Yubang-Dong, Yongin-City, Gyunggi-Do, 449-080, Korea Manufacturer : Humax Co., Ltd. Address : Humax Building, 212-1, Yubang-Dong, Yongin-City, Gyunggi-Do, 449-080, Korea Type of Equipment : SATELLITE RADIO RECIVER (FM Transmitter) FCC ID. : O6ZSV2 Model Name : SV2 Serial number : N/A Total page of Report : 18 pages (including this page) Date of Incoming : August 30, 2006 Date of Issuing : September 12, 2006 SUMMARY The equipment complies with the regulation of FCC CRF 47 PART 15, SUBPART C, SECTION 15.239. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass-production. Prepared by: Reviewed by: Young-Min, Choi / Senior Engineer Y. K. Kwon / Director EMC Div. EMC Div. ONETECH Corp. ONETECH Corp. FCC ID. : O6ZSV2 Page 2 of 18 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-002 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 3 0 7 -51 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE .............................................................................................................................3 2. GENERAL INFORMATION............................................................................................................................................4 2.1 PRODUCT DESCRIPTION.................................................................................................................................................4 2.2 MODEL DIFFERENCES....................................................................................................................................................4 2.3 RELATED SUBMITTAL(S) / GRANT(S)............................................................................................................................4 2.4 TEST SYSTEM DETAILS..................................................................................................................................................4 2.5 TEST METHODOLOGY....................................................................................................................................................4 2.6 TEST FACILITY...............................................................................................................................................................4 3. SYSTEM TEST CONFIGURATION...............................................................................................................................5 3.1 JUSTIFICATION...............................................................................................................................................................5 3.2 EUT EXERCISE SOFTWARE............................................................................................................................................5 3.3 CABLE DESCRIPTION.....................................................................................................................................................5 3.4 NOISE SUPPRESSION PARTS ON CABLE.........................................................................................................................5 3.5 EQUIPMENT MODIFICATIONS........................................................................................................................................5 3.6 CONFIGURATION OF TEST SYSTEM...............................................................................................................................6 3.7 ANTENNA REQUIREMENT..............................................................................................................................................6 4. PRELIMINARY TEST ......................................................................................................................................................7 4.1 AC POWER LINE CONDUCTED EMISSION TEST............................................................................................................7 4.2 RADIATED EMISSION TEST............................................................................................................................................7 5. FINAL RESULT OF MEASURMENT ............................................................................................................................8 5.1 RADIATED EMISSION TEST (WITHIN THE PERMITTED 200 KHZ BAND).......................................................................8 5.1.1 TEST DATA WITH EXTERNAL FM TRANSMITTING ANTENNA....................................................................................8 5.1.2 TEST DATA WITHOUT EXTERNAL FM TRANSMITTING ANTENNA.............................................................................9 5.2 RADIATED EMISSION TEST (OUTSIDE OF THE SPECIFIED 200 KHZ BAND).................................................................10 5.2.1 TEST DATA WITH EXTERNAL FM TRANSMITTING ANTENNA.................................................................................10 5.2.2 TEST DATA WITHOUT EXTE…

Text truncated - open the document above for the full version.

FCC ID. : O6ZSV2 Page 1 of 4 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Radiated Emission Test(configuration 1 + configuration A) FCC ID. : O6ZSV2 Page 2 of 4 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing Dept : 426-1 Daessangryung-Ri, Chowol-Eup, Kwangju-City, Kyunggi-Do, 464-860, Korea. (TEL: +82-31-765-8289, FAX: +82-31-766-2904) Radiated Emission Test(configuration 2 + configuration A) FCC ID. : O6ZSV2 Page 3 of 4 Report No. : E069R-004 It should not be reproduced except in full, without the written approval of ONETECH. FCC-003 (Rev.0) HEAD OFFICE : #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-705, Korea (TEL: +82-31-746-8500, FAX: +82-31-746-8700) EMC Testing…

Text truncated - open the document above for the full version.
